◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11310 - FRR(MIDDLE EAST) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-11 - CYLINDER HEAD ▶
0-11 — CYLINDER HEAD (#21940) — 73 parça

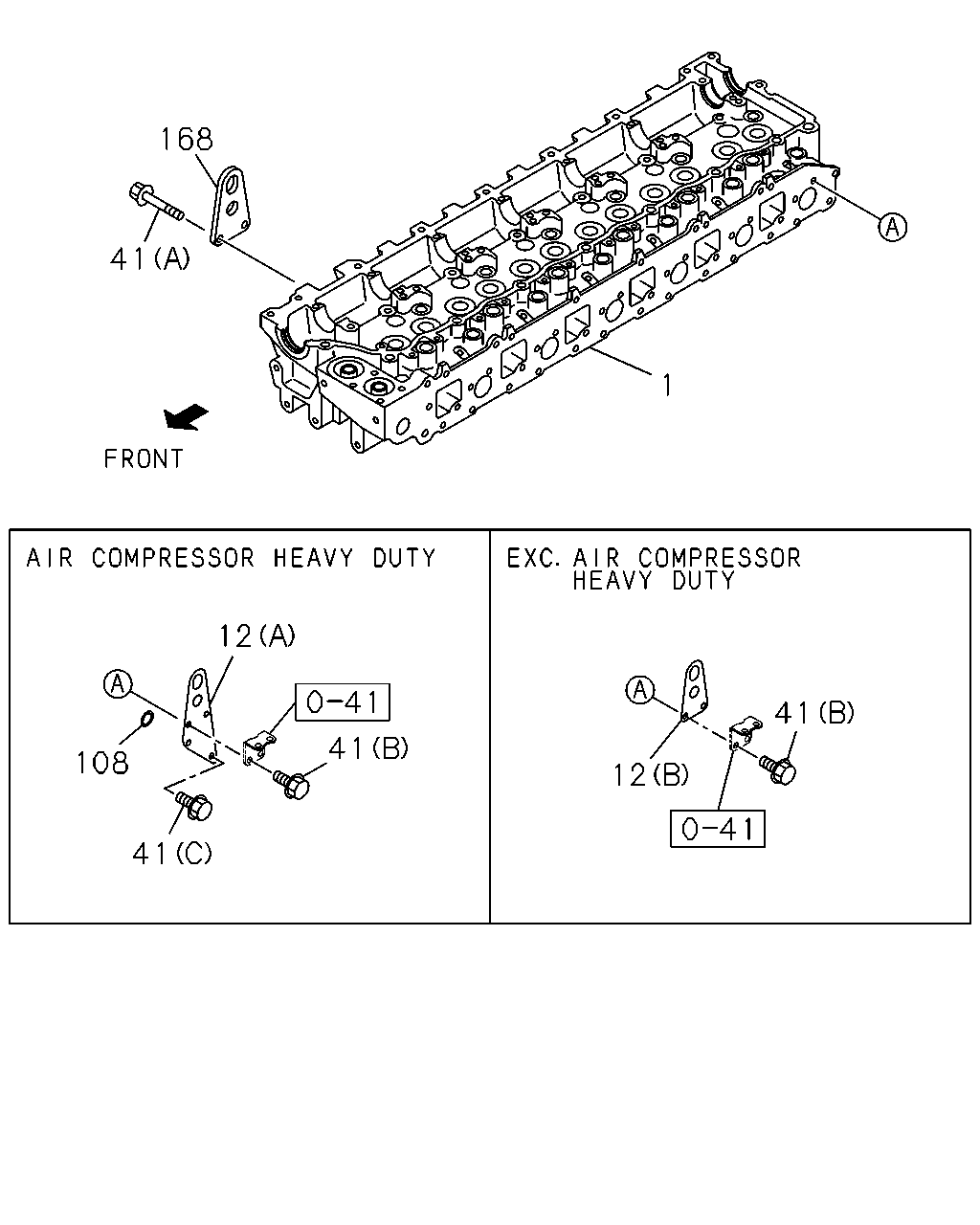

çizim 15899
168 41 1 12 41 41 108 12 41
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEAD ASM; CYL 8-94393-375-2 01 1 9510-9608 ●
1 HEAD ASM; CYL 8-94390-082-2 01 1 9609-0102 ●
1 HEAD ASM; CYL 8-94390-082-3 01 1 0103-0210 ● ●
12 HANGER; ENG,RR
AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		8-94399-405-0 01 1 9510-0102 ●
12 HANGER; ENG,RR
AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		8-94399-405-0 01 1 0103-0210 ● ●
12 HANGER; ENG,RR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		8-94399-404-2 01 1 9510-0102 ●
12 HANGER; ENG,RR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		8-94399-404-2 01 1 0103-0210 ● ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28181-020-0 02 1 9510-0102 ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28181-020-0 02 1 0103-0210 ● ●
41 BOLT; ENG HANGER
(B) M12X28 FLANGE 		0-28181-228-0 02 1 9510-0102 ●
41 BOLT; ENG HANGER
(B) M12X28 FLANGE 		0-28181-228-0 02 1 0103-0210 ● ●
41 BOLT; ENG HANGER
AIR COMPRESSOR HEAVY DUTY(E1Q) (C) M12X22 FLANGE 		0-28181-222-0 01 1 9510-0102 ●
41 BOLT; ENG HANGER
AIR COMPRESSOR HEAVY DUTY(E1Q) (C) M12X22 FLANGE 		0-28181-222-0 01 1 0103-0210 ● ●
108 GASKET; HANGER,RR
AIR COMPRESSOR HEAVY DUTY(E1Q) ID=35.2 		1-09623-375-0 01 1 9510-0102 ●
108 GASKET; HANGER,RR
AIR COMPRESSOR HEAVY DUTY(E1Q) ID=35.2 		1-09623-375-0 01 1 0103-0210 ● ●
168 HANGER; ENG,FRT 8-94399-403-0 01 1 9510-0102 ●
168 HANGER; ENG,FRT 8-94399-403-0 01 1 0103-0210 ● ●

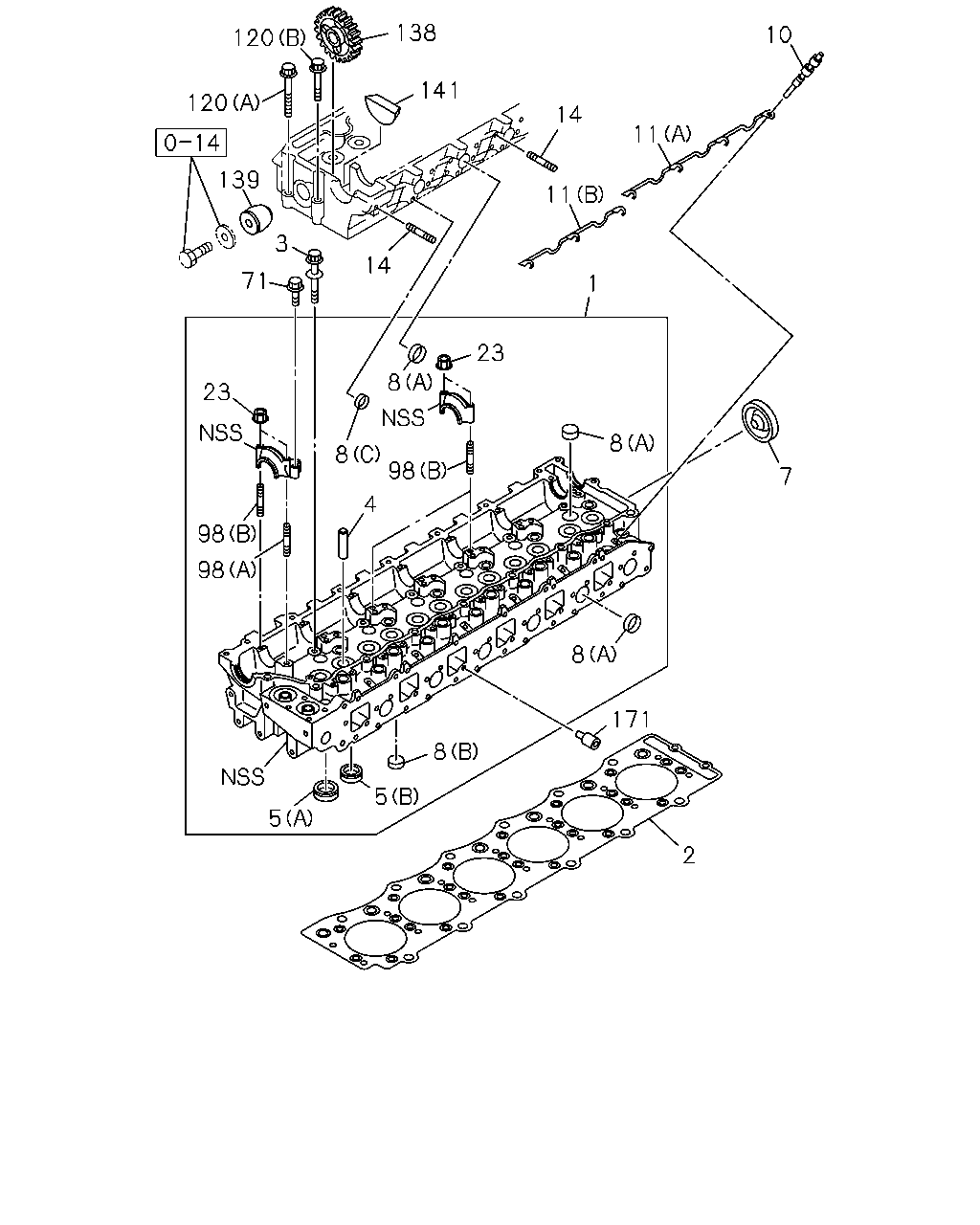

çizim 63552
138 10 120 141 120 14 11 139 11 3 14 71 1 23 8 23 8 8 98 7 4 98 98 8 171 8 5 5 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEAD ASM; CYL 8-94393-375-2 01 1 9510-9608 ●
1 HEAD ASM; CYL 8-94390-082-2 01 1 9609-0102 ●
1 HEAD ASM; CYL 8-94390-082-3 01 1 0103-0210 ● ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94393-346-1 01 1 9510-0102 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94393-346-2 01 1 0103-0210 ● ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-94396-207-3 26 1 9510-0102 ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-94396-207-3 26 1 0103-0210 ● ●
4 GUIDE; VLV 8-94396-598-0 12 1 9510-0102 ●
4 GUIDE; VLV 8-94396-598-0 12 1 0103-0210 ● ●
5 SEAT; VLV INSERT
(B) INLET OD=52 		8-94394-127-0 06 1 9510-0102 ●
5 SEAT; VLV INSERT
(B) INLET OD=52 		8-94394-127-0 06 1 0103-0210 ● ●
5 SEAT; VLV INSERT
(A) EXHAUST OD=43 		8-94396-172-0 06 1 9510-0102 ●
5 SEAT; VLV INSERT
(A) EXHAUST OD=43 		8-94396-172-0 06 1 0103-0210 ● ●
7 CUP; SEALING,CYL HEAD
OD=51 		8-94396-229-0 01 1 9510-0102 ●
7 CUP; SEALING,CYL HEAD
OD=51 		8-94396-229-0 01 1 0103-0210 ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-1 17 1 9510-0102 ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-1 17 1 0103-0210 ● ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 03 1 9510-0102 ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 03 1 0103-0210 ● ●
8 CUP; SEALING,WATER JACKET
(C) OD=12.3 		5-09600-013-0 06 1 9510-0102 ●
8 CUP; SEALING,WATER JACKET
(C) OD=12.3 		5-09600-013-0 06 1 0103-0210 ● ●
8 CUP; SEALING,WATER JACKET
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) OD=32 		1-09600-012-1 01 1 9510-0102 ●
8 CUP; SEALING,WATER JACKET
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) OD=32 		1-09600-012-1 01 1 0103-0210 ● ●
10 PLUG; GLOW 9-82513-928-9 06 1 9510-9809 ●
10 PLUG; GLOW 1-82513-043-0 06 1 9810-0102 ●
10 PLUG; GLOW 1-82513-043-1 06 1 0103-0210 ● ●
11 CONNECTOR; GLOW PLUG
(A) 		8-94399-608-2 01 1 9510-0102 ●
11 CONNECTOR; GLOW PLUG
(A) 		8-94399-608-2 01 1 0103-0206 ● ●
11 CONNECTOR; GLOW PLUG
(A) 		8-97136-565-0 01 1 0207-0210 ● ●
11 CONNECTOR; GLOW PLUG
(B) 		8-94399-631-2 01 1 9510-0102 ●
11 CONNECTOR; GLOW PLUG
(B) 		8-94399-631-3 01 1 0103-0210 ● ●
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 12 1 9510-0102 ●
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 12 1 0103-0210 ● ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 14 1 9510-9608 ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 08 1 9609-0102 ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 08 1 0103-0210 ● ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28080-835-0 02 1 9510-0102 ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28080-835-0 02 1 0103-0210 ● ●
98 STUD; CAM BRKT
(A) M8X54 L=79 		8-94322-512-2 02 1 9510-0102 ●
98 STUD; CAM BRKT
(A) M8X54 L=79 		8-94322-512-2 02 1 0103-0210 ● ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 12 1 9510-9608 ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 06 1 9609-0102 ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 06 1 0103-0210 ● ●
120 BOLT; CYL HD TO HSG
(A) M10X73 		8-94399-554-0 01 1 9510-0102 ●
120 BOLT; CYL HD TO HSG
(A) M10X73 		8-94399-554-0 01 1 0103-0210 ● ●
120 BOLT; CYL HD TO HSG
(B) M10X43 		8-94399-555-0 01 1 9510-0102 ●
120 BOLT; CYL HD TO HSG
(B) M10X43 		8-94399-555-0 01 1 0103-0210 ● ●
138 GEAR; IDLE
Z=41 		8-97112-607-0 01 1 9510-0102 ●
138 GEAR; IDLE
Z=41 		8-97112-607-0 01 1 0103-0210 ● ●
139 SHAFT; IDLE GEAR 8-97065-555-1 01 1 9510-9711 ●
139 SHAFT; IDLE GEAR 8-97186-398-0 01 1 9712-0102 ●
139 SHAFT; IDLE GEAR 8-97186-398-0 01 1 0103-0210 ● ●
141 PLUG; RUBBER,CYL HD 8-94399-605-0 02 1 9510-0102 ●
141 PLUG; RUBBER,CYL HD 8-94399-605-0 02 1 0103-0210 ● ●
171 SEAT; VLV 8-94395-571-1 06 1 9510-0102 ●
171 SEAT; VLV 8-94395-571-1 06 1 0103-0210 ● ●
