◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11310 - FRR(MIDDLE EAST) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-05 - ENGINE GASKET KIT ▶
0-05 — ENGINE GASKET KIT (#21938) — 16 parça

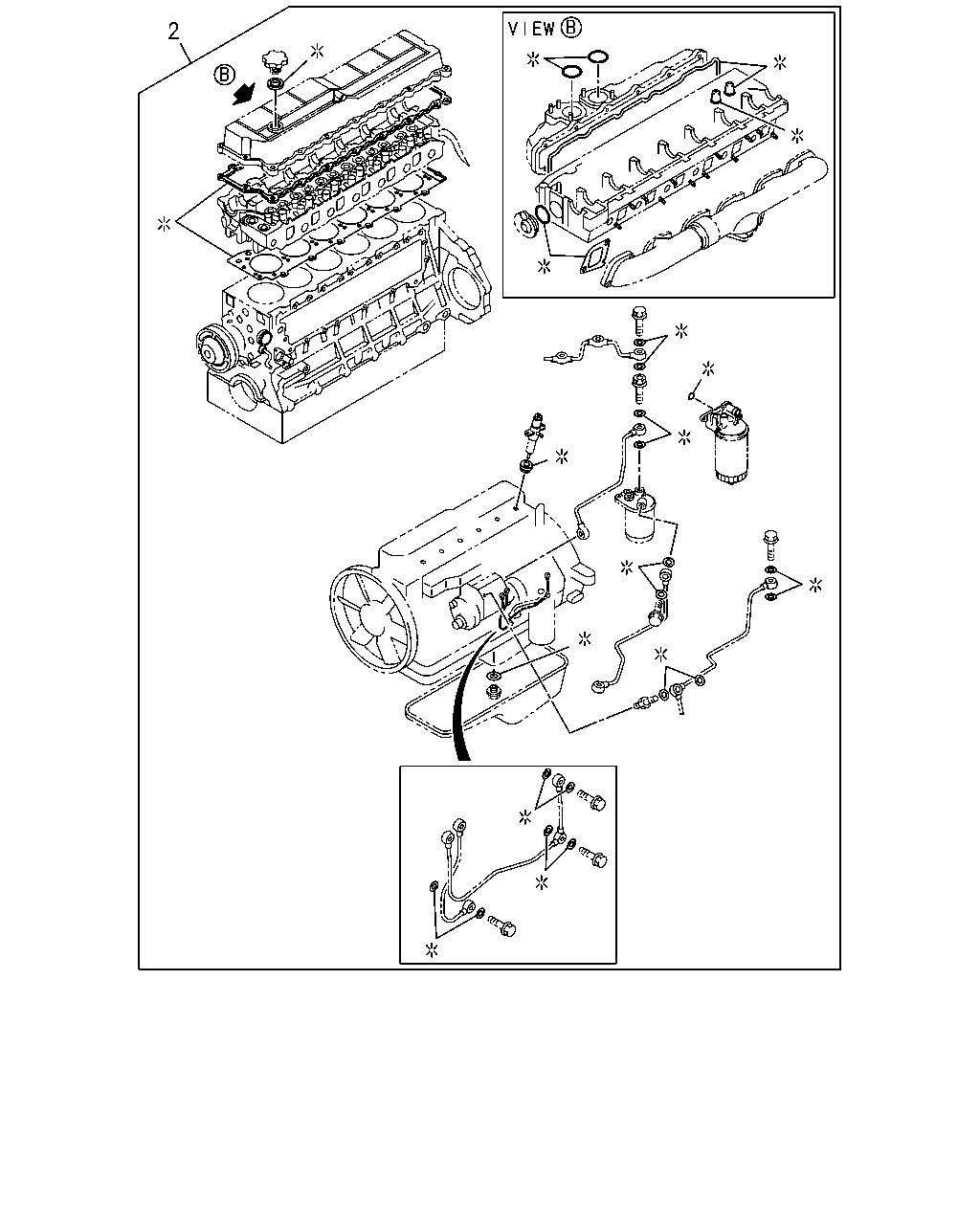

çizim 15434
2
BalonParca AdiParca NoAdetTipApplied Date A B
2 GASKET SET; ENG HD OVERHAUL 1-87811-080-0 01 1 9510-0006 ●
2 GASKET SET; ENG HD OVERHAUL 1-87812-202-0 01 1 0007-0102 ●
2 GASKET SET; ENG HD OVERHAUL 1-87812-202-0 01 1 0103-0105 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87812-308-1 01 1 0106-0210 ● ●

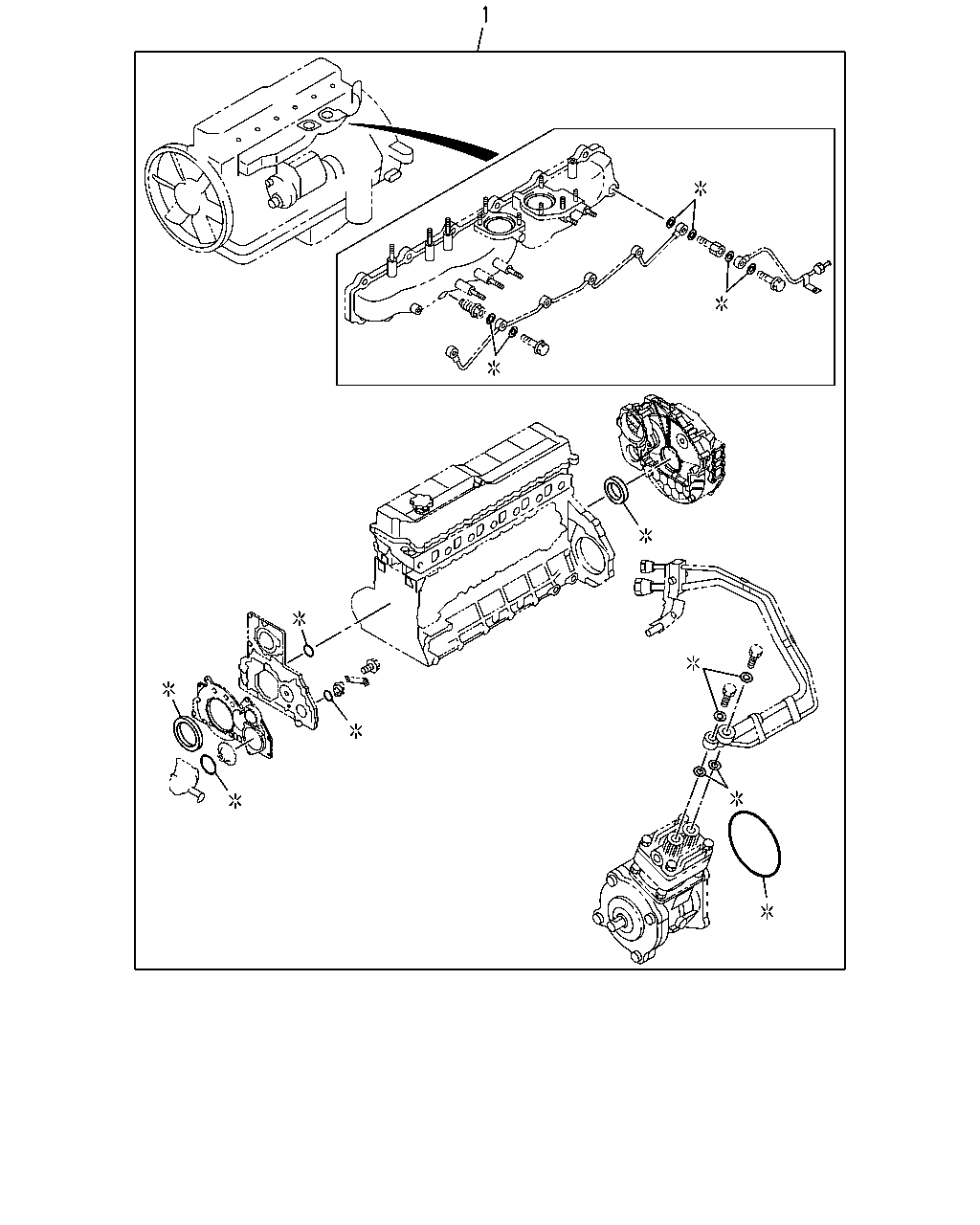

çizim 63540
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 GASKET SET; ENG OVERHAUL 1-87811-078-1 01 1 9510-9805 ●
1 GASKET SET; ENG OVERHAUL 1-87812-023-1 01 1 9806-0006 ●
1 GASKET SET; ENG OVERHAUL 1-87812-198-0 01 1 0007-0102 ●
1 GASKET SET; ENG OVERHAUL 1-87812-198-0 01 1 0103-0105 ● ●
1 GASKET SET; ENG OVERHAUL 1-87812-199-0 01 1 0106-0112 ● ●
1 GASKET SET; ENG OVERHAUL 1-87812-304-1 01 1 0201-0210 ● ●

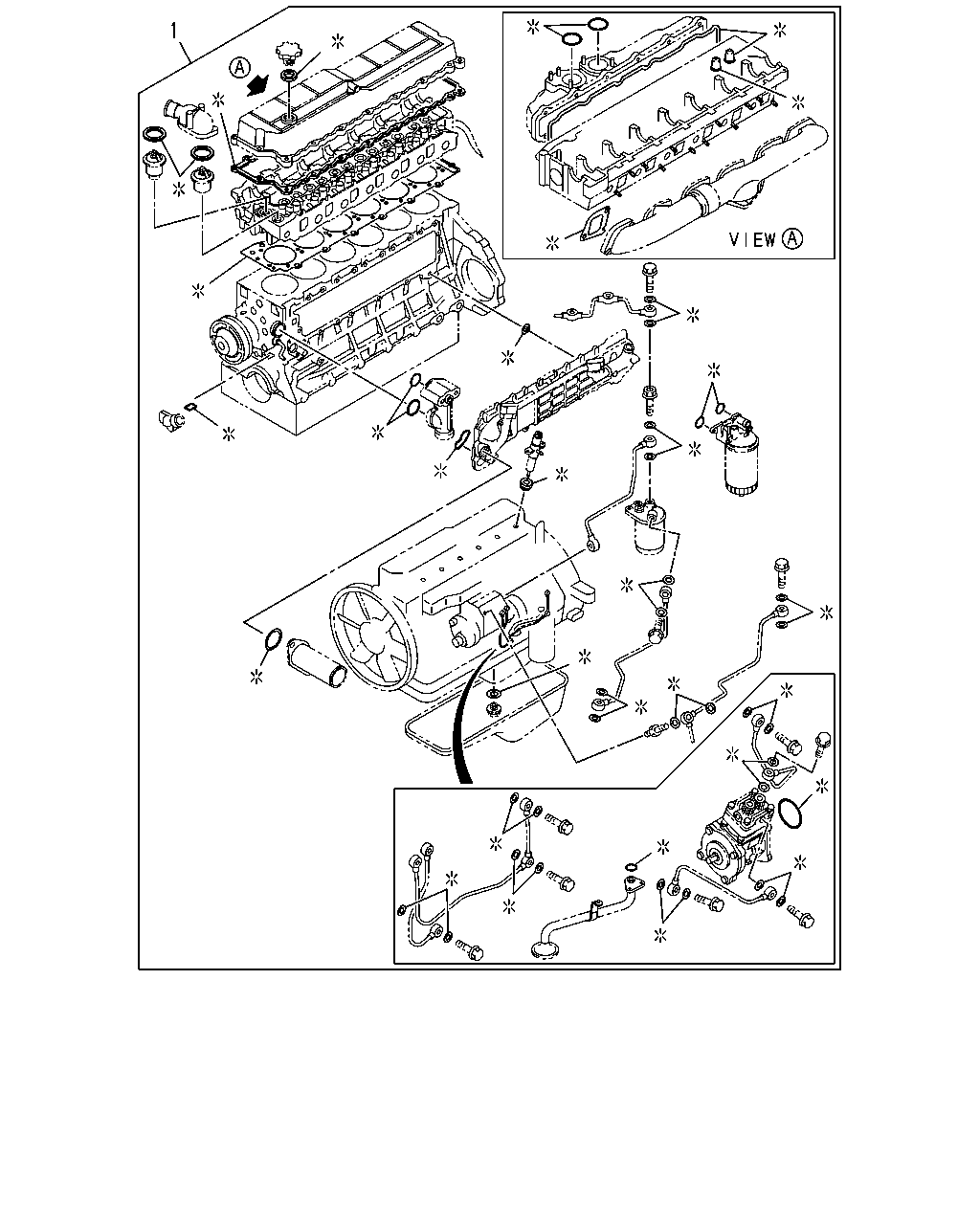

çizim 63621
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 GASKET SET; ENG OVERHAUL 1-87811-078-1 01 1 9510-9805 ●
1 GASKET SET; ENG OVERHAUL 1-87812-023-1 01 1 9806-0006 ●
1 GASKET SET; ENG OVERHAUL 1-87812-198-0 01 1 0007-0102 ●
1 GASKET SET; ENG OVERHAUL 1-87812-198-0 01 1 0103-0105 ● ●
1 GASKET SET; ENG OVERHAUL 1-87812-199-0 01 1 0106-0112 ● ●
1 GASKET SET; ENG OVERHAUL 1-87812-304-1 01 1 0201-0210 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
