Isuzu WW
▶
TRUCKS
▶
FSR
▶
11227 - FSR(CNG)AUSTRALIA
▶
2 - Clutch, Transmission, Trans Axle
▶
2-05 - CLUTCH PIPING
▶

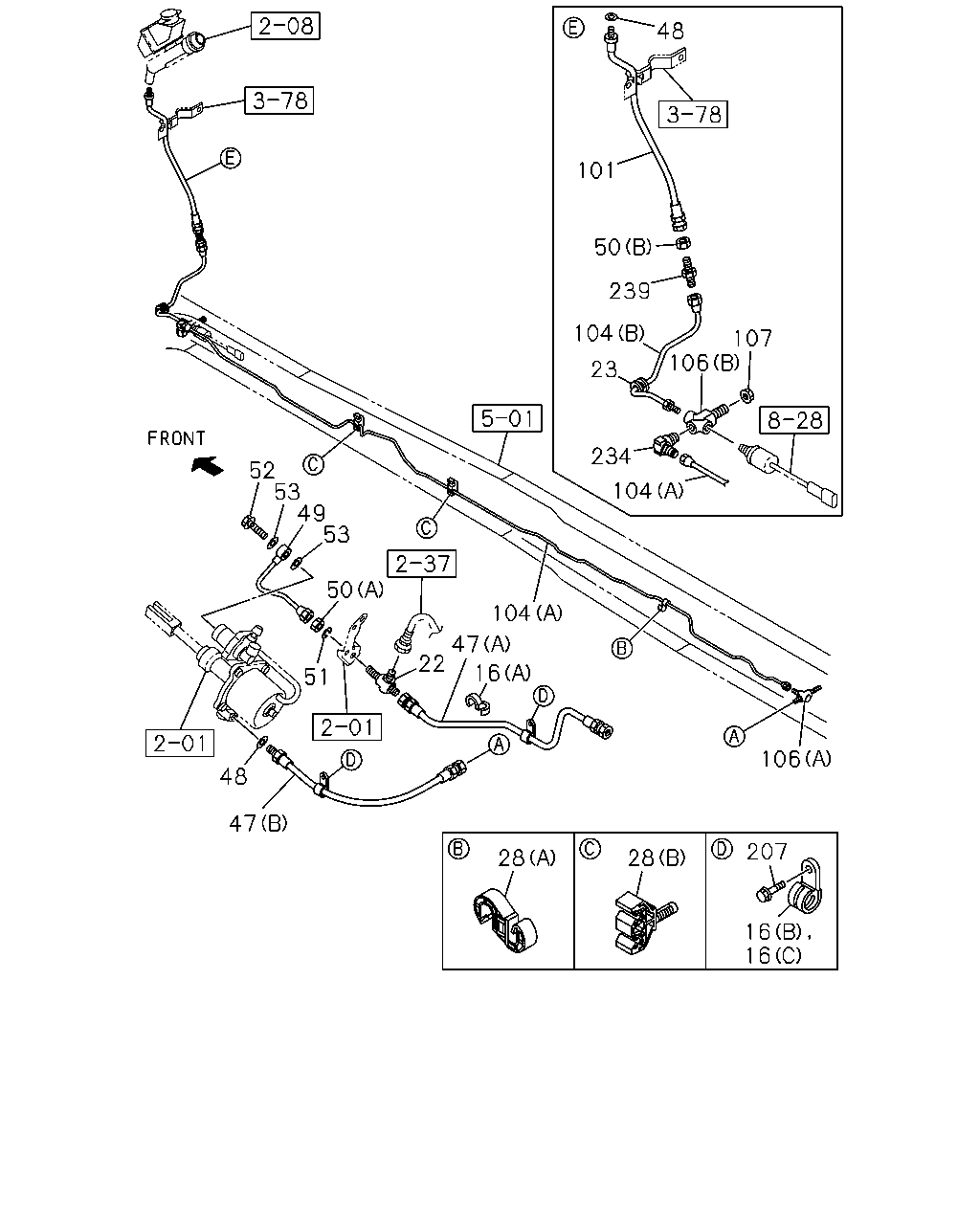

2-05 — CLUTCH PIPING
(#21935) — 31 parça
48
101
50
239
104
107
106
23
234
52
53
49
53
104
50
104
47
22
16
51
106
48
47
207
28
28
16
16
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
16
CLIP; FLEX HOSE
(C) ID=11 L=16
0-95235-025-0
01
1
0907-
16
CLIP; FLEX HOSE
(A) ID=10 & 12
1-09709-278-1
01
1
0907-
16
CLIP; FLEX HOSE
(B) ID=29 L=35
5-09700-293-1
01
1
0907-
22
UNION; CLU PIPE
M12 3WAY
0-92138-706-0
01
1
0907-
23
GROMMET; CLU PIPE
ID=15 OD=20 T=17.5
1-09332-130-0
01
1
0907-
28
CLIP; OIL PIPE
(A) ID=6.35 & 10.0
1-09709-274-1
01
1
0907-1209
28
CLIP; OIL PIPE
(A) ID=6.35 & 10.0
1-09709-274-1
02
1
1210-
28
CLIP; OIL PIPE
(B)
8-98012-254-1
04
1
0907-
47
HOSE; FLEX,CLU CONT
(A) L=580
1-09363-613-1
01
1
0907-
47
HOSE; FLEX,CLU CONT
(B) L=570
8-97626-730-0
01
1
0907-
48
GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0
9-09571-410-0
01
1
0907-
48
GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0
9-09571-410-0
01
1
0907-
49
PIPE; AIR,FLEX HOSE TO CLU BOOSTER
L=239
1-49117-401-0
01
1
0907-
50
NUT; UNION
(A) M12
0-91111-512-0
01
1
0907-
50
NUT; UNION
(B) M12
9-09840-280-0
01
1
0907-
50
NUT; UNION
(B) M12
9-09840-280-0
01
1
0907-
51
WASHER; LK
ID=12.2
0-91510-512-0
01
1
0907-
52
BOLT; EYE,AIR PIPE
M14X27 FLANGE
1-09675-086-0
01
1
0907-
53
GASKET; JOINT BOLT
ID=14.2 OD=19.2
1-09630-085-0
02
1
0907-1312
53
GASKET; JOINT BOLT
ID=14.2 OD=19.2
8-98251-345-0
02
1
1401-
101
HOSE; FLEX,OIL PIPE TO OIL PIPE
L=500
8-98072-350-0
01
1
0907-
104
PIPE; OIL,FLEX HOSE TO CONNECTOR
(B) L=583 SERVICED BY L=600
1-47428-725-0
01
1
0907-
104
PIPE; OIL,FLEX HOSE TO CONNECTOR
(A) L=3031 SERVICED BY L=3200
1-47428-745-0
01
1
0907-1209
104
PIPE; OIL,FLEX HOSE TO CONNECTOR
(A) L=3034 SERVICED BY L=3200
1-47428-745-0
01
1
1210-
106
UNION; OIL PIPE
(A) M12 2WAY
1-09654-059-2
01
1
0907-
106
UNION; OIL PIPE
(B)
8-98067-169-0
01
1
0907-
107
NUT; UNION,OIL PIPE
M12
0-91111-512-0
01
1
0907-
207
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
01
1
0907-
207
BOLT; CLIP
M8X25 FLANGE
0-28650-825-0
01
1
0907-
234
CONNECTOR; ELBOW
M12 & PT1/4 ELBOW
1-09650-430-0
01
1
0907-
239
UNION; CLU HOSE
M12 L=66.5
0-92113-306-0
01
1
0907-
