Isuzu WW
▶
TRUCKS
▶
FSR
▶
11227 - FSR(CNG)AUSTRALIA
▶
2 - Clutch, Transmission, Trans Axle
▶
2-03 - CLUTCH PEDAL AND CONTROL
▶

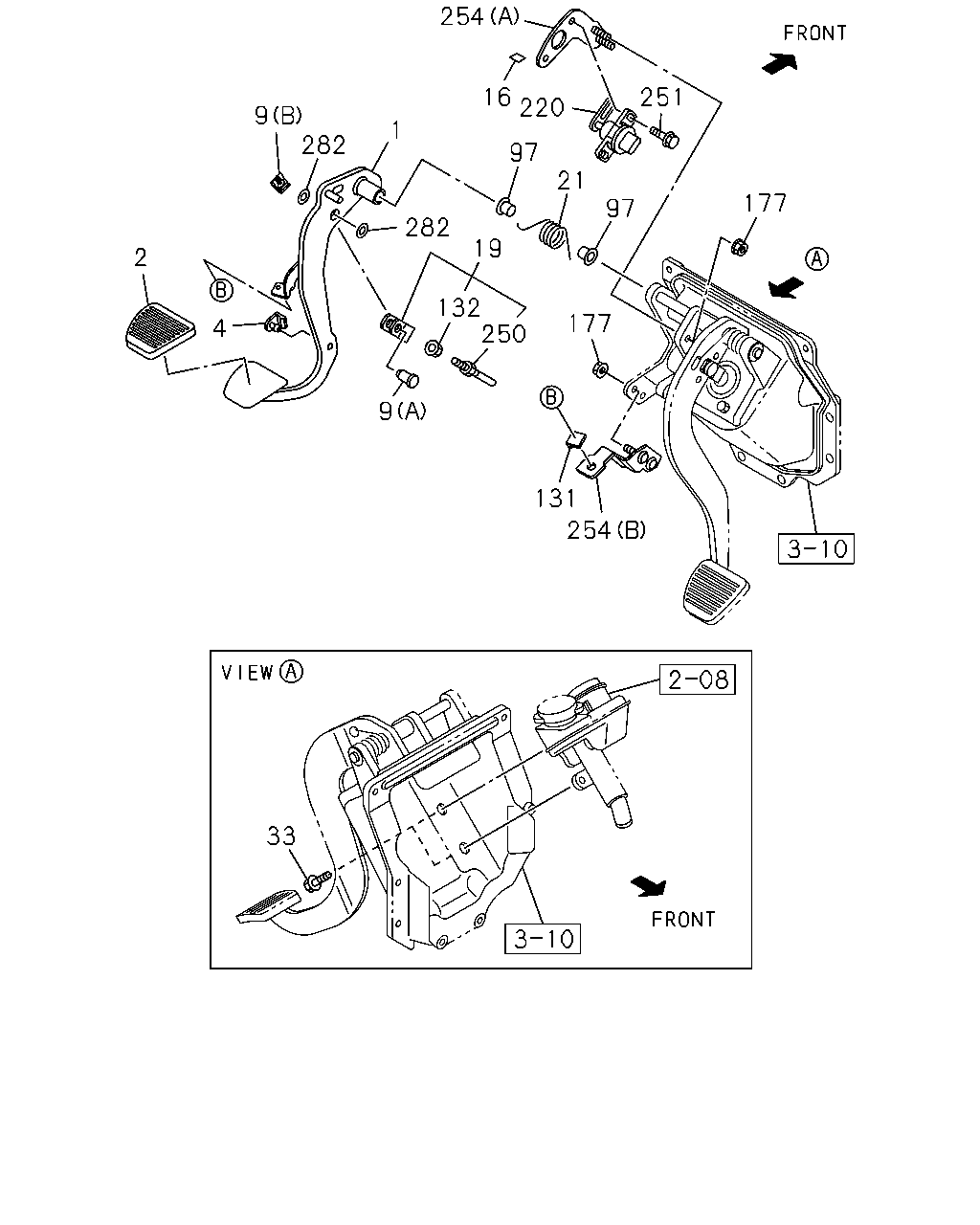

2-03 — CLUTCH PEDAL AND CONTROL
(#21934) — 20 parça
254
16
220
251
9
282
1
97
21
177
97
282
19
2
132
250
177
4
9
131
254
33
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PEDAL; CLU
8-98021-375-1
01
1
0907-
2
COVER; CLU PEDAL
8-98056-865-0
01
1
0907-
4
STOPPER; CLU PEDAL
8-98079-251-0
01
1
0907-
9
PIN; CLU PEDAL
(A)
8-97387-230-0
01
1
0907-1007
9
PIN; CLU PEDAL
(A)
8-98147-657-0
01
1
1008-
9
PIN; CLU PEDAL
(B)
8-98007-161-0
01
1
0907-
16
SEAL; CLU PEDAL
30X30
8-98142-344-0
01
1
1204-
19
ROD ASM; PUSH,CLU
8-98021-406-1
01
1
0907-
21
SPRING; RETURN,CLU PEDAL
8-98021-560-0
01
1
0907-
33
BOLT; CLU M/CYL TO BRKT
M12X20 FLANGE
0-28051-220-0
02
1
0907-
97
BUSHING; CLU PEDAL SHAFT
8-94238-596-0
02
1
0907-
131
STOPPER; CLU SW
8-97302-305-0
01
1
0907-
132
NUT; LK,PUSH ROD
M8 FLANGE
0-91180-108-0
01
1
0907-
177
NUT; BRKT
M8 FLANGE
0-91180-108-0
04
1
0907-
220
SENSOR; CLUTCH
1-80250-014-0
01
1
0907-
250
ROD; PUSH,CLU
8-97615-589-0
01
1
0907-
251
BOLT; SENSOR
M6X16
0-52000-616-0
02
1
0907-
254
BRACKET; CLU SENSOR
(A)
8-98021-376-1
01
1
0907-
254
BRACKET; CLU SENSOR
(B)
8-98021-377-1
01
1
0907-
282
SPACER; CLU PEDAL
8-98070-329-0
02
1
0907-
