2-07 — CLUTCH BOOSTER; MINIPACK (#21933) — 104 parça

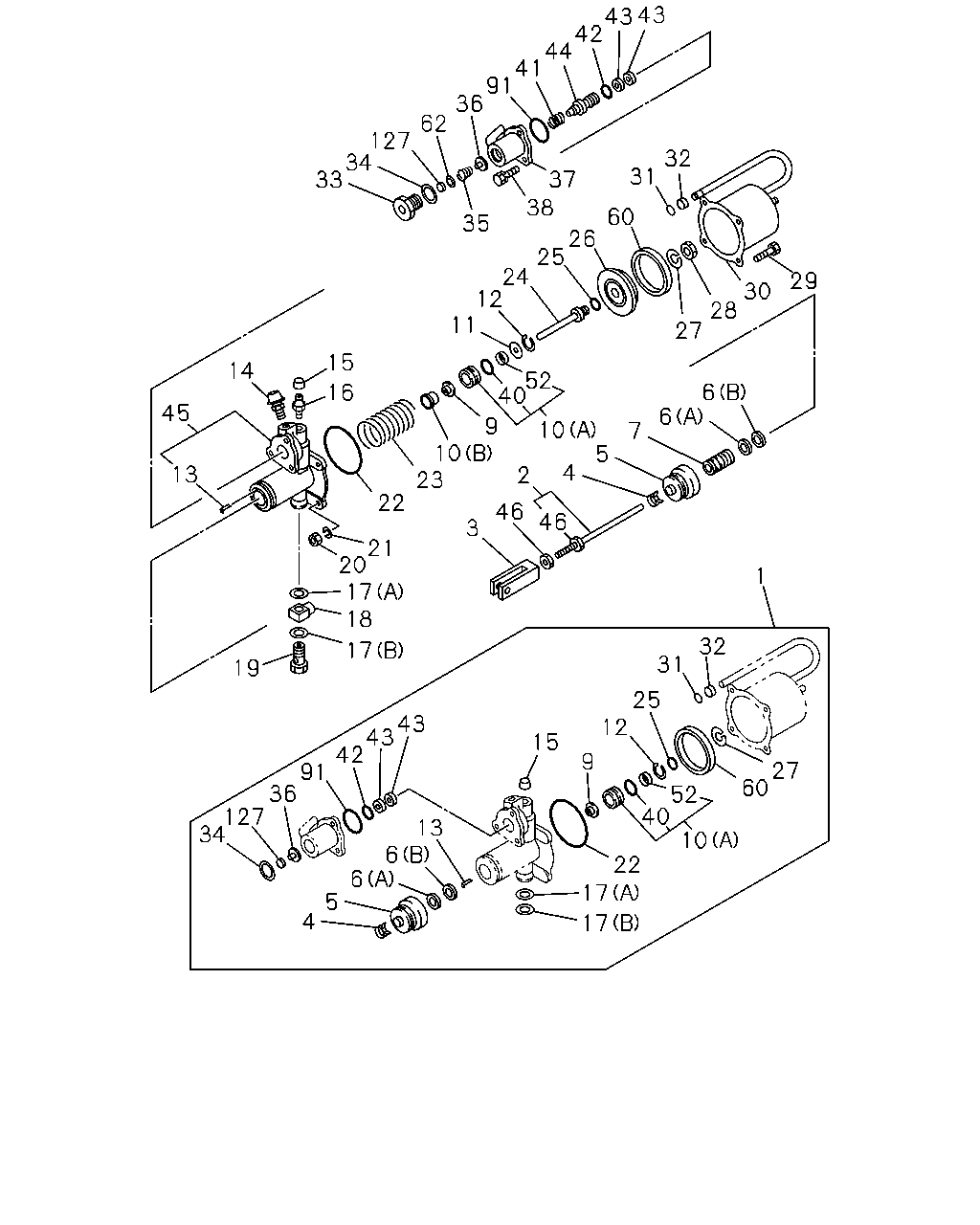

çizim 102047
42 44 41 91 36 62 127 34 33 32 31 37 38 60 35 26 25 24 12 11 29 30 28 27 15 14 52 40 6 16 45 6 9 10 23 10 5 7 4 13 2 22 46 46 3 21 20 17 18 1 32 17 31 19 25 12 43 43 42 15 27 60 9 91 36 127 34 52 40 13 6 10 22 17 6 5 4 17
BalonParca AdiParca NoAdetTipApplied Date A B
1 REPAIR KIT; CLU BOOSTER 1-31829-551-0 01 1 0904-1005 ●
1 REPAIR KIT; CLU BOOSTER 1-31829-551-0 01 1 1006- ● ●
2 ROD; PUSH,CLU BOOSTER 1-31824-172-0 01 1 0904-1005 ●
2 ROD; PUSH,CLU BOOSTER 1-31824-172-0 01 1 1006- ● ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-187-0 01 1 0904-1005 ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-187-0 01 1 1006- ● ●
4 CLAMP; BOOSTER 1-31829-168-0 01 1 0904-1005 ●
4 CLAMP; BOOSTER 1-31829-168-0 01 1 1006- ● ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-174-0 01 1 0904-1005 ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-174-0 01 1 1006- ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 0904-1005 ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 1006- ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 0904-1005 ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 1006- ● ●
7 PISTON; CLU BOOSTER 1-31821-048-0 01 1 0904-1005 ●
7 PISTON; CLU BOOSTER 1-31821-048-0 01 1 1006- ● ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 0904-1005 ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 1006- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-285-0 01 1 0904-1005 ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-285-0 01 1 1006- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-428-0 01 1 0904-1005 ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-428-0 01 1 1006- ● ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 0904-1005 ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 1006- ● ●
12 RING; RET,CLU BOOSTER 1-31829-142-0 01 1 0904-1005 ●
12 RING; RET,CLU BOOSTER 1-31829-142-0 01 1 1006- ● ●
13 PIN; SPR 1-31829-109-0 01 1 0904-1005 ●
13 PIN; SPR 1-31829-109-0 01 1 1006- ● ●
14 COVER; EXH,CLU BOOSTER 1-31829-365-0 01 1 0904-1005 ●
14 COVER; EXH,CLU BOOSTER 1-31829-365-0 01 1 1006- ● ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 0904-1005 ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 1006- ● ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 0904-1005 ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 1006- ● ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 0904-1005 ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 1006- ● ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 0904-1005 ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 1006- ● ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 0904-1005 ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 1006- ● ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 0904-1005 ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 1006- ● ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER 9-83315-085-0 04 1 0904-1005 ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER 9-83315-085-0 04 1 1006- ● ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=8.2 		9-09150-508-0 04 1 0904-1005 ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=8.2 		9-09150-508-0 04 1 1006- ● ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-09623-327-0 01 1 0904-1005 ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-09623-327-0 01 1 1006- ● ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-358-0 01 1 0904-1005 ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-358-0 01 1 1006- ● ●
24 ROD; PUSH,CLU BOOSTER 1-31829-334-0 01 1 0904-1005 ●
24 ROD; PUSH,CLU BOOSTER 1-31829-334-0 01 1 1006- ● ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-09623-321-0 01 1 0904-1005 ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-09623-321-0 01 1 1006- ● ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-083-0 01 1 0904-1005 ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-083-0 01 1 1006- ● ●
27 SPRING; CLU BOOSTER 1-31829-111-0 01 1 0904-1005 ●
27 SPRING; CLU BOOSTER 1-31829-111-0 01 1 1006- ● ●
28 NUT; PUSH ROD,CLU BOOSTER 9-88510-365-0 01 1 0904-1005 ●
28 NUT; PUSH ROD,CLU BOOSTER 9-88510-365-0 01 1 1006- ● ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 1-31829-015-0 04 1 0904-1005 ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 1-31829-015-0 04 1 1006- ● ●
30 SHELL; CYL,CLU BOOSTER 1-31811-123-0 01 1 0904-1005 ●
30 SHELL; CYL,CLU BOOSTER 1-31811-123-0 01 1 1006- ● ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-113-0 01 1 0904-1005 ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-113-0 01 1 1006- ● ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-114-0 01 1 0904-1005 ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-114-0 01 1 1006- ● ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 0904-1005 ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 1006- ● ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 0904-1005 ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 1006- ● ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-451-0 01 1 0904-1005 ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-451-0 01 1 1006- ● ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-452-0 01 1 0904-1005 ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-452-0 01 1 1006- ● ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-092-0 01 1 0904-1005 ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-092-0 01 1 1006- ● ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 0904-1005 ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 1006- ● ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 0904-1005 ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 1006- ● ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-420-0 01 1 0904-1005 ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-420-0 01 1 1006- ● ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-123-0 01 1 0904-1005 ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-123-0 01 1 1006- ● ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-083-0 02 1 0904-1005 ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-083-0 02 1 1006- ● ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-030-0 01 1 0904-1005 ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-030-0 01 1 1006- ● ●
45 PLATE; END,CLU BOOSTER 1-31811-064-0 01 1 0904-1005 ●
45 PLATE; END,CLU BOOSTER 1-31811-064-0 01 1 1006- ● ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 0904-1005 ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 1006- ● ●
52 SEAL; OIL,END PLATE,CLU BOOSTER 1-47819-027-0 01 1 0904-1005 ●
52 SEAL; OIL,END PLATE,CLU BOOSTER 1-47819-027-0 01 1 1006- ● ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-535-0 01 1 0904-1005 ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-535-0 01 1 1006- ● ●
62 RETAINER; POPPET 1-31829-489-0 01 1 0904-1005 ●
62 RETAINER; POPPET 1-31829-489-0 01 1 1006- ● ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 0904-1005 ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 1006- ● ●
127 FILTER; POPPET 1-31829-495-0 01 1 0904-1005 ●
127 FILTER; POPPET 1-31829-495-0 01 1 1006- ● ●
