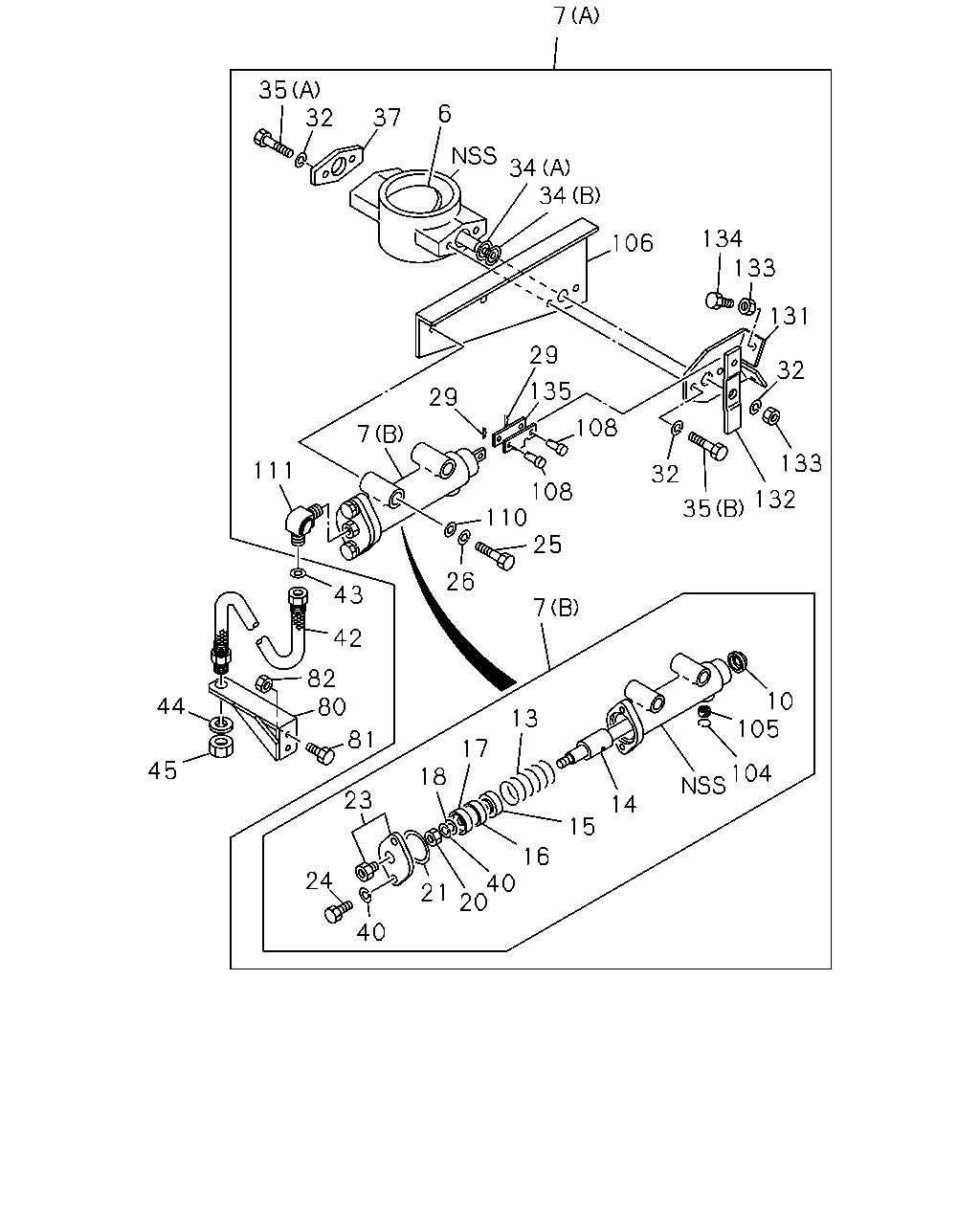

1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#2193) — 45 parça

7 35 32 6 37 34 34 134 133 106 131 29 32 135 29 108 7 133 111 32 108 110 25 132 35 26 43 7 42 82 80 10 105 44 13 81 17 45 104 18 23 14 15 40 16 40 20 24 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	VALVE; EXH BRAKE EXHAUST BRAKE(NF8)	1-22181-135-0	01	1	9101-9805	●	●
6	VALVE; EXH BRAKE EXHAUST BRAKE(NF8)	1-22181-101-0	01	1	9806-	●	●
7	CYLINDER ASM; CONT EXHAUST BRAKE(NF8) (A)	1-22180-251-2	01	1	9101-	●	●
7	CYLINDER ASM; CONT EXHAUST BRAKE(NF8) (B)	1-22190-326-0	01	1	9101-	●	●
10	SEAL; DUST,CONT EXHAUST BRAKE(NF8)	1-22189-016-0	01	1	9101-	●	●
13	SPRING; CONT CYL EXHAUST BRAKE(NF8)	9-85510-374-0	01	1	9101-	●	●
14	SHAFT; CONT CYL EXHAUST BRAKE(NF8)	1-22199-078-0	01	1	9101-	●	●
15	PLATE; CONT CYL EXHAUST BRAKE(NF8)	1-22199-001-0	01	1	9101-	●	●
16	RING; WEAR,CONT CYL EXHAUST BRAKE(NF8)	1-22199-002-0	01	1	9101-	●	●
17	GASKET; CONT CYL EXHAUST BRAKE(NF8)	9-88510-373-0	01	1	9101-	●	●
18	RETAINER; CONT CYL EXHAUST BRAKE(NF8)	9-88510-324-0	01	1	9101-	●	●
20	NUT; CONT CYL EXHAUST BRAKE(NF8)	9-83315-085-0	01	1	9101-	●	●
21	GASKET; COVER EXHAUST BRAKE(NF8)	9-88510-372-0	01	1	9101-	●	●
23	COVER; CONT CYL EXHAUST BRAKE(NF8)	9-88510-375-0	01	1	9101-	●	●
24	BOLT; COVER EXHAUST BRAKE(NF8)	8-94311-421-0	02	1	9101-	●	●
25	BOLT; CONT CYL EXHAUST BRAKE(NF8) M10X60 FLANGE	0-28081-060-0	02	1	9101-	●	●
26	WASHER; LK,CONT CYL EXHAUST BRAKE(NF8) ID=10.2	9-09150-510-0	02	1	9101-	●	●
29	PIN; SPLIT,LINK EXHAUST BRAKE(NF8) L=21.2	1-09747-003-0	02	1	9101-	●	●
32	WASHER; LK EXHAUST BRAKE(NF8) ID=8.2	9-09150-508-0	05	1	9101-	●	●
34	RING; SEAL EXHAUST BRAKE(NF8) (A) ID=13	1-22189-009-0	02	1	9101-	●	●
34	RING; SEAL EXHAUST BRAKE(NF8) (B) ID=11.7	1-22189-010-0	02	1	9101-	●	●
35	BOLT; PLATE FIX EXHAUST BRAKE(NF8) (A) M8X16	9-02050-816-0	02	1	9101-	●	●
35	BOLT; PLATE FIX EXHAUST BRAKE(NF8) (B) M8X20	9-02050-820-0	02	1	9101-	●	●
37	COVER; BODY EXHAUST BRAKE(NF8)	1-22189-149-0	01	1	9101-	●	●
40	WASHER; LK,COVER EXHAUST BRAKE(NF8) ID=8.2	9-09150-508-0	03	1	9101-	●	●
42	HOSE; FLEX,EXH BRK EXHAUST BRAKE(NF8) L=400	0-07120-400-0	01	1	9101-	●	●
43	GASKET; FLEX HOSE EXHAUST BRAKE(NF8) ID=9 OD=17	9-09920-472-0	01	1	9101-	●	●
44	WASHER; LK,FLEX HOSE EXHAUST BRAKE(NF8) ID=12.2	9-09150-512-0	01	1	9101-	●	●
45	NUT; FLEX HOSE EXHAUST BRAKE(NF8) M12	9-09840-280-0	01	1	9101-	●	●
80	BRACKET; FLEX HOSE EXHAUST BRAKE(NF8)	1-47475-679-0	01	1	9101-	●	●
81	BOLT; HOSE BRKT EXHAUST BRAKE(NF8) M8X25 W/LK WASHER	9-01900-825-0	02	1	9101-9204	●	●
81	BOLT; HOSE BRKT EXHAUST BRAKE(NF8) M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-	●	●
82	NUT; HOSE BRKT EXHAUST BRAKE(NF8) M8	9-09110-408-0	02	1	9101-	●	●
104	RING; RET EXHAUST BRAKE(NF8)	9-88510-331-0	01	1	9101-	●	●
105	FILTER; CONT CYL EXHAUST BRAKE(NF8)	9-88510-330-0	01	1	9101-	●	●
106	BRACKET; CONT CYL EXHAUST BRAKE(NF8)	1-22186-096-0	01	1	9101-	●	●
108	PIN; CONT CYL EXHAUST BRAKE(NF8)	1-22199-054-0	02	1	9101-	●	●
110	WASHER; PL,CONT CYL EXHAUST BRAKE(NF8)	1-22199-052-0	02	1	9101-	●	●
111	ELBOW; CONT CYL EXHAUST BRAKE(NF8) M20 & PT1/4 ELBOW	1-09660-137-0	01	1	9101-	●	●
131	PLATE; BODY EXHAUST BRAKE(NF8)	1-22196-200-0	01	1	9101-	●	●
132	LEVER; BRK VLV EXHAUST BRAKE(NF8)	1-22196-199-0	01	1	9101-	●	●
133	NUT; LK EXHAUST BRAKE(NF8)	8-94311-428-0	03	1	9101-9805	●	●
133	NUT; LK EXHAUST BRAKE(NF8) M8	9-09111-408-0	03	1	9806-	●	●
134	BOLT; STOPPER EXHAUST BRAKE(NF8) M8X30	1-09000-112-1	02	1	9101-	●	●
135	CLEVIS; CONT CYL EXHAUST BRAKE(NF8)	1-22199-053-0	01	1	9101-	●	●
