Isuzu WW
▶
TRUCKS
▶
CYH
▶
11198 - CYH NZ EURO4/JAPAN NEW LONG TERM 2005
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-41 - FUEL PIPING; CHASSIS
▶
1-41 — FUEL PIPING; CHASSIS
(#21925) — 26 parça
◀

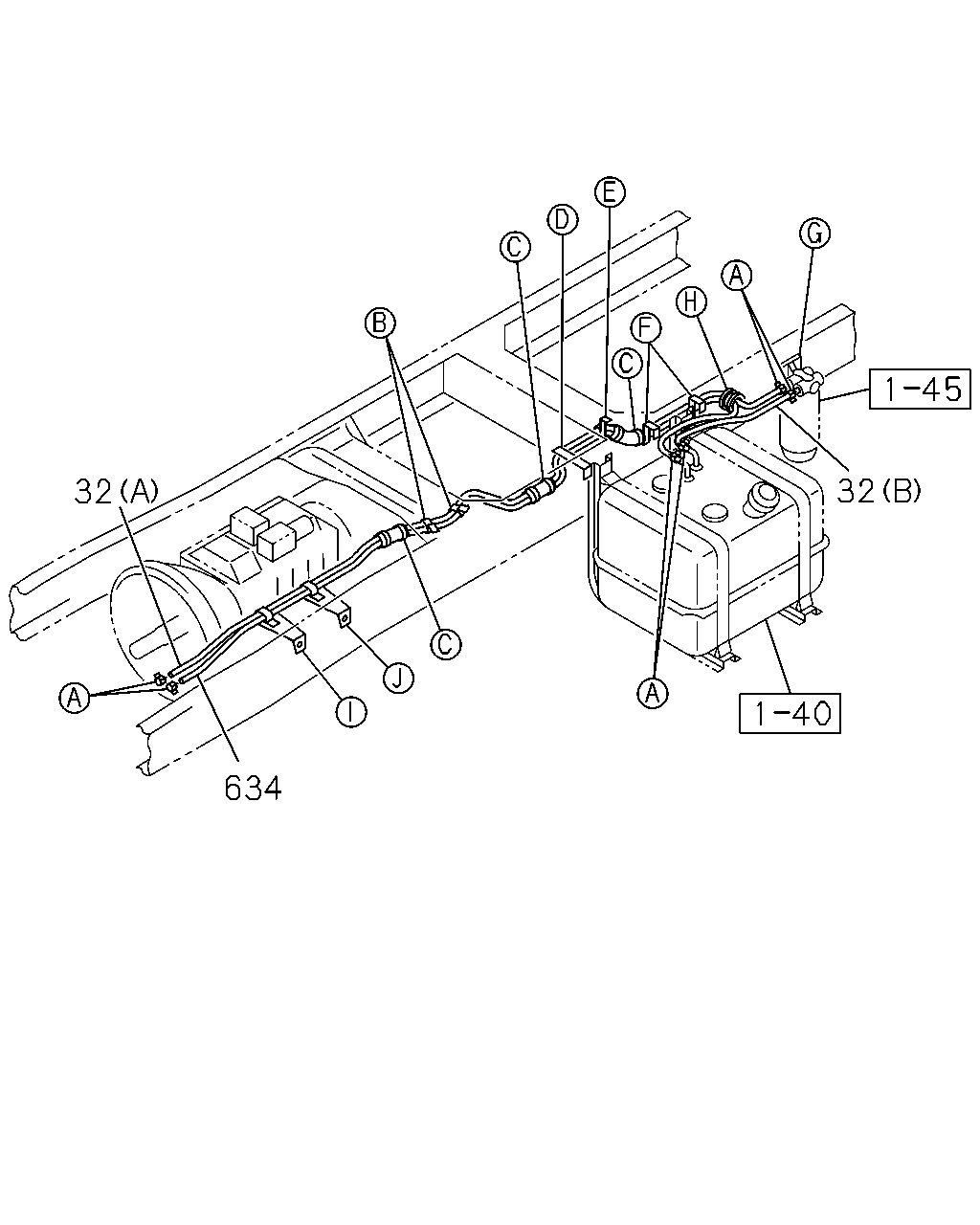

[141A] PIPING (3 parça)

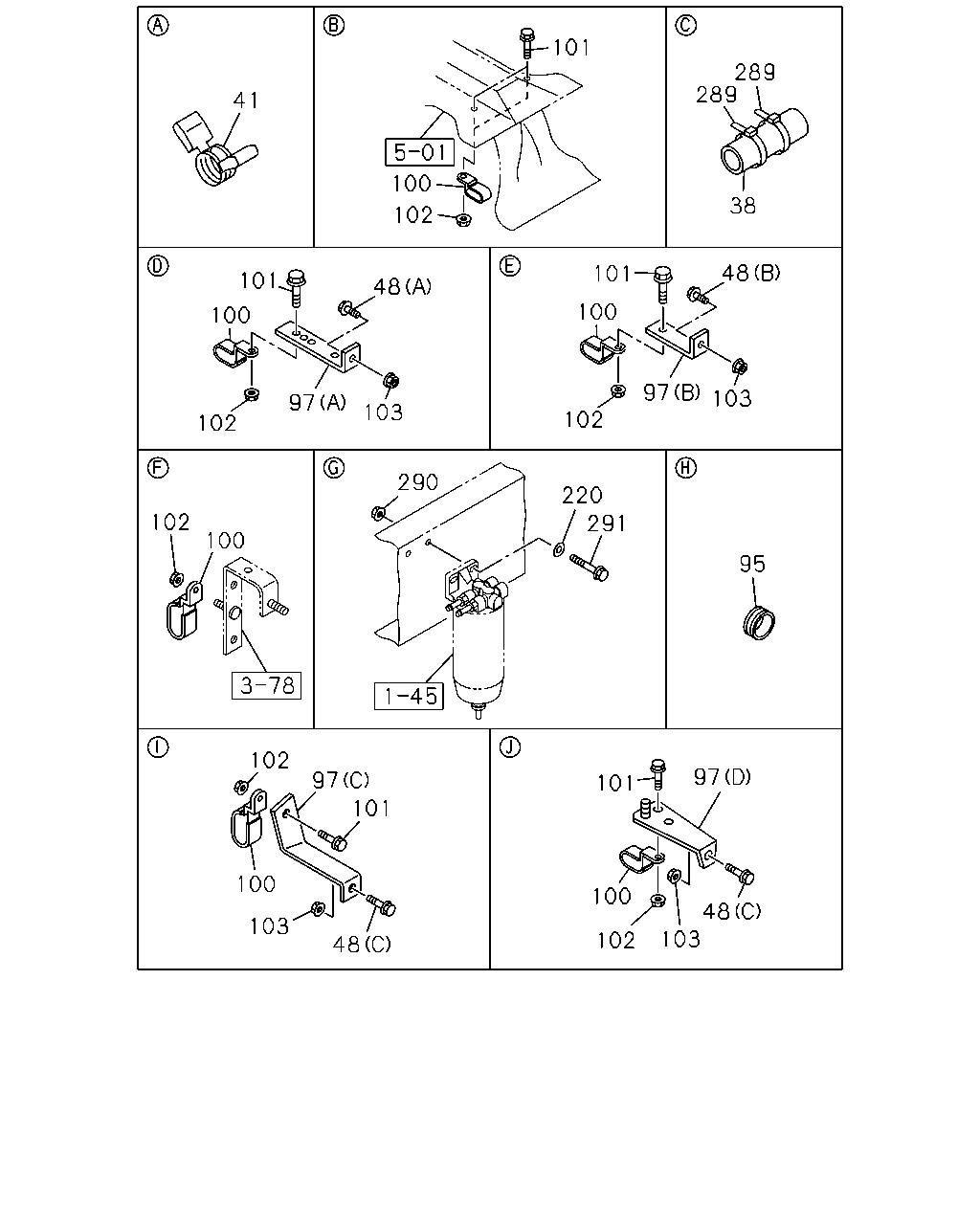

[141A] FIXING;BRACKET AND CLIP (23 parça)
▶
32
32
634
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
32
PIPE; DELIVERY,FUEL TANK
(B) L=900 SERVICED BY L=3000
0-01260-300-0
01
1
0904-
32
PIPE; DELIVERY,FUEL TANK
(A) L=3750 SERVICED BY L=5350
0-01262-535-0
01
1
0904-
634
HOSE; RUBBER RETURN
L=3250 SERVICED BY L=8000
0-01260-800-0
01
1
0904-
101
289
289
41
100
38
102
48
101
101
48
100
100
97
103
97
103
102
102
290
220
291
102
100
95
102
97
97
101
101
100
100
48
103
103
102
48
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
38
SLEEVE; RUBBER,RUBBER HOSE
L=150 SERVICED BY L=1300
1-09360-677-1
03
1
0904-
41
CLIP; FUEL PIPE,FUEL TANK
ID=14
1-09704-102-0
04
1
0904-
41
CLIP; FUEL PIPE,FUEL TANK
ID=19
8-94238-569-0
02
1
0904-
48
BOLT; BRKT
(B) M8X25 FLANGE
0-28650-825-0
01
1
0904-
48
BOLT; BRKT
(C) M8X30 FLANGE
0-28650-830-0
02
1
0904-
48
BOLT; BRKT
(A) M8X35 FLANGE
0-28650-835-0
02
1
0904-
95
BUSHING; PIPE,FUEL TANK
ID=32 OD=40 T=23
1-09332-112-0
01
1
0904-
97
BRACKET; CLIP
(B) L=55
1-47475-304-0
01
1
0904-
97
BRACKET; CLIP
(C)
1-47479-646-0
01
1
0904-
97
BRACKET; CLIP
(D)
1-47479-723-0
01
1
0904-
97
BRACKET; CLIP
(A)
1-82698-358-0
02
1
0904-
100
CLIP; FUEL PIPE
ID=19X32 H=17.5 L=22.5
1-09701-315-0
09
1
0904-
101
BOLT; CLIP,FUEL PIPE
M8X20 FLANGE
0-28650-820-0
06
1
0904-
101
BOLT; CLIP,FUEL PIPE
M8X25 FLANGE
0-28650-825-0
02
1
0904-
102
NUT; CLIP,FUEL PIPE
M8 FLANGE
0-91180-108-0
09
1
0904-
103
NUT; BRKT
M8 FLANGE
0-91180-108-0
05
1
0904-
220
WASHER; PL
ID=10.5 OD=26
0-91614-710-0
02
1
0904-
289
CLIP; BAND,HOSE
L=250
5-09707-030-1
06
1
0904-
290
NUT; FILTER TO BRKT
M10 FLANGE
0-91180-210-0
02
1
0904-
291
BOLT; FILER TO BRKT
TRANSMISSION-FULLER RTLO169 18(Y3S) M10X50 FLANGE
0-28051-050-0
02
1
1010-
291
BOLT; FILER TO BRKT
M10X50 FLANGE
0-28051-050-0
02
1
0904-1002
291
BOLT; FILER TO BRKT
M10X60 FLANGE
0-28051-060-0
02
1
1003-1009
291
BOLT; FILER TO BRKT
TRANSMISSION-FULLER RTLO189 18(Y4W) M10X60 FLANGE
0-28051-060-0
02
1
1010-
