◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11198 - CYH NZ EURO4/JAPAN NEW LONG TERM 2005 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-10 - RADIATOR ▶
1-10 — RADIATOR (#21919) — 117 parça
çizim 62199
1 526 529 528 232 267 89 528 529 527 267 235 89
BalonParca AdiParca NoAdetTipApplied Date A B C
1 RADIATOR ASM 1-21410-927-1 01 1 1008- ●
1 RADIATOR ASM 1-21410-918-3 01 1 0904-1005 ●
1 RADIATOR ASM 1-21410-918-3 01 1 1006-1007 ● ● ●
1 RADIATOR ASM 1-21410-918-4 01 1 1008- ● ●
89 BOLT
(A) M6X12 FLANGE 		0-28050-612-0 02 1 0904-1005 ●
89 BOLT
(A) M6X12 FLANGE 		0-28050-612-0 02 1 1006- ● ● ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 04 1 0904-1005 ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 04 1 1006- ● ● ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 04 1 0904-1005 ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 04 1 1006- ● ● ●
235 WASHER; CUSHION RUBBER 1-21469-133-0 02 1 0904-1005 ●
235 WASHER; CUSHION RUBBER 1-21469-133-0 02 1 1006- ● ● ●
267 RUBBER; CUSHION
(A) 		1-21469-130-0 04 1 0904-1005 ●
267 RUBBER; CUSHION
(A) 		1-21469-130-0 04 1 1006- ● ● ●
267 RUBBER; CUSHION
(B) 		1-21469-131-0 02 1 0904-1005 ●
267 RUBBER; CUSHION
(B) 		1-21469-131-0 02 1 1006- ● ● ●
526 TANK; UPR,RADIATOR CORE 1-21414-031-1 01 1 0904-1005 ●
526 TANK; UPR,RADIATOR CORE 1-21414-031-1 01 1 1006- ● ● ●
527 TANK; LWR,RADIATOR CORE 1-21415-031-1 01 1 0904-1005 ●
527 TANK; LWR,RADIATOR CORE 1-21415-031-2 01 1 1006- ● ● ●
528 PLATE; SIDE,RADIATOR CORE 1-21416-128-1 01 1 1008- ●
528 PLATE; SIDE,RADIATOR CORE 1-21416-129-1 01 1 1008- ●
528 PLATE; SIDE,RADIATOR CORE 1-21416-121-1 01 1 0904-1005 ●
528 PLATE; SIDE,RADIATOR CORE 1-21416-121-1 01 1 1006-1007 ● ● ●
528 PLATE; SIDE,RADIATOR CORE 1-21416-121-1 01 1 1008- ● ●
528 PLATE; SIDE,RADIATOR CORE 1-21416-122-1 01 1 0904-1005 ●
528 PLATE; SIDE,RADIATOR CORE 1-21416-122-1 01 1 1006-1007 ● ● ●
528 PLATE; SIDE,RADIATOR CORE 1-21416-122-1 01 1 1008- ● ●
529 GASKET; CORE,RADIATOR 1-21439-121-0 02 1 0904-1005 ●
529 GASKET; CORE,RADIATOR 1-21439-121-0 02 1 1006- ● ● ●

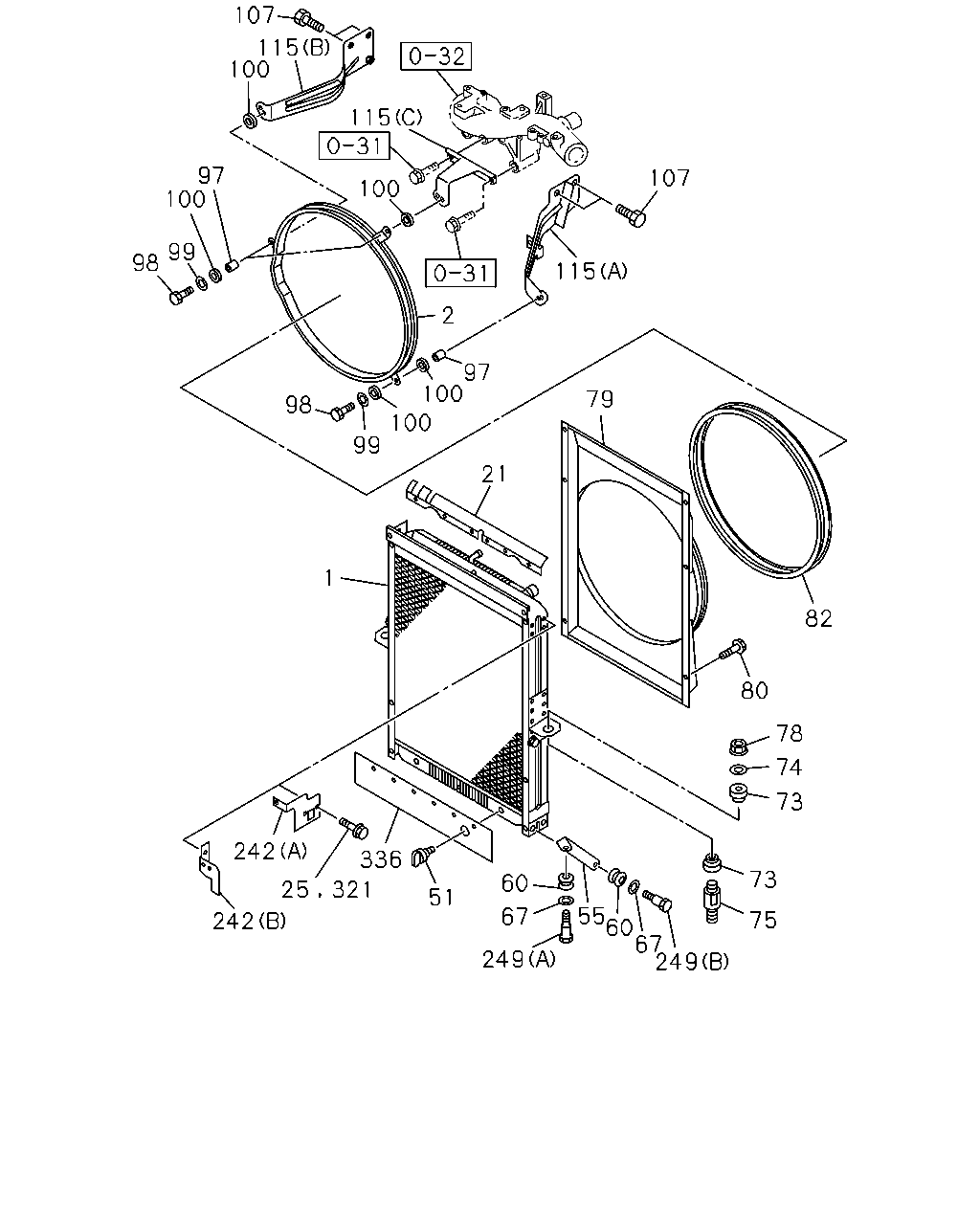

çizim 102018
107 100 115 107 115 100 97 100 98 99 98 99 100 100 97 2 79 21 1 82 80 78 74 73 73 75 242 242 51 336 60 67 249 60 55 67 249 115 25 321
BalonParca AdiParca NoAdetTipApplied Date A B C
1 RADIATOR ASM 1-21410-927-1 01 1 1008- ●
1 RADIATOR ASM 1-21410-918-3 01 1 0904-1005 ●
1 RADIATOR ASM 1-21410-918-3 01 1 1006-1007 ● ● ●
1 RADIATOR ASM 1-21410-918-4 01 1 1008- ● ●
2 GUIDE; FAN 8-97615-750-0 01 1 0904-1005 ●
2 GUIDE; FAN 8-97615-750-0 01 1 1006-1006 ● ● ●
2 GUIDE; FAN 8-98171-163-0 01 1 1007- ● ● ●
21 SEAL; RAD 1-21464-807-2 01 1 1008-1207 ●
21 SEAL; RAD 8-98209-255-0 01 1 1208- ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 06 1 1008- ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 04 1 0904-1005 ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 04 1 1006-1007 ● ● ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 04 1 1008- ● ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 0904- ●
55 STAY; RAD TO UPR MBR 1-21464-813-0 01 1 1008- ●
55 STAY; RAD TO UPR MBR 1-21464-814-0 01 1 1008- ●
55 STAY; RAD TO UPR MBR 1-21464-778-0 01 1 0904-1005 ●
55 STAY; RAD TO UPR MBR 1-21464-778-0 01 1 1006-1007 ● ● ●
55 STAY; RAD TO UPR MBR 1-21464-778-0 01 1 1008- ● ●
55 STAY; RAD TO UPR MBR 1-21464-779-0 01 1 0904-1005 ●
55 STAY; RAD TO UPR MBR 1-21464-779-0 01 1 1006-1007 ● ● ●
55 STAY; RAD TO UPR MBR 1-21464-779-0 01 1 1008- ● ●
60 GROMMET 1-09332-117-0 04 1 0904-1005 ●
60 GROMMET 1-09332-117-0 04 1 1006- ● ● ●
67 WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26 		0-91610-612-0 04 1 0904-1005 ●
67 WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26 		0-91610-612-0 04 1 1006- ● ● ●
73 RUBBER; CUSHION,RAD MTG
T=14 		1-21467-004-0 04 1 0904-1005 ●
73 RUBBER; CUSHION,RAD MTG
T=14 		1-21467-004-0 04 1 1006- ● ● ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-2 02 1 0904-1005 ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-2 02 1 1006- ● ● ●
75 BOLT; CUSHION RUBBER,RAD MTG 1-21466-005-0 02 1 0904-1005 ●
75 BOLT; CUSHION RUBBER,RAD MTG 1-21466-005-0 02 1 1006- ● ● ●
78 NUT; CUSHION RUBBER
M10 FLANGE 		0-91180-210-0 02 1 0904-1005 ●
78 NUT; CUSHION RUBBER
M10 FLANGE 		0-91180-210-0 02 1 1006- ● ● ●
79 GUIDE; FAN,RAD 1-21551-553-0 01 1 1008- ●
79 GUIDE; FAN,RAD 1-21551-546-1 01 1 0904-1005 ●
79 GUIDE; FAN,RAD 1-21551-546-1 01 1 1006-1007 ● ● ●
79 GUIDE; FAN,RAD 1-21551-546-1 01 1 1008- ● ●
80 BOLT; FAN GUIDE
M8X16 FLANGE 		0-28050-816-0 06 1 0904-1005 ●
80 BOLT; FAN GUIDE
M8X16 FLANGE 		0-28050-816-0 06 1 1006- ● ● ●
82 COVER; FAN,RAD 1-21559-491-1 01 1 0904-1005 ●
82 COVER; FAN,RAD 1-21559-491-1 01 1 1006- ● ● ●
97 TUBE; DIST,FAN GUIDE
ID=11.8 L=27 		1-21559-149-0 03 1 0904-1005 ●
97 TUBE; DIST,FAN GUIDE
ID=11.8 L=27 		1-21559-149-0 03 1 1006- ● ● ●
98 BOLT; RAD FAN GUIDE
M10X60 FLANGE 		0-28051-060-0 02 1 1008- ●
98 BOLT; RAD FAN GUIDE
M10X70 FLANGE 		0-28051-070-0 01 1 1008- ●
98 BOLT; RAD FAN GUIDE
M10X40 FLANGE 		0-28051-040-0 02 1 0904-1005 ●
98 BOLT; RAD FAN GUIDE
M10X40 FLANGE 		0-28051-040-0 02 1 1006-1007 ● ● ●
98 BOLT; RAD FAN GUIDE
M10X40 FLANGE 		0-28051-040-0 02 1 1008- ● ●
98 BOLT; RAD FAN GUIDE
M10X45 FLANGE 		0-28051-045-0 01 1 0904-1005 ●
98 BOLT; RAD FAN GUIDE
M10X45 FLANGE 		0-28051-045-0 01 1 1006-1007 ● ● ●
98 BOLT; RAD FAN GUIDE
M10X45 FLANGE 		0-28051-045-0 01 1 1008- ● ●
99 WASHER; PL
ID=10.5 OD=26 		0-91614-710-0 03 1 0904-1005 ●
99 WASHER; PL
ID=10.5 OD=26 		0-91614-710-0 03 1 1006- ● ● ●
100 RUBBER; MTG 1-09337-017-0 06 1 0904-1005 ●
100 RUBBER; MTG 1-09337-017-0 06 1 1006- ● ● ●
107 BOLT; BRKT TO STAY
M14X25 FLANGE 		0-28951-425-0 04 1 0904-1005 ●
107 BOLT; BRKT TO STAY
M14X25 FLANGE 		0-28951-425-0 04 1 1006- ● ● ●
115 BRACKET; FAN GUIDE
(C) 		8-98097-134-0 01 1 1008-1008 ●
115 BRACKET; FAN GUIDE
(C) 		8-98178-723-0 01 1 1009- ●
115 BRACKET; FAN GUIDE
(B) 		8-98097-135-0 01 1 1008- ●
115 BRACKET; FAN GUIDE
(A) 		8-98097-136-0 01 1 1008- ●
115 BRACKET; FAN GUIDE
(B) 		1-21559-421-1 01 1 0904-1005 ●
115 BRACKET; FAN GUIDE
(B) 		1-21559-421-1 01 1 1006-1007 ● ● ●
115 BRACKET; FAN GUIDE
(B) 		1-21559-421-1 01 1 1008- ● ●
115 BRACKET; FAN GUIDE
(C) 		1-21559-422-0 01 1 0904-1005 ●
115 BRACKET; FAN GUIDE
(C) 		1-21559-422-0 01 1 1006-1007 ● ● ●
115 BRACKET; FAN GUIDE
(C) 		1-21559-422-0 01 1 1008-1301 ● ●
115 BRACKET; FAN GUIDE
(C) 		8-97643-211-0 01 1 1302- ● ●
115 BRACKET; FAN GUIDE
(A) 		8-97612-230-0 01 1 0904-1005 ●
115 BRACKET; FAN GUIDE
(A) 		8-97612-230-0 01 1 1006-1007 ● ● ●
115 BRACKET; FAN GUIDE
(A) 		8-97612-230-0 01 1 1008-1301 ● ●
115 BRACKET; FAN GUIDE
(A) 		8-97643-212-0 01 1 1302- ● ●
242 BRACKET; RAD
(A) 		1-21464-808-1 01 1 1008- ●
242 BRACKET; RAD
(A) 		1-21464-809-1 01 1 1008- ●
242 BRACKET; RAD
(B) 		1-21464-790-0 01 1 0904-1005 ●
242 BRACKET; RAD
(B) 		1-21464-790-0 01 1 1006-1007 ● ● ●
242 BRACKET; RAD
(B) 		1-21464-790-0 01 1 1008- ● ●
242 BRACKET; RAD
(B) 		1-21464-791-0 01 1 0904-1005 ●
242 BRACKET; RAD
(B) 		1-21464-791-0 01 1 1006-1007 ● ● ●
242 BRACKET; RAD
(B) 		1-21464-791-0 01 1 1008- ● ●
249 BOLT; STAY,RAD MBR
(A) M8X30 		1-09009-020-1 02 1 0904-1005 ●
249 BOLT; STAY,RAD MBR
(A) M8X30 		1-09009-020-1 02 1 1006- ● ● ●
249 BOLT; STAY,RAD MBR
(B) M8X26 		1-09009-175-0 02 1 0904-1005 ●
249 BOLT; STAY,RAD MBR
(B) M8X26 		1-09009-175-0 02 1 1006- ● ● ●
321 BOLT; GUARD,SIDE
M8X16 FLANGE 		0-28050-816-0 02 1 1208- ●
336 SEAL; LWR,RAD 1-21464-753-1 01 1 1008- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
