◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11198 - CYH NZ EURO4/JAPAN NEW LONG TERM 2005 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-01 - ACCELERATOR PEDAL AND CONTROL ▶
1-01 — ACCELERATOR PEDAL AND CONTROL (#21918) — 45 parça

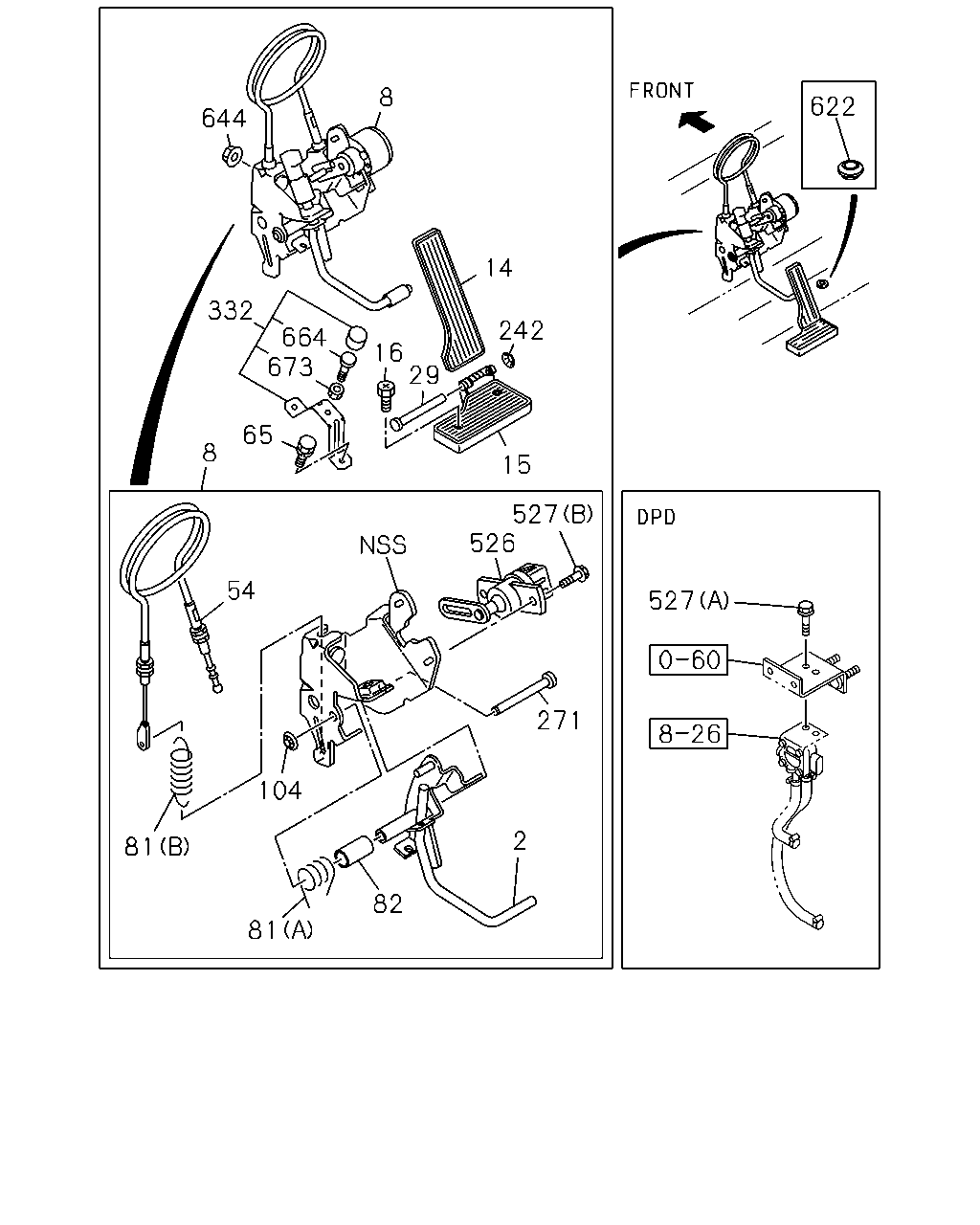

çizim 62238
8 622 644 14 332 242 664 673 16 29 65 8 15 527 526 54 527 271 104 2 81 82 81
BalonParca AdiParca NoAdetTipApplied Date A B C
2 LEVER; ENG CONT 1-73996-593-1 01 1 0904-1005 ●
2 LEVER; ENG CONT 1-73996-593-1 01 1 1006- ● ● ●
8 LINK ASM; ENG CONT 1-73996-591-0 01 1 0904-0908 ●
8 LINK ASM; ENG CONT 8-98133-476-1 01 1 0909-1005 ●
8 LINK ASM; ENG CONT 8-98133-476-1 01 1 1006- ● ● ●
14 PAD; PEDAL,ACCEL 1-73907-563-0 01 1 0904-1005 ●
14 PAD; PEDAL,ACCEL 1-73907-563-0 01 1 1006- ● ● ●
15 STAND; HEEL,ACCEL PEDAL 1-73907-266-3 01 1 0904-1005 ●
15 STAND; HEEL,ACCEL PEDAL 1-73907-266-3 01 1 1006- ● ● ●
16 SCREW; HEEL STAND,ACCEL PEDAL
M6X28 W/LK&PL WASHER 		1-09980-543-0 02 1 0904-1005 ●
16 SCREW; HEEL STAND,ACCEL PEDAL
M6X28 W/LK&PL WASHER 		1-09980-543-0 02 1 1006- ● ● ●
29 SHAFT; ACCEL PEDAL
OD=8.0 L=74 		1-71907-212-1 01 1 0904-1005 ●
29 SHAFT; ACCEL PEDAL
OD=8.0 L=74 		1-71907-212-1 01 1 1006- ● ● ●
54 CABLE; ENG CONT
L=850 		1-71907-257-0 01 1 0904-1005 ●
54 CABLE; ENG CONT
L=850 		1-71907-257-0 01 1 1006- ● ● ●
65 BOLT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0904-1005 ●
65 BOLT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1006- ● ● ●
81 SPRING; RETURN,ENG CONT LEVER
(A) 		8-97853-205-1 01 1 0904-1005 ●
81 SPRING; RETURN,ENG CONT LEVER
(A) 		8-97853-205-1 01 1 1006- ● ● ●
81 SPRING; RETURN,ENG CONT LEVER
(B) 		8-97997-917-0 01 1 0904-1005 ●
81 SPRING; RETURN,ENG CONT LEVER
(B) 		8-97997-917-0 01 1 1006- ● ● ●
82 BUSHING; ENG CONT LVR
L=31.5 		1-53459-627-0 01 1 0904-1005 ●
82 BUSHING; ENG CONT LVR
L=31.5 		1-53459-627-0 01 1 1006- ● ● ●
104 NUT; ENG CONT
ID=7.9 PUSH NUT 		8-94368-617-0 01 1 0904-1005 ●
104 NUT; ENG CONT
ID=7.9 PUSH NUT 		8-94368-617-0 01 1 1006- ● ● ●
242 NUT; ACCEL PEDAL
ID=7.9 PUSH NUT 		8-97022-565-0 01 1 0904-1005 ●
242 NUT; ACCEL PEDAL
ID=7.9 PUSH NUT 		8-97022-565-0 01 1 1006- ● ● ●
271 SHAFT; ENG CONT
OD=8.0 L=69 		1-71907-298-0 01 1 0904-1005 ●
271 SHAFT; ENG CONT
OD=8.0 L=69 		1-71907-298-0 01 1 1006- ● ● ●
332 BRACKET; ACCEL PEDAL STOPPER 1-73908-428-0 01 1 0904-1005 ●
332 BRACKET; ACCEL PEDAL STOPPER 1-73908-428-0 01 1 1006- ● ● ●
526 SENSOR; ACCEL 8-97602-416-0 01 1 0904-0908 ●
526 SENSOR; ACCEL 8-98131-263-0 01 1 0909-1005 ●
526 SENSOR; ACCEL 8-98131-263-0 01 1 1006- ● ● ●
527 BOLT; ACCEL SENSOR
EMISSION REGULATION NEW LONG TERM<JBG> (B) M8X20 FLANGE 		0-28050-820-0 02 1 1006- ● ●
527 BOLT; ACCEL SENSOR
(A) M5X16 		8-98111-511-0 01 1 0904-1005 ●
527 BOLT; ACCEL SENSOR
(A) M5X16 		8-98111-511-0 01 1 1006- ● ● ●
622 GROMMET; ACCEL CONT CABLE
OD=30 		8-94107-655-0 01 1 0904-1005 ●
622 GROMMET; ACCEL CONT CABLE
OD=30 		8-94107-655-0 01 1 1006- ● ● ●
644 NUT; LINK,ENG CONT
M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 0904-1005 ●
644 NUT; LINK,ENG CONT
M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 1006- ● ● ●
664 BOLT; STOPPER
M8X45 		0-20800-845-0 01 1 0904-1005 ●
664 BOLT; STOPPER
M8X45 		0-20800-845-0 01 1 1006- ● ● ●
673 NUT; STOPPER
M8 		0-91111-508-0 01 1 0904-1005 ●
673 NUT; STOPPER
M8 		0-91111-508-0 01 1 1006- ● ● ●
