Sayfa 0-60 - Isuzu EPC

0-60 — ENGINE ELECTRICAL CONTROL PARTS (#21913) — 150 parça

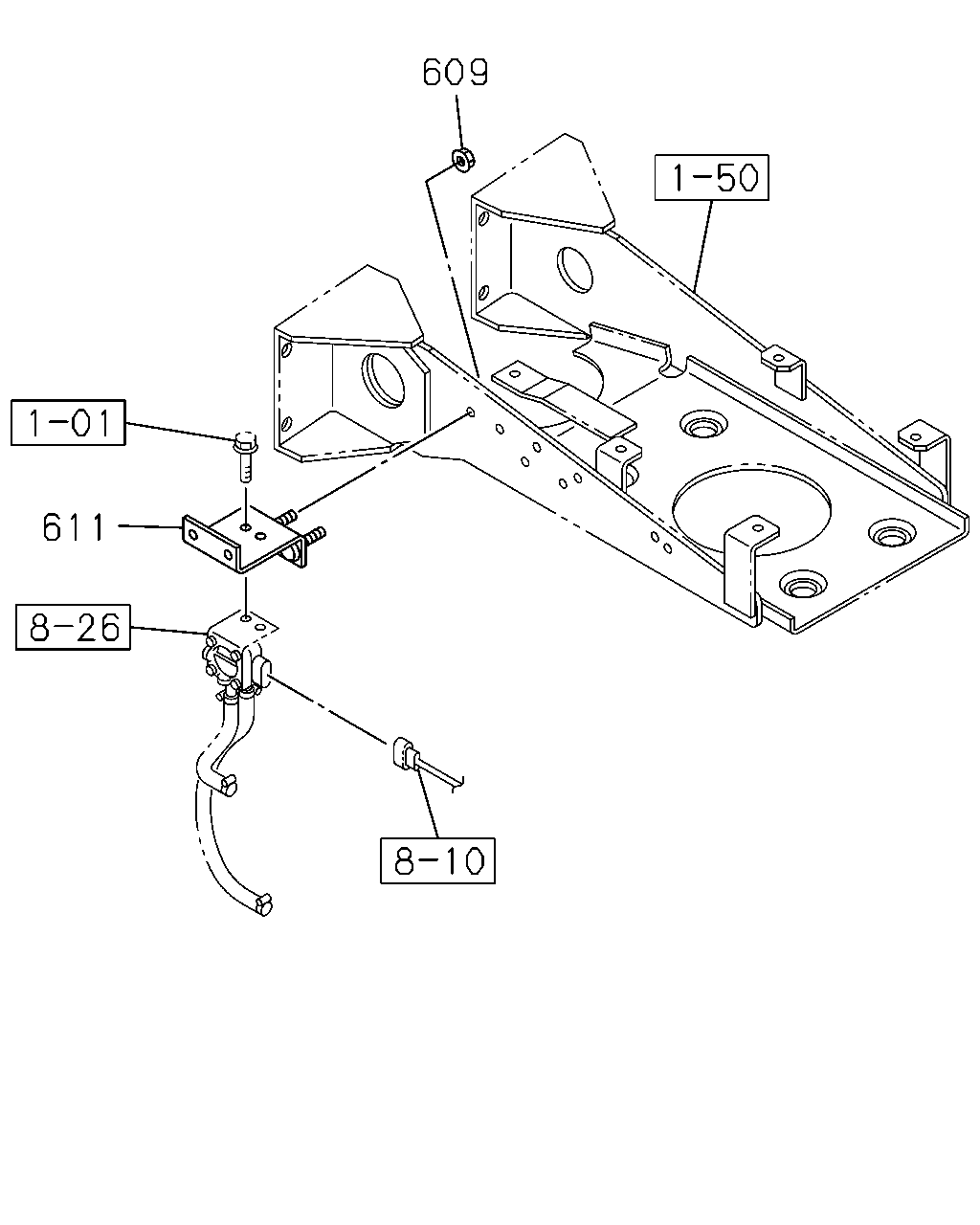

609 611

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	609	NUT; SENSOR EMISSION REGULATION NEW LONG TERM<JBG> M10 FLANGE	0-91180-210-0	02	1	1006-
	611	BRACKET; SENSOR EMISSION REGULATION NEW LONG TERM<JBG>	8-97621-447-0	01	1	1006-

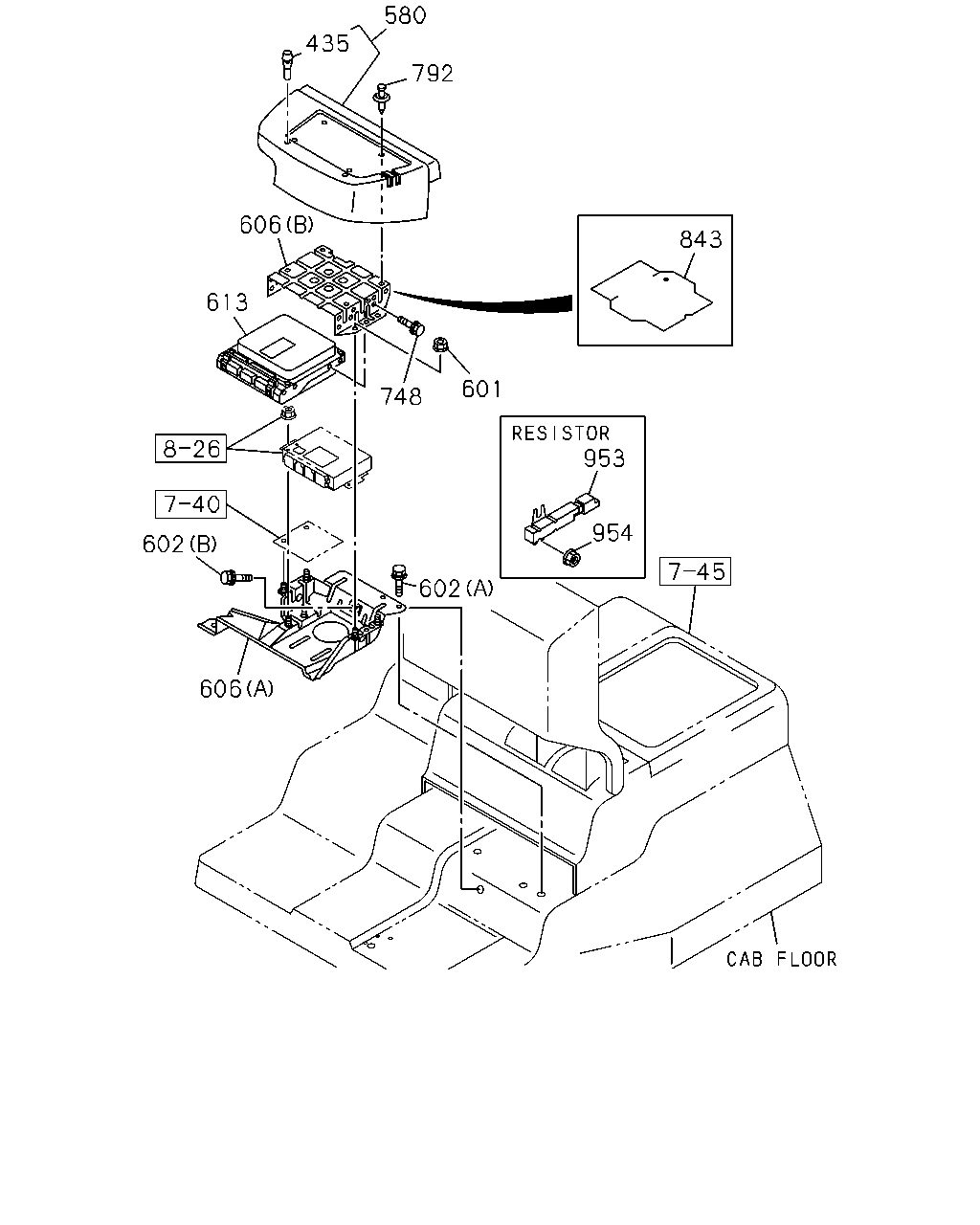

580 435 792 606 843 613 601 748 953 954 602 602 606

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
435	RUBBER; CUSHION	1-72537-138-0	02	1	0904-
580	COVER; CONT UNIT	1-72537-279-2	01	1	0904-
601	NUT; UNIT M6 FLANGE	0-91180-106-0	04	1	0904-
602	BOLT; BRKT (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	0904-
602	BOLT; BRKT (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	0904-
606	BRACKET; CONT UNIT (A)	1-72537-230-1	01	1	0904-
606	BRACKET; CONT UNIT (B)	1-72537-333-0	01	1	0904-
613	CONTROL UNIT; ENG 6WG1 TC-R(75L) SPEED LIMITER 95KM<NNT>	8-97985-239-1	01	1	1012-
613	CONTROL UNIT; ENG 6WG1 TC-R(75L) SPEED LIMITER 110KM<8MJ>	8-97985-235-1	01	1	1012-
613	CONTROL UNIT; ENG 6WG1 TC-R(75L) EXC. SPEED LIMITER 100KM<NMU>,SPEED LIMITER 95KM<NNT>,SPEED LIMITER 110KM<8MJ>	8-97985-143-1	01	1	1012-
613	CONTROL UNIT; ENG 6WG1 TC-C(72L) EMISSION REGULATION NEW LONG TERM<JBG> SPEED LIMITER 95KM<NNT> ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	8-98177-927-0	01	1	1008-1012
613	CONTROL UNIT; ENG 6WG1 TC-C(72L) EMISSION REGULATION NEW LONG TERM<JBG> SPEED LIMITER 95KM<NNT> ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	8-98184-433-1	01	1	1101-1301
613	CONTROL UNIT; ENG 6WG1 TC-C(72L) EMISSION REGULATION NEW LONG TERM<JBG> SPEED LIMITER 95KM<NNT> ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	8-98238-979-0	01	1	1302-
613	CONTROL UNIT; ENG 6WG1 TC-C(72L) EMISSION REGULATION NEW LONG TERM<JBG> SPEED LIMITER 95KM<NNT> EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	8-98177-939-0	01	1	1008-1012
613	CONTROL UNIT; ENG 6WG1 TC-C(72L) EMISSION REGULATION NEW LONG TERM<JBG> SPEED LIMITER 95KM<NNT> EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	8-98184-457-1	01	1	1101-1301
613	CONTROL UNIT; ENG 6WG1 TC-C(72L) EMISSION REGULATION NEW LONG TERM<JBG> SPEED LIMITER 95KM<NNT> EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	8-98238-991-0	01	1	1302-
613	CONTROL UNIT; ENG 6WG1 TC-C(72L) EMISSION REGULATION NEW LONG TERM<JBG> ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> SPEED LIMITER 110KM<8MJ>	8-98177-926-0	01	1	1008-1012
613	CONTROL UNIT; ENG 6WG1 TC-C(72L) EMISSION REGULATION NEW LONG TERM<JBG> ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> SPEED LIMITER 110KM<8MJ>	8-98184-431-1	01	1	1101-1301
613	CONTROL UNIT; ENG 6WG1 TC-C(72L) EMISSION REGULATION NEW LONG TERM<JBG> ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> SPEED LIMITER 110KM<8MJ>	8-98238-978-0	01	1	1302-
613	CONTROL UNIT; ENG 6WG1 TC-C(72L) EMISSION REGULATION NEW LONG TERM<JBG> SPEED LIMITER 110KM<8MJ> EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	8-98177-938-0	01	1	1008-1012
613	CONTROL UNIT; ENG 6WG1 TC-C(72L) EMISSION REGULATION NEW LONG TERM<JBG> SPEED LIMITER 110KM<8MJ> EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	8-98184-455-1	01	1	1101-1301
613	CONTROL UNIT; ENG 6WG1 TC-C(72L) EMISSION REGULATION NEW LONG TERM<JBG> SPEED LIMITER 110KM<8MJ> EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	8-98238-990-0	01	1	1302-
613	CONTROL UNIT; ENG 6WG1 TC-S(97L) EMISSION REGULATION NEW LONG TERM<JBG> SPEED LIMITER 95KM<NNT> ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	8-98177-933-0	01	1	1008-1011
613	CONTROL UNIT; ENG 6WG1 TC-S(97L) EMISSION REGULATION NEW LONG TERM<JBG> SPEED LIMITER 95KM<NNT> ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	8-98184-445-1	01	1	1012-1301
613	CONTROL UNIT; ENG 6WG1 TC-S(97L) EMISSION REGULATION NEW LONG TERM<JBG> SPEED LIMITER 95KM<NNT> ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	8-98238-985-0	01	1	1302-
613	CONTROL UNIT; ENG 6WG1 TC-S(97L) EMISSION REGULATION NEW LONG TERM<JBG> SPEED LIMITER 95KM<NNT> EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	8-98177-945-0	01	1	1008-1011
613	CONTROL UNIT; ENG 6WG1 TC-S(97L) EMISSION REGULATION NEW LONG TERM<JBG> SPEED LIMITER 95KM<NNT> EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	8-98184-469-1	01	1	1012-1301
613	CONTROL UNIT; ENG 6WG1 TC-S(97L) EMISSION REGULATION NEW LONG TERM<JBG> SPEED LIMITER 95KM<NNT> EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	8-98238-997-0	01	1	1302-
613	CONTROL UNIT; ENG 6WG1 TC-S(97L) EMISSION REGULATION NEW LONG TERM<JBG> ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> SPEED LIMITER 110KM<8MJ>	8-98177-932-0	01	1	1008-1011
613	CONTROL UNIT; ENG 6WG1 TC-S(97L) EMISSION REGULATION NEW LONG TERM<JBG> ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> SPEED LIMITER 110KM<8MJ>	8-98184-443-1	01	1	1012-1301
613	CONTROL UNIT; ENG 6WG1 TC-S(97L) EMISSION REGULATION NEW LONG TERM<JBG> ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> SPEED LIMITER 110KM<8MJ>	8-98238-984-0	01	1	1302-
613	CONTROL UNIT; ENG 6WG1 TC-S(97L) EMISSION REGULATION NEW LONG TERM<JBG> SPEED LIMITER 110KM<8MJ> EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	8-98177-944-0	01	1	1008-1011
613	CONTROL UNIT; ENG 6WG1 TC-S(97L) EMISSION REGULATION NEW LONG TERM<JBG> SPEED LIMITER 110KM<8MJ> EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	8-98184-467-1	01	1	1012-1301
613	CONTROL UNIT; ENG 6WG1 TC-S(97L) EMISSION REGULATION NEW LONG TERM<JBG> SPEED LIMITER 110KM<8MJ> EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	8-98238-996-0	01	1	1302-
613	CONTROL UNIT; ENG 6WG1 TC-C(72L) EMISSION REGULATION NEW LONG TERM<JBG> SPEED LIMITER 100KM<NMU> EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	8-98171-480-0	01	1	1006-1012
613	CONTROL UNIT; ENG 6WG1 TC-C(72L) EMISSION REGULATION NEW LONG TERM<JBG> SPEED LIMITER 100KM<NMU> EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	8-98184-456-1	01	1	1101-1301
613	CONTROL UNIT; ENG 6WG1 TC-C(72L) EMISSION REGULATION NEW LONG TERM<JBG> SPEED LIMITER 100KM<NMU> EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	8-98237-235-0	01	1	1302-
613	CONTROL UNIT; ENG 6WG1 TC-C(72L) EMISSION REGULATION NEW LONG TERM<JBG> EXC. SPEED LIMITER 100KM<NMU>,ACL DRY DONALDSON 13"DBL ELEMENT<Q2Y>	8-98171-478-0	01	1	1006-1007
613	CONTROL UNIT; ENG 6WG1 TC-C(72L) EMISSION REGULATION NEW LONG TERM<JBG> EXC. SPEED LIMITER 100KM<NMU>,SPEED LIMITER 95KM<NNT>,ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>,SPEED LIMITER 110KM<8MJ>	8-98171-478-0	01	1	1008-1012
613	CONTROL UNIT; ENG 6WG1 TC-C(72L) EMISSION REGULATION NEW LONG TERM<JBG> EXC. SPEED LIMITER 100KM<NMU>,SPEED LIMITER 95KM<NNT>,ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>,SPEED LIMITER 110KM<8MJ>	8-98184-454-1	01	1	1101-1301
613	CONTROL UNIT; ENG 6WG1 TC-C(72L) EMISSION REGULATION NEW LONG TERM<JBG> EXC. SPEED LIMITER 100KM<NMU>,SPEED LIMITER 95KM<NNT>,ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>,SPEED LIMITER 110KM<8MJ>	8-98237-234-0	01	1	1302-
613	CONTROL UNIT; ENG 6WG1 TC-S(97L) EMISSION REGULATION NEW LONG TERM<JBG> SPEED LIMITER 100KM<NMU> EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	8-98171-488-0	01	1	1006-1007
613	CONTROL UNIT; ENG 6WG1 TC-S(97L) EMISSION REGULATION NEW LONG TERM<JBG> SPEED LIMITER 100KM<NMU> EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	8-98177-889-0	01	1	1008-1011
613	CONTROL UNIT; ENG 6WG1 TC-S(97L) EMISSION REGULATION NEW LONG TERM<JBG> SPEED LIMITER 100KM<NMU> EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	8-98184-468-1	01	1	1012-1301
613	CONTROL UNIT; ENG 6WG1 TC-S(97L) EMISSION REGULATION NEW LONG TERM<JBG> SPEED LIMITER 100KM<NMU> EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	8-98237-241-0	01	1	1302-
613	CONTROL UNIT; ENG 6WG1 TC-S(97L) EMISSION REGULATION NEW LONG TERM<JBG> EXC. SPEED LIMITER 100KM<NMU>,ACL DRY DONALDSON 13"DBL ELEMENT<Q2Y>	8-98171-487-0	01	1	1006-1007
613	CONTROL UNIT; ENG 6WG1 TC-S(97L) EMISSION REGULATION NEW LONG TERM<JBG> EXC. SPEED LIMITER 100KM<NMU>,ACL DRY DONALDSON 13"DBL ELEMENT<Q2Y>	8-98177-888-0	01	1	1008-1008
613	CONTROL UNIT; ENG 6WG1 TC-S(97L) EMISSION REGULATION NEW LONG TERM<JBG> EXC. SPEED LIMITER 100KM<NMU>,SPEED LIMITER 95KM<NNT>,ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>,SPEED LIMITER 110KM<8MJ>	8-98177-888-0	01	1	1008-1011
613	CONTROL UNIT; ENG 6WG1 TC-S(97L) EMISSION REGULATION NEW LONG TERM<JBG> EXC. SPEED LIMITER 100KM<NMU>,SPEED LIMITER 95KM<NNT>,ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>,SPEED LIMITER 110KM<8MJ>	8-98184-466-1	01	1	1012-1301
613	CONTROL UNIT; ENG 6WG1 TC-S(97L) EMISSION REGULATION NEW LONG TERM<JBG> EXC. SPEED LIMITER 100KM<NMU>,SPEED LIMITER 95KM<NNT>,ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>,SPEED LIMITER 110KM<8MJ>	8-98237-240-0	01	1	1302-
613	CONTROL UNIT; ENG 6WG1 TC-C(72L) EMISSION REGULATION NEW LONG TERM<JBG> SPEED LIMITER 100KM<NMU> ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	8-97634-919-0	01	1	1006-1007
613	CONTROL UNIT; ENG 6WG1 TC-C(72L) EMISSION REGULATION NEW LONG TERM<JBG> SPEED LIMITER 100KM<NMU> ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	8-98173-221-0	01	1	1008-1012
613	CONTROL UNIT; ENG 6WG1 TC-C(72L) EMISSION REGULATION NEW LONG TERM<JBG> SPEED LIMITER 100KM<NMU> ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	8-98184-432-1	01	1	1101-1301
613	CONTROL UNIT; ENG 6WG1 TC-C(72L) EMISSION REGULATION NEW LONG TERM<JBG> SPEED LIMITER 100KM<NMU> ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	8-98237-223-0	01	1	1302-
613	CONTROL UNIT; ENG 6WG1 TC-C(72L) EMISSION REGULATION NEW LONG TERM<JBG> ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. SPEED LIMITER 100KM<NMU>	8-98157-590-0	01	1	1006-1007
613	CONTROL UNIT; ENG 6WG1 TC-C(72L) EMISSION REGULATION NEW LONG TERM<JBG> ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. SPEED LIMITER 100KM<NMU>,SPEED LIMITER 95KM<NNT>,SPEED LIMITER 110KM<8MJ>	8-98157-590-0	01	1	1008-1012
613	CONTROL UNIT; ENG 6WG1 TC-C(72L) EMISSION REGULATION NEW LONG TERM<JBG> ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. SPEED LIMITER 100KM<NMU>,SPEED LIMITER 95KM<NNT>,SPEED LIMITER 110KM<8MJ>	8-98184-430-1	01	1	1101-1301
613	CONTROL UNIT; ENG 6WG1 TC-C(72L) EMISSION REGULATION NEW LONG TERM<JBG> ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. SPEED LIMITER 100KM<NMU>,SPEED LIMITER 95KM<NNT>,SPEED LIMITER 110KM<8MJ>	8-98237-222-0	01	1	1302-
613	CONTROL UNIT; ENG 6WG1 TC-S(97L) EMISSION REGULATION NEW LONG TERM<JBG> SPEED LIMITER 100KM<NMU> ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	8-98157-595-0	01	1	1006-1007
613	CONTROL UNIT; ENG 6WG1 TC-S(97L) EMISSION REGULATION NEW LONG TERM<JBG> SPEED LIMITER 100KM<NMU> ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	8-98177-895-0	01	1	1008-1011
613	CONTROL UNIT; ENG 6WG1 TC-S(97L) EMISSION REGULATION NEW LONG TERM<JBG> SPEED LIMITER 100KM<NMU> ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	8-98184-444-1	01	1	1012-1301
613	CONTROL UNIT; ENG 6WG1 TC-S(97L) EMISSION REGULATION NEW LONG TERM<JBG> SPEED LIMITER 100KM<NMU> ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	8-98237-229-0	01	1	1302-
613	CONTROL UNIT; ENG 6WG1 TC-S(97L) EMISSION REGULATION NEW LONG TERM<JBG> ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. SPEED LIMITER 100KM<NMU>	8-98157-594-0	01	1	1006-1007
613	CONTROL UNIT; ENG 6WG1 TC-S(97L) EMISSION REGULATION NEW LONG TERM<JBG> ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. SPEED LIMITER 100KM<NMU>	8-98177-894-0	01	1	1008-1008
613	CONTROL UNIT; ENG 6WG1 TC-S(97L) EMISSION REGULATION NEW LONG TERM<JBG> ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. SPEED LIMITER 100KM<NMU>,SPEED LIMITER 95KM<NNT>,SPEED LIMITER 110KM<8MJ>	8-98177-894-0	01	1	1008-1011
613	CONTROL UNIT; ENG 6WG1 TC-S(97L) EMISSION REGULATION NEW LONG TERM<JBG> ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. SPEED LIMITER 100KM<NMU>,SPEED LIMITER 95KM<NNT>,SPEED LIMITER 110KM<8MJ>	8-98184-442-1	01	1	1012-1301
613	CONTROL UNIT; ENG 6WG1 TC-S(97L) EMISSION REGULATION NEW LONG TERM<JBG> ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. SPEED LIMITER 100KM<NMU>,SPEED LIMITER 95KM<NNT>,SPEED LIMITER 110KM<8MJ>	8-98237-228-0	01	1	1302-
613	CONTROL UNIT; ENG	8-98140-260-0	01	1	0904-1005
613	CONTROL UNIT; ENG 6WG1 TC-R(75L) EURO4 SPECIFICATION<KBT>	8-98140-260-0	01	1	1006-1011
613	CONTROL UNIT; ENG 6WG1 TC-R(75L) SPEED LIMITER 100KM<NMU>	8-97985-237-1	01	1	1012-
748	BOLT; CONT UNIT M5X10 W/LK+PL WASHER	0-36230-510-0	04	1	0904-
792	FASTENER D8X13.5	1-09987-270-0	04	1	0904-
843	SEAL; BRKT	1-76770-009-2	01	1	0904-1101
843	SEAL; BRKT	8-98119-974-0	01	1	1102-
953	RESISTOR; CONT UNIT	8-97357-613-0	01	1	0904-
954	NUT; RESISTOR M6 FLANGE	0-91180-106-0	02	1	0904-

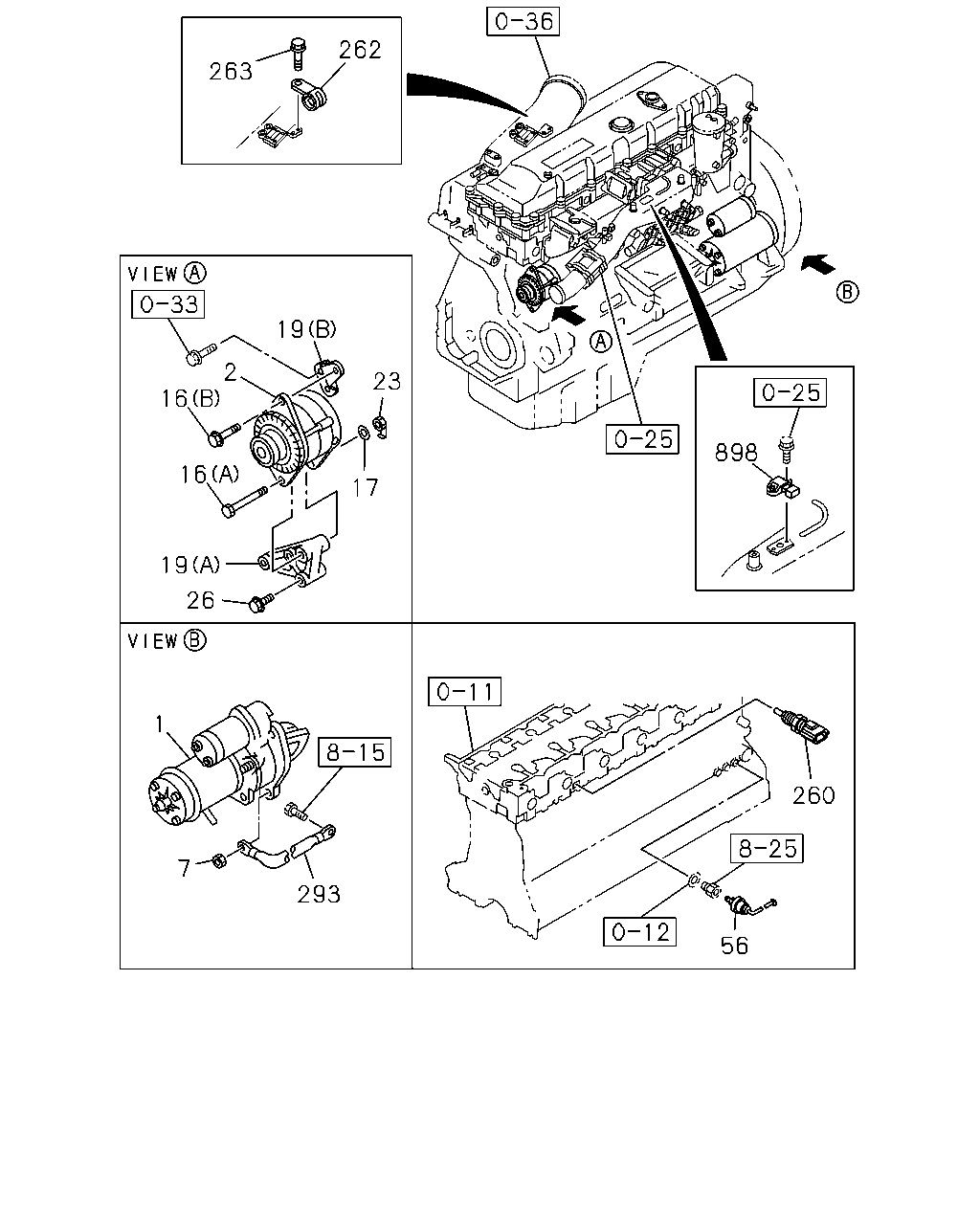

262 263 19 2 16 23 898 16 17 19 26 1 260 7 293 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 7.0KW MITSUBISHI	8-97380-508-4	01	1	0904-
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 6WG1 TC-C(72L),6WG1 TC-S(97L) GENERATOR 24V-60A 1.5KW(SC8) 24V 60A MITSUBISHI	8-98013-613-4	01	1	1006-
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 6WG1 TC-C(72L),6WG1 TC-S(97L) GENERATOR NIKKO 24V-50A 1.2KW(SLX) 24V 50A MITSUBISHI	8-98013-612-3	01	1	1006-1112
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 6WG1 TC-C(72L),6WG1 TC-S(97L) GENERATOR NIKKO 24V-50A 1.2KW(SLX) 24V 50A MITSUBISHI	8-98200-162-0	01	1	1201-
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR NIKKO 24V-50A 1.2KW(SLX) 24V 50A MITSUBISHI	1-81200-484-8	01	1	0904-1005
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 6WG1 TC-R(75L) GENERATOR NIKKO 24V-50A 1.2KW(SLX) 24V 50A MITSUBISHI	1-81200-484-8	01	1	1006-1112
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 6WG1 TC-R(75L) GENERATOR NIKKO 24V-50A 1.2KW(SLX) 24V 50A MITSUBISHI	8-98200-154-0	01	1	1201-
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V-60A 1.5KW(SC8) 24V 60A MITSUBISHI	1-81200-572-8	01	1	0904-1005
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 6WG1 TC-R(75L) GENERATOR 24V-60A 1.5KW(SC8) 24V 60A MITSUBISHI	1-81200-572-8	01	1	1006-
7	NUT; STARTER M14 FLANGE	0-91150-114-0	03	1	0904-
16	BOLT; GEN (B) M12X40 FLANGE	0-28051-240-0	01	1	0904-
16	BOLT; GEN (A) M14X123	1-09040-105-0	01	1	0904-
17	WASHER; PL,GEN ID=15	0-91610-514-0	01	1	0904-
19	BRACKET; GEN (B)	8-97606-317-0	01	1	0904-
19	BRACKET; GEN (A)	8-97607-133-0	01	1	0904-
23	NUT; GEN M14 W/BRKT	1-19711-029-0	01	1	0904-0910
23	NUT; GEN M14 FLANGE	0-91150-114-0	01	1	0911-
26	BOLT; GEN BRKT M10X60 FLANGE	0-28151-060-0	02	1	0904-
56	SWITCH; OIL PRESSURE WARNING	1-82410-163-1	01	1	0904-
260	SENSOR; WATER TEMP MITSUBISHI	8-98023-883-0	01	1	0904-1406
260	SENSOR; WATER TEMP NISHIDA	8-98260-257-0	01	1	1407-
262	CLIP; HARNESS ID=17 L=20	8-97619-251-0	01	1	0904-
263	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0904-
293	CABLE; STARTER EARTH L=350	1-82650-235-0	01	1	0904-
898	SENSOR; BOOST	8-98009-418-0	01	1	0904-

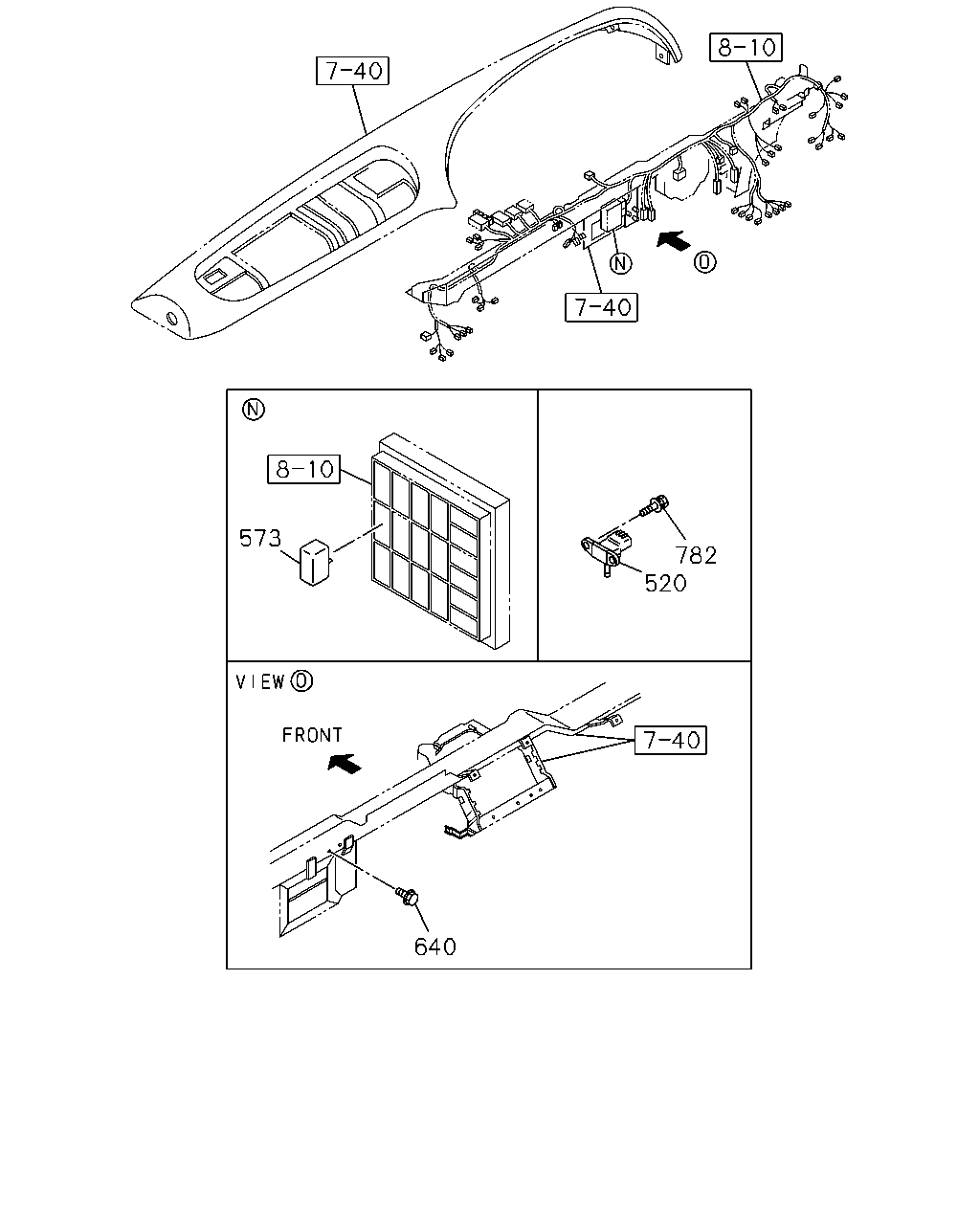

573 782 520 640

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
520	SENSOR; PRESSURE	8-98020-514-0	01	1	0904-
573	RELAY; ELEC GOV 24V 10A PANASONIC	8-97173-035-1	01	1	0904-
640	BOLT; BRKT,QOS GLOW TIMER M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0904-
782	BOLT; SENSOR M6X19.5 W/LK&PL WASHER	8-97360-226-0	02	1	0904-

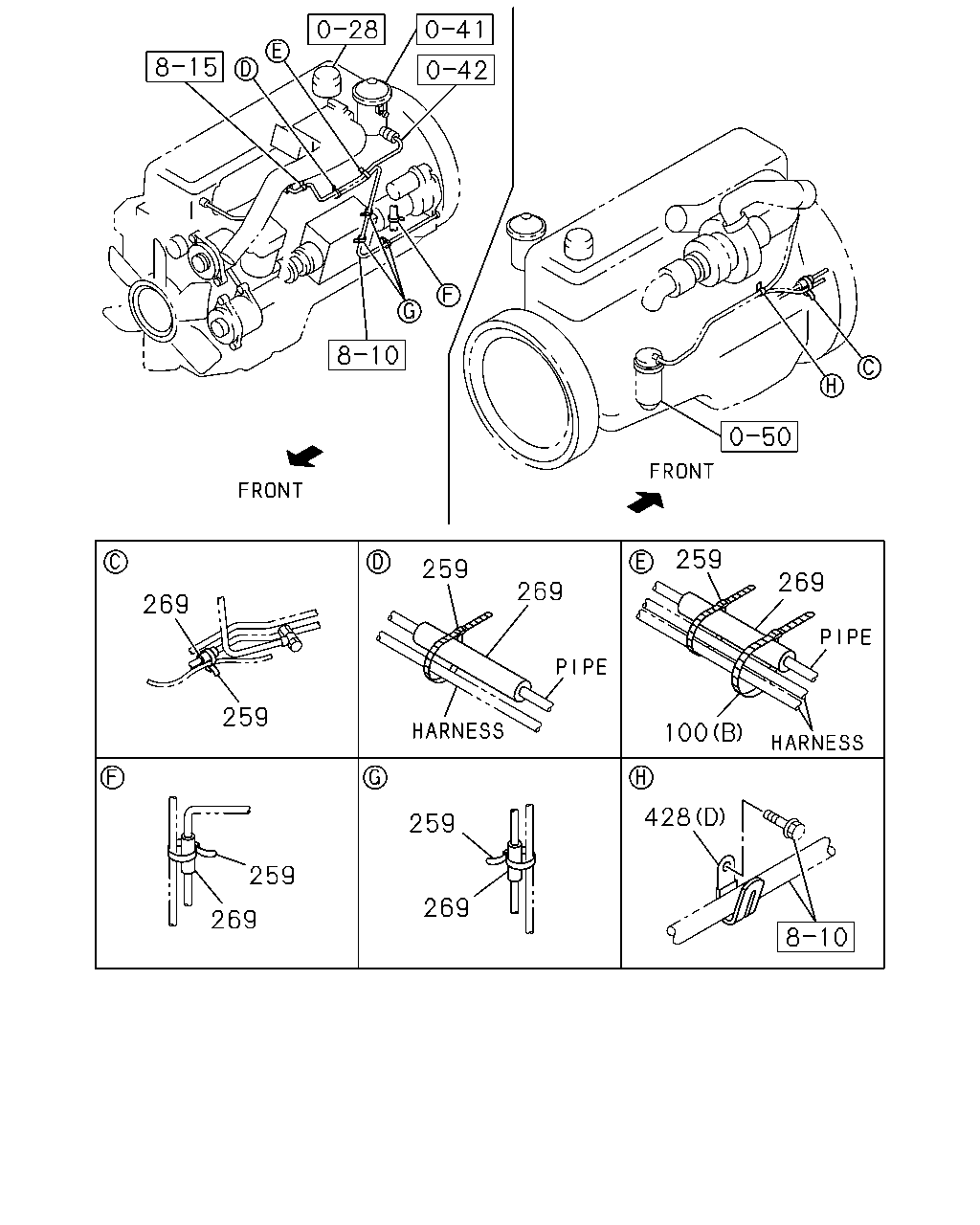

259 259 269 269 269 259 100 428 259 259 269 269

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
100	CLIP; HARNESS (A) ID=11 L=20	0-95235-035-0	01	1	0904-
100	CLIP; HARNESS (B) L=140	5-09707-031-1	02	1	0904-1205
100	CLIP; HARNESS (B) L=140	8-98216-431-0	02	1	1206-
259	CLIP; BAND,HARNESS TO OIL PIPE L=251	8-97619-917-0	01	1	1006-
259	CLIP; BAND,HARNESS TO OIL PIPE L=140	5-09707-031-1	05	1	0904-1005
259	CLIP; BAND,HARNESS TO OIL PIPE 6WG1 TC-R(75L) L=140	5-09707-031-1	05	1	1006-1205
259	CLIP; BAND,HARNESS TO OIL PIPE 6WG1 TC-R(75L) L=140	8-98216-431-0	05	1	1206-
259	CLIP; BAND,HARNESS TO OIL PIPE L=251	8-97619-917-0	01	1	0904-1005
259	CLIP; BAND,HARNESS TO OIL PIPE 6WG1 TC-C(72L),6WG1 TC-S(97L) L=140	5-09707-031-1	06	1	1006-1205
259	CLIP; BAND,HARNESS TO OIL PIPE 6WG1 TC-C(72L),6WG1 TC-S(97L) L=140	8-98216-431-0	06	1	1206-
269	SLEEVE; RUBBER,CABLE ID=10 OD=14 L=30	9-09956-682-0	03	1	0904-
428	CLIP; HARNESS (A) ID=30X2 L=28	1-09701-266-0	01	1	0904-
428	CLIP; HARNESS (A) ID=35X2 L=32	1-09701-314-0	03	1	0904-
428	CLIP; HARNESS (C)	1-82699-911-0	01	1	0904-
428	CLIP; HARNESS (B)	1-82699-993-1	01	1	0904-
428	CLIP; HARNESS (D) L=36	8-94224-891-1	01	1	0904-

428 428 441 441 428 428 441

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
428	CLIP; HARNESS (A) ID=30X2 L=28	1-09701-266-0	01	1	0904-
428	CLIP; HARNESS (A) ID=35X2 L=32	1-09701-314-0	03	1	0904-
428	CLIP; HARNESS (C)	1-82699-911-0	01	1	0904-
428	CLIP; HARNESS (B)	1-82699-993-1	01	1	0904-
428	CLIP; HARNESS (D) L=36	8-94224-891-1	01	1	0904-
441	BOLT; HARNESS TO FRAME M8X24.5 W/LK&PL WASHER	8-94279-208-0	05	1	0904-0904
441	BOLT; HARNESS TO FRAME M8X24.5 W/LK&PL WASHER	8-98059-720-0	05	1	0905-
441	BOLT; HARNESS TO FRAME M8X20 FLANGE	0-28650-820-0	02	1	0904-

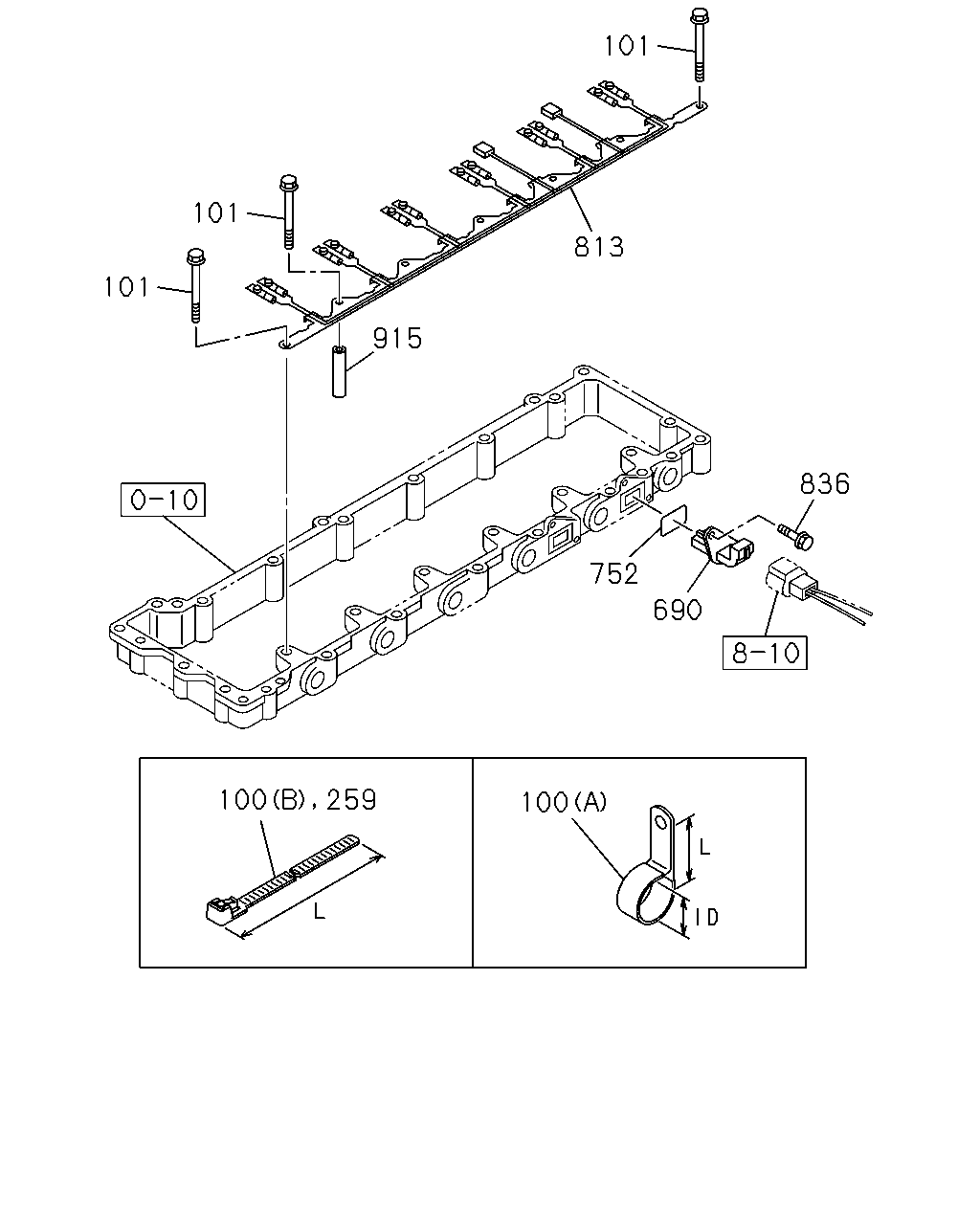

101 101 813 101 915 836 752 690 100 100 259

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
100	CLIP; HARNESS (A) ID=11 L=20	0-95235-035-0	01	1	0904-
100	CLIP; HARNESS (B) L=140	5-09707-031-1	02	1	0904-1205
100	CLIP; HARNESS (B) L=140	8-98216-431-0	02	1	1206-
101	BOLT; HARNESS M8X70 FLANGE	0-28050-870-0	07	1	0904-
259	CLIP; BAND,HARNESS TO OIL PIPE L=251	8-97619-917-0	01	1	1006-
259	CLIP; BAND,HARNESS TO OIL PIPE L=140	5-09707-031-1	05	1	0904-1005
259	CLIP; BAND,HARNESS TO OIL PIPE 6WG1 TC-R(75L) L=140	5-09707-031-1	05	1	1006-1205
259	CLIP; BAND,HARNESS TO OIL PIPE 6WG1 TC-R(75L) L=140	8-98216-431-0	05	1	1206-
259	CLIP; BAND,HARNESS TO OIL PIPE L=251	8-97619-917-0	01	1	0904-1005
259	CLIP; BAND,HARNESS TO OIL PIPE 6WG1 TC-C(72L),6WG1 TC-S(97L) L=140	5-09707-031-1	06	1	1006-1205
259	CLIP; BAND,HARNESS TO OIL PIPE 6WG1 TC-C(72L),6WG1 TC-S(97L) L=140	8-98216-431-0	06	1	1206-
690	CONNECTOR	8-94390-858-1	02	1	0904-
752	GASKET ALSO INCLUDED IN GASKET SET(ENGINE).	8-94391-310-0	02	1	0904-
813	HARNESS; INJECTOR	1-82641-338-1	01	1	0904-
836	BOLT; CONNECTOR M8X12 FLANGE	0-28050-812-0	04	1	0904-
915	SPACER; HARNESS L=51	1-11369-157-0	05	1	0904-

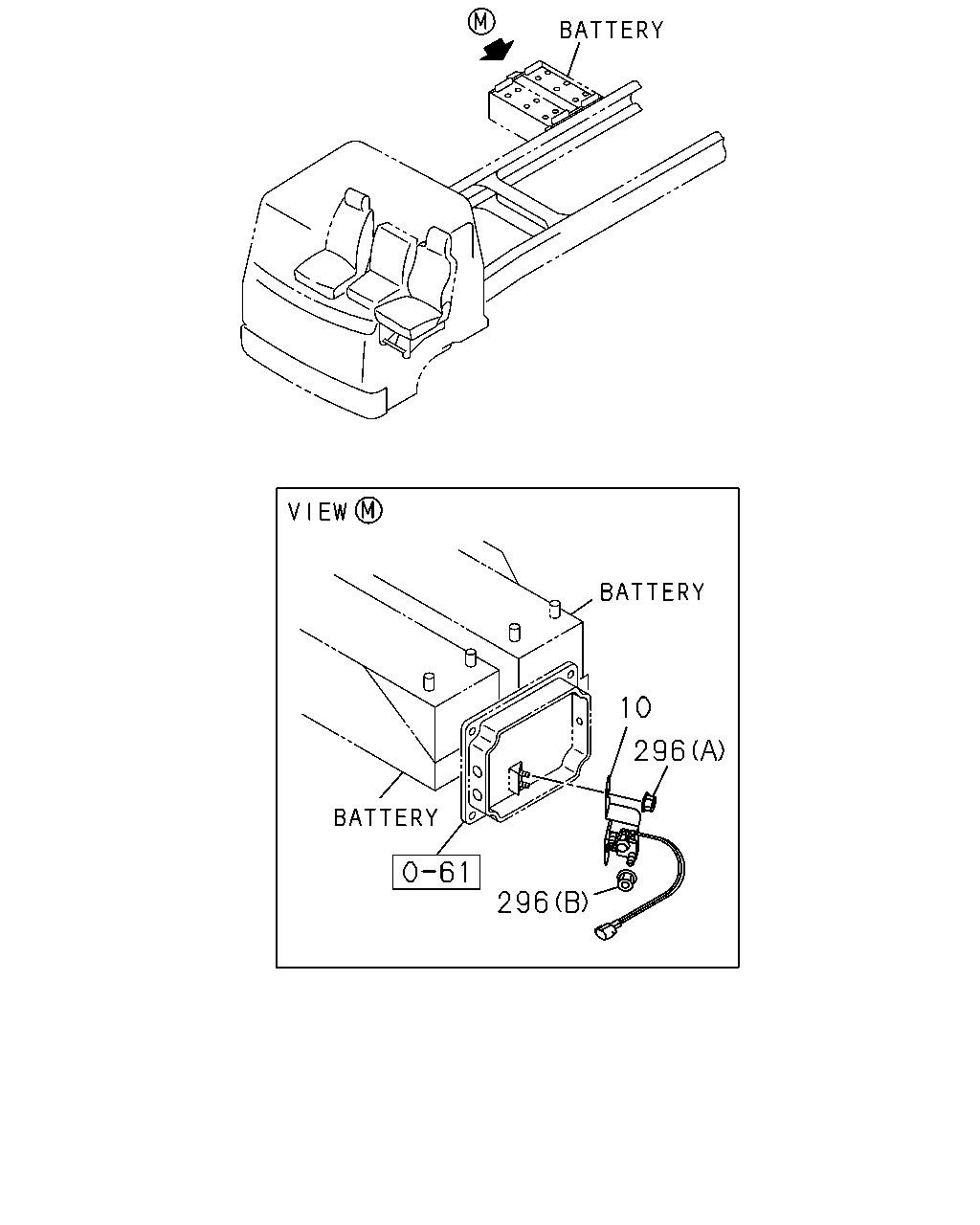

10 296 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
10	RELAY; STARTER	1-81171-100-1	01	1	0904-
296	NUT; RELAY,STARTER (A) M8 FLANGE	0-91180-108-0	02	1	0904-
296	NUT; RELAY,STARTER (B) M6 FLANGE	0-91180-206-0	02	1	0904-
