◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MT ▶ 10650 - MT111,112 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-45 - WATER SEDIMENTER; FUEL ▶
1-45 — WATER SEDIMENTER; FUEL (#2191) — 90 parça
çizim 93317
1 1 7 33 4 9 7 5 32 2 5 32 2 32 10 11 32 10 11 3 3 12 12 13 35 13 35 34 34
BalonParca AdiParca NoAdetTipApplied Date A B
1 SEDIMENTER; FUEL
PRE FUEL FILTER<W21> (B) 		1-13200-533-3 01 1 9101- ● ●
1 SEDIMENTER; FUEL
RIGHT HAND DRIVE(MTR5FB) BUS USER THAILAND BMTA<D5B> (A) 		1-13200-318-0 01 1 9101-0203 ● ●
1 SEDIMENTER; FUEL
RIGHT HAND DRIVE(MTR5FB) THAILAND EQUIPMENT(PM9) (A) 		1-13200-318-0 01 1 9101-0203 ● ●
1 SEDIMENTER; FUEL
RIGHT HAND DRIVE(MTR5FB) EXC. BUS USER THAILAND BMTA<D5B>,THAILAND EQUIPMENT(PM9) (A) 		1-13200-492-1 01 1 9101-0203 ● ●
1 SEDIMENTER; FUEL
LEFT HAND DRIVE(MTR6FB) (A) 		1-13200-492-1 01 1 9101-0203 ● ●
1 SEDIMENTER; FUEL
(A) 		1-13200-492-1 01 1 0204- ● ●
2 ELEMENT; FUEL FILTER
PRE FUEL FILTER<W21> 		9-88511-191-1 02 1 9101- ● ●
3 BODY ASM; SEDIMENTER
PRE FUEL FILTER<W21> (B) 		5-13211-005-1 02 1 9101- ● ●
3 BODY ASM; SEDIMENTER
RIGHT HAND DRIVE(MTR5FB) BUS USER THAILAND BMTA<D5B> (A) 		1-13211-059-0 01 1 9101-0203 ● ●
3 BODY ASM; SEDIMENTER
RIGHT HAND DRIVE(MTR5FB) THAILAND EQUIPMENT(PM9) (A) 		1-13211-059-0 01 1 9101-0203 ● ●
3 BODY ASM; SEDIMENTER
RIGHT HAND DRIVE(MTR5FB) EXC. BUS USER THAILAND BMTA<D5B>,THAILAND EQUIPMENT(PM9) (A) 		1-13212-098-1 01 1 9101-0203 ● ●
3 BODY ASM; SEDIMENTER
LEFT HAND DRIVE(MTR6FB) (A) 		1-13212-098-1 01 1 9101-0203 ● ●
3 BODY ASM; SEDIMENTER
(A) 		1-13212-098-1 01 1 0204- ● ●
4 COVER; UPR,SEDIMENTER ASM
(A) 		9-13212-077-0 01 1 9101- ● ●
4 COVER; UPR,SEDIMENTER ASM
PRE FUEL FILTER<W21> (B) 		1-13212-096-1 01 1 9101- ● ●
5 GASKET; UPR COVER,SEDIMENTER
(A) 		1-09630-050-0 01 1 9101- ● ●
5 GASKET; UPR COVER,SEDIMENTER
PRE FUEL FILTER<W21> (B) 		9-13213-601-0 02 1 9101- ● ●
7 PLUG; DRAIN,SEDIMENTER
(A) M14X9 		9-99202-314-0 01 1 9101- ● ●
7 PLUG; DRAIN,SEDIMENTER
PRE FUEL FILTER<W21> (B) 		1-13219-138-0 02 1 9101- ● ●
7 PLUG; DRAIN,SEDIMENTER
PRE FUEL FILTER<W21> (C) 		1-13219-139-0 01 1 9101- ● ●
9 GASKET; DRAIN PLUG & CONNECTOR
(A) ID=14.2 OD=19.2 		1-09630-085-0 03 1 9101- ● ●
9 GASKET; DRAIN PLUG & CONNECTOR
PRE FUEL FILTER<W21> (B) 		5-09623-006-0 01 1 9101- ● ●
10 SEAT; ELEMENT,SEDIMENTER
(A) 		1-13249-015-0 01 1 9101- ● ●
10 SEAT; ELEMENT,SEDIMENTER
PRE FUEL FILTER<W21> (B) 		9-09651-068-0 02 1 9101- ● ●
11 SPRING; SET,SCREEN
(A) 		1-13249-014-0 01 1 9101- ● ●
11 SPRING; SET,SCREEN
PRE FUEL FILTER<W21> (B) 		9-09742-109-0 02 1 9101- ● ●
12 GASKET; CENTER BOLT
(A) 		9-09920-586-0 01 1 9101- ● ●
12 GASKET; CENTER BOLT
PRE FUEL FILTER<W21> (B) 		9-09720-541-0 02 1 9101- ● ●
13 BOLT; CENTER,SEDIMENTER
PRE FUEL FILTER<W21> (B) 		1-13231-033-0 02 1 9101- ● ●
13 BOLT; CENTER,SEDIMENTER
RIGHT HAND DRIVE(MTR5FB) BUS USER THAILAND BMTA<D5B> (A) 		1-13231-022-0 01 1 9101-0203 ● ●
13 BOLT; CENTER,SEDIMENTER
RIGHT HAND DRIVE(MTR5FB) THAILAND EQUIPMENT(PM9) (A) 		1-13231-022-0 01 1 9101-0203 ● ●
13 BOLT; CENTER,SEDIMENTER
RIGHT HAND DRIVE(MTR5FB) EXC. BUS USER THAILAND BMTA<D5B>,THAILAND EQUIPMENT(PM9) (A) 		1-13231-049-0 01 1 9101-0203 ● ●
13 BOLT; CENTER,SEDIMENTER
LEFT HAND DRIVE(MTR6FB) (A) 		1-13231-049-0 01 1 9101-0203 ● ●
13 BOLT; CENTER,SEDIMENTER
(A) 		1-13231-049-0 01 1 0204- ● ●
32 GASKET; FUEL FILTER
PRE FUEL FILTER<W21> 		9-09720-542-0 04 1 9101- ● ●
33 WASHER; DRAIN PLUG
PRE FUEL FILTER<W21> 		1-13239-003-0 02 1 9101- ● ●
34 PLUG; DRAIN,FUEL FILTER
PRE FUEL FILTER<W21> M8X10 		9-09862-068-0 02 1 9101- ● ●
35 GASKET; DRAIN PLUG
PRE FUEL FILTER<W21> 		9-09920-255-0 02 1 9101- ● ●

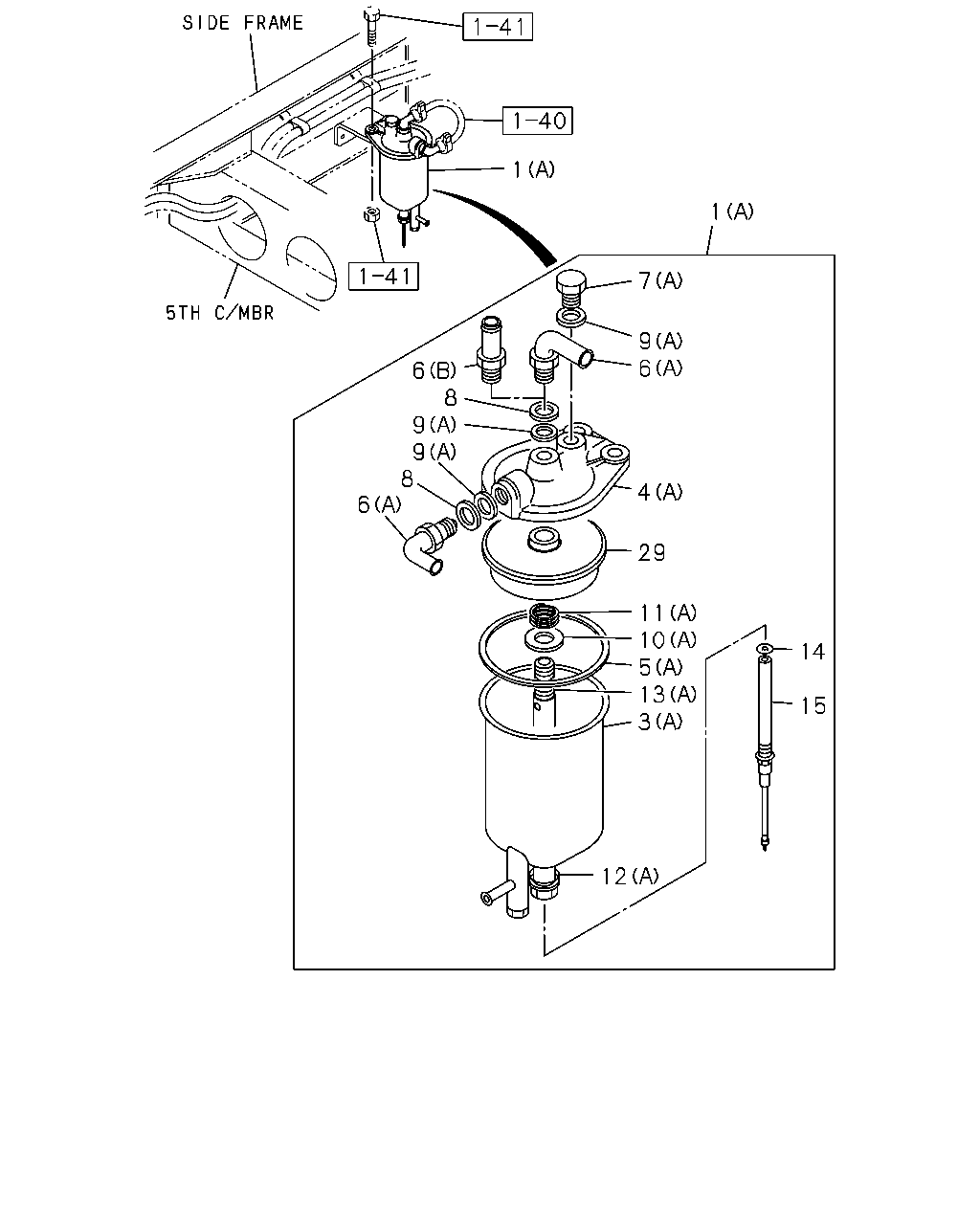

çizim 93577
1 1 7 9 6 6 8 9 9 8 4 6 29 11 10 5 13 3 14 15 12
BalonParca AdiParca NoAdetTipApplied Date A B
1 SEDIMENTER; FUEL
PRE FUEL FILTER<W21> (B) 		1-13200-533-3 01 1 9101- ● ●
1 SEDIMENTER; FUEL
RIGHT HAND DRIVE(MTR5FB) BUS USER THAILAND BMTA<D5B> (A) 		1-13200-318-0 01 1 9101-0203 ● ●
1 SEDIMENTER; FUEL
RIGHT HAND DRIVE(MTR5FB) THAILAND EQUIPMENT(PM9) (A) 		1-13200-318-0 01 1 9101-0203 ● ●
1 SEDIMENTER; FUEL
RIGHT HAND DRIVE(MTR5FB) EXC. BUS USER THAILAND BMTA<D5B>,THAILAND EQUIPMENT(PM9) (A) 		1-13200-492-1 01 1 9101-0203 ● ●
1 SEDIMENTER; FUEL
LEFT HAND DRIVE(MTR6FB) (A) 		1-13200-492-1 01 1 9101-0203 ● ●
1 SEDIMENTER; FUEL
(A) 		1-13200-492-1 01 1 0204- ● ●
3 BODY ASM; SEDIMENTER
PRE FUEL FILTER<W21> (B) 		5-13211-005-1 02 1 9101- ● ●
3 BODY ASM; SEDIMENTER
RIGHT HAND DRIVE(MTR5FB) BUS USER THAILAND BMTA<D5B> (A) 		1-13211-059-0 01 1 9101-0203 ● ●
3 BODY ASM; SEDIMENTER
RIGHT HAND DRIVE(MTR5FB) THAILAND EQUIPMENT(PM9) (A) 		1-13211-059-0 01 1 9101-0203 ● ●
3 BODY ASM; SEDIMENTER
RIGHT HAND DRIVE(MTR5FB) EXC. BUS USER THAILAND BMTA<D5B>,THAILAND EQUIPMENT(PM9) (A) 		1-13212-098-1 01 1 9101-0203 ● ●
3 BODY ASM; SEDIMENTER
LEFT HAND DRIVE(MTR6FB) (A) 		1-13212-098-1 01 1 9101-0203 ● ●
3 BODY ASM; SEDIMENTER
(A) 		1-13212-098-1 01 1 0204- ● ●
4 COVER; UPR,SEDIMENTER ASM
(A) 		9-13212-077-0 01 1 9101- ● ●
4 COVER; UPR,SEDIMENTER ASM
PRE FUEL FILTER<W21> (B) 		1-13212-096-1 01 1 9101- ● ●
5 GASKET; UPR COVER,SEDIMENTER
(A) 		1-09630-050-0 01 1 9101- ● ●
5 GASKET; UPR COVER,SEDIMENTER
PRE FUEL FILTER<W21> (B) 		9-13213-601-0 02 1 9101- ● ●
6 CONNECTOR ASM; SEDIMENTER
RIGHT HAND DRIVE(MTR5FB) BUS USER THAILAND BMTA<D5B> (A) 		1-13229-002-0 01 1 9101-0203 ● ●
6 CONNECTOR ASM; SEDIMENTER
RIGHT HAND DRIVE(MTR5FB) THAILAND EQUIPMENT(PM9) (A) 		1-13229-002-0 01 1 9101-0203 ● ●
6 CONNECTOR ASM; SEDIMENTER
RIGHT HAND DRIVE(MTR5FB) BUS USER THAILAND BMTA<D5B> (B) 		1-13229-003-0 01 1 9101-0203 ● ●
6 CONNECTOR ASM; SEDIMENTER
RIGHT HAND DRIVE(MTR5FB) THAILAND EQUIPMENT(PM9) (B) 		1-13229-003-0 01 1 9101-0203 ● ●
6 CONNECTOR ASM; SEDIMENTER
RIGHT HAND DRIVE(MTR5FB) EXC. BUS USER THAILAND BMTA<D5B>,THAILAND EQUIPMENT(PM9) (A) 		1-13229-002-0 02 1 9101-0203 ● ●
6 CONNECTOR ASM; SEDIMENTER
LEFT HAND DRIVE(MTR6FB) (A) 		1-13229-002-0 02 1 9101-0203 ● ●
6 CONNECTOR ASM; SEDIMENTER
(A) 		1-13229-002-0 02 1 0204- ● ●
7 PLUG; DRAIN,SEDIMENTER
(A) M14X9 		9-99202-314-0 01 1 9101- ● ●
7 PLUG; DRAIN,SEDIMENTER
PRE FUEL FILTER<W21> (B) 		1-13219-138-0 02 1 9101- ● ●
7 PLUG; DRAIN,SEDIMENTER
PRE FUEL FILTER<W21> (C) 		1-13219-139-0 01 1 9101- ● ●
8 STOPPER; CONN,SEDIMENTER
RIGHT HAND DRIVE(MTR5FB) BUS USER THAILAND BMTA<D5B> 		1-13229-001-0 01 1 9101-0203 ● ●
8 STOPPER; CONN,SEDIMENTER
RIGHT HAND DRIVE(MTR5FB) THAILAND EQUIPMENT(PM9) 		1-13229-001-0 01 1 9101-0203 ● ●
8 STOPPER; CONN,SEDIMENTER
RIGHT HAND DRIVE(MTR5FB) EXC. BUS USER THAILAND BMTA<D5B>,THAILAND EQUIPMENT(PM9) 		1-13229-001-0 02 1 9101-0203 ● ●
8 STOPPER; CONN,SEDIMENTER
LEFT HAND DRIVE(MTR6FB) 		1-13229-001-0 02 1 9101-0203 ● ●
8 STOPPER; CONN,SEDIMENTER 1-13229-001-0 02 1 0204- ● ●
9 GASKET; DRAIN PLUG & CONNECTOR
(A) ID=14.2 OD=19.2 		1-09630-085-0 03 1 9101- ● ●
9 GASKET; DRAIN PLUG & CONNECTOR
PRE FUEL FILTER<W21> (B) 		5-09623-006-0 01 1 9101- ● ●
10 SEAT; ELEMENT,SEDIMENTER
(A) 		1-13249-015-0 01 1 9101- ● ●
10 SEAT; ELEMENT,SEDIMENTER
PRE FUEL FILTER<W21> (B) 		9-09651-068-0 02 1 9101- ● ●
11 SPRING; SET,SCREEN
(A) 		1-13249-014-0 01 1 9101- ● ●
11 SPRING; SET,SCREEN
PRE FUEL FILTER<W21> (B) 		9-09742-109-0 02 1 9101- ● ●
12 GASKET; CENTER BOLT
(A) 		9-09920-586-0 01 1 9101- ● ●
12 GASKET; CENTER BOLT
PRE FUEL FILTER<W21> (B) 		9-09720-541-0 02 1 9101- ● ●
13 BOLT; CENTER,SEDIMENTER
PRE FUEL FILTER<W21> (B) 		1-13231-033-0 02 1 9101- ● ●
13 BOLT; CENTER,SEDIMENTER
RIGHT HAND DRIVE(MTR5FB) BUS USER THAILAND BMTA<D5B> (A) 		1-13231-022-0 01 1 9101-0203 ● ●
13 BOLT; CENTER,SEDIMENTER
RIGHT HAND DRIVE(MTR5FB) THAILAND EQUIPMENT(PM9) (A) 		1-13231-022-0 01 1 9101-0203 ● ●
13 BOLT; CENTER,SEDIMENTER
RIGHT HAND DRIVE(MTR5FB) EXC. BUS USER THAILAND BMTA<D5B>,THAILAND EQUIPMENT(PM9) (A) 		1-13231-049-0 01 1 9101-0203 ● ●
13 BOLT; CENTER,SEDIMENTER
LEFT HAND DRIVE(MTR6FB) (A) 		1-13231-049-0 01 1 9101-0203 ● ●
13 BOLT; CENTER,SEDIMENTER
(A) 		1-13231-049-0 01 1 0204- ● ●
14 GASKET; SENSOR TO CENTER BOLT
RIGHT HAND DRIVE(MTR5FB) EXC. BUS USER THAILAND BMTA<D5B>,THAILAND EQUIPMENT(PM9) 		9-09562-110-0 01 1 9101-0203 ● ●
14 GASKET; SENSOR TO CENTER BOLT
LEFT HAND DRIVE(MTR6FB) 		9-09562-110-0 01 1 9101-0203 ● ●
14 GASKET; SENSOR TO CENTER BOLT 9-09562-110-0 01 1 0204- ● ●
15 SENSOR ASM; SEDIMENTER
RIGHT HAND DRIVE(MTR5FB) EXC. BUS USER THAILAND BMTA<D5B>,THAILAND EQUIPMENT(PM9) 		1-13249-026-0 01 1 9101-0203 ● ●
15 SENSOR ASM; SEDIMENTER
LEFT HAND DRIVE(MTR6FB) 		1-13249-026-0 01 1 9101-0203 ● ●
15 SENSOR ASM; SEDIMENTER 1-13249-026-0 01 1 0204- ● ●
29 SCREEN ASM; SEDIMENTER 1-13249-018-0 01 1 9101- ● ●
