0-36 — TURBOCHARGER SYSTEM (#21903) — 52 parça

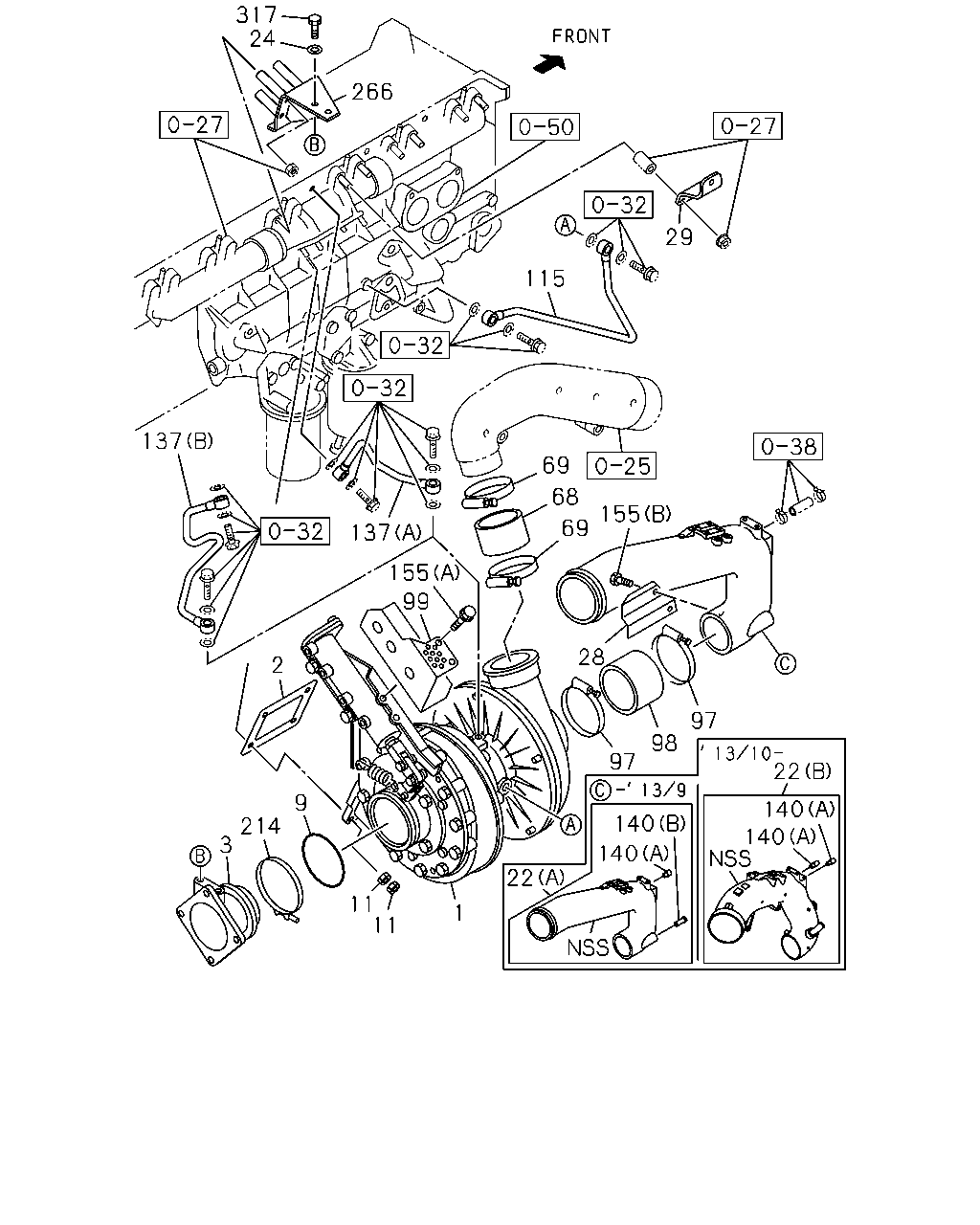

çizim 62138
22 140 140 140 140 22 97 97 98 28 1 11 11 214 3 9 2 137 137 155 99 69 69 68 155 115 29 317 266 24
BalonParca AdiParca NoAdetTipApplied Date A B C
1 TURBOCHARGER ASM 1-14400-447-5 01 1 1006- ● ●
1 TURBOCHARGER ASM 1-14400-448-1 01 1 0904-0908 ●
1 TURBOCHARGER ASM 1-14400-425-5 01 1 0909- ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98116-466-0 01 1 0904-1001 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98162-161-0 01 1 1002-1005 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98162-161-0 01 1 1006- ● ● ●
3 PIPE; EXH,TURBOCHARGER 8-97616-134-1 01 1 1006- ● ●
3 PIPE; EXH,TURBOCHARGER 1-14144-658-1 01 1 0904- ●
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=80 OD=84 		8-97618-761-1 01 1 0904-1005 ●
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=80 OD=84 		8-97618-761-1 01 1 1006- ● ● ●
11 NUT; TURBOCHARGER
M10 		1-09420-005-0 08 1 0904-1005 ●
11 NUT; TURBOCHARGER
M10 		1-09420-005-0 08 1 1006- ● ● ●
22 DUCT; INL,ACL TO TURBOCHARGER
(A) 		8-97613-690-2 01 1 0904-1005 ●
22 DUCT; INL,ACL TO TURBOCHARGER
(A) 		8-97613-690-3 01 1 1006-1309 ● ● ●
22 DUCT; INL,ACL TO TURBOCHARGER
(B) 		8-98254-521-1 01 1 1310- ● ● ●
24 WASHER; PL,PIPE
ID=10.5 OD=22 		1-09500-007-0 02 1 0904-1005 ●
24 WASHER; PL,PIPE
ID=10.5 OD=22 		1-09500-007-0 02 1 1006- ● ● ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT 1-14181-272-0 01 1 0904-1005 ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT 1-14181-272-0 01 1 1006- ● ● ●
29 BRACKET; INL PIPE,ACL TO TURBOCHARGER 1-14119-473-0 01 1 0904-1005 ●
29 BRACKET; INL PIPE,ACL TO TURBOCHARGER 1-14119-473-0 01 1 1006- ● ● ●
68 HOSE; RUBBER,TURBOCHARGER TO INL COVER 1-09361-116-1 01 1 0904-1005 ●
68 HOSE; RUBBER,TURBOCHARGER TO INL COVER 1-09361-116-1 01 1 1006-1007 ● ● ●
68 HOSE; RUBBER,TURBOCHARGER TO INL COVER 8-98169-678-0 01 1 1008- ● ● ●
69 CLIP; RUBBER HOSE,TURBOCHARGER
ID=87-111 		8-97375-039-0 02 1 0904-1005 ●
69 CLIP; RUBBER HOSE,TURBOCHARGER
ID=87-111 		8-97375-039-0 02 1 1006-1007 ● ● ●
69 CLIP; RUBBER HOSE,TURBOCHARGER
ID=68-85 		8-98096-592-0 02 1 1008- ● ● ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=104-142 		1-09707-139-0 02 1 0904-1005 ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=104-142 		1-09707-139-0 02 1 1006- ● ● ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET 1-09360-988-0 01 1 0904-1005 ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET 1-09360-988-0 01 1 1006- ● ● ●
99 PROTECTOR; HEAT 1-14181-350-0 01 1 0904-1005 ●
99 PROTECTOR; HEAT 1-14181-350-0 01 1 1006- ● ● ●
115 PIPE; WATER,TURBOCHARGER OUT 1-13722-040-0 01 1 0904-1005 ●
115 PIPE; WATER,TURBOCHARGER OUT 1-13722-040-0 01 1 1006- ● ● ●
137 PIPE; WATER,TURBOCHARGER IN
(A) 		1-13722-041-1 01 1 0904-1005 ●
137 PIPE; WATER,TURBOCHARGER IN
(A) 		1-13722-041-2 01 1 1006-1412 ● ● ●
137 PIPE; WATER,TURBOCHARGER IN
(B) 		8-98300-237-0 01 1 1501- ● ● ●
140 PIPE; AIR PIPE
(B) 		8-97603-427-1 01 1 0904-1005 ●
140 PIPE; AIR PIPE
(B) 		8-97603-427-1 01 1 1006-1309 ● ● ●
140 PIPE; AIR PIPE
(A) 		9-14119-228-1 02 1 0904-1005 ●
140 PIPE; AIR PIPE
(A) 		9-14119-228-1 02 1 1006- ● ● ●
155 BOLT; HEAT PROTECTOR
(A) M6X10 FLANGE 		0-28050-610-0 04 1 0904-1005 ●
155 BOLT; HEAT PROTECTOR
(A) M6X10 FLANGE 		0-28050-610-0 04 1 1006- ● ● ●
155 BOLT; HEAT PROTECTOR
(B) M8X12 FLANGE 		0-28050-812-0 02 1 0904-1005 ●
155 BOLT; HEAT PROTECTOR
(B) M8X12 FLANGE 		0-28050-812-0 02 1 1006- ● ● ●
214 BAND; "V",TURBOCHARGER TO EXH PIPE 8-98006-007-0 01 1 0904-1005 ●
214 BAND; "V",TURBOCHARGER TO EXH PIPE 8-98006-007-1 01 1 1006- ● ● ●
266 BRACKET; EXH PIPE 8-97606-662-1 01 1 0904-1005 ●
266 BRACKET; EXH PIPE 8-97606-662-1 01 1 1006- ● ● ●
317 BOLT; EXH PIPE
M10X20 		1-09020-073-2 02 1 0904-1005 ●
317 BOLT; EXH PIPE
M10X20 		1-09020-073-2 02 1 1006- ● ● ●
