0-33 — FAN AND FAN BELT (#21902) — 113 parça

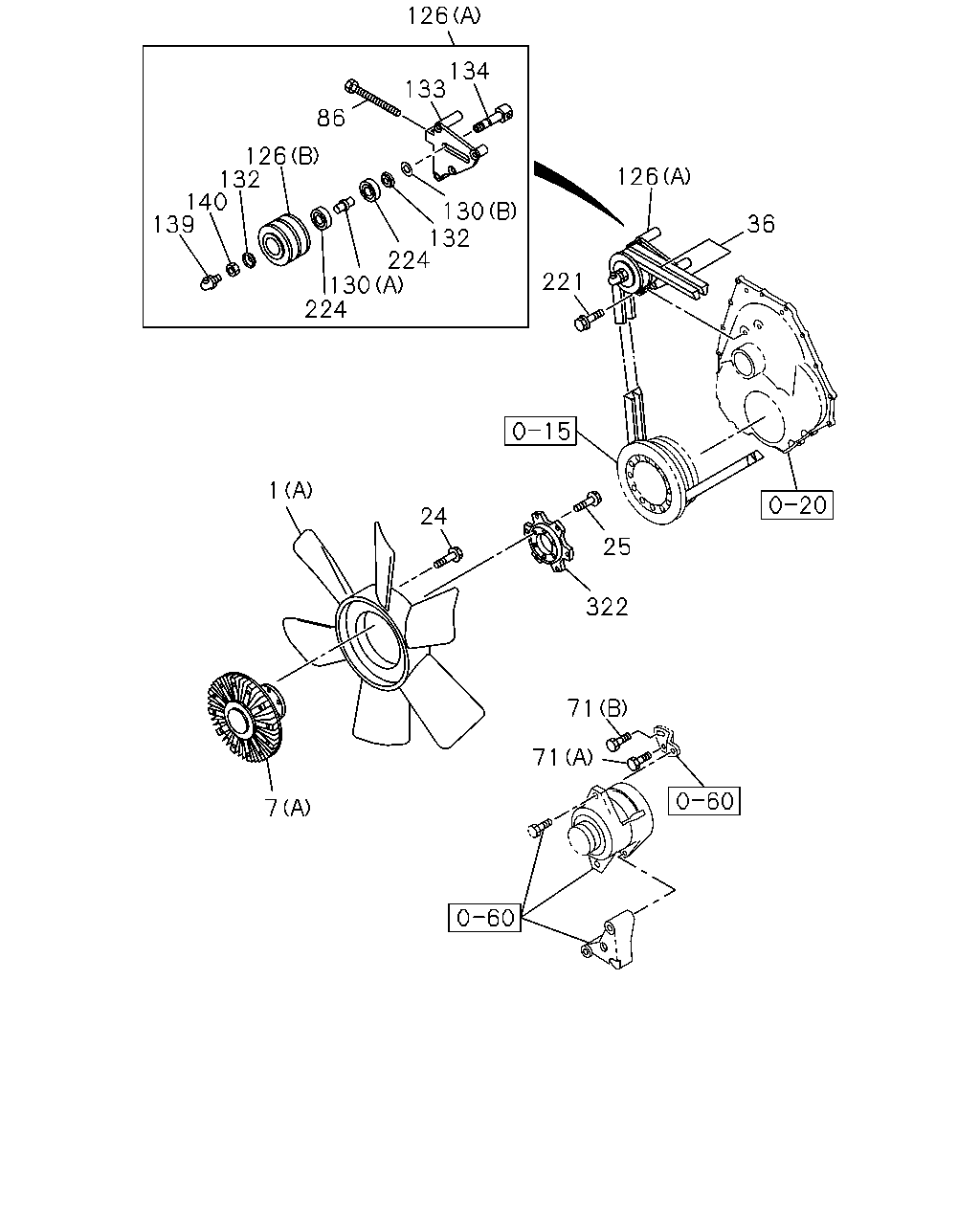

çizim 62162
126 134 133 86 126 132 140 139 126 130 132 224 130 224 36 221 1 24 25 322 71 71 7
BalonParca AdiParca NoAdetTipApplied Date A B C
1 FAN; COOLING
(B) 		8-98100-767-0 01 1 1008- ●
1 FAN; COOLING
(A) 		1-13660-286-1 01 1 0904-1005 ●
1 FAN; COOLING
(A) 		1-13660-286-1 01 1 1006-1007 ● ● ●
1 FAN; COOLING
(A) 		1-13660-286-1 01 1 1008- ● ●
7 COUPLING; FAN
(B) 		8-98100-758-0 01 1 1008- ●
7 COUPLING; FAN
(A) 		8-98119-742-0 01 1 0904-1005 ●
7 COUPLING; FAN
(A) 		8-98119-742-0 01 1 1006-1007 ● ● ●
7 COUPLING; FAN
(A) 		8-98119-742-0 01 1 1008- ● ●
24 BOLT; FAN
M10X20 FLANGE 		0-28151-020-0 08 1 1008- ●
24 BOLT; FAN
M10X16 FLANGE 		0-28161-016-0 06 1 0904-1005 ●
24 BOLT; FAN
M10X16 FLANGE 		0-28161-016-0 06 1 1006-1007 ● ● ●
24 BOLT; FAN
M10X16 FLANGE 		0-28161-016-0 06 1 1008- ● ●
25 BOLT; ADAPTER
M10X80 FLANGE 		0-28061-080-0 06 1 1008- ●
25 BOLT; ADAPTER
M10X35 		0-28161-035-0 06 1 1008- ●
25 BOLT; ADAPTER
M10X30 FLANGE 		0-28161-030-0 12 1 0904-1005 ●
25 BOLT; ADAPTER
M10X30 FLANGE 		0-28161-030-0 12 1 1006-1007 ● ● ●
25 BOLT; ADAPTER
M10X30 FLANGE 		0-28161-030-0 12 1 1008- ● ●
36 BELT; COOLING FAN
1 SET=2 PIECE(1136714651) MITSUBOSHI 		1-13671-463-1 01 1 0904-1005 ●
36 BELT; COOLING FAN
1 SET=2 PIECE(1136714651) MITSUBOSHI 		1-13671-463-1 01 1 1006- ● ● ●
36 BELT; COOLING FAN
BEST VALUE PARTS 		1-87610-098-0 01 1 0904-1005 ●
36 BELT; COOLING FAN
BEST VALUE PARTS 		1-87610-098-0 01 1 1006- ● ● ●
71 BOLT; ADJ PLATE,GEN
(A) M10X25 FLANGE 		0-28151-025-0 01 1 0904-1005 ●
71 BOLT; ADJ PLATE,GEN
(A) M10X25 FLANGE 		0-28151-025-0 01 1 1006- ● ● ●
71 BOLT; ADJ PLATE,GEN
(B) M10X110 FLANGE 		0-28156-011-0 01 1 0904-1005 ●
71 BOLT; ADJ PLATE,GEN
(B) M10X110 FLANGE 		0-28156-011-0 01 1 1006- ● ● ●
86 BOLT; ADJ
M10X135 		1-09009-113-1 01 1 0904-1005 ●
86 BOLT; ADJ
M10X135 		1-09009-113-1 01 1 1006- ● ● ●
126 PULLEY; IDLE
(A) 		1-13660-352-2 01 1 0904-1005 ●
126 PULLEY; IDLE
(A) 		1-13660-352-2 01 1 1006- ● ● ●
126 PULLEY; IDLE
(B) 		1-13663-067-0 01 1 0904-1005 ●
126 PULLEY; IDLE
(B) 		1-13663-067-0 01 1 1006- ● ● ●
130 SPACER; IDLE PULLEY BRG
(A) 		1-13666-007-0 01 1 0904-1005 ●
130 SPACER; IDLE PULLEY BRG
(A) 		1-13666-007-0 01 1 1006- ● ● ●
130 SPACER; IDLE PULLEY BRG
(B) 		1-13666-032-0 01 1 0904-1005 ●
130 SPACER; IDLE PULLEY BRG
(B) 		1-13666-032-0 01 1 1006- ● ● ●
132 COVER; DUST 1-13664-009-2 02 1 0904-1005 ●
132 COVER; DUST 1-13664-009-2 02 1 1006- ● ● ●
133 BRACKET; IDLE PULLEY 1-13669-197-2 01 1 0904-1005 ●
133 BRACKET; IDLE PULLEY 1-13669-197-2 01 1 1006- ● ● ●
134 SPINDLE; IDLE PULLEY 1-13665-060-1 01 1 0904-1005 ●
134 SPINDLE; IDLE PULLEY 1-13665-060-1 01 1 1006- ● ● ●
139 NIPPLE; GREASE,IDLE PULLEY
PT1/8 ELBOW 		0-90301-610-0 01 1 0904-1005 ●
139 NIPPLE; GREASE,IDLE PULLEY
PT1/8 ELBOW 		0-90301-610-0 01 1 1006- ● ● ●
140 NUT; IDLE PULLEY
M18 		0-91111-518-0 01 1 0904-1005 ●
140 NUT; IDLE PULLEY
M18 		0-91111-518-0 01 1 1006- ● ● ●
221 BOLT; IDLE PULLEY
M10X40 FLANGE 		0-28151-040-0 01 1 1104- ● ● ●
221 BOLT; IDLE PULLEY
M10X50 FLANGE 		0-28151-050-0 02 1 1104- ● ● ●
221 BOLT; IDLE PULLEY
M10X80 FLANGE 		0-28151-080-0 04 1 0904-1005 ●
221 BOLT; IDLE PULLEY
M10X80 FLANGE 		0-28151-080-0 04 1 1006- ● ● ●
224 BEARING; IDLE PULLEY 1-09800-176-0 02 1 0904-0907 ●
224 BEARING; IDLE PULLEY 8-97633-017-0 02 1 0908-1005 ●
224 BEARING; IDLE PULLEY 8-97633-017-0 02 1 1006- ● ● ●
322 ADAPTER; COUPLING 8-98097-545-0 01 1 1008- ●
322 ADAPTER; COUPLING 8-97606-264-0 01 1 0904-1005 ●
322 ADAPTER; COUPLING 8-97606-264-0 01 1 1006-1007 ● ● ●
322 ADAPTER; COUPLING 8-97606-264-0 01 1 1008- ● ●

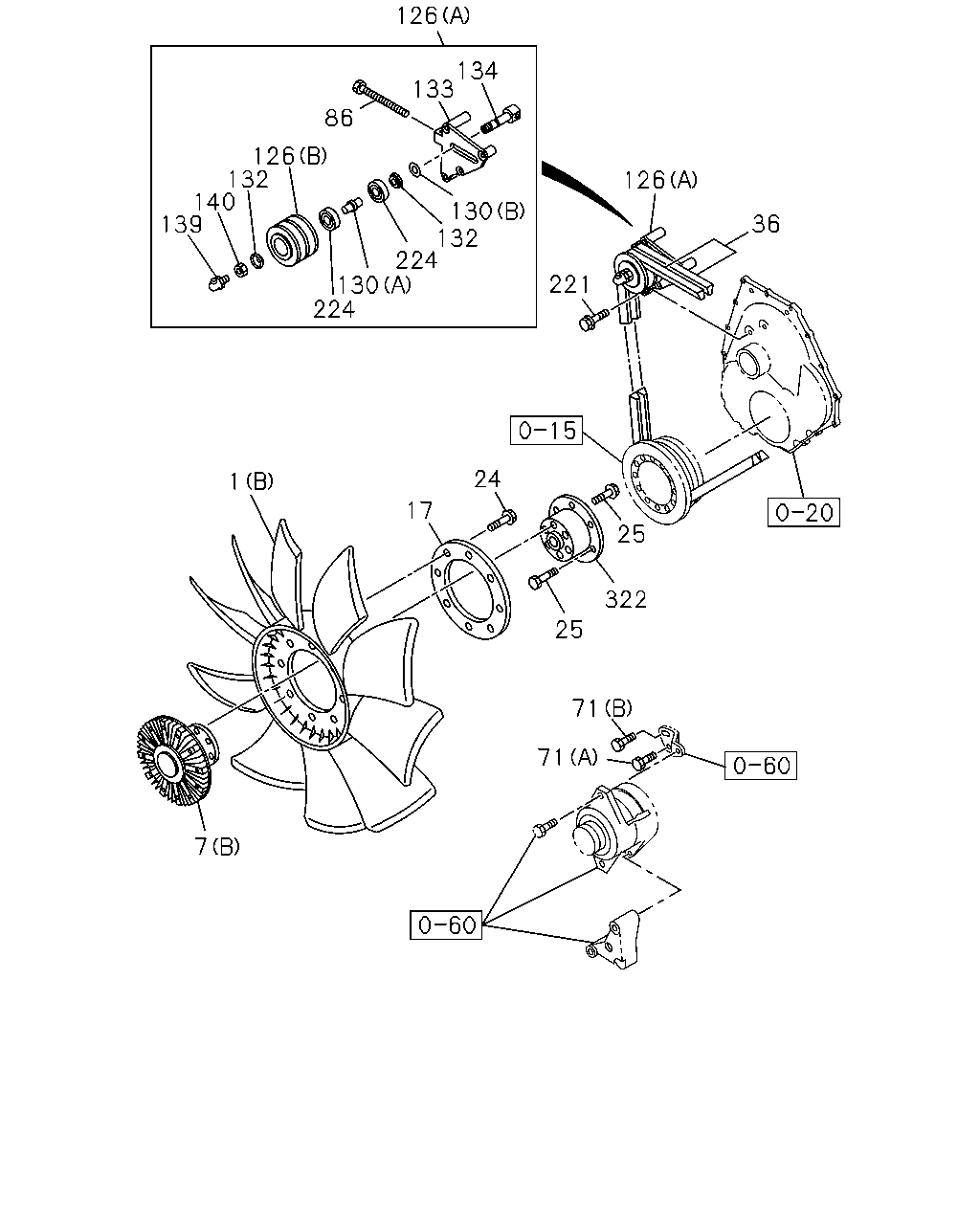

çizim 62177
126 134 133 86 126 132 140 139 126 130 132 224 130 224 36 221 24 1 17 25 322 25 71 71 7
BalonParca AdiParca NoAdetTipApplied Date A B C
1 FAN; COOLING
(B) 		8-98100-767-0 01 1 1008- ●
1 FAN; COOLING
(A) 		1-13660-286-1 01 1 0904-1005 ●
1 FAN; COOLING
(A) 		1-13660-286-1 01 1 1006-1007 ● ● ●
1 FAN; COOLING
(A) 		1-13660-286-1 01 1 1008- ● ●
7 COUPLING; FAN
(B) 		8-98100-758-0 01 1 1008- ●
7 COUPLING; FAN
(A) 		8-98119-742-0 01 1 0904-1005 ●
7 COUPLING; FAN
(A) 		8-98119-742-0 01 1 1006-1007 ● ● ●
7 COUPLING; FAN
(A) 		8-98119-742-0 01 1 1008- ● ●
17 WASHER; LK,FAN TO COUPLING 8-98100-761-0 01 1 1008- ●
24 BOLT; FAN
M10X20 FLANGE 		0-28151-020-0 08 1 1008- ●
24 BOLT; FAN
M10X16 FLANGE 		0-28161-016-0 06 1 0904-1005 ●
24 BOLT; FAN
M10X16 FLANGE 		0-28161-016-0 06 1 1006-1007 ● ● ●
24 BOLT; FAN
M10X16 FLANGE 		0-28161-016-0 06 1 1008- ● ●
25 BOLT; ADAPTER
M10X80 FLANGE 		0-28061-080-0 06 1 1008- ●
25 BOLT; ADAPTER
M10X35 		0-28161-035-0 06 1 1008- ●
25 BOLT; ADAPTER
M10X30 FLANGE 		0-28161-030-0 12 1 0904-1005 ●
25 BOLT; ADAPTER
M10X30 FLANGE 		0-28161-030-0 12 1 1006-1007 ● ● ●
25 BOLT; ADAPTER
M10X30 FLANGE 		0-28161-030-0 12 1 1008- ● ●
36 BELT; COOLING FAN
1 SET=2 PIECE(1136714651) MITSUBOSHI 		1-13671-463-1 01 1 0904-1005 ●
36 BELT; COOLING FAN
1 SET=2 PIECE(1136714651) MITSUBOSHI 		1-13671-463-1 01 1 1006- ● ● ●
36 BELT; COOLING FAN
BEST VALUE PARTS 		1-87610-098-0 01 1 0904-1005 ●
36 BELT; COOLING FAN
BEST VALUE PARTS 		1-87610-098-0 01 1 1006- ● ● ●
71 BOLT; ADJ PLATE,GEN
(A) M10X25 FLANGE 		0-28151-025-0 01 1 0904-1005 ●
71 BOLT; ADJ PLATE,GEN
(A) M10X25 FLANGE 		0-28151-025-0 01 1 1006- ● ● ●
71 BOLT; ADJ PLATE,GEN
(B) M10X110 FLANGE 		0-28156-011-0 01 1 0904-1005 ●
71 BOLT; ADJ PLATE,GEN
(B) M10X110 FLANGE 		0-28156-011-0 01 1 1006- ● ● ●
86 BOLT; ADJ
M10X135 		1-09009-113-1 01 1 0904-1005 ●
86 BOLT; ADJ
M10X135 		1-09009-113-1 01 1 1006- ● ● ●
126 PULLEY; IDLE
(A) 		1-13660-352-2 01 1 0904-1005 ●
126 PULLEY; IDLE
(A) 		1-13660-352-2 01 1 1006- ● ● ●
126 PULLEY; IDLE
(B) 		1-13663-067-0 01 1 0904-1005 ●
126 PULLEY; IDLE
(B) 		1-13663-067-0 01 1 1006- ● ● ●
130 SPACER; IDLE PULLEY BRG
(A) 		1-13666-007-0 01 1 0904-1005 ●
130 SPACER; IDLE PULLEY BRG
(A) 		1-13666-007-0 01 1 1006- ● ● ●
130 SPACER; IDLE PULLEY BRG
(B) 		1-13666-032-0 01 1 0904-1005 ●
130 SPACER; IDLE PULLEY BRG
(B) 		1-13666-032-0 01 1 1006- ● ● ●
132 COVER; DUST 1-13664-009-2 02 1 0904-1005 ●
132 COVER; DUST 1-13664-009-2 02 1 1006- ● ● ●
133 BRACKET; IDLE PULLEY 1-13669-197-2 01 1 0904-1005 ●
133 BRACKET; IDLE PULLEY 1-13669-197-2 01 1 1006- ● ● ●
134 SPINDLE; IDLE PULLEY 1-13665-060-1 01 1 0904-1005 ●
134 SPINDLE; IDLE PULLEY 1-13665-060-1 01 1 1006- ● ● ●
139 NIPPLE; GREASE,IDLE PULLEY
PT1/8 ELBOW 		0-90301-610-0 01 1 0904-1005 ●
139 NIPPLE; GREASE,IDLE PULLEY
PT1/8 ELBOW 		0-90301-610-0 01 1 1006- ● ● ●
140 NUT; IDLE PULLEY
M18 		0-91111-518-0 01 1 0904-1005 ●
140 NUT; IDLE PULLEY
M18 		0-91111-518-0 01 1 1006- ● ● ●
221 BOLT; IDLE PULLEY
M10X40 FLANGE 		0-28151-040-0 01 1 1104- ● ● ●
221 BOLT; IDLE PULLEY
M10X50 FLANGE 		0-28151-050-0 02 1 1104- ● ● ●
221 BOLT; IDLE PULLEY
M10X80 FLANGE 		0-28151-080-0 04 1 0904-1005 ●
221 BOLT; IDLE PULLEY
M10X80 FLANGE 		0-28151-080-0 04 1 1006- ● ● ●
224 BEARING; IDLE PULLEY 1-09800-176-0 02 1 0904-0907 ●
224 BEARING; IDLE PULLEY 8-97633-017-0 02 1 0908-1005 ●
224 BEARING; IDLE PULLEY 8-97633-017-0 02 1 1006- ● ● ●
322 ADAPTER; COUPLING 8-98097-545-0 01 1 1008- ●
322 ADAPTER; COUPLING 8-97606-264-0 01 1 0904-1005 ●
322 ADAPTER; COUPLING 8-97606-264-0 01 1 1006-1007 ● ● ●
322 ADAPTER; COUPLING 8-97606-264-0 01 1 1008- ● ●
