◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MT ▶ 10650 - MT111,112 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-41 - FUEL PIPING; CHASSIS ▶
1-41 — FUEL PIPING; CHASSIS (#2190) — 79 parça

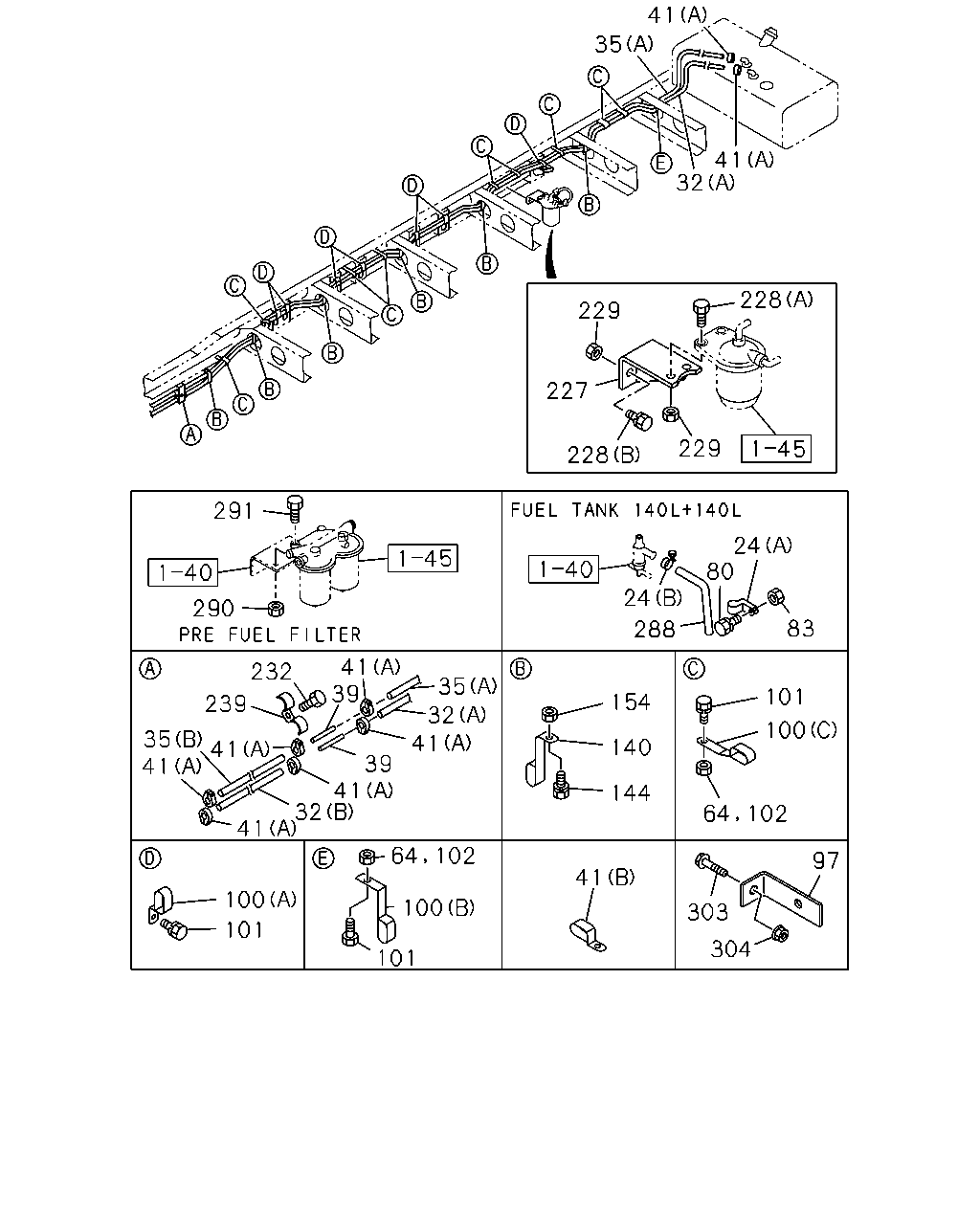

çizim 29382
41 35 41 32 228 229 227 229 228 291 24 80 24 290 83 288 41 39 232 35 101 154 239 32 41 100 35 41 41 140 39 41 32 144 64 102 41 64 102 97 41 100 100 303 101 304 101
BalonParca AdiParca NoAdetTipApplied Date A B
24 CLIP; FUEL HOSE
RIGHT HAND DRIVE(MTR5FB) FUEL TANK 140L+140L<NH9> (A) 		1-09700-631-0 09 1 9101- ● ●
24 CLIP; FUEL HOSE
RIGHT HAND DRIVE(MTR5FB) FUEL TANK 140L+140L<NH9> (B) ID=19 		9-09915-505-1 02 1 9101- ● ●
32 PIPE; DELIVERY,FUEL TANK
(A) L=12000 		1-09366-145-0 01 1 9101- ● ●
32 PIPE; DELIVERY,FUEL TANK
(B) L=450 SERVICED BY L=10000 		9-09914-701-0 01 1 9101-9101 ● ●
32 PIPE; DELIVERY,FUEL TANK
(B) L=4350 SERVICED BY L=10000 		9-09914-701-0 01 1 9102-9112 ● ●
32 PIPE; DELIVERY,FUEL TANK
(B) L=400 SERVICED BY L=10000 		9-09914-701-0 01 1 9201- ● ●
32 PIPE; DELIVERY,FUEL TANK
WHEEL BASE 4600MM(46W) (B) SERVICED BY L=10000 		9-09914-701-0 01 1 9101- ● ●
35 PIPE; FUEL TANK,RETURN
(B) L=450 SERVICED BY L=10000 		1-09366-161-0 01 1 9101-9101 ● ●
35 PIPE; FUEL TANK,RETURN
(B) L=400 SERVICED BY L=10000 		1-09366-161-0 01 1 9102- ● ●
35 PIPE; FUEL TANK,RETURN
(A) L=12000 		1-09366-162-0 01 1 9101- ● ●
35 PIPE; FUEL TANK,RETURN
WHEEL BASE 4600MM(46W) (B) SERVICED BY L=10000 		1-09366-161-0 01 1 9101- ● ●
39 PIPE; FUEL
OD=10 L=100 		1-22511-502-0 02 1 9101- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=15 		9-09715-098-0 08 1 9101- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
LEFT HAND DRIVE(MTR6FB) (B) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 9101- ● ●
64 NUT; CLIP
M8 		9-09110-408-0 01 1 9101- ● ●
80 BOLT; CLIP,FUEL TANK
RIGHT HAND DRIVE(MTR5FB) FUEL TANK 140L+140L<NH9> M8X20 W/LK WASHER 		9-01900-820-0 09 1 9101-9204 ● ●
80 BOLT; CLIP,FUEL TANK
RIGHT HAND DRIVE(MTR5FB) FUEL TANK 140L+140L<NH9> M8X20 W/LK WASHER 		0-50040-820-0 09 1 9205- ● ●
83 NUT; CLIP,FUEL TANK
RIGHT HAND DRIVE(MTR5FB) FUEL TANK 140L+140L<NH9> M8 		9-09110-408-0 09 1 9101- ● ●
97 BRACKET; CLIP
RIGHT HAND DRIVE(MTR5FB) 		1-47476-034-1 01 1 9101- ● ●
97 BRACKET; CLIP
LEFT HAND DRIVE(MTR6FB) L=60 		1-47475-455-0 01 1 9101- ● ●
100 CLIP; FUEL PIPE
(A) ID=14X29 H=15 L=20 		1-09700-744-0 07 1 9101- ● ●
100 CLIP; FUEL PIPE
FRONT STABILIZER SHAFT<F59> (A) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 9101- ● ●
100 CLIP; FUEL PIPE
STABILIZER SHAFT FRT&RR<FE6> (A) ID=14X29 H=15 L=20 		1-09700-744-0 02 1 9101- ● ●
100 CLIP; FUEL PIPE
EXC. STABILIZER SHAFT FRT&RR<FE6>,FRONT STABILIZERSHAFT<F59> (B) ID=16X2 H=76 L=50 		1-09700-902-0 01 1 9101- ● ●
100 CLIP; FUEL PIPE
EXC. STABILIZER SHAFT FRT&RR<FE6>,FRONT STABILIZERSHAFT<F59> (C) 		9-09917-171-0 01 1 9101- ● ●
100 CLIP; FUEL PIPE
RIGHT HAND DRIVE(MTR5FB) WHEEL BASE 4600MM(46W) (C) 		9-09917-171-0 09 1 9101- ● ●
100 CLIP; FUEL PIPE
RIGHT HAND DRIVE(MTR5FB) WHEEL BASE 5000MM(50W) (C) 		9-09917-171-0 11 1 9101- ● ●
100 CLIP; FUEL PIPE
RIGHT HAND DRIVE(MTR5FB) WHEEL BASE 6000MM(60W) (C) 		9-09917-171-0 14 1 9101- ● ●
100 CLIP; FUEL PIPE
LEFT HAND DRIVE(MTR6FB) WHEEL BASE 4600MM(46W) (C) 		9-09917-171-0 08 1 9101-0203 ● ●
100 CLIP; FUEL PIPE
LEFT HAND DRIVE(MTR6FB) WHEEL BASE 5000MM(50W) (C) 		9-09917-171-0 10 1 9101-0203 ● ●
100 CLIP; FUEL PIPE
(C) 		9-09917-171-0 10 1 0204- ● ●
101 BOLT; CLIP,FUEL PIPE
LEFT HAND DRIVE(MTR6FB) WHEEL BASE 5000MM(50W) M8X25 W/LK WASHER 		9-01900-825-0 10 1 9101-9204 ● ●
101 BOLT; CLIP,FUEL PIPE
LEFT HAND DRIVE(MTR6FB) WHEEL BASE 5000MM(50W) M8X25 W/LK WASHER 		0-50040-825-0 10 1 9205- ● ●
101 BOLT; CLIP,FUEL PIPE
EXC. STABILIZER SHAFT FRT&RR<FE6>,FRONT STABILIZERSHAFT<F59> M8X25 W/LK WASHER 		9-01900-825-0 02 1 9101-9204 ● ●
101 BOLT; CLIP,FUEL PIPE
STABILIZER SHAFT FRT&RR<FE6> M8X25 W/LK WASHER 		9-01900-825-0 02 1 9101-9204 ● ●
101 BOLT; CLIP,FUEL PIPE
EXC. STABILIZER SHAFT FRT&RR<FE6>,FRONT STABILIZERSHAFT<F59> M8X25 W/LK WASHER 		0-50040-825-0 02 1 9205- ● ●
101 BOLT; CLIP,FUEL PIPE
STABILIZER SHAFT FRT&RR<FE6> M8X25 W/LK WASHER 		0-50040-825-0 02 1 9205- ● ●
101 BOLT; CLIP,FUEL PIPE
FRONT STABILIZER SHAFT<F59> M8X25 W/LK WASHER 		9-01900-825-0 01 1 9101-9204 ● ●
101 BOLT; CLIP,FUEL PIPE
FRONT STABILIZER SHAFT<F59> M8X25 W/LK WASHER 		0-50040-825-0 01 1 9205- ● ●
101 BOLT; CLIP,FUEL PIPE
RIGHT HAND DRIVE(MTR5FB) WHEEL BASE 4600MM(46W) M8X25 W/LK WASHER 		9-01900-825-0 09 1 9101-9204 ● ●
101 BOLT; CLIP,FUEL PIPE
RIGHT HAND DRIVE(MTR5FB) WHEEL BASE 4600MM(46W) M8X25 W/LK WASHER 		0-50040-825-0 09 1 9205- ● ●
101 BOLT; CLIP,FUEL PIPE
RIGHT HAND DRIVE(MTR5FB) WHEEL BASE 5000MM(50W) M8X25 W/LK WASHER 		9-01900-825-0 11 1 9101-9204 ● ●
101 BOLT; CLIP,FUEL PIPE
RIGHT HAND DRIVE(MTR5FB) WHEEL BASE 5000MM(50W) M8X25 W/LK WASHER 		0-50040-825-0 11 1 9205- ● ●
101 BOLT; CLIP,FUEL PIPE
RIGHT HAND DRIVE(MTR5FB) WHEEL BASE 6000MM(60W) M8X25 W/LK WASHER 		9-01900-825-0 14 1 9101-9204 ● ●
101 BOLT; CLIP,FUEL PIPE
RIGHT HAND DRIVE(MTR5FB) WHEEL BASE 6000MM(60W) M8X25 W/LK WASHER 		0-50040-825-0 14 1 9205- ● ●
101 BOLT; CLIP,FUEL PIPE
M8X25 W/LK WASHER 		9-01900-825-0 07 1 9101-9204 ● ●
101 BOLT; CLIP,FUEL PIPE
M8X25 W/LK WASHER 		0-50040-825-0 07 1 9205- ● ●
101 BOLT; CLIP,FUEL PIPE
LEFT HAND DRIVE(MTR6FB) WHEEL BASE 4600MM(46W) M8X25 W/LK WASHER 		9-01900-825-0 08 1 9101-9204 ● ●
101 BOLT; CLIP,FUEL PIPE
LEFT HAND DRIVE(MTR6FB) WHEEL BASE 4600MM(46W) M8X25 W/LK WASHER 		0-50040-825-0 08 1 9205-0203 ● ●
102 NUT; CLIP,FUEL PIPE
LEFT HAND DRIVE(MTR6FB) WHEEL BASE 5000MM(50W) M8 		9-09110-408-0 10 1 9101- ● ●
102 NUT; CLIP,FUEL PIPE
RIGHT HAND DRIVE(MTR5FB) WHEEL BASE 4600MM(46W) M8 		9-09110-408-0 09 1 9101- ● ●
102 NUT; CLIP,FUEL PIPE
RIGHT HAND DRIVE(MTR5FB) WHEEL BASE 5000MM(50W) M8 		9-09110-408-0 11 1 9101- ● ●
102 NUT; CLIP,FUEL PIPE
RIGHT HAND DRIVE(MTR5FB) WHEEL BASE 6000MM(60W) M8 		9-09110-408-0 14 1 9101- ● ●
102 NUT; CLIP,FUEL PIPE
EXC. STABILIZER SHAFT FRT&RR<FE6>,FRONT STABILIZERSHAFT<F59> M8 		9-09110-408-0 02 1 9101- ● ●
102 NUT; CLIP,FUEL PIPE
LEFT HAND DRIVE(MTR6FB) WHEEL BASE 4600MM(46W) M8 		9-09110-408-0 08 1 9101-0203 ● ●
140 CLIP; FUEL PIPE,C/MBR
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) ID=20 L=70 		1-09701-033-0 05 1 9101- ● ●
140 CLIP; FUEL PIPE,C/MBR
RIGHT HAND DRIVE(MTR5FB) WHEEL BASE 6000MM(60W) ID=20 L=70 		1-09701-033-0 06 1 9101- ● ●
144 BOLT; CLIP,FUEL PIPE,C/MBR
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) M8X25 W/LK WASHER 		9-01900-825-0 05 1 9101-9204 ● ●
144 BOLT; CLIP,FUEL PIPE,C/MBR
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) M8X25 W/LK WASHER 		0-50040-825-0 05 1 9205- ● ●
144 BOLT; CLIP,FUEL PIPE,C/MBR
RIGHT HAND DRIVE(MTR5FB) WHEEL BASE 6000MM(60W) M8X25 W/LK WASHER 		9-01900-825-0 06 1 9101-9204 ● ●
144 BOLT; CLIP,FUEL PIPE,C/MBR
RIGHT HAND DRIVE(MTR5FB) WHEEL BASE 6000MM(60W) M8X25 W/LK WASHER 		0-50040-825-0 06 1 9205- ● ●
154 NUT; CLIP,FUEL PIPE,C/MBR
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) M8 		9-09110-408-0 05 1 9101- ● ●
154 NUT; CLIP,FUEL PIPE,C/MBR
RIGHT HAND DRIVE(MTR5FB) WHEEL BASE 6000MM(60W) M8 		9-09110-408-0 06 1 9101- ● ●
227 BRACKET; FUEL SEDIMENTER 1-22518-040-1 01 1 9101- ● ●
228 BOLT; BRKT,SEDIMENTER
(B) M10X30 W/LK WASHER 		0-50041-030-0 02 1 9101- ● ●
228 BOLT; BRKT,SEDIMENTER
(A) M10X35 W/LK&PL WASHER 		0-50141-035-0 02 1 9101- ● ●
229 NUT; BRKT,FUEL FILTER
M10 		9-09110-410-0 04 1 9101-9307 ● ●
229 NUT; BRKT,FUEL FILTER
M10 		9-09110-510-0 04 1 9308- ● ●
232 BOLT; CLIP,PIPE
M8X20 W/LK WASHER 		9-01900-820-0 01 1 9101-9204 ● ●
232 BOLT; CLIP,PIPE
M8X20 W/LK WASHER 		0-50040-820-0 01 1 9205- ● ●
239 CLIP; FUEL PIPE
ID=9 & 9 L=17 & 17 		1-09700-651-0 01 1 9101- ● ●
288 HOSE; RUBBER,FUEL TANK TO TANK
RIGHT HAND DRIVE(MTR5FB) FUEL TANK 140L+140L<NH9> L=2200 SERVICED BY L=3000 		0-01262-300-0 01 1 9101-9307 ● ●
288 HOSE; RUBBER,FUEL TANK TO TANK
RIGHT HAND DRIVE(MTR5FB) FUEL TANK 140L+140L<NH9> L=2200 SERVICED BY L=3000 		0-01262-300-0 01 1 9308- ● ●
290 NUT; FILTER TO BRKT
PRE FUEL FILTER<W21> M10 		9-09110-410-0 02 1 9101-9307 ● ●
290 NUT; FILTER TO BRKT
PRE FUEL FILTER<W21> M10 		9-09110-510-0 02 1 9308- ● ●
291 BOLT; FILER TO BRKT
PRE FUEL FILTER<W21> M10X40 W/LK WASHER 		0-50041-040-0 02 1 9101- ● ●
303 BOLT; BRKT
M8X30 W/LK WASHER 		9-01900-830-0 01 1 9101-9204 ● ●
303 BOLT; BRKT
M8X30 W/LK WASHER 		0-50040-830-0 01 1 9205- ● ●
304 NUT; BRKT
LEFT HAND DRIVE(MTR6FB) M8 		9-09110-408-0 01 1 9101- ● ●
