◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11198 - CYH NZ EURO4/JAPAN NEW LONG TERM 2005 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-28 - VENTILATION SYSTEM ▶
0-28 — VENTILATION SYSTEM (#21898) — 81 parça

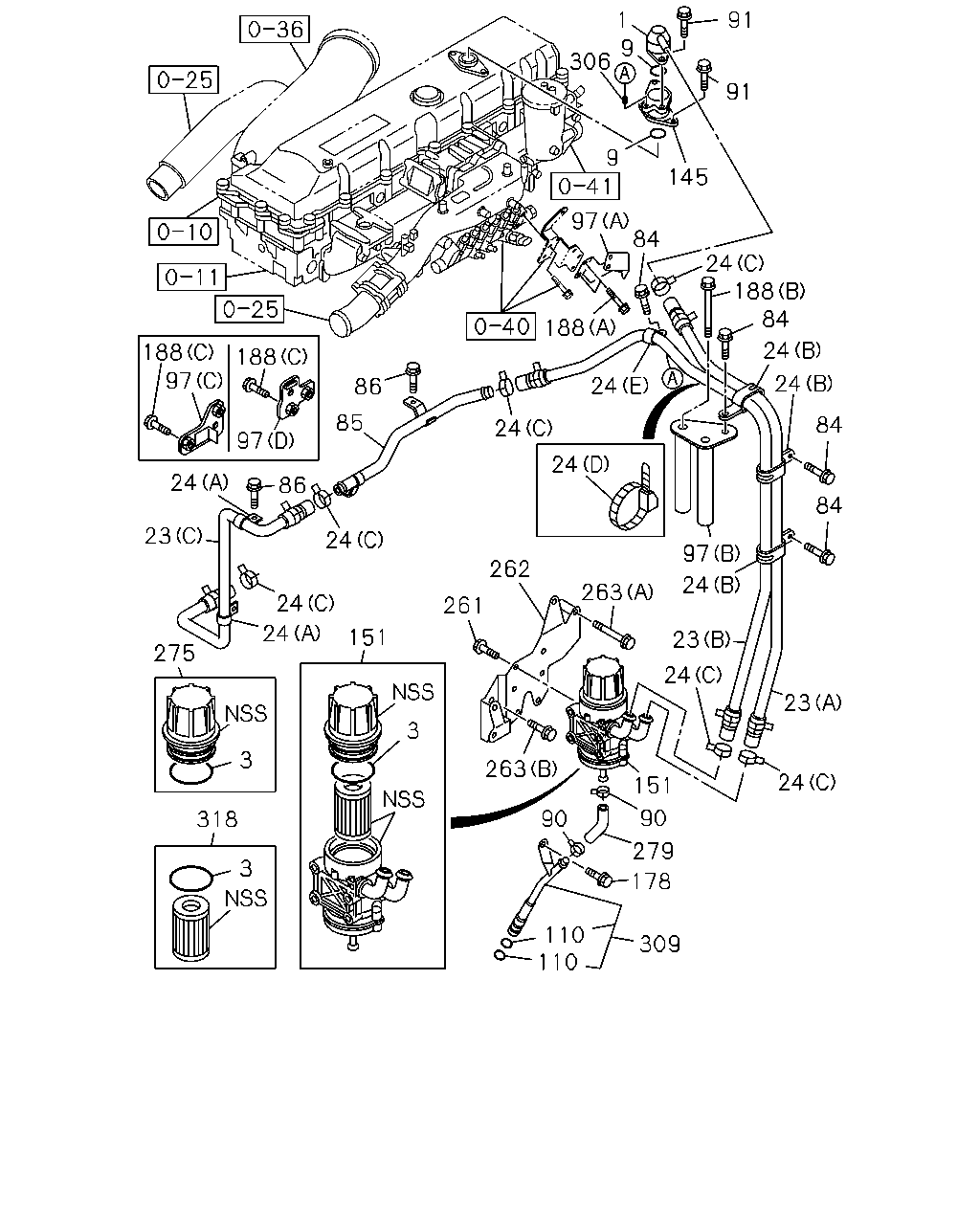

çizim 101987
188 97 188 97 24 23 86 24 24 24 151 3 3 318 3 275 261 262 263 23 24 151 90 279 178 309 110 110 263 90 24 23 24 97 24 24 86 85 24 188 84 24 188 84 24 24 84 84 145 91 91 1 306 9 9 97
BalonParca AdiParca NoAdetTipApplied Date A B C
1 BREATHER; AIR 1-11740-181-1 01 1 0904-1005 ●
1 BREATHER; AIR 1-11740-181-1 01 1 1006- ● ● ●
3 GASKET; BODY TO CAP 8-97385-921-0 01 1 0904-1005 ●
3 GASKET; BODY TO CAP 8-97385-921-0 01 1 1006- ● ● ●
9 GASKET; AIR BREATHER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=59.6 		1-09623-565-0 02 1 0904-1005 ●
9 GASKET; AIR BREATHER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=59.6 		1-09623-565-0 02 1 1006- ● ● ●
23 HOSE; RUBBER,VENTILATOR PIPE
(A) 		8-97611-033-2 01 1 0904-1005 ●
23 HOSE; RUBBER,VENTILATOR PIPE
(A) 		8-97611-033-3 01 1 1006-1210 ● ● ●
23 HOSE; RUBBER,VENTILATOR PIPE
(A) 		8-98122-989-0 01 1 1211-1309 ● ● ●
23 HOSE; RUBBER,VENTILATOR PIPE
(A) 		8-98254-532-0 01 1 1310- ● ● ●
23 HOSE; RUBBER,VENTILATOR PIPE
(B) 		8-97611-034-1 01 1 0904-1005 ●
23 HOSE; RUBBER,VENTILATOR PIPE
(B) 		8-97611-034-2 01 1 1006-1210 ● ● ●
23 HOSE; RUBBER,VENTILATOR PIPE
(B) 		8-98227-927-0 01 1 1211- ● ● ●
23 HOSE; RUBBER,VENTILATOR PIPE
(C) 		8-97611-035-2 01 1 0904-1005 ●
23 HOSE; RUBBER,VENTILATOR PIPE
(C) 		8-97611-035-3 01 1 1006-1210 ● ● ●
23 HOSE; RUBBER,VENTILATOR PIPE
(C) 		8-98227-928-0 01 1 1211- ● ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
(E) ID=31 L=30 		1-09700-969-0 01 1 0904-1005 ●
24 CLIP; RUBBER HOSE,VENTILATOR
(E) ID=31 L=30 		1-09700-969-0 01 1 1006-1210 ● ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
(E) ID=29 L=30 		8-98225-679-0 01 1 1211-1212 ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
(E) ID=29 L=30 		8-98225-679-0 08 1 1301- ● ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
(B) ID=30X2 L=28 		1-09701-266-0 03 1 0904-1005 ●
24 CLIP; RUBBER HOSE,VENTILATOR
(B) ID=30X2 L=28 		1-09701-266-0 03 1 1006-1210 ● ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
(B) ID=29 L=30 		8-98225-679-0 08 1 1211-1212 ●
24 CLIP; RUBBER HOSE,VENTILATOR
(C) ID=28.5 		1-09707-150-0 06 1 0904-1005 ●
24 CLIP; RUBBER HOSE,VENTILATOR
(C) ID=28.5 		1-09707-150-0 06 1 1006- ● ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
(D) L=250 		5-09707-030-1 01 1 0904-1005 ●
24 CLIP; RUBBER HOSE,VENTILATOR
(D) L=250 		5-09707-030-1 01 1 1006-1205 ● ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
(D) L=250 		8-98216-430-0 01 1 1206- ● ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
(A) ID=33 L=30 		8-97619-250-0 02 1 0904-1005 ●
24 CLIP; RUBBER HOSE,VENTILATOR
(A) ID=33 L=30 		8-97619-250-0 02 1 1006-1210 ● ● ●
84 BOLT; PIPE CLIP,VENTILATOR
M8X16 FLANGE 		0-28050-816-0 05 1 0904-1005 ●
84 BOLT; PIPE CLIP,VENTILATOR
M8X16 FLANGE 		0-28050-816-0 05 1 1006-1210 ● ● ●
84 BOLT; PIPE CLIP,VENTILATOR
M8X16 FLANGE 		0-28050-816-0 07 1 1211- ● ● ●
84 BOLT; PIPE CLIP,VENTILATOR
M8X50 FLANGE 		0-28050-850-0 01 1 0904-1005 ●
84 BOLT; PIPE CLIP,VENTILATOR
M8X50 FLANGE 		0-28050-850-0 01 1 1006- ● ● ●
85 PIPE; BREATHER 8-97611-021-1 01 1 0904-1005 ●
85 PIPE; BREATHER 8-97611-021-1 01 1 1006- ● ● ●
86 BOLT; BREATHER PIPE
M8X16 FLANGE 		0-28050-816-0 02 1 0904-1005 ●
86 BOLT; BREATHER PIPE
M8X16 FLANGE 		0-28050-816-0 02 1 1006- ● ● ●
90 CLIP; RUBBER HOSE
ID=14 		1-09704-102-0 02 1 0904-1005 ●
90 CLIP; RUBBER HOSE
ID=14 		1-09704-102-0 02 1 1006- ● ● ●
91 BOLT; AIR BREATHER
M10X20 FLANGE 		0-28151-020-0 04 1 0904-1005 ●
91 BOLT; AIR BREATHER
M10X20 FLANGE 		0-28151-020-0 04 1 1006- ● ● ●
97 BRACKET; HOSE
(C) 		8-98227-930-0 01 1 1211- ● ● ●
97 BRACKET; HOSE
(D) 		8-98227-931-0 01 1 1211- ● ● ●
97 BRACKET; HOSE
(A) 		1-15419-726-0 01 1 0904-1005 ●
97 BRACKET; HOSE
(A) 		1-15419-726-0 01 1 1006- ● ● ●
97 BRACKET; HOSE
(B) 		8-97620-560-0 01 1 0904-1005 ●
97 BRACKET; HOSE
(B) 		8-97620-560-0 01 1 1006-1210 ● ● ●
97 BRACKET; HOSE
(B) 		8-98227-929-0 01 1 1211- ● ● ●
110 GASKET; PIPE
ID=11 		1-09623-469-0 02 1 0904-1005 ●
110 GASKET; PIPE
ID=11 		1-09623-469-0 02 1 1006- ● ● ●
145 ADAPTER; AIR BREATHER 8-98073-548-0 01 1 0904-1005 ●
145 ADAPTER; AIR BREATHER 8-98073-548-0 01 1 1006- ● ● ●
151 SEPARATOR; OIL,PCV 8-97604-118-0 01 1 0904-1005 ●
151 SEPARATOR; OIL,PCV 8-97604-118-0 01 1 1006- ● ● ●
178 BOLT; PIPE
M8X16 FLANGE 		0-28050-816-0 01 1 0904-1005 ●
178 BOLT; PIPE
M8X16 FLANGE 		0-28050-816-0 01 1 1006- ● ● ●
188 BOLT; BRKT
(C) M8X20 FLANGE 		0-28050-820-0 02 1 1211- ● ● ●
188 BOLT; BRKT
(B) M10X140 FLANGE 		0-28156-014-0 02 1 0904-1005 ●
188 BOLT; BRKT
(B) M10X140 FLANGE 		0-28156-014-0 02 1 1006- ● ● ●
188 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0904-1005 ●
188 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1006- ● ● ●
261 BOLT; SEPARETOR
M8X16 FLANGE 		0-28050-816-0 04 1 0904-1005 ●
261 BOLT; SEPARETOR
M8X16 FLANGE 		0-28050-816-0 04 1 1006- ● ● ●
262 BRACKET; OIL SEPARETOR 1-13345-220-1 01 1 0904-1005 ●
262 BRACKET; OIL SEPARETOR 1-13345-220-1 01 1 1006- ● ● ●
263 BOLT; BRKT,OIL SEPARETOR
(A) M10X90 FLANGE 		0-28151-090-0 01 1 0904-1005 ●
263 BOLT; BRKT,OIL SEPARETOR
(A) M10X90 FLANGE 		0-28151-090-0 01 1 1006- ● ● ●
263 BOLT; BRKT,OIL SEPARETOR
(B) M14X25 FLANGE 		0-28951-425-0 02 1 0904-1005 ●
263 BOLT; BRKT,OIL SEPARETOR
(B) M14X25 FLANGE 		0-28951-425-0 02 1 1006- ● ● ●
275 CAP; PCV 8-97385-918-0 01 1 0904-1005 ●
275 CAP; PCV 8-97385-918-0 01 1 1006- ● ● ●
279 HOSE; RUBBER,OIL DRAIN
L=90 SERVICED BY L=1000 		0-02759-100-0 01 1 0904-1005 ●
279 HOSE; RUBBER,OIL DRAIN
L=90 SERVICED BY L=1000 		0-02759-100-0 01 1 1006- ● ● ●
306 SPACER; CLIP
L=33 		8-97329-615-0 01 1 0904-1005 ●
306 SPACER; CLIP
L=33 		8-97329-615-0 01 1 1006- ● ● ●
309 PIPE ASM; OIL SEPARATOR 1-13314-045-1 01 1 0904-1005 ●
309 PIPE ASM; OIL SEPARATOR 1-13314-045-1 01 1 1006- ● ● ●
318 ELEMENT KIT; PCV 8-97385-919-0 01 1 0904-1005 ●
318 ELEMENT KIT; PCV 8-97385-919-0 01 1 1006- ● ● ●
