Isuzu WW
▶
TRUCKS
▶
CYH
▶
11198 - CYH NZ EURO4/JAPAN NEW LONG TERM 2005
▶
0 - Engine, Emission, Engine Electrical
▶
0-27 - EXHAUST MANIFOLD
▶

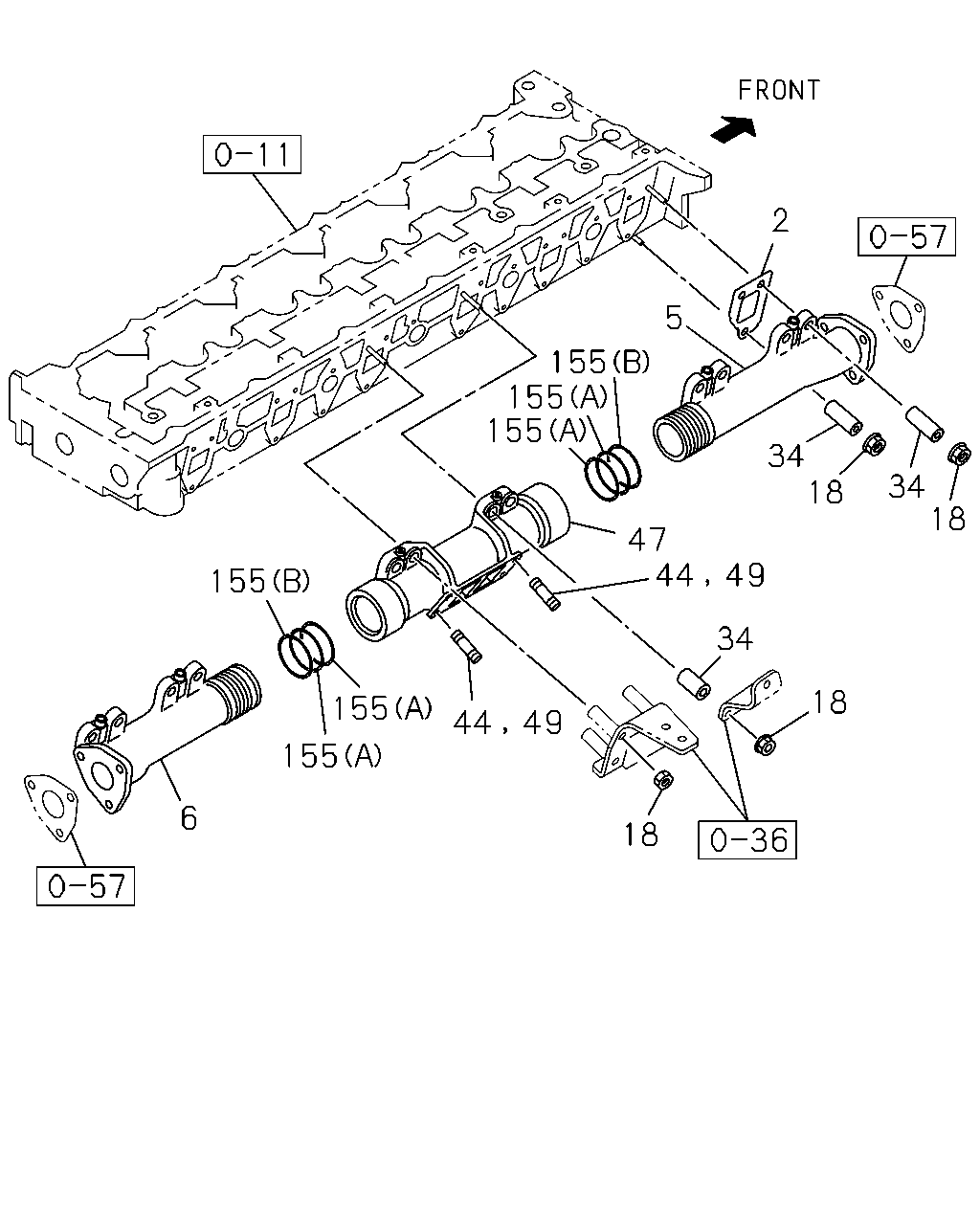

0-27 — EXHAUST MANIFOLD
(#21897) — 20 parça
Tümü
A - 6WG1 TC-R
B - 6WG1 TC-C
C - 6WG1 TC-S
2
5
155
155
155
34
18
34
18
47
44
49
155
34
18
155
49
44
155
6
18
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
2
GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-14145-182-2
06
1
0904-1005
●
2
GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-14145-182-3
06
1
1006-
●
●
●
5
MANIFOLD; EXH,FRT
8-97608-512-2
01
1
0904-1005
●
5
MANIFOLD; EXH,FRT
8-97608-512-3
01
1
1006-
●
●
●
6
MANIFOLD; EXH,RR
8-97608-514-1
01
1
0904-1005
●
6
MANIFOLD; EXH,RR
8-97608-514-2
01
1
1006-
●
●
●
18
NUT; EXH MANIF
M10 FLANGE
8-97096-192-1
18
1
0904-1005
●
18
NUT; EXH MANIF
M10 FLANGE
8-97096-192-1
18
1
1006-
●
●
●
34
COLLAR; DIST,EXH MANIF
L=28
8-97250-073-1
14
1
0904-1005
●
34
COLLAR; DIST,EXH MANIF
L=28
8-97250-073-1
14
1
1006-
●
●
●
44
STUD; TURBOCHARGER
M10X25 L=47
8-97378-071-0
02
1
0904-1005
●
44
STUD; TURBOCHARGER
M10X25 L=47
8-97378-071-0
02
1
1006-
●
●
●
47
MANIFOLD; EXH,CENTER
8-97604-878-1
01
1
1006-
●
●
47
MANIFOLD; EXH,CENTER
8-97605-972-1
01
1
0904-
●
49
STUD; CENTER MANIF TO TURBOCHARGER
M10X25 L=47
8-97378-071-0
02
1
0904-1005
●
49
STUD; CENTER MANIF TO TURBOCHARGER
M10X25 L=47
8-97378-071-0
02
1
1006-
●
●
●
155
RING; SEAL,EXH MANIF
(B)
1-14149-201-0
02
1
0904-1005
●
155
RING; SEAL,EXH MANIF
(B)
1-14149-201-0
02
1
1006-
●
●
●
155
RING; SEAL,EXH MANIF
(A)
9-14149-026-1
04
1
0904-1005
●
155
RING; SEAL,EXH MANIF
(A)
9-14149-026-1
04
1
1006-
●
●
●
