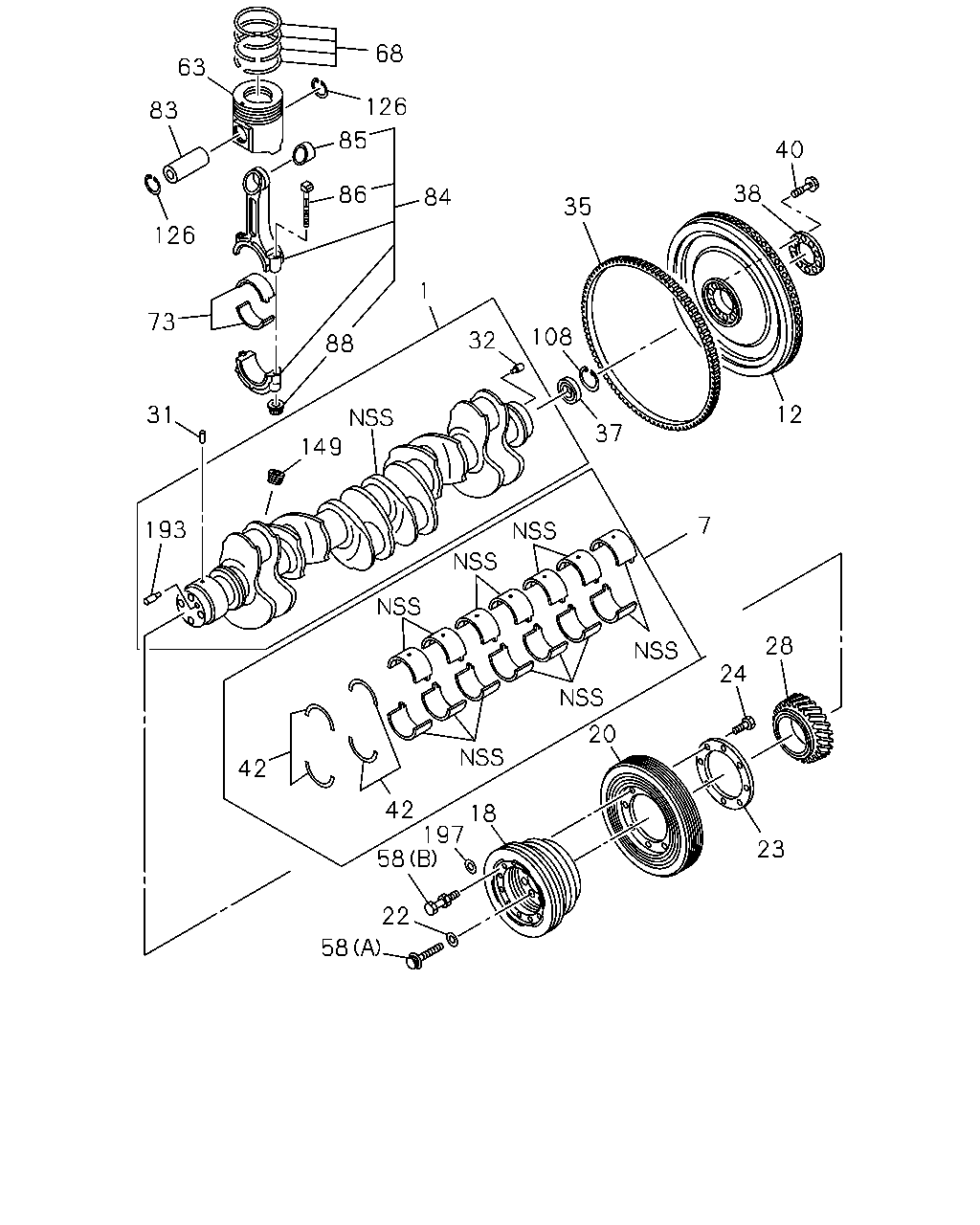

1 |
CRANKSHAFT
|
1-12310-715-1 |
01 |
1 |
0904-1005 |
● |
|
|
| |
1 |
CRANKSHAFT
|
1-12310-715-1 |
01 |
1 |
1006-1106 |
● |
● |
● |
| |
1 |
CRANKSHAFT
|
8-98172-014-0 |
01 |
1 |
1107- |
● |
● |
● |
| |
7 |
METAL KIT; CRANKSHAFT,STANDARD
|
8-97606-709-0 |
01 |
1 |
0904-1005 |
● |
|
|
| |
7 |
METAL KIT; CRANKSHAFT,STANDARD
|
8-97606-709-0 |
01 |
1 |
1006-1006 |
● |
● |
● |
| |
7 |
METAL KIT; CRANKSHAFT,STANDARD
|
8-98151-849-1 |
01 |
1 |
1007- |
● |
● |
● |
| |
12 |
FLYWHEEL
|
8-98063-835-0 |
01 |
1 |
0904-1005 |
● |
|
|
| |
12 |
FLYWHEEL
|
8-98063-835-0 |
01 |
1 |
1006- |
● |
● |
● |
| |
18 |
PULLEY; CR/SHF
3-GROOVE
|
8-97606-321-0 |
01 |
1 |
0904-1005 |
● |
|
|
| |
18 |
PULLEY; CR/SHF
3-GROOVE
|
8-97606-321-0 |
01 |
1 |
1006- |
● |
● |
● |
| |
20 |
DAMPER; CR/SHF
|
1-12375-212-0 |
01 |
1 |
0904-0912 |
● |
|
|
| |
20 |
DAMPER; CR/SHF
|
8-98147-154-0 |
01 |
1 |
1001-1005 |
● |
|
|
| |
20 |
DAMPER; CR/SHF
|
8-98147-154-0 |
01 |
1 |
1006- |
● |
● |
● |
| |
22 |
PLATE; PULLEY
ID=18
|
9-09851-862-0 |
08 |
1 |
0904-1005 |
● |
|
|
| |
22 |
PLATE; PULLEY
ID=18
|
9-09851-862-0 |
08 |
1 |
1006- |
● |
● |
● |
| |
23 |
WASHER; DAMPER
|
1-12379-039-1 |
01 |
1 |
0904-0912 |
● |
|
|
| |
24 |
BOLT; DAMPER
M12X30 FLANGE
|
0-28761-230-0 |
08 |
1 |
0904-1005 |
● |
|
|
| |
24 |
BOLT; DAMPER
M12X30 FLANGE
|
0-28761-230-0 |
08 |
1 |
1006- |
● |
● |
● |
| |
28 |
GEAR; CR/SHF
Z=48
|
1-12521-061-2 |
01 |
1 |
0904-1005 |
● |
|
|
| |
28 |
GEAR; CR/SHF
Z=48
|
1-12521-061-2 |
01 |
1 |
1006- |
● |
● |
● |
| |
31 |
KEY; FEATHER,CR/SHF
OD=5 L=6
|
9-09878-626-0 |
01 |
1 |
0904-1005 |
● |
|
|
| |
31 |
KEY; FEATHER,CR/SHF
OD=5 L=6
|
9-09878-626-0 |
01 |
1 |
1006- |
● |
● |
● |
| |
32 |
PIN; FLYWHEEL
OD=8 L=16
|
9-08150-816-0 |
01 |
1 |
0904-1005 |
● |
|
|
| |
32 |
PIN; FLYWHEEL
OD=8 L=16
|
9-08150-816-0 |
01 |
1 |
1006- |
● |
● |
● |
| |
35 |
GEAR; RING
Z=139
|
1-12333-013-1 |
01 |
1 |
0904-1005 |
● |
|
|
| |
35 |
GEAR; RING
Z=139
|
1-12333-013-1 |
01 |
1 |
1006- |
● |
● |
● |
| |
37 |
BEARING; PILOT,TOP GEAR SHAFT
|
1-09800-257-0 |
01 |
1 |
0904-1005 |
● |
|
|
| |
37 |
BEARING; PILOT,TOP GEAR SHAFT
|
1-09800-257-0 |
01 |
1 |
1006- |
● |
● |
● |
| |
37 |
BEARING; PILOT,TOP GEAR SHAFT
BEST VALUE PARTS
|
1-87610-158-0 |
01 |
1 |
0904-1005 |
● |
|
|
| |
37 |
BEARING; PILOT,TOP GEAR SHAFT
BEST VALUE PARTS
|
1-87610-158-0 |
01 |
1 |
1006- |
● |
● |
● |
| |
38 |
WASHER; FLYWHEEL
|
1-12336-011-0 |
01 |
1 |
0904-1005 |
● |
|
|
| |
38 |
WASHER; FLYWHEEL
|
1-12336-011-0 |
01 |
1 |
1006- |
● |
● |
● |
| |
40 |
BOLT; FLYWHEEL
|
1-09070-017-1 |
10 |
1 |
0904-1005 |
● |
|
|
| |
40 |
BOLT; FLYWHEEL
|
1-09070-017-1 |
10 |
1 |
1006- |
● |
● |
● |
| |
42 |
WASHER; THRUST,CR/SHF
|
8-97606-710-0 |
02 |
1 |
0904-1005 |
● |
|
|
| |
42 |
WASHER; THRUST,CR/SHF
|
8-97606-710-0 |
02 |
1 |
1006-1006 |
● |
● |
● |
| |
42 |
WASHER; THRUST,CR/SHF
|
8-98151-850-0 |
02 |
1 |
1007- |
● |
● |
● |
| |
58 |
BOLT; CR/SHF PULLEY
(A)
|
1-09070-017-1 |
08 |
1 |
0904-1005 |
● |
|
|
| |
58 |
BOLT; CR/SHF PULLEY
(A)
|
1-09070-017-1 |
08 |
1 |
1006- |
● |
● |
● |
| |
58 |
BOLT; CR/SHF PULLEY
(B)
M10X24 FLANGE
|
8-97603-593-0 |
06 |
1 |
0904-1005 |
● |
|
|
| |
58 |
BOLT; CR/SHF PULLEY
(B)
M10X24 FLANGE
|
8-97603-593-0 |
06 |
1 |
1006- |
● |
● |
● |
| |
63 |
PISTON
ALSO INCLUDED IN LINER SET.
NON GRADE
|
8-98174-812-0 |
06 |
1 |
1008- |
|
|
● |
| |
63 |
PISTON
ALSO INCLUDED IN LINER SET.
NON GRADE
|
8-98028-808-1 |
06 |
1 |
0904-1005 |
● |
|
|
| |
63 |
PISTON
ALSO INCLUDED IN LINER SET.
NON GRADE
|
8-98028-808-1 |
06 |
1 |
1006-1007 |
● |
● |
● |
| |
63 |
PISTON
ALSO INCLUDED IN LINER SET.
NON GRADE
|
8-98028-808-2 |
06 |
1 |
1008- |
● |
● |
|
| |
68 |
RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET.
|
1-12121-154-1 |
06 |
1 |
0904-1005 |
● |
|
|
| |
68 |
RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET.
|
1-12121-154-1 |
06 |
1 |
1006- |
● |
● |
● |
| |
73 |
METAL SET; CONN ROD,STANDARD
|
1-12271-096-0 |
06 |
1 |
0904-1005 |
● |
|
|
| |
73 |
METAL SET; CONN ROD,STANDARD
|
1-12271-096-0 |
06 |
1 |
1006- |
● |
● |
● |
| |
83 |
PIN; PISTON
ALSO INCLUDED IN LINER SET.
|
1-12211-029-1 |
06 |
1 |
0904-1005 |
● |
|
|
| |
83 |
PIN; PISTON
ALSO INCLUDED IN LINER SET.
|
1-12211-029-1 |
06 |
1 |
1006- |
● |
● |
● |
| |
84 |
ROD ASM; CONN
|
1-12230-176-2 |
06 |
1 |
0904-1004 |
● |
|
|
| |
84 |
ROD ASM; CONN
|
8-98115-948-0 |
06 |
1 |
1005-1005 |
● |
|
|
| |
84 |
ROD ASM; CONN
|
8-98115-948-0 |
06 |
1 |
1006- |
● |
● |
● |
| |
85 |
BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
|
1-12251-037-4 |
06 |
1 |
0904-1004 |
● |
|
|
| |
85 |
BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
|
8-98115-959-0 |
06 |
1 |
1005-1005 |
● |
|
|
| |
85 |
BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
|
8-98115-959-0 |
06 |
1 |
1006- |
● |
● |
● |
| |
86 |
BOLT; CONNROD
|
1-12235-036-3 |
12 |
1 |
0904-1005 |
● |
|
|
| |
86 |
BOLT; CONNROD
|
1-12235-036-3 |
12 |
1 |
1006- |
● |
● |
● |
| |
88 |
NUT; CONNROD
|
1-12239-005-1 |
12 |
1 |
0904-1005 |
● |
|
|
| |
88 |
NUT; CONNROD
|
1-12239-005-1 |
12 |
1 |
1006- |
● |
● |
● |
| |
108 |
RING; SNAP,BRG SET
OD=67.2
|
9-09180-163-0 |
01 |
1 |
0904-1005 |
● |
|
|
| |
108 |
RING; SNAP,BRG SET
OD=67.2
|
9-09180-163-0 |
01 |
1 |
1006- |
● |
● |
● |
| |
126 |
RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET.
|
1-09587-082-0 |
12 |
1 |
0904-1005 |
● |
|
|
| |
126 |
RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET.
|
1-09587-082-0 |
12 |
1 |
1006- |
● |
● |
● |
| |
149 |
PLUG
PT1
|
1-09605-021-1 |
06 |
1 |
0904-1005 |
● |
|
|
| |
149 |
PLUG
PT1
|
1-09605-021-1 |
06 |
1 |
1006- |
● |
● |
● |
| |
193 |
PIN; FLANGE
OD=8 L=20
|
9-08160-820-0 |
01 |
1 |
0904-1005 |
● |
|
|
| |
193 |
PIN; FLANGE
OD=8 L=20
|
9-08160-820-0 |
01 |
1 |
1006- |
● |
● |
● |
| |
197 |
WASHER; PL,FAN DRIVE
ID=10.5
|
9-09164-510-0 |
06 |
1 |
0904-1005 |
● |
|
|
| |
197 |
WASHER; PL,FAN DRIVE
ID=10.5
|
9-09164-510-0 |
06 |
1 |
1006- |
● |
● |
● |
