1-40 — FUEL TANK (#2189) — 151 parça

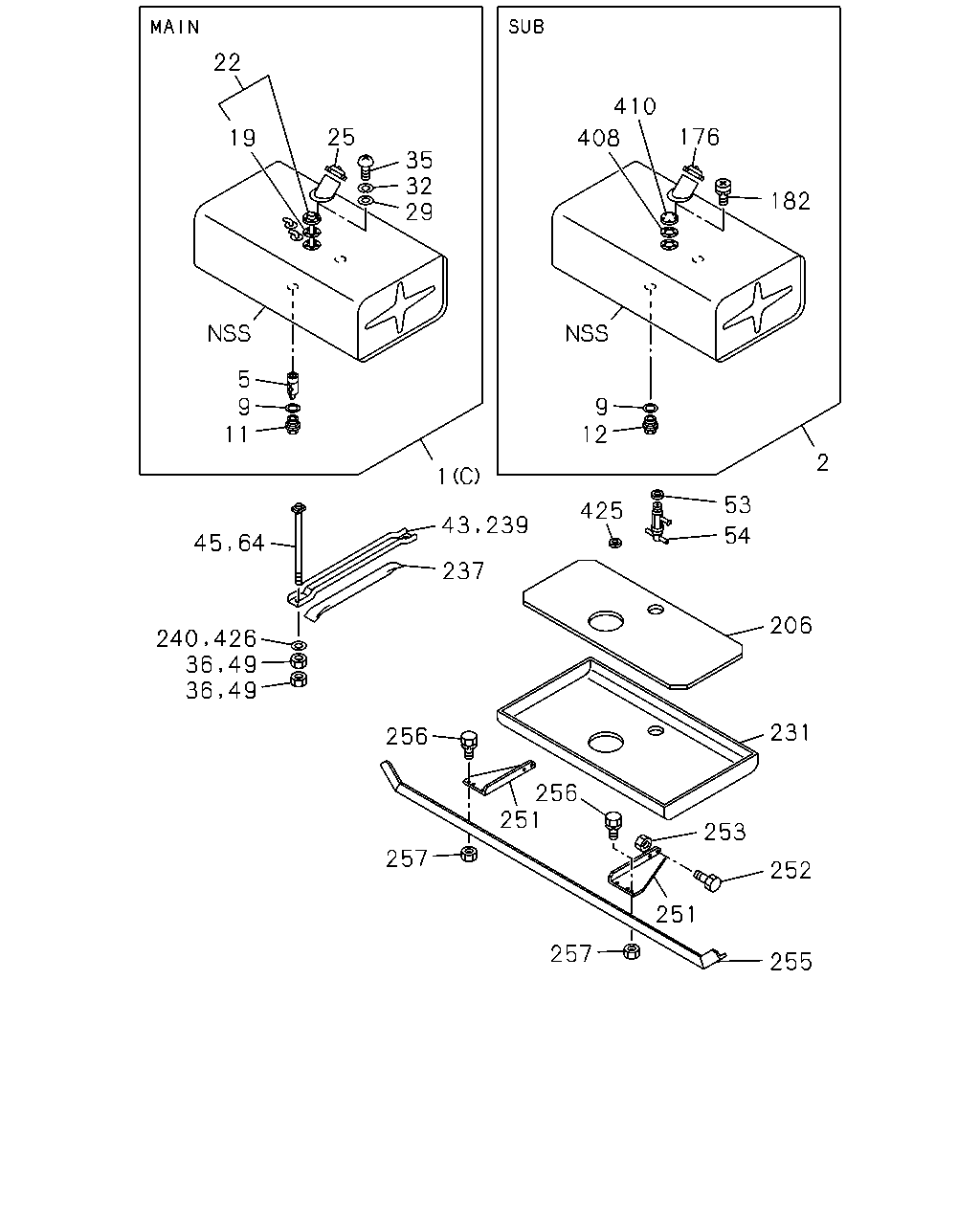

çizim 29380
22 410 25 176 19 408 35 32 29 182 5 9 11 9 12 2 1 53 425 239 54 45 237 206 240 36 36 231 256 256 251 253 257 252 251 257 255 64 426 49 49 43
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK; FUEL
FUEL TANK 200L FRAME SIDE<N20> (B) 1220X532X322 200L 		1-22400-340-4 01 1 9101- ● ●
1 TANK; FUEL
USER DAEWOO MOTORS<D4S> EXC. FUEL TANK 140L+140L<NH9>,FUEL TANK 200L FRAMESIDE<N20>,FUEL TANK 300L<RF5> (B) 865X532X322 140L 		1-22400-842-0 01 1 9101-0203 ● ●
1 TANK; FUEL
EXC. USER DAEWOO MOTORS<D4S>,FUEL TANK 140L+140L<NH9>,FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 300L<RF5> (B) 914X502X322 137L 		9-22402-121-5 01 1 9101-0203 ● ●
1 TANK; FUEL
EXC. FUEL TANK 140L+140L<NH9>,FUEL TANK 200L FRAMESIDE<N20> (B) 914X502X322 137L 		9-22402-121-5 01 1 0204- ● ●
1 TANK; FUEL
RIGHT HAND DRIVE(MTR5FB) FUEL TANK 140L+140L<NH9> (C) 914X502X322 136L 		1-22400-809-0 01 1 9101- ● ●
1 TANK; FUEL
RIGHT HAND DRIVE(MTR5FB) FUEL TANK 300L<RF5> (A) 1040X602X502 300L 		1-22400-709-1 01 1 9101-0203 ● ●
2 TANK ASM; FUEL,SUB
RIGHT HAND DRIVE(MTR5FB) FUEL TANK 140L+140L<NH9> 914X502X322 136L 		1-22400-810-0 01 1 9101- ● ●
5 STRAINER; FUEL TANK
EXC. FUEL TANK 300L<RF5> 		1-22460-001-1 01 1 9101-0203 ● ●
5 STRAINER; FUEL TANK 1-22460-001-1 01 1 0204- ● ●
9 GASKET; DRAIN PLUG,SUB TANK
RIGHT HAND DRIVE(MTR5FB) FUEL TANK 140L+140L<NH9> T=2.0 		9-09923-030-0 01 1 9101- ● ●
11 PLUG; DRAIN,FUEL TANK
EXC. FUEL TANK 300L<RF5> 		1-09604-052-0 01 1 9101-0203 ● ●
11 PLUG; DRAIN,FUEL TANK 1-09604-052-0 01 1 0204- ● ●
12 PLUG; DRAIN,SUB TANK
RIGHT HAND DRIVE(MTR5FB) FUEL TANK 140L+140L<NH9> 		1-09604-052-0 01 1 9101- ● ●
19 GASKET; FUEL TANK UNIT
EXC. FUEL TANK 300L<RF5> 		9-83135-003-0 01 1 9101-0203 ● ●
19 GASKET; FUEL TANK UNIT 9-83135-003-0 01 1 0204- ● ●
22 UNIT; FUEL TANK
EXC. FUEL TANK 300L<RF5> 		9-83131-682-0 01 1 9101-9105 ● ●
22 UNIT; FUEL TANK
EXC. FUEL TANK 300L<RF5> 		9-83132-115-0 01 1 9106-0203 ● ●
22 UNIT; FUEL TANK 9-83132-115-0 01 1 0204- ● ●
22 UNIT; FUEL TANK
RIGHT HAND DRIVE(MTR5FB) FUEL TANK 300L<RF5> 		1-83141-072-0 01 1 9101-0203 ● ●
25 CAP; FILLER,FUEL TANK
FUEL TANK 200L FRAME SIDE<N20> 		1-22440-023-1 01 1 9101- ● ●
25 CAP; FILLER,FUEL TANK
EXC. FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 300L<RF5> 		1-22440-028-0 01 1 9101-0203 ● ●
25 CAP; FILLER,FUEL TANK
EXC. FUEL TANK 200L FRAME SIDE<N20> 		1-22440-028-0 01 1 0204- ● ●
25 CAP; FILLER,FUEL TANK
RIGHT HAND DRIVE(MTR5FB) FUEL TANK 300L<RF5> 		1-22440-044-0 01 1 9101-0203 ● ●
29 WASHER; PL,FUEL TANK UNIT
EXC. FUEL TANK 300L<RF5> ID=4.3 		9-09160-504-0 01 1 9101-0203 ● ●
29 WASHER; PL,FUEL TANK UNIT
ID=4.3 		9-09160-504-0 01 1 0204- ● ●
32 WASHER; LK,FUEL TANK UNIT
ID=4.1 		9-09150-504-0 05 1 9101- ● ●
35 SCREW; FUEL TANK UNIT
EXC. FUEL TANK 300L<RF5> 		1-22419-012-0 05 1 9101-0203 ● ●
35 SCREW; FUEL TANK UNIT 1-22419-012-0 05 1 0204- ● ●
36 NUT; SPACER,FUEL TANK
M12 		9-99110-512-0 08 1 9101- ● ●
43 BRACKET; FUEL TANK
FUEL TANK 140L+140L<NH9>,FUEL TANK 200L FRAME SIDE<N20> 		9-22555-005-0 02 1 0204- ● ●
45 BOLT; BRKT,FUEL TANK
FUEL TANK 140L+140L<NH9>,FUEL TANK 200L FRAME SIDE<N20> M12X359 		9-22559-030-2 04 1 0204- ● ●
49 NUT; BRKT
RIGHT HAND DRIVE(MTR5FB) FUEL TANK 140L+140L<NH9> H=10 M12 		9-99110-512-0 08 1 9308- ● ●
49 NUT; BRKT
FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 300L<RF5> H=10 M12 		9-99110-512-0 04 1 9308-0203 ● ●
49 NUT; BRKT
FUEL TANK 200L FRAME SIDE<N20> H=10 M12 		9-99110-512-0 04 1 0204- ● ●
49 NUT; BRKT
FUEL TANK 200L FRAME SIDE<N20> H=7 M12 		9-99111-412-0 04 1 0204- ● ●
53 GASKET; COCK,FUEL TANK
RIGHT HAND DRIVE(MTR5FB) FUEL TANK 140L+140L<NH9> T=1.60 		1-22416-001-0 02 1 9101- ● ●
53 GASKET; COCK,FUEL TANK
RIGHT HAND DRIVE(MTR5FB) FUEL TANK 140L+140L<NH9> T=0.80 		1-22416-004-0 01 1 9101- ● ●
54 COCK ASM; FUEL TANK
RIGHT HAND DRIVE(MTR5FB) FUEL TANK 140L+140L<NH9> 		9-09904-176-0 02 1 9101- ● ●
64 BOLT; FUEL TANK
EXC. FUEL TANK 300L<RF5> M12X359 		9-22559-030-2 04 1 9101-0203 ● ●
64 BOLT; FUEL TANK
M12X359 		9-22559-030-2 04 1 0204- ● ●
64 BOLT; FUEL TANK
RIGHT HAND DRIVE(MTR5FB) FUEL TANK 300L<RF5> M12X594 		1-22559-003-1 04 1 9101-0203 ● ●
176 CAP ASM; FILLER,SUB TANK
RIGHT HAND DRIVE(MTR5FB) FUEL TANK 140L+140L<NH9> 		1-22440-028-0 01 1 9101- ● ●
182 SCREW; CAP
RIGHT HAND DRIVE(MTR5FB) FUEL TANK 140L+140L<NH9> 		1-22419-012-0 05 1 9101- ● ●
206 SLEEPER; FUEL TANK
FUEL TANK 200L FRAME SIDE<N20> 		9-22554-095-0 01 1 9101- ● ●
206 SLEEPER; FUEL TANK
USER DAEWOO MOTORS<D4S> 		1-22554-012-0 01 1 9101-0203 ● ●
206 SLEEPER; FUEL TANK
EXC. USER DAEWOO MOTORS<D4S>,FUEL TANK 140L+140L<NH9>,FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 300L<RF5> 		9-22554-056-0 01 1 9101-0203 ● ●
206 SLEEPER; FUEL TANK
EXC. FUEL TANK 140L+140L<NH9>,FUEL TANK 200L FRAMESIDE<N20> 		9-22554-056-0 01 1 0204- ● ●
206 SLEEPER; FUEL TANK
RIGHT HAND DRIVE(MTR5FB) FUEL TANK 140L+140L<NH9> 		1-22554-013-0 02 1 9101- ● ●
231 COVER; UNDER,FUEL TANK
FUEL TANK 200L FRAME SIDE<N20> 		9-22557-068-0 01 1 9101- ● ●
231 COVER; UNDER,FUEL TANK
USER DAEWOO MOTORS<D4S> 		1-22557-028-1 01 1 9101-0203 ● ●
231 COVER; UNDER,FUEL TANK
EXC. USER DAEWOO MOTORS<D4S>,FUEL TANK 140L+140L<NH9>,FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 300L<RF5> 		9-22557-052-0 01 1 9101-0203 ● ●
231 COVER; UNDER,FUEL TANK
EXC. FUEL TANK 140L+140L<NH9>,FUEL TANK 200L FRAMESIDE<N20> 		9-22557-052-0 01 1 0204- ● ●
231 COVER; UNDER,FUEL TANK
RIGHT HAND DRIVE(MTR5FB) FUEL TANK 140L+140L<NH9> 		1-22557-034-0 02 1 9101- ● ●
237 GASKET; BRKT TO FUEL TANK
EXC. FUEL TANK 300L<RF5> L=540 		1-22553-006-0 02 1 9101-9201 ● ●
237 GASKET; BRKT TO FUEL TANK
EXC. FUEL TANK 300L<RF5> L=540 		1-22553-014-2 02 1 9202-9205 ● ●
237 GASKET; BRKT TO FUEL TANK
EXC. FUEL TANK 300L<RF5> L=540 		1-22553-006-0 02 1 9206-0203 ● ●
237 GASKET; BRKT TO FUEL TANK
L=540 		1-22553-006-0 02 1 0204- ● ●
237 GASKET; BRKT TO FUEL TANK
FUEL TANK 140L+140L<NH9>,FUEL TANK 200L FRAME SIDE<N20> L=540 		1-22553-006-0 02 1 0204- ● ●
237 GASKET; BRKT TO FUEL TANK
RIGHT HAND DRIVE(MTR5FB) FUEL TANK 300L<RF5> 		1-22553-009-0 04 1 9101-9201 ● ●
237 GASKET; BRKT TO FUEL TANK
RIGHT HAND DRIVE(MTR5FB) FUEL TANK 300L<RF5> L=650 		1-22553-022-1 04 1 9202-9205 ● ●
237 GASKET; BRKT TO FUEL TANK
RIGHT HAND DRIVE(MTR5FB) FUEL TANK 300L<RF5> 		1-22553-009-0 04 1 9206-0203 ● ●
239 SUPPORT; FUEL TANK
EXC. FUEL TANK 300L<RF5> 		9-22555-005-0 02 1 9101-0203 ● ●
239 SUPPORT; FUEL TANK 9-22555-005-0 02 1 0204- ● ●
239 SUPPORT; FUEL TANK
RIGHT HAND DRIVE(MTR5FB) FUEL TANK 300L<RF5> 		1-22555-011-0 02 1 9101-0203 ● ●
240 WASHER; PL,FUEL TANK
ID=12.5 OD=26 		9-09164-612-0 04 1 9101- ● ●
251 STAY; FUEL TANK
RIGHT HAND DRIVE(MTR5FB) FUEL TANK 140L+140L<NH9> 		1-22518-117-0 01 1 9101- ● ●
251 STAY; FUEL TANK
RIGHT HAND DRIVE(MTR5FB) FUEL TANK 140L+140L<NH9> 		1-22518-118-0 01 1 9101- ● ●
252 BOLT; STAY TO FRAME
RIGHT HAND DRIVE(MTR5FB) FUEL TANK 140L+140L<NH9> M8X20 W/LK WASHER 		9-01900-820-0 04 1 9101-9204 ● ●
252 BOLT; STAY TO FRAME
RIGHT HAND DRIVE(MTR5FB) FUEL TANK 140L+140L<NH9> M8X20 W/LK WASHER 		0-50040-820-0 04 1 9205- ● ●
253 NUT; STAY TO FRAME
RIGHT HAND DRIVE(MTR5FB) FUEL TANK 140L+140L<NH9> 		9-09110-408-0 04 1 9101- ● ●
255 MEMBER; CROSS,DUAL FUEL TANK
RIGHT HAND DRIVE(MTR5FB) FUEL TANK 140L+140L<NH9> 		1-22518-116-0 01 1 9101- ● ●
256 BOLT; STAY TO C/MBR
RIGHT HAND DRIVE(MTR5FB) FUEL TANK 140L+140L<NH9> M8X20 W/LK WASHER 		9-01900-820-0 04 1 9101-9204 ● ●
256 BOLT; STAY TO C/MBR
RIGHT HAND DRIVE(MTR5FB) FUEL TANK 140L+140L<NH9> M8X20 W/LK WASHER 		0-50040-820-0 04 1 9205- ● ●
257 NUT; STAY TO C/MBR
RIGHT HAND DRIVE(MTR5FB) FUEL TANK 140L+140L<NH9> 		9-09110-408-0 04 1 9101- ● ●
408 GASKET; VAC,SAFETY VLV,SUB FUEL TANK
RIGHT HAND DRIVE(MTR5FB) FUEL TANK 140L+140L<NH9> 		9-83135-003-0 01 1 9101- ● ●
410 CAP; VAC,SAFETY VLV,SUB FUEL TANK
RIGHT HAND DRIVE(MTR5FB) FUEL TANK 140L+140L<NH9> 		9-22411-439-0 01 1 9101- ● ●
425 GASKET; ADAPTER
RIGHT HAND DRIVE(MTR5FB) FUEL TANK 140L+140L<NH9> T=0.80 		1-22416-004-0 01 1 9101- ● ●
426 WASHER; PL
FUEL TANK 140L+140L<NH9>,FUEL TANK 200L FRAME SIDE<N20> ID=12.5 OD=26 		9-09164-612-0 04 1 0204- ● ●
çizim 92699
56 55 55 331 329 55 431 330 332 334 55 329 331 331 330 333 331
BalonParca AdiParca NoAdetTipApplied Date A B
55 CLIP; FUEL PIPE
ID=15 		9-09715-098-0 02 1 9101- ● ●
55 CLIP; FUEL PIPE
PRE FUEL FILTER<W21> ID=15 		9-09715-098-0 02 1 9101- ● ●
56 PIPE; FUEL SHUTTER
L=260 ID=9.5 SERVICED BY L=10000 		9-09914-701-0 01 1 9101-0403 ● ●
56 PIPE; FUEL SHUTTER
L=260 SERVICED BY L=3000 		0-01260-300-0 01 1 0404- ● ●
329 JOINT ASM; EYE,FUEL PIPE
PRE FUEL FILTER<W21> 		5-15411-472-0 02 1 9101- ● ●
330 BOLT; EYE,JOINT
PRE FUEL FILTER<W21> M14X27 FLANGE 		1-09675-086-0 02 1 9101- ● ●
331 GASKET; EYE JOINT
PRE FUEL FILTER<W21> ID=14.2 OD=19.2 		1-09630-085-0 04 1 9101- ● ●
332 BRACKET; PRE FUEL FILTER
PRE FUEL FILTER<W21> 		1-22518-072-0 01 1 9101- ● ●
333 BOLT; BRKT,PRE FUEL FILTER
PRE FUEL FILTER<W21> M10X30 W/LK WASHER 		0-50041-030-0 02 1 9101- ● ●
334 NUT; BRKT,PRE FUEL FILTER
PRE FUEL FILTER<W21> M10 		9-09110-410-0 02 1 9101-9307 ● ●
334 NUT; BRKT,PRE FUEL FILTER
PRE FUEL FILTER<W21> M10 		9-09110-510-0 02 1 9308- ● ●
431 PIPE; VINYL
PRE FUEL FILTER<W21> L=260 ID=9.5 SERVICED BY L=10000 		9-09914-701-0 01 1 9101-0403 ● ●
431 PIPE; VINYL
PRE FUEL FILTER<W21> L=260 SERVICED BY L=3000 		0-01260-300-0 01 1 0404- ● ●
çizim 94416
22 22 25 25 19 35 32 29 5 8 11 1 1 239 45 237 1 1 206 231 240 36 36 43 64 49 49 426
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK; FUEL
FUEL TANK 200L FRAME SIDE<N20> (B) 1220X532X322 200L 		1-22400-340-4 01 1 9101- ● ●
1 TANK; FUEL
USER DAEWOO MOTORS<D4S> EXC. FUEL TANK 140L+140L<NH9>,FUEL TANK 200L FRAMESIDE<N20>,FUEL TANK 300L<RF5> (B) 865X532X322 140L 		1-22400-842-0 01 1 9101-0203 ● ●
1 TANK; FUEL
EXC. USER DAEWOO MOTORS<D4S>,FUEL TANK 140L+140L<NH9>,FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 300L<RF5> (B) 914X502X322 137L 		9-22402-121-5 01 1 9101-0203 ● ●
1 TANK; FUEL
EXC. FUEL TANK 140L+140L<NH9>,FUEL TANK 200L FRAMESIDE<N20> (B) 914X502X322 137L 		9-22402-121-5 01 1 0204- ● ●
1 TANK; FUEL
RIGHT HAND DRIVE(MTR5FB) FUEL TANK 140L+140L<NH9> (C) 914X502X322 136L 		1-22400-809-0 01 1 9101- ● ●
1 TANK; FUEL
RIGHT HAND DRIVE(MTR5FB) FUEL TANK 300L<RF5> (A) 1040X602X502 300L 		1-22400-709-1 01 1 9101-0203 ● ●
5 STRAINER; FUEL TANK
EXC. FUEL TANK 300L<RF5> 		1-22460-001-1 01 1 9101-0203 ● ●
5 STRAINER; FUEL TANK 1-22460-001-1 01 1 0204- ● ●
8 GASKET; DRAIN PLUG,FUEL TANK
EXC. FUEL TANK 300L<RF5> T=2.0 		9-09923-030-0 01 1 9101-0203 ● ●
8 GASKET; DRAIN PLUG,FUEL TANK
T=2.0 		9-09923-030-0 01 1 0204- ● ●
11 PLUG; DRAIN,FUEL TANK
EXC. FUEL TANK 300L<RF5> 		1-09604-052-0 01 1 9101-0203 ● ●
11 PLUG; DRAIN,FUEL TANK 1-09604-052-0 01 1 0204- ● ●
19 GASKET; FUEL TANK UNIT
EXC. FUEL TANK 300L<RF5> 		9-83135-003-0 01 1 9101-0203 ● ●
19 GASKET; FUEL TANK UNIT 9-83135-003-0 01 1 0204- ● ●
22 UNIT; FUEL TANK
EXC. FUEL TANK 300L<RF5> 		9-83131-682-0 01 1 9101-9105 ● ●
22 UNIT; FUEL TANK
EXC. FUEL TANK 300L<RF5> 		9-83132-115-0 01 1 9106-0203 ● ●
22 UNIT; FUEL TANK 9-83132-115-0 01 1 0204- ● ●
22 UNIT; FUEL TANK
RIGHT HAND DRIVE(MTR5FB) FUEL TANK 300L<RF5> 		1-83141-072-0 01 1 9101-0203 ● ●
25 CAP; FILLER,FUEL TANK
FUEL TANK 200L FRAME SIDE<N20> 		1-22440-023-1 01 1 9101- ● ●
25 CAP; FILLER,FUEL TANK
EXC. FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 300L<RF5> 		1-22440-028-0 01 1 9101-0203 ● ●
25 CAP; FILLER,FUEL TANK
EXC. FUEL TANK 200L FRAME SIDE<N20> 		1-22440-028-0 01 1 0204- ● ●
25 CAP; FILLER,FUEL TANK
RIGHT HAND DRIVE(MTR5FB) FUEL TANK 300L<RF5> 		1-22440-044-0 01 1 9101-0203 ● ●
29 WASHER; PL,FUEL TANK UNIT
EXC. FUEL TANK 300L<RF5> ID=4.3 		9-09160-504-0 01 1 9101-0203 ● ●
29 WASHER; PL,FUEL TANK UNIT
ID=4.3 		9-09160-504-0 01 1 0204- ● ●
32 WASHER; LK,FUEL TANK UNIT
ID=4.1 		9-09150-504-0 05 1 9101- ● ●
35 SCREW; FUEL TANK UNIT
EXC. FUEL TANK 300L<RF5> 		1-22419-012-0 05 1 9101-0203 ● ●
35 SCREW; FUEL TANK UNIT 1-22419-012-0 05 1 0204- ● ●
36 NUT; SPACER,FUEL TANK
M12 		9-99110-512-0 08 1 9101- ● ●
43 BRACKET; FUEL TANK
FUEL TANK 140L+140L<NH9>,FUEL TANK 200L FRAME SIDE<N20> 		9-22555-005-0 02 1 0204- ● ●
45 BOLT; BRKT,FUEL TANK
FUEL TANK 140L+140L<NH9>,FUEL TANK 200L FRAME SIDE<N20> M12X359 		9-22559-030-2 04 1 0204- ● ●
49 NUT; BRKT
RIGHT HAND DRIVE(MTR5FB) FUEL TANK 140L+140L<NH9> H=10 M12 		9-99110-512-0 08 1 9308- ● ●
49 NUT; BRKT
FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 300L<RF5> H=10 M12 		9-99110-512-0 04 1 9308-0203 ● ●
49 NUT; BRKT
FUEL TANK 200L FRAME SIDE<N20> H=10 M12 		9-99110-512-0 04 1 0204- ● ●
49 NUT; BRKT
FUEL TANK 200L FRAME SIDE<N20> H=7 M12 		9-99111-412-0 04 1 0204- ● ●
64 BOLT; FUEL TANK
EXC. FUEL TANK 300L<RF5> M12X359 		9-22559-030-2 04 1 9101-0203 ● ●
64 BOLT; FUEL TANK
M12X359 		9-22559-030-2 04 1 0204- ● ●
64 BOLT; FUEL TANK
RIGHT HAND DRIVE(MTR5FB) FUEL TANK 300L<RF5> M12X594 		1-22559-003-1 04 1 9101-0203 ● ●
206 SLEEPER; FUEL TANK
FUEL TANK 200L FRAME SIDE<N20> 		9-22554-095-0 01 1 9101- ● ●
206 SLEEPER; FUEL TANK
USER DAEWOO MOTORS<D4S> 		1-22554-012-0 01 1 9101-0203 ● ●
206 SLEEPER; FUEL TANK
EXC. USER DAEWOO MOTORS<D4S>,FUEL TANK 140L+140L<NH9>,FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 300L<RF5> 		9-22554-056-0 01 1 9101-0203 ● ●
206 SLEEPER; FUEL TANK
EXC. FUEL TANK 140L+140L<NH9>,FUEL TANK 200L FRAMESIDE<N20> 		9-22554-056-0 01 1 0204- ● ●
206 SLEEPER; FUEL TANK
RIGHT HAND DRIVE(MTR5FB) FUEL TANK 140L+140L<NH9> 		1-22554-013-0 02 1 9101- ● ●
231 COVER; UNDER,FUEL TANK
FUEL TANK 200L FRAME SIDE<N20> 		9-22557-068-0 01 1 9101- ● ●
231 COVER; UNDER,FUEL TANK
USER DAEWOO MOTORS<D4S> 		1-22557-028-1 01 1 9101-0203 ● ●
231 COVER; UNDER,FUEL TANK
EXC. USER DAEWOO MOTORS<D4S>,FUEL TANK 140L+140L<NH9>,FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 300L<RF5> 		9-22557-052-0 01 1 9101-0203 ● ●
231 COVER; UNDER,FUEL TANK
EXC. FUEL TANK 140L+140L<NH9>,FUEL TANK 200L FRAMESIDE<N20> 		9-22557-052-0 01 1 0204- ● ●
231 COVER; UNDER,FUEL TANK
RIGHT HAND DRIVE(MTR5FB) FUEL TANK 140L+140L<NH9> 		1-22557-034-0 02 1 9101- ● ●
237 GASKET; BRKT TO FUEL TANK
EXC. FUEL TANK 300L<RF5> L=540 		1-22553-006-0 02 1 9101-9201 ● ●
237 GASKET; BRKT TO FUEL TANK
EXC. FUEL TANK 300L<RF5> L=540 		1-22553-014-2 02 1 9202-9205 ● ●
237 GASKET; BRKT TO FUEL TANK
EXC. FUEL TANK 300L<RF5> L=540 		1-22553-006-0 02 1 9206-0203 ● ●
237 GASKET; BRKT TO FUEL TANK
L=540 		1-22553-006-0 02 1 0204- ● ●
237 GASKET; BRKT TO FUEL TANK
FUEL TANK 140L+140L<NH9>,FUEL TANK 200L FRAME SIDE<N20> L=540 		1-22553-006-0 02 1 0204- ● ●
237 GASKET; BRKT TO FUEL TANK
RIGHT HAND DRIVE(MTR5FB) FUEL TANK 300L<RF5> 		1-22553-009-0 04 1 9101-9201 ● ●
237 GASKET; BRKT TO FUEL TANK
RIGHT HAND DRIVE(MTR5FB) FUEL TANK 300L<RF5> L=650 		1-22553-022-1 04 1 9202-9205 ● ●
237 GASKET; BRKT TO FUEL TANK
RIGHT HAND DRIVE(MTR5FB) FUEL TANK 300L<RF5> 		1-22553-009-0 04 1 9206-0203 ● ●
239 SUPPORT; FUEL TANK
EXC. FUEL TANK 300L<RF5> 		9-22555-005-0 02 1 9101-0203 ● ●
239 SUPPORT; FUEL TANK 9-22555-005-0 02 1 0204- ● ●
239 SUPPORT; FUEL TANK
RIGHT HAND DRIVE(MTR5FB) FUEL TANK 300L<RF5> 		1-22555-011-0 02 1 9101-0203 ● ●
240 WASHER; PL,FUEL TANK
ID=12.5 OD=26 		9-09164-612-0 04 1 9101- ● ●
426 WASHER; PL
FUEL TANK 140L+140L<NH9>,FUEL TANK 200L FRAME SIDE<N20> ID=12.5 OD=26 		9-09164-612-0 04 1 0204- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
