Sayfa 0-10 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11198 - CYH NZ EURO4/JAPAN NEW LONG TERM 2005 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-10 - CYLINDER HEAD COVER ▶

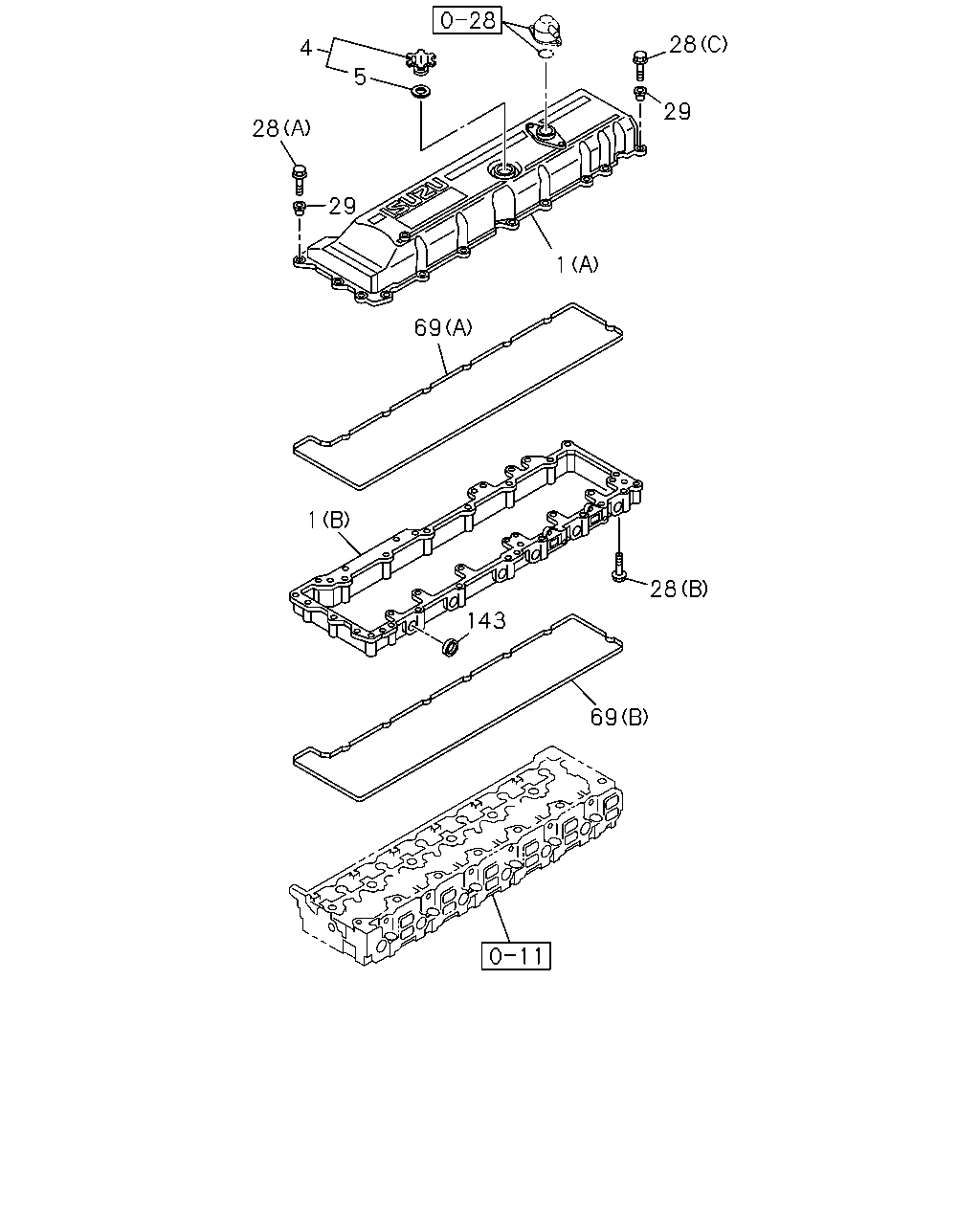

0-10 — CYLINDER HEAD COVER (#21888) — 22 parça

28 4 5 29 28 29 1 69 1 28 143 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	COVER; CYL HD (A)	1-11180-476-3	01	1	0904-1005	●
1	COVER; CYL HD (A)	1-11180-476-5	01	1	1006-	●	●	●
1	COVER; CYL HD (B)	8-97618-854-0	01	1	0904-1005	●
1	COVER; CYL HD (B)	8-97618-854-1	01	1	1006-	●	●	●
4	CAP; OIL FILLER	8-94399-723-0	01	1	0904-1005	●
4	CAP; OIL FILLER	8-94399-723-0	01	1	1006-	●	●	●
5	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=49 OD=58	8-94399-689-0	01	1	0904-1005	●
5	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=49 OD=58	8-94399-689-0	01	1	1006-	●	●	●
28	BOLT; HD COVER (A) M8X30 FLANGE	0-28050-830-0	08	1	0904-1005	●
28	BOLT; HD COVER (A) M8X30 FLANGE	0-28050-830-0	08	1	1006-	●	●	●
28	BOLT; HD COVER (B) M8X60 FLANGE	0-28050-860-0	08	1	0904-1005	●
28	BOLT; HD COVER (B) M8X60 FLANGE	0-28050-860-0	08	1	1006-	●	●	●
28	BOLT; HD COVER (C) M8X80 FLANGE	0-28050-880-0	12	1	0904-1005	●
28	BOLT; HD COVER (C) M8X80 FLANGE	0-28050-880-0	12	1	1006-	●	●	●
29	RUBBER; MTG,HD COVER OD=22	8-94395-684-0	20	1	0904-1005	●
29	RUBBER; MTG,HD COVER OD=22	8-94395-684-0	20	1	1006-	●	●	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	1-11173-119-1	01	1	0904-1005	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	1-11173-119-1	01	1	1006-	●	●	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	1-11173-120-1	01	1	0904-1005	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	1-11173-120-1	01	1	1006-	●	●	●
143	GASKET; SLEEVE OD=30	1-09639-034-0	06	1	0904-1005	●
143	GASKET; SLEEVE OD=30	1-09639-034-0	06	1	1006-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
