◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11198 - CYH NZ EURO4/JAPAN NEW LONG TERM 2005 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-05 - ENGINE GASKET KIT ▶
0-05 — ENGINE GASKET KIT (#21887) — 17 parça

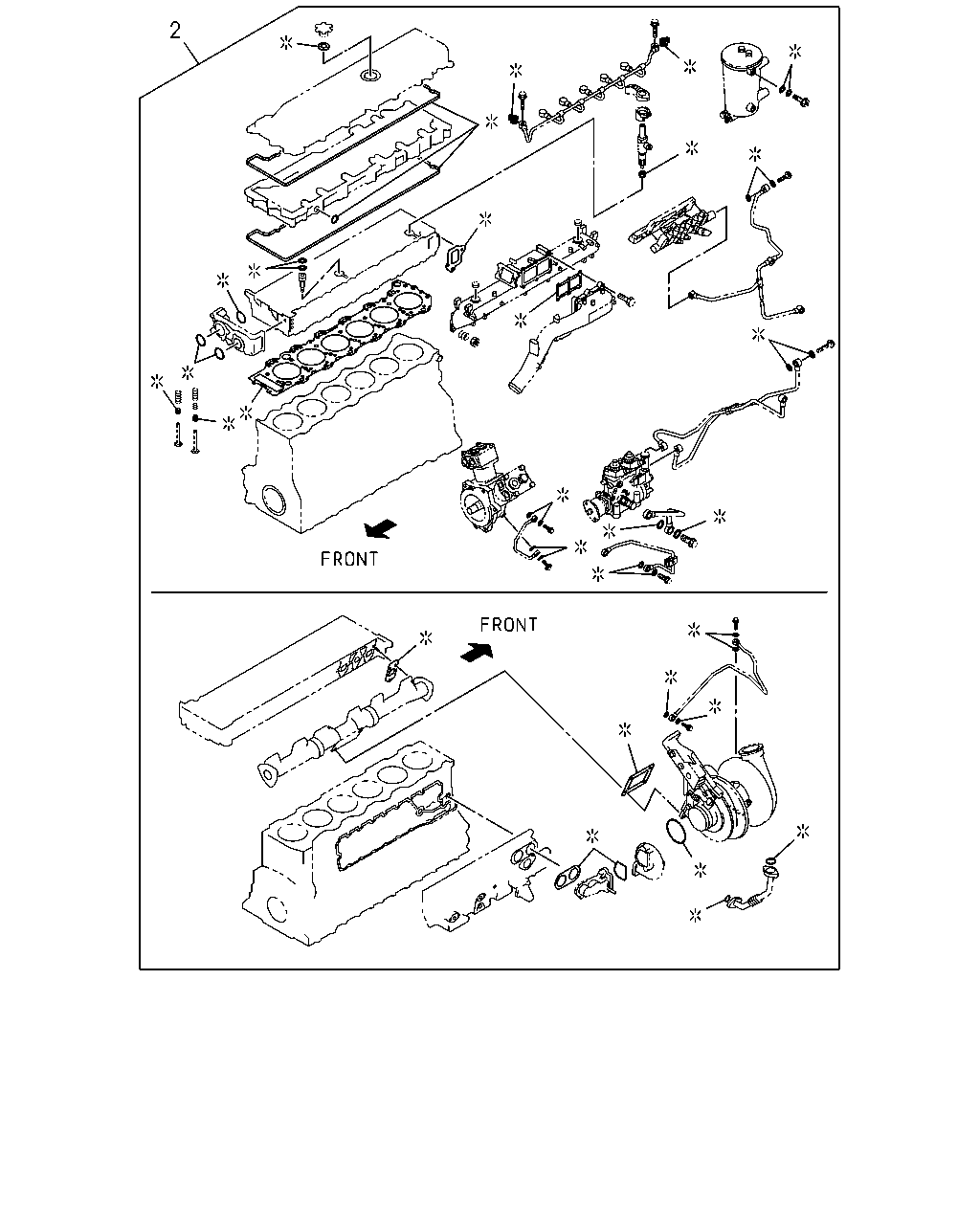

çizim 62167
2
BalonParca AdiParca NoAdetTipApplied Date A B C
2 GASKET SET; ENG HD OVERHAUL 1-87813-368-3 01 1 0904-1001 ●
2 GASKET SET; ENG HD OVERHAUL 1-87813-566-0 01 1 1002-1005 ●
2 GASKET SET; ENG HD OVERHAUL 1-87813-566-1 01 1 1006-1111 ● ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87813-817-0 01 1 1112-1312 ● ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-662-0 01 1 1401- ● ● ●

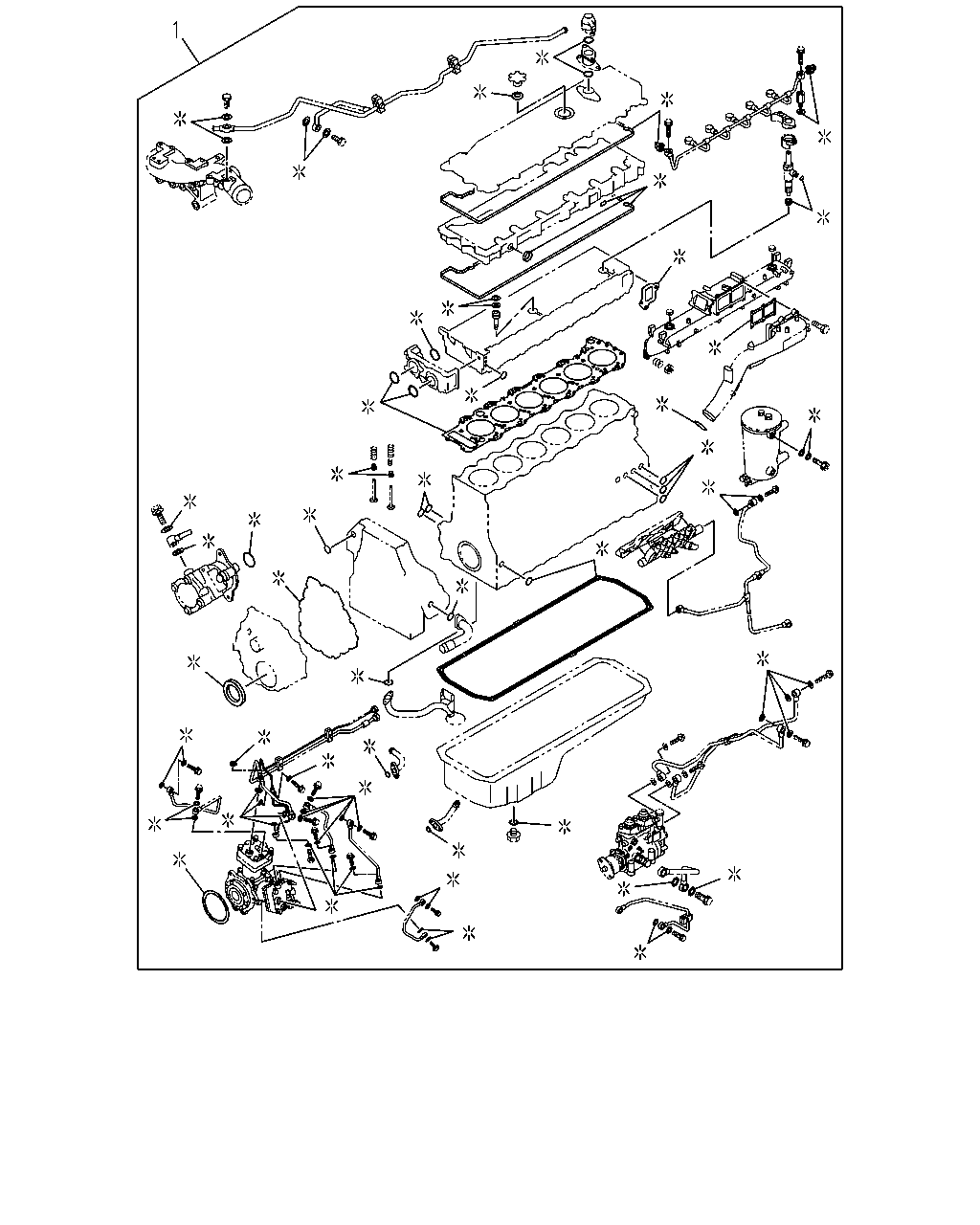

çizim 101959
1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 GASKET SET; ENG OVERHAUL 1-87813-367-4 01 1 0904-1001 ●
1 GASKET SET; ENG OVERHAUL 1-87813-565-0 01 1 1002-1005 ●
1 GASKET SET; ENG OVERHAUL 1-87813-565-2 01 1 1006-1111 ● ● ●
1 GASKET SET; ENG OVERHAUL 1-87813-816-0 01 1 1112-1312 ● ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-661-0 01 1 1401-1502 ● ● ●
1 GASKET SET; ENG OVERHAUL 1-87815-585-0 01 1 1503- ● ● ●

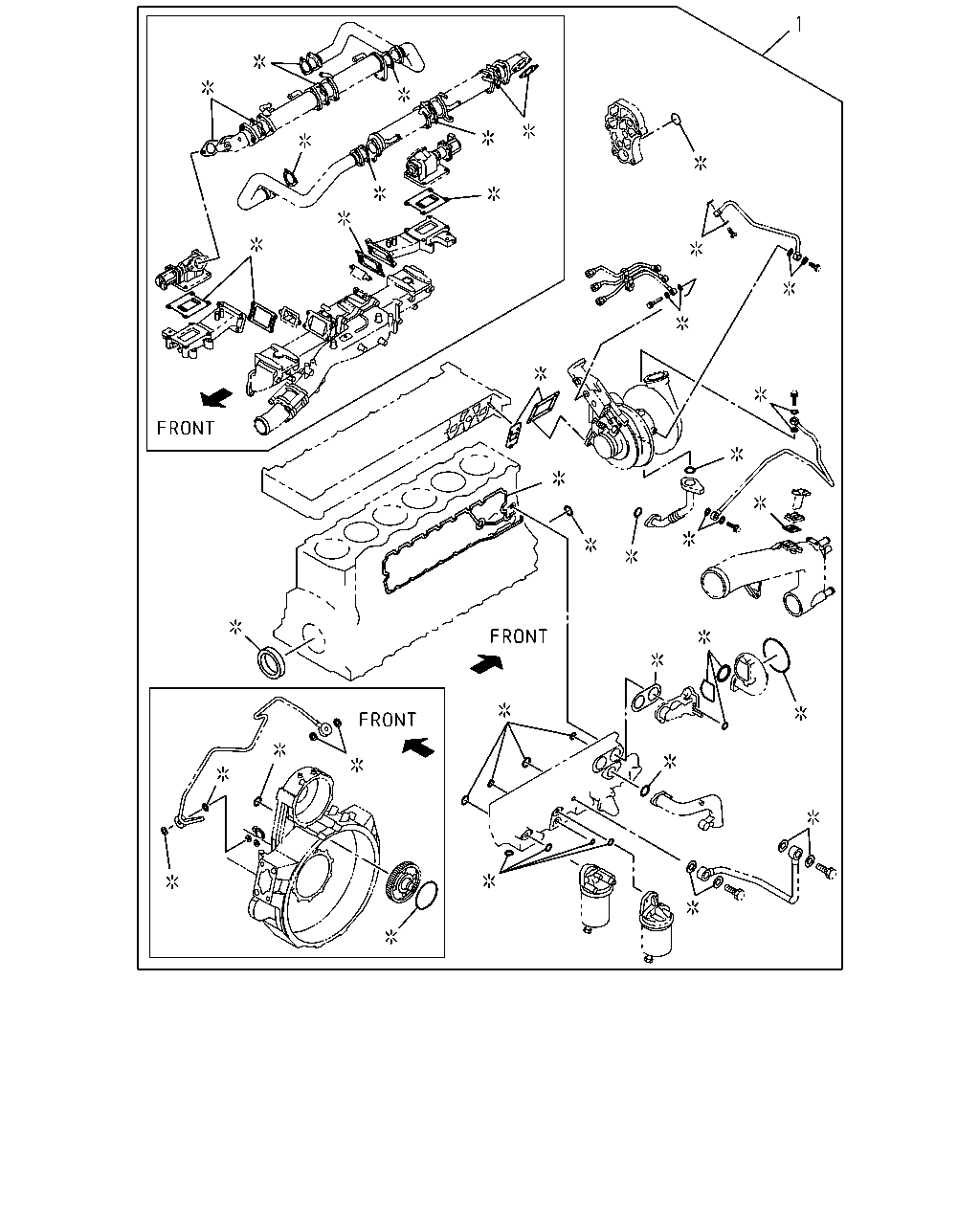

çizim 101963
1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 GASKET SET; ENG OVERHAUL 1-87813-367-4 01 1 0904-1001 ●
1 GASKET SET; ENG OVERHAUL 1-87813-565-0 01 1 1002-1005 ●
1 GASKET SET; ENG OVERHAUL 1-87813-565-2 01 1 1006-1111 ● ● ●
1 GASKET SET; ENG OVERHAUL 1-87813-816-0 01 1 1112-1312 ● ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-661-0 01 1 1401-1502 ● ● ●
1 GASKET SET; ENG OVERHAUL 1-87815-585-0 01 1 1503- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
