9-01 — TOOLS (#21885) — 159 parça

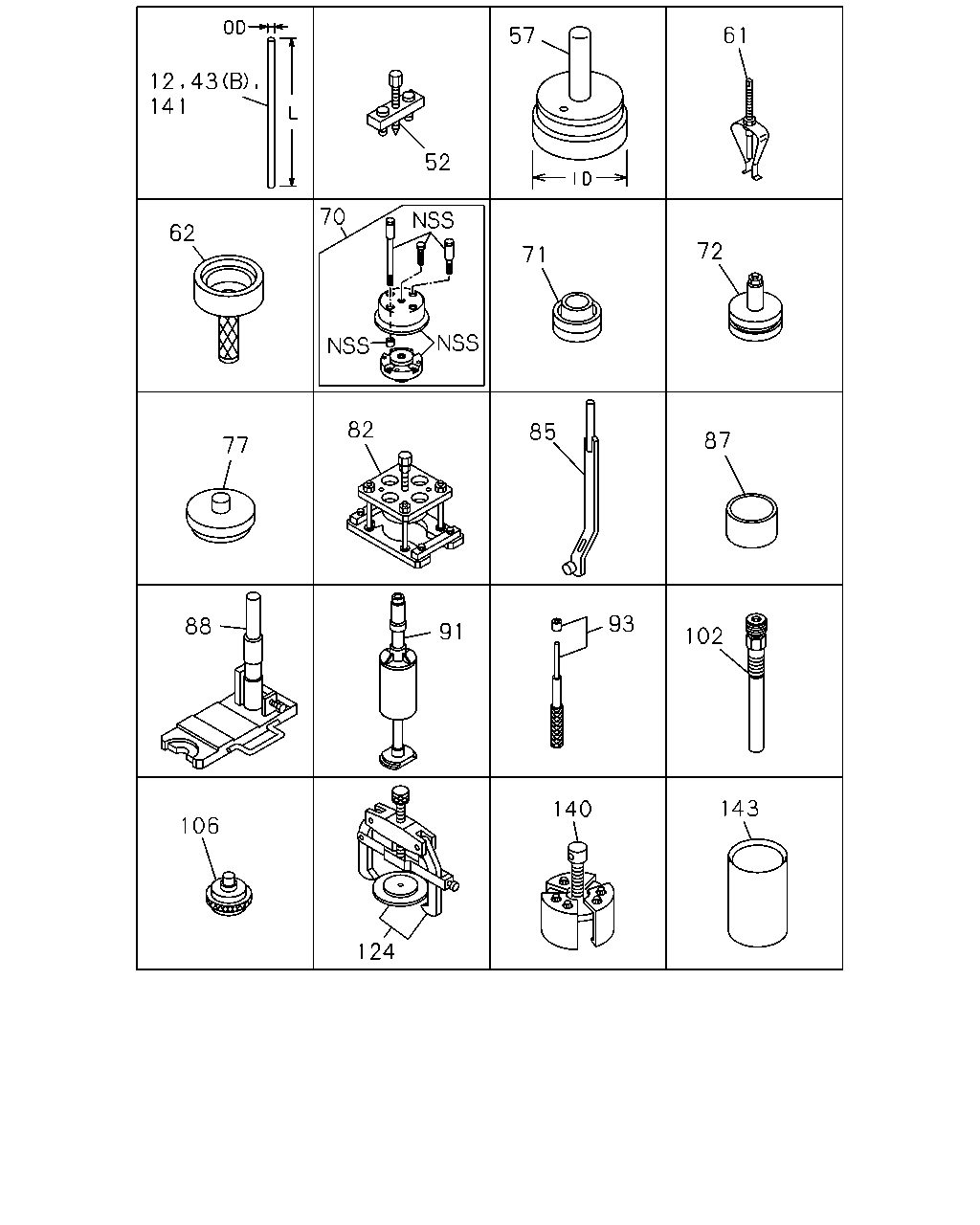

12 43 141 62 70 52 57 61 72 71 77 82 85 87 88 91 93 102 143 140 106 124

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	HANDLE; WRENCH,WHEEL PIN TOOL B KIT<SL1> OD=25 L=480 SOU	1-85116-011-0	01	1	1004-1108	●
12	HANDLE; WRENCH,WHEEL PIN TOOL B KIT<SL1> OD=25 L=480 SOU	1-85116-011-0	01	1	1109-1501	●	●
12	HANDLE; WRENCH,WHEEL PIN TOOL B KIT<SL1> OD=25 L=480 SOU	8-98257-407-0	01	1	1502-	●	●
43	BAR; EXTENSION,SOCKET WRENCH TOOL B KIT<SL1> (A)	1-85000-501-0	01	1	1004-1108	●
43	BAR; EXTENSION,SOCKET WRENCH TOOL B KIT<SL1> (A)	1-85000-501-0	01	1	1109-	●	●
43	BAR; EXTENSION,SOCKET WRENCH TOOL B KIT<SL1> (B) OD=25 L=480 SOU	8-98257-407-0	01	1	1502-	●	●
52	REMOVER; WATER PUMP	1-85210-047-0	01	1	1004-1108	●
52	REMOVER; WATER PUMP	1-85210-047-0	01	1	1109-	●	●
57	TOOL; SETTING CRANK GEAR ID=144.5	1-85221-072-0	01	1	1004-1108	●
57	TOOL; SETTING CRANK GEAR ID=144.5	1-85221-072-0	01	1	1109-	●	●
57	TOOL; SETTING CRANK GEAR ID=165.8	1-85221-075-0	01	1	1004-1108	●
57	TOOL; SETTING CRANK GEAR ID=165.8	1-85221-075-0	01	1	1109-	●	●
61	PULLER ASM; PILOT BRG	1-85220-028-0	01	1	1004-1108	●
61	PULLER ASM; PILOT BRG	1-85220-028-0	01	1	1109-	●	●
62	TOOL ASM; SETTING WEAR RING	1-85221-079-0	01	1	1004-1108	●
62	TOOL ASM; SETTING WEAR RING	1-85221-079-0	01	1	1109-	●	●
70	TOOL; SETTING,OIL SEAL	8-98194-607-0	01	1	1109-1211	●	●
70	TOOL; SETTING,OIL SEAL	8-98194-607-0	AR	1	1212-	●	●
71	TOOL; SETTING,OIL SEAL,FRT	1-85220-029-0	01	1	1004-1108	●
71	TOOL; SETTING,OIL SEAL,FRT	1-85220-029-0	01	1	1109-1109	●	●
72	TOOL; SETTING,OIL SEAL,RR	1-85220-030-0	01	1	1004-1108	●
72	TOOL; SETTING,OIL SEAL,RR	1-85220-030-0	01	1	1109-1109	●	●
77	TOOL; SETTING,CYL LINER	1-85221-073-0	01	1	1004-1108	●
77	TOOL; SETTING,CYL LINER	1-85221-073-0	01	1	1109-	●	●
82	PULLER ASM; CR/SHF GEAR	1-85210-051-0	01	1	1004-1108	●
82	PULLER ASM; CR/SHF GEAR	1-85210-051-0	01	1	1109-	●	●
85	REPLACER ASM; VALVE SPR	1-85235-007-0	01	1	1004-1108	●
85	REPLACER ASM; VALVE SPR	1-85235-007-0	01	1	1109-	●	●
87	TOOL; PISTON	1-85221-082-0	01	1	1004-1108	●
87	TOOL; PISTON	1-85221-082-0	01	1	1109-	●	●
88	TOOL; CONNROD BUSHING	1-85220-037-0	01	1	1004-1108	●
88	TOOL; CONNROD BUSHING	1-85220-037-0	01	1	1109-	●	●
91	REPLACER ASM; CYL LINER	1-85231-021-0	01	1	1004-1108	●
91	REPLACER ASM; CYL LINER	1-85231-021-0	01	1	1109-	●	●
93	SETTING KIT; VALVE GUIDE L=260	9-85231-202-0	01	1	1004-1108	●
93	SETTING KIT; VALVE GUIDE L=260	9-85231-202-0	01	1	1109-	●	●
102	ADAPTER; COMP GAGE	5-85317-001-0	01	1	1004-1108	●
102	ADAPTER; COMP GAGE	5-85317-001-0	01	1	1109-	●	●
106	TOOL; SETTING PILOT BRG	1-85221-080-0	01	1	1004-1108	●
106	TOOL; SETTING PILOT BRG	1-85221-080-0	01	1	1109-	●	●
124	PULLER ASM; BRG DIFF	9-85210-131-0	01	1	1004-1108	●
124	PULLER ASM; BRG DIFF	9-85210-131-0	01	1	1109-	●	●
140	REMOVER; WEAR RING	1-85210-053-0	01	1	1004-1108	●
140	REMOVER; WEAR RING	1-85210-053-0	01	1	1109-	●	●
141	HANDLE; WRENCH TOOL B KIT<SL1> OD=16 L=200	9-85111-934-0	01	1	1004-1108	●
141	HANDLE; WRENCH TOOL B KIT<SL1> OD=16 L=200	9-85111-934-0	01	1	1109-	●	●
143	GUIDE; BOOT,TIE ROD END	1-85229-013-0	01	1	1004-1108	●
143	GUIDE; BOOT,TIE ROD END	1-85229-013-0	01	1	1109-	●	●

127 125 126 115 130 151 144 135 129 153 156 160 154 163 162 162 164

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
115	PLIER TOOL B KIT<SL1> SOU	5-85171-002-0	01	1	1004-1108	●
115	PLIER TOOL B KIT<SL1> SOU	5-85171-002-0	01	1	1109-1410	●	●
115	PLIER TOOL B KIT<SL1>	8-98282-845-0	01	1	1411-	●	●
125	PULLER ASM; KING PIN L=450	1-85210-009-0	01	1	1004-1108	●
125	PULLER ASM; KING PIN L=450	1-85210-009-0	01	1	1109-	●	●
126	WRENCH; FRT HUB BRG NUT L=350 B=75	1-85110-002-1	01	1	1004-1108	●
126	WRENCH; FRT HUB BRG NUT L=350 B=75	1-85110-002-1	01	1	1109-	●	●
127	WRENCH ASM; HUB BRG NUT L=400 B=116	8-98119-000-1	01	1	1004-1108	●
127	WRENCH ASM; HUB BRG NUT L=400 B=116	8-98119-000-1	01	1	1109-	●	●
129	PULLER ASM; PITMAN ARM	1-85210-011-0	01	1	1004-1108	●
129	PULLER ASM; PITMAN ARM	1-85210-011-0	01	1	1109-	●	●
130	WRENCH; BOX TOOL B KIT<SL1> B=63	9-85111-368-0	01	1	1004-1108	●
130	WRENCH; BOX TOOL B KIT<SL1> B=63	9-85111-368-0	01	1	1109-	●	●
135	COVER; ENG MTG,FRT TOOL B KIT<SL1>	9-85595-016-0	02	1	1004-1108	●
135	COVER; ENG MTG,FRT TOOL B KIT<SL1>	9-85595-016-0	02	1	1109-	●	●
144	BASE; BOOT GUIDE,TIE ROD END	1-85229-009-0	01	1	1004-1108	●
144	BASE; BOOT GUIDE,TIE ROD END	1-85229-009-0	01	1	1109-1210	●	●
151	REMOVER; OIL BRK,FRT RETURN SPR ID=16	1-85237-002-0	01	1	1004-1108	●
151	REMOVER; OIL BRK,FRT RETURN SPR ID=16	1-85237-002-0	01	1	1109-	●	●
153	DRIVER; WASHER,THRUST WASHER	1-85238-002-0	01	1	1004-1108	●
153	DRIVER; WASHER,THRUST WASHER	1-85238-002-0	01	1	1109-	●	●
154	SLEEPER; KING PIN	1-85238-003-0	01	1	1004-1108	●
154	SLEEPER; KING PIN	1-85238-003-0	01	1	1109-	●	●
156	PULLER; ANCHOR PIN	1-85210-025-0	01	1	1004-1108	●
156	PULLER; ANCHOR PIN	1-85210-025-0	01	1	1109-	●	●
160	REMOVER; NEEDLE BRG L=220	1-85238-001-0	01	1	1004-1108	●
160	REMOVER; NEEDLE BRG L=220	1-85238-001-0	01	1	1109-	●	●
162	SETTING TOOL; NEEDLE BRG (A) L=181	1-85238-008-0	01	1	1004-1108	●
162	SETTING TOOL; NEEDLE BRG (A) L=181	1-85238-008-0	01	1	1109-1210	●	●
162	SETTING TOOL; NEEDLE BRG (B) L=213	1-85238-009-0	01	1	1004-1108	●
162	SETTING TOOL; NEEDLE BRG (B) L=213	1-85238-009-0	01	1	1109-1210	●	●
163	TOOL; SETTING	9-85221-231-0	01	1	1004-1108	●
163	TOOL; SETTING	9-85221-231-0	01	1	1109-	●	●
164	GUIDE; SNAP RING PILOT BRG	1-85176-001-0	01	1	1004-1108	●
164	GUIDE; SNAP RING PILOT BRG	1-85176-001-0	01	1	1109-1210	●	●

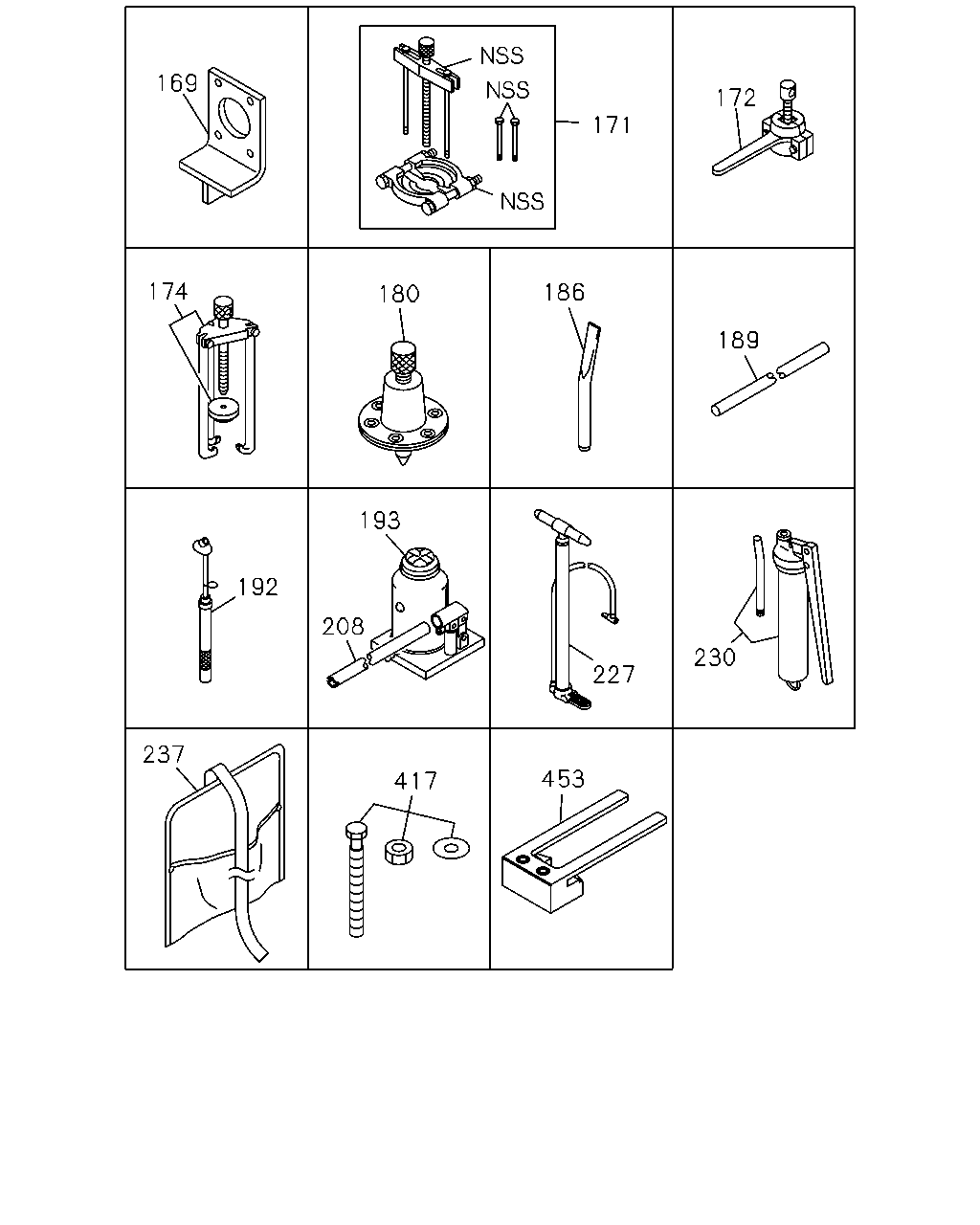

169 172 171 174 186 180 189 193 192 208 230 227 237 453 417

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
169	BRACKET; SPLINE YOKE	1-85221-317-0	01	1	1004-1108	●
169	BRACKET; SPLINE YOKE	1-85221-317-0	01	1	1109-	●	●
171	PULLER ASM; PINION BRG	9-85210-152-0	01	1	1004-1108	●
171	PULLER ASM; PINION BRG	9-85210-152-0	01	1	1109-	●	●
172	PULLER ASM; BRG DIFF PILOT	9-85210-182-0	01	1	1004-1108	●
172	PULLER ASM; BRG DIFF PILOT	9-85210-182-0	01	1	1109-	●	●
174	PULLER ASM; MAIN CLU SHAFT	9-85210-148-0	01	1	1004-1108	●
174	PULLER ASM; MAIN CLU SHAFT	9-85210-148-0	01	1	1109-	●	●
180	PULLER; FRT & RR HUB	1-85210-002-0	01	1	1004-1108	●
180	PULLER; FRT & RR HUB	1-85210-002-0	01	1	1109-1210	●	●
186	ADJUSTER; BRAKE	1-85269-008-0	01	1	1004-1108	●
186	ADJUSTER; BRAKE	1-85269-008-0	01	1	1109-	●	●
189	TUBE; AIR BREATHER TOOL B KIT<SL1> L=460	9-85291-414-0	01	1	1004-1108	●
189	TUBE; AIR BREATHER TOOL B KIT<SL1> L=460	9-85291-414-0	01	1	1109-	●	●
192	GAUGE; TIRE PRESSURE	1-85315-002-0	01	1	1004-1108	●
192	GAUGE; TIRE PRESSURE	1-85315-002-0	01	1	1109-	●	●
193	JACK ASM TOOL B KIT<SL1> 15TON	1-85510-019-2	01	1	1004-1108	●
193	JACK ASM TOOL B KIT<SL1> 15TON	1-85510-019-2	01	1	1109-	●	●
208	HANDLE; JACK TOOL B KIT<SL1> L=600 SOU	1-85515-009-0	01	1	1004-1107	●
208	HANDLE; JACK TOOL B KIT<SL1> L=600 SOU	8-98181-437-0	01	1	1108-1108	●
208	HANDLE; JACK TOOL B KIT<SL1> L=600 SOU	8-98181-437-0	01	1	1109-	●	●
227	PUMP ASM; TIRE	9-85521-132-0	01	1	1004-1108	●
227	PUMP ASM; TIRE	9-85521-132-0	01	1	1109-	●	●
230	PUMP; GREASE TOOL B KIT<SL1> SOU	1-85556-007-5	01	1	1004-1108	●
230	PUMP; GREASE TOOL B KIT<SL1> SOU	1-85556-007-5	01	1	1109-	●	●
237	BAG; TOOL TOOL B KIT<SL1> SOU	8-97130-902-1	01	1	1004-1108	●
237	BAG; TOOL TOOL B KIT<SL1> SOU	8-97130-902-1	01	1	1109-	●	●
417	BOLT; CHAMBER RELEASE 1/2-13 UNC L=124 4-SETS	1-85576-331-1	01	1	1004-1108	●
417	BOLT; CHAMBER RELEASE 1/2-13 UNC L=124 4-SETS	1-85576-331-1	01	1	1109-	●	●
453	TOOL; SETTING,COUPLING	8-97620-813-0	01	1	1004-1108	●
453	TOOL; SETTING,COUPLING	8-97620-813-0	01	1	1109-	●	●

1 4 43 42 31 32 33 34 35 30 9 13 17 23 22 21 20 363 29 29 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HANDLE; SPARE TIRE CARRIER SPARE WHEEL CARRIER FRAME REAR<P10> SOU	9-23110-018-0	01	1	1004-1108	●
1	HANDLE; SPARE TIRE CARRIER SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> SOU	9-23110-018-0	01	1	1109-	●
4	WRENCH KIT; SOCKET TOOL B KIT<SL1>	1-85000-491-0	01	1	1004-1108	●
4	WRENCH KIT; SOCKET TOOL B KIT<SL1>	1-85000-491-0	01	1	1109-	●	●
9	WRENCH; WHEEL PIN TOOL B KIT<SL1> B=33X30 L=450	1-85111-033-1	01	1	1004-1108	●
9	WRENCH; WHEEL PIN TOOL B KIT<SL1> B=33X30 L=450	1-85111-033-1	01	1	1109-1601	●	●
9	WRENCH; WHEEL PIN TOOL B KIT<SL1> B=33X30 L=450	8-98316-700-0	01	1	1602-	●	●
13	WRENCH; MONKEY TOOL B KIT<SL1> L=247 SOU	1-85117-006-0	01	1	1004-1108	●
13	WRENCH; MONKEY TOOL B KIT<SL1> L=247 SOU	1-85117-006-0	01	1	1109-1407	●	●
13	WRENCH; MONKEY TOOL B KIT<SL1> L=255 SOU	8-98270-303-0	01	1	1408-	●	●
17	HAMMER TOOL B KIT<SL1> SOU	9-85121-406-0	01	1	1004-1108	●
17	HAMMER TOOL B KIT<SL1> SOU	9-85121-406-0	01	1	1109-	●	●
20	WRENCH; 10X12 TOOL B KIT<SL1> 10X12 SOU	0-95902-510-0	01	1	1004-1108	●
20	WRENCH; 10X12 TOOL B KIT<SL1> 10X12 SOU	0-95902-510-0	01	1	1109-	●	●
21	WRENCH; 14X17 TOOL B KIT<SL1> 14X17 SOU	0-95902-514-0	01	1	1004-1108	●
21	WRENCH; 14X17 TOOL B KIT<SL1> 14X17 SOU	0-95902-514-0	01	1	1109-	●	●
22	WRENCH; 19X22 TOOL B KIT<SL1> 19X22 SOU	0-95902-519-0	01	1	1004-1108	●
22	WRENCH; 19X22 TOOL B KIT<SL1> 19X22 SOU	0-95902-519-0	01	1	1109-	●	●
23	WRENCH; 24X27 TOOL B KIT<SL1> 24X27 SOU	0-95902-524-0	01	1	1004-1108	●
23	WRENCH; 24X27 TOOL B KIT<SL1> 24X27 SOU	0-95902-524-0	01	1	1109-	●	●
29	DRIVER; SCREW TOOL B KIT<SL1> (A) <-> L=285 SOU	1-85151-004-0	01	1	1004-1108	●
29	DRIVER; SCREW TOOL B KIT<SL1> (A) <-> L=285 SOU	1-85151-004-0	01	1	1109-	●	●
29	DRIVER; SCREW TOOL B KIT<SL1> (C) <+>,<-> L=160 SOU	8-94242-798-1	01	1	1004-1108	●
29	DRIVER; SCREW TOOL B KIT<SL1> (C) <+>,<-> L=160 SOU	8-94242-798-1	01	1	1109-	●	●
29	DRIVER; SCREW TOOL B KIT<SL1> (B) <+> L=275	9-09595-023-0	01	1	1004-1108	●
29	DRIVER; SCREW TOOL B KIT<SL1> (B) <+> L=275	9-09595-023-0	01	1	1109-	●	●
30	BOX; SOCKET WRENCH TOOL B KIT<SL1>	1-85000-492-0	01	1	1004-1108	●
30	BOX; SOCKET WRENCH TOOL B KIT<SL1>	1-85000-492-0	01	1	1109-	●	●
31	WRENCH; 12 TOOL B KIT<SL1>	1-85000-495-0	01	1	1004-1108	●
31	WRENCH; 12 TOOL B KIT<SL1>	1-85000-495-0	01	1	1109-	●	●
32	WRENCH; 14 TOOL B KIT<SL1>	1-85000-496-0	01	1	1004-1108	●
32	WRENCH; 14 TOOL B KIT<SL1>	1-85000-496-0	01	1	1109-	●	●
33	WRENCH; 17 TOOL B KIT<SL1>	1-85000-497-0	01	1	1004-1108	●
33	WRENCH; 17 TOOL B KIT<SL1>	1-85000-497-0	01	1	1109-	●	●
34	WRENCH; 19 TOOL B KIT<SL1>	1-85000-498-0	01	1	1004-1108	●
34	WRENCH; 19 TOOL B KIT<SL1>	1-85000-498-0	01	1	1109-	●	●
35	WRENCH; 22 TOOL B KIT<SL1>	1-85000-499-0	01	1	1004-1108	●
35	WRENCH; 22 TOOL B KIT<SL1>	1-85000-499-0	01	1	1109-	●	●
42	HANDLE; SLIDING TOOL B KIT<SL1>	1-85000-500-0	01	1	1004-1108	●
42	HANDLE; SLIDING TOOL B KIT<SL1>	1-85000-500-0	01	1	1109-	●	●
43	BAR; EXTENSION,SOCKET WRENCH TOOL B KIT<SL1> (A)	1-85000-501-0	01	1	1004-1108	●
43	BAR; EXTENSION,SOCKET WRENCH TOOL B KIT<SL1> (A)	1-85000-501-0	01	1	1109-	●	●
43	BAR; EXTENSION,SOCKET WRENCH TOOL B KIT<SL1> (B) OD=25 L=480 SOU	8-98257-407-0	01	1	1502-	●	●
363	WRENCH; OPEN END 8X10 TOOL B KIT<SL1> 8X10	0-95902-508-0	01	1	1004-1108	●
363	WRENCH; OPEN END 8X10 TOOL B KIT<SL1> 8X10	0-95902-508-0	01	1	1109-	●	●
