◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MT ▶ 10650 - MT111,112 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-31 - AIR DUCT ▶
1-31 — AIR DUCT (#2188) — 203 parça

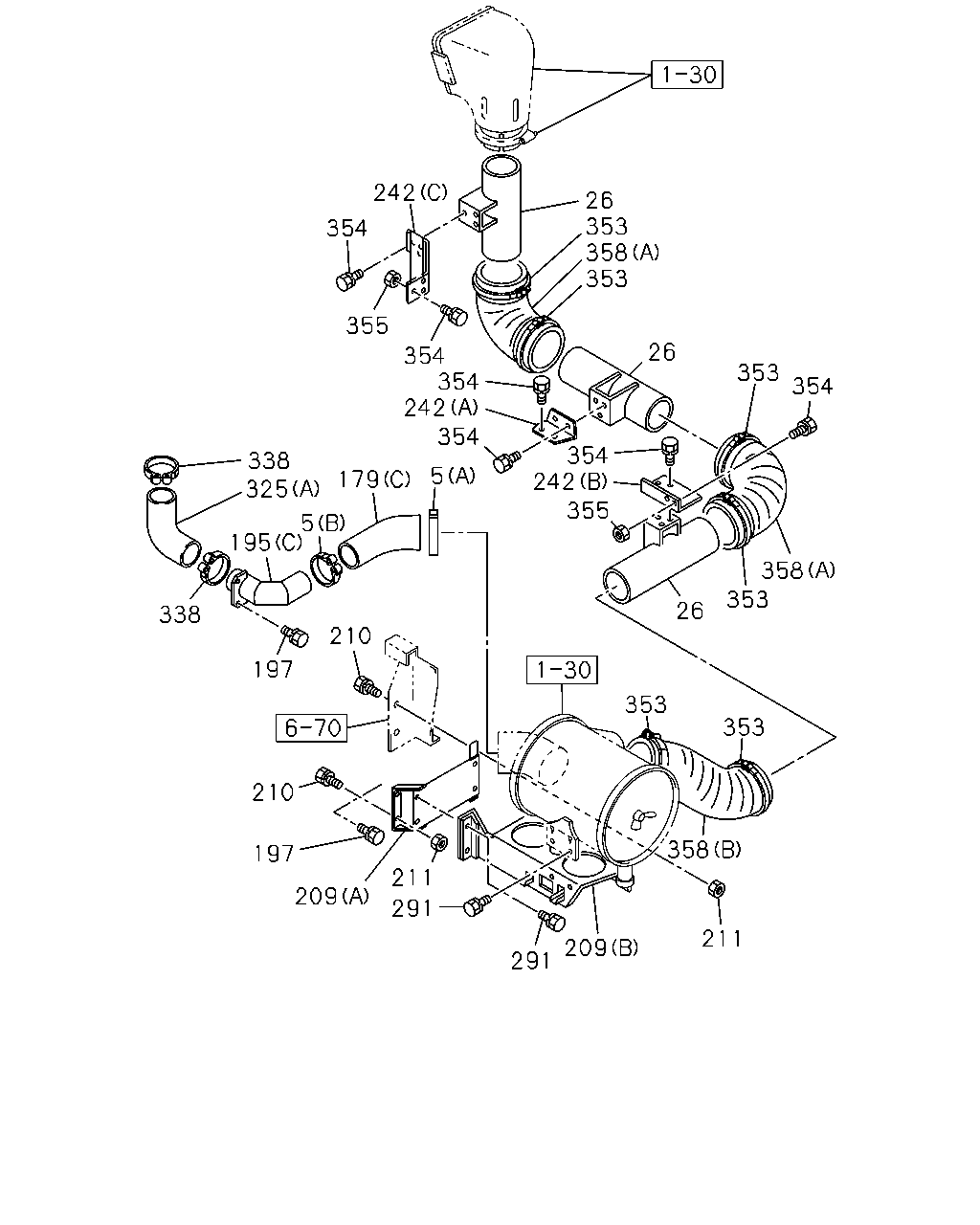

çizim 27781
242 26 353 358 353 354 355 26 354 354 242 354 353 354 354 242 355 338 325 5 179 5 195 358 353 26 338 210 197 353 353 210 358 197 211 209 291 211 209 291
BalonParca AdiParca NoAdetTipApplied Date A B
5 CLIP; AIR DUCT
(B) ID=77-95 		1-09707-114-0 01 1 9101-0306 ● ●
5 CLIP; AIR DUCT
(B) ID=77-95 		1-09707-198-0 01 1 0307- ● ●
5 CLIP; AIR DUCT
(A) ID=104-142 		1-09707-155-0 01 1 9101-0306 ● ●
5 CLIP; AIR DUCT
(A) ID=104-139 		1-09707-200-0 01 1 0307- ● ●
5 CLIP; AIR DUCT
LEFT HAND DRIVE(MTR6FB) USER DAEWOO MOTORS<D4S> EXC. BUS BODY MAKER KITAMURA<Y08> (B) ID=77-95 		1-09707-114-0 02 1 9101-0203 ● ●
26 DUCT; AIR INT
RIGHT HAND DRIVE(MTR5FB) USER DAEWOO MOTORS<D4S> 		1-14231-793-0 03 1 9101-0203 ● ●
26 DUCT; AIR INT
RIGHT HAND DRIVE(MTR5FB) EXC. USER DAEWOO MOTORS<D4S> 		1-14231-620-1 03 1 9101-0203 ● ●
26 DUCT; AIR INT
RIGHT HAND DRIVE(MTR5FB) 		1-14231-620-1 03 1 0204- ● ●
26 DUCT; AIR INT
LEFT HAND DRIVE(MTR6FB) BUS BODY MAKER KITAMURA<Y08> L=380 W/BRKT 		1-14231-620-1 01 1 9101-0203 ● ●
26 DUCT; AIR INT
LEFT HAND DRIVE(MTR6FB) BUS BODY MAKER KITAMURA<Y08> L=380 W0/BRKT 		1-14231-781-0 01 1 9101-0203 ● ●
26 DUCT; AIR INT
LEFT HAND DRIVE(MTR6FB) BUS BODY MAKER KITAMURA<Y08> L=200 		1-14231-782-0 01 1 9101-0203 ● ●
26 DUCT; AIR INT
LEFT HAND DRIVE(MTR6FB) USER DAEWOO MOTORS<D4S> EXC. BUS BODY MAKER KITAMURA<Y08> 		1-14231-788-0 01 1 9101-0203 ● ●
26 DUCT; AIR INT
LEFT HAND DRIVE(MTR6FB) EXC. USER DAEWOO MOTORS<D4S>,BUS BODY MAKER KITAMURA<Y08> 		1-14231-658-1 01 1 9101-0203 ● ●
26 DUCT; AIR INT
LEFT HAND DRIVE(MTR6FB) 		1-14231-658-1 01 1 0204- ● ●
179 HOSE; AIR INT
RIGHT HAND DRIVE(MTR5FB) (C) 		1-14231-546-0 01 1 9101- ● ●
179 HOSE; AIR INT
LEFT HAND DRIVE(MTR6FB) BUS BODY MAKER KITAMURA<Y08> (A) ID=127 		9-09912-895-1 02 1 9101-0203 ● ●
179 HOSE; AIR INT
LEFT HAND DRIVE(MTR6FB) BUS BODY MAKER KITAMURA<Y08> (A) ID=76 		9-14121-201-0 01 1 9101-0203 ● ●
179 HOSE; AIR INT
LEFT HAND DRIVE(MTR6FB) BUS BODY MAKER KITAMURA<Y08> EXC. USER DAEWOO MOTORS<D4S> (B) ID=76/114 		1-14231-436-0 01 1 9101-0203 ● ●
179 HOSE; AIR INT
LEFT HAND DRIVE(MTR6FB) USER DAEWOO MOTORS<D4S> EXC. BUS BODY MAKER KITAMURA<Y08> (B) ID=76/114 		1-14231-790-0 01 1 9101-0203 ● ●
179 HOSE; AIR INT
LEFT HAND DRIVE(MTR6FB) EXC. USER DAEWOO MOTORS<D4S>,BUS BODY MAKER KITAMURA<Y08> (B) ID=76/114 		1-09360-699-1 01 1 9101-0203 ● ●
179 HOSE; AIR INT
LEFT HAND DRIVE(MTR6FB) (B) ID=76/114 		1-09360-699-1 01 1 0204- ● ●
195 PIPE; CONN
RIGHT HAND DRIVE(MTR5FB) (C) 		1-14231-714-2 01 1 9101- ● ●
195 PIPE; CONN
LEFT HAND DRIVE(MTR6FB) BUS BODY MAKER KITAMURA<Y08> EXC. USER DAEWOO MOTORS<D4S> (A) 		1-14231-768-1 01 1 9101-0203 ● ●
195 PIPE; CONN
LEFT HAND DRIVE(MTR6FB) EXC. USER DAEWOO MOTORS<D4S> (B) 		1-14231-660-2 01 1 9101-0203 ● ●
195 PIPE; CONN
LEFT HAND DRIVE(MTR6FB) (B) 		1-14231-660-2 01 1 0204- ● ●
197 BOLT; CLAMP
RIGHT HAND DRIVE(MTR5FB) M8X20 W/LK WASHER 		9-01900-820-0 02 1 9101-9204 ● ●
197 BOLT; CLAMP
RIGHT HAND DRIVE(MTR5FB) M8X20 W/LK WASHER 		0-50040-820-0 02 1 9205- ● ●
197 BOLT; CLAMP
LEFT HAND DRIVE(MTR6FB) USER DAEWOO MOTORS<D4S> M10X30 W/LK WASHER 		0-50041-030-0 08 1 9101-0203 ● ●
197 BOLT; CLAMP
LEFT HAND DRIVE(MTR6FB) M10X30 W/LK WASHER 		0-50041-030-0 09 1 0204- ● ●
197 BOLT; CLAMP
LEFT HAND DRIVE(MTR6FB) EXC. USER DAEWOO MOTORS<D4S> M10X30 W/LK WASHER 		0-50041-030-0 09 1 9101-0203 ● ●
209 BRACKET; ACL
RIGHT HAND DRIVE(MTR5FB) (A) 		1-14234-082-1 01 1 9101- ● ●
209 BRACKET; ACL
RIGHT HAND DRIVE(MTR5FB) (B) 		1-53497-090-2 01 1 9101- ● ●
209 BRACKET; ACL
LEFT HAND DRIVE(MTR6FB) BUS BODY MAKER KITAMURA<Y08> (C) 		1-53497-355-1 01 1 9101-0203 ● ●
209 BRACKET; ACL
LEFT HAND DRIVE(MTR6FB) BUS BODY MAKER KITAMURA<Y08> EXC. USER DAEWOO MOTORS<D4S> (D) 		1-53419-219-0 02 1 9101-0203 ● ●
209 BRACKET; ACL
LEFT HAND DRIVE(MTR6FB) USER DAEWOO MOTORS<D4S> (C) 		1-53497-357-0 01 1 9101-0203 ● ●
209 BRACKET; ACL
LEFT HAND DRIVE(MTR6FB) EXC. USER DAEWOO MOTORS<D4S>,BUS BODY MAKER KITAMURA<Y08> (E) 		1-53497-221-1 01 1 9101-0203 ● ●
209 BRACKET; ACL
LEFT HAND DRIVE(MTR6FB) (E) 		1-53497-221-1 01 1 0204- ● ●
210 BOLT; ACL BRKT
RIGHT HAND DRIVE(MTR5FB) M10X30 W/LK WASHER 		0-50041-030-0 04 1 9101- ● ●
210 BOLT; ACL BRKT
LEFT HAND DRIVE(MTR6FB) USER DAEWOO MOTORS<D4S> M10X30 W/LK WASHER 		0-50041-030-0 02 1 9101-0203 ● ●
210 BOLT; ACL BRKT
LEFT HAND DRIVE(MTR6FB) BUS BODY MAKER KITAMURA<Y08> M10X30 W/LK WASHER 		0-50041-030-0 02 1 9101-0203 ● ●
210 BOLT; ACL BRKT
LEFT HAND DRIVE(MTR6FB) USER DAEWOO MOTORS<D4S> M12X35 W/LK WASHER 		0-50041-235-0 04 1 9101-0203 ● ●
210 BOLT; ACL BRKT
LEFT HAND DRIVE(MTR6FB) BUS BODY MAKER KITAMURA<Y08> M12X35 W/LK WASHER 		0-50041-235-0 04 1 9101-0203 ● ●
211 NUT; BRKT
LEFT HAND DRIVE(MTR6FB) M10 		9-09110-510-0 04 1 9101- ● ●
211 NUT; BRKT
RIGHT HAND DRIVE(MTR5FB) M10 		9-09110-510-0 03 1 9101- ● ●
211 NUT; BRKT
LEFT HAND DRIVE(MTR6FB) USER DAEWOO MOTORS<D4S> M12 		9-99110-512-0 04 1 9101-0203 ● ●
211 NUT; BRKT
LEFT HAND DRIVE(MTR6FB) BUS BODY MAKER KITAMURA<Y08> M12 		9-99110-512-0 04 1 9101-0203 ● ●
242 BRACKET; AIR DUCT
RIGHT HAND DRIVE(MTR5FB) (B) 		1-14239-186-0 01 1 9101- ● ●
242 BRACKET; AIR DUCT
RIGHT HAND DRIVE(MTR5FB) (C) 		1-14239-187-0 01 1 9101- ● ●
242 BRACKET; AIR DUCT
RIGHT HAND DRIVE(MTR5FB) (A) 		1-14239-203-0 01 1 9101- ● ●
291 BOLT; ACL
RIGHT HAND DRIVE(MTR5FB) M10X25 W/LK WASHER 		0-50041-025-0 04 1 9101- ● ●
291 BOLT; ACL
RIGHT HAND DRIVE(MTR5FB) M8X25 		1-09030-030-2 04 1 9101-0203 ● ●
291 BOLT; ACL
LEFT HAND DRIVE(MTR6FB) EXC. USER DAEWOO MOTORS<D4S>,BUS BODY MAKER KITAMURA<Y08> M8X25 		1-09030-030-2 04 1 9101-0203 ● ●
291 BOLT; ACL
M8X25 		1-09030-030-2 04 1 0204- ● ●
291 BOLT; ACL
LEFT HAND DRIVE(MTR6FB) EXC. BUS BODY MAKER KITAMURA<Y08> M12X35 W/LK WASHER 		0-50041-235-0 02 1 9101-0203 ● ●
291 BOLT; ACL
LEFT HAND DRIVE(MTR6FB) M12X35 W/LK WASHER 		0-50041-235-0 02 1 0204- ● ●
291 BOLT; ACL
LEFT HAND DRIVE(MTR6FB) EXC. BUS BODY MAKER KITAMURA<Y08> M14X40 		9-92061-440-0 02 1 9101-0203 ● ●
291 BOLT; ACL
LEFT HAND DRIVE(MTR6FB) M14X40 		9-92061-440-0 02 1 0204- ● ●
325 HOSE; RUBBER,ENG TO PIPE
RIGHT HAND DRIVE(MTR5FB) (A) 		9-14121-198-0 01 1 9101- ● ●
325 HOSE; RUBBER,ENG TO PIPE
LEFT HAND DRIVE(MTR6FB) (B) 		1-14231-661-0 01 1 9101- ● ●
325 HOSE; RUBBER,ENG TO PIPE
LEFT HAND DRIVE(MTR6FB) BUS BODY MAKER KITAMURA<Y08> EXC. USER DAEWOO MOTORS<D4S> (C) 		1-14231-065-0 01 1 9101-0203 ● ●
338 CLIP; PIPE
RIGHT HAND DRIVE(MTR5FB) EXC. USER DAEWOO MOTORS<D4S> ID=77-95 		1-09707-114-0 02 1 9101-0203 ● ●
338 CLIP; PIPE
LEFT HAND DRIVE(MTR6FB) EXC. USER DAEWOO MOTORS<D4S>,BUS BODY MAKER KITAMURA<Y08> ID=77-95 		1-09707-114-0 02 1 9101-0203 ● ●
338 CLIP; PIPE
ID=77-95 		1-09707-114-0 02 1 0204-0306 ● ●
338 CLIP; PIPE
ID=77-95 		1-09707-198-0 02 1 0307- ● ●
338 CLIP; PIPE
LEFT HAND DRIVE(MTR6FB) BUS BODY MAKER KITAMURA<Y08> EXC. USER DAEWOO MOTORS<D4S> ID=77-95 		1-09707-114-0 04 1 9101-0203 ● ●
353 CLIP; RUBBER HOSE
USER DAEWOO MOTORS<D4S> ID=104-142 		1-09707-155-0 01 1 9101-0203 ● ●
353 CLIP; RUBBER HOSE
RIGHT HAND DRIVE(MTR5FB) USER DAEWOO MOTORS<D4S> ID=77-95 		1-09707-114-0 05 1 9101-0203 ● ●
353 CLIP; RUBBER HOSE
RIGHT HAND DRIVE(MTR5FB) EXC. USER DAEWOO MOTORS<D4S> ID=104-142 		1-09707-155-0 06 1 9101-0203 ● ●
353 CLIP; RUBBER HOSE
RIGHT HAND DRIVE(MTR5FB) ID=104-142 		1-09707-155-0 06 1 0204-0306 ● ●
353 CLIP; RUBBER HOSE
RIGHT HAND DRIVE(MTR5FB) ID=104-139 		1-09707-200-0 06 1 0307- ● ●
353 CLIP; RUBBER HOSE
LEFT HAND DRIVE(MTR6FB) USER DAEWOO MOTORS<D4S> ID=77-95 		1-09707-114-0 01 1 9101-0203 ● ●
353 CLIP; RUBBER HOSE
LEFT HAND DRIVE(MTR6FB) EXC. USER DAEWOO MOTORS<D4S>,BUS BODY MAKER KITAMURA<Y08> ID=104-142 		1-09707-155-0 02 1 9101-0203 ● ●
353 CLIP; RUBBER HOSE
LEFT HAND DRIVE(MTR6FB) ID=104-142 		1-09707-155-0 02 1 0204-0306 ● ●
353 CLIP; RUBBER HOSE
LEFT HAND DRIVE(MTR6FB) ID=104-139 		1-09707-200-0 02 1 0307- ● ●
354 BOLT; BRKT,AIR INT HOSE
RIGHT HAND DRIVE(MTR5FB) M10X30 W/LK WASHER 		0-50041-030-0 11 1 9101- ● ●
354 BOLT; BRKT,AIR INT HOSE
RIGHT HAND DRIVE(MTR5FB) M12X30 W/LK WASHER 		0-50041-230-0 04 1 9101- ● ●
354 BOLT; BRKT,AIR INT HOSE
LEFT HAND DRIVE(MTR6FB) USER DAEWOO MOTORS<D4S> M10X30 W/LK WASHER 		0-50041-030-0 04 1 9101-0203 ● ●
354 BOLT; BRKT,AIR INT HOSE
LEFT HAND DRIVE(MTR6FB) EXC. USER DAEWOO MOTORS<D4S>,BUS BODY MAKER KITAMURA<Y08> M10X25 W/LK WASHER 		0-50041-025-0 03 1 9101-0203 ● ●
354 BOLT; BRKT,AIR INT HOSE
LEFT HAND DRIVE(MTR6FB) M10X25 W/LK WASHER 		0-50041-025-0 03 1 0204- ● ●
355 NUT; AIR INT HOSE TO BRKT
RIGHT HAND DRIVE(MTR5FB) M10 		9-09110-510-0 03 1 9101- ● ●
355 NUT; AIR INT HOSE TO BRKT
RIGHT HAND DRIVE(MTR5FB) M12 		9-99110-512-0 04 1 9101- ● ●
355 NUT; AIR INT HOSE TO BRKT
LEFT HAND DRIVE(MTR6FB) USER DAEWOO MOTORS<D4S> M10 		9-09110-510-0 04 1 9101-0203 ● ●
358 HOSE; RUBBER,PIPE TO PIPE
RIGHT HAND DRIVE(MTR5FB) USER DAEWOO MOTORS<D4S> (B) 		1-14231-792-0 01 1 9101-0203 ● ●
358 HOSE; RUBBER,PIPE TO PIPE
RIGHT HAND DRIVE(MTR5FB) USER DAEWOO MOTORS<D4S> (A) 		5-14231-118-0 02 1 9101-0203 ● ●
358 HOSE; RUBBER,PIPE TO PIPE
RIGHT HAND DRIVE(MTR5FB) EXC. USER DAEWOO MOTORS<D4S> (A) 		1-14231-622-0 02 1 9101-0203 ● ●
358 HOSE; RUBBER,PIPE TO PIPE
RIGHT HAND DRIVE(MTR5FB) (A) 		1-14231-622-0 02 1 0204- ● ●
358 HOSE; RUBBER,PIPE TO PIPE
RIGHT HAND DRIVE(MTR5FB) EXC. USER DAEWOO MOTORS<D4S> (B) 		1-14231-623-0 01 1 9101-0203 ● ●
358 HOSE; RUBBER,PIPE TO PIPE
RIGHT HAND DRIVE(MTR5FB) (B) 		1-14231-623-0 01 1 0204- ● ●
358 HOSE; RUBBER,PIPE TO PIPE
LEFT HAND DRIVE(MTR6FB) USER DAEWOO MOTORS<D4S> (C) 		1-14231-791-0 01 1 9101-0203 ● ●
358 HOSE; RUBBER,PIPE TO PIPE
LEFT HAND DRIVE(MTR6FB) EXC. USER DAEWOO MOTORS<D4S>,BUS BODY MAKER KITAMURA<Y08> (C) 		1-14231-622-0 01 1 9101-0203 ● ●
358 HOSE; RUBBER,PIPE TO PIPE
LEFT HAND DRIVE(MTR6FB) (C) 		1-14231-622-0 01 1 0204- ● ●

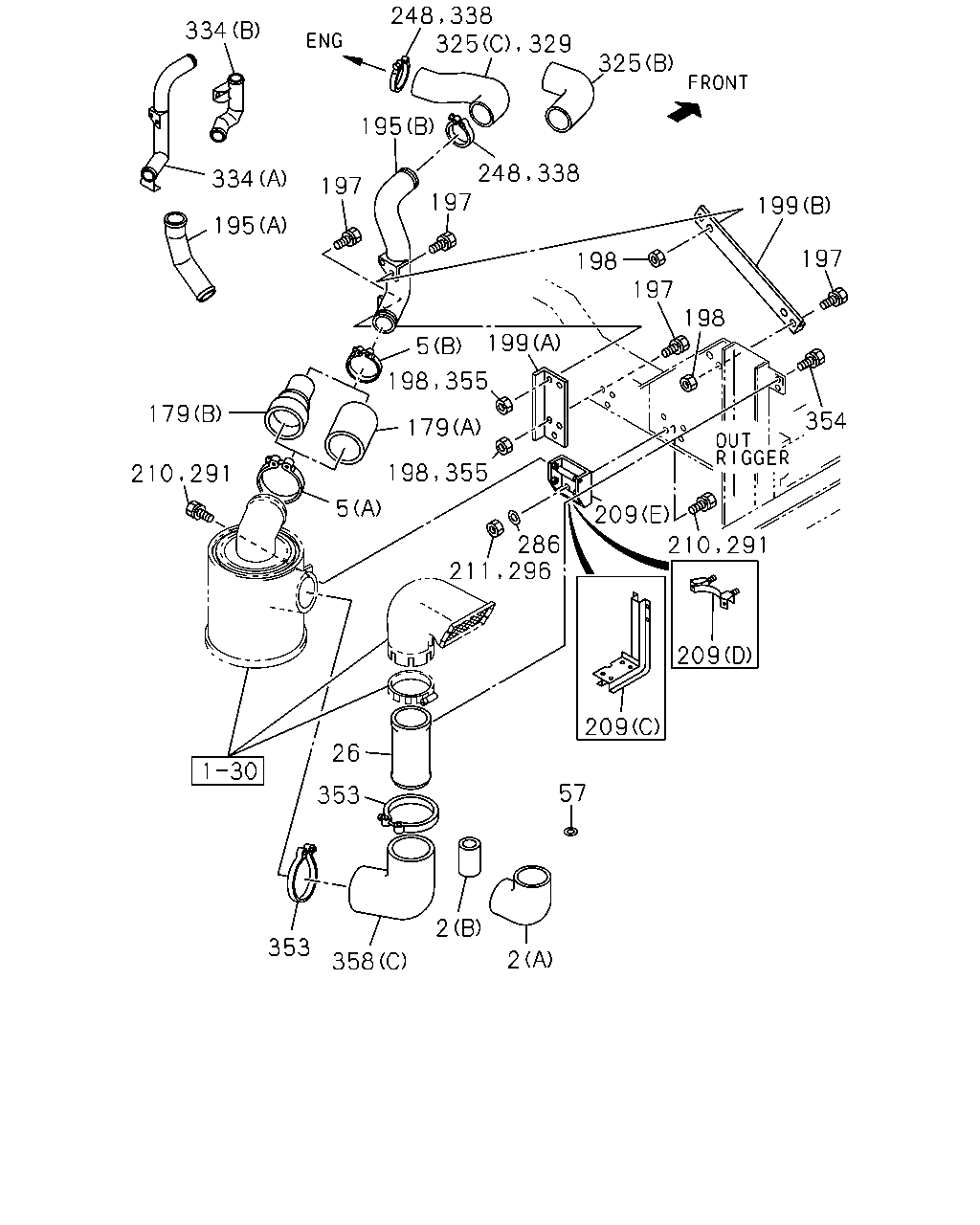

çizim 28690
248 334 325 195 248 197 334 197 199 195 197 198 197 198 199 5 198 354 179 179 198 210 5 209 286 296 210 211 209 209 26 57 353 2 353 2 358 338 325 329 338 355 355 291 291
BalonParca AdiParca NoAdetTipApplied Date A B
2 HOSE; ACL
LEFT HAND DRIVE(MTR6FB) BUS BODY MAKER KITAMURA<Y08> (A) 		1-14231-622-0 01 1 9101-0203 ● ●
2 HOSE; ACL
LEFT HAND DRIVE(MTR6FB) BUS BODY MAKER KITAMURA<Y08> (B) 		9-14121-201-0 01 1 9101-0203 ● ●
5 CLIP; AIR DUCT
(B) ID=77-95 		1-09707-114-0 01 1 9101-0306 ● ●
5 CLIP; AIR DUCT
(B) ID=77-95 		1-09707-198-0 01 1 0307- ● ●
5 CLIP; AIR DUCT
(A) ID=104-142 		1-09707-155-0 01 1 9101-0306 ● ●
5 CLIP; AIR DUCT
(A) ID=104-139 		1-09707-200-0 01 1 0307- ● ●
5 CLIP; AIR DUCT
LEFT HAND DRIVE(MTR6FB) USER DAEWOO MOTORS<D4S> EXC. BUS BODY MAKER KITAMURA<Y08> (B) ID=77-95 		1-09707-114-0 02 1 9101-0203 ● ●
26 DUCT; AIR INT
RIGHT HAND DRIVE(MTR5FB) USER DAEWOO MOTORS<D4S> 		1-14231-793-0 03 1 9101-0203 ● ●
26 DUCT; AIR INT
RIGHT HAND DRIVE(MTR5FB) EXC. USER DAEWOO MOTORS<D4S> 		1-14231-620-1 03 1 9101-0203 ● ●
26 DUCT; AIR INT
RIGHT HAND DRIVE(MTR5FB) 		1-14231-620-1 03 1 0204- ● ●
26 DUCT; AIR INT
LEFT HAND DRIVE(MTR6FB) BUS BODY MAKER KITAMURA<Y08> L=380 W/BRKT 		1-14231-620-1 01 1 9101-0203 ● ●
26 DUCT; AIR INT
LEFT HAND DRIVE(MTR6FB) BUS BODY MAKER KITAMURA<Y08> L=380 W0/BRKT 		1-14231-781-0 01 1 9101-0203 ● ●
26 DUCT; AIR INT
LEFT HAND DRIVE(MTR6FB) BUS BODY MAKER KITAMURA<Y08> L=200 		1-14231-782-0 01 1 9101-0203 ● ●
26 DUCT; AIR INT
LEFT HAND DRIVE(MTR6FB) USER DAEWOO MOTORS<D4S> EXC. BUS BODY MAKER KITAMURA<Y08> 		1-14231-788-0 01 1 9101-0203 ● ●
26 DUCT; AIR INT
LEFT HAND DRIVE(MTR6FB) EXC. USER DAEWOO MOTORS<D4S>,BUS BODY MAKER KITAMURA<Y08> 		1-14231-658-1 01 1 9101-0203 ● ●
26 DUCT; AIR INT
LEFT HAND DRIVE(MTR6FB) 		1-14231-658-1 01 1 0204- ● ●
57 WASHER; PL,AIR INT DUCT
LEFT HAND DRIVE(MTR6FB) USER DAEWOO MOTORS<D4S> ID=10.5 OD=18 		9-09160-510-0 02 1 9101-0203 ● ●
57 WASHER; PL,AIR INT DUCT
LEFT HAND DRIVE(MTR6FB) BUS BODY MAKER KITAMURA<Y08> ID=10.5 OD=18 		9-09160-510-0 02 1 9101-0203 ● ●
179 HOSE; AIR INT
RIGHT HAND DRIVE(MTR5FB) (C) 		1-14231-546-0 01 1 9101- ● ●
179 HOSE; AIR INT
LEFT HAND DRIVE(MTR6FB) BUS BODY MAKER KITAMURA<Y08> (A) ID=127 		9-09912-895-1 02 1 9101-0203 ● ●
179 HOSE; AIR INT
LEFT HAND DRIVE(MTR6FB) BUS BODY MAKER KITAMURA<Y08> (A) ID=76 		9-14121-201-0 01 1 9101-0203 ● ●
179 HOSE; AIR INT
LEFT HAND DRIVE(MTR6FB) BUS BODY MAKER KITAMURA<Y08> EXC. USER DAEWOO MOTORS<D4S> (B) ID=76/114 		1-14231-436-0 01 1 9101-0203 ● ●
179 HOSE; AIR INT
LEFT HAND DRIVE(MTR6FB) USER DAEWOO MOTORS<D4S> EXC. BUS BODY MAKER KITAMURA<Y08> (B) ID=76/114 		1-14231-790-0 01 1 9101-0203 ● ●
179 HOSE; AIR INT
LEFT HAND DRIVE(MTR6FB) EXC. USER DAEWOO MOTORS<D4S>,BUS BODY MAKER KITAMURA<Y08> (B) ID=76/114 		1-09360-699-1 01 1 9101-0203 ● ●
179 HOSE; AIR INT
LEFT HAND DRIVE(MTR6FB) (B) ID=76/114 		1-09360-699-1 01 1 0204- ● ●
195 PIPE; CONN
RIGHT HAND DRIVE(MTR5FB) (C) 		1-14231-714-2 01 1 9101- ● ●
195 PIPE; CONN
LEFT HAND DRIVE(MTR6FB) BUS BODY MAKER KITAMURA<Y08> EXC. USER DAEWOO MOTORS<D4S> (A) 		1-14231-768-1 01 1 9101-0203 ● ●
195 PIPE; CONN
LEFT HAND DRIVE(MTR6FB) EXC. USER DAEWOO MOTORS<D4S> (B) 		1-14231-660-2 01 1 9101-0203 ● ●
195 PIPE; CONN
LEFT HAND DRIVE(MTR6FB) (B) 		1-14231-660-2 01 1 0204- ● ●
197 BOLT; CLAMP
RIGHT HAND DRIVE(MTR5FB) M8X20 W/LK WASHER 		9-01900-820-0 02 1 9101-9204 ● ●
197 BOLT; CLAMP
RIGHT HAND DRIVE(MTR5FB) M8X20 W/LK WASHER 		0-50040-820-0 02 1 9205- ● ●
197 BOLT; CLAMP
LEFT HAND DRIVE(MTR6FB) USER DAEWOO MOTORS<D4S> M10X30 W/LK WASHER 		0-50041-030-0 08 1 9101-0203 ● ●
197 BOLT; CLAMP
LEFT HAND DRIVE(MTR6FB) M10X30 W/LK WASHER 		0-50041-030-0 09 1 0204- ● ●
197 BOLT; CLAMP
LEFT HAND DRIVE(MTR6FB) EXC. USER DAEWOO MOTORS<D4S> M10X30 W/LK WASHER 		0-50041-030-0 09 1 9101-0203 ● ●
198 NUT; CLAMP
LEFT HAND DRIVE(MTR6FB) USER DAEWOO MOTORS<D4S> M10 		9-09110-410-0 08 1 9101-9307 ● ●
198 NUT; CLAMP
LEFT HAND DRIVE(MTR6FB) USER DAEWOO MOTORS<D4S> M10 		9-09110-510-0 08 1 9308-0203 ● ●
198 NUT; CLAMP
LEFT HAND DRIVE(MTR6FB) M10 		9-09110-510-0 09 1 0204- ● ●
198 NUT; CLAMP
LEFT HAND DRIVE(MTR6FB) EXC. USER DAEWOO MOTORS<D4S> M10 		9-09110-410-0 09 1 9101-9307 ● ●
198 NUT; CLAMP
LEFT HAND DRIVE(MTR6FB) EXC. USER DAEWOO MOTORS<D4S> M10 		9-09110-510-0 09 1 9308-0203 ● ●
199 BRACKET; PIPE
LEFT HAND DRIVE(MTR6FB) (B) 		1-14239-189-0 01 1 9101- ● ●
199 BRACKET; PIPE
LEFT HAND DRIVE(MTR6FB) EXC. USER DAEWOO MOTORS<D4S> (A) 		1-14239-188-0 01 1 9101-0203 ● ●
199 BRACKET; PIPE
LEFT HAND DRIVE(MTR6FB) (A) 		1-14239-188-0 01 1 0204- ● ●
209 BRACKET; ACL
RIGHT HAND DRIVE(MTR5FB) (A) 		1-14234-082-1 01 1 9101- ● ●
209 BRACKET; ACL
RIGHT HAND DRIVE(MTR5FB) (B) 		1-53497-090-2 01 1 9101- ● ●
209 BRACKET; ACL
LEFT HAND DRIVE(MTR6FB) BUS BODY MAKER KITAMURA<Y08> (C) 		1-53497-355-1 01 1 9101-0203 ● ●
209 BRACKET; ACL
LEFT HAND DRIVE(MTR6FB) BUS BODY MAKER KITAMURA<Y08> EXC. USER DAEWOO MOTORS<D4S> (D) 		1-53419-219-0 02 1 9101-0203 ● ●
209 BRACKET; ACL
LEFT HAND DRIVE(MTR6FB) USER DAEWOO MOTORS<D4S> (C) 		1-53497-357-0 01 1 9101-0203 ● ●
209 BRACKET; ACL
LEFT HAND DRIVE(MTR6FB) EXC. USER DAEWOO MOTORS<D4S>,BUS BODY MAKER KITAMURA<Y08> (E) 		1-53497-221-1 01 1 9101-0203 ● ●
209 BRACKET; ACL
LEFT HAND DRIVE(MTR6FB) (E) 		1-53497-221-1 01 1 0204- ● ●
210 BOLT; ACL BRKT
RIGHT HAND DRIVE(MTR5FB) M10X30 W/LK WASHER 		0-50041-030-0 04 1 9101- ● ●
210 BOLT; ACL BRKT
LEFT HAND DRIVE(MTR6FB) USER DAEWOO MOTORS<D4S> M10X30 W/LK WASHER 		0-50041-030-0 02 1 9101-0203 ● ●
210 BOLT; ACL BRKT
LEFT HAND DRIVE(MTR6FB) BUS BODY MAKER KITAMURA<Y08> M10X30 W/LK WASHER 		0-50041-030-0 02 1 9101-0203 ● ●
210 BOLT; ACL BRKT
LEFT HAND DRIVE(MTR6FB) USER DAEWOO MOTORS<D4S> M12X35 W/LK WASHER 		0-50041-235-0 04 1 9101-0203 ● ●
210 BOLT; ACL BRKT
LEFT HAND DRIVE(MTR6FB) BUS BODY MAKER KITAMURA<Y08> M12X35 W/LK WASHER 		0-50041-235-0 04 1 9101-0203 ● ●
211 NUT; BRKT
LEFT HAND DRIVE(MTR6FB) M10 		9-09110-510-0 04 1 9101- ● ●
211 NUT; BRKT
RIGHT HAND DRIVE(MTR5FB) M10 		9-09110-510-0 03 1 9101- ● ●
211 NUT; BRKT
LEFT HAND DRIVE(MTR6FB) USER DAEWOO MOTORS<D4S> M12 		9-99110-512-0 04 1 9101-0203 ● ●
211 NUT; BRKT
LEFT HAND DRIVE(MTR6FB) BUS BODY MAKER KITAMURA<Y08> M12 		9-99110-512-0 04 1 9101-0203 ● ●
248 CLIP; RUBBER HOSE
LEFT HAND DRIVE(MTR6FB) USER DAEWOO MOTORS<D4S> EXC. BUS BODY MAKER KITAMURA<Y08> ID=77-95 		1-09707-114-0 02 1 9101-0203 ● ●
286 WASHER; LK,BRKT
LEFT HAND DRIVE(MTR6FB) EXC. BUS BODY MAKER KITAMURA<Y08> ID=14.2 		9-09150-614-0 02 1 9101-0203 ● ●
286 WASHER; LK,BRKT
LEFT HAND DRIVE(MTR6FB) ID=14.2 		9-09150-614-0 02 1 0204- ● ●
286 WASHER; LK,BRKT
LEFT HAND DRIVE(MTR6FB) USER DAEWOO MOTORS<D4S> ID=10.2 		9-09150-510-0 04 1 9101-0203 ● ●
286 WASHER; LK,BRKT
LEFT HAND DRIVE(MTR6FB) BUS BODY MAKER KITAMURA<Y08> ID=10.2 		9-09150-510-0 04 1 9101-0203 ● ●
291 BOLT; ACL
RIGHT HAND DRIVE(MTR5FB) M10X25 W/LK WASHER 		0-50041-025-0 04 1 9101- ● ●
291 BOLT; ACL
RIGHT HAND DRIVE(MTR5FB) M8X25 		1-09030-030-2 04 1 9101-0203 ● ●
291 BOLT; ACL
LEFT HAND DRIVE(MTR6FB) EXC. USER DAEWOO MOTORS<D4S>,BUS BODY MAKER KITAMURA<Y08> M8X25 		1-09030-030-2 04 1 9101-0203 ● ●
291 BOLT; ACL
M8X25 		1-09030-030-2 04 1 0204- ● ●
291 BOLT; ACL
LEFT HAND DRIVE(MTR6FB) EXC. BUS BODY MAKER KITAMURA<Y08> M12X35 W/LK WASHER 		0-50041-235-0 02 1 9101-0203 ● ●
291 BOLT; ACL
LEFT HAND DRIVE(MTR6FB) M12X35 W/LK WASHER 		0-50041-235-0 02 1 0204- ● ●
291 BOLT; ACL
LEFT HAND DRIVE(MTR6FB) EXC. BUS BODY MAKER KITAMURA<Y08> M14X40 		9-92061-440-0 02 1 9101-0203 ● ●
291 BOLT; ACL
LEFT HAND DRIVE(MTR6FB) M14X40 		9-92061-440-0 02 1 0204- ● ●
296 NUT; ACL
LEFT HAND DRIVE(MTR6FB) EXC. BUS BODY MAKER KITAMURA<Y08> M12 		9-99110-512-0 02 1 9101-0203 ● ●
296 NUT; ACL
LEFT HAND DRIVE(MTR6FB) M12 		9-99110-512-0 02 1 0204- ● ●
296 NUT; ACL
LEFT HAND DRIVE(MTR6FB) EXC. BUS BODY MAKER KITAMURA<Y08> M14 		9-99110-514-0 02 1 9101-0203 ● ●
296 NUT; ACL
LEFT HAND DRIVE(MTR6FB) M14 		9-99110-514-0 02 1 0204- ● ●
325 HOSE; RUBBER,ENG TO PIPE
RIGHT HAND DRIVE(MTR5FB) (A) 		9-14121-198-0 01 1 9101- ● ●
325 HOSE; RUBBER,ENG TO PIPE
LEFT HAND DRIVE(MTR6FB) (B) 		1-14231-661-0 01 1 9101- ● ●
325 HOSE; RUBBER,ENG TO PIPE
LEFT HAND DRIVE(MTR6FB) BUS BODY MAKER KITAMURA<Y08> EXC. USER DAEWOO MOTORS<D4S> (C) 		1-14231-065-0 01 1 9101-0203 ● ●
329 HOSE; JOINT
LEFT HAND DRIVE(MTR6FB) USER DAEWOO MOTORS<D4S> EXC. BUS BODY MAKER KITAMURA<Y08> 		1-14231-789-0 01 1 9101-0203 ● ●
334 PIPE; JOINT,AIR DUCT
LEFT HAND DRIVE(MTR6FB) USER DAEWOO MOTORS<D4S> EXC. BUS BODY MAKER KITAMURA<Y08> (A) 		1-14231-786-0 01 1 9101-0203 ● ●
334 PIPE; JOINT,AIR DUCT
LEFT HAND DRIVE(MTR6FB) USER DAEWOO MOTORS<D4S> EXC. BUS BODY MAKER KITAMURA<Y08> (B) 		1-14231-787-0 01 1 9101-0203 ● ●
338 CLIP; PIPE
RIGHT HAND DRIVE(MTR5FB) EXC. USER DAEWOO MOTORS<D4S> ID=77-95 		1-09707-114-0 02 1 9101-0203 ● ●
338 CLIP; PIPE
LEFT HAND DRIVE(MTR6FB) EXC. USER DAEWOO MOTORS<D4S>,BUS BODY MAKER KITAMURA<Y08> ID=77-95 		1-09707-114-0 02 1 9101-0203 ● ●
338 CLIP; PIPE
ID=77-95 		1-09707-114-0 02 1 0204-0306 ● ●
338 CLIP; PIPE
ID=77-95 		1-09707-198-0 02 1 0307- ● ●
338 CLIP; PIPE
LEFT HAND DRIVE(MTR6FB) BUS BODY MAKER KITAMURA<Y08> EXC. USER DAEWOO MOTORS<D4S> ID=77-95 		1-09707-114-0 04 1 9101-0203 ● ●
353 CLIP; RUBBER HOSE
USER DAEWOO MOTORS<D4S> ID=104-142 		1-09707-155-0 01 1 9101-0203 ● ●
353 CLIP; RUBBER HOSE
RIGHT HAND DRIVE(MTR5FB) USER DAEWOO MOTORS<D4S> ID=77-95 		1-09707-114-0 05 1 9101-0203 ● ●
353 CLIP; RUBBER HOSE
RIGHT HAND DRIVE(MTR5FB) EXC. USER DAEWOO MOTORS<D4S> ID=104-142 		1-09707-155-0 06 1 9101-0203 ● ●
353 CLIP; RUBBER HOSE
RIGHT HAND DRIVE(MTR5FB) ID=104-142 		1-09707-155-0 06 1 0204-0306 ● ●
353 CLIP; RUBBER HOSE
RIGHT HAND DRIVE(MTR5FB) ID=104-139 		1-09707-200-0 06 1 0307- ● ●
353 CLIP; RUBBER HOSE
LEFT HAND DRIVE(MTR6FB) USER DAEWOO MOTORS<D4S> ID=77-95 		1-09707-114-0 01 1 9101-0203 ● ●
353 CLIP; RUBBER HOSE
LEFT HAND DRIVE(MTR6FB) EXC. USER DAEWOO MOTORS<D4S>,BUS BODY MAKER KITAMURA<Y08> ID=104-142 		1-09707-155-0 02 1 9101-0203 ● ●
353 CLIP; RUBBER HOSE
LEFT HAND DRIVE(MTR6FB) ID=104-142 		1-09707-155-0 02 1 0204-0306 ● ●
353 CLIP; RUBBER HOSE
LEFT HAND DRIVE(MTR6FB) ID=104-139 		1-09707-200-0 02 1 0307- ● ●
354 BOLT; BRKT,AIR INT HOSE
RIGHT HAND DRIVE(MTR5FB) M10X30 W/LK WASHER 		0-50041-030-0 11 1 9101- ● ●
354 BOLT; BRKT,AIR INT HOSE
RIGHT HAND DRIVE(MTR5FB) M12X30 W/LK WASHER 		0-50041-230-0 04 1 9101- ● ●
354 BOLT; BRKT,AIR INT HOSE
LEFT HAND DRIVE(MTR6FB) USER DAEWOO MOTORS<D4S> M10X30 W/LK WASHER 		0-50041-030-0 04 1 9101-0203 ● ●
354 BOLT; BRKT,AIR INT HOSE
LEFT HAND DRIVE(MTR6FB) EXC. USER DAEWOO MOTORS<D4S>,BUS BODY MAKER KITAMURA<Y08> M10X25 W/LK WASHER 		0-50041-025-0 03 1 9101-0203 ● ●
354 BOLT; BRKT,AIR INT HOSE
LEFT HAND DRIVE(MTR6FB) M10X25 W/LK WASHER 		0-50041-025-0 03 1 0204- ● ●
355 NUT; AIR INT HOSE TO BRKT
RIGHT HAND DRIVE(MTR5FB) M10 		9-09110-510-0 03 1 9101- ● ●
355 NUT; AIR INT HOSE TO BRKT
RIGHT HAND DRIVE(MTR5FB) M12 		9-99110-512-0 04 1 9101- ● ●
355 NUT; AIR INT HOSE TO BRKT
LEFT HAND DRIVE(MTR6FB) USER DAEWOO MOTORS<D4S> M10 		9-09110-510-0 04 1 9101-0203 ● ●
358 HOSE; RUBBER,PIPE TO PIPE
RIGHT HAND DRIVE(MTR5FB) USER DAEWOO MOTORS<D4S> (B) 		1-14231-792-0 01 1 9101-0203 ● ●
358 HOSE; RUBBER,PIPE TO PIPE
RIGHT HAND DRIVE(MTR5FB) USER DAEWOO MOTORS<D4S> (A) 		5-14231-118-0 02 1 9101-0203 ● ●
358 HOSE; RUBBER,PIPE TO PIPE
RIGHT HAND DRIVE(MTR5FB) EXC. USER DAEWOO MOTORS<D4S> (A) 		1-14231-622-0 02 1 9101-0203 ● ●
358 HOSE; RUBBER,PIPE TO PIPE
RIGHT HAND DRIVE(MTR5FB) (A) 		1-14231-622-0 02 1 0204- ● ●
358 HOSE; RUBBER,PIPE TO PIPE
RIGHT HAND DRIVE(MTR5FB) EXC. USER DAEWOO MOTORS<D4S> (B) 		1-14231-623-0 01 1 9101-0203 ● ●
358 HOSE; RUBBER,PIPE TO PIPE
RIGHT HAND DRIVE(MTR5FB) (B) 		1-14231-623-0 01 1 0204- ● ●
358 HOSE; RUBBER,PIPE TO PIPE
LEFT HAND DRIVE(MTR6FB) USER DAEWOO MOTORS<D4S> (C) 		1-14231-791-0 01 1 9101-0203 ● ●
358 HOSE; RUBBER,PIPE TO PIPE
LEFT HAND DRIVE(MTR6FB) EXC. USER DAEWOO MOTORS<D4S>,BUS BODY MAKER KITAMURA<Y08> (C) 		1-14231-622-0 01 1 9101-0203 ● ●
358 HOSE; RUBBER,PIPE TO PIPE
LEFT HAND DRIVE(MTR6FB) (C) 		1-14231-622-0 01 1 0204- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
