◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11197 - FXZ SOUTH AFRICA ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-40 - HEATER SYSTEM ▶
8-40 — HEATER SYSTEM (#21874) — 127 parça

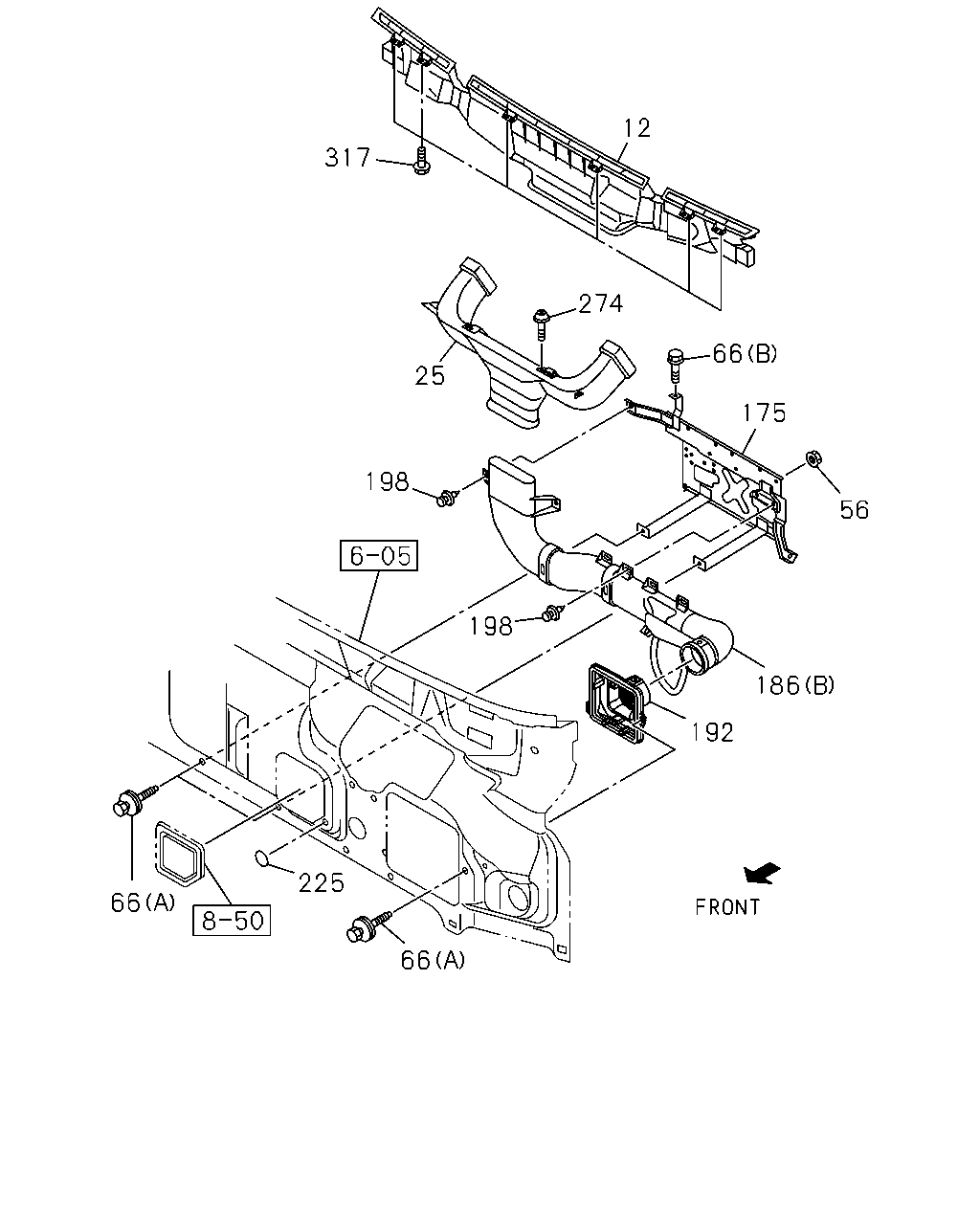

çizim 129434
12 66 175 56 186 192 198 198 25 274 317 66 225 66
BalonParca AdiParca NoAdetTipApplied Date A B
12 NOZZLE; DEFROSTER 8-98040-009-3 01 1 1004-1108 ●
12 NOZZLE; DEFROSTER 8-98040-009-3 01 1 1109- ● ●
25 DUCT; CENTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98102-121-0 01 1 1004-1108 ●
25 DUCT; CENTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98102-121-0 01 1 1109-1302 ● ●
25 DUCT; CENTER
EXC. AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98102-121-0 01 1 1303- ● ●
56 NUT; INL DUCT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6 FLANGE SOU 		0-91180-106-0 01 1 1004-1108 ●
56 NUT; INL DUCT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6 FLANGE SOU 		0-91180-106-0 01 1 1109-1211 ● ●
66 BOLT; DUCT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M6X16 FLANGE SOU 		0-28650-616-0 01 1 1004-1108 ●
66 BOLT; DUCT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M6X16 FLANGE SOU 		0-28650-616-0 01 1 1109-1211 ● ●
66 BOLT; DUCT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) M6X20 W/LK&PL WASHER 		8-98081-175-0 04 1 1004-1108 ●
66 BOLT; DUCT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) M6X20 W/LK&PL WASHER 		8-98081-175-0 04 1 1109-1211 ● ●
175 BRACKET; HTR DUCT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98140-759-0 01 1 1004-1108 ●
175 BRACKET; HTR DUCT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98140-759-0 01 1 1109-1211 ● ●
186 DUCT; VENTILATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-97585-489-4 01 1 1004-1108 ●
186 DUCT; VENTILATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-97585-489-4 01 1 1109-1301 ● ●
186 DUCT; VENTILATOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-97585-489-4 01 1 1302-1410 ● ●
186 DUCT; VENTILATOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-98285-574-0 01 1 1411- ● ●
186 DUCT; VENTILATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-98035-579-2 01 1 1004-1007 ●
186 DUCT; VENTILATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-98174-737-0 01 1 1008-1108 ●
186 DUCT; VENTILATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-98174-737-0 01 1 1109-1301 ● ●
186 DUCT; VENTILATOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-98174-737-0 01 1 1302-1410 ● ●
186 DUCT; VENTILATOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-98285-571-0 01 1 1411- ● ●
186 DUCT; VENTILATOR
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-98102-128-2 01 1 1004-1108 ●
186 DUCT; VENTILATOR
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-98102-128-2 01 1 1109-1211 ● ●
192 DUCT; RAM AIR
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98090-393-2 01 1 1004-1108 ●
192 DUCT; RAM AIR
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98090-393-2 01 1 1109-1211 ● ●
198 CLIP; DUCT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98056-059-0 05 1 1004-1108 ●
198 CLIP; DUCT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98056-059-0 05 1 1109-1211 ● ●
225 SEAL; WATER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) OD=25 BLACK SOU 		1-76798-019-0 01 1 1004-1108 ●
225 SEAL; WATER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) OD=25 BLACK SOU 		1-76798-019-0 01 1 1109-1302 ● ●
225 SEAL; WATER
EXC. AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) OD=25 BLACK SOU 		1-76798-019-0 01 1 1303- ● ●
274 SCREW; VENT DUCT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1004-1108 ●
274 SCREW; VENT DUCT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1109-1211 ● ●
317 SCREW; DEFROSTER NOZZLE
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 06 1 1004-1108 ●
317 SCREW; DEFROSTER NOZZLE
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 06 1 1109- ● ●
317 SCREW; DEFROSTER NOZZLE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1004-1108 ●
317 SCREW; DEFROSTER NOZZLE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1109-1301 ● ●
317 SCREW; DEFROSTER NOZZLE
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1302- ● ●

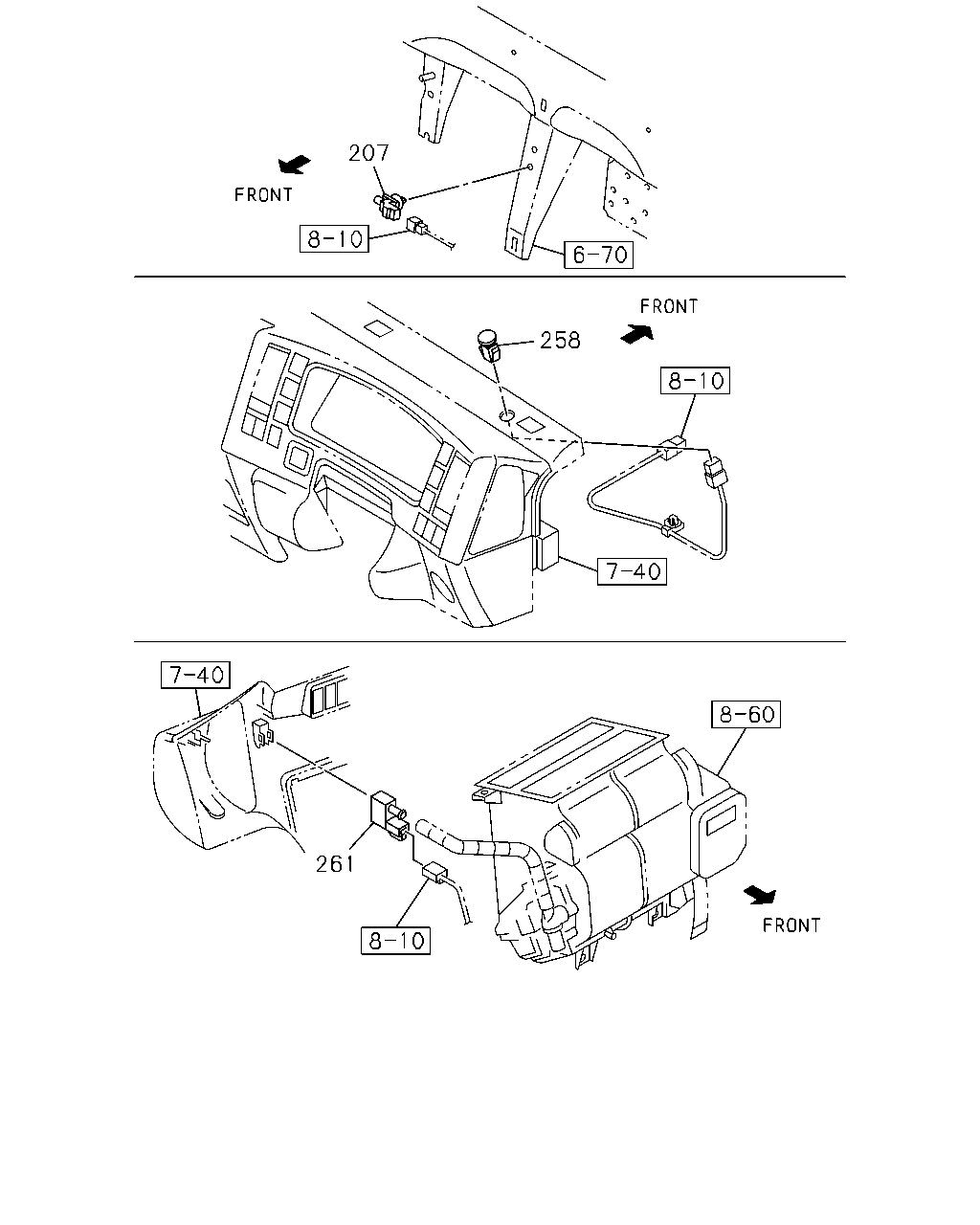

çizim 129437
207 258 261
BalonParca AdiParca NoAdetTipApplied Date A B
207 SENSOR; AMBIENT
FULLAUTO AIR CONDITIONER(C68) 		8-98008-687-0 01 1 1004- ●
258 SENSOR; SUN
FULLAUTO AIR CONDITIONER(C68) 		8-97386-826-0 01 1 1004- ●
261 SENSOR; IN CAR
FULLAUTO AIR CONDITIONER(C68) 		8-97386-701-0 01 1 1004- ●
çizim 129509
223 50 476 206 407
BalonParca AdiParca NoAdetTipApplied Date A B
50 VALVE ASM; HTR 8-98080-998-1 01 1 1004-1108 ●
50 VALVE ASM; HTR 8-98080-998-1 01 1 1109- ● ●
206 GROMMET; A/C PIPE TO BLOWER UNIT 8-98019-649-0 01 1 1004-1108 ●
206 GROMMET; A/C PIPE TO BLOWER UNIT 8-98019-649-0 01 1 1109- ● ●
223 GROMMET; SCREW
D=7.9X7.9 L=20 M5 		8-94441-539-0 01 1 1004-1108 ●
223 GROMMET; SCREW
D=7.9X7.9 L=20 M5 		8-94441-539-0 01 1 1109- ● ●
407 JOINT; HOSE
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98041-758-0 01 1 1004-1108 ●
407 JOINT; HOSE
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98041-758-0 01 1 1109- ● ●
476 SCREW; VALVE
M5X16 TAPPING HEXALOBULAR 		8-98062-675-0 01 1 1004-1108 ●
476 SCREW; VALVE
M5X16 TAPPING HEXALOBULAR 		8-98062-675-0 01 1 1109- ● ●

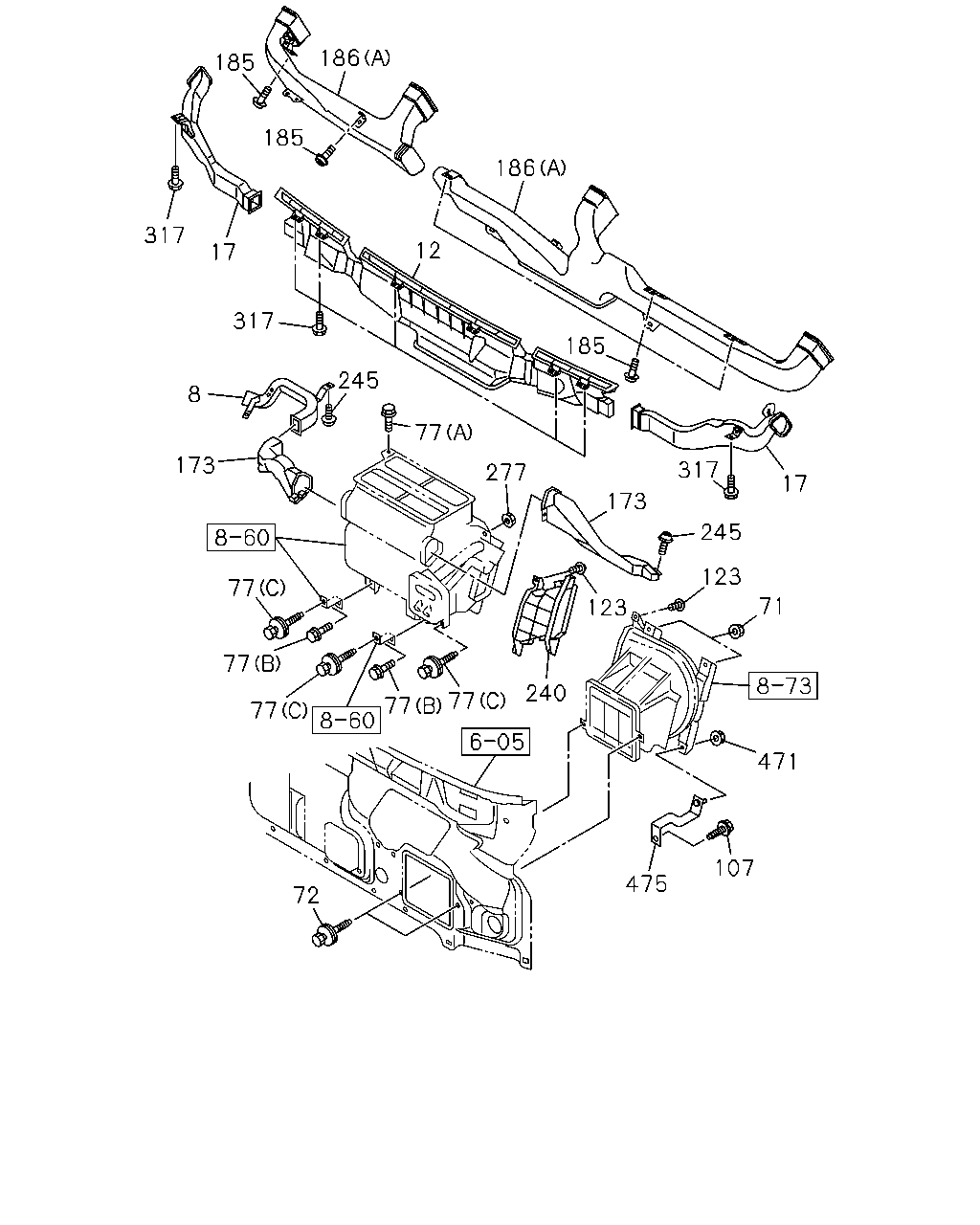

çizim 129511
186 186 185 185 12 185 17 317 245 123 71 173 277 77 245 317 17 317 8 173 77 77 77 77 77 240 123 471 107 475 72
BalonParca AdiParca NoAdetTipApplied Date A B
8 DUCT; HTR AIR,DRIVER FOOT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-97585-499-1 01 1 1004-1108 ●
8 DUCT; HTR AIR,DRIVER FOOT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-97585-499-1 01 1 1109-1302 ● ●
8 DUCT; HTR AIR,DRIVER FOOT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-97585-499-1 01 1 1303-1410 ● ●
8 DUCT; HTR AIR,DRIVER FOOT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98290-098-0 01 1 1411- ● ●
12 NOZZLE; DEFROSTER 8-98040-009-3 01 1 1004-1108 ●
12 NOZZLE; DEFROSTER 8-98040-009-3 01 1 1109- ● ●
17 NOZZLE; DEFROSTER,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98040-018-1 01 1 1004-1108 ●
17 NOZZLE; DEFROSTER,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98040-018-1 01 1 1109-1301 ● ●
17 NOZZLE; DEFROSTER,SIDE
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98040-018-1 01 1 1302- ● ●
17 NOZZLE; DEFROSTER,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98040-013-1 01 1 1004-1108 ●
17 NOZZLE; DEFROSTER,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98040-013-1 01 1 1109-1301 ● ●
17 NOZZLE; DEFROSTER,SIDE
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98040-013-1 01 1 1302- ● ●
71 NUT; BLOWER UNIT TO DASH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6 FLANGE SOU 		0-91180-106-0 02 1 1004-1108 ●
71 NUT; BLOWER UNIT TO DASH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6 FLANGE SOU 		0-91180-106-0 02 1 1109-1302 ● ●
71 NUT; BLOWER UNIT TO DASH
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6 FLANGE SOU 		0-91180-106-0 02 1 1303- ● ●
72 BOLT; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6X20 W/LK&PL WASHER 		8-98081-175-0 02 1 1004-1108 ●
72 BOLT; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6X20 W/LK&PL WASHER 		8-98081-175-0 02 1 1109-1302 ● ●
72 BOLT; BLOWER UNIT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6X20 W/LK&PL WASHER 		8-98081-175-0 02 1 1303- ● ●
77 BOLT; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) M6X16 FLANGE SOU 		0-28650-616-0 01 1 1004-1108 ●
77 BOLT; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) M6X16 FLANGE SOU 		0-28650-616-0 01 1 1109-1302 ● ●
77 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) M6X16 FLANGE SOU 		0-28650-616-0 01 1 1303- ● ●
77 BOLT; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M6X20 FLANGE SOU 		0-28650-620-0 02 1 1004-1108 ●
77 BOLT; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M6X20 FLANGE SOU 		0-28650-620-0 02 1 1109-1302 ● ●
77 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M6X20 FLANGE SOU 		0-28650-620-0 02 1 1303- ● ●
77 BOLT; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) M6X20 W/LK&PL WASHER 		8-98081-175-0 03 1 1004-1108 ●
77 BOLT; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) M6X20 W/LK&PL WASHER 		8-98081-175-0 03 1 1109-1302 ● ●
77 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) M6X20 W/LK&PL WASHER 		8-98081-175-0 03 1 1303- ● ●
107 BOLT; STAY,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1004-1108 ●
107 BOLT; STAY,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1109-1302 ● ●
107 BOLT; STAY,HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1303- ● ●
123 SCREW; DUCT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1004-1108 ●
123 SCREW; DUCT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1109-1302 ● ●
123 SCREW; DUCT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1303- ● ●
173 DUCT; FOOT,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-97585-506-2 01 1 1004-1108 ●
173 DUCT; FOOT,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-97585-506-2 01 1 1109-1301 ● ●
173 DUCT; FOOT,HTR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-97585-506-2 01 1 1302- ● ●
173 DUCT; FOOT,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98036-922-2 01 1 1004-1108 ●
173 DUCT; FOOT,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98036-922-2 01 1 1109-1302 ● ●
173 DUCT; FOOT,HTR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98036-922-2 01 1 1303-1410 ● ●
173 DUCT; FOOT,HTR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98290-097-0 01 1 1411- ● ●
185 SCREW; VENT DUCT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 05 1 1004-1008 ●
185 SCREW; VENT DUCT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1009-1108 ●
185 SCREW; VENT DUCT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1109-1301 ● ●
185 SCREW; VENT DUCT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1302- ● ●
186 DUCT; VENTILATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-97585-489-4 01 1 1004-1108 ●
186 DUCT; VENTILATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-97585-489-4 01 1 1109-1301 ● ●
186 DUCT; VENTILATOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-97585-489-4 01 1 1302-1410 ● ●
186 DUCT; VENTILATOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-98285-574-0 01 1 1411- ● ●
186 DUCT; VENTILATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-98035-579-2 01 1 1004-1007 ●
186 DUCT; VENTILATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-98174-737-0 01 1 1008-1108 ●
186 DUCT; VENTILATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-98174-737-0 01 1 1109-1301 ● ●
186 DUCT; VENTILATOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-98174-737-0 01 1 1302-1410 ● ●
186 DUCT; VENTILATOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-98285-571-0 01 1 1411- ● ●
186 DUCT; VENTILATOR
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-98102-128-2 01 1 1004-1108 ●
186 DUCT; VENTILATOR
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-98102-128-2 01 1 1109-1211 ● ●
240 DUCT; AIR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98041-402-1 01 1 1004-1108 ●
240 DUCT; AIR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98041-402-1 01 1 1109-1302 ● ●
240 DUCT; AIR,HTR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98041-402-1 01 1 1303- ● ●
245 CLIP; FOOT DUCT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98056-059-0 03 1 1004-1108 ●
245 CLIP; FOOT DUCT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98056-059-0 03 1 1109-1301 ● ●
245 CLIP; FOOT DUCT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98056-059-0 03 1 1302-1410 ● ●
245 CLIP; FOOT DUCT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98056-059-0 04 1 1411- ● ●
277 NUT; HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6 FLANGE SOU 		0-91180-106-0 01 1 1004-1108 ●
277 NUT; HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6 FLANGE SOU 		0-91180-106-0 01 1 1109-1302 ● ●
277 NUT; HTR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6 FLANGE SOU 		0-91180-106-0 01 1 1303- ● ●
317 SCREW; DEFROSTER NOZZLE
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 06 1 1004-1108 ●
317 SCREW; DEFROSTER NOZZLE
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 06 1 1109- ● ●
317 SCREW; DEFROSTER NOZZLE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1004-1108 ●
317 SCREW; DEFROSTER NOZZLE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1109-1301 ● ●
317 SCREW; DEFROSTER NOZZLE
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1302- ● ●
471 NUT; BLOWER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6 FLANGE SOU 		0-91180-106-0 01 1 1004-1108 ●
471 NUT; BLOWER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6 FLANGE SOU 		0-91180-106-0 01 1 1109-1302 ● ●
471 NUT; BLOWER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6 FLANGE SOU 		0-91180-106-0 01 1 1303- ● ●
475 BRACKET; BLOWER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98043-500-1 01 1 1004-1108 ●
475 BRACKET; BLOWER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98043-500-1 01 1 1109-1302 ● ●
475 BRACKET; BLOWER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98043-500-1 01 1 1303- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
