Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#21873) — 201 parça

531 115 769

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
115	RELAY; POWER CAB TILT UNIT (B) 24V 10A PANASONIC	8-97173-035-1	01	1	1004-1108	●
115	RELAY; POWER CAB TILT UNIT (B) 24V 10A PANASONIC	8-97173-035-1	01	1	1109-	●	●
115	RELAY; POWER CAB TILT UNIT (A) 24V NIKKO	8-98005-631-1	01	1	1004-1108	●
115	RELAY; POWER CAB TILT UNIT (A) 24V NIKKO	8-98005-631-1	01	1	1109-	●	●
531	RELAY; MAIN 24V 30A MITSUBA	8-97238-540-0	01	1	1004-1108	●
531	RELAY; MAIN 24V 30A MITSUBA	8-97238-540-0	01	1	1109-1402	●	●
531	RELAY; MAIN 24V 30A MITSUBA	8-98259-779-0	01	1	1403-	●	●
761	HOLDER; BATTERY	8-98078-063-0	02	1	1004-1103	●
769	RELAY; TURBO CONT 24V 10A PANASONIC	8-97173-035-1	01	1	1004-1108	●
769	RELAY; TURBO CONT 24V 10A PANASONIC	8-97173-035-1	01	1	1109-	●	●

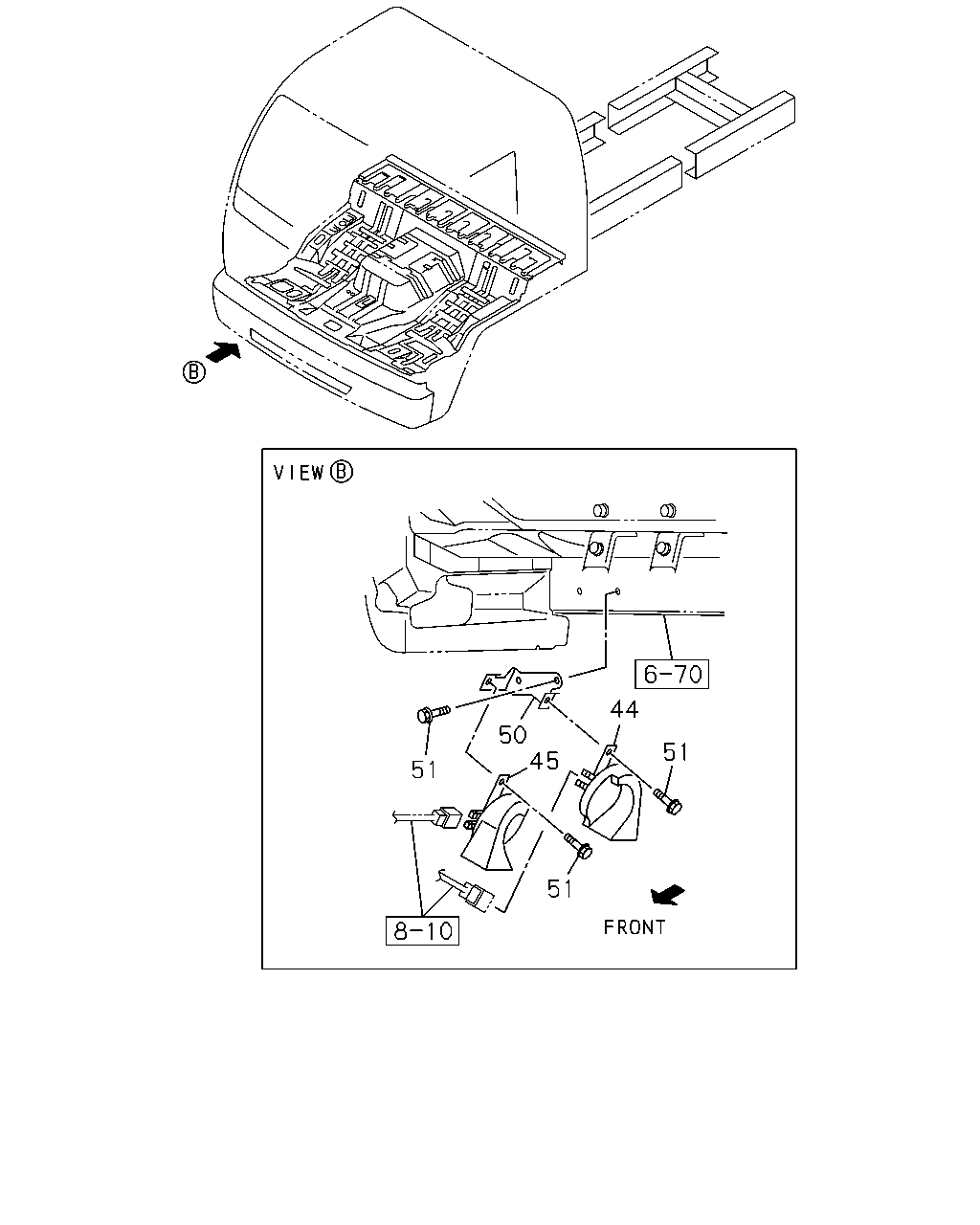

44 50 45 51 51 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
44	HORN; HIGH NOTE	8-97611-677-2	01	1	1004-1108	●
44	HORN; HIGH NOTE	8-97611-677-2	01	1	1109-	●	●
45	HORN; LOW NOTE	8-97611-676-2	01	1	1004-1108	●
45	HORN; LOW NOTE	8-97611-676-2	01	1	1109-	●	●
50	BRACKET; HORN	8-97613-300-2	01	1	1004-1108	●
50	BRACKET; HORN	8-97613-300-2	01	1	1109-	●	●
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER SOU	8-97086-825-0	04	1	1004-1108	●
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER SOU	8-97086-825-0	04	1	1109-	●	●
761	HOLDER; BATTERY	8-98078-063-0	02	1	1004-1103	●

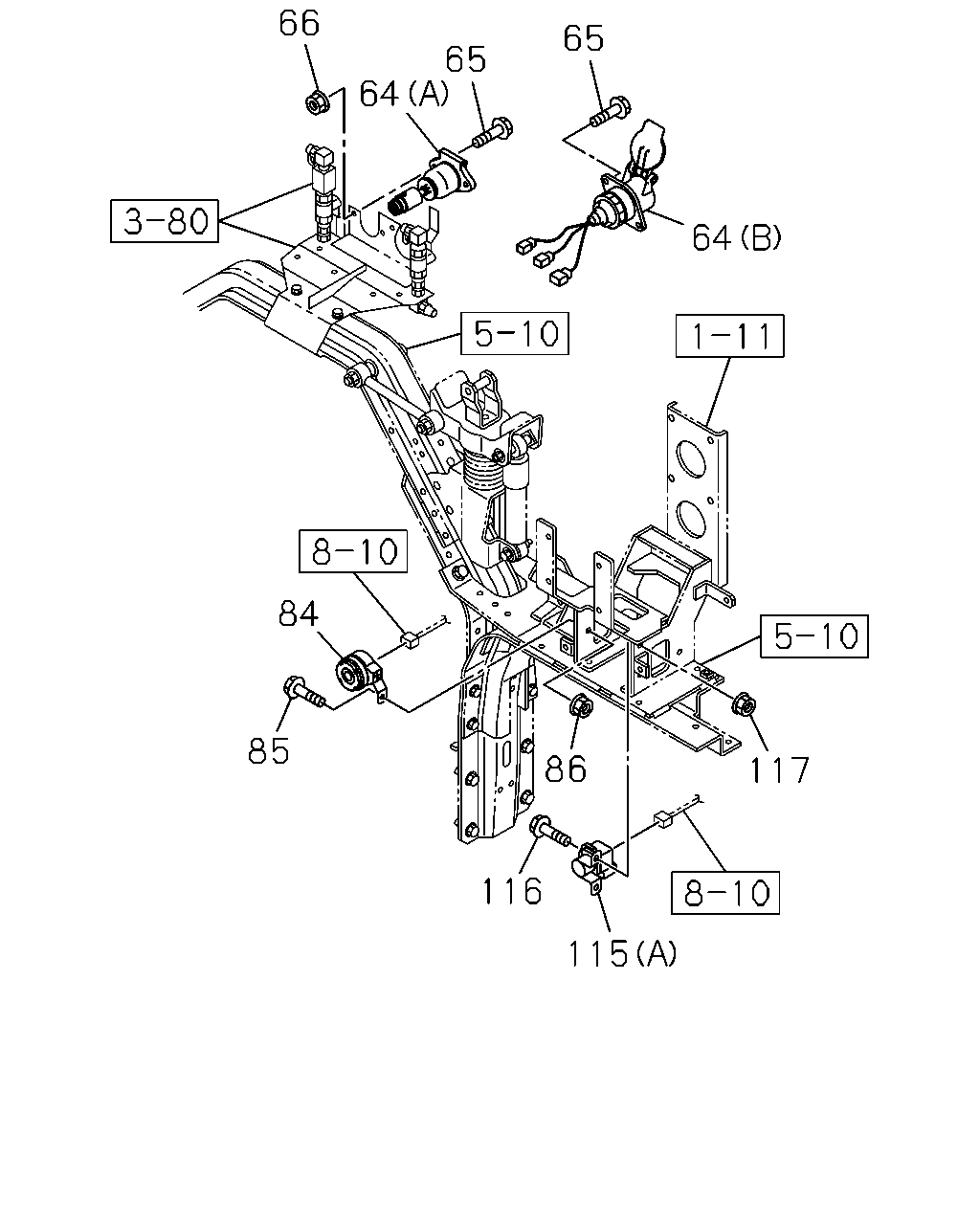

66 65 65 64 64 84 85 86 117 116 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
64	SOCKET; TRAILER ANTILOCK BRAKE SYSTEM(BFA) (B) L=860	8-98172-008-0	01	1	1109-		●
64	SOCKET; TRAILER (A) 7P	1-82523-014-0	01	1	1109-		●
65	BOLT; SOCKET FIX M8X25 FLANGE SOU	0-28650-825-0	02	1	1109-		●
65	BOLT; SOCKET FIX ANTILOCK BRAKE SYSTEM(BFA) M8X25 FLANGE SOU	0-28650-825-0	02	1	1109-		●
66	NUT; SOCKET FIX M8 FLANGE SOU	0-91180-108-0	02	1	1109-		●
66	NUT; SOCKET FIX ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE SOU	0-91180-108-0	02	1	1109-		●
84	BUZZER; POWER CAB TILT METRO DENSO	8-98069-860-0	01	1	1004-1108	●
84	BUZZER; POWER CAB TILT METRO DENSO	8-98069-860-0	01	1	1109-	●	●
85	BOLT; BUZZER,POWER CAB TILT M8X20 FLANGE	0-28650-820-0	01	1	1004-1108	●
85	BOLT; BUZZER,POWER CAB TILT M8X20 FLANGE	0-28650-820-0	01	1	1109-	●	●
86	NUT; BUZZER M8 FLANGE SOU	0-91180-108-0	01	1	1004-1108	●
86	NUT; BUZZER M8 FLANGE SOU	0-91180-108-0	01	1	1109-	●	●
115	RELAY; POWER CAB TILT UNIT (B) 24V 10A PANASONIC	8-97173-035-1	01	1	1004-1108	●
115	RELAY; POWER CAB TILT UNIT (B) 24V 10A PANASONIC	8-97173-035-1	01	1	1109-	●	●
115	RELAY; POWER CAB TILT UNIT (A) 24V NIKKO	8-98005-631-1	01	1	1004-1108	●
115	RELAY; POWER CAB TILT UNIT (A) 24V NIKKO	8-98005-631-1	01	1	1109-	●	●
116	BOLT; RELAY FIX M8X20 FLANGE	0-28650-820-0	02	1	1004-1108	●
116	BOLT; RELAY FIX M8X20 FLANGE	0-28650-820-0	02	1	1109-1308	●	●
116	BOLT; RELAY FIX M8X25 FLANGE SOU	0-28650-825-0	02	1	1309-	●	●
117	NUT; RELAY FIX M8 FLANGE SOU	0-91180-108-0	02	1	1004-1108	●
117	NUT; RELAY FIX M8 FLANGE SOU	0-91180-108-0	02	1	1109-	●	●
761	HOLDER; BATTERY	8-98078-063-0	02	1	1004-1103	●

89 89 261 90 34 34 39 33 261 34 34 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
33	VALVE; MAG,PTO CONT PTO ZF TRANS RR(BDM),PTO TRANSMISSION SIDE(V66) SOU	1-82563-871-2	01	1	1109-	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM),PTO TRANSMISSION SIDE(V66) (C) PT1/4 & PT1/4 2WAY SOU	1-09660-693-0	01	1	1109-	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM),PTO TRANSMISSION SIDE(V66) (D) DIN8X2 & R1/4 3WAY SOU	1-09661-006-0	01	1	1109-	●
34	CONNECTOR; MAG VLV,INL PORT (E) DIN8 & R1/4 ELBOW SOU	1-09660-956-0	02	1	1109-	●	●
34	CONNECTOR; MAG VLV,INL PORT (F) M12 & PT1/4 STRAIGHT SOU	1-09650-074-1	02	1	1109-1206		●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (F) M12 & PT1/4 STRAIGHT SOU	1-09650-074-1	02	1	1207-		●
34	CONNECTOR; MAG VLV,INL PORT (G) R1/4 & RC1/4	1-09664-211-0	02	1	1109-1206		●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (G) R1/4 & RC1/4	1-09664-211-0	02	1	1207-		●
34	CONNECTOR; MAG VLV,INL PORT (B) DIN8 & R1/4 ELBOW SOU	1-09660-956-0	02	1	1004-1108	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM),PTO TRANSMISSION SIDE(V66) (B) DIN8 & R1/4 ELBOW SOU	1-09660-956-0	01	1	1109-1206	●
34	CONNECTOR; MAG VLV,INL PORT (B) DIN8 & R1/4 ELBOW SOU	1-09660-956-0	01	1	1109-1206		●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM),PTO TRANSMISSION SIDE(V66) (B) DIN8 & R1/4 ELBOW SOU	1-09660-956-0	01	1	1207-	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (B) DIN8 & R1/4 ELBOW SOU	1-09660-956-0	01	1	1207-		●
34	CONNECTOR; MAG VLV,INL PORT (A) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	1004-1108	●
34	CONNECTOR; MAG VLV,INL PORT (A) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	1109-	●	●
39	BOLT; BRKT,MAG VLV PTO ZF TRANS RR(BDM),PTO TRANSMISSION SIDE(V66) M8X25 FLANGE SOU	0-28650-825-0	02	1	1109-	●
89	VALVE; MAG,DIFF LOCK (C) ANODIZING SOU	8-97641-594-0	01	1	1206-	●	●
89	VALVE; MAG,DIFF LOCK (B)	1-82563-872-1	01	1	1109-1206		●
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER<RE2> (B)	1-82563-872-1	01	1	1207-		●
89	VALVE; MAG,DIFF LOCK (A) SOU	1-82563-871-2	01	1	1004-1108	●
89	VALVE; MAG,DIFF LOCK (A) SOU	1-82563-871-2	01	1	1109-1205	●	●
89	VALVE; MAG,DIFF LOCK (A) SOU	1-82563-871-2	01	1	1109-1205		●
89	VALVE; MAG,DIFF LOCK (A) SOU	1-82563-871-2	01	1	1206-1206		●
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER<RE2> (A) SOU	1-82563-871-2	01	1	1207-		●
89	VALVE; MAG,DIFF LOCK (A) SOU	1-82563-871-2	03	1	1004-1108	●
89	VALVE; MAG,DIFF LOCK (A) SOU	1-82563-871-2	03	1	1109-	●	●
90	BOLT; MAG VLV M8X25 FLANGE SOU	0-28650-825-0	02	1	1004-1108	●
90	BOLT; MAG VLV M8X25 FLANGE SOU	0-28650-825-0	02	1	1109-	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1004-1108	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1004-1108	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1109-1206	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1109-1206	●	●
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM),PTO TRANSMISSION SIDE(V66) PT1/4	9-99204-513-0	01	1	1109-1206	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1109-1206		●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1207-	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1207-	●	●
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM),PTO TRANSMISSION SIDE(V66) PT1/4	9-99204-513-0	01	1	1207-	●
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER<RE2> PT1/4	9-99204-513-0	01	1	1207-		●
761	HOLDER; BATTERY	8-98078-063-0	02	1	1004-1103	●

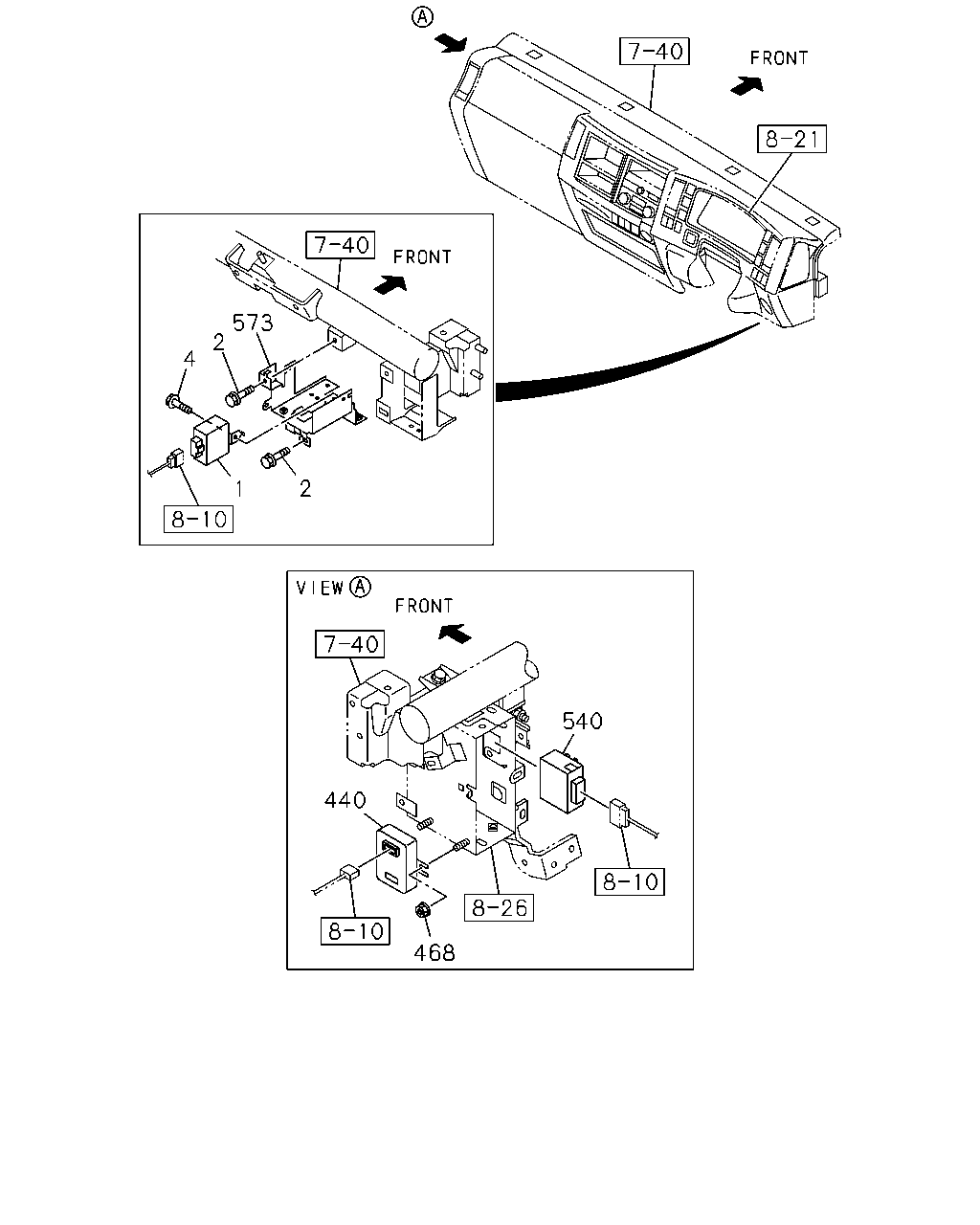

573 2 4 2 1 540 440 468

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	UNIT; FLASHER	8-97613-970-1	01	1	1109-		●
1	UNIT; FLASHER	8-98025-533-1	01	1	1004-	●
2	BOLT; FLASHER UNIT M6X16 FLANGE SOU	0-28650-616-0	02	1	1004-1108	●
2	BOLT; FLASHER UNIT M6X16 FLANGE SOU	0-28650-616-0	02	1	1109-	●	●
4	SCREW; FLASHER UNIT M6X16 FLANGE SOU	0-28650-616-0	01	1	1004-1108	●
4	SCREW; FLASHER UNIT M6X16 FLANGE SOU	0-28650-616-0	01	1	1109-	●	●
440	MODULE; INFORMATION,ABS ANTILOCK BRAKE SYSTEM(BFA)	1-81510-701-0	01	1	1109-		●
468	NUT; MODULE ANTILOCK BRAKE SYSTEM(BFA) M6 FLANGE SOU	0-91180-106-0	02	1	1109-		●
540	RELAY; WIPER INTERVAL	8-98060-388-0	01	1	1004-1108	●
540	RELAY; WIPER INTERVAL	8-98060-388-0	01	1	1109-1308	●	●
540	RELAY; WIPER INTERVAL	8-98233-976-0	01	1	1309-	●	●
573	BRACKET; FLASHER UNIT	8-97609-984-5	01	1	1004-1108	●
573	BRACKET; FLASHER UNIT	8-97609-984-5	01	1	1109-	●	●
761	HOLDER; BATTERY	8-98078-063-0	02	1	1004-1103	●

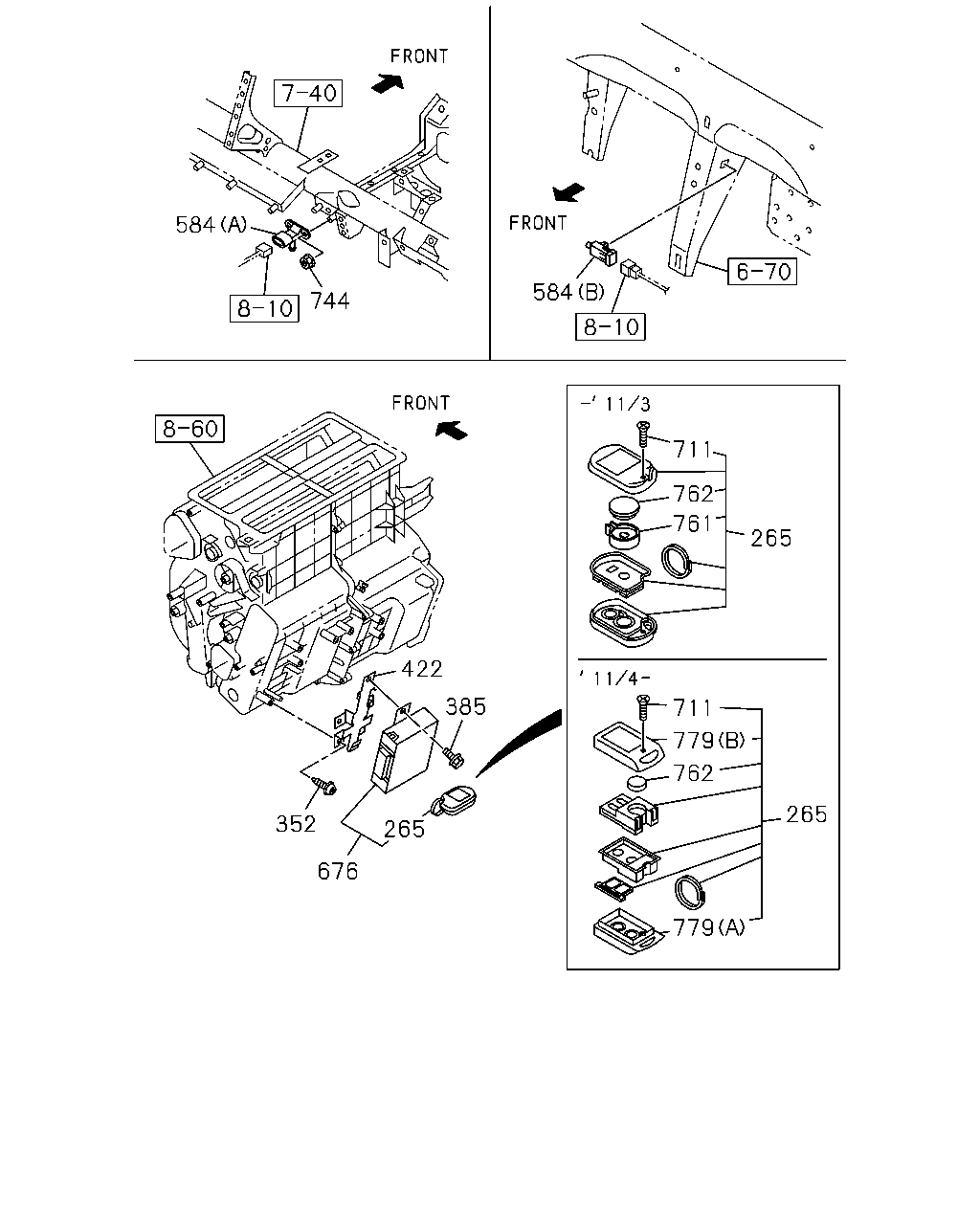

584 744 584 711 762 762 265 711 779 762 265 779 676 352 265 385 422

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
265	TRANSMITTER ASM; AUTO DOOR LOCK	8-98048-459-1	02	1	1004-1103	●
265	TRANSMITTER ASM; AUTO DOOR LOCK	8-98180-751-0	02	1	1104-1108	●
265	TRANSMITTER ASM; AUTO DOOR LOCK	8-98180-751-0	02	1	1109-1205	●	●
265	TRANSMITTER ASM; AUTO DOOR LOCK	8-98218-236-0	02	1	1206-	●	●
352	SCREW; BRKT M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1004-1108	●
352	SCREW; BRKT M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1109-	●	●
385	BOLT; CONT UNIT M6X12 W/LK&PL WASHER	0-52000-612-0	01	1	1004-1108	●
385	BOLT; CONT UNIT M6X12 W/LK&PL WASHER	0-52000-612-0	01	1	1109-	●	●
422	BRACKET; CONT UNIT	8-98055-281-1	01	1	1004-1108	●
422	BRACKET; CONT UNIT	8-98055-281-1	01	1	1109-	●	●
584	SENSOR; PRESSURE (B)	8-97177-549-0	01	1	1004-1108	●
584	SENSOR; PRESSURE (B)	8-97177-549-0	01	1	1109-1204	●	●
584	SENSOR; PRESSURE (B)	8-98214-375-0	01	1	1205-	●	●
584	SENSOR; PRESSURE (A)	8-98020-514-0	01	1	1004-1108	●
584	SENSOR; PRESSURE (A)	8-98020-514-0	01	1	1109-	●	●
676	CONTROL UNIT; KEYLESS ENTRY	8-98017-258-1	01	1	1004-1103	●
676	CONTROL UNIT; KEYLESS ENTRY	8-98181-809-0	01	1	1104-1108	●
676	CONTROL UNIT; KEYLESS ENTRY	8-98181-809-0	01	1	1109-1205	●	●
676	CONTROL UNIT; KEYLESS ENTRY	8-98218-231-0	01	1	1206-	●	●
711	SCREW; TRANSMITTER M2X5	8-98078-067-0	02	1	1004-1108	●
711	SCREW; TRANSMITTER M2X5	8-98078-067-0	02	1	1109-1205	●	●
711	SCREW; TRANSMITTER M2X5	8-98218-239-0	02	1	1206-	●	●
744	NUT; SENSOR M6 FLANGE SOU	0-91180-106-0	02	1	1004-1108	●
744	NUT; SENSOR M6 FLANGE SOU	0-91180-106-0	02	1	1109-	●	●
761	HOLDER; BATTERY	8-98078-063-0	02	1	1004-1103	●
762	BATTERY	8-98078-061-0	02	1	1004-1108	●
762	BATTERY	8-98078-061-0	02	1	1109-	●	●
779	COVER; TRANSMITTER (A)	8-98218-240-0	02	1	1206-	●	●
779	COVER; TRANSMITTER (B)	8-98218-243-0	02	1	1206-	●	●

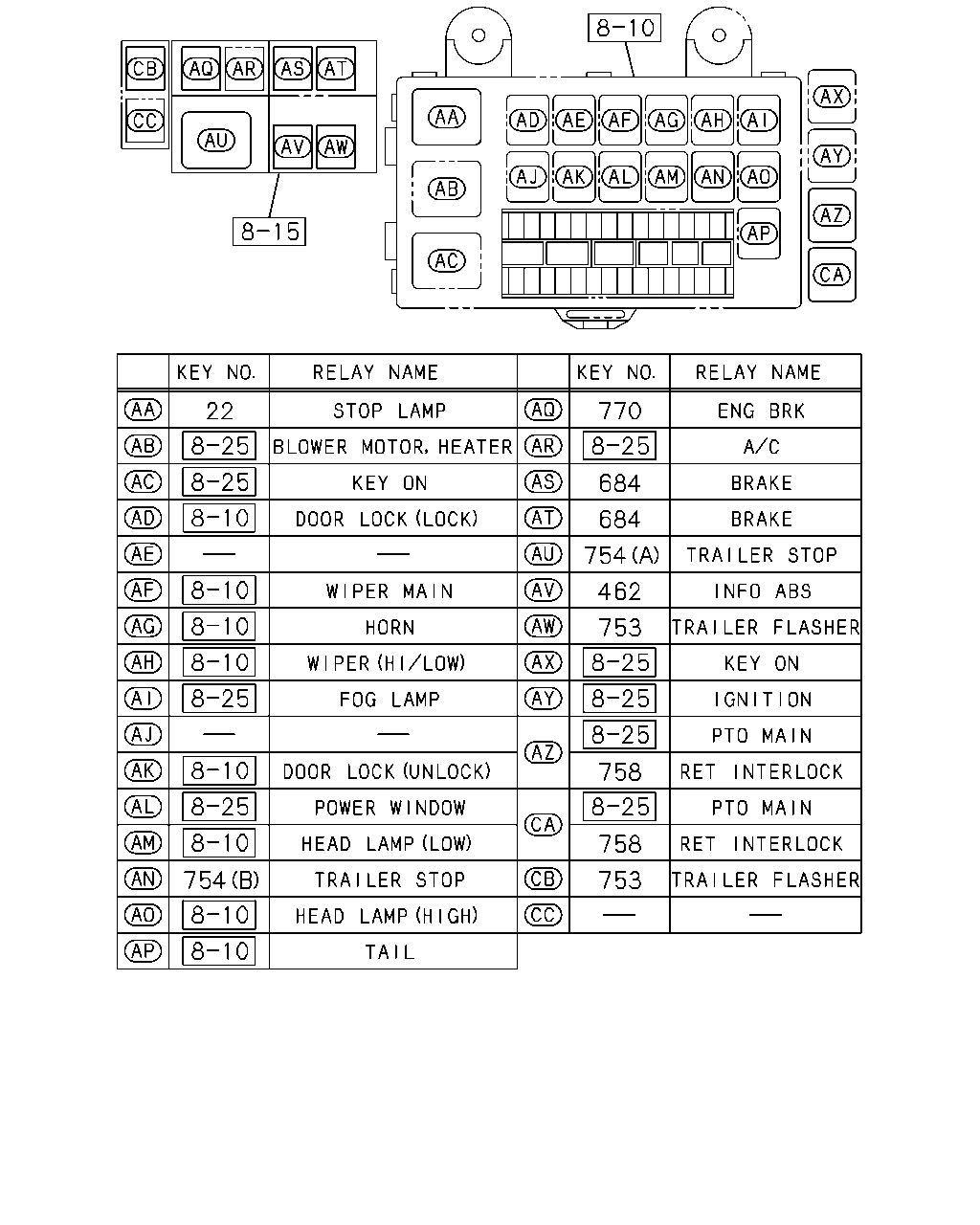

22 754 758 753 753 462 754 684 684 770 758

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	RELAY; STOP LAMP 24V 12.5A PANASONIC SOU	8-97262-933-0	01	1	1004-1108	●
22	RELAY; STOP LAMP 24V 12.5A PANASONIC SOU	8-97262-933-0	01	1	1109-	●	●
462	RELAY; INFORMATION,ABS ANTILOCK BRAKE SYSTEM(BFA) 24V 10A PANASONIC	8-97173-035-1	01	1	1109-		●
684	RELAY; BRAKE ANTILOCK BRAKE SYSTEM(BFA) 24V 10A PANASONIC	8-97173-035-1	02	1	1004-1108	●
684	RELAY; BRAKE ANTILOCK BRAKE SYSTEM(BFA) 24V 10A PANASONIC	8-97173-035-1	02	1	1109-	●	●
753	RELAY; TRAILER FLASHER 24V 10A PANASONIC	8-97173-035-1	02	1	1109-		●
754	RELAY; TRAILER STOP (A) 24V 12.5A PANASONIC SOU	8-97262-933-0	01	1	1109-		●
754	RELAY; TRAILER STOP EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) 24V 10A PANASONIC	8-97173-035-1	01	1	1109-		●
758	RELAY; RETARDER INTERLOCK 24V 10A PANASONIC	8-97173-035-1	02	1	1109-1206		●
758	RELAY; RETARDER INTERLOCK BRAKE SYSTEM RETARDER<RE2> 24V 10A PANASONIC	8-97173-035-1	02	1	1207-		●
761	HOLDER; BATTERY	8-98078-063-0	02	1	1004-1103	●
770	RELAY; ENG BRK 24V 10A PANASONIC	8-97173-035-1	01	1	1004-1108	●
770	RELAY; ENG BRK 24V 10A PANASONIC	8-97173-035-1	01	1	1109-	●	●

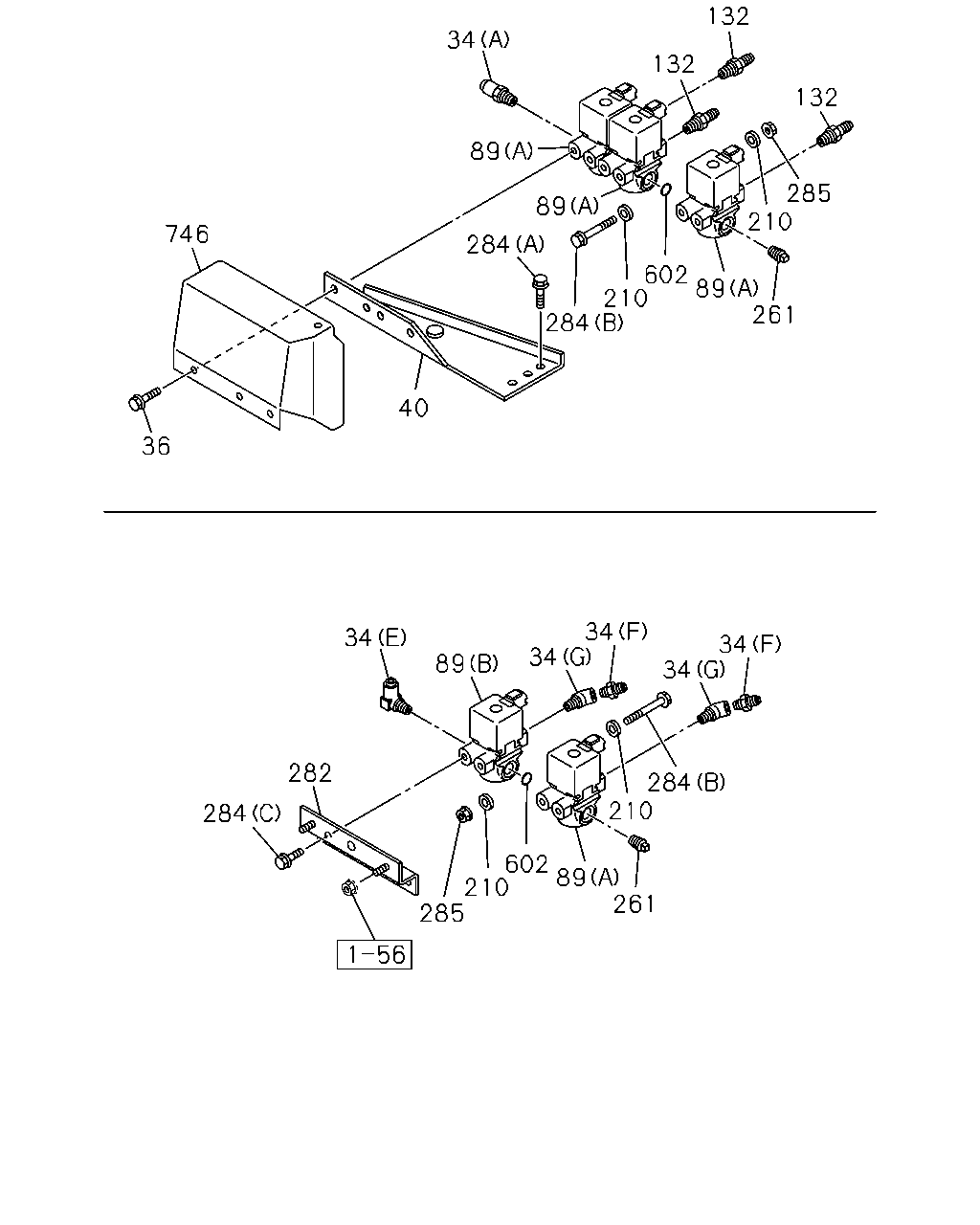

34 132 132 132 89 285 210 89 284 602 89 261 284 746 40 36 34 89 34 34 34 34 282 284 284 210 602 89 261 210 285 210

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM),PTO TRANSMISSION SIDE(V66) (C) PT1/4 & PT1/4 2WAY SOU	1-09660-693-0	01	1	1109-	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM),PTO TRANSMISSION SIDE(V66) (D) DIN8X2 & R1/4 3WAY SOU	1-09661-006-0	01	1	1109-	●
34	CONNECTOR; MAG VLV,INL PORT (E) DIN8 & R1/4 ELBOW SOU	1-09660-956-0	02	1	1109-	●	●
34	CONNECTOR; MAG VLV,INL PORT (F) M12 & PT1/4 STRAIGHT SOU	1-09650-074-1	02	1	1109-1206		●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (F) M12 & PT1/4 STRAIGHT SOU	1-09650-074-1	02	1	1207-		●
34	CONNECTOR; MAG VLV,INL PORT (G) R1/4 & RC1/4	1-09664-211-0	02	1	1109-1206		●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (G) R1/4 & RC1/4	1-09664-211-0	02	1	1207-		●
34	CONNECTOR; MAG VLV,INL PORT (B) DIN8 & R1/4 ELBOW SOU	1-09660-956-0	02	1	1004-1108	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM),PTO TRANSMISSION SIDE(V66) (B) DIN8 & R1/4 ELBOW SOU	1-09660-956-0	01	1	1109-1206	●
34	CONNECTOR; MAG VLV,INL PORT (B) DIN8 & R1/4 ELBOW SOU	1-09660-956-0	01	1	1109-1206		●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM),PTO TRANSMISSION SIDE(V66) (B) DIN8 & R1/4 ELBOW SOU	1-09660-956-0	01	1	1207-	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (B) DIN8 & R1/4 ELBOW SOU	1-09660-956-0	01	1	1207-		●
34	CONNECTOR; MAG VLV,INL PORT (A) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	1004-1108	●
34	CONNECTOR; MAG VLV,INL PORT (A) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	1109-	●	●
36	BOLT; MAG VLV,PTO CONT M8X20 FLANGE	0-28650-820-0	04	1	1004-1108	●
36	BOLT; MAG VLV,PTO CONT M8X20 FLANGE	0-28650-820-0	04	1	1109-	●	●
40	BRACKET; MAG VLV	8-98100-335-0	01	1	1004-1108	●
40	BRACKET; MAG VLV	8-98100-335-0	01	1	1109-	●	●
89	VALVE; MAG,DIFF LOCK (C) ANODIZING SOU	8-97641-594-0	01	1	1206-	●	●
89	VALVE; MAG,DIFF LOCK (B)	1-82563-872-1	01	1	1109-1206		●
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER<RE2> (B)	1-82563-872-1	01	1	1207-		●
89	VALVE; MAG,DIFF LOCK (A) SOU	1-82563-871-2	01	1	1004-1108	●
89	VALVE; MAG,DIFF LOCK (A) SOU	1-82563-871-2	01	1	1109-1205	●	●
89	VALVE; MAG,DIFF LOCK (A) SOU	1-82563-871-2	01	1	1109-1205		●
89	VALVE; MAG,DIFF LOCK (A) SOU	1-82563-871-2	01	1	1206-1206		●
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER<RE2> (A) SOU	1-82563-871-2	01	1	1207-		●
89	VALVE; MAG,DIFF LOCK (A) SOU	1-82563-871-2	03	1	1004-1108	●
89	VALVE; MAG,DIFF LOCK (A) SOU	1-82563-871-2	03	1	1109-	●	●
132	CONNECTOR; OUTLET,MAG VLV M12 & PT1/4 STRAIGHT SOU	1-09650-074-1	03	1	1004-1108	●
132	CONNECTOR; OUTLET,MAG VLV M12 & PT1/4 STRAIGHT SOU	1-09650-074-1	03	1	1109-	●	●
210	WASHER; PL,BRKT SOU	1-82569-266-0	02	1	1109-1206		●
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER<RE2> SOU	1-82569-266-0	02	1	1207-		●
210	WASHER; PL,BRKT SOU	1-82569-266-0	04	1	1004-1108	●
210	WASHER; PL,BRKT SOU	1-82569-266-0	04	1	1109-	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1004-1108	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1004-1108	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1109-1206	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1109-1206	●	●
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM),PTO TRANSMISSION SIDE(V66) PT1/4	9-99204-513-0	01	1	1109-1206	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1109-1206		●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1207-	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1207-	●	●
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM),PTO TRANSMISSION SIDE(V66) PT1/4	9-99204-513-0	01	1	1207-	●
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER<RE2> PT1/4	9-99204-513-0	01	1	1207-		●
282	BRACKET; MAG VLV	1-82569-358-0	01	1	1109-1206		●
282	BRACKET; MAG VLV BRAKE SYSTEM RETARDER<RE2>	1-82569-358-0	01	1	1207-		●
284	BOLT; MAG VLV (B) M6X50 FLANGE SOU	0-28050-650-0	01	1	1109-1206		●
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER<RE2> (B) M6X50 FLANGE SOU	0-28050-650-0	01	1	1207-		●
284	BOLT; MAG VLV (C) M8X20 FLANGE	0-28650-820-0	02	1	1109-1206		●
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER<RE2> (C) M8X20 FLANGE	0-28650-820-0	02	1	1207-		●
284	BOLT; MAG VLV (B) M6X50 FLANGE SOU	0-28050-650-0	02	1	1004-1108	●
284	BOLT; MAG VLV (B) M6X50 FLANGE SOU	0-28050-650-0	02	1	1109-	●	●
284	BOLT; MAG VLV (A) M8X30 FLANGE	0-28650-830-0	02	1	1004-1108	●
284	BOLT; MAG VLV (A) M8X30 FLANGE	0-28650-830-0	02	1	1109-	●	●
285	NUT; MAG VLV M6 FLANGE SOU	0-91180-106-0	01	1	1109-1206		●
285	NUT; MAG VLV BRAKE SYSTEM RETARDER<RE2> M6 FLANGE SOU	0-91180-106-0	01	1	1207-		●
285	NUT; MAG VLV M6 FLANGE SOU	0-91180-106-0	02	1	1004-1108	●
285	NUT; MAG VLV M6 FLANGE SOU	0-91180-106-0	02	1	1109-	●	●
602	GASKET; MAG VLV ID=16.8 SOU	9-09565-117-0	01	1	1109-1206		●
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER<RE2> ID=16.8 SOU	9-09565-117-0	01	1	1207-		●
602	GASKET; MAG VLV ID=16.8 SOU	9-09565-117-0	02	1	1004-1108	●
602	GASKET; MAG VLV ID=16.8 SOU	9-09565-117-0	02	1	1109-	●	●
746	COVER; NOISE,MAG VLV	8-98096-340-0	01	1	1004-1108	●
746	COVER; NOISE,MAG VLV	8-98096-340-0	01	1	1109-	●	●
761	HOLDER; BATTERY	8-98078-063-0	02	1	1004-1103	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
