◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11197 - FXZ SOUTH AFRICA ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#21870) — 128 parça

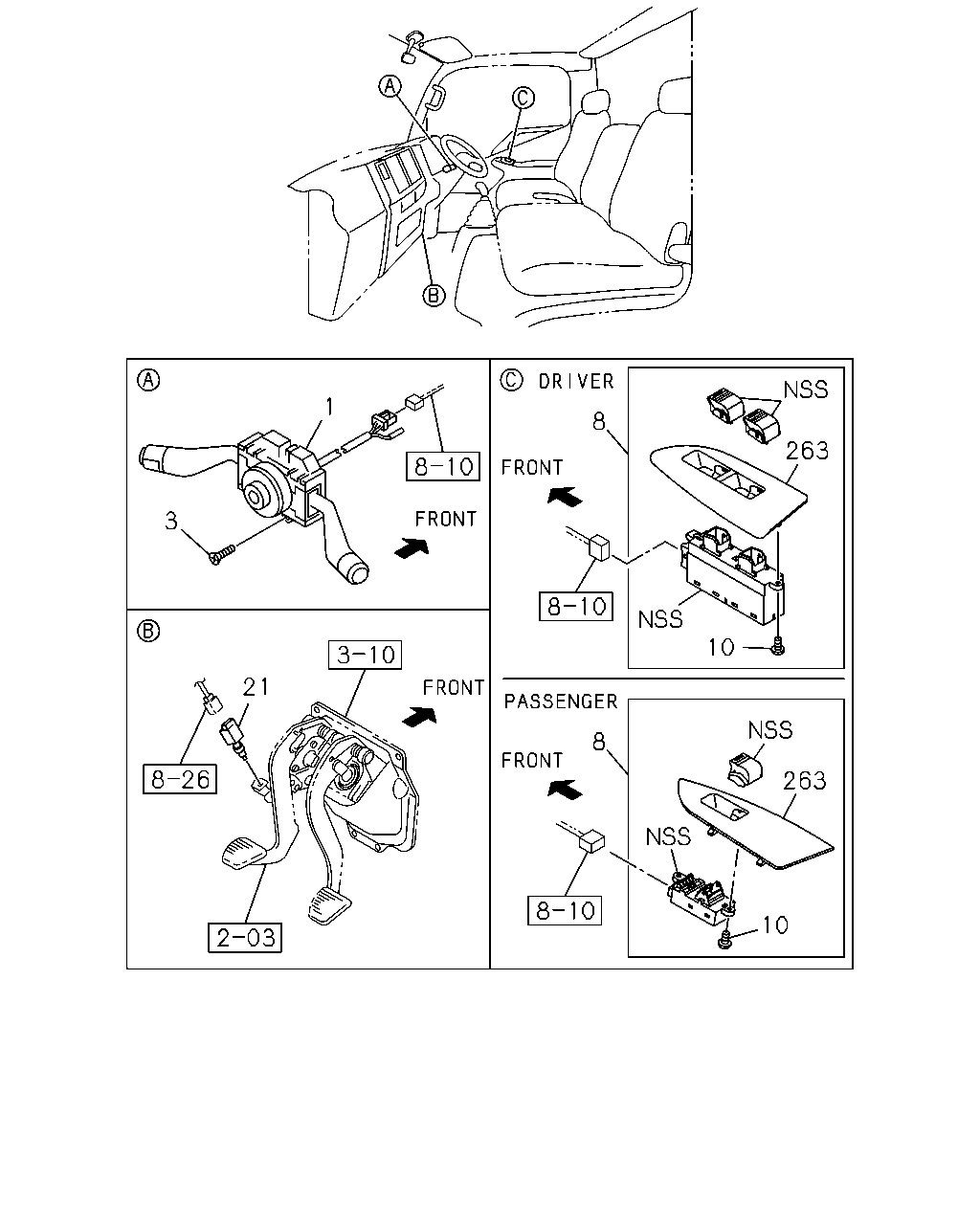

çizim 129399
1 8 263 3 10 21 8 263 10
BalonParca AdiParca NoAdetTipApplied Date A B
1 SWITCH; COMB 8-98183-675-0 01 1 1109-1206 ●
1 SWITCH; COMB
BRAKE SYSTEM RETARDER<RE2> 		8-98183-675-0 01 1 1207-1210 ●
1 SWITCH; COMB
BRAKE SYSTEM RETARDER<RE2> 		8-98217-824-0 01 1 1211-1310 ●
1 SWITCH; COMB
BRAKE SYSTEM RETARDER<RE2> 		8-98243-693-0 01 1 1311- ●
1 SWITCH; COMB 8-98146-618-0 01 1 1004-1206 ●
1 SWITCH; COMB 8-98146-618-0 01 1 1207-1210 ●
1 SWITCH; COMB
EXC. BRAKE SYSTEM RETARDER<RE2> 		8-98146-618-0 01 1 1207-1210 ●
1 SWITCH; COMB 8-98217-820-0 01 1 1211-1310 ●
1 SWITCH; COMB
EXC. BRAKE SYSTEM RETARDER<RE2> 		8-98217-820-0 01 1 1211-1310 ●
1 SWITCH; COMB 8-98243-691-0 01 1 1311- ●
1 SWITCH; COMB
EXC. BRAKE SYSTEM RETARDER<RE2> 		8-98243-691-0 01 1 1311- ●
3 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 1004-1108 ●
3 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 1109- ● ●
8 SWITCH; POWER WINDOW
PASSENGER 		8-97387-034-2 01 1 1004-1108 ●
8 SWITCH; POWER WINDOW
PASSENGER 		8-97387-034-2 01 1 1109-1509 ● ●
8 SWITCH; POWER WINDOW
DRIVER 		8-98298-750-0 01 1 1510- ● ●
8 SWITCH; POWER WINDOW
DRIVER 		8-98159-543-0 01 1 1004-1108 ●
8 SWITCH; POWER WINDOW
DRIVER 		8-98159-543-0 01 1 1109-1509 ● ●
8 SWITCH; POWER WINDOW
PASSENGER 		8-98316-415-0 01 1 1510- ● ●
10 SCREW; POWER WINDOW SW 8-98153-865-0 03 1 1004-1108 ●
10 SCREW; POWER WINDOW SW 8-98153-865-0 03 1 1109- ● ●
21 SWITCH; CLU
PTO ZF TRANS RR(BDM),PTO TRANSMISSION SIDE(V66) 		8-94337-761-0 01 1 1109- ●
21 SWITCH; CLU 8-97358-248-0 01 1 1004-1108 ●
21 SWITCH; CLU
EXC. PTO ZF TRANS RR(BDM),PTO TRANSMISSION SIDE(V66) 		8-97358-248-0 01 1 1109- ●
21 SWITCH; CLU 8-97358-248-0 01 1 1109- ●
263 COVER; SW
DRIVER 		8-98153-836-0 01 1 1004-1108 ●
263 COVER; SW
DRIVER 		8-98153-836-0 01 1 1109- ● ●
263 COVER; SW
PASSENGER 		8-98153-841-0 01 1 1004-1108 ●
263 COVER; SW
PASSENGER 		8-98153-841-0 01 1 1109- ● ●

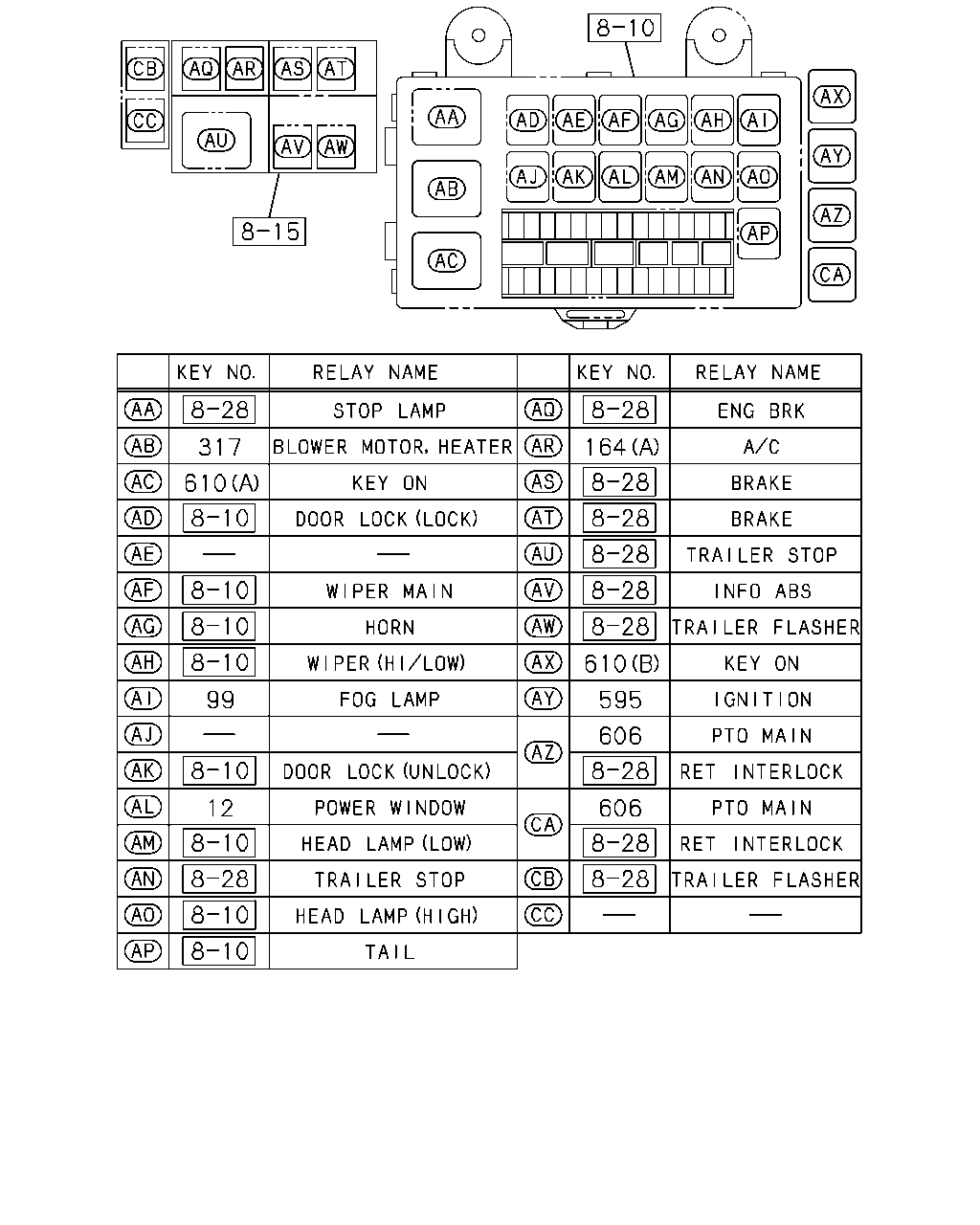

çizim 129407
317 610 99 12 606 606 595 610 164
BalonParca AdiParca NoAdetTipApplied Date A B
12 RELAY; POWER WINDOW
24V 10A PANASONIC 		8-97173-035-1 01 1 1004-1108 ●
12 RELAY; POWER WINDOW
24V 10A PANASONIC 		8-97173-035-1 01 1 1109- ● ●
99 RELAY; FOG LAMP
FOG LAMP<T96> 24V 10A PANASONIC 		8-97173-035-1 01 1 1004-1108 ●
99 RELAY; FOG LAMP
FOG LAMP<T96> 24V 10A PANASONIC 		8-97173-035-1 01 1 1109- ● ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 24V 10A PANASONIC 		8-97173-035-1 01 1 1004-1108 ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 24V 10A PANASONIC 		8-97173-035-1 01 1 1109- ● ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 24V 12.5A PANASONIC SOU 		8-97262-933-0 01 1 1004-1108 ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 24V 12.5A PANASONIC SOU 		8-97262-933-0 01 1 1109- ● ●
317 RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 24V 12.5A PANASONIC SOU 		8-97262-933-0 01 1 1004-1108 ●
317 RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 24V 12.5A PANASONIC SOU 		8-97262-933-0 01 1 1109-1302 ● ●
317 RELAY; BLOWER MOTOR,HTR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 24V 12.5A PANASONIC SOU 		8-97262-933-0 01 1 1303- ● ●
595 RELAY; IGNITION
VIN MODEL YEAR 2011<VZB> 24V 10A PANASONIC 		8-97173-035-1 01 1 1208- ●
595 RELAY; IGNITION
24V 10A PANASONIC 		8-97173-035-1 01 1 1208- ●
606 RELAY; PTO MAIN
PTO ZF TRANS RR(BDM),PTO TRANSMISSION SIDE(V66) 24V 10A PANASONIC 		8-97173-035-1 02 1 1109- ●
610 RELAY; KEY ON
VIN MODEL YEAR 2011<VZB> (B) 24V 10A PANASONIC 		8-97173-035-1 01 1 1208- ●
610 RELAY; KEY ON
(B) 24V 10A PANASONIC 		8-97173-035-1 01 1 1208- ●
610 RELAY; KEY ON
(A) 24V 12.5A PANASONIC SOU 		8-97262-933-0 01 1 1004-1108 ●
610 RELAY; KEY ON
(A) 24V 12.5A PANASONIC SOU 		8-97262-933-0 01 1 1109- ● ●
çizim 129409
164
BalonParca AdiParca NoAdetTipApplied Date A B
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 24V 10A PANASONIC 		8-97173-035-1 01 1 1004-1108 ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 24V 10A PANASONIC 		8-97173-035-1 01 1 1109- ● ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 24V 12.5A PANASONIC SOU 		8-97262-933-0 01 1 1004-1108 ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 24V 12.5A PANASONIC SOU 		8-97262-933-0 01 1 1109- ● ●

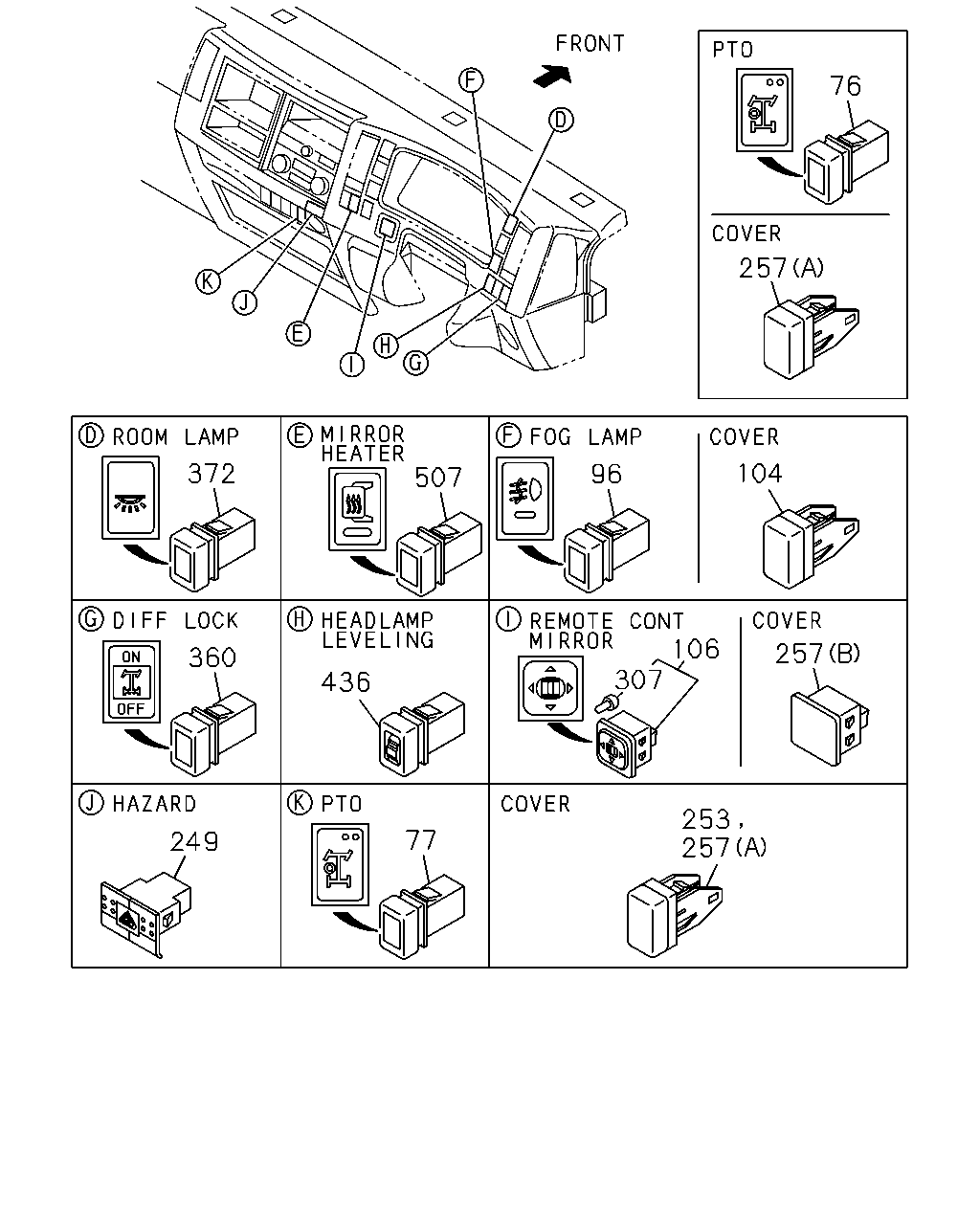

çizim 129410
76 257 507 372 104 96 106 257 360 307 436 253 257 77 249
BalonParca AdiParca NoAdetTipApplied Date A B
76 SWITCH ASM; PTO 8-97386-993-4 01 1 1005-1108 ●
76 SWITCH ASM; PTO 8-97386-993-4 01 1 1109- ● ●
77 SWITCH; PTO
PTO ZF TRANS RR(BDM),PTO TRANSMISSION SIDE(V66) 		8-97615-488-2 01 1 1109- ●
96 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97387-031-4 01 1 1004-1108 ●
96 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97387-031-4 01 1 1109- ● ●
104 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 		8-98025-954-1 01 1 1004-1108 ●
104 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 		8-98025-954-1 01 1 1109- ● ●
106 SWITCH; REMOTE CONT MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-97173-294-1 01 1 1004-1108 ●
106 SWITCH; REMOTE CONT MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-97173-294-1 01 1 1109- ● ●
249 SWITCH; HAZARD 8-97386-922-1 01 1 1004-1108 ●
249 SWITCH; HAZARD 8-97386-922-1 01 1 1109- ● ●
253 COVER; SW HOLE 8-98025-954-1 01 1 1004-1108 ●
253 COVER; SW HOLE 8-98025-954-1 01 1 1109- ● ●
253 COVER; SW HOLE 8-98025-954-1 02 1 1004-1108 ●
253 COVER; SW HOLE 8-98025-954-1 02 1 1109- ● ●
257 COVER; HOLE,SW
(A) 		8-98025-954-1 04 1 1004-1101 ●
257 COVER; HOLE,SW
(A) 		8-98025-954-1 03 1 1102-1108 ●
257 COVER; HOLE,SW
(A) 		8-98025-954-1 03 1 1109- ● ●
257 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1004-1101 ●
257 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) 		8-98025-954-1 01 1 1004-1101 ●
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (A) 		8-98025-954-1 01 1 1004-1101 ●
257 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1004-1101 ●
257 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1102-1108 ●
257 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1102-1108 ●
257 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) 		8-98025-954-1 01 1 1102-1108 ●
257 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1102-1108 ●
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (A) 		8-98025-954-1 01 1 1102-1108 ●
257 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1109- ● ●
257 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) 		8-98025-954-1 01 1 1109- ● ●
257 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1109- ● ●
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (A) 		8-98025-954-1 01 1 1109- ● ●
257 COVER; HOLE,SW
EXC. PTO ZF TRANS RR(BDM),PTO TRANSMISSION SIDE(V66) (A) 		8-98025-954-1 01 1 1109- ●
257 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1109- ●
257 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (B) 		8-98029-914-1 01 1 1004-1108 ●
257 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (B) 		8-98029-914-1 01 1 1109- ● ●
307 BULB ASM; SW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 24V 		8-98226-896-0 01 1 1004-1108 ●
307 BULB ASM; SW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 24V 		8-98226-896-0 01 1 1109- ● ●
360 SWITCH ASM; DIFF LK 8-97613-964-1 01 1 1004-1108 ●
360 SWITCH ASM; DIFF LK 8-97613-964-1 01 1 1109- ● ●
372 SWITCH; ROOM LAMP 8-97386-917-2 01 1 1004-1108 ●
372 SWITCH; ROOM LAMP 8-97386-917-2 01 1 1109- ● ●
436 SWITCH; HEADLAMP LEVELING
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-97386-981-2 01 1 1004-1108 ●
436 SWITCH; HEADLAMP LEVELING
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-97386-981-2 01 1 1109- ● ●
507 SWITCH; MIRROR HEATER
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-97386-924-3 01 1 1004-1108 ●
507 SWITCH; MIRROR HEATER
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-97386-924-3 01 1 1109- ● ●

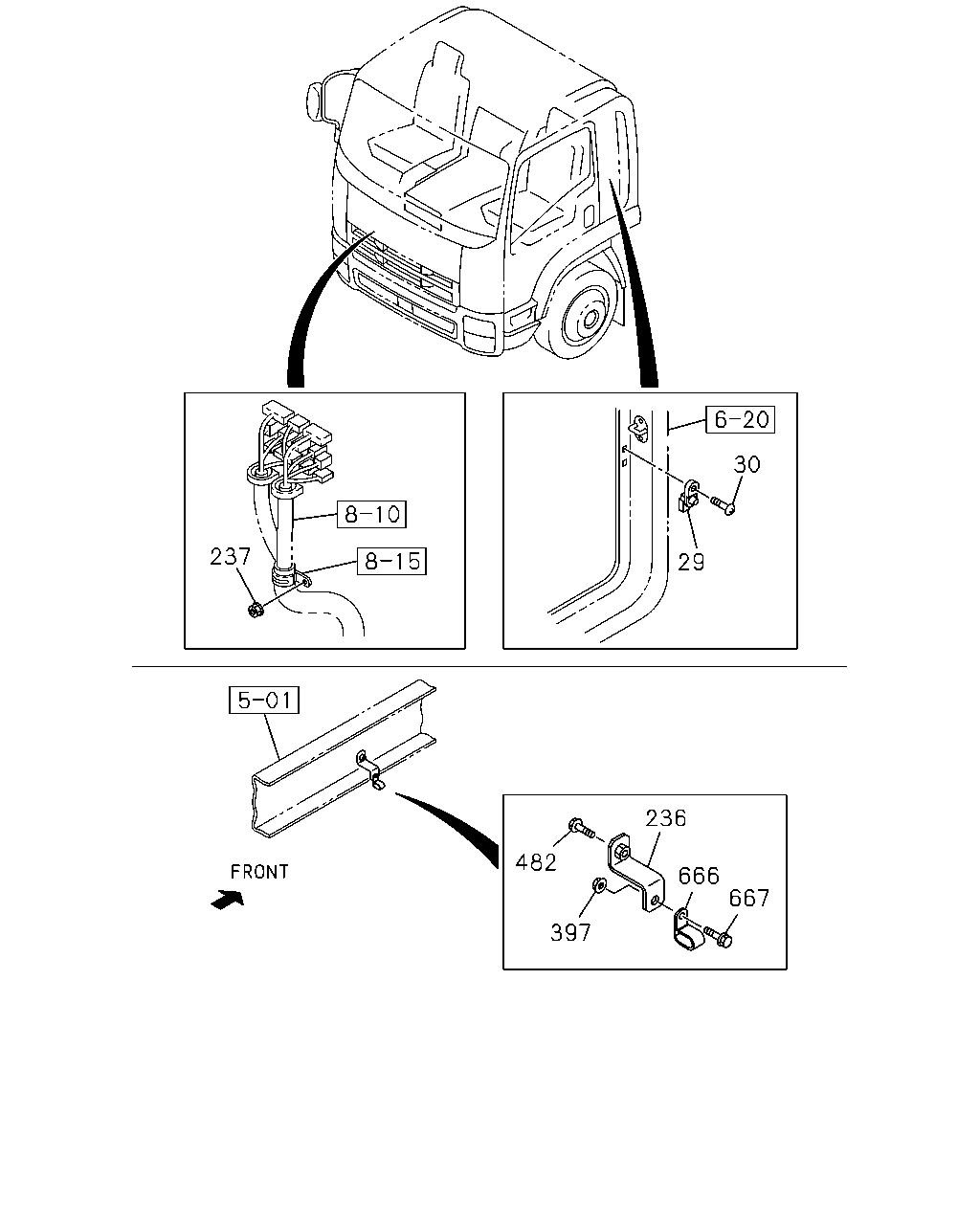

çizim 129419
30 237 29 236 482 666 667 397
BalonParca AdiParca NoAdetTipApplied Date A B
29 SWITCH; DOOR
BLACK 		8-98022-211-0 01 1 1004-1108 ●
29 SWITCH; DOOR
BLACK 		8-98022-211-0 01 1 1004-1108 ●
29 SWITCH; DOOR
BLACK 		8-98022-211-0 01 1 1109- ● ●
29 SWITCH; DOOR
BLACK 		8-98022-211-0 01 1 1109- ● ●
30 SCREW; DOOR SW
M5X18 		8-98047-201-0 01 1 1004-1108 ●
30 SCREW; DOOR SW
M5X18 		8-98047-201-0 01 1 1004-1108 ●
30 SCREW; DOOR SW
M5X18 		8-98047-201-0 01 1 1109- ● ●
30 SCREW; DOOR SW
M5X18 		8-98047-201-0 01 1 1109- ● ●
236 BRACKET; AXLE HARNESS,RR
ANTILOCK BRAKE SYSTEM(BFA) 		1-47476-200-0 02 1 1004-1108 ●
236 BRACKET; AXLE HARNESS,RR
ANTILOCK BRAKE SYSTEM(BFA) 		1-47476-200-0 02 1 1109- ● ●
237 NUT
M8 FLANGE SOU 		0-91180-108-0 04 1 1004-1108 ●
237 NUT
M8 FLANGE SOU 		0-91180-108-0 04 1 1109- ● ●
397 NUT; BRKT FIX
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE SOU 		0-91180-108-0 02 1 1004-1108 ●
397 NUT; BRKT FIX
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE SOU 		0-91180-108-0 02 1 1109- ● ●
482 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) M8X30 FLANGE 		0-28650-830-0 02 1 1004-1108 ●
482 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) M8X30 FLANGE 		0-28650-830-0 02 1 1109- ● ●
666 CLIP; AXLE HARNESS
ANTILOCK BRAKE SYSTEM(BFA) ID=11X2 L=16 		0-95325-025-0 01 1 1109-1205 ●
666 CLIP; AXLE HARNESS
ID=11X2 L=16 		0-95325-025-0 01 1 1206-1206 ●
666 CLIP; AXLE HARNESS
BRAKE SYSTEM RETARDER<RE2> ID=11X2 L=16 		0-95325-025-0 01 1 1207- ●
666 CLIP; AXLE HARNESS
ANTILOCK BRAKE SYSTEM(BFA) ID=11X2 L=20 		1-09700-871-0 04 1 1004-1108 ●
666 CLIP; AXLE HARNESS
ANTILOCK BRAKE SYSTEM(BFA) ID=11X2 L=20 		1-09700-871-0 04 1 1109- ● ●
667 BOLT; CLIP
ANTILOCK BRAKE SYSTEM(BFA) M8X20 FLANGE 		0-28650-820-0 01 1 1109-1205 ●
667 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1206-1206 ●
667 BOLT; CLIP
BRAKE SYSTEM RETARDER<RE2> M8X20 FLANGE 		0-28650-820-0 01 1 1207- ●
667 BOLT; CLIP
ANTILOCK BRAKE SYSTEM(BFA) M8X20 FLANGE 		0-28650-820-0 04 1 1004-1108 ●
667 BOLT; CLIP
ANTILOCK BRAKE SYSTEM(BFA) M8X20 FLANGE 		0-28650-820-0 04 1 1109- ● ●

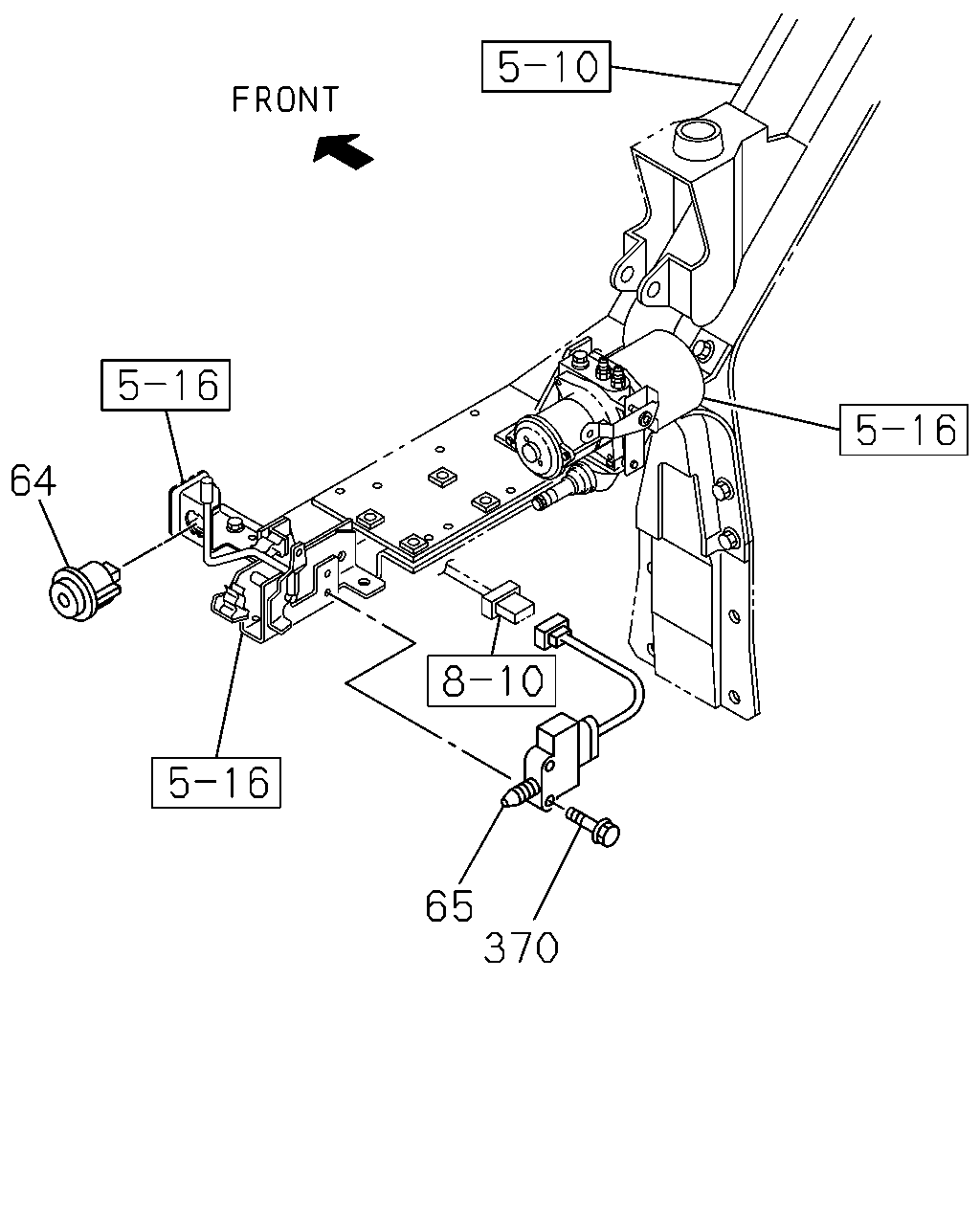

çizim 129422
64 65 370
BalonParca AdiParca NoAdetTipApplied Date A B
64 SWITCH; CAB TILT MAIN 1-82380-173-2 01 1 1004-1108 ●
64 SWITCH; CAB TILT MAIN 1-82380-173-2 01 1 1109- ● ●
65 SWITCH; CAB TILT LK
STAMP NO 		1-82380-172-1 01 1 1004-1108 ●
65 SWITCH; CAB TILT LK
STAMP NO 		1-82380-172-1 01 1 1109- ● ●
370 BOLT; SW
M6X30 FLANGE 		0-28650-630-0 02 1 1004-1108 ●
370 BOLT; SW
M6X30 FLANGE 		0-28650-630-0 02 1 1109- ● ●
