Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#21866) — 536 parça

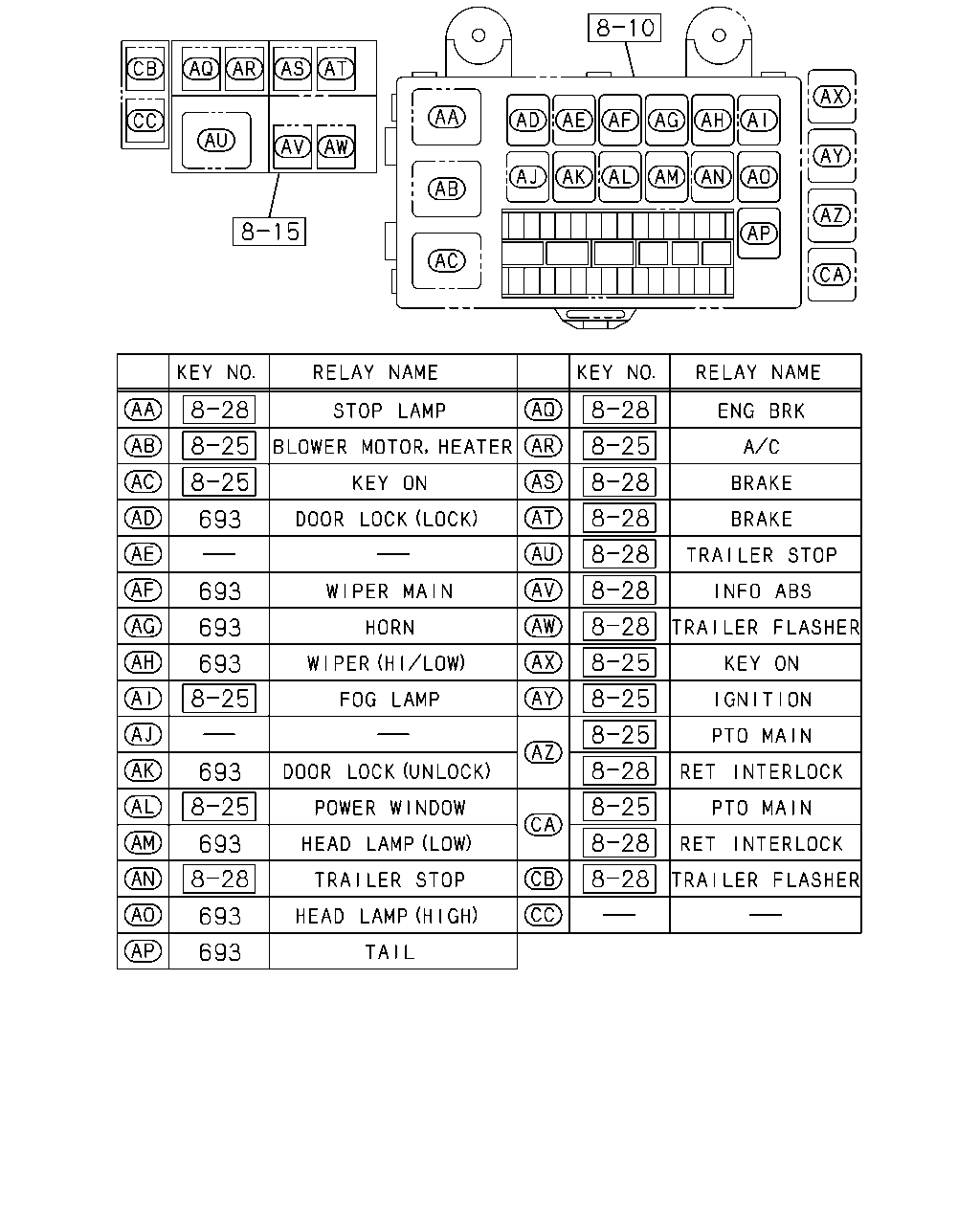

693 693 693 693 693 693 693 693

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
693	RELAY; FUSE BOX ANTILOCK BRAKE SYSTEM(BFA) 24V 10A PANASONIC	8-97173-035-1	AR	1	1004-1101	●
693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	1102-1108	●
693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	1109-	●	●

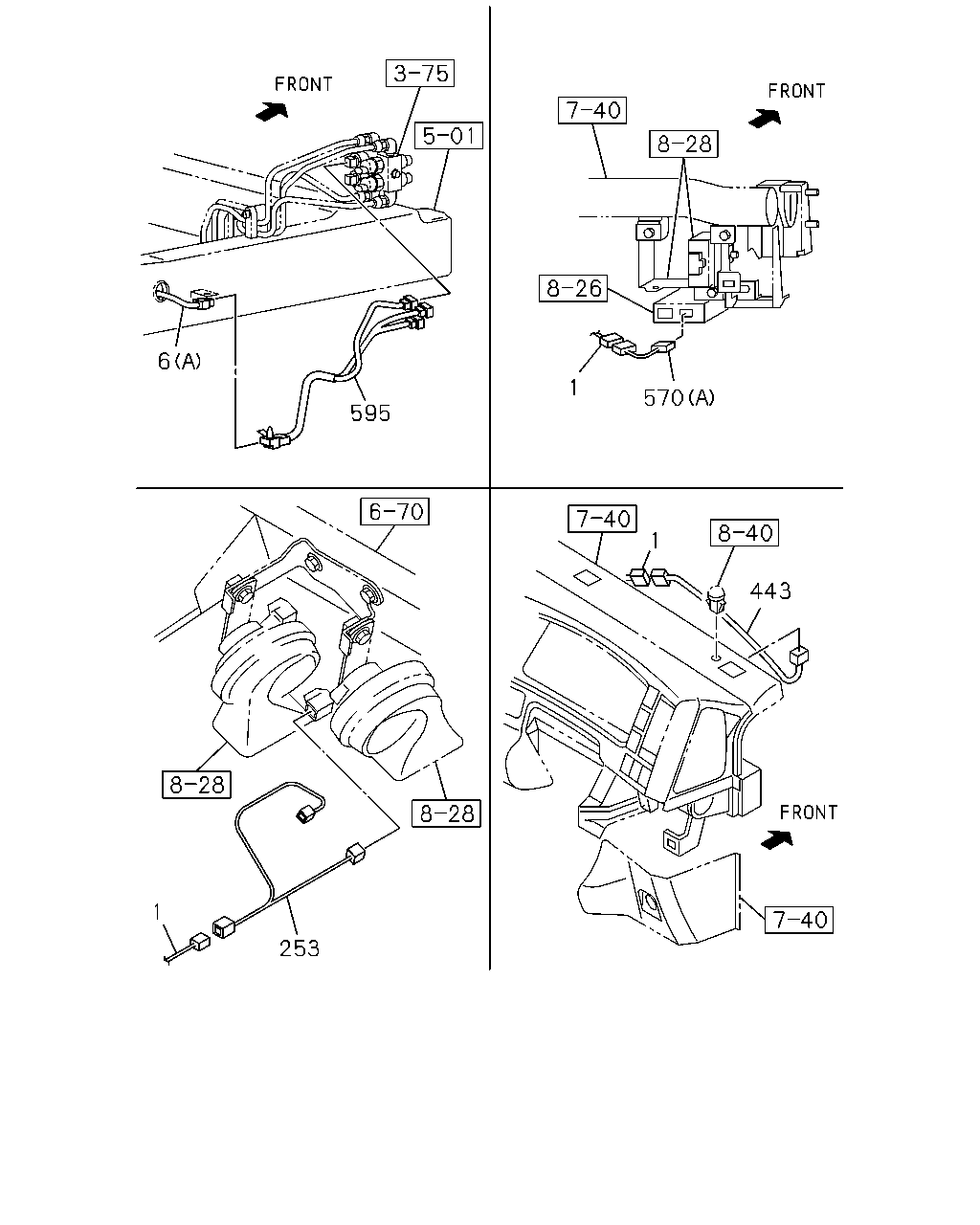

6 1 570 595 1 443 1 253

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF>	8-98192-041-0	01	1	1105-1106	●
1	HARNESS; CAB IN HOUSE PRODUCTION<TKF> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98192-040-0	01	1	1105-1106	●
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> VIN MODEL YEAR 2011<VZB>	8-98192-062-0	01	1	1109-1203	●
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2011<VZB>	8-98192-062-0	01	1	1204-1207	●
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2011<VZB>	8-98210-563-1	01	1	1208-	●
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> EXC. VIN MODEL YEAR 2011<VZB>	8-98192-041-0	01	1	1109-1203	●
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2011<VZB>	8-98192-041-0	01	1	1204-	●
1	HARNESS; CAB IN HOUSE PRODUCTION<TKF> VIN MODEL YEAR 2011<VZB> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98192-061-0	01	1	1109-1203	●
1	HARNESS; CAB VIN MODEL YEAR 2011<VZB> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98192-061-0	01	1	1204-1207	●
1	HARNESS; CAB VIN MODEL YEAR 2011<VZB> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98210-562-1	01	1	1208-	●
1	HARNESS; CAB IN HOUSE PRODUCTION<TKF> EXC. FULLAUTO AIR CONDITIONER(C68),VIN MODEL YEAR 2011<VZB>	8-98192-040-0	01	1	1109-1203	●
1	HARNESS; CAB EXC. FULLAUTO AIR CONDITIONER(C68),VIN MODEL YEAR 2011<VZB>	8-98192-040-0	01	1	1204-	●
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68)	8-98192-066-0	01	1	1109-1206		●
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) BRAKE SYSTEM RETARDER<RE2>	8-98192-066-0	01	1	1207-1207		●
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68)	8-98210-567-1	01	1	1208-		●
1	HARNESS; CAB EXC. FULLAUTO AIR CONDITIONER(C68)	8-98192-065-0	01	1	1109-1206		●
1	HARNESS; CAB BRAKE SYSTEM RETARDER<RE2> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98192-065-0	01	1	1207-1207		●
1	HARNESS; CAB EXC. FULLAUTO AIR CONDITIONER(C68),BRAKE SYSTEM RETARDER<RE2>	8-98192-063-0	01	1	1207-1207		●
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) EXC. BRAKE SYSTEM RETARDER<RE2>	8-98192-064-0	01	1	1207-1207		●
1	HARNESS; CAB EXC. FULLAUTO AIR CONDITIONER(C68)	8-98210-566-1	01	1	1208-		●
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2011<VZB> EXC. IN HOUSE PRODUCTION<TKF>	8-98166-147-0	01	1	1109-1203	●
1	HARNESS; CAB VIN MODEL YEAR 2011<VZB> EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF>	8-98166-146-0	01	1	1109-1203	●
1	HARNESS; CAB ANTILOCK BRAKE SYSTEM(BFA) FULLAUTO AIR CONDITIONER(C68)	8-98094-013-6	01	1	1004-1101	●
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68)	8-98094-013-6	01	1	1102-1104	●
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) EXC. IN HOUSE PRODUCTION<TKF>	8-98094-013-6	01	1	1105-1106	●
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68)	8-98094-013-6	01	1	1107-1108	●
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) EXC. IN HOUSE PRODUCTION<TKF>,VIN MODEL YEAR 2011<VZB>	8-98094-013-6	01	1	1109-1203	●
1	HARNESS; CAB ANTILOCK BRAKE SYSTEM(BFA) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98094-012-6	01	1	1004-1101	●
1	HARNESS; CAB EXC. FULLAUTO AIR CONDITIONER(C68)	8-98094-012-6	01	1	1102-1104	●
1	HARNESS; CAB EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF>	8-98094-012-6	01	1	1105-1106	●
1	HARNESS; CAB EXC. FULLAUTO AIR CONDITIONER(C68)	8-98094-012-6	01	1	1107-1108	●
1	HARNESS; CAB EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF>,VIN MODEL YEAR 2011<VZB>	8-98094-012-6	01	1	1109-1203	●

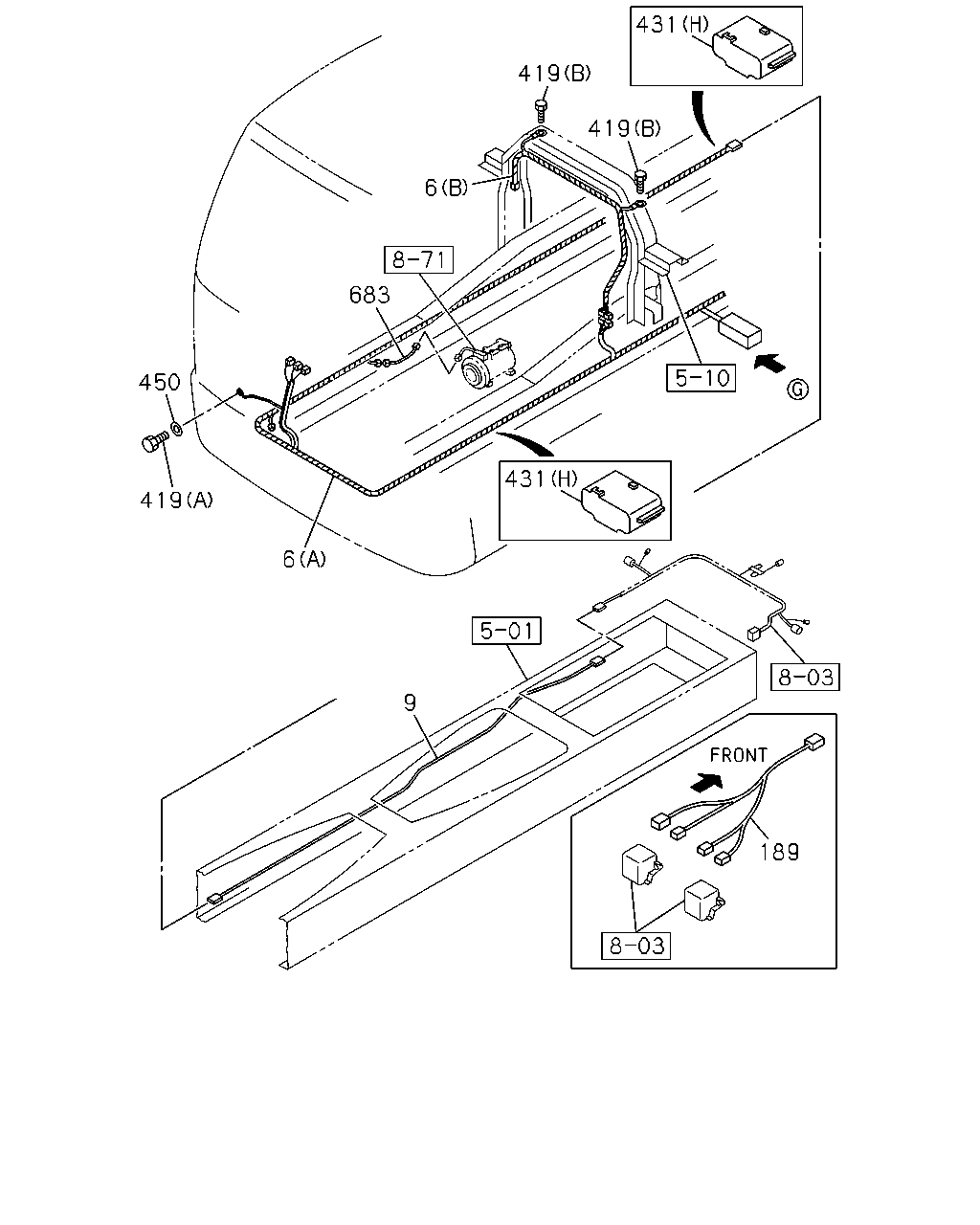

6	HARNESS; FRAME VIN MODEL YEAR 2011<VZB> EXC. ANTILOCK BRAKE SYSTEM(BFA),GENERATOR 24V90A(K44) (A) SOU	8-98182-951-0	01	1	1202-	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) GENERATOR 24V90A(K44) (A)	8-98186-866-0	01	1	1109-		●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) EXC. GENERATOR 24V90A(K44) (A)	8-98186-865-0	01	1	1109-		●
6	HARNESS; FRAME (B)	8-98116-180-1	01	1	1109-		●
6	HARNESS; FRAME (B)	8-98075-634-3	01	1	1004-	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) GENERATOR 24V90A(K44) (A)	8-98102-498-3	01	1	1004-1301	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) GENERATOR 24V90A(K44) FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF> (A)	8-98102-498-3	01	1	1302-	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) EXC. GENERATOR 24V90A(K44) (A)	8-98102-497-3	01	1	1004-1301	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF> EXC. GENERATOR 24V90A(K44) (A)	8-98102-497-3	01	1	1302-	●
6	HARNESS; FRAME EXC. ANTILOCK BRAKE SYSTEM(BFA),GENERATOR 24V90A(K44) (A)	8-98094-520-5	01	1	1004-1201	●
6	HARNESS; FRAME EXC. ANTILOCK BRAKE SYSTEM(BFA),GENERATOR 24V90A(K44),VIN MODEL YEAR 2011<VZB> (A)	8-98094-520-5	01	1	1202-	●
6	HARNESS; FRAME GENERATOR 24V90A(K44) EXC. ANTILOCK BRAKE SYSTEM(BFA) (A)	8-98102-496-3	01	1	1004-	●
253	HARNESS; EXT,HORN	8-98074-081-2	01	1	1004-1108	●
253	HARNESS; EXT,HORN	8-98074-081-2	01	1	1109-	●	●
443	HARNESS; EXT,A/C FULLAUTO AIR CONDITIONER(C68)	8-98096-565-0	01	1	1004-1108	●
443	HARNESS; EXT,A/C FULLAUTO AIR CONDITIONER(C68)	8-98096-565-0	01	1	1109-	●	●

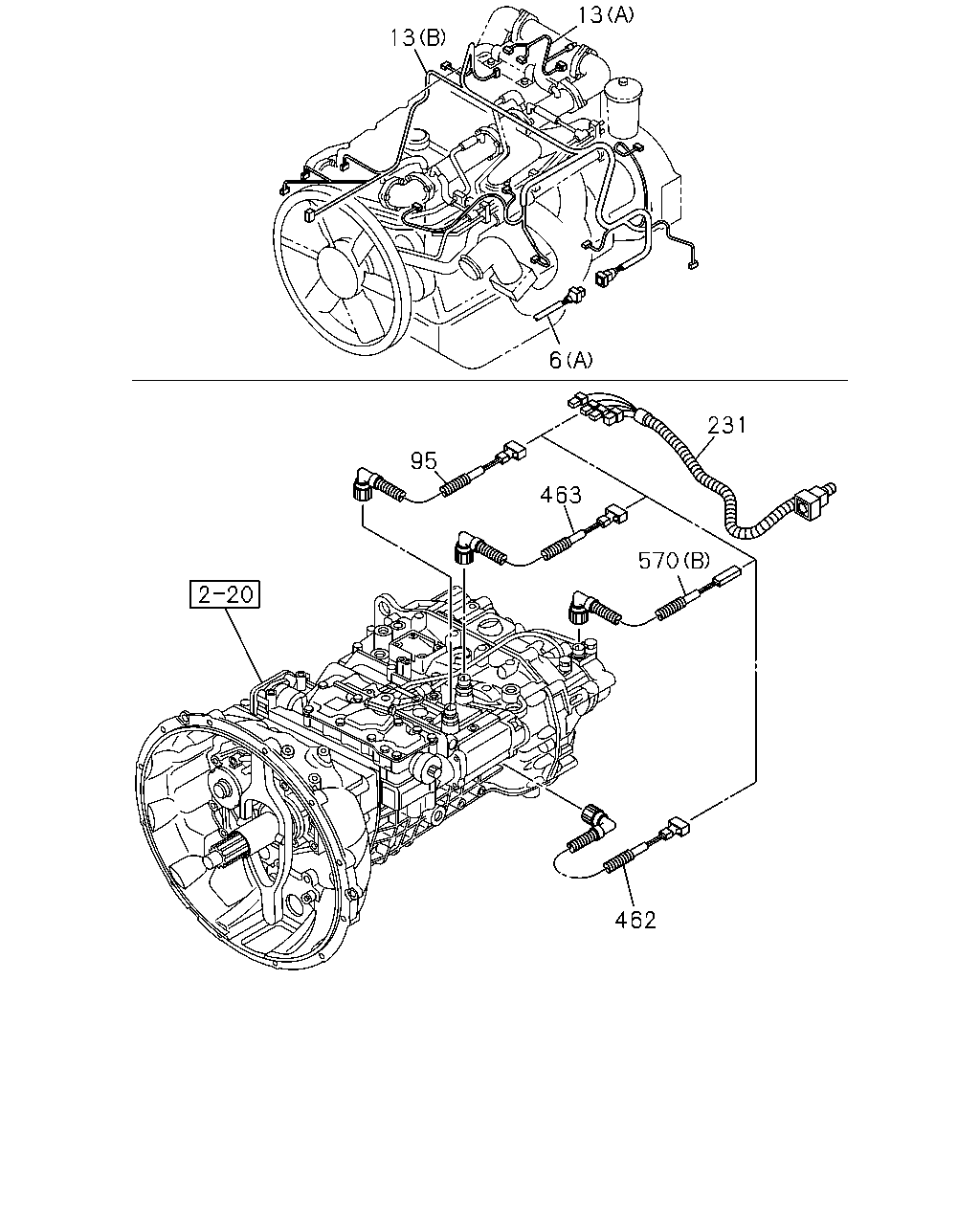

570	HARNESS; SPEED SENSOR (A)	8-98058-327-1	01	1	1004-1108	●
570	HARNESS; SPEED SENSOR (A)	8-98058-327-1	01	1	1109-	●	●
570	HARNESS; SPEED SENSOR SHIFT PATTERN DOUBLE-H<EDZ> (B)	1-82659-230-0	01	1	1004-1004	●
570	HARNESS; SPEED SENSOR SHIFT PATTERN DOUBLE-H<EDZ> (B)	8-98148-602-0	01	1	1005-1108	●
570	HARNESS; SPEED SENSOR SHIFT PATTERN DOUBLE-H<EDZ> (B)	8-98148-602-0	01	1	1109-	●	●
595	HARNESS; WARNING,BRK	8-98075-638-0	01	1	1004-1108	●
595	HARNESS; WARNING,BRK	8-98075-638-0	01	1	1109-1303	●	●
595	HARNESS; WARNING,BRK	8-98075-638-1	01	1	1304-	●	●

1 668 28 29 431 431 261 694 693 41 4 5 276 280 765

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF>	8-98192-041-0	01	1	1105-1106	●
1	HARNESS; CAB IN HOUSE PRODUCTION<TKF> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98192-040-0	01	1	1105-1106	●
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> VIN MODEL YEAR 2011<VZB>	8-98192-062-0	01	1	1109-1203	●
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2011<VZB>	8-98192-062-0	01	1	1204-1207	●
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2011<VZB>	8-98210-563-1	01	1	1208-	●
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> EXC. VIN MODEL YEAR 2011<VZB>	8-98192-041-0	01	1	1109-1203	●
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2011<VZB>	8-98192-041-0	01	1	1204-	●
1	HARNESS; CAB IN HOUSE PRODUCTION<TKF> VIN MODEL YEAR 2011<VZB> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98192-061-0	01	1	1109-1203	●
1	HARNESS; CAB VIN MODEL YEAR 2011<VZB> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98192-061-0	01	1	1204-1207	●
1	HARNESS; CAB VIN MODEL YEAR 2011<VZB> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98210-562-1	01	1	1208-	●
1	HARNESS; CAB IN HOUSE PRODUCTION<TKF> EXC. FULLAUTO AIR CONDITIONER(C68),VIN MODEL YEAR 2011<VZB>	8-98192-040-0	01	1	1109-1203	●
1	HARNESS; CAB EXC. FULLAUTO AIR CONDITIONER(C68),VIN MODEL YEAR 2011<VZB>	8-98192-040-0	01	1	1204-	●
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68)	8-98192-066-0	01	1	1109-1206		●
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) BRAKE SYSTEM RETARDER<RE2>	8-98192-066-0	01	1	1207-1207		●
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68)	8-98210-567-1	01	1	1208-		●
1	HARNESS; CAB EXC. FULLAUTO AIR CONDITIONER(C68)	8-98192-065-0	01	1	1109-1206		●
1	HARNESS; CAB BRAKE SYSTEM RETARDER<RE2> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98192-065-0	01	1	1207-1207		●
1	HARNESS; CAB EXC. FULLAUTO AIR CONDITIONER(C68),BRAKE SYSTEM RETARDER<RE2>	8-98192-063-0	01	1	1207-1207		●
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) EXC. BRAKE SYSTEM RETARDER<RE2>	8-98192-064-0	01	1	1207-1207		●
1	HARNESS; CAB EXC. FULLAUTO AIR CONDITIONER(C68)	8-98210-566-1	01	1	1208-		●
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2011<VZB> EXC. IN HOUSE PRODUCTION<TKF>	8-98166-147-0	01	1	1109-1203	●
1	HARNESS; CAB VIN MODEL YEAR 2011<VZB> EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF>	8-98166-146-0	01	1	1109-1203	●
1	HARNESS; CAB ANTILOCK BRAKE SYSTEM(BFA) FULLAUTO AIR CONDITIONER(C68)	8-98094-013-6	01	1	1004-1101	●
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68)	8-98094-013-6	01	1	1102-1104	●
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) EXC. IN HOUSE PRODUCTION<TKF>	8-98094-013-6	01	1	1105-1106	●
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68)	8-98094-013-6	01	1	1107-1108	●
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) EXC. IN HOUSE PRODUCTION<TKF>,VIN MODEL YEAR 2011<VZB>	8-98094-013-6	01	1	1109-1203	●
1	HARNESS; CAB ANTILOCK BRAKE SYSTEM(BFA) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98094-012-6	01	1	1004-1101	●
1	HARNESS; CAB EXC. FULLAUTO AIR CONDITIONER(C68)	8-98094-012-6	01	1	1102-1104	●
1	HARNESS; CAB EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF>	8-98094-012-6	01	1	1105-1106	●
1	HARNESS; CAB EXC. FULLAUTO AIR CONDITIONER(C68)	8-98094-012-6	01	1	1107-1108	●
1	HARNESS; CAB EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF>,VIN MODEL YEAR 2011<VZB>	8-98094-012-6	01	1	1109-1203	●

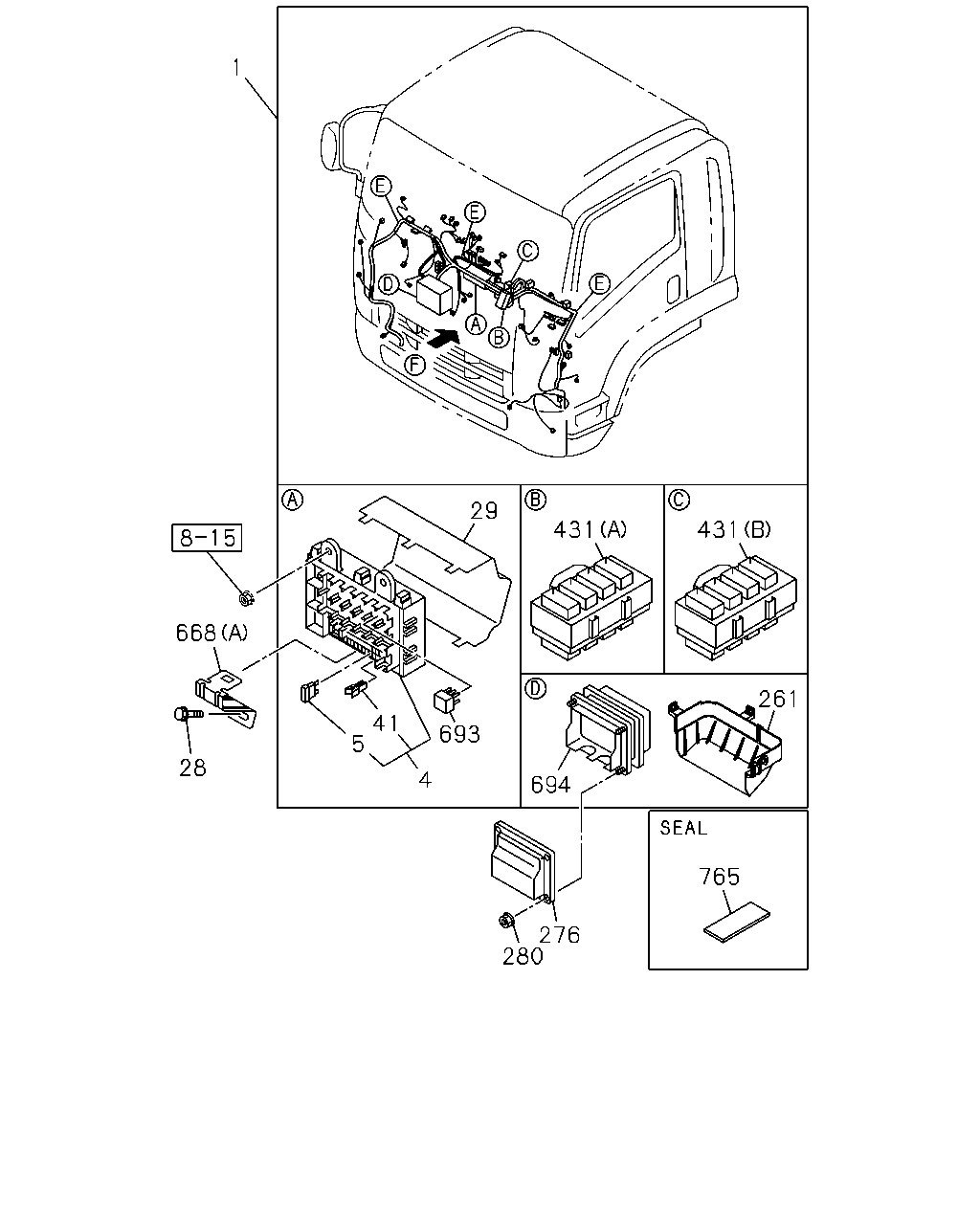

4	BOX ASM; FUSE,HARNESS ANTILOCK BRAKE SYSTEM(BFA)	8-98065-666-0	01	1	1004-1101	●
4	BOX ASM; FUSE,HARNESS	8-98065-666-0	01	1	1102-1108	●
4	BOX ASM; FUSE,HARNESS	8-98065-666-0	01	1	1109-	●	●
5	FUSE; FACIA HARNESS EXC. VIN MODEL YEAR 2011<VZB> 25A WHITE	8-98062-982-0	02	1	1208-	●
5	FUSE; FACIA HARNESS ANTILOCK BRAKE SYSTEM(BFA) 10A RED SOU	8-98054-257-0	AR	1	1004-1101	●
5	FUSE; FACIA HARNESS 10A RED SOU	8-98054-257-0	AR	1	1102-1108	●
5	FUSE; FACIA HARNESS 10A RED SOU	8-98054-257-0	AR	1	1109-	●	●
5	FUSE; FACIA HARNESS ANTILOCK BRAKE SYSTEM(BFA) 15A BLUE SOU	8-98054-258-0	AR	1	1004-1101	●
5	FUSE; FACIA HARNESS 15A BLUE SOU	8-98054-258-0	AR	1	1102-1108	●
5	FUSE; FACIA HARNESS 15A BLUE SOU	8-98054-258-0	AR	1	1109-	●	●
5	FUSE; FACIA HARNESS ANTILOCK BRAKE SYSTEM(BFA) 20A YELLOW SOU	8-98054-259-0	AR	1	1004-1101	●
5	FUSE; FACIA HARNESS 20A YELLOW SOU	8-98054-259-0	AR	1	1102-1108	●
5	FUSE; FACIA HARNESS 20A YELLOW SOU	8-98054-259-0	AR	1	1109-	●	●
5	FUSE; FACIA HARNESS ANTILOCK BRAKE SYSTEM(BFA) 25A WHITE	8-98062-982-0	02	1	1004-1101	●
5	FUSE; FACIA HARNESS 25A WHITE	8-98062-982-0	02	1	1102-1108	●
5	FUSE; FACIA HARNESS 25A WHITE	8-98062-982-0	02	1	1109-1207	●	●
5	FUSE; FACIA HARNESS VIN MODEL YEAR 2011<VZB> 25A WHITE	8-98062-982-0	AR	1	1208-	●
5	FUSE; FACIA HARNESS 25A WHITE	8-98062-982-0	AR	1	1208-		●
28	SCREW; FUSE BOX BOLT M6X16 FLANGE SOU	0-28650-616-0	01	1	1004-1108	●
28	SCREW; FUSE BOX BOLT M6X16 FLANGE SOU	0-28650-616-0	01	1	1109-	●	●
29	COVER; FUSE BOX ANTILOCK BRAKE SYSTEM(BFA)	8-98056-968-0	01	1	1004-1101	●
29	COVER; FUSE BOX	8-98056-968-0	01	1	1102-1108	●
29	COVER; FUSE BOX	8-98056-968-0	01	1	1109-	●	●
41	PULLER; FUSE ANTILOCK BRAKE SYSTEM(BFA) SOU	8-98054-260-0	01	1	1004-1101	●
41	PULLER; FUSE SOU	8-98054-260-0	01	1	1102-1108	●
41	PULLER; FUSE SOU	8-98054-260-0	01	1	1109-	●	●
261	COVER; CONNECTOR BOX ANTILOCK BRAKE SYSTEM(BFA)	8-98065-986-1	01	1	1004-1101	●
261	COVER; CONNECTOR BOX	8-98065-986-1	01	1	1102-1108	●
261	COVER; CONNECTOR BOX	8-98065-986-1	01	1	1109-	●	●
276	COVER; BOX,FRAME HARNESS	8-98034-039-1	01	1	1004-1108	●
276	COVER; BOX,FRAME HARNESS	8-98034-039-1	01	1	1109-	●	●
280	NUT; BOX ASM FIX M6 FLANGE SOU	0-91180-106-0	04	1	1004-1108	●
280	NUT; BOX ASM FIX M6 FLANGE SOU	0-91180-106-0	04	1	1109-	●	●

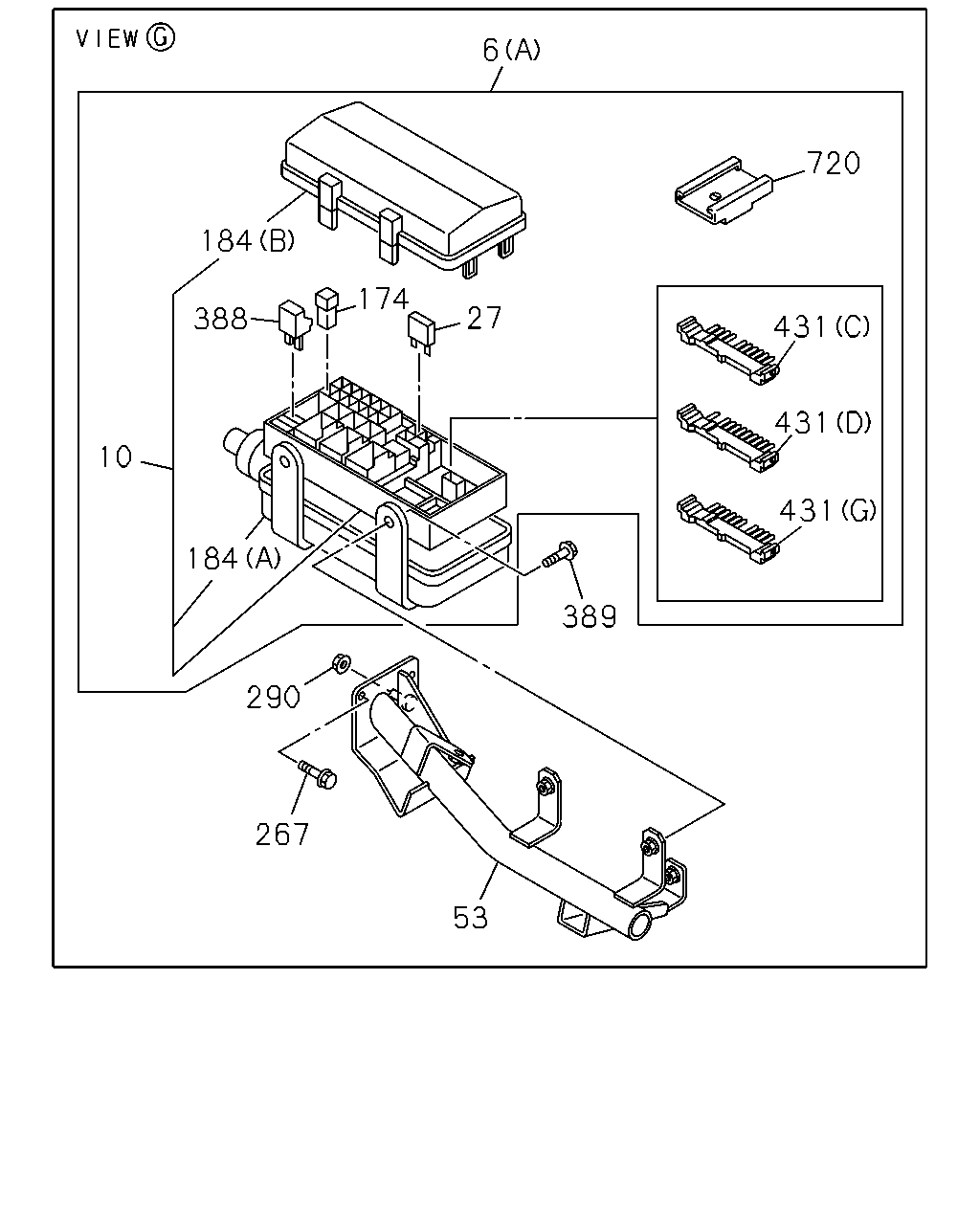

431	CONNECTOR; JOINT VIN MODEL YEAR 2011<VZB> (G) 10P GREEN	1-82699-599-0	01	1	1109-1207	●
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	01	1	1109-1207		●
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	04	1	1004-1108	●
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	04	1	1109-	●	●
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	07	1	1004-1108	●
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	07	1	1109-	●	●
431	CONNECTOR; JOINT (D) 10P BROWN SOU	1-82699-601-0	01	1	1004-1108	●
431	CONNECTOR; JOINT (D) 10P BROWN SOU	1-82699-601-0	01	1	1109-	●	●
431	CONNECTOR; JOINT ANTILOCK BRAKE SYSTEM(BFA) (F) 10P GREEN	1-82698-579-0	01	1	1004-1101	●
431	CONNECTOR; JOINT (F) 10P GREEN	1-82698-579-0	01	1	1102-1108	●
431	CONNECTOR; JOINT (F) 10P GREEN	1-82698-579-0	01	1	1109-1207	●	●
431	CONNECTOR; JOINT EXC. VIN MODEL YEAR 2011<VZB> (F) 10P GREEN	1-82698-579-0	01	1	1208-	●
431	CONNECTOR; JOINT ANTILOCK BRAKE SYSTEM(BFA) (C) 10P BLUE	1-82699-598-0	01	1	1004-1101	●
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	01	1	1102-1108	●
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	01	1	1109-1207	●	●
431	CONNECTOR; JOINT EXC. VIN MODEL YEAR 2011<VZB> (C) 10P BLUE	1-82699-598-0	01	1	1208-	●
431	CONNECTOR; JOINT ANTILOCK BRAKE SYSTEM(BFA) (D) 10P BROWN SOU	1-82699-601-0	08	1	1004-1101	●
431	CONNECTOR; JOINT (D) 10P BROWN SOU	1-82699-601-0	08	1	1102-1108	●
431	CONNECTOR; JOINT (D) 10P BROWN SOU	1-82699-601-0	08	1	1109-1207	●	●
431	CONNECTOR; JOINT EXC. VIN MODEL YEAR 2011<VZB> (D) 10P BROWN SOU	1-82699-601-0	08	1	1208-	●
431	CONNECTOR; JOINT ANTILOCK BRAKE SYSTEM(BFA) (E) 10P	8-97077-943-0	02	1	1004-1101	●
431	CONNECTOR; JOINT (E) 10P	8-97077-943-0	02	1	1102-1108	●
431	CONNECTOR; JOINT (E) 10P	8-97077-943-0	02	1	1109-1207	●	●
431	CONNECTOR; JOINT EXC. VIN MODEL YEAR 2011<VZB> (E) 10P	8-97077-943-0	02	1	1208-	●
431	CONNECTOR; JOINT ANTILOCK BRAKE SYSTEM(BFA) (H) 6P BLACK	8-97616-194-0	02	1	1004-1108	●
431	CONNECTOR; JOINT ANTILOCK BRAKE SYSTEM(BFA) (H) 6P BLACK	8-97616-194-0	02	1	1109-1201	●	●
431	CONNECTOR; JOINT VIN MODEL YEAR 2011<VZB> EXC. ANTILOCK BRAKE SYSTEM(BFA) (H) 6P BLACK	8-97616-194-0	02	1	1202-	●
431	CONNECTOR; JOINT ANTILOCK BRAKE SYSTEM(BFA) (H) 6P BLACK	8-97616-194-0	02	1	1202-	●
431	CONNECTOR; JOINT (H) 6P BLACK	8-97616-194-0	02	1	1202-		●
431	CONNECTOR; JOINT ANTILOCK BRAKE SYSTEM(BFA) (A) WHITE	8-98056-374-0	01	1	1004-1101	●
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	1102-1108	●
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	1109-	●	●
431	CONNECTOR; JOINT ANTILOCK BRAKE SYSTEM(BFA) (B) WHITE	8-98056-375-0	01	1	1004-1101	●
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	1102-1108	●
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	1109-	●	●
431	CONNECTOR; JOINT EXC. ANTILOCK BRAKE SYSTEM(BFA) (H) 6P BLACK	8-97616-194-0	01	1	1004-1201	●
431	CONNECTOR; JOINT EXC. ANTILOCK BRAKE SYSTEM(BFA),VIN MODEL YEAR 2011<VZB> (H) 6P BLACK	8-97616-194-0	01	1	1202-	●

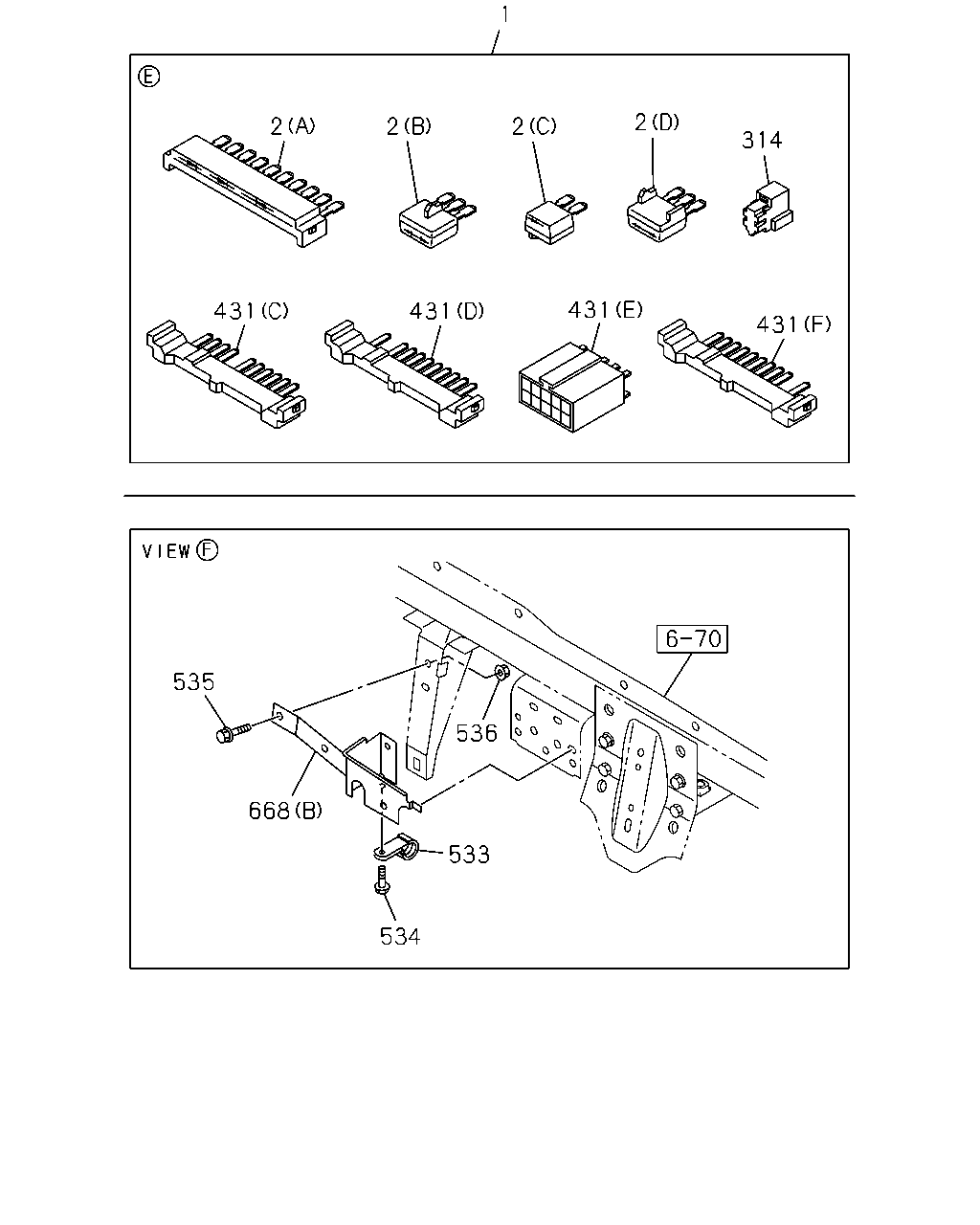

668	BRACKET; HARNESS (A)	8-98095-653-2	01	1	1004-1108	●
668	BRACKET; HARNESS (A)	8-98095-653-2	01	1	1109-	●	●
668	BRACKET; HARNESS (B)	8-98117-572-0	01	1	1004-1108	●
668	BRACKET; HARNESS (B)	8-98117-572-0	01	1	1109-	●	●
693	RELAY; FUSE BOX ANTILOCK BRAKE SYSTEM(BFA) 24V 10A PANASONIC	8-97173-035-1	AR	1	1004-1101	●
693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	1102-1108	●
693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	1109-	●	●
694	BOX ASM; CONNECTOR ANTILOCK BRAKE SYSTEM(BFA)	8-98057-771-0	01	1	1004-1101	●
694	BOX ASM; CONNECTOR	8-98057-771-0	01	1	1102-1108	●
694	BOX ASM; CONNECTOR	8-98057-771-0	01	1	1109-	●	●
765	TAPE 100X40 SOU	1-72498-022-1	01	1	1409-	●	●

1 2 2 2 2 314 431 431 431 431 535 536 668 533 534

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

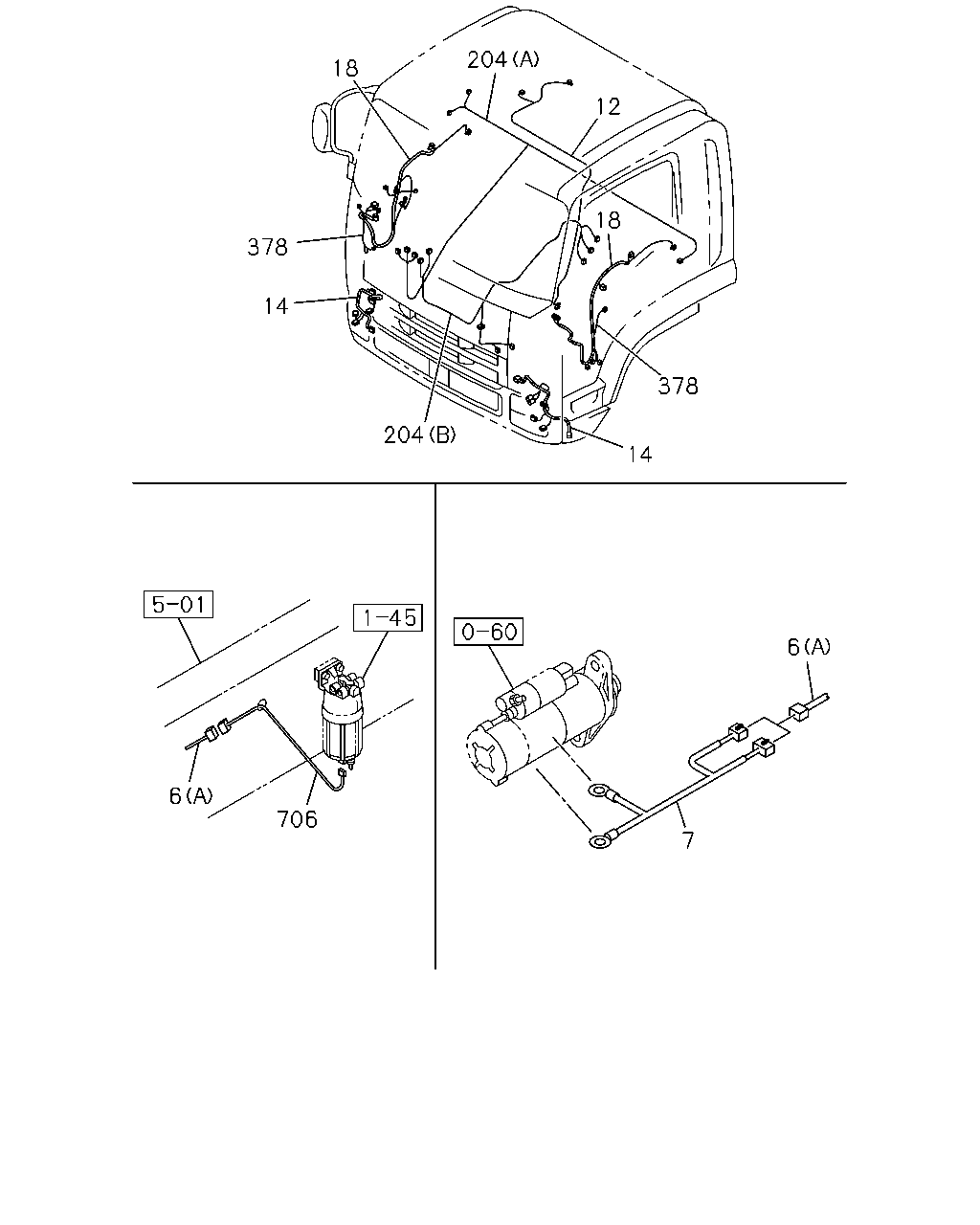

1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF>	8-98192-041-0	01	1	1105-1106	●
1	HARNESS; CAB IN HOUSE PRODUCTION<TKF> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98192-040-0	01	1	1105-1106	●
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> VIN MODEL YEAR 2011<VZB>	8-98192-062-0	01	1	1109-1203	●
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2011<VZB>	8-98192-062-0	01	1	1204-1207	●
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2011<VZB>	8-98210-563-1	01	1	1208-	●
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> EXC. VIN MODEL YEAR 2011<VZB>	8-98192-041-0	01	1	1109-1203	●
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) EXC. VIN MODEL YEAR 2011<VZB>	8-98192-041-0	01	1	1204-	●
1	HARNESS; CAB IN HOUSE PRODUCTION<TKF> VIN MODEL YEAR 2011<VZB> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98192-061-0	01	1	1109-1203	●
1	HARNESS; CAB VIN MODEL YEAR 2011<VZB> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98192-061-0	01	1	1204-1207	●
1	HARNESS; CAB VIN MODEL YEAR 2011<VZB> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98210-562-1	01	1	1208-	●
1	HARNESS; CAB IN HOUSE PRODUCTION<TKF> EXC. FULLAUTO AIR CONDITIONER(C68),VIN MODEL YEAR 2011<VZB>	8-98192-040-0	01	1	1109-1203	●
1	HARNESS; CAB EXC. FULLAUTO AIR CONDITIONER(C68),VIN MODEL YEAR 2011<VZB>	8-98192-040-0	01	1	1204-	●
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68)	8-98192-066-0	01	1	1109-1206		●
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) BRAKE SYSTEM RETARDER<RE2>	8-98192-066-0	01	1	1207-1207		●
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68)	8-98210-567-1	01	1	1208-		●
1	HARNESS; CAB EXC. FULLAUTO AIR CONDITIONER(C68)	8-98192-065-0	01	1	1109-1206		●
1	HARNESS; CAB BRAKE SYSTEM RETARDER<RE2> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98192-065-0	01	1	1207-1207		●
1	HARNESS; CAB EXC. FULLAUTO AIR CONDITIONER(C68),BRAKE SYSTEM RETARDER<RE2>	8-98192-063-0	01	1	1207-1207		●
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) EXC. BRAKE SYSTEM RETARDER<RE2>	8-98192-064-0	01	1	1207-1207		●
1	HARNESS; CAB EXC. FULLAUTO AIR CONDITIONER(C68)	8-98210-566-1	01	1	1208-		●
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2011<VZB> EXC. IN HOUSE PRODUCTION<TKF>	8-98166-147-0	01	1	1109-1203	●
1	HARNESS; CAB VIN MODEL YEAR 2011<VZB> EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF>	8-98166-146-0	01	1	1109-1203	●
1	HARNESS; CAB ANTILOCK BRAKE SYSTEM(BFA) FULLAUTO AIR CONDITIONER(C68)	8-98094-013-6	01	1	1004-1101	●
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68)	8-98094-013-6	01	1	1102-1104	●
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) EXC. IN HOUSE PRODUCTION<TKF>	8-98094-013-6	01	1	1105-1106	●
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68)	8-98094-013-6	01	1	1107-1108	●
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) EXC. IN HOUSE PRODUCTION<TKF>,VIN MODEL YEAR 2011<VZB>	8-98094-013-6	01	1	1109-1203	●
1	HARNESS; CAB ANTILOCK BRAKE SYSTEM(BFA) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98094-012-6	01	1	1004-1101	●
1	HARNESS; CAB EXC. FULLAUTO AIR CONDITIONER(C68)	8-98094-012-6	01	1	1102-1104	●
1	HARNESS; CAB EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF>	8-98094-012-6	01	1	1105-1106	●
1	HARNESS; CAB EXC. FULLAUTO AIR CONDITIONER(C68)	8-98094-012-6	01	1	1107-1108	●
1	HARNESS; CAB EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF>,VIN MODEL YEAR 2011<VZB>	8-98094-012-6	01	1	1109-1203	●
2	DIODE; CABLE HARNESS EXC. VIN MODEL YEAR 2011<VZB> (C) BLACK 2P-1.5A SOU	8-94422-639-1	02	1	1208-	●
2	DIODE; CABLE HARNESS ANTILOCK BRAKE SYSTEM(BFA) (A) BLACK 10P SOU	1-82699-703-0	01	1	1004-1101	●
2	DIODE; CABLE HARNESS (A) BLACK 10P SOU	1-82699-703-0	01	1	1102-1108	●
2	DIODE; CABLE HARNESS (A) BLACK 10P SOU	1-82699-703-0	01	1	1109-	●	●
2	DIODE; CABLE HARNESS ANTILOCK BRAKE SYSTEM(BFA) (D) BLACK 3P-1.5A SOU	8-94416-438-1	01	1	1004-1101	●
2	DIODE; CABLE HARNESS (D) BLACK 3P-1.5A SOU	8-94416-438-1	01	1	1102-1108	●
2	DIODE; CABLE HARNESS (D) BLACK 3P-1.5A SOU	8-94416-438-1	01	1	1109-	●	●
2	DIODE; CABLE HARNESS ANTILOCK BRAKE SYSTEM(BFA) (C) BLACK 2P-1.5A SOU	8-94422-639-1	02	1	1004-1101	●
2	DIODE; CABLE HARNESS (C) BLACK 2P-1.5A SOU	8-94422-639-1	02	1	1102-1108	●
2	DIODE; CABLE HARNESS (C) BLACK 2P-1.5A SOU	8-94422-639-1	02	1	1109-1207	●	●
2	DIODE; CABLE HARNESS VIN MODEL YEAR 2011<VZB> (C) BLACK 2P-1.5A SOU	8-94422-639-1	03	1	1208-	●
2	DIODE; CABLE HARNESS (C) BLACK 2P-1.5A SOU	8-94422-639-1	03	1	1208-		●
2	DIODE; CABLE HARNESS ANTILOCK BRAKE SYSTEM(BFA) (B) BLACK 3P-1.5A SOU	8-94422-640-1	01	1	1004-1101	●
2	DIODE; CABLE HARNESS (B) BLACK 3P-1.5A SOU	8-94422-640-1	01	1	1102-1108	●
2	DIODE; CABLE HARNESS (B) BLACK 3P-1.5A SOU	8-94422-640-1	01	1	1109-	●	●
314	RESISTOR; HARNESS ANTILOCK BRAKE SYSTEM(BFA) BLUE	1-82691-204-0	01	1	1004-1101	●
314	RESISTOR; HARNESS BLUE	1-82691-204-0	01	1	1102-1108	●
314	RESISTOR; HARNESS BLUE	1-82691-204-0	01	1	1109-1207	●	●
314	RESISTOR; HARNESS EXC. VIN MODEL YEAR 2011<VZB> BLUE	1-82691-204-0	01	1	1208-	●
431	CONNECTOR; JOINT VIN MODEL YEAR 2011<VZB> (G) 10P GREEN	1-82699-599-0	01	1	1109-1207	●
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	01	1	1109-1207		●
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	04	1	1004-1108	●
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	04	1	1109-	●	●
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	07	1	1004-1108	●
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	07	1	1109-	●	●
431	CONNECTOR; JOINT (D) 10P BROWN SOU	1-82699-601-0	01	1	1004-1108	●
431	CONNECTOR; JOINT (D) 10P BROWN SOU	1-82699-601-0	01	1	1109-	●	●
431	CONNECTOR; JOINT ANTILOCK BRAKE SYSTEM(BFA) (F) 10P GREEN	1-82698-579-0	01	1	1004-1101	●
431	CONNECTOR; JOINT (F) 10P GREEN	1-82698-579-0	01	1	1102-1108	●
431	CONNECTOR; JOINT (F) 10P GREEN	1-82698-579-0	01	1	1109-1207	●	●
431	CONNECTOR; JOINT EXC. VIN MODEL YEAR 2011<VZB> (F) 10P GREEN	1-82698-579-0	01	1	1208-	●
431	CONNECTOR; JOINT ANTILOCK BRAKE SYSTEM(BFA) (C) 10P BLUE	1-82699-598-0	01	1	1004-1101	●
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	01	1	1102-1108	●
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	01	1	1109-1207	●	●
431	CONNECTOR; JOINT EXC. VIN MODEL YEAR 2011<VZB> (C) 10P BLUE	1-82699-598-0	01	1	1208-	●
431	CONNECTOR; JOINT ANTILOCK BRAKE SYSTEM(BFA) (D) 10P BROWN SOU	1-82699-601-0	08	1	1004-1101	●
431	CONNECTOR; JOINT (D) 10P BROWN SOU	1-82699-601-0	08	1	1102-1108	●
431	CONNECTOR; JOINT (D) 10P BROWN SOU	1-82699-601-0	08	1	1109-1207	●	●
431	CONNECTOR; JOINT EXC. VIN MODEL YEAR 2011<VZB> (D) 10P BROWN SOU	1-82699-601-0	08	1	1208-	●
431	CONNECTOR; JOINT ANTILOCK BRAKE SYSTEM(BFA) (E) 10P	8-97077-943-0	02	1	1004-1101	●
431	CONNECTOR; JOINT (E) 10P	8-97077-943-0	02	1	1102-1108	●
431	CONNECTOR; JOINT (E) 10P	8-97077-943-0	02	1	1109-1207	●	●
431	CONNECTOR; JOINT EXC. VIN MODEL YEAR 2011<VZB> (E) 10P	8-97077-943-0	02	1	1208-	●
431	CONNECTOR; JOINT ANTILOCK BRAKE SYSTEM(BFA) (H) 6P BLACK	8-97616-194-0	02	1	1004-1108	●
431	CONNECTOR; JOINT ANTILOCK BRAKE SYSTEM(BFA) (H) 6P BLACK	8-97616-194-0	02	1	1109-1201	●	●
431	CONNECTOR; JOINT VIN MODEL YEAR 2011<VZB> EXC. ANTILOCK BRAKE SYSTEM(BFA) (H) 6P BLACK	8-97616-194-0	02	1	1202-	●
431	CONNECTOR; JOINT ANTILOCK BRAKE SYSTEM(BFA) (H) 6P BLACK	8-97616-194-0	02	1	1202-	●
431	CONNECTOR; JOINT (H) 6P BLACK	8-97616-194-0	02	1	1202-		●
431	CONNECTOR; JOINT ANTILOCK BRAKE SYSTEM(BFA) (A) WHITE	8-98056-374-0	01	1	1004-1101	●
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	1102-1108	●
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	1109-	●	●
431	CONNECTOR; JOINT ANTILOCK BRAKE SYSTEM(BFA) (B) WHITE	8-98056-375-0	01	1	1004-1101	●
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	1102-1108	●
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	1109-	●	●
431	CONNECTOR; JOINT EXC. ANTILOCK BRAKE SYSTEM(BFA) (H) 6P BLACK	8-97616-194-0	01	1	1004-1201	●
431	CONNECTOR; JOINT EXC. ANTILOCK BRAKE SYSTEM(BFA),VIN MODEL YEAR 2011<VZB> (H) 6P BLACK	8-97616-194-0	01	1	1202-	●
533	CLIP ID=31 L=35	1-09700-329-1	01	1	1004-1108	●
533	CLIP ID=31 L=35	1-09700-329-1	01	1	1109-	●	●
534	BOLT M8X20 FLANGE	0-28650-820-0	01	1	1004-1108	●
534	BOLT M8X20 FLANGE	0-28650-820-0	01	1	1109-	●	●
535	BOLT; BRKT FIX M8X20 FLANGE	0-28650-820-0	01	1	1004-1108	●
535	BOLT; BRKT FIX M8X20 FLANGE	0-28650-820-0	01	1	1109-1302	●	●
535	BOLT; BRKT FIX M8X20 FLANGE	0-28650-820-0	03	1	1303-1303	●	●
535	BOLT; BRKT FIX M8X20 FLANGE	0-28650-820-0	01	1	1304-	●	●
536	NUT; BRKT FIX M8	8-98041-929-0	01	1	1004-1108	●
536	NUT; BRKT FIX M8	8-98041-929-0	01	1	1109-	●	●
668	BRACKET; HARNESS (A)	8-98095-653-2	01	1	1004-1108	●
668	BRACKET; HARNESS (A)	8-98095-653-2	01	1	1109-	●	●
668	BRACKET; HARNESS (B)	8-98117-572-0	01	1	1004-1108	●
668	BRACKET; HARNESS (B)	8-98117-572-0	01	1	1109-	●	●

6 720 184 174 27 388 431 431 10 431 184 389 290 267 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME VIN MODEL YEAR 2011<VZB> EXC. ANTILOCK BRAKE SYSTEM(BFA),GENERATOR 24V90A(K44) (A) SOU	8-98182-951-0	01	1	1202-	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) GENERATOR 24V90A(K44) (A)	8-98186-866-0	01	1	1109-		●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) EXC. GENERATOR 24V90A(K44) (A)	8-98186-865-0	01	1	1109-		●
6	HARNESS; FRAME (B)	8-98116-180-1	01	1	1109-		●
6	HARNESS; FRAME (B)	8-98075-634-3	01	1	1004-	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) GENERATOR 24V90A(K44) (A)	8-98102-498-3	01	1	1004-1301	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) GENERATOR 24V90A(K44) FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF> (A)	8-98102-498-3	01	1	1302-	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) EXC. GENERATOR 24V90A(K44) (A)	8-98102-497-3	01	1	1004-1301	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF> EXC. GENERATOR 24V90A(K44) (A)	8-98102-497-3	01	1	1302-	●
6	HARNESS; FRAME EXC. ANTILOCK BRAKE SYSTEM(BFA),GENERATOR 24V90A(K44) (A)	8-98094-520-5	01	1	1004-1201	●
6	HARNESS; FRAME EXC. ANTILOCK BRAKE SYSTEM(BFA),GENERATOR 24V90A(K44),VIN MODEL YEAR 2011<VZB> (A)	8-98094-520-5	01	1	1202-	●
6	HARNESS; FRAME GENERATOR 24V90A(K44) EXC. ANTILOCK BRAKE SYSTEM(BFA) (A)	8-98102-496-3	01	1	1004-	●
10	BOX; FUSE,HARNESS	8-98030-762-0	01	1	1004-1108	●
10	BOX; FUSE,HARNESS	8-98030-762-0	01	1	1109-	●	●
27	FUSE UNIT 10A RED SOU	8-98054-257-0	04	1	1109-1201		●
27	FUSE UNIT VIN MODEL YEAR 2011<VZB> 10A RED SOU	8-98054-257-0	04	1	1202-	●
27	FUSE UNIT 10A RED SOU	8-98054-257-0	04	1	1202-		●
27	FUSE UNIT 10A RED SOU	8-98054-257-0	03	1	1004-1201	●
27	FUSE UNIT ANTILOCK BRAKE SYSTEM(BFA) EXC. GENERATOR 24V90A(K44) 10A RED SOU	8-98054-257-0	03	1	1202-1301	●
27	FUSE UNIT EXC. ANTILOCK BRAKE SYSTEM(BFA),GENERATOR 24V90A(K44),VIN MODEL YEAR 2011<VZB> 10A RED SOU	8-98054-257-0	03	1	1202-1301	●
27	FUSE UNIT GENERATOR 24V90A(K44) 10A RED SOU	8-98054-257-0	03	1	1202-1301	●
27	FUSE UNIT EXC. VIN MODEL YEAR 2011<VZB> 10A RED SOU	8-98054-257-0	03	1	1302-	●
27	FUSE UNIT 15A BLUE SOU	8-98054-258-0	01	1	1004-1108	●
27	FUSE UNIT 15A BLUE SOU	8-98054-258-0	01	1	1109-	●	●
53	BRACKET; FUSE BOX	8-98078-800-1	01	1	1004-1108	●
53	BRACKET; FUSE BOX	8-98078-800-1	01	1	1109-1301	●	●
53	BRACKET; FUSE BOX	8-98078-800-1	01	1	1302-	●	●
174	FUSE; SLOW BLOW 60A YELLOW SOU	8-97219-407-0	01	1	1107-1108	●
174	FUSE; SLOW BLOW 60A YELLOW SOU	8-97219-407-0	01	1	1109-	●	●
174	FUSE; SLOW BLOW 40A GREEN SOU	8-98079-192-0	01	1	1004-1108	●
174	FUSE; SLOW BLOW 40A GREEN SOU	8-98079-192-0	01	1	1109-	●	●
174	FUSE; SLOW BLOW 50A RED SOU	8-98079-193-0	03	1	1004-1108	●
174	FUSE; SLOW BLOW 50A RED SOU	8-98079-193-0	03	1	1109-	●	●
174	FUSE; SLOW BLOW 60A YELLOW 60A YELLOW SOU	8-97219-407-0	02	1	1004-1106	●
174	FUSE; SLOW BLOW 60A YELLOW 60A YELLOW SOU	8-97219-407-0	01	1	1107-1108	●
174	FUSE; SLOW BLOW 60A YELLOW 60A YELLOW SOU	8-97219-407-0	01	1	1109-	●	●
174	FUSE; SLOW BLOW ANTILOCK BRAKE SYSTEM(BFA) 30A PINK SOU	8-98079-191-0	02	1	1004-1108	●
174	FUSE; SLOW BLOW ANTILOCK BRAKE SYSTEM(BFA) 30A PINK SOU	8-98079-191-0	02	1	1109-1201	●	●
174	FUSE; SLOW BLOW VIN MODEL YEAR 2011<VZB> EXC. ANTILOCK BRAKE SYSTEM(BFA) 30A PINK SOU	8-98079-191-0	02	1	1202-	●
174	FUSE; SLOW BLOW ANTILOCK BRAKE SYSTEM(BFA) 30A PINK SOU	8-98079-191-0	02	1	1202-	●
174	FUSE; SLOW BLOW 30A PINK SOU	8-98079-191-0	02	1	1202-		●
174	FUSE; SLOW BLOW EXC. ANTILOCK BRAKE SYSTEM(BFA) 30A PINK SOU	8-98079-191-0	01	1	1004-1201	●
174	FUSE; SLOW BLOW EXC. ANTILOCK BRAKE SYSTEM(BFA),VIN MODEL YEAR 2011<VZB> 30A PINK SOU	8-98079-191-0	01	1	1202-	●
184	COVER; RELAY & FUSE BOX (A)	8-98030-766-0	01	1	1004-1108	●
184	COVER; RELAY & FUSE BOX (A)	8-98030-766-0	01	1	1109-	●	●
184	COVER; RELAY & FUSE BOX (B)	8-98030-767-0	01	1	1004-1108	●
184	COVER; RELAY & FUSE BOX (B)	8-98030-767-0	01	1	1109-	●	●
267	BOLT; BRKT M10X30 FLANGE SOU	0-28651-030-0	02	1	1004-1108	●
267	BOLT; BRKT M10X30 FLANGE SOU	0-28651-030-0	02	1	1109-1301	●	●
267	BOLT; BRKT M10X30 FLANGE SOU	0-28651-030-0	02	1	1302-	●	●
290	NUT; BRKT M10 FLANGE SOU	0-91180-110-0	01	1	1004-1108	●
290	NUT; BRKT M10 FLANGE SOU	0-91180-110-0	01	1	1109-1301	●	●
290	NUT; BRKT M10 FLANGE SOU	0-91180-110-0	01	1	1302-	●	●
388	DIODE; RELAY BOX BLACK 4P-1.5A	8-94381-730-0	02	1	1004-1108	●
388	DIODE; RELAY BOX BLACK 4P-1.5A	8-94381-730-0	02	1	1109-	●	●
388	DIODE; RELAY BOX BLACK 2P-1.5A SOU	8-94422-639-1	01	1	1004-1108	●
388	DIODE; RELAY BOX BLACK 2P-1.5A SOU	8-94422-639-1	01	1	1109-	●	●
389	BOLT; COVER,RELAY BOX M8X35 W/LK&PL WASHER	1-09030-073-0	03	1	1004-1108	●
389	BOLT; COVER,RELAY BOX M8X35 W/LK&PL WASHER	1-09030-073-0	03	1	1109-	●	●
431	CONNECTOR; JOINT VIN MODEL YEAR 2011<VZB> (G) 10P GREEN	1-82699-599-0	01	1	1109-1207	●
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	01	1	1109-1207		●
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	04	1	1004-1108	●
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	04	1	1109-	●	●
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	07	1	1004-1108	●
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	07	1	1109-	●	●
431	CONNECTOR; JOINT (D) 10P BROWN SOU	1-82699-601-0	01	1	1004-1108	●
431	CONNECTOR; JOINT (D) 10P BROWN SOU	1-82699-601-0	01	1	1109-	●	●
431	CONNECTOR; JOINT ANTILOCK BRAKE SYSTEM(BFA) (F) 10P GREEN	1-82698-579-0	01	1	1004-1101	●
431	CONNECTOR; JOINT (F) 10P GREEN	1-82698-579-0	01	1	1102-1108	●
431	CONNECTOR; JOINT (F) 10P GREEN	1-82698-579-0	01	1	1109-1207	●	●
431	CONNECTOR; JOINT EXC. VIN MODEL YEAR 2011<VZB> (F) 10P GREEN	1-82698-579-0	01	1	1208-	●
431	CONNECTOR; JOINT ANTILOCK BRAKE SYSTEM(BFA) (C) 10P BLUE	1-82699-598-0	01	1	1004-1101	●
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	01	1	1102-1108	●
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	01	1	1109-1207	●	●
431	CONNECTOR; JOINT EXC. VIN MODEL YEAR 2011<VZB> (C) 10P BLUE	1-82699-598-0	01	1	1208-	●
431	CONNECTOR; JOINT ANTILOCK BRAKE SYSTEM(BFA) (D) 10P BROWN SOU	1-82699-601-0	08	1	1004-1101	●
431	CONNECTOR; JOINT (D) 10P BROWN SOU	1-82699-601-0	08	1	1102-1108	●
431	CONNECTOR; JOINT (D) 10P BROWN SOU	1-82699-601-0	08	1	1109-1207	●	●
431	CONNECTOR; JOINT EXC. VIN MODEL YEAR 2011<VZB> (D) 10P BROWN SOU	1-82699-601-0	08	1	1208-	●
431	CONNECTOR; JOINT ANTILOCK BRAKE SYSTEM(BFA) (E) 10P	8-97077-943-0	02	1	1004-1101	●
431	CONNECTOR; JOINT (E) 10P	8-97077-943-0	02	1	1102-1108	●
431	CONNECTOR; JOINT (E) 10P	8-97077-943-0	02	1	1109-1207	●	●
431	CONNECTOR; JOINT EXC. VIN MODEL YEAR 2011<VZB> (E) 10P	8-97077-943-0	02	1	1208-	●
431	CONNECTOR; JOINT ANTILOCK BRAKE SYSTEM(BFA) (H) 6P BLACK	8-97616-194-0	02	1	1004-1108	●
431	CONNECTOR; JOINT ANTILOCK BRAKE SYSTEM(BFA) (H) 6P BLACK	8-97616-194-0	02	1	1109-1201	●	●
431	CONNECTOR; JOINT VIN MODEL YEAR 2011<VZB> EXC. ANTILOCK BRAKE SYSTEM(BFA) (H) 6P BLACK	8-97616-194-0	02	1	1202-	●
431	CONNECTOR; JOINT ANTILOCK BRAKE SYSTEM(BFA) (H) 6P BLACK	8-97616-194-0	02	1	1202-	●
431	CONNECTOR; JOINT (H) 6P BLACK	8-97616-194-0	02	1	1202-		●
431	CONNECTOR; JOINT ANTILOCK BRAKE SYSTEM(BFA) (A) WHITE	8-98056-374-0	01	1	1004-1101	●
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	1102-1108	●
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	1109-	●	●
431	CONNECTOR; JOINT ANTILOCK BRAKE SYSTEM(BFA) (B) WHITE	8-98056-375-0	01	1	1004-1101	●
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	1102-1108	●
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	1109-	●	●
431	CONNECTOR; JOINT EXC. ANTILOCK BRAKE SYSTEM(BFA) (H) 6P BLACK	8-97616-194-0	01	1	1004-1201	●
431	CONNECTOR; JOINT EXC. ANTILOCK BRAKE SYSTEM(BFA),VIN MODEL YEAR 2011<VZB> (H) 6P BLACK	8-97616-194-0	01	1	1202-	●
720	ATTACHMENT; CONNECTOR	1-82699-688-0	03	1	1004-1108	●
720	ATTACHMENT; CONNECTOR	1-82699-688-0	03	1	1109-	●	●

204 18 12 18 378 14 378 204 14 6 6 706 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME VIN MODEL YEAR 2011<VZB> EXC. ANTILOCK BRAKE SYSTEM(BFA),GENERATOR 24V90A(K44) (A) SOU	8-98182-951-0	01	1	1202-	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) GENERATOR 24V90A(K44) (A)	8-98186-866-0	01	1	1109-		●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) EXC. GENERATOR 24V90A(K44) (A)	8-98186-865-0	01	1	1109-		●
6	HARNESS; FRAME (B)	8-98116-180-1	01	1	1109-		●
6	HARNESS; FRAME (B)	8-98075-634-3	01	1	1004-	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) GENERATOR 24V90A(K44) (A)	8-98102-498-3	01	1	1004-1301	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) GENERATOR 24V90A(K44) FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF> (A)	8-98102-498-3	01	1	1302-	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) EXC. GENERATOR 24V90A(K44) (A)	8-98102-497-3	01	1	1004-1301	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF> EXC. GENERATOR 24V90A(K44) (A)	8-98102-497-3	01	1	1302-	●
6	HARNESS; FRAME EXC. ANTILOCK BRAKE SYSTEM(BFA),GENERATOR 24V90A(K44) (A)	8-98094-520-5	01	1	1004-1201	●
6	HARNESS; FRAME EXC. ANTILOCK BRAKE SYSTEM(BFA),GENERATOR 24V90A(K44),VIN MODEL YEAR 2011<VZB> (A)	8-98094-520-5	01	1	1202-	●
6	HARNESS; FRAME GENERATOR 24V90A(K44) EXC. ANTILOCK BRAKE SYSTEM(BFA) (A)	8-98102-496-3	01	1	1004-	●
7	LINK ASM; FUSIBLE GENERATOR 24V90A(K44) ENGINE REAR PTO(SV1)	8-98106-138-0	01	1	1102-	●
7	LINK ASM; FUSIBLE ENGINE REAR PTO(SV1) EXC. GENERATOR 24V90A(K44)	8-98106-137-0	01	1	1102-	●
7	LINK ASM; FUSIBLE GENERATOR 24V90A(K44)	8-98103-000-0	01	1	1004-1101	●
7	LINK ASM; FUSIBLE GENERATOR 24V90A(K44) EXC. ENGINE REAR PTO(SV1)	8-98103-000-0	01	1	1102-1108	●
7	LINK ASM; FUSIBLE GENERATOR 24V90A(K44) EXC. ENGINE REAR PTO(SV1)	8-98103-000-0	01	1	1109-	●
7	LINK ASM; FUSIBLE GENERATOR 24V90A(K44)	8-98103-000-0	01	1	1109-		●
7	LINK ASM; FUSIBLE EXC. GENERATOR 24V90A(K44)	8-98088-132-0	01	1	1004-1101	●
7	LINK ASM; FUSIBLE EXC. GENERATOR 24V90A(K44),ENGINE REAR PTO(SV1)	8-98088-132-0	01	1	1102-1108	●
7	LINK ASM; FUSIBLE EXC. GENERATOR 24V90A(K44),ENGINE REAR PTO(SV1)	8-98088-132-0	01	1	1109-	●
7	LINK ASM; FUSIBLE EXC. GENERATOR 24V90A(K44)	8-98088-132-0	01	1	1109-		●
12	HARNESS; ROOF	8-98079-072-1	01	1	1004-1108	●
12	HARNESS; ROOF	8-98079-072-1	01	1	1109-	●	●
14	HARNESS; HEADLAMP HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98103-680-1	02	1	1004-1108	●
14	HARNESS; HEADLAMP HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98103-680-1	02	1	1109-	●	●
14	HARNESS; HEADLAMP HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	8-98075-629-3	02	1	1004-1108	●
14	HARNESS; HEADLAMP HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	8-98075-629-3	02	1	1109-	●	●
18	HARNESS; DOOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98079-079-4	01	1	1004-1101	●
18	HARNESS; DOOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98084-288-3	01	1	1102-1108	●
18	HARNESS; DOOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98084-288-3	01	1	1109-	●	●
18	HARNESS; DOOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98079-076-4	01	1	1004-1101	●
18	HARNESS; DOOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98084-283-3	01	1	1102-1108	●
18	HARNESS; DOOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98084-283-3	01	1	1109-	●	●
18	HARNESS; DOOR EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98108-440-1	01	1	1004-1108	●
18	HARNESS; DOOR EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98108-440-1	01	1	1109-	●	●
18	HARNESS; DOOR EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98108-439-1	01	1	1004-1108	●
18	HARNESS; DOOR EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98108-439-1	01	1	1109-	●	●
204	HARNESS; CABLE,FLOOR VIN MODEL YEAR 2011<VZB> (B)	8-98188-517-0	01	1	1109-	●
204	HARNESS; CABLE,FLOOR (B)	8-98188-517-0	01	1	1109-		●
204	HARNESS; CABLE,FLOOR (A)	8-98117-546-0	01	1	1004-1108	●
204	HARNESS; CABLE,FLOOR (A)	8-98117-546-0	01	1	1109-	●	●
204	HARNESS; CABLE,FLOOR (B)	8-98117-551-1	01	1	1004-1108	●
204	HARNESS; CABLE,FLOOR EXC. VIN MODEL YEAR 2011<VZB> (B)	8-98117-551-1	01	1	1109-	●
378	HARNESS; EXT,MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98125-653-0	02	1	1102-1102	●
706	HARNESS; EXT,SEDIMENTER FUEL TANK 200L AL<THF>	8-98079-754-0	01	1	1109-	●
706	HARNESS; EXT,SEDIMENTER	8-98079-753-1	01	1	1109-		●
706	HARNESS; EXT,SEDIMENTER	8-98087-610-1	01	1	1004-1108	●
706	HARNESS; EXT,SEDIMENTER FUEL TANK 400L<SDH>	8-98087-610-1	01	1	1109-	●

189 431 6 419 450 683 6 419 419 431 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME VIN MODEL YEAR 2011<VZB> EXC. ANTILOCK BRAKE SYSTEM(BFA),GENERATOR 24V90A(K44) (A) SOU	8-98182-951-0	01	1	1202-	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) GENERATOR 24V90A(K44) (A)	8-98186-866-0	01	1	1109-		●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) EXC. GENERATOR 24V90A(K44) (A)	8-98186-865-0	01	1	1109-		●
6	HARNESS; FRAME (B)	8-98116-180-1	01	1	1109-		●
6	HARNESS; FRAME (B)	8-98075-634-3	01	1	1004-	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) GENERATOR 24V90A(K44) (A)	8-98102-498-3	01	1	1004-1301	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) GENERATOR 24V90A(K44) FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF> (A)	8-98102-498-3	01	1	1302-	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) EXC. GENERATOR 24V90A(K44) (A)	8-98102-497-3	01	1	1004-1301	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF> EXC. GENERATOR 24V90A(K44) (A)	8-98102-497-3	01	1	1302-	●
6	HARNESS; FRAME EXC. ANTILOCK BRAKE SYSTEM(BFA),GENERATOR 24V90A(K44) (A)	8-98094-520-5	01	1	1004-1201	●
6	HARNESS; FRAME EXC. ANTILOCK BRAKE SYSTEM(BFA),GENERATOR 24V90A(K44),VIN MODEL YEAR 2011<VZB> (A)	8-98094-520-5	01	1	1202-	●
6	HARNESS; FRAME GENERATOR 24V90A(K44) EXC. ANTILOCK BRAKE SYSTEM(BFA) (A)	8-98102-496-3	01	1	1004-	●
9	HARNESS; FRAME,RR WHEEL BASE 5000MM(50W) ANTILOCK BRAKE SYSTEM(BFA) VIN MODEL YEAR 2011<VZB>	8-98186-868-0	01	1	1109-	●
9	HARNESS; FRAME,RR WHEEL BASE 6600MM(66W) ANTILOCK BRAKE SYSTEM(BFA) VIN MODEL YEAR 2011<VZB>	8-98188-541-0	01	1	1109-	●
9	HARNESS; FRAME,RR WHEEL BASE 4700MM(47W) ANTILOCK BRAKE SYSTEM(BFA)	8-98186-867-0	01	1	1109-		●
9	HARNESS; FRAME,RR ANTILOCK BRAKE SYSTEM(BFA)	8-98079-747-2	01	1	1004-1108	●
9	HARNESS; FRAME,RR WHEEL BASE 6600MM(66W) ANTILOCK BRAKE SYSTEM(BFA) EXC. VIN MODEL YEAR 2011<VZB>	8-98079-747-2	01	1	1109-	●
189	HARNESS; EXT	8-98131-066-0	01	1	1004-1108	●
189	HARNESS; EXT	8-98131-066-0	01	1	1109-	●	●
419	BOLT; CAB EARTH (A) M6X16 W/LK&PL WASHER	8-97086-823-0	01	1	1004-1108	●
419	BOLT; CAB EARTH (A) M6X16 W/LK&PL WASHER	8-97086-823-0	01	1	1109-	●	●
419	BOLT; CAB EARTH (B) M8X16 W/LK&PL WASHER	8-97087-055-0	03	1	1004-1108	●
419	BOLT; CAB EARTH (B) M8X16 W/LK&PL WASHER	8-97087-055-0	03	1	1109-1201	●	●
419	BOLT; CAB EARTH (B) M8X14 W/PL WASHER	8-98164-837-0	03	1	1202-	●	●
431	CONNECTOR; JOINT VIN MODEL YEAR 2011<VZB> (G) 10P GREEN	1-82699-599-0	01	1	1109-1207	●
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	01	1	1109-1207		●
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	04	1	1004-1108	●
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	04	1	1109-	●	●
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	07	1	1004-1108	●
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	07	1	1109-	●	●
431	CONNECTOR; JOINT (D) 10P BROWN SOU	1-82699-601-0	01	1	1004-1108	●
431	CONNECTOR; JOINT (D) 10P BROWN SOU	1-82699-601-0	01	1	1109-	●	●
431	CONNECTOR; JOINT ANTILOCK BRAKE SYSTEM(BFA) (F) 10P GREEN	1-82698-579-0	01	1	1004-1101	●
431	CONNECTOR; JOINT (F) 10P GREEN	1-82698-579-0	01	1	1102-1108	●
431	CONNECTOR; JOINT (F) 10P GREEN	1-82698-579-0	01	1	1109-1207	●	●
431	CONNECTOR; JOINT EXC. VIN MODEL YEAR 2011<VZB> (F) 10P GREEN	1-82698-579-0	01	1	1208-	●
431	CONNECTOR; JOINT ANTILOCK BRAKE SYSTEM(BFA) (C) 10P BLUE	1-82699-598-0	01	1	1004-1101	●
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	01	1	1102-1108	●
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	01	1	1109-1207	●	●
431	CONNECTOR; JOINT EXC. VIN MODEL YEAR 2011<VZB> (C) 10P BLUE	1-82699-598-0	01	1	1208-	●
431	CONNECTOR; JOINT ANTILOCK BRAKE SYSTEM(BFA) (D) 10P BROWN SOU	1-82699-601-0	08	1	1004-1101	●
431	CONNECTOR; JOINT (D) 10P BROWN SOU	1-82699-601-0	08	1	1102-1108	●
431	CONNECTOR; JOINT (D) 10P BROWN SOU	1-82699-601-0	08	1	1109-1207	●	●
431	CONNECTOR; JOINT EXC. VIN MODEL YEAR 2011<VZB> (D) 10P BROWN SOU	1-82699-601-0	08	1	1208-	●
431	CONNECTOR; JOINT ANTILOCK BRAKE SYSTEM(BFA) (E) 10P	8-97077-943-0	02	1	1004-1101	●
431	CONNECTOR; JOINT (E) 10P	8-97077-943-0	02	1	1102-1108	●
431	CONNECTOR; JOINT (E) 10P	8-97077-943-0	02	1	1109-1207	●	●
431	CONNECTOR; JOINT EXC. VIN MODEL YEAR 2011<VZB> (E) 10P	8-97077-943-0	02	1	1208-	●
431	CONNECTOR; JOINT ANTILOCK BRAKE SYSTEM(BFA) (H) 6P BLACK	8-97616-194-0	02	1	1004-1108	●
431	CONNECTOR; JOINT ANTILOCK BRAKE SYSTEM(BFA) (H) 6P BLACK	8-97616-194-0	02	1	1109-1201	●	●
431	CONNECTOR; JOINT VIN MODEL YEAR 2011<VZB> EXC. ANTILOCK BRAKE SYSTEM(BFA) (H) 6P BLACK	8-97616-194-0	02	1	1202-	●
431	CONNECTOR; JOINT ANTILOCK BRAKE SYSTEM(BFA) (H) 6P BLACK	8-97616-194-0	02	1	1202-	●
431	CONNECTOR; JOINT (H) 6P BLACK	8-97616-194-0	02	1	1202-		●
431	CONNECTOR; JOINT ANTILOCK BRAKE SYSTEM(BFA) (A) WHITE	8-98056-374-0	01	1	1004-1101	●
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	1102-1108	●
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	1109-	●	●
431	CONNECTOR; JOINT ANTILOCK BRAKE SYSTEM(BFA) (B) WHITE	8-98056-375-0	01	1	1004-1101	●
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	1102-1108	●
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	1109-	●	●
431	CONNECTOR; JOINT EXC. ANTILOCK BRAKE SYSTEM(BFA) (H) 6P BLACK	8-97616-194-0	01	1	1004-1201	●
431	CONNECTOR; JOINT EXC. ANTILOCK BRAKE SYSTEM(BFA),VIN MODEL YEAR 2011<VZB> (H) 6P BLACK	8-97616-194-0	01	1	1202-	●
450	WASHER; PL,CAB EARTH ID=8.4	1-09503-264-0	01	1	1004-1108	●
450	WASHER; PL,CAB EARTH ID=8.4	1-09503-264-0	01	1	1109-	●	●
683	HARNESS; EXT,COOLER AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-97609-020-1	01	1	1004-1108	●
683	HARNESS; EXT,COOLER AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-97609-020-1	01	1	1109-	●	●

13 13 6 231 463 570 95 462

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME VIN MODEL YEAR 2011<VZB> EXC. ANTILOCK BRAKE SYSTEM(BFA),GENERATOR 24V90A(K44) (A) SOU	8-98182-951-0	01	1	1202-	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) GENERATOR 24V90A(K44) (A)	8-98186-866-0	01	1	1109-		●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) EXC. GENERATOR 24V90A(K44) (A)	8-98186-865-0	01	1	1109-		●
6	HARNESS; FRAME (B)	8-98116-180-1	01	1	1109-		●
6	HARNESS; FRAME (B)	8-98075-634-3	01	1	1004-	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) GENERATOR 24V90A(K44) (A)	8-98102-498-3	01	1	1004-1301	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) GENERATOR 24V90A(K44) FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF> (A)	8-98102-498-3	01	1	1302-	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) EXC. GENERATOR 24V90A(K44) (A)	8-98102-497-3	01	1	1004-1301	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF> EXC. GENERATOR 24V90A(K44) (A)	8-98102-497-3	01	1	1302-	●
6	HARNESS; FRAME EXC. ANTILOCK BRAKE SYSTEM(BFA),GENERATOR 24V90A(K44) (A)	8-98094-520-5	01	1	1004-1201	●
6	HARNESS; FRAME EXC. ANTILOCK BRAKE SYSTEM(BFA),GENERATOR 24V90A(K44),VIN MODEL YEAR 2011<VZB> (A)	8-98094-520-5	01	1	1202-	●
6	HARNESS; FRAME GENERATOR 24V90A(K44) EXC. ANTILOCK BRAKE SYSTEM(BFA) (A)	8-98102-496-3	01	1	1004-	●
13	HARNESS; ENG (B)	8-97620-049-1	01	1	1004-1108	●
13	HARNESS; ENG EXC. VIN MODEL YEAR 2011<VZB> (B)	8-97620-049-1	01	1	1109-	●
13	HARNESS; ENG VIN MODEL YEAR 2011<VZB> (A)	8-98172-215-0	01	1	1109-	●
13	HARNESS; ENG (A)	8-98172-215-0	01	1	1109-		●
13	HARNESS; ENG (A)	8-97609-178-1	01	1	1004-1108	●
13	HARNESS; ENG (A)	8-97609-178-1	01	1	1109-	●	●
95	HARNESS; NEUTRAL SW SHIFT PATTERN DOUBLE-H<EDZ> RED	8-98145-855-0	01	1	1004-1108	●
95	HARNESS; NEUTRAL SW SHIFT PATTERN DOUBLE-H<EDZ> RED	8-98145-855-0	01	1	1109-	●	●
231	HARNESS; TRANS ENGINE REAR PTO(SV1)	8-98172-096-0	01	1	1102-	●
231	HARNESS; TRANS	8-98107-418-0	01	1	1004-1101	●
231	HARNESS; TRANS EXC. ENGINE REAR PTO(SV1)	8-98107-418-0	01	1	1102-1108	●
231	HARNESS; TRANS EXC. ENGINE REAR PTO(SV1)	8-98107-418-0	01	1	1109-	●
231	HARNESS; TRANS	8-98107-418-0	01	1	1109-		●
462	HARNESS; SW,RANGE SHIFT PATTERN DOUBLE-H<EDZ> BLUE	8-98145-857-0	01	1	1004-1108	●
462	HARNESS; SW,RANGE SHIFT PATTERN DOUBLE-H<EDZ> BLUE	8-98145-857-0	01	1	1109-	●	●
463	HARNESS; SW,BACK UP SHIFT PATTERN DOUBLE-H<EDZ> BLACK	8-98145-856-0	01	1	1004-1108	●
463	HARNESS; SW,BACK UP SHIFT PATTERN DOUBLE-H<EDZ> BLACK	8-98145-856-0	01	1	1109-	●	●
570	HARNESS; SPEED SENSOR (A)	8-98058-327-1	01	1	1004-1108	●
570	HARNESS; SPEED SENSOR (A)	8-98058-327-1	01	1	1109-	●	●
570	HARNESS; SPEED SENSOR SHIFT PATTERN DOUBLE-H<EDZ> (B)	1-82659-230-0	01	1	1004-1004	●
570	HARNESS; SPEED SENSOR SHIFT PATTERN DOUBLE-H<EDZ> (B)	8-98148-602-0	01	1	1005-1108	●
570	HARNESS; SPEED SENSOR SHIFT PATTERN DOUBLE-H<EDZ> (B)	8-98148-602-0	01	1	1109-	●	●

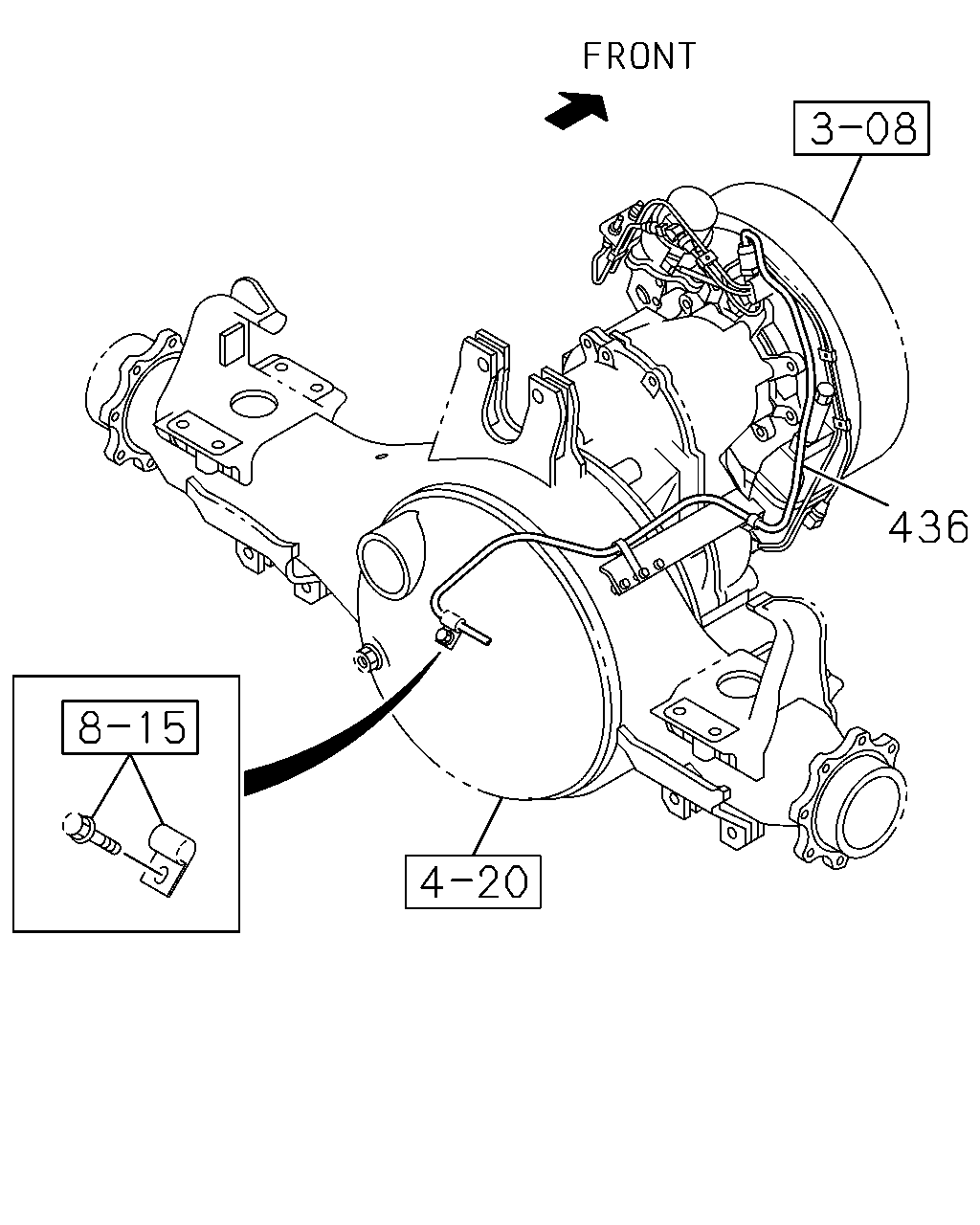

436

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	436	HARNESS; RETARDER	8-98196-502-0	01	1	1109-1206		●
	436	HARNESS; RETARDER BRAKE SYSTEM RETARDER<RE2>	8-98196-502-0	01	1	1207-		●

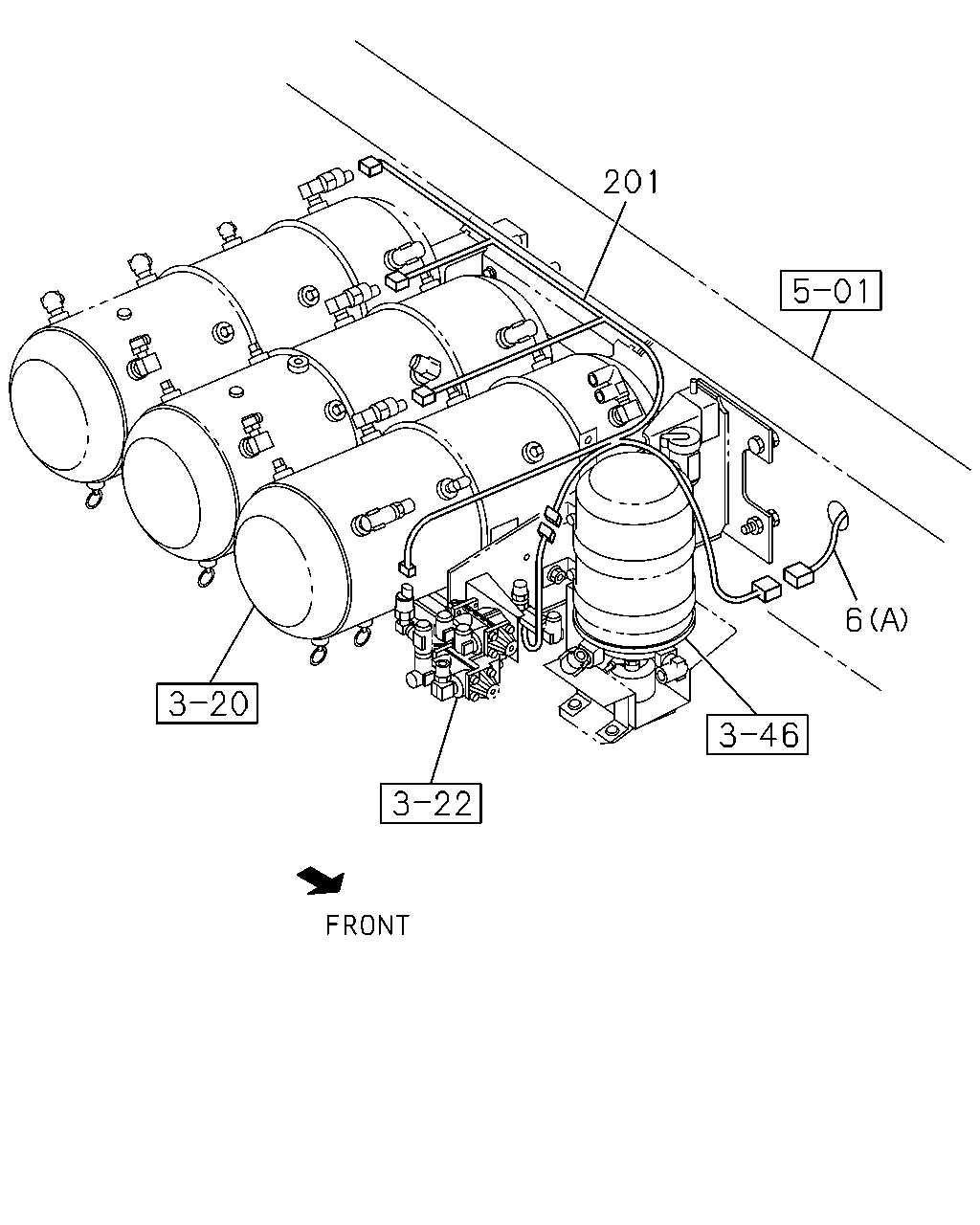

201 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME VIN MODEL YEAR 2011<VZB> EXC. ANTILOCK BRAKE SYSTEM(BFA),GENERATOR 24V90A(K44) (A) SOU	8-98182-951-0	01	1	1202-	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) GENERATOR 24V90A(K44) (A)	8-98186-866-0	01	1	1109-		●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) EXC. GENERATOR 24V90A(K44) (A)	8-98186-865-0	01	1	1109-		●
6	HARNESS; FRAME (B)	8-98116-180-1	01	1	1109-		●
6	HARNESS; FRAME (B)	8-98075-634-3	01	1	1004-	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) GENERATOR 24V90A(K44) (A)	8-98102-498-3	01	1	1004-1301	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) GENERATOR 24V90A(K44) FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF> (A)	8-98102-498-3	01	1	1302-	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) EXC. GENERATOR 24V90A(K44) (A)	8-98102-497-3	01	1	1004-1301	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF> EXC. GENERATOR 24V90A(K44) (A)	8-98102-497-3	01	1	1302-	●
6	HARNESS; FRAME EXC. ANTILOCK BRAKE SYSTEM(BFA),GENERATOR 24V90A(K44) (A)	8-98094-520-5	01	1	1004-1201	●
6	HARNESS; FRAME EXC. ANTILOCK BRAKE SYSTEM(BFA),GENERATOR 24V90A(K44),VIN MODEL YEAR 2011<VZB> (A)	8-98094-520-5	01	1	1202-	●
6	HARNESS; FRAME GENERATOR 24V90A(K44) EXC. ANTILOCK BRAKE SYSTEM(BFA) (A)	8-98102-496-3	01	1	1004-	●
201	HARNESS; AIR TANK	8-98079-765-5	01	1	1004-1108	●
201	HARNESS; AIR TANK	8-98079-765-5	01	1	1109-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
