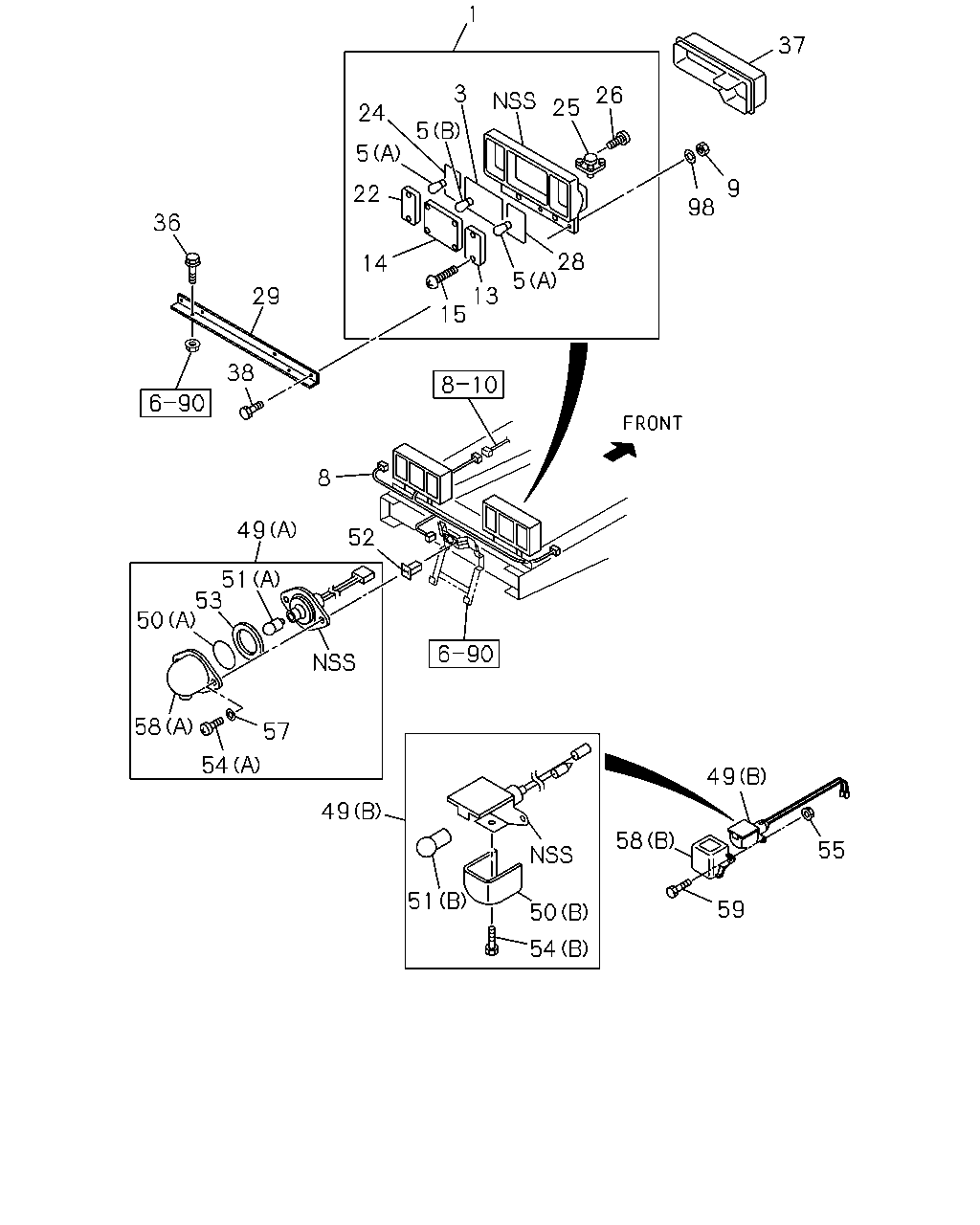

8-03 — LAMP; REAR AND REAR SIDE (#21864) — 82 parça

1 37 3 26 25 24 5 5 9 22 98 36 28 14 5 13 15 29 38 8 49 52 51 53 50 58 57 54 49 49 58 55 51 59 50 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LAMP ASM; RR COMB	8-98034-325-0	01	1	1004-1108	●
1	LAMP ASM; RR COMB	8-98034-325-0	01	1	1109-	●	●
1	LAMP ASM; RR COMB REVERSING WARNING BUZZER<YM9>	8-98034-328-0	01	1	1004-1108	●
1	LAMP ASM; RR COMB REVERSING WARNING BUZZER<YM9>	8-98034-328-0	01	1	1109-	●	●
1	LAMP ASM; RR COMB EXC. REVERSING WARNING BUZZER<YM9>	8-98034-324-0	01	1	1004-1108	●
1	LAMP ASM; RR COMB EXC. REVERSING WARNING BUZZER<YM9>	8-98034-324-0	01	1	1109-	●	●
3	GASKET; RR COMB LAMP	8-94257-505-0	01	1	1004-1108	●
3	GASKET; RR COMB LAMP	8-94257-505-0	01	1	1109-	●	●
5	BULB; RR COMB LAMP (A) 24V 21W	1-82194-108-0	02	1	1004-1108	●
5	BULB; RR COMB LAMP (A) 24V 21W	1-82194-108-0	02	1	1109-	●	●
5	BULB; RR COMB LAMP (B) 24V 21/5W	1-82194-109-0	01	1	1004-1108	●
5	BULB; RR COMB LAMP (B) 24V 21/5W	1-82194-109-0	01	1	1109-	●	●
8	HARNESS; RR COMB LAMP	8-98057-607-0	01	1	1004-	●
9	NUT; LAMP,RR COMB M6 SOU	0-91110-506-0	04	1	1004-1108	●
9	NUT; LAMP,RR COMB M6 SOU	0-91110-506-0	04	1	1109-	●	●
13	LENS; TURN SIGNAL	8-94174-639-0	01	1	1004-1108	●
13	LENS; TURN SIGNAL	8-94174-639-0	01	1	1109-	●	●
13	LENS; TURN SIGNAL	8-94174-638-0	01	1	1004-1108	●
13	LENS; TURN SIGNAL	8-94174-638-0	01	1	1109-	●	●
14	LENS; TAIL & STOP,RR COMB LAMP	8-94178-625-0	01	1	1004-1108	●
14	LENS; TAIL & STOP,RR COMB LAMP	8-94178-625-0	01	1	1109-	●	●
14	LENS; TAIL & STOP,RR COMB LAMP	8-94178-624-0	01	1	1004-1108	●
14	LENS; TAIL & STOP,RR COMB LAMP	8-94178-624-0	01	1	1109-	●	●
15	SCREW; RR COMB LAMP M4X20 TAPPING STAINLESS	0-71190-420-0	08	1	1004-1108	●
15	SCREW; RR COMB LAMP M4X20 TAPPING STAINLESS	0-71190-420-0	08	1	1109-	●	●
22	LENS; BACKUP,RR COMB LAMP CLEAR	8-94257-512-1	01	1	1004-1108	●
22	LENS; BACKUP,RR COMB LAMP CLEAR	8-94257-512-1	01	1	1109-	●	●
24	GASKET; BACK,LAMP	8-94257-506-0	01	1	1004-1108	●
24	GASKET; BACK,LAMP	8-94257-506-0	01	1	1109-	●	●
25	HORN ASM; BACK REVERSING WARNING BUZZER<YM9>	8-94257-518-0	01	1	1004-1108	●
25	HORN ASM; BACK REVERSING WARNING BUZZER<YM9>	8-94257-518-0	01	1	1109-	●	●
26	SCREW; BACK HORN M4X14 TAPPING	9-07076-414-0	01	1	1004-1108	●
26	SCREW; BACK HORN M4X14 TAPPING	9-07076-414-0	01	1	1109-	●	●
26	SCREW; BACK HORN REVERSING WARNING BUZZER<YM9> M4X12 TAPPING	9-07076-412-0	02	1	1004-1108	●
26	SCREW; BACK HORN REVERSING WARNING BUZZER<YM9> M4X12 TAPPING	9-07076-412-0	02	1	1109-	●	●
26	SCREW; BACK HORN EXC. REVERSING WARNING BUZZER<YM9> M4X12 TAPPING	9-07076-412-0	01	1	1004-1108	●
26	SCREW; BACK HORN EXC. REVERSING WARNING BUZZER<YM9> M4X12 TAPPING	9-07076-412-0	01	1	1109-	●	●
28	GASKET; TURN,LAMP	8-94257-507-0	01	1	1004-1108	●
28	GASKET; TURN,LAMP	8-94257-507-0	01	1	1109-	●	●
29	BRACKET; LAMP,RR COMB SOU	1-53178-016-1	01	1	1004-1108	●
29	BRACKET; LAMP,RR COMB SOU	1-53178-016-1	01	1	1109-	●	●
36	BOLT; BRKT,RR COMB M10X40 FLANGE SOU	0-28651-040-0	02	1	1004-1108	●
36	BOLT; BRKT,RR COMB M10X40 FLANGE SOU	0-28651-040-0	02	1	1109-	●	●
37	COVER; RR COMB LAMP	8-94129-274-4	01	1	1004-1108	●
37	COVER; RR COMB LAMP	8-94129-274-4	01	1	1109-	●	●
37	COVER; RR COMB LAMP	8-94128-858-4	01	1	1004-1108	●
37	COVER; RR COMB LAMP	8-94128-858-4	01	1	1109-	●	●
38	BOLT; LAMP,RR COMB M6X30 W/LK&PL WASHER SOU	0-50640-630-0	04	1	1004-1108	●
38	BOLT; LAMP,RR COMB M6X30 W/LK&PL WASHER SOU	0-50640-630-0	04	1	1109-	●	●
49	LAMP; LICENSE PLATE (B) 24V 5W	8-97105-380-0	02	1	1008-1108	●
49	LAMP; LICENSE PLATE (B) 24V 5W	8-97105-380-0	02	1	1109-1509	●	●
49	LAMP; LICENSE PLATE (B) 24V 5W	8-98329-430-0	02	1	1510-	●	●
49	LAMP; LICENSE PLATE (A) 24V 10W SOU	1-82120-024-1	01	1	1004-1108	●
49	LAMP; LICENSE PLATE (A) 24V 10W SOU	1-82120-024-1	01	1	1109-	●	●
50	LENS; LICENSE PLATE LAMP (B)	8-97108-212-0	02	1	1008-1108	●
50	LENS; LICENSE PLATE LAMP (B)	8-97108-212-0	02	1	1109-	●	●
50	LENS; LICENSE PLATE LAMP (A) SOU	1-82235-006-0	01	1	1004-1108	●
50	LENS; LICENSE PLATE LAMP (A) SOU	1-82235-006-0	01	1	1109-	●	●
51	BULB; LICENSE PLATE LAMP (B) 24V 5W	1-82194-039-0	02	1	1008-1108	●
51	BULB; LICENSE PLATE LAMP (B) 24V 5W	1-82194-039-0	02	1	1109-	●	●
51	BULB; LICENSE PLATE LAMP (A) 24V 10W SOU	1-82194-037-0	01	1	1004-1108	●
51	BULB; LICENSE PLATE LAMP (A) 24V 10W SOU	1-82194-037-0	01	1	1109-	●	●
52	GROMMET; SCREW,LICENSE PLATE LAMP D=7.8X7.8 L=18 M5 BLACK SOU	8-94275-946-0	02	1	1004-1108	●
52	GROMMET; SCREW,LICENSE PLATE LAMP D=7.8X7.8 L=18 M5 BLACK SOU	8-94275-946-0	02	1	1109-	●	●
53	GASKET; LICENSE LAMP SOU	1-82126-005-0	01	1	1004-1108	●
53	GASKET; LICENSE LAMP SOU	1-82126-005-0	01	1	1109-	●	●
54	SCREW; LICENSE PLATE LAMP (B) M4X8	8-94419-312-0	02	1	1008-1108	●
54	SCREW; LICENSE PLATE LAMP (B) M4X8	8-94419-312-0	02	1	1109-	●	●
54	SCREW; LICENSE PLATE LAMP (A) M5X20 SOU	1-82129-007-0	02	1	1004-1108	●
54	SCREW; LICENSE PLATE LAMP (A) M5X20 SOU	1-82129-007-0	02	1	1109-	●	●
55	NUT; LICENSE PLATE LAMP M5 FLANGE	8-94153-039-0	04	1	1008-1108	●
55	NUT; LICENSE PLATE LAMP M5 FLANGE	8-94153-039-0	04	1	1109-	●	●
57	WASHER; PL,LICENSE PLATE LAMP SOU	1-82129-008-0	02	1	1004-1108	●
57	WASHER; PL,LICENSE PLATE LAMP SOU	1-82129-008-0	02	1	1109-	●	●
58	COVER; LICENSE PLATE LAMP (B)	8-97076-590-1	02	1	1008-1108	●
58	COVER; LICENSE PLATE LAMP (B)	8-97076-590-1	02	1	1109-	●	●
58	COVER; LICENSE PLATE LAMP (A) SOU	1-82129-005-0	01	1	1004-1108	●
58	COVER; LICENSE PLATE LAMP (A) SOU	1-82129-005-0	01	1	1109-	●	●
59	SCREW; TAP,LICENSE LAMP BODY M5X20	9-93490-520-0	04	1	1008-1108	●
59	SCREW; TAP,LICENSE LAMP BODY M5X20	9-93490-520-0	04	1	1109-	●	●
98	WASHER ID=6.4 OD=18 SOU	0-91610-706-0	04	1	1004-1108	●
98	WASHER ID=6.4 OD=18 SOU	0-91610-706-0	04	1	1109-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
