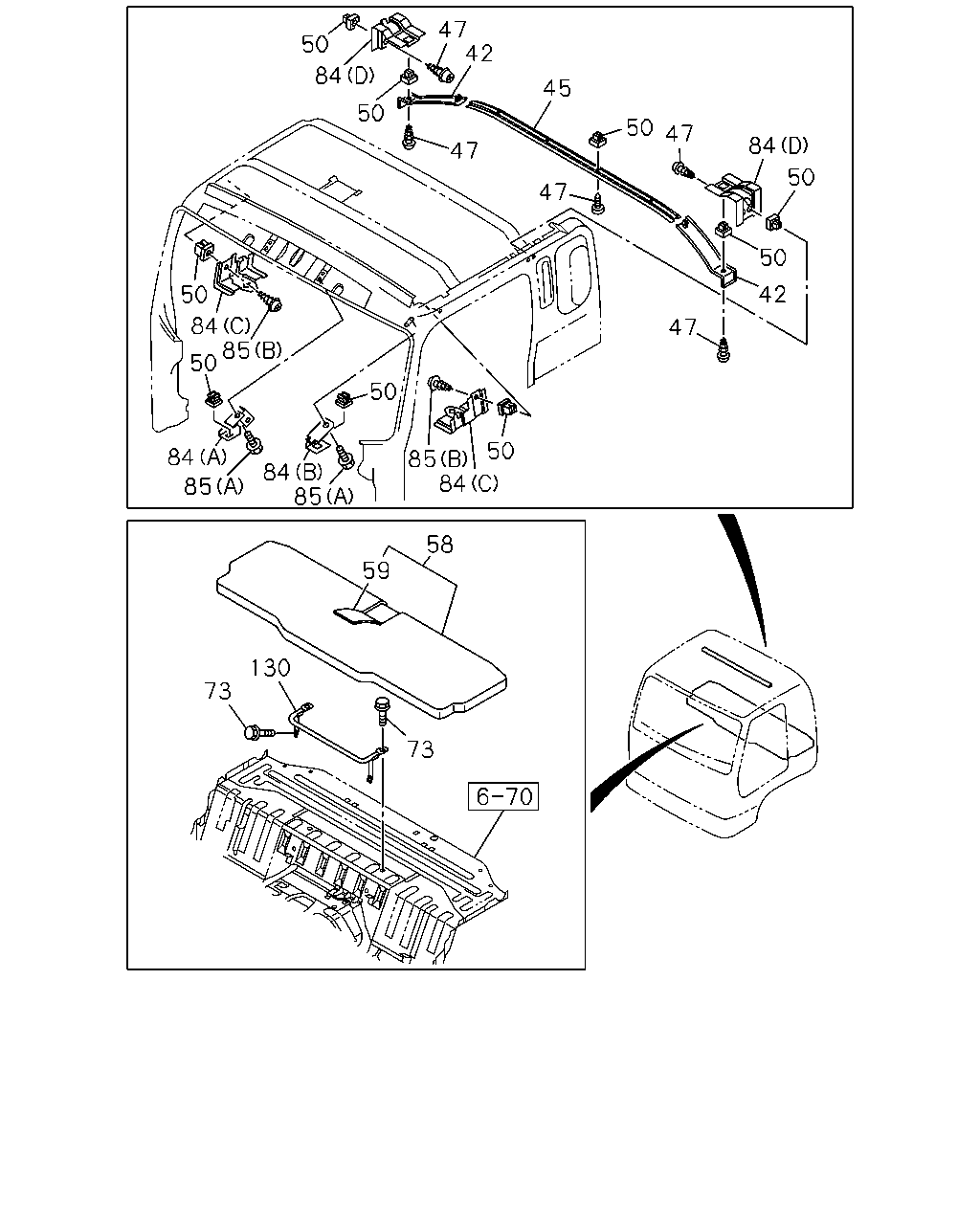

7-70 — SEPARATER AND BED (#21862) — 32 parça

47 42 50 84 45 50 50 47 84 47 50 47 50 42 50 84 85 50 47 50 50 84 85 84 84 85 85 58 59 130 73 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
42	STOPPER; CURTAIN RAIL DARK GRAY	8-97407-972-2	01	1	1004-1108	●
42	STOPPER; CURTAIN RAIL DARK GRAY	8-97407-972-2	01	1	1109-	●	●
42	STOPPER; CURTAIN RAIL DARK GRAY	8-97407-499-2	01	1	1004-1108	●
42	STOPPER; CURTAIN RAIL DARK GRAY	8-97407-499-2	01	1	1109-	●	●
45	RAIL; CURTAIN,FRT DARK GRAY	8-97407-486-0	01	1	1004-1108	●
45	RAIL; CURTAIN,FRT DARK GRAY	8-97407-486-0	01	1	1109-	●	●
47	SCREW; CURTAIN RAIL M5X20 SOU	5-09981-059-0	06	1	1004-1108	●
47	SCREW; CURTAIN RAIL M5X20 SOU	5-09981-059-0	06	1	1109-	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5 SOU	8-94279-078-0	10	1	1004-1108	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5 SOU	8-94279-078-0	10	1	1109-1405	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5 SOU	8-94279-078-0	08	1	1406-	●	●
58	BED; MAT MATTRESS SLEEPER CAB<E40> DARK GRAY	8-97409-894-1	01	1	1004-1108	●
58	BED; MAT MATTRESS SLEEPER CAB<E40> DARK GRAY	8-97409-894-1	01	1	1109-	●	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40> DARK GRAY	8-97414-135-0	01	1	1004-1108	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40> DARK GRAY	8-97414-135-0	01	1	1109-	●	●
73	BOLT; GUARD PIPE MATTRESS SLEEPER CAB<E40> M8X20 FLANGE	0-28450-820-0	04	1	1004-1108	●
73	BOLT; GUARD PIPE MATTRESS SLEEPER CAB<E40> M8X20 FLANGE	0-28450-820-0	04	1	1109-	●	●
84	BRACKET; CURTAIN RAIL (C)	8-98028-326-1	02	1	1004-1108	●
84	BRACKET; CURTAIN RAIL (C)	8-98028-326-1	02	1	1109-1405	●	●
84	BRACKET; CURTAIN RAIL (D)	8-98042-152-0	02	1	1004-1108	●
84	BRACKET; CURTAIN RAIL (D)	8-98042-152-0	02	1	1109-	●	●
84	BRACKET; CURTAIN RAIL EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A)	8-98049-290-1	01	1	1004-1108	●
84	BRACKET; CURTAIN RAIL EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A)	8-98049-290-1	01	1	1109-	●	●
84	BRACKET; CURTAIN RAIL EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (B)	8-98074-740-0	01	1	1004-1108	●
84	BRACKET; CURTAIN RAIL EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (B)	8-98074-740-0	01	1	1109-	●	●
85	SCREW; BRKT (B) M5X20 SOU	5-09981-059-0	04	1	1004-1108	●
85	SCREW; BRKT (B) M5X20 SOU	5-09981-059-0	04	1	1109-1405	●	●
85	SCREW; BRKT (B) M5X20 SOU	5-09981-059-0	02	1	1406-	●	●
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) BOLT M6X12 FLANGE	8-97108-669-0	02	1	1004-1108	●
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) BOLT M6X12 FLANGE	8-97108-669-0	02	1	1109-	●	●
130	PIPE; GUARD,BED MATTRESS SLEEPER CAB<E40>	8-98014-968-0	01	1	1004-1108	●
130	PIPE; GUARD,BED MATTRESS SLEEPER CAB<E40>	8-98014-968-0	01	1	1109-	●	●
