◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11197 - FXZ SOUTH AFRICA ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#21860) — 244 parça

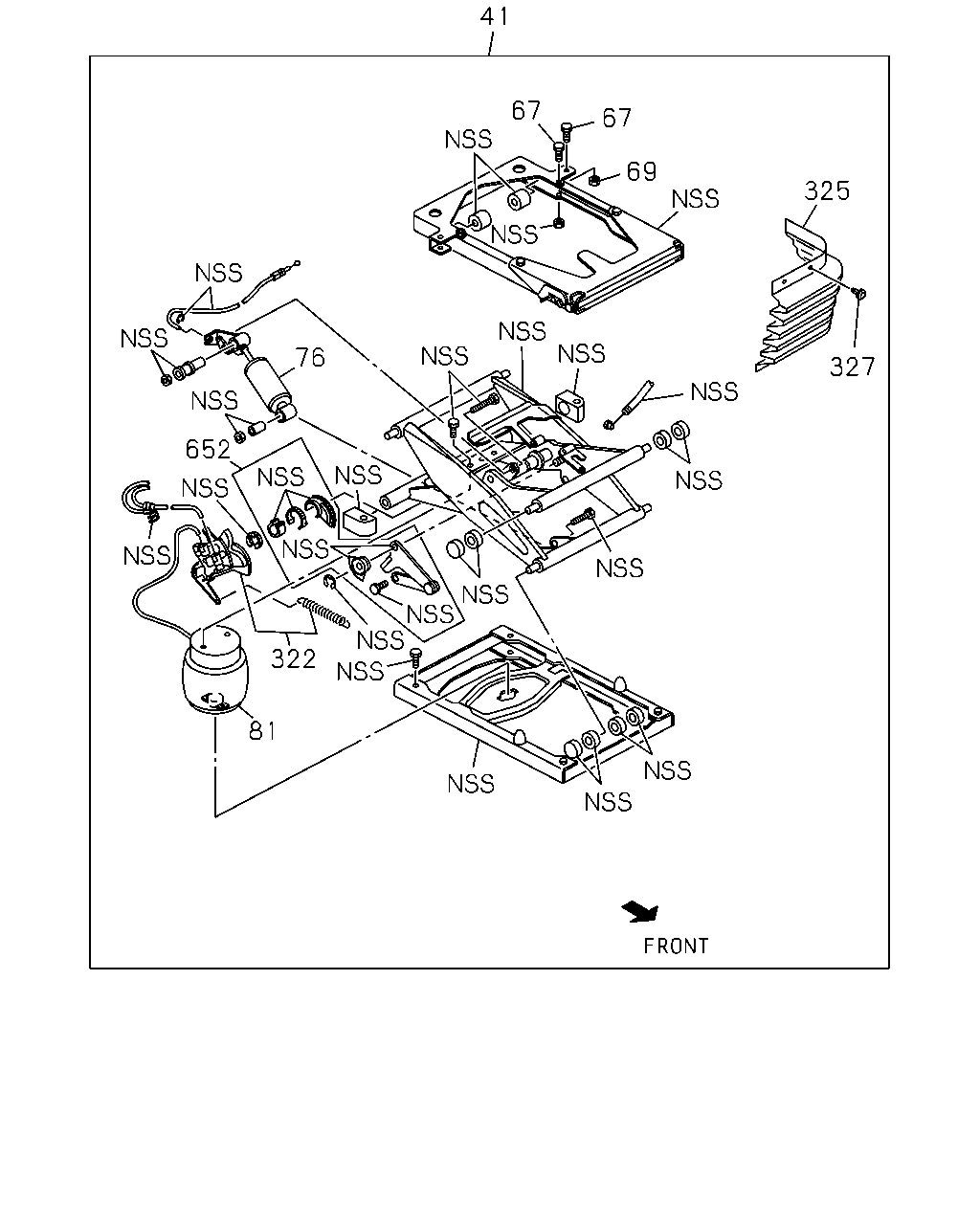

çizim 129384
67 69 67 325 327 81 322 652 76 41
BalonParca AdiParca NoAdetTipApplied Date A B
41 SEAT ASM; DRIVER 8-98046-984-2 01 1 1004-1108 ●
41 SEAT ASM; DRIVER 8-98046-984-2 01 1 1109-1212 ● ●
41 SEAT ASM; DRIVER 8-98195-063-1 01 1 1301- ● ●
67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE SOU 		0-28451-020-0 02 1 1004-1108 ●
67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE SOU 		0-28451-020-0 02 1 1109- ● ●
69 NUT; FRT SEAT
M10 FLANGE SOU 		0-91180-110-0 02 1 1004-1108 ●
69 NUT; FRT SEAT
M10 FLANGE SOU 		0-91180-110-0 02 1 1109- ● ●
76 DAMPER; AIR SUSP 8-98097-999-0 01 1 1004-1108 ●
76 DAMPER; AIR SUSP 8-98097-999-0 01 1 1109- ● ●
81 SPRING; AIR 8-98098-000-0 01 1 1004-1108 ●
81 SPRING; AIR 8-98098-000-0 01 1 1109- ● ●
322 VALVE; AIR SPRING 8-98098-001-0 01 1 1004-1108 ●
322 VALVE; AIR SPRING 8-98098-001-0 01 1 1109-1508 ● ●
322 VALVE; AIR SPRING 8-98331-314-0 01 1 1509- ● ●
325 COVER; SUSPENSION DEVICE 8-98098-003-0 01 1 1004-1108 ●
325 COVER; SUSPENSION DEVICE 8-98098-003-0 01 1 1109- ● ●
327 CLIP; COVER 8-98098-004-0 01 1 1004-1108 ●
327 CLIP; COVER 8-98098-004-0 01 1 1109- ● ●
652 LOCK ASM; HEIGHT 8-98098-002-0 01 1 1004-1108 ●
652 LOCK ASM; HEIGHT 8-98098-002-0 01 1 1109- ● ●

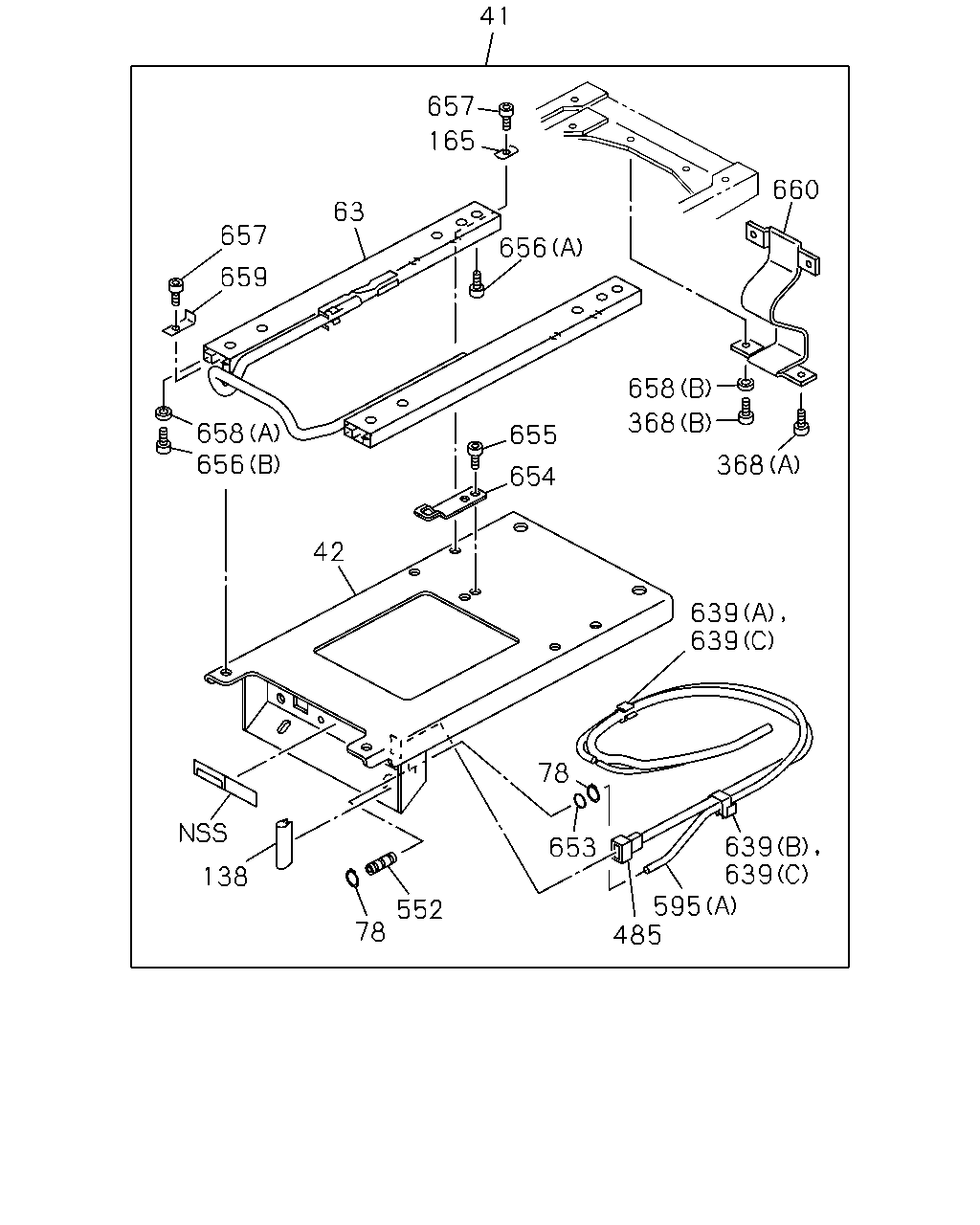

çizim 129385
41 657 63 165 657 656 659 660 658 655 368 654 368 658 42 656 639 639 78 138 552 78 653 595 485 639 639
BalonParca AdiParca NoAdetTipApplied Date A B
41 SEAT ASM; DRIVER 8-98046-984-2 01 1 1004-1108 ●
41 SEAT ASM; DRIVER 8-98046-984-2 01 1 1109-1212 ● ●
41 SEAT ASM; DRIVER 8-98195-063-1 01 1 1301- ● ●
42 STAND; DRIVER SEAT 8-98106-346-0 01 1 1004-1108 ●
42 STAND; DRIVER SEAT 8-98106-346-0 01 1 1109- ● ●
63 ADJUSTER; SEAT SLIDE 8-98098-005-0 01 1 1004-1108 ●
63 ADJUSTER; SEAT SLIDE 8-98098-005-0 01 1 1109- ● ●
78 RING; SNAP 8-98101-900-0 02 1 1004-1108 ●
78 RING; SNAP 8-98101-900-0 02 1 1109- ● ●
138 PROTECTOR; SEAT STAND 8-98106-351-0 01 1 1004-1108 ●
138 PROTECTOR; SEAT STAND 8-98106-351-0 01 1 1109- ● ●
165 WASHER; PL 1-75590-086-0 04 1 1004-1108 ●
165 WASHER; PL 1-75590-086-0 04 1 1109- ● ●
368 BOLT; SEAT
(A) 		8-98106-353-0 03 1 1004-1108 ●
368 BOLT; SEAT
(A) 		8-98106-353-0 03 1 1109- ● ●
368 BOLT; SEAT
(B) 		8-98106-358-0 01 1 1004-1108 ●
368 BOLT; SEAT
(B) 		8-98106-358-0 01 1 1109- ● ●
485 HARNESS; FRT SEAT 8-98106-360-0 01 1 1004-1108 ●
485 HARNESS; FRT SEAT 8-98106-360-0 01 1 1109- ● ●
552 CONNECTOR 8-98101-902-0 01 1 1004-1108 ●
552 CONNECTOR 8-98101-902-0 01 1 1109-1508 ● ●
552 CONNECTOR 8-98308-101-0 01 1 1509- ● ●
595 TUBE; NYLON
(A) 		8-98106-348-0 01 1 1004-1108 ●
595 TUBE; NYLON
(A) 		8-98106-348-0 01 1 1109- ● ●
595 TUBE; NYLON
(B) 		8-98067-762-0 01 1 1004-1108 ●
595 TUBE; NYLON
(B) 		8-98067-762-0 01 1 1109- ● ●
639 CLIP; SEAT
(A) 		8-98106-349-0 01 1 1004-1108 ●
639 CLIP; SEAT
(A) 		8-98106-349-0 01 1 1109-1508 ● ●
639 CLIP; SEAT
(C) 		8-98308-100-0 02 1 1509- ● ●
639 CLIP; SEAT
(B) 		8-98106-350-0 01 1 1004-1108 ●
639 CLIP; SEAT
(B) 		8-98106-350-0 01 1 1109-1508 ● ●
653 GASKET 8-98101-901-0 01 1 1004-1108 ●
653 GASKET 8-98101-901-0 01 1 1109- ● ●
654 HOOK; STOPPER 8-98106-352-0 01 1 1004-1108 ●
654 HOOK; STOPPER 8-98106-352-0 01 1 1109- ● ●
655 BOLT; HOOK 8-98106-353-0 02 1 1004-1108 ●
655 BOLT; HOOK 8-98106-353-0 02 1 1109- ● ●
656 BOLT; SLIDER TO SEAT
(A) 		1-75590-085-0 04 1 1004-1108 ●
656 BOLT; SLIDER TO SEAT
(A) 		1-75590-085-0 04 1 1109- ● ●
656 BOLT; SLIDER TO SEAT
(B) 		8-98106-354-0 02 1 1004-1108 ●
656 BOLT; SLIDER TO SEAT
(B) 		8-98106-354-0 02 1 1109- ● ●
657 BOLT; SLIDER TO STAND 1-75590-085-0 06 1 1004-1108 ●
657 BOLT; SLIDER TO STAND 1-75590-085-0 06 1 1109- ● ●
658 SPACER; BOLT
(A) 		8-98106-355-0 02 1 1004-1108 ●
658 SPACER; BOLT
(A) 		8-98106-355-0 02 1 1109- ● ●
658 SPACER; BOLT
(B) 		8-98106-359-0 01 1 1004-1108 ●
658 SPACER; BOLT
(B) 		8-98106-359-0 01 1 1109- ● ●
659 STOPPER 8-98106-356-0 02 1 1004-1108 ●
659 STOPPER 8-98106-356-0 02 1 1109- ● ●
660 BELT; TETHER 8-98106-357-0 01 1 1004-1108 ●
660 BELT; TETHER 8-98106-357-0 01 1 1109- ● ●

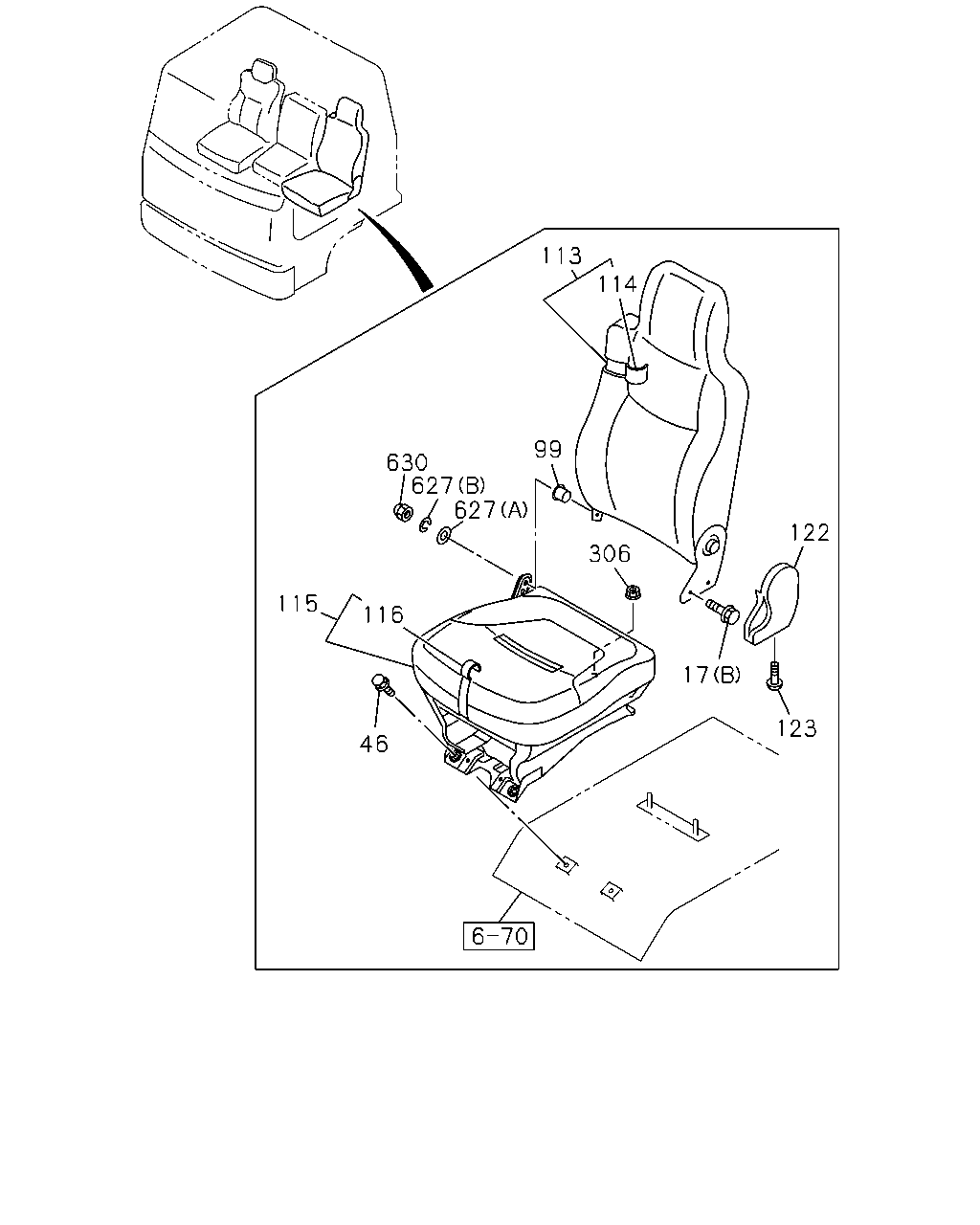

çizim 129386
114 113 122 306 99 123 17 627 627 630 116 115 46
BalonParca AdiParca NoAdetTipApplied Date A B
17 BOLT; RECLINING
(A) 		8-98097-974-0 02 1 1004-1108 ●
17 BOLT; RECLINING
(A) 		8-98097-974-0 02 1 1109- ● ●
17 BOLT; RECLINING
(B) M8X20 		8-98092-334-0 02 1 1004-1108 ●
17 BOLT; RECLINING
(B) M8X20 		8-98092-334-0 02 1 1109- ● ●
46 BOLT; STAND TO FLOOR
M10X20 FLANGE SOU 		0-28451-020-0 02 1 1004-1108 ●
46 BOLT; STAND TO FLOOR
M10X20 FLANGE SOU 		0-28451-020-0 02 1 1109- ● ●
99 BUSHING; SEAT BACK 8-98063-219-0 01 1 1004-1009 ●
99 BUSHING; SEAT BACK 8-98112-751-0 01 1 1010-1108 ●
99 BUSHING; SEAT BACK 8-98112-751-0 01 1 1109- ● ●
113 BACK ASM; SEAT
DARK GRAY 		8-97416-221-0 01 1 1004-1009 ●
113 BACK ASM; SEAT
DARK GRAY 		8-97421-422-0 01 1 1010-1108 ●
113 BACK ASM; SEAT
DARK GRAY 		8-97421-422-0 01 1 1109- ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97416-223-0 01 1 1004-1009 ●
114 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97421-424-0 01 1 1010-1108 ●
114 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97421-424-0 01 1 1109- ● ●
115 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97416-225-0 01 1 1004-1009 ●
115 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97421-418-2 01 1 1010-1108 ●
115 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97421-418-2 01 1 1109- ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DARK GRAY 		8-97416-227-0 01 1 1004-1009 ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DARK GRAY 		8-97421-420-1 01 1 1010-1108 ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DARK GRAY 		8-97421-420-1 01 1 1109- ● ●
122 COVER; ADJ,RECLINING
GRAY 		8-97409-967-0 01 1 1004-1108 ●
122 COVER; ADJ,RECLINING
GRAY 		8-97409-967-0 01 1 1109- ● ●
123 SCREW; COVER,RECLINING
M5 		8-98070-026-0 01 1 1004-1108 ●
123 SCREW; COVER,RECLINING
M5 		8-98070-026-0 01 1 1109- ● ●
306 NUT; SEAT ADJ
M10 FLANGE SOU 		0-91180-110-0 02 1 1004-1108 ●
306 NUT; SEAT ADJ
M10 FLANGE SOU 		0-91180-110-0 02 1 1109- ● ●
627 WASHER; FRT SEAT
(A) 		8-98063-223-0 01 1 1004-1108 ●
627 WASHER; FRT SEAT
(A) 		8-98063-223-0 01 1 1109- ● ●
627 WASHER; FRT SEAT
(B) 		8-98063-224-0 01 1 1004-1108 ●
627 WASHER; FRT SEAT
(B) 		8-98063-224-0 01 1 1109- ● ●
630 NUT; CAP
M8 		8-98063-225-0 01 1 1004-1108 ●
630 NUT; CAP
M8 		8-98063-225-0 01 1 1109- ● ●

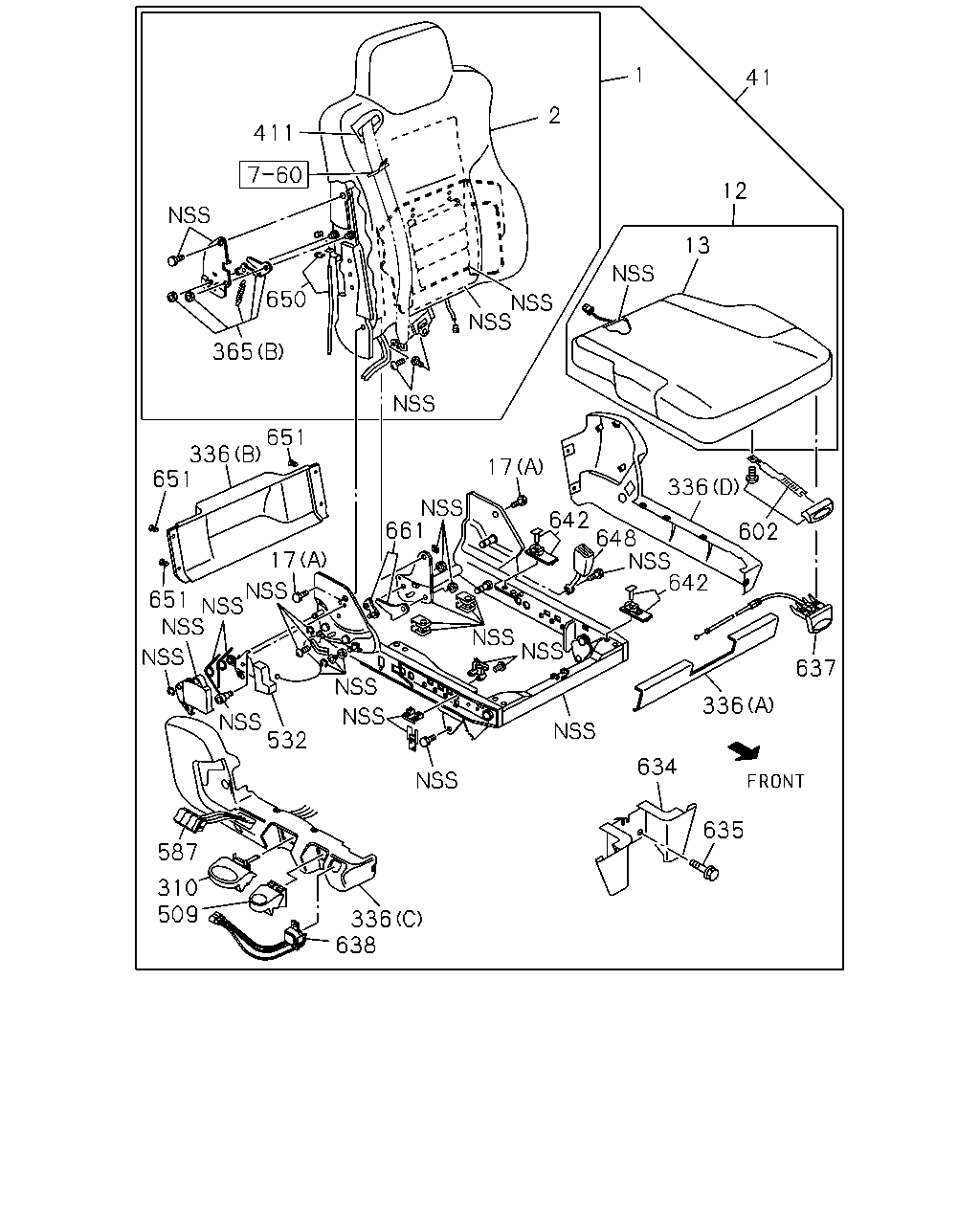

çizim 129396
41 1 2 411 650 365 13 12 17 661 651 336 651 651 17 642 648 336 602 642 637 336 634 635 532 587 310 509 336 638
BalonParca AdiParca NoAdetTipApplied Date A B
1 BACK ASM; SEAT 8-98097-964-0 01 1 1004-1108 ●
1 BACK ASM; SEAT 8-98097-964-0 01 1 1109- ● ●
2 COVER; TRIM,FRT SEAT,BACK 8-98097-966-0 01 1 1004-1108 ●
2 COVER; TRIM,FRT SEAT,BACK 8-98097-966-0 01 1 1109-1212 ● ●
2 COVER; TRIM,FRT SEAT,BACK 8-98232-353-0 01 1 1301- ● ●
12 CUSHION; SEAT,FRT 8-98098-006-0 01 1 1004-1108 ●
12 CUSHION; SEAT,FRT 8-98098-006-0 01 1 1109- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION 8-98098-007-0 01 1 1004-1108 ●
13 COVER; TRIM,FRT SEAT,CUSHION 8-98098-007-0 01 1 1109- ● ●
17 BOLT; RECLINING
(A) 		8-98097-974-0 02 1 1004-1108 ●
17 BOLT; RECLINING
(A) 		8-98097-974-0 02 1 1109- ● ●
17 BOLT; RECLINING
(B) M8X20 		8-98092-334-0 02 1 1004-1108 ●
17 BOLT; RECLINING
(B) M8X20 		8-98092-334-0 02 1 1109- ● ●
41 SEAT ASM; DRIVER 8-98046-984-2 01 1 1004-1108 ●
41 SEAT ASM; DRIVER 8-98046-984-2 01 1 1109-1212 ● ●
41 SEAT ASM; DRIVER 8-98195-063-1 01 1 1301- ● ●
310 LEVER ASM; HEIGHT ADJ DRIVER SEAT 8-98097-992-0 01 1 1004-1108 ●
310 LEVER ASM; HEIGHT ADJ DRIVER SEAT 8-98097-992-0 01 1 1109- ● ●
336 COVER; DRIVER SEAT
(D) 		8-98097-978-0 01 1 1004-1108 ●
336 COVER; DRIVER SEAT
(D) 		8-98097-978-0 01 1 1109-1508 ● ●
336 COVER; DRIVER SEAT
(D) 		8-98331-313-0 01 1 1509- ● ●
336 COVER; DRIVER SEAT
(C) 		8-98097-984-0 01 1 1004-1108 ●
336 COVER; DRIVER SEAT
(C) 		8-98097-984-0 01 1 1109- ● ●
336 COVER; DRIVER SEAT
(A) 		8-98097-995-0 01 1 1004-1108 ●
336 COVER; DRIVER SEAT
(A) 		8-98097-995-0 01 1 1109- ● ●
336 COVER; DRIVER SEAT
(B) 		8-98097-996-0 01 1 1004-1108 ●
336 COVER; DRIVER SEAT
(B) 		8-98097-996-0 01 1 1109- ● ●
365 LOCK ASM; SEAT
(B) 		8-98097-972-0 01 1 1004-1108 ●
365 LOCK ASM; SEAT
(B) 		8-98097-972-0 01 1 1109- ● ●
365 LOCK ASM; SEAT
CENTER SEAT(SA1) (A) 		1-72538-312-0 01 1 1004-1108 ●
365 LOCK ASM; SEAT
CENTER SEAT(SA1) (A) 		1-72538-312-0 01 1 1109- ● ●
411 GUIDE; SEAT BELT 8-98097-967-0 01 1 1004-1108 ●
411 GUIDE; SEAT BELT 8-98097-967-0 01 1 1109- ● ●
509 LEVER; DAMPER 8-98097-988-0 01 1 1004-1108 ●
509 LEVER; DAMPER 8-98097-988-0 01 1 1109- ● ●
532 LEVER ASM; TILT 8-98097-982-0 01 1 1004-1108 ●
532 LEVER ASM; TILT 8-98097-982-0 01 1 1109- ● ●
587 VALVE; LUMBAR SUPPORT 8-98097-986-0 01 1 1004-1108 ●
587 VALVE; LUMBAR SUPPORT 8-98097-986-0 01 1 1109- ● ●
602 KNOB; ADJ,SEAT 8-98098-008-0 01 1 1004-1108 ●
602 KNOB; ADJ,SEAT 8-98098-008-0 01 1 1109- ● ●
634 COVER; CONNECTOR,SEAT 8-98088-279-0 01 1 1004-1108 ●
634 COVER; CONNECTOR,SEAT 8-98088-279-0 01 1 1109- ● ●
635 BOLT; COVER
M6X16 SOU 		0-52000-616-0 02 1 1004-1108 ●
635 BOLT; COVER
M6X16 SOU 		0-52000-616-0 02 1 1109- ● ●
637 LEVER; SLOPE ADJ 8-98097-989-0 01 1 1004-1108 ●
637 LEVER; SLOPE ADJ 8-98097-989-0 01 1 1109- ● ●
638 VALVE; LOWERING 8-98097-994-0 01 1 1004-1108 ●
638 VALVE; LOWERING 8-98097-994-0 01 1 1109- ● ●
642 SLIDER; CUSHION 8-98192-932-0 04 1 1004-1108 ●
642 SLIDER; CUSHION 8-98192-932-0 04 1 1109- ● ●
648 BUCKLE; SEAT BELT 8-98097-976-0 01 1 1004-1108 ●
648 BUCKLE; SEAT BELT 8-98097-976-0 01 1 1109- ● ●
650 CABLE 8-98097-973-0 01 1 1004-1108 ●
650 CABLE 8-98097-973-0 01 1 1109-1212 ● ●
650 CABLE 8-98232-354-0 01 1 1301- ● ●
651 RIVET 8-98194-075-0 04 1 1004-1108 ●
651 RIVET 8-98194-075-0 04 1 1109- ● ●
661 LOCK ASM; RECLINING 8-98097-980-0 01 1 1004-1108 ●
661 LOCK ASM; RECLINING 8-98097-980-0 01 1 1109- ● ●
çizim 129404
506 360 175 176 188 16 126 359 403 182 179 188 403
BalonParca AdiParca NoAdetTipApplied Date A B
16 ADJUSTER ASM; RECLINING
CENTER SEAT(SA1) SOU 		1-75418-062-1 01 1 1004-1108 ●
16 ADJUSTER ASM; RECLINING
CENTER SEAT(SA1) SOU 		1-75418-062-1 01 1 1109- ● ●
126 BUSHING; HINGE,RECLINING
CENTER SEAT(SA1) SOU 		8-97854-900-0 01 1 1004-1108 ●
126 BUSHING; HINGE,RECLINING
CENTER SEAT(SA1) SOU 		8-97854-900-0 01 1 1109- ● ●
175 BACK ASM; PASSENGER CENTER SEAT
CENTER SEAT(SA1) DARK GRAY 		8-97416-233-0 01 1 1004-1009 ●
175 BACK ASM; PASSENGER CENTER SEAT
CENTER SEAT(SA1) DARK GRAY 		8-97421-434-1 01 1 1010-1108 ●
175 BACK ASM; PASSENGER CENTER SEAT
CENTER SEAT(SA1) DARK GRAY 		8-97421-434-1 01 1 1109- ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
CENTER SEAT(SA1) DARK GRAY 		8-97416-234-0 01 1 1004-1009 ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
CENTER SEAT(SA1) DARK GRAY 		8-97421-435-1 01 1 1010-1108 ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
CENTER SEAT(SA1) DARK GRAY 		8-97421-435-1 01 1 1109- ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
CENTER SEAT(SA1) DARK GRAY 		8-97416-237-0 01 1 1004-1009 ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
CENTER SEAT(SA1) DARK GRAY 		8-97421-432-1 01 1 1010-1108 ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
CENTER SEAT(SA1) DARK GRAY 		8-97421-432-1 01 1 1109- ● ●
182 CUSHION ASM; CENTER SEAT
CENTER SEAT(SA1) DARK GRAY 		8-97416-235-0 01 1 1004-1009 ●
182 CUSHION ASM; CENTER SEAT
CENTER SEAT(SA1) DARK GRAY 		8-97421-430-3 01 1 1010-1108 ●
182 CUSHION ASM; CENTER SEAT
CENTER SEAT(SA1) DARK GRAY 		8-97421-430-3 01 1 1109- ● ●
188 BOLT; BACK TO CUSHION
CENTER SEAT(SA1) M10X16 FLANGE SOU 		1-75198-053-0 04 1 1004-1108 ●
188 BOLT; BACK TO CUSHION
CENTER SEAT(SA1) M10X16 FLANGE SOU 		1-75198-053-0 04 1 1109- ● ●
359 BOX; PARCEL
CENTER SEAT(SA1) GRAY 		8-97409-977-2 01 1 1004-1006 ●
359 BOX; PARCEL
CENTER SEAT(SA1) GRAY 		8-97417-261-0 01 1 1007-1108 ●
359 BOX; PARCEL
CENTER SEAT(SA1) GRAY 		8-97417-261-0 01 1 1109- ● ●
360 SCREW; PARCEL
CENTER SEAT(SA1) (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 1004-1009 ●
360 SCREW; PARCEL
CENTER SEAT(SA1) (E) M5X14 TAPPING CK-HEAD SOU 		0-70040-514-0 02 1 1010-1108 ●
360 SCREW; PARCEL
CENTER SEAT(SA1) (E) M5X14 TAPPING CK-HEAD SOU 		0-70040-514-0 02 1 1109- ● ●
360 SCREW; PARCEL
CENTER SEAT(SA1) (B) M4X16 		0-70040-416-0 06 1 1004-1108 ●
360 SCREW; PARCEL
CENTER SEAT(SA1) (B) M4X16 		0-70040-416-0 06 1 1109- ● ●
360 SCREW; PARCEL
CENTER SEAT(SA1) (C) M5X16 TAPPING W/PL WASHER SOU 		0-74360-516-0 04 1 1004-1108 ●
360 SCREW; PARCEL
CENTER SEAT(SA1) (C) M5X16 TAPPING W/PL WASHER SOU 		0-74360-516-0 04 1 1109-1110 ● ●
360 SCREW; PARCEL
CENTER SEAT(SA1) (C) M5 		8-98062-663-0 04 1 1111- ● ●
360 SCREW; PARCEL
CENTER SEAT(SA1) (D) M5X20 SOU 		9-09829-324-1 02 1 1004-1009 ●
403 NUT; CENTER SEAT
CENTER SEAT(SA1) M8 FLANGE SOU 		0-91180-108-0 04 1 1004-1108 ●
403 NUT; CENTER SEAT
CENTER SEAT(SA1) M8 FLANGE SOU 		0-91180-108-0 04 1 1109- ● ●
506 CAP; PARCEL BOX
CENTER SEAT(SA1) GRAY 		8-97409-980-1 04 1 1004-1006 ●
506 CAP; PARCEL BOX
CENTER SEAT(SA1) GRAY 		8-97409-980-1 02 1 1007-1108 ●
506 CAP; PARCEL BOX
CENTER SEAT(SA1) GRAY 		8-97409-980-1 02 1 1109- ● ●

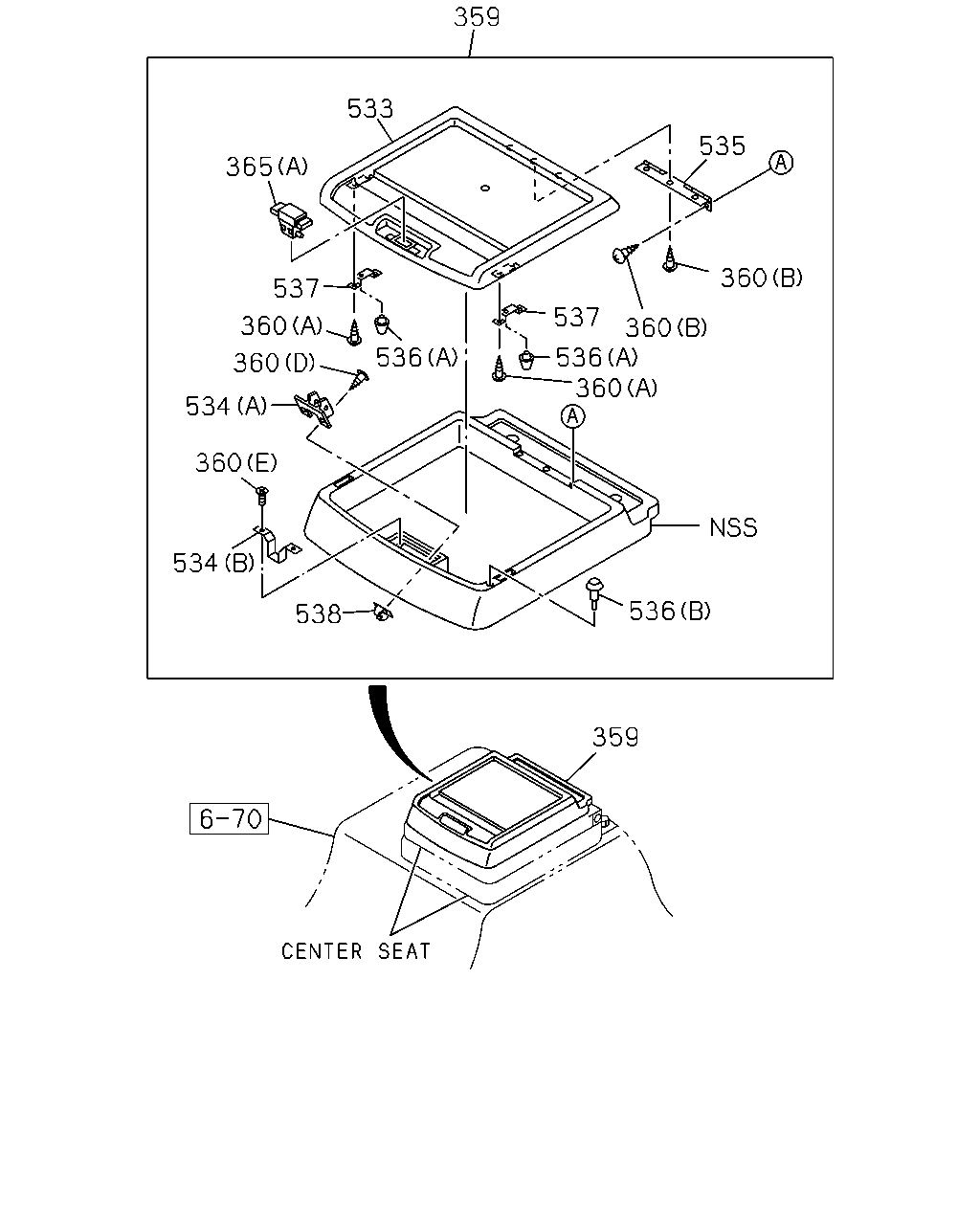

çizim 129425
359 538 536 534 360 534 360 536 360 537 365 533 359 535 360 537 360 536 360
BalonParca AdiParca NoAdetTipApplied Date A B
359 BOX; PARCEL
CENTER SEAT(SA1) GRAY 		8-97409-977-2 01 1 1004-1006 ●
359 BOX; PARCEL
CENTER SEAT(SA1) GRAY 		8-97417-261-0 01 1 1007-1108 ●
359 BOX; PARCEL
CENTER SEAT(SA1) GRAY 		8-97417-261-0 01 1 1109- ● ●
360 SCREW; PARCEL
CENTER SEAT(SA1) (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 1004-1009 ●
360 SCREW; PARCEL
CENTER SEAT(SA1) (E) M5X14 TAPPING CK-HEAD SOU 		0-70040-514-0 02 1 1010-1108 ●
360 SCREW; PARCEL
CENTER SEAT(SA1) (E) M5X14 TAPPING CK-HEAD SOU 		0-70040-514-0 02 1 1109- ● ●
360 SCREW; PARCEL
CENTER SEAT(SA1) (B) M4X16 		0-70040-416-0 06 1 1004-1108 ●
360 SCREW; PARCEL
CENTER SEAT(SA1) (B) M4X16 		0-70040-416-0 06 1 1109- ● ●
360 SCREW; PARCEL
CENTER SEAT(SA1) (C) M5X16 TAPPING W/PL WASHER SOU 		0-74360-516-0 04 1 1004-1108 ●
360 SCREW; PARCEL
CENTER SEAT(SA1) (C) M5X16 TAPPING W/PL WASHER SOU 		0-74360-516-0 04 1 1109-1110 ● ●
360 SCREW; PARCEL
CENTER SEAT(SA1) (C) M5 		8-98062-663-0 04 1 1111- ● ●
360 SCREW; PARCEL
CENTER SEAT(SA1) (D) M5X20 SOU 		9-09829-324-1 02 1 1004-1009 ●
365 LOCK ASM; SEAT
(B) 		8-98097-972-0 01 1 1004-1108 ●
365 LOCK ASM; SEAT
(B) 		8-98097-972-0 01 1 1109- ● ●
365 LOCK ASM; SEAT
CENTER SEAT(SA1) (A) 		1-72538-312-0 01 1 1004-1108 ●
365 LOCK ASM; SEAT
CENTER SEAT(SA1) (A) 		1-72538-312-0 01 1 1109- ● ●
533 LID; PARCEL BOX
CENTER SEAT(SA1) GRAY 		8-97409-979-1 01 1 1004-1006 ●
533 LID; PARCEL BOX
CENTER SEAT(SA1) GRAY 		8-97417-263-0 01 1 1007-1108 ●
533 LID; PARCEL BOX
CENTER SEAT(SA1) GRAY 		8-97417-263-0 01 1 1109- ● ●
534 STRIKER; PARCEL BOX
CENTER SEAT(SA1) (A) SOU 		1-72538-181-0 01 1 1004-1009 ●
534 STRIKER; PARCEL BOX
CENTER SEAT(SA1) (B) SOU 		1-72538-190-0 01 1 1010-1108 ●
534 STRIKER; PARCEL BOX
CENTER SEAT(SA1) (B) SOU 		1-72538-190-0 01 1 1109- ● ●
535 HINGE; PARCEL BOX
CENTER SEAT(SA1) SOU 		1-72447-391-1 01 1 1004-1108 ●
535 HINGE; PARCEL BOX
CENTER SEAT(SA1) SOU 		1-72447-391-1 01 1 1109- ● ●
536 RUBBER; CUSHION
CENTER SEAT(SA1) (A) SOU 		5-09983-002-1 02 1 1004-1009 ●
536 RUBBER; CUSHION
CENTER SEAT(SA1) (B) SOU 		1-72538-187-0 02 1 1010-1108 ●
536 RUBBER; CUSHION
CENTER SEAT(SA1) (B) SOU 		1-72538-187-0 02 1 1109- ● ●
537 BRACKET; RUBBER
CENTER SEAT(SA1) SOU 		1-72548-057-1 02 1 1004-1009 ●
538 GROMMET; SCREW
CENTER SEAT(SA1) SOU 		1-09983-165-0 02 1 1004-1009 ●

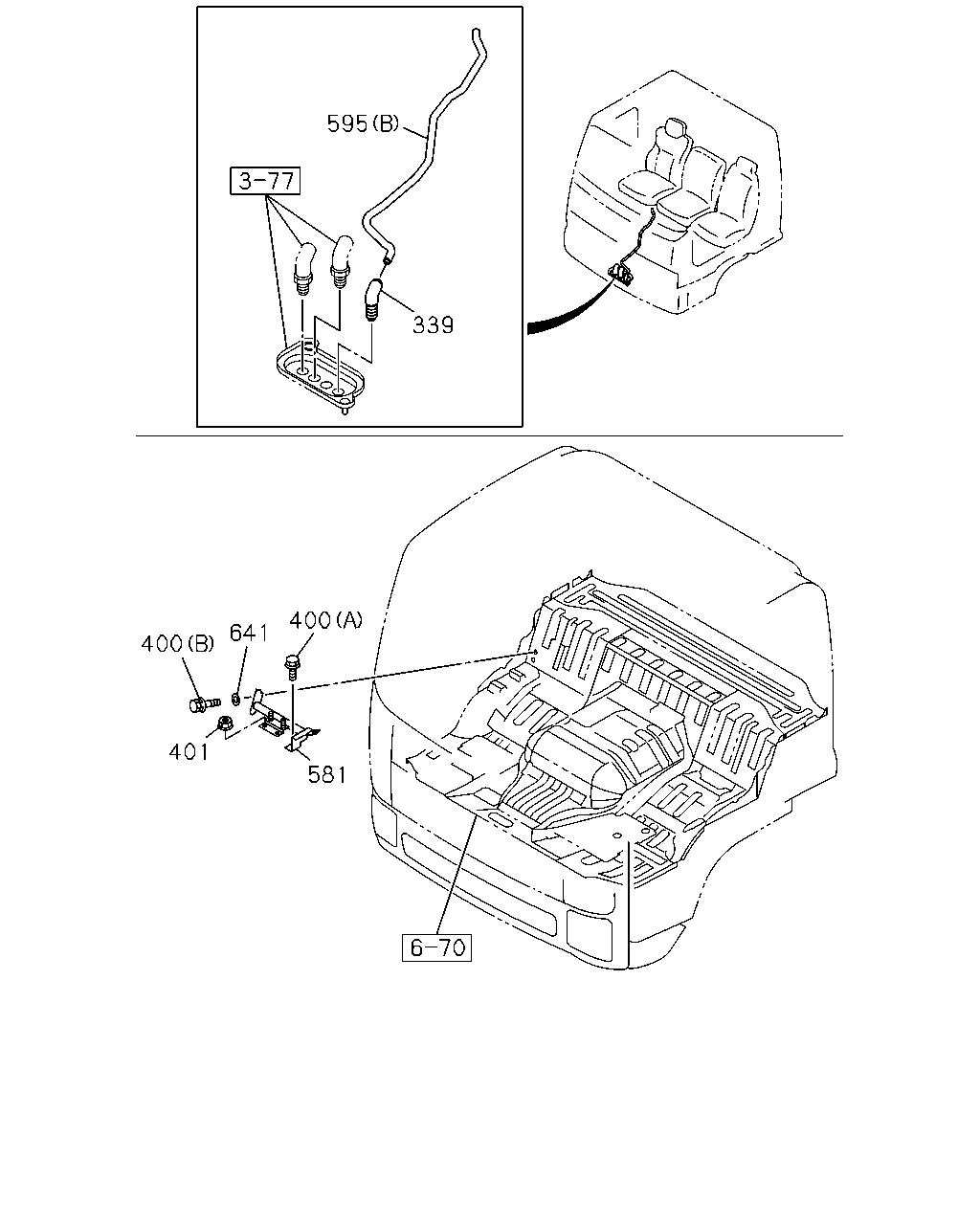

çizim 320136
595 339 400 401 581 641 400
BalonParca AdiParca NoAdetTipApplied Date A B
339 UNION; DRIVER SEAT 8-98014-971-0 01 1 1004-1108 ●
339 UNION; DRIVER SEAT 8-98014-971-0 01 1 1109- ● ●
400 BOLT; SUPPORT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1004-1108 ●
400 BOLT; SUPPORT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1109- ● ●
400 BOLT; SUPPORT
(B) 		8-98098-996-0 02 1 1004-1108 ●
400 BOLT; SUPPORT
(B) 		8-98098-996-0 02 1 1109- ● ●
401 NUT; SUPPORT
M10 FLANGE SOU 		0-91180-110-0 02 1 1004-1108 ●
401 NUT; SUPPORT
M10 FLANGE SOU 		0-91180-110-0 02 1 1109- ● ●
581 PIPE; SEAT 8-97589-692-3 01 1 1004-1108 ●
581 PIPE; SEAT 8-97589-692-3 01 1 1109- ● ●
595 TUBE; NYLON
(A) 		8-98106-348-0 01 1 1004-1108 ●
595 TUBE; NYLON
(A) 		8-98106-348-0 01 1 1109- ● ●
595 TUBE; NYLON
(B) 		8-98067-762-0 01 1 1004-1108 ●
595 TUBE; NYLON
(B) 		8-98067-762-0 01 1 1109- ● ●
641 WASHER; SUPPORT 8-98099-007-0 02 1 1004-1108 ●
641 WASHER; SUPPORT 8-98099-007-0 02 1 1109- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
