◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11197 - FXZ SOUTH AFRICA ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#21856) — 256 parça

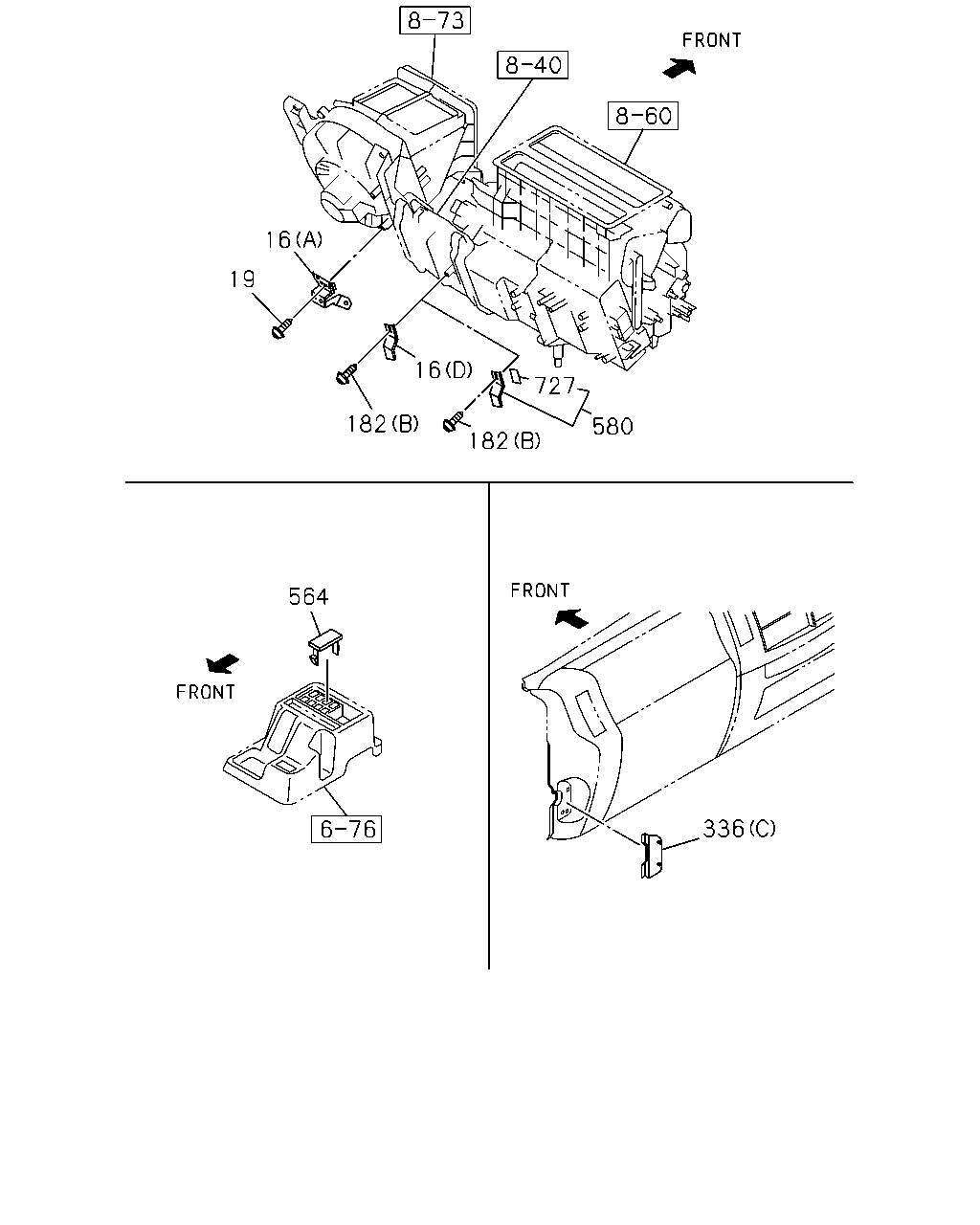

çizim 129363
16 19 16 727 182 580 182 564 336
BalonParca AdiParca NoAdetTipApplied Date A B
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1004-1108 ●
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1109- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1004-1108 ●
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1109- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1004-1108 ●
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1109- ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-97585-612-2 01 1 1004-1108 ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-97585-612-2 01 1 1109-1301 ● ●
16 BRACKET; INST PNL
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-97585-612-2 01 1 1302- ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (D) 		8-98017-528-0 01 1 1004-1105 ●
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1004-1108 ●
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1109-1301 ● ●
19 SCREW; BRKT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1302- ● ●
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE SOU 		0-28050-816-0 04 1 1004-1108 ●
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE SOU 		0-28050-816-0 04 1 1109- ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 03 1 1004-1108 ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 03 1 1109-1111 ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1112- ● ●
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1004-1108 ●
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1109- ● ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1004-1108 ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1109-1301 ● ●
182 BOLT; BRKT,INST PANEL
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1302- ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97407-425-5 01 1 1004-1012 ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1101-1108 ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1109- ● ●
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 1004-1108 ●
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 1109- ● ●
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 1004-1108 ●
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 1109- ● ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 1004-1108 ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 1109- ● ●
564 COVER; SW
SOU 		8-97043-732-1 06 1 1004-1108 ●
564 COVER; SW
SOU 		8-97043-732-1 06 1 1109- ● ●
580 BRACKET; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98017-528-1 01 1 1106-1108 ●
580 BRACKET; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98017-528-1 01 1 1109-1301 ● ●
580 BRACKET; COVER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98017-528-1 01 1 1302- ● ●
727 SEAL; BRACKET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98186-934-0 01 1 1106-1108 ●
727 SEAL; BRACKET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98186-934-0 01 1 1109-1301 ● ●
727 SEAL; BRACKET
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98186-934-0 01 1 1302- ● ●

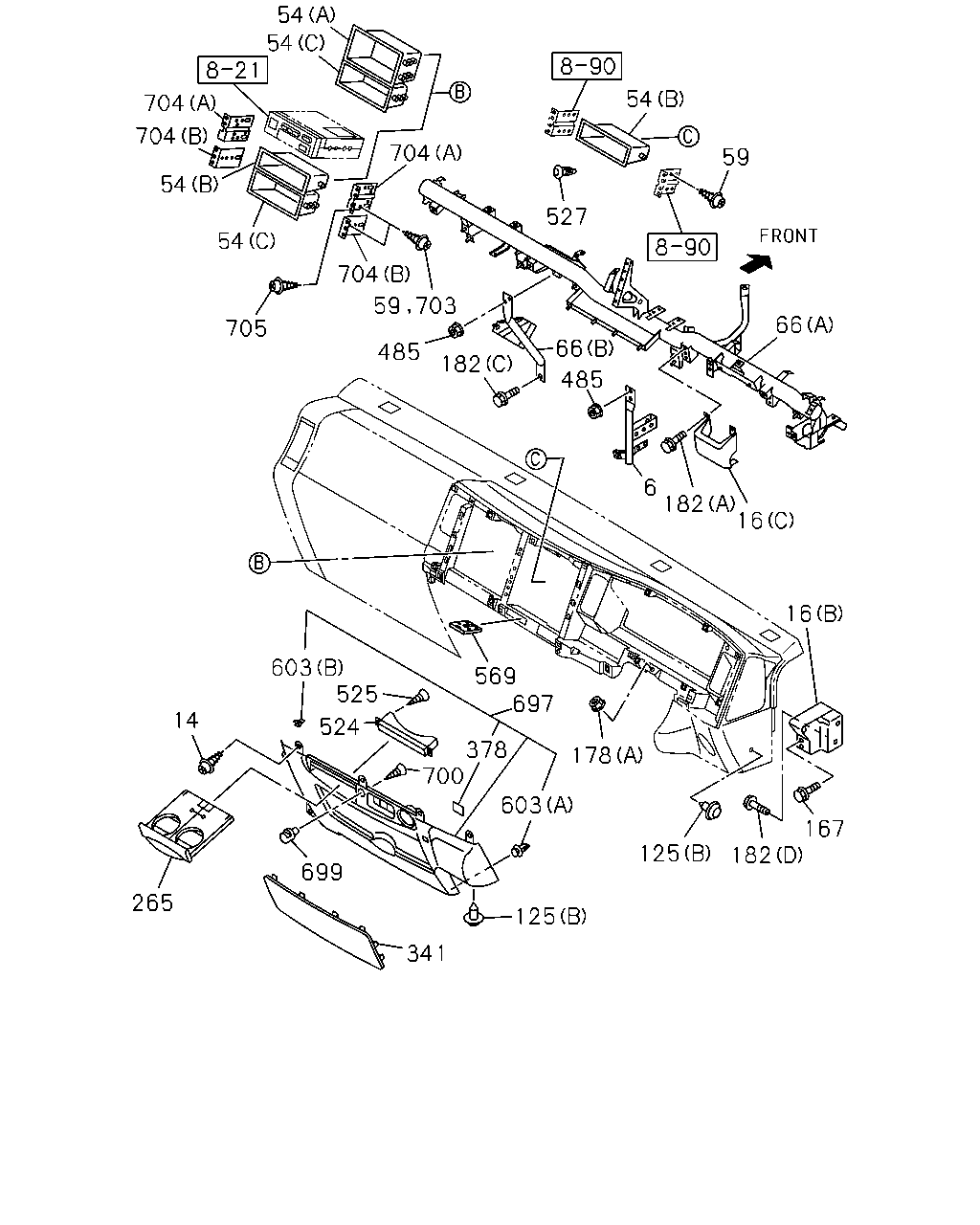

çizim 129369
54 54 54 704 704 54 54 705 704 704 59 527 66 59 703 485 182 66 485 6 182 16 16 167 182 125 178 697 569 603 14 265 699 525 524 700 378 603 341 125
BalonParca AdiParca NoAdetTipApplied Date A B
6 SUPPORT; INST PANEL 8-98088-312-0 01 1 1004-1108 ●
6 SUPPORT; INST PANEL 8-98088-312-0 01 1 1109-1109 ● ●
6 SUPPORT; INST PANEL 8-98196-255-0 01 1 1110- ● ●
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1004-1108 ●
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1109- ● ●
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1004-1108 ●
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1109- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1004-1108 ●
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1109- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1004-1108 ●
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1109- ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-97585-612-2 01 1 1004-1108 ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-97585-612-2 01 1 1109-1301 ● ●
16 BRACKET; INST PNL
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-97585-612-2 01 1 1302- ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (D) 		8-98017-528-0 01 1 1004-1105 ●
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-2 02 1 1004-1108 ●
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-2 02 1 1109- ● ●
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 1004-1108 ●
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 1109- ● ●
54 POCKET; CENTER CLUSTER
TACHOGRAPH 140KM/H<WC7> (B) H=58.4 BLACK 		8-97408-864-3 01 1 1004-1108 ●
54 POCKET; CENTER CLUSTER
TACHOGRAPH 140KM/H<WC7> (B) H=58.4 BLACK 		8-97408-864-3 01 1 1109- ● ●
54 POCKET; CENTER CLUSTER
EXC. TACHOGRAPH 140KM/H<WC7> (A) H=108.4 BLACK 		8-97407-129-3 01 1 1004-1108 ●
54 POCKET; CENTER CLUSTER
EXC. TACHOGRAPH 140KM/H<WC7> (A) H=108.4 BLACK 		8-97407-129-3 01 1 1109- ● ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1004-1108 ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1109- ● ●
59 SCREW; CLUSTER POCKET
TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1004-1108 ●
59 SCREW; CLUSTER POCKET
TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1109- ● ●
66 REINFORCEMENT; INST PANEL
(B) 		8-97585-580-2 01 1 1004-1108 ●
66 REINFORCEMENT; INST PANEL
(B) 		8-97585-580-2 01 1 1109- ● ●
66 REINFORCEMENT; INST PANEL
(A) 		8-98081-322-5 01 1 1004-1108 ●
66 REINFORCEMENT; INST PANEL
(A) 		8-98081-322-5 01 1 1109-1111 ● ●
66 REINFORCEMENT; INST PANEL
(A) 		8-98174-904-1 01 1 1112-1406 ● ●
66 REINFORCEMENT; INST PANEL
(A) 		8-98240-609-0 01 1 1407- ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 1004-1007 ●
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1008-1108 ●
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1109- ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1004-1108 ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1109- ● ●
167 BOLT; REINF TO INST
M8X23 FLANGE SOU 		8-97264-766-0 04 1 1004-1108 ●
167 BOLT; REINF TO INST
M8X23 FLANGE SOU 		8-97264-766-0 04 1 1109- ● ●
178 NUT; INST PANEL
(A) M6 FLANGE SOU 		0-91180-106-0 01 1 1004-1108 ●
178 NUT; INST PANEL
(A) M6 FLANGE SOU 		0-91180-106-0 01 1 1109- ● ●
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1004-1108 ●
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1109- ● ●
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE SOU 		0-28050-816-0 04 1 1004-1108 ●
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE SOU 		0-28050-816-0 04 1 1109- ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 03 1 1004-1108 ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 03 1 1109-1111 ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1112- ● ●
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1004-1108 ●
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1109- ● ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1004-1108 ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1109-1301 ● ●
182 BOLT; BRKT,INST PANEL
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1302- ● ●
265 HOLDER; CUP
GRAY 		8-97418-528-0 01 1 1004-1108 ●
265 HOLDER; CUP
GRAY 		8-97418-528-0 01 1 1109- ● ●
341 LID; FUSE BOX
GRAY 		8-97407-419-3 01 1 1004-1010 ●
341 LID; FUSE BOX
GRAY 		8-97422-209-0 01 1 1011-1108 ●
341 LID; FUSE BOX
GRAY 		8-97422-209-0 01 1 1109- ● ●
378 SEAL; INST PANEL
5X30 		8-98176-199-0 01 1 1011-1108 ●
378 SEAL; INST PANEL
5X30 		8-98176-199-0 01 1 1109- ● ●
485 NUT; SUPPORT CLIP,HARNESS
M6 FLANGE SOU 		0-91180-106-0 04 1 1004-1108 ●
485 NUT; SUPPORT CLIP,HARNESS
M6 FLANGE SOU 		0-91180-106-0 04 1 1109- ● ●
524 STAND ASM; CUP,INST 8-98054-414-0 01 1 1004-1108 ●
524 STAND ASM; CUP,INST 8-98054-414-0 01 1 1109- ● ●
525 SCREW; CUP STAND
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1004-1108 ●
525 SCREW; CUP STAND
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1109- ● ●
527 CLIP; INST CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) DARK GRAY 		8-97098-326-0 01 1 1004-1108 ●
527 CLIP; INST CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) DARK GRAY 		8-97098-326-0 01 1 1109-1211 ● ●
569 HOLDER; CARD 8-97410-276-1 01 1 1004-1108 ●
569 HOLDER; CARD 8-97410-276-1 01 1 1109- ● ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1004-1108 ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1109- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 09 1 1004-1108 ●
603 CLIP; COVER
(B) 		8-98021-271-0 09 1 1109- ● ●
697 PANEL; INST CENTER
GRAY 		8-97413-127-0 01 1 1004-1010 ●
697 PANEL; INST CENTER
GRAY 		8-97422-207-1 01 1 1011-1108 ●
697 PANEL; INST CENTER
GRAY 		8-97422-207-1 01 1 1109- ● ●
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 1004-1108 ●
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 1109- ● ●
700 BOLT; HOOK
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1004-1108 ●
700 BOLT; HOOK
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1109- ● ●
703 SCREW; CENTER POCKET
EXC. TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1004-1108 ●
703 SCREW; CENTER POCKET
EXC. TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1109- ● ●
704 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 1004-1108 ●
704 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 1109- ● ●
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 1004-1108 ●
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 1109- ● ●
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 08 1 1004-1108 ●
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 08 1 1109- ● ●

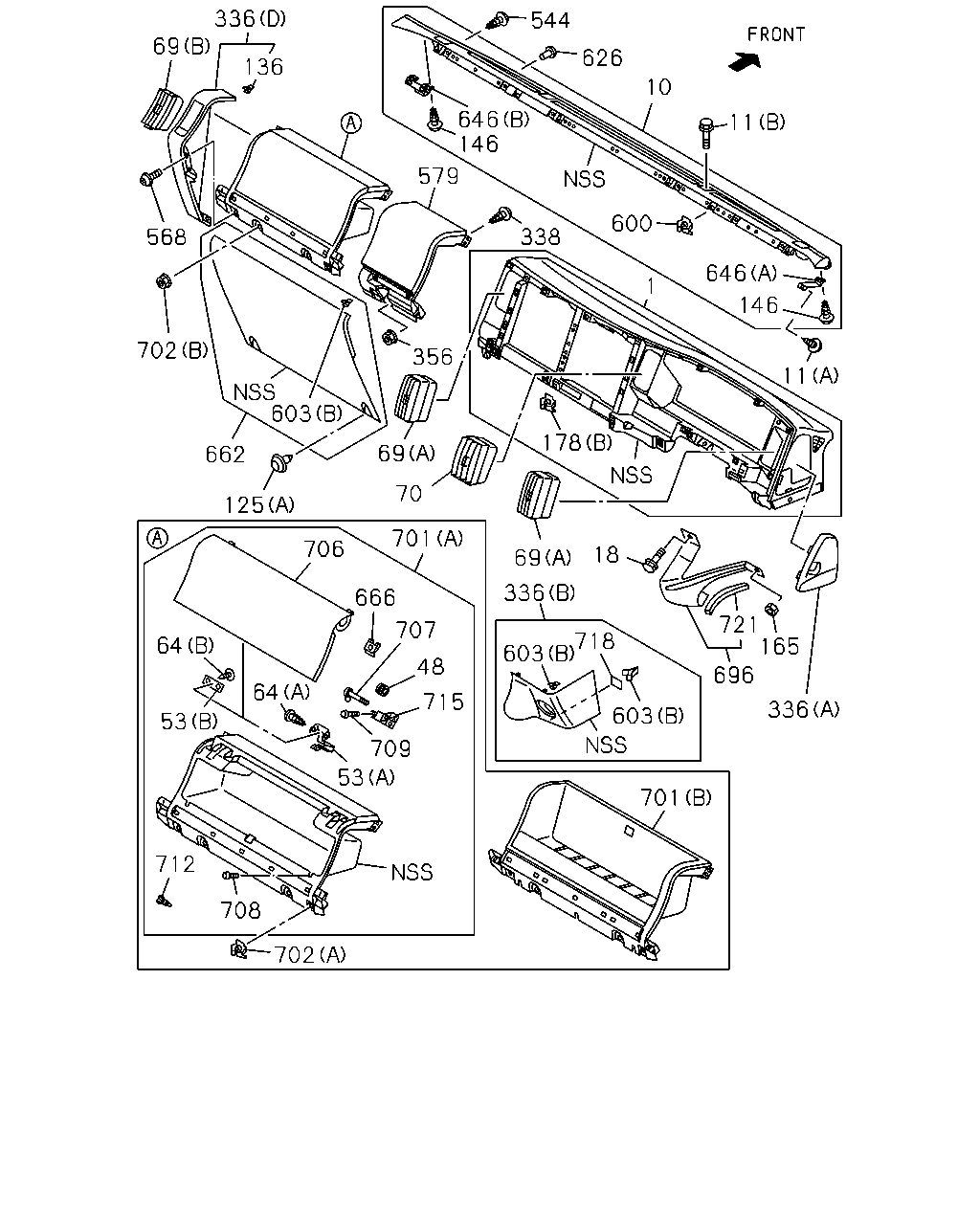

çizim 129380
11 10 626 544 646 146 579 338 600 1 646 146 11 336 165 721 696 18 69 336 603 718 603 701 178 702 708 712 53 709 715 48 707 666 706 64 53 64 701 125 70 69 356 603 662 702 568 69 336 136
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; INST
GRAY 		8-97407-418-8 01 1 1004-1108 ●
1 PANEL; INST
GRAY 		8-97407-418-8 01 1 1109- ● ●
10 PANEL ASM; GARNISH
GRAY 		8-97414-686-0 01 1 1004-1008 ●
10 PANEL ASM; GARNISH
GRAY 		8-97422-097-1 01 1 1009-1108 ●
10 PANEL ASM; GARNISH
GRAY 		8-97422-097-1 01 1 1109- ● ●
11 BOLT; INST PNL
(A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1004-1108 ●
11 BOLT; INST PNL
(A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1109- ● ●
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1004-1108 ●
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1109- ● ●
18 BOLT; BRKT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 1004-1108 ●
18 BOLT; BRKT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 1109- ● ●
48 SPRING; GLOVE BOX LID 8-98034-987-0 01 1 1004-1108 ●
48 SPRING; GLOVE BOX LID 8-98034-987-0 01 1 1109-1311 ● ●
48 SPRING; GLOVE BOX LID 8-97926-411-0 01 1 1312-1405 ● ●
48 SPRING; GLOVE BOX LID 8-98270-764-0 01 1 1406-1510 ● ●
48 SPRING; GLOVE BOX LID
EXC. COMPARTMENT - I/P ASSIST SIDE WITHOUT LID<JDP> 		8-98270-764-0 01 1 1511- ● ●
48 SPRING; GLOVE BOX LID 8-98034-986-0 01 1 1004-1108 ●
48 SPRING; GLOVE BOX LID 8-98034-986-0 01 1 1109-1311 ● ●
48 SPRING; GLOVE BOX LID 8-97926-410-0 01 1 1312-1405 ● ●
48 SPRING; GLOVE BOX LID 8-98270-763-0 01 1 1406-1510 ● ●
48 SPRING; GLOVE BOX LID
EXC. COMPARTMENT - I/P ASSIST SIDE WITHOUT LID<JDP> 		8-98270-763-0 01 1 1511- ● ●
53 STRIKER; GLOVE BOX
(A) 		8-98108-913-0 01 1 1004-1108 ●
53 STRIKER; GLOVE BOX
(A) 		8-98108-913-0 01 1 1109-1405 ● ●
53 STRIKER; GLOVE BOX
(B) 		8-98270-765-0 01 1 1406-1510 ● ●
53 STRIKER; GLOVE BOX
EXC. COMPARTMENT - I/P ASSIST SIDE WITHOUT LID<JDP> (B) 		8-98270-765-0 01 1 1511- ● ●
64 SCREW; STRIKER
(A) 		8-98108-915-0 01 1 1004-1108 ●
64 SCREW; STRIKER
(A) 		8-98108-915-0 01 1 1109-1405 ● ●
64 SCREW; STRIKER
(B) M4X85 		8-97926-404-0 02 1 1406-1510 ● ●
64 SCREW; STRIKER
EXC. COMPARTMENT - I/P ASSIST SIDE WITHOUT LID<JDP> (B) M4X85 		8-97926-404-0 02 1 1511- ● ●
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 1004-1108 ●
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 1109- ● ●
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 1004-1108 ●
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 1109- ● ●
70 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 1004-1108 ●
70 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 1109- ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 1004-1007 ●
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1008-1108 ●
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1109- ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1004-1108 ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1109- ● ●
136 CLIP; INST COVER 8-98076-254-0 02 1 1004-1108 ●
136 CLIP; INST COVER 8-98076-254-0 02 1 1109- ● ●
146 SCREW; TAP
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1004-1108 ●
146 SCREW; TAP
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1109- ● ●
165 NUT; BRKT KNEE PAD
M6 FLANGE SOU 		0-91180-106-0 01 1 1004-1108 ●
165 NUT; BRKT KNEE PAD
M6 FLANGE SOU 		0-91180-106-0 01 1 1109- ● ●
178 NUT; INST PANEL
(A) M6 FLANGE SOU 		0-91180-106-0 01 1 1004-1108 ●
178 NUT; INST PANEL
(A) M6 FLANGE SOU 		0-91180-106-0 01 1 1109- ● ●
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1004-1108 ●
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1109- ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97407-425-5 01 1 1004-1012 ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1101-1108 ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1109- ● ●
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 1004-1108 ●
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 1109- ● ●
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 1004-1108 ●
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 1109- ● ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 1004-1108 ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 1109- ● ●
338 SCREW; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1004-1108 ●
338 SCREW; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1109- ● ●
356 NUT; COVER
M6 FLANGE SOU 		0-91180-106-0 01 1 1004-1108 ●
356 NUT; COVER
M6 FLANGE SOU 		0-91180-106-0 01 1 1109- ● ●
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1004-1108 ●
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1109- ● ●
568 BOLT; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1004-1108 ●
568 BOLT; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1109- ● ●
579 COVER; INST PNL
GRAY 		8-97409-853-2 01 1 1004-1108 ●
579 COVER; INST PNL
GRAY 		8-97409-853-2 01 1 1109- ● ●
600 NUT; PANEL 8-98037-629-0 02 1 1004-1008 ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1004-1108 ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1109- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 09 1 1004-1108 ●
603 CLIP; COVER
(B) 		8-98021-271-0 09 1 1109- ● ●
626 RETAINER
OD=15 BLACK SOU 		8-94279-804-0 02 1 1004-1108 ●
626 RETAINER
OD=15 BLACK SOU 		8-94279-804-0 02 1 1109- ● ●
646 BRACKET; GARNISH PANEL
(A) 		8-98051-490-2 01 1 1004-1108 ●
646 BRACKET; GARNISH PANEL
(A) 		8-98051-490-2 01 1 1109- ● ●
646 BRACKET; GARNISH PANEL
(B) 		8-98051-492-2 01 1 1004-1108 ●
646 BRACKET; GARNISH PANEL
(B) 		8-98051-492-2 01 1 1109- ● ●
662 COVER; LWR,INST PANEL
GRAY 		8-97407-429-3 01 1 1004-1108 ●
662 COVER; LWR,INST PANEL
GRAY 		8-97407-429-3 01 1 1109- ● ●
666 INSERT; INST PANEL 8-98038-450-0 04 1 1004-1108 ●
666 INSERT; INST PANEL 8-98038-450-0 04 1 1109-1311 ● ●
666 INSERT; INST PANEL
M5 		8-97926-400-0 04 1 1312-1510 ● ●
666 INSERT; INST PANEL
EXC. COMPARTMENT - I/P ASSIST SIDE WITHOUT LID<JDP> M5 		8-97926-400-0 04 1 1511- ● ●
696 BRACKET; KNEE 8-98066-085-1 01 1 1004-1108 ●
696 BRACKET; KNEE 8-98066-085-1 01 1 1109- ● ●
701 TRAY; INST
(A) GRAY 		8-97415-540-6 01 1 1004-1108 ●
701 TRAY; INST
(A) GRAY 		8-97415-540-6 01 1 1109-1405 ● ●
701 TRAY; INST
(A) GRAY 		8-97429-703-1 01 1 1406-1510 ● ●
701 TRAY; INST
EXC. COMPARTMENT - I/P ASSIST SIDE WITHOUT LID<JDP> (A) GRAY 		8-97429-703-1 01 1 1511- ● ●
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITHOUT LID<JDP> (B) GRAY 		8-97421-976-1 01 1 1511- ● ●
702 NUT; TRAY
(B) M6 FLANGE SOU 		0-91180-106-0 02 1 1004-1108 ●
702 NUT; TRAY
(B) M6 FLANGE SOU 		0-91180-106-0 02 1 1109- ● ●
702 NUT; TRAY
(A) 		8-98037-629-0 01 1 1004-1108 ●
702 NUT; TRAY
(A) 		8-98037-629-0 01 1 1109- ● ●
706 LID; TRAY INST
GRAY 		8-97415-541-0 01 1 1004-1108 ●
706 LID; TRAY INST
GRAY 		8-97415-541-0 01 1 1109-1405 ● ●
706 LID; TRAY INST
GRAY 		8-97429-992-0 01 1 1406-1510 ● ●
706 LID; TRAY INST
EXC. COMPARTMENT - I/P ASSIST SIDE WITHOUT LID<JDP> GRAY 		8-97429-992-0 01 1 1511- ● ●
707 SHAFT; TRAY INST LID 8-98035-730-1 02 1 1004-1108 ●
707 SHAFT; TRAY INST LID 8-98035-730-1 02 1 1109-1311 ● ●
707 SHAFT; TRAY INST LID 8-97926-393-0 02 1 1312-1510 ● ●
707 SHAFT; TRAY INST LID
EXC. COMPARTMENT - I/P ASSIST SIDE WITHOUT LID<JDP> 		8-97926-393-0 02 1 1511- ● ●
708 STOPPER; TRAY INST LID 8-98010-867-1 02 1 1004-1108 ●
708 STOPPER; TRAY INST LID 8-98010-867-1 02 1 1109-1510 ● ●
708 STOPPER; TRAY INST LID
EXC. COMPARTMENT - I/P ASSIST SIDE WITHOUT LID<JDP> 		8-98010-867-1 02 1 1511- ● ●
709 SCREW; TRAY INST
M5X16 TAPPING 		0-71040-516-0 04 1 1004-1108 ●
709 SCREW; TRAY INST
M5X16 TAPPING 		0-71040-516-0 04 1 1109-1510 ● ●
709 SCREW; TRAY INST
EXC. COMPARTMENT - I/P ASSIST SIDE WITHOUT LID<JDP> M5X16 TAPPING 		0-71040-516-0 04 1 1511- ● ●
712 LOCK; TRAY INST LID 8-98031-846-0 01 1 1004-1108 ●
712 LOCK; TRAY INST LID 8-98031-846-0 01 1 1109-1510 ● ●
712 LOCK; TRAY INST LID
EXC. COMPARTMENT - I/P ASSIST SIDE WITHOUT LID<JDP> 		8-98031-846-0 01 1 1511- ● ●
715 SUPPORT; TRAY,HINGE 8-98034-929-0 01 1 1004-1108 ●
715 SUPPORT; TRAY,HINGE 8-98034-929-0 01 1 1109-1311 ● ●
715 SUPPORT; TRAY,HINGE 8-97926-397-0 01 1 1312-1510 ● ●
715 SUPPORT; TRAY,HINGE
EXC. COMPARTMENT - I/P ASSIST SIDE WITHOUT LID<JDP> 		8-97926-397-0 01 1 1511- ● ●
715 SUPPORT; TRAY,HINGE 8-98034-928-0 01 1 1004-1108 ●
715 SUPPORT; TRAY,HINGE 8-98034-928-0 01 1 1109-1311 ● ●
715 SUPPORT; TRAY,HINGE 8-97926-396-0 01 1 1312-1510 ● ●
715 SUPPORT; TRAY,HINGE
EXC. COMPARTMENT - I/P ASSIST SIDE WITHOUT LID<JDP> 		8-97926-396-0 01 1 1511- ● ●
718 SEAL; COVER
7X31 		8-98061-777-0 01 1 1004-1108 ●
718 SEAL; COVER
7X31 		8-98061-777-0 01 1 1109- ● ●
721 FINISHER; BRKT,KNEE
L=140 		8-97892-742-0 01 1 1004-1108 ●
721 FINISHER; BRKT,KNEE
L=140 		8-97892-742-0 01 1 1109- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
