◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MT ▶ 10650 - MT111,112 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-10 - RADIATOR ▶
1-10 — RADIATOR (#2185) — 100 parça

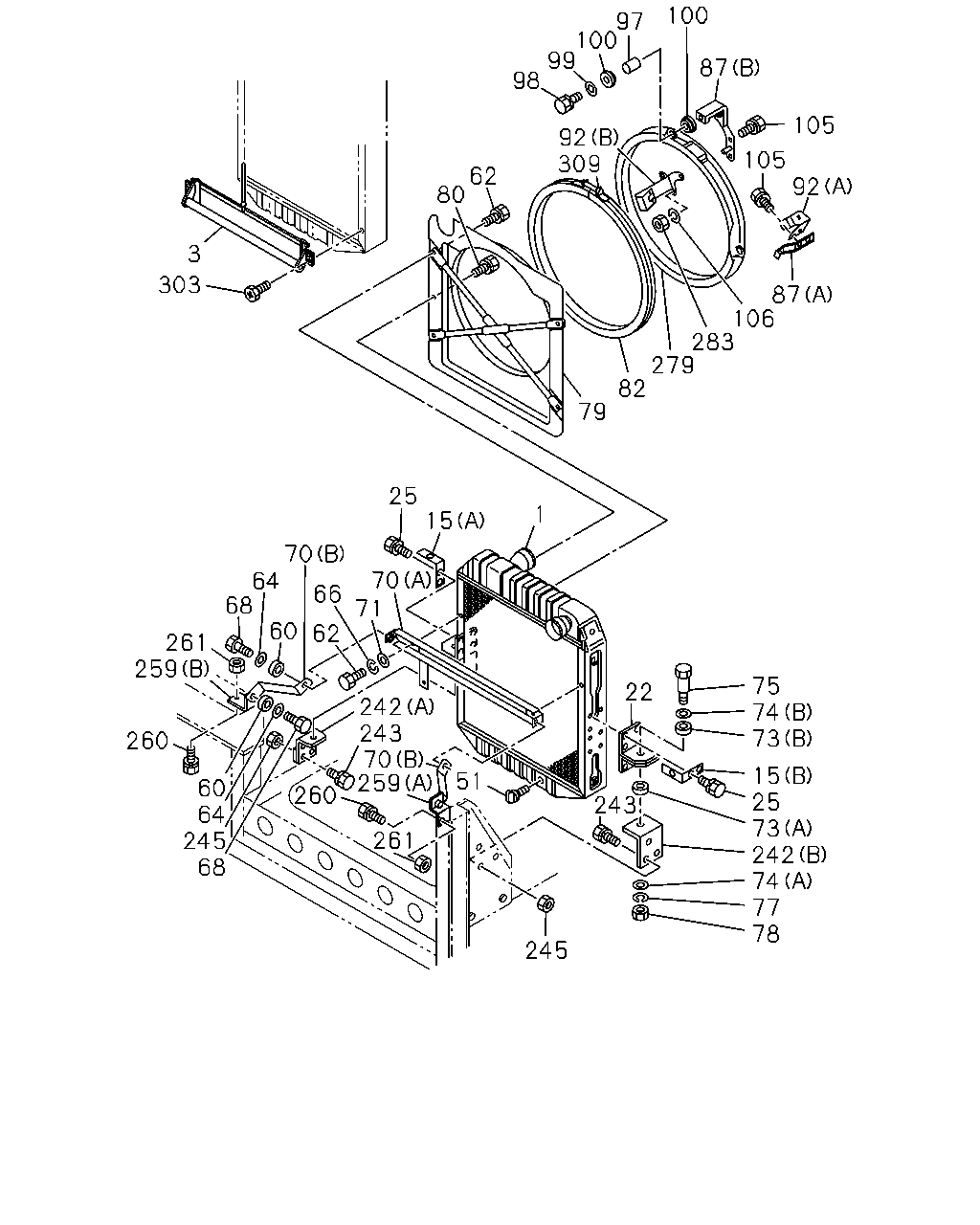

çizim 29384
100 97 100 99 98 87 105 92 309 105 92 62 80 3 87 106 283 279 82 79 25 1 15 70 64 68 70 71 66 60 62 261 259 75 74 73 22 242 243 70 260 15 25 73 242 74 77 78 60 64 245 68 243 260 261 245 259 51 303
BalonParca AdiParca NoAdetTipApplied Date A B
1 RADIATOR ASM 1-21410-493-3 01 1 9101-0203 ● ●
1 RADIATOR ASM 1-21410-493-3 01 1 0204- ● ●
3 COVER; RAD
RADIATOR CURTAIN<SK7> 		1-21511-073-1 01 1 9101-9201 ● ●
3 COVER; RAD
RADIATOR CURTAIN<SK7> 		1-21511-073-1 01 1 9202- ● ●
15 BRACKET; PIPE,RAD
(A) 		1-21464-245-0 01 1 9101- ● ●
15 BRACKET; PIPE,RAD
(B) 		1-21464-246-0 01 1 9101- ● ●
22 BRACKET; RAD MTG 1-21464-190-0 01 1 9101-0203 ● ●
22 BRACKET; RAD MTG 1-21464-190-0 01 1 0204- ● ●
22 BRACKET; RAD MTG 1-21464-191-0 01 1 9101-0203 ● ●
22 BRACKET; RAD MTG 1-21464-191-0 01 1 0204- ● ●
25 BOLT; BRKT
M8X16 W/LK&PL WASHER 		9-01960-816-0 12 1 9101- ● ●
25 BOLT; BRKT
M8X18 W/LK&PL WASHER 		9-01960-818-0 04 1 9101- ● ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 9101- ● ●
60 GROMMET 1-09332-117-0 04 1 9101- ● ●
62 BOLT; STAY
M10X16 		9-02041-016-0 02 1 9101- ● ●
64 WASHER; STAY TO RAD
ID=12.5 OD=26 		9-09160-612-0 04 1 9101- ● ●
66 WASHER; LK,STAY
ID=10.2 		9-09150-510-0 02 1 9101- ● ●
68 BOLT; STAY TO BRKT
M8X30 		1-09009-020-1 04 1 9101- ● ●
70 STAY; RAD
(A) 		1-21522-045-0 01 1 9101- ● ●
70 STAY; RAD
(B) 		1-21584-008-0 02 1 9101- ● ●
71 WASHER; PL,STAY
ID=10.5 OD=22 		9-09160-610-0 02 1 9101- ● ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 9101- ● ●
73 RUBBER; CUSHION,RAD MTG
(B) 		1-21467-005-0 02 1 9101- ● ●
74 WASHER; PL,CUSHION RUBBER
(A) ID=12.5 OD=26 		9-09164-612-0 02 1 9101- ● ●
74 WASHER; PL,CUSHION RUBBER
(B) 		9-09851-951-1 02 1 9101- ● ●
75 BOLT; CUSHION RUBBER,RAD MTG 1-09009-053-0 02 1 9101- ● ●
77 WASHER; LK,CUSHION RUBBER
ID=12.2 		9-09150-512-0 02 1 9101- ● ●
78 NUT; CUSHION RUBBER
M12 		9-99110-512-0 02 1 9101- ● ●
79 GUIDE; FAN,RAD 1-21551-291-0 01 1 9101- ● ●
80 BOLT; FAN GUIDE
M6X12 W/LK&PL WASHER 		9-01960-612-0 02 1 9101-9305 ● ●
80 BOLT; FAN GUIDE
M6X16 W/LK&PL WASHER 		9-01960-616-0 04 1 9101-9305 ● ●
80 BOLT; FAN GUIDE
M6X12 FLANGE 		0-28080-612-0 04 1 9306- ● ●
82 COVER; FAN,RAD 1-21559-157-1 01 1 9101- ● ●
87 STAY; FAN GUIDE
(A) 		1-21559-175-1 01 1 9101- ● ●
87 STAY; FAN GUIDE
(B) 		1-21559-194-1 01 1 9101- ● ●
92 BRACKET; FAN GUIDE
(A) 		1-21559-162-3 01 1 9101-9207 ● ●
92 BRACKET; FAN GUIDE
(A) 		1-21559-162-3 01 1 9209- ● ●
92 BRACKET; FAN GUIDE
(B) 		1-21559-176-1 01 1 9101-9207 ● ●
92 BRACKET; FAN GUIDE
(B) 		1-21559-176-1 01 1 9209- ● ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 9607- ● ●
98 BOLT; RAD FAN GUIDE
M8X35 W/LK WASHER 		0-50040-835-0 03 1 9101- ● ●
99 WASHER; PL
ID=8.4 OD=18 		9-09164-608-0 03 1 9101- ● ●
100 RUBBER; MTG 1-09337-006-0 06 1 9101-9307 ● ●
100 RUBBER; MTG 1-09337-027-0 06 1 9308-9606 ● ●
100 RUBBER; MTG 8-94395-766-0 06 1 9607- ● ●
105 BOLT; BRKT
M10X20 W/LK WASHER 		0-50041-020-0 03 1 9101- ● ●
106 WASHER; LK,BRKT
ID=8.2 		9-09150-508-0 01 1 9101- ● ●
242 BRACKET; RAD
RIGHT HAND DRIVE(MTR5FB) (A) 		1-21464-143-1 01 1 9101- ● ●
242 BRACKET; RAD
RIGHT HAND DRIVE(MTR5FB) (B) 		1-21464-144-0 01 1 9101- ● ●
242 BRACKET; RAD
LEFT HAND DRIVE(MTR6FB) (A) 		1-21464-179-1 01 1 9101- ● ●
242 BRACKET; RAD
LEFT HAND DRIVE(MTR6FB) (B) 		1-21464-180-0 01 1 9101- ● ●
243 BOLT; BRKT
M12X40 W/LK WASHER 		0-50041-240-0 03 1 9101- ● ●
243 BOLT; BRKT
M12X45 W/LK WASHER 		0-50041-245-0 04 1 9101- ● ●
245 NUT; BRKT
M12 		9-99110-512-0 07 1 9101- ● ●
259 BRACKET; RAD STAY
(A) 		1-21464-175-1 01 1 9101- ● ●
259 BRACKET; RAD STAY
(B) 		1-21581-010-0 01 1 9101- ● ●
260 BOLT; BRKT
M10X30 W/LK WASHER 		0-50041-030-0 04 1 9101- ● ●
261 NUT; BRKT
M10 		9-09110-410-0 04 1 9101-9307 ● ●
261 NUT; BRKT
M10 		9-09110-510-0 04 1 9308- ● ●
279 BELL MOUTH 1-21551-333-0 01 1 9101- ● ●
283 NUT; BRKT
M8 		9-09110-408-0 01 1 9101- ● ●
303 SCREW; RAD COVER
RADIATOR CURTAIN<SK7> M6X12 W/LK WASHER 		9-03910-612-0 04 1 9101-9201 ● ●
303 SCREW; RAD COVER
RADIATOR CURTAIN<SK7> M6X12 W/LK WASHER 		9-03910-612-0 04 1 9202- ● ●
309 WIRE; FAN COVER 1-09704-088-0 01 1 9101- ● ●
çizim 95415
292 387 354 118 388 390 389 123 390 122 170 134 119 16
BalonParca AdiParca NoAdetTipApplied Date A B
16 CAP; RAD
RIGHT HAND DRIVE(MTR5FB) BUS USER THAILAND BMTA<D5B> 		1-21450-102-0 01 1 9101-0203 ● ●
16 CAP; RAD
RIGHT HAND DRIVE(MTR5FB) THAILAND EQUIPMENT(PM9) 		1-21450-102-0 01 1 9101-0203 ● ●
16 CAP; RAD
LEFT HAND DRIVE(MTR6FB) CAUTIONS FRENCH<WJ8> 		1-21450-119-0 01 1 9101-9112 ● ●
118 HOSE; WATER,ENG SIDE 1-21437-300-1 01 1 9101- ● ●
119 HOSE; WATER,RAD SIDE 1-09360-740-0 01 1 9101- ● ●
122 PIPE; VINYL,FILLER CAP
L=1160 SERVICED BY L=2850 		1-09366-061-0 01 1 9101- ● ●
123 CLIP; PIPE
L=250 		5-09707-030-1 01 1 9101- ● ●
134 CLIP; OUTLET PIPE,RAD
ID=60 		9-09917-419-0 01 1 9101- ● ●
170 PIPE; FILLER
RIGHT HAND DRIVE(MTR5FB) EXC. BUS USER THAILAND BMTA<D5B>,THAILAND EQUIPMENT(PM9) 		1-21421-022-0 01 1 9101-9112 ● ●
170 PIPE; FILLER
LEFT HAND DRIVE(MTR6FB) EXC. CAUTIONS FRENCH<WJ8> 		1-21421-022-0 01 1 9101-9112 ● ●
170 PIPE; FILLER
RIGHT HAND DRIVE(MTR5FB) EXC. BUS USER THAILAND BMTA<D5B>,THAILAND EQUIPMENT(PM9) 		1-21421-022-0 01 1 9201-0203 ● ●
170 PIPE; FILLER
LEFT HAND DRIVE(MTR6FB) 		1-21421-022-0 01 1 9201-0203 ● ●
170 PIPE; FILLER 1-21421-022-0 01 1 0204- ● ●
292 BOLT; BRKT
EXC. USER DAEWOO MOTORS<D4S>,BUS USER THAILAND BMTA<D5B> M10X22 W/LK WASHER 		0-50041-022-0 08 1 9101-9407 ● ●
292 BOLT; BRKT
EXC. USER DAEWOO MOTORS<D4S>,BUS USER THAILAND BMTA<D5B> M10X22 W/LK WASHER 		0-50041-022-0 03 1 9408-0203 ● ●
292 BOLT; BRKT
M10X22 W/LK WASHER 		0-50041-022-0 03 1 0204- ● ●
354 FILLER; WATER
RIGHT HAND DRIVE(MTR5FB) BUS USER THAILAND BMTA<D5B> 		1-21450-101-0 01 1 9101-0203 ● ●
354 FILLER; WATER
RIGHT HAND DRIVE(MTR5FB) THAILAND EQUIPMENT(PM9) 		1-21450-101-0 01 1 9101-0203 ● ●
354 FILLER; WATER
RIGHT HAND DRIVE(MTR5FB) EXC. BUS USER THAILAND BMTA<D5B>,THAILAND EQUIPMENT(PM9) W/CAP 		1-21450-090-0 01 1 9101-9112 ● ●
354 FILLER; WATER
LEFT HAND DRIVE(MTR6FB) EXC. CAUTIONS FRENCH<WJ8> W/CAP 		1-21450-090-0 01 1 9101-9112 ● ●
354 FILLER; WATER
RIGHT HAND DRIVE(MTR5FB) EXC. BUS USER THAILAND BMTA<D5B>,THAILAND EQUIPMENT(PM9) W/CAP 		1-21450-090-0 01 1 9201-0203 ● ●
354 FILLER; WATER
LEFT HAND DRIVE(MTR6FB) W/CAP 		1-21450-090-0 01 1 9201-0203 ● ●
354 FILLER; WATER
W/CAP 		1-21450-090-0 01 1 0204- ● ●
354 FILLER; WATER
LEFT HAND DRIVE(MTR6FB) CAUTIONS FRENCH<WJ8> 		1-21450-118-0 01 1 9101-9112 ● ●
387 NUT; BRKT
EXC. USER DAEWOO MOTORS<D4S>,BUS USER THAILAND BMTA<D5B> M10 		9-09110-410-0 08 1 9101-9307 ● ●
387 NUT; BRKT
EXC. USER DAEWOO MOTORS<D4S>,BUS USER THAILAND BMTA<D5B> M10 		9-09110-510-0 08 1 9308-9407 ● ●
387 NUT; BRKT
EXC. USER DAEWOO MOTORS<D4S>,BUS USER THAILAND BMTA<D5B> M10 		9-09110-510-0 03 1 9408-0203 ● ●
387 NUT; BRKT
M10 		9-09110-510-0 03 1 0204- ● ●
388 CAP; FILLER,RAD WATER
RIGHT HAND DRIVE(MTR5FB) EXC. BUS USER THAILAND BMTA<D5B>,THAILAND EQUIPMENT(PM9) 		1-21450-044-2 01 1 9101-9112 ● ●
388 CAP; FILLER,RAD WATER
LEFT HAND DRIVE(MTR6FB) EXC. CAUTIONS FRENCH<WJ8> 		1-21450-044-2 01 1 9101-9112 ● ●
388 CAP; FILLER,RAD WATER
RIGHT HAND DRIVE(MTR5FB) EXC. BUS USER THAILAND BMTA<D5B>,THAILAND EQUIPMENT(PM9) 		1-21450-044-2 01 1 9201-0203 ● ●
388 CAP; FILLER,RAD WATER
LEFT HAND DRIVE(MTR6FB) 		1-21450-044-2 01 1 9201-0203 ● ●
388 CAP; FILLER,RAD WATER 1-21450-044-2 01 1 0204- ● ●
389 HOSE; RUBBER FILLER TO ENG 1-09360-466-0 01 1 9101-0203 ● ●
389 HOSE; RUBBER FILLER TO ENG 1-09360-466-1 02 1 0204- ● ●
390 CLIP; RUBBER HOSE
ID=57 		1-09704-066-0 02 1 9101- ● ●
