Isuzu WW
▶
TRUCKS
▶
FXZ
▶
11197 - FXZ SOUTH AFRICA
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

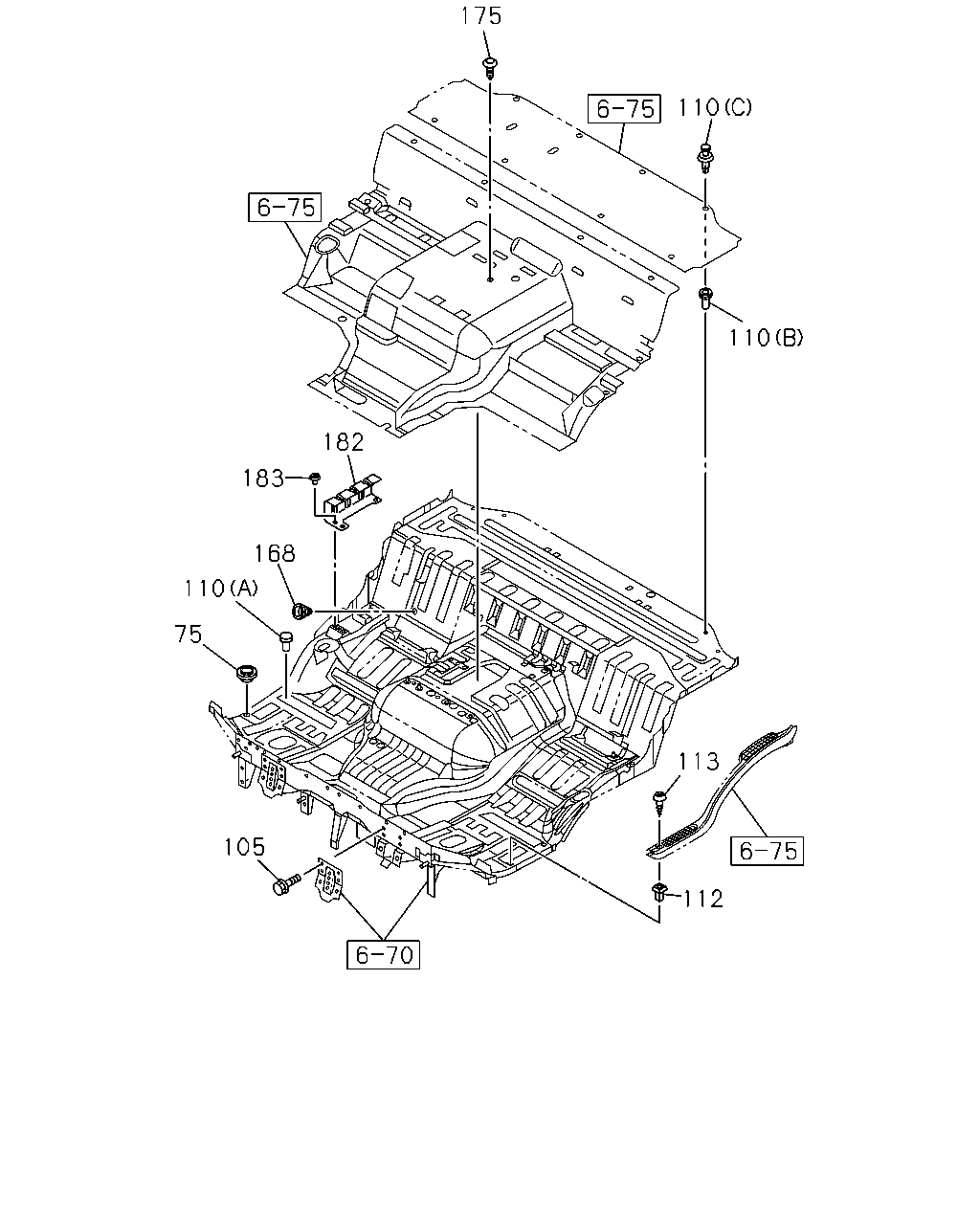

6-78 - FLOOR HOLE PLUG
▶
6-78 — FLOOR HOLE PLUG
(#21847) — 31 parça
Tümü
A - FGZ5MX
B - GGZ5MX
175
110
110
182
183
168
110
75
113
105
112
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
75
PLUG; RUBBER,FLOOR
OD=23.5 SOU
1-09983-101-0
04
1
1004-1108
●
75
PLUG; RUBBER,FLOOR
OD=23.5 SOU
1-09983-101-0
04
1
1109-
●
●
105
BOLT; FLOOR
M10X30 FLANGE SOU
0-28661-030-0
16
1
1004-1108
●
105
BOLT; FLOOR
M10X30 FLANGE SOU
0-28661-030-0
16
1
1109-
●
●
110
FASTENER; FLOOR MAT
(A) BLACK SOU
8-94279-089-0
08
1
1004-1108
●
110
FASTENER; FLOOR MAT
(A) BLACK SOU
8-94279-089-0
08
1
1109-
●
●
110
FASTENER; FLOOR MAT
(B)
8-97319-495-0
04
1
1004-1108
●
110
FASTENER; FLOOR MAT
(B)
8-97319-495-0
04
1
1109-
●
●
110
FASTENER; FLOOR MAT
(C) GRAY
8-97405-247-0
04
1
1004-1108
●
110
FASTENER; FLOOR MAT
(C) GRAY
8-97405-247-0
04
1
1109-
●
●
112
GROMMET; SCREW,TRIM COVER
D=7.8X7.8 L=18 NATURAL
8-94279-043-0
08
1
1004-1108
●
112
GROMMET; SCREW,TRIM COVER
D=7.8X7.8 L=18 NATURAL
8-94279-043-0
08
1
1109-
●
●
113
SCREW; TRIM COVER
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
08
1
1004-1108
●
113
SCREW; TRIM COVER
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
08
1
1109-
●
●
168
COVER; HOLE,ANNTENA CABLE
SOU
1-79998-891-1
01
1
1004-1108
●
168
COVER; HOLE,ANNTENA CABLE
SOU
1-79998-891-1
01
1
1109-
●
●
175
CLIP; FLOOR
D6X23 BLACK SOU
1-09987-114-0
01
1
1004-1108
●
175
CLIP; FLOOR
D6X23 BLACK SOU
1-09987-114-0
01
1
1109-
●
●
182
REINFORCEMENT; SILL SIDE
8-98056-072-1
01
1
1004-1108
●
182
REINFORCEMENT; SILL SIDE
8-98056-072-1
01
1
1109-
●
●
182
REINFORCEMENT; SILL SIDE
8-98056-071-1
01
1
1004-1101
●
182
REINFORCEMENT; SILL SIDE
EXC. PTO CONTROL(SV6)
8-98056-071-1
01
1
1102-1108
●
182
REINFORCEMENT; SILL SIDE
EXC. DUMP CONTROL LEVER<RC4>,PTO CONTROL(SV6)
8-98056-071-1
01
1
1109-
●
182
REINFORCEMENT; SILL SIDE
8-98056-071-1
01
1
1109-
●
183
SCREW; SILL SIDE
EXC. PTO CONTROL(SV6) T40 M8X16.5 HEXALOBULAR
8-98066-813-0
06
1
1102-1108
●
183
SCREW; SILL SIDE
EXC. DUMP CONTROL LEVER<RC4>,PTO CONTROL(SV6) T40 M8X16.5 HEXALOBULAR
8-98066-813-0
06
1
1109-
●
183
SCREW; SILL SIDE
T40 M8X16.5 HEXALOBULAR
8-98066-813-0
06
1
1109-
●
183
SCREW; SILL SIDE
T40 M8X16.5 HEXALOBULAR
8-98066-813-0
06
1
1004-1101
●
183
SCREW; SILL SIDE
PTO CONTROL(SV6) T40 M8X16.5 HEXALOBULAR
8-98066-813-0
03
1
1102-1108
●
183
SCREW; SILL SIDE
DUMP CONTROL LEVER<RC4> T40 M8X16.5 HEXALOBULAR
8-98066-813-0
03
1
1109-
●
183
SCREW; SILL SIDE
PTO CONTROL(SV6) EXC. DUMP CONTROL LEVER<RC4> T40 M8X16.5 HEXALOBULAR
8-98066-813-0
03
1
1109-
●
