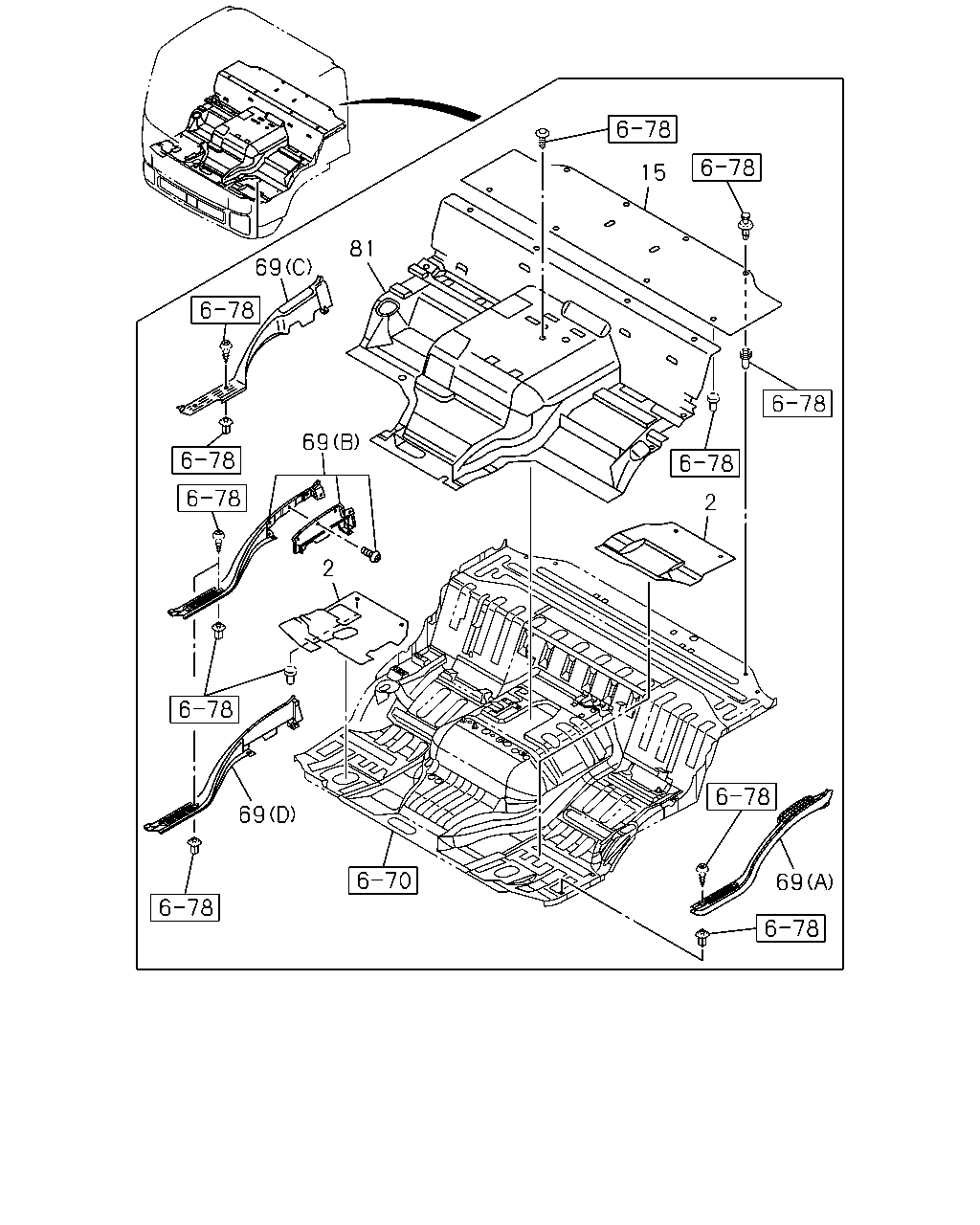

6-75 — MAT AND CARPET (#21845) — 31 parça

69 69 2 69 2 69 15 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	MAT; FLOOR DELUXE CARPET<BF2> GRAY	8-97413-108-1	01	1	1004-1006	●
2	MAT; FLOOR DELUXE CARPET<BF2> DARK GRAY	8-97421-808-0	01	1	1007-1108	●
2	MAT; FLOOR DELUXE CARPET<BF2> DARK GRAY	8-97421-808-0	01	1	1109-	●	●
2	MAT; FLOOR DELUXE CARPET<BF2> GRAY	8-97413-109-1	01	1	1004-1006	●
2	MAT; FLOOR DELUXE CARPET<BF2> DARK GRAY	8-97421-810-0	01	1	1007-1108	●
2	MAT; FLOOR DELUXE CARPET<BF2> DARK GRAY	8-97421-810-0	01	1	1109-	●	●
2	MAT; FLOOR VINYL CARPET<B30> GRAY	8-97413-132-2	01	1	1004-1108	●
2	MAT; FLOOR VINYL CARPET<B30> GRAY	8-97413-132-2	01	1	1109-	●	●
2	MAT; FLOOR VINYL CARPET<B30> GRAY	8-97413-133-1	01	1	1004-1108	●
2	MAT; FLOOR VINYL CARPET<B30> GRAY	8-97413-133-1	01	1	1109-	●	●
15	MAT; FLOOR REAR DELUXE CARPET<BF2> EXC. MATTRESS SLEEPER CAB<E40> GRAY	8-97407-397-0	01	1	1004-1006	●
15	MAT; FLOOR REAR DELUXE CARPET<BF2> EXC. MATTRESS SLEEPER CAB<E40> DARK GRAY	8-97418-951-0	01	1	1007-1108	●
15	MAT; FLOOR REAR DELUXE CARPET<BF2> EXC. MATTRESS SLEEPER CAB<E40> DARK GRAY	8-97418-951-0	01	1	1109-	●	●
15	MAT; FLOOR REAR VINYL CARPET<B30> EXC. MATTRESS SLEEPER CAB<E40> GRAY	8-97407-404-1	01	1	1004-1108	●
15	MAT; FLOOR REAR VINYL CARPET<B30> EXC. MATTRESS SLEEPER CAB<E40> GRAY	8-97407-404-1	01	1	1109-	●	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE DUMP CONTROL LEVER<RC4> (D) GRAY	8-97465-138-0	01	1	1504-	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE PTO CONTROL(SV6) (B) GRAY	8-97407-414-3	01	1	1102-1108	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE DUMP CONTROL LEVER<RC4> (B) GRAY	8-97407-414-3	01	1	1109-1503	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE PTO CONTROL(SV6) EXC. DUMP CONTROL LEVER<RC4> (B) GRAY	8-97407-414-3	01	1	1109-1503	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE PTO CONTROL(SV6) EXC. DUMP CONTROL LEVER<RC4> (B) GRAY	8-97407-414-3	01	1	1504-	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE (A) GRAY	8-97407-413-1	01	1	1004-1108	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE (A) GRAY	8-97407-413-1	01	1	1109-	●	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE (C) GRAY	8-97407-412-1	01	1	1004-1101	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE EXC. PTO CONTROL(SV6) (C) GRAY	8-97407-412-1	01	1	1102-1108	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE EXC. DUMP CONTROL LEVER<RC4>,PTO CONTROL(SV6) (C) GRAY	8-97407-412-1	01	1	1109-	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE (C) GRAY	8-97407-412-1	01	1	1109-		●
81	MAT; FLOOR,CENTER DELUXE CARPET<BF2> GRAY	8-97413-079-4	01	1	1004-1006	●
81	MAT; FLOOR,CENTER DELUXE CARPET<BF2> DARK GRAY	8-97421-806-0	01	1	1007-1108	●
81	MAT; FLOOR,CENTER DELUXE CARPET<BF2> DARK GRAY	8-97421-806-0	01	1	1109-	●	●
81	MAT; FLOOR,CENTER VINYL CARPET<B30> GRAY	8-97413-083-6	01	1	1004-1108	●
81	MAT; FLOOR,CENTER VINYL CARPET<B30> GRAY	8-97413-083-6	01	1	1109-	●	●
