◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11197 - FXZ SOUTH AFRICA ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#21844) — 129 parça

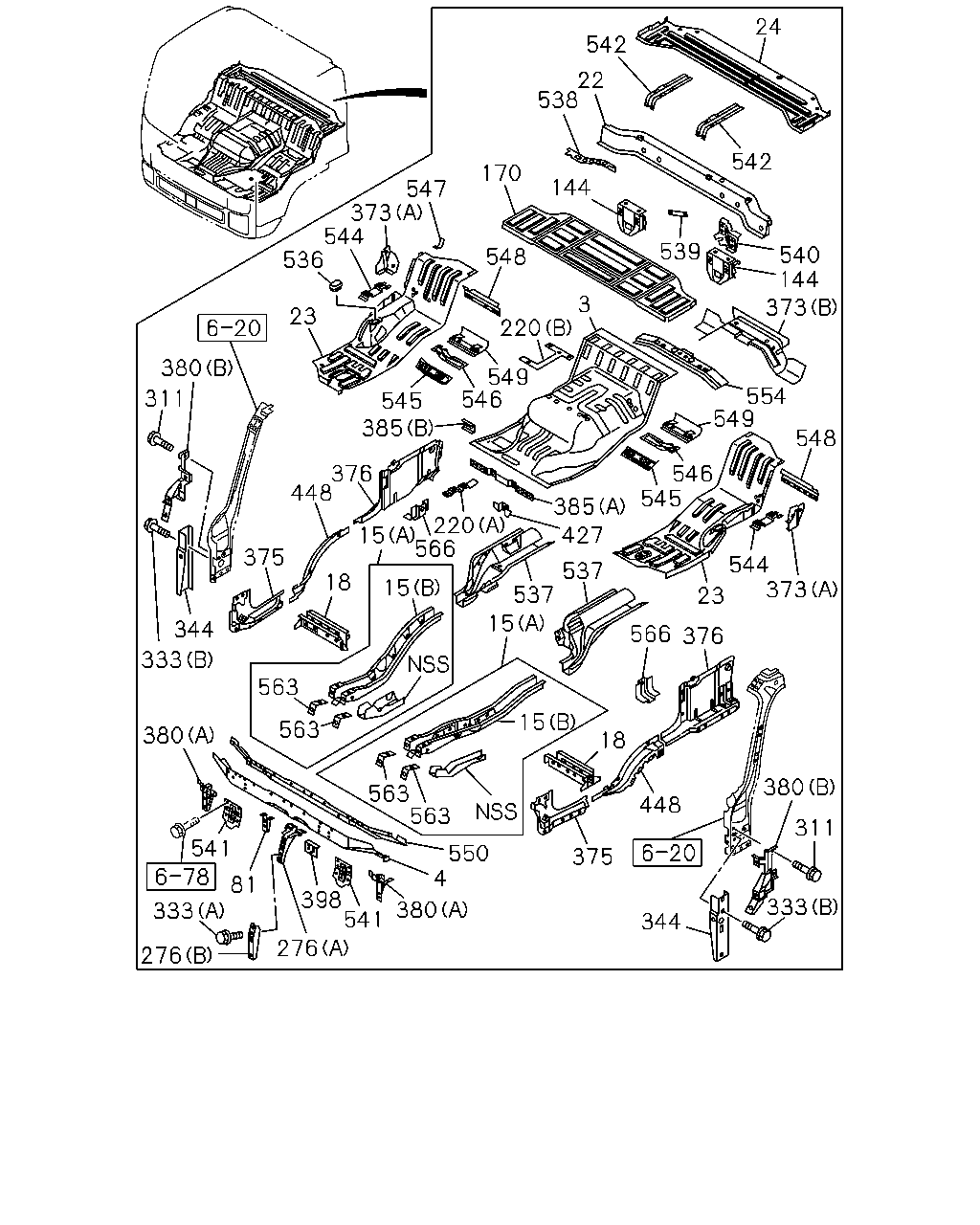

çizim 129440
542 24 542 540 144 373 554 548 549 546 545 544 373 23 376 566 18 448 380 311 333 344 375 550 4 380 541 398 276 276 333 81 541 563 563 15 563 563 380 333 344 375 18 15 15 220 566 15 537 531 427 385 546 549 220 3 539 144 538 22 170 548 545 385 376 448 311 380 23 536 544 373 547
BalonParca AdiParca NoAdetTipApplied Date A B
3 HOOD ASM; ENG 8-98053-070-8 01 1 1004-1108 ●
3 HOOD ASM; ENG 8-98053-070-8 01 1 1109- ● ●
4 FRAME; FLOOR,FRT 8-98079-820-1 01 1 1004-1108 ●
4 FRAME; FLOOR,FRT 8-98079-820-1 01 1 1109- ● ●
15 FRAME; UNDER
(B) 		8-98055-440-3 01 1 1004-1108 ●
15 FRAME; UNDER
(B) 		8-98055-440-3 01 1 1109- ● ●
15 FRAME; UNDER
(B) 		8-98055-441-3 01 1 1004-1108 ●
15 FRAME; UNDER
(B) 		8-98055-441-3 01 1 1109- ● ●
15 FRAME; UNDER
(A) 		8-98055-646-2 01 1 1004-1108 ●
15 FRAME; UNDER
(A) 		8-98055-646-2 01 1 1109- ● ●
15 FRAME; UNDER
(A) 		8-98055-645-2 01 1 1004-1108 ●
15 FRAME; UNDER
(A) 		8-98055-645-2 01 1 1109- ● ●
18 FRAME; FLOOR,CENTER SIDE 8-98067-904-1 01 1 1004-1108 ●
18 FRAME; FLOOR,CENTER SIDE 8-98067-904-1 01 1 1109- ● ●
18 FRAME; FLOOR,CENTER SIDE 8-98072-101-2 01 1 1004-1108 ●
18 FRAME; FLOOR,CENTER SIDE 8-98072-101-2 01 1 1109- ● ●
22 FRAME; FLOOR REAR 8-97584-431-5 01 1 1004-1108 ●
22 FRAME; FLOOR REAR 8-97584-431-5 01 1 1109- ● ●
23 PANEL; FLOOR,SIDE 8-97584-371-7 01 1 1004-1108 ●
23 PANEL; FLOOR,SIDE 8-97584-371-7 01 1 1109- ● ●
23 PANEL; FLOOR,SIDE 8-98073-690-1 01 1 1004-1108 ●
23 PANEL; FLOOR,SIDE 8-98073-690-1 01 1 1109- ● ●
24 PANEL; BED PAN 8-97584-378-6 01 1 1004-1108 ●
24 PANEL; BED PAN 8-97584-378-6 01 1 1109- ● ●
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1004-1108 ●
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1109- ● ●
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1004-1108 ●
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1109- ● ●
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1004-1108 ●
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1109- ● ●
170 EXTENSION; RR FLOOR 8-97589-207-4 01 1 1004-1108 ●
170 EXTENSION; RR FLOOR 8-97589-207-4 01 1 1109- ● ●
220 PATCH
(B) 		8-97589-627-2 01 1 1004-1108 ●
220 PATCH
(B) 		8-97589-627-2 01 1 1109- ● ●
220 PATCH
(A) 		8-98053-088-0 01 1 1004-1108 ●
220 PATCH
(A) 		8-98053-088-0 01 1 1109- ● ●
276 BRACKET; RAD GRILLE
(B) 		8-98059-816-2 01 1 1004-1108 ●
276 BRACKET; RAD GRILLE
(B) 		8-98059-816-2 01 1 1109- ● ●
276 BRACKET; RAD GRILLE
(A) 		8-98076-126-0 01 1 1004-1108 ●
276 BRACKET; RAD GRILLE
(A) 		8-98076-126-0 01 1 1109- ● ●
311 BOLT; BRKT
M6X16 FLANGE SOU 		0-28650-616-0 04 1 1004-1108 ●
311 BOLT; BRKT
M6X16 FLANGE SOU 		0-28650-616-0 04 1 1109- ● ●
333 BOLT; BRKT
(B) M6X16 FLANGE SOU 		0-28650-616-0 04 1 1004-1108 ●
333 BOLT; BRKT
(B) M6X16 FLANGE SOU 		0-28650-616-0 04 1 1109- ● ●
333 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER SOU 		8-94279-201-0 02 1 1004-1108 ●
333 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER SOU 		8-94279-201-0 02 1 1109- ● ●
344 BRACKET; FRT PNL SIDE,LWR 8-98059-821-1 01 1 1004-1108 ●
344 BRACKET; FRT PNL SIDE,LWR 8-98059-821-1 01 1 1109- ● ●
344 BRACKET; FRT PNL SIDE,LWR 8-98059-819-1 01 1 1004-1108 ●
344 BRACKET; FRT PNL SIDE,LWR 8-98059-819-1 01 1 1109- ● ●
373 REINFORCEMENT; SEAT BELT
(B) 		8-98046-586-2 01 1 1004-1108 ●
373 REINFORCEMENT; SEAT BELT
(B) 		8-98046-586-2 01 1 1109- ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1004-1108 ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1109- ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1004-1108 ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1109- ● ●
375 CLOSING; PILLAR 8-98044-897-3 01 1 1004-1108 ●
375 CLOSING; PILLAR 8-98044-897-3 01 1 1109- ● ●
375 CLOSING; PILLAR 8-98044-898-3 01 1 1004-1108 ●
375 CLOSING; PILLAR 8-98044-898-3 01 1 1109- ● ●
376 CLOSING; PILLAR,LWR 8-97589-556-5 01 1 1004-1108 ●
376 CLOSING; PILLAR,LWR 8-97589-556-5 01 1 1109- ● ●
376 CLOSING; PILLAR,LWR 8-97589-554-4 01 1 1004-1108 ●
376 CLOSING; PILLAR,LWR 8-97589-554-4 01 1 1109-1403 ● ●
376 CLOSING; PILLAR,LWR 8-98199-228-0 01 1 1404- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 1004-1108 ●
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 1109- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98059-825-1 01 1 1004-1108 ●
380 BRACKET; HEAD LAMP
(B) 		8-98059-825-1 01 1 1109- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 1004-1108 ●
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 1109- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98059-824-1 01 1 1004-1108 ●
380 BRACKET; HEAD LAMP
(B) 		8-98059-824-1 01 1 1109- ● ●
385 BRACKET
(A) 		8-97588-840-4 01 1 1004-1108 ●
385 BRACKET
(A) 		8-97588-840-4 01 1 1109- ● ●
385 BRACKET
(B) 		8-98053-825-1 01 1 1004-1108 ●
385 BRACKET
(B) 		8-98053-825-1 01 1 1109- ● ●
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 1004-1108 ●
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 1109- ● ●
427 BRACKET; CABLE 8-98053-090-2 01 1 1004-1108 ●
427 BRACKET; CABLE 8-98053-090-2 01 1 1109- ● ●
448 CLOSING; ROCKER 8-97589-552-2 01 1 1004-1108 ●
448 CLOSING; ROCKER 8-97589-552-2 01 1 1109- ● ●
448 CLOSING; ROCKER 8-97589-551-2 01 1 1004-1108 ●
448 CLOSING; ROCKER 8-97589-551-2 01 1 1109- ● ●
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1004-1108 ●
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1109- ● ●
537 SUPPORT ASM; MTG RR 8-98046-600-2 01 1 1004-1108 ●
537 SUPPORT ASM; MTG RR 8-98046-600-2 01 1 1109- ● ●
537 SUPPORT ASM; MTG RR 8-98046-599-2 01 1 1004-1108 ●
537 SUPPORT ASM; MTG RR 8-98046-599-2 01 1 1109- ● ●
538 REINFORCEMENT ASM; AIR INT DUCT 8-98098-707-1 01 1 1004-1108 ●
538 REINFORCEMENT ASM; AIR INT DUCT 8-98098-707-1 01 1 1109- ● ●
539 PATCH ASM; SAFTY HOOK 8-97584-440-2 01 1 1004-1108 ●
539 PATCH ASM; SAFTY HOOK 8-97584-440-2 01 1 1109- ● ●
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 1004-1108 ●
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 1109- ● ●
541 REINFORCEMENT; MTG,FRT 8-98076-127-0 02 1 1004-1108 ●
541 REINFORCEMENT; MTG,FRT 8-98076-127-0 02 1 1109- ● ●
542 BOLSTER; BED PAN 8-97589-685-1 02 1 1004-1108 ●
542 BOLSTER; BED PAN 8-97589-685-1 02 1 1109- ● ●
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1004-1108 ●
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1109- ● ●
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1004-1108 ●
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1109- ● ●
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 1004-1108 ●
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 1109- ● ●
545 BRACKET; SEAT FRT 8-98050-186-0 01 1 1004-1108 ●
545 BRACKET; SEAT FRT 8-98050-186-0 01 1 1109- ● ●
546 REINFORCEMENT; FLOOR SIDE 8-97584-426-0 02 1 1004-1108 ●
546 REINFORCEMENT; FLOOR SIDE 8-97584-426-0 02 1 1109- ● ●
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 1004-1108 ●
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 1109- ● ●
548 BRACKET; MUD GUARD 8-97588-965-1 01 1 1004-1108 ●
548 BRACKET; MUD GUARD 8-97588-965-1 01 1 1109- ● ●
548 BRACKET; MUD GUARD 8-97588-964-1 01 1 1004-1108 ●
548 BRACKET; MUD GUARD 8-97588-964-1 01 1 1109- ● ●
549 BRACKET; SEAT RR 8-98094-836-2 01 1 1004-1108 ●
549 BRACKET; SEAT RR 8-98094-836-2 01 1 1109- ● ●
549 BRACKET; SEAT RR 8-98050-187-1 01 1 1004-1108 ●
549 BRACKET; SEAT RR 8-98050-187-1 01 1 1109- ● ●
550 CLOSING ASM; MTG,FRT 8-97584-615-4 01 1 1004-1108 ●
550 CLOSING ASM; MTG,FRT 8-97584-615-4 01 1 1109- ● ●
554 REINFORCEMENT; FLOOR CENTER 8-98046-589-0 01 1 1004-1108 ●
554 REINFORCEMENT; FLOOR CENTER 8-98046-589-0 01 1 1109- ● ●
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1004-1108 ●
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1109- ● ●
566 REINFORCEMENT; FENDER,RR 8-98076-133-0 02 1 1004-1108 ●
566 REINFORCEMENT; FENDER,RR 8-98076-133-0 02 1 1109- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
