◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11197 - FXZ SOUTH AFRICA ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-47 - MUD GUARD AND INSULATOR ▶
6-47 — MUD GUARD AND INSULATOR (#21841) — 154 parça

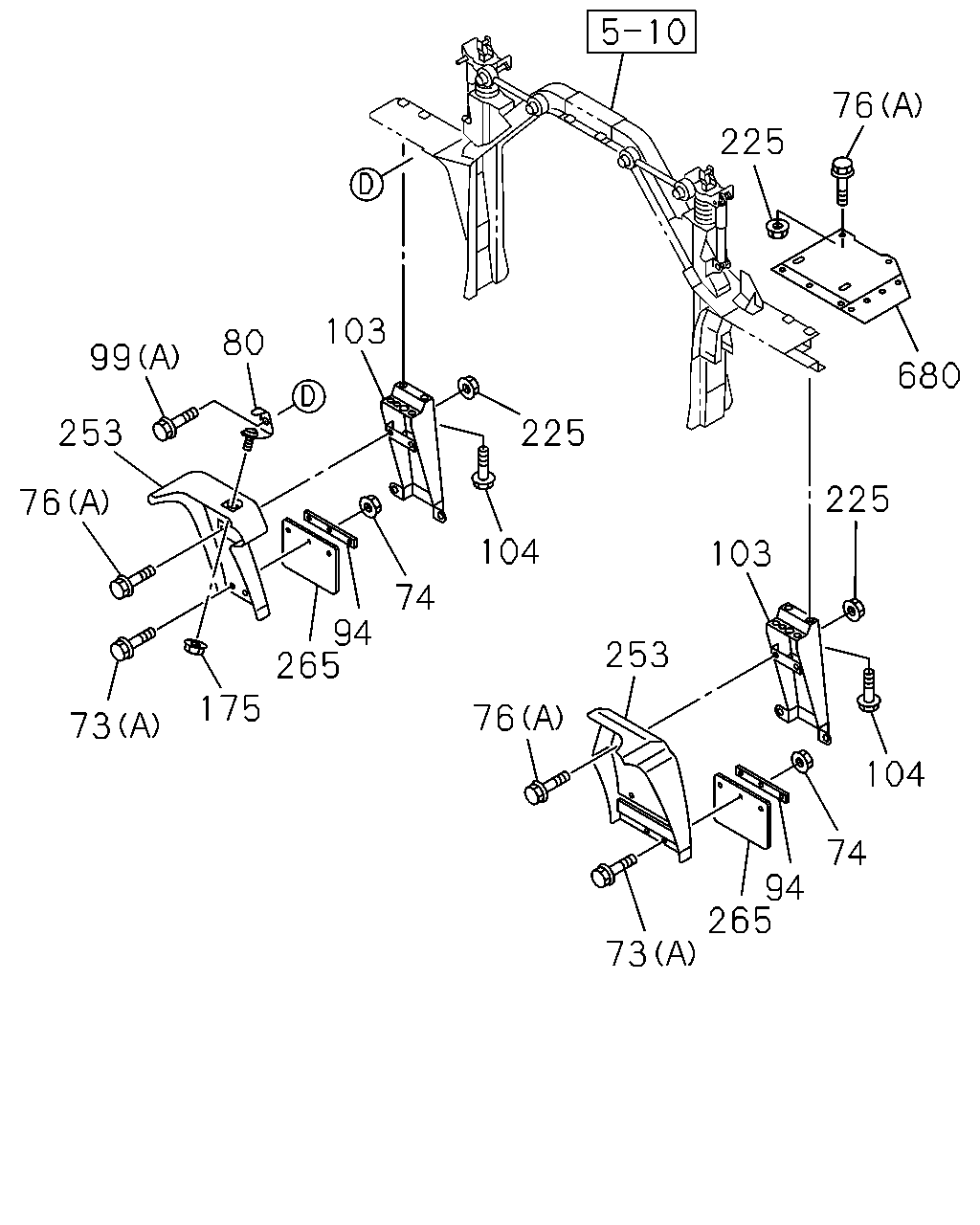

çizim 129342
76 225 103 80 99 680 253 225 225 76 104 103 74 94 265 175 253 76 73 104 74 94 265 73
BalonParca AdiParca NoAdetTipApplied Date A B
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 1004-1108 ●
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 1109- ● ●
73 BOLT; MUD COVER BRKT
(B) M8X30 W/LK&PL WASHER 		1-09030-095-0 04 1 1004-1108 ●
73 BOLT; MUD COVER BRKT
(B) M8X30 W/LK&PL WASHER 		1-09030-095-0 04 1 1109- ● ●
74 NUT
M8 FLANGE SOU 		0-91180-108-0 06 1 1004-1108 ●
74 NUT
M8 FLANGE SOU 		0-91180-108-0 06 1 1109- ● ●
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 1212- ● ●
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 12 1 1004-1108 ●
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 12 1 1109-1211 ● ●
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 04 1 1212- ● ●
76 BOLT; MUD GUARD
(B) M8X24.5 W/LK&PL WASHER SOU 		8-98059-720-0 06 1 1004-1005 ●
76 BOLT; MUD GUARD
(B) M8X25 W/LK&PL WASHER 		8-94331-747-1 06 1 1006-1108 ●
76 BOLT; MUD GUARD
(B) M8X25 W/LK&PL WASHER 		8-94331-747-1 06 1 1109- ● ●
80 BRACKET; MUD GUARD STAY 8-98057-793-0 01 1 1004-1108 ●
80 BRACKET; MUD GUARD STAY 8-98057-793-0 01 1 1109- ● ●
94 RETAINER; FLAP RUBBER 1-79931-091-2 01 1 1004-1108 ●
94 RETAINER; FLAP RUBBER 1-79931-091-2 01 1 1109- ● ●
94 RETAINER; FLAP RUBBER 8-98038-675-0 01 1 1004-1108 ●
94 RETAINER; FLAP RUBBER 8-98038-675-0 01 1 1109- ● ●
99 BOLT; STAY TO MUD GUARD
(B) M6X16 FLANGE SOU 		0-28650-616-0 08 1 1004-1108 ●
99 BOLT; STAY TO MUD GUARD
(B) M6X16 FLANGE SOU 		0-28650-616-0 08 1 1109- ● ●
99 BOLT; STAY TO MUD GUARD
(A) M8X25 FLANGE SOU 		0-28050-825-0 01 1 1004-1108 ●
99 BOLT; STAY TO MUD GUARD
(A) M8X25 FLANGE SOU 		0-28050-825-0 01 1 1109- ● ●
103 BRACKET ASM; RR MUD FLAP 8-98055-593-1 02 1 1004-1108 ●
103 BRACKET ASM; RR MUD FLAP 8-98055-593-1 02 1 1109- ● ●
104 BOLT; BRKT
M10X25 FLANGE SOU 		0-28651-025-0 08 1 1004-1108 ●
104 BOLT; BRKT
M10X25 FLANGE SOU 		0-28651-025-0 08 1 1109- ● ●
175 NUT; STAY FIX
M8 W/DISHED WASHER 		8-97329-625-0 01 1 1004-1108 ●
175 NUT; STAY FIX
M8 W/DISHED WASHER 		8-97329-625-0 01 1 1109- ● ●
225 NUT; MUD GUARD
M8 FLANGE SOU 		0-91180-108-0 08 1 1212- ● ●
225 NUT; MUD GUARD
M8 FLANGE SOU 		0-91180-108-0 12 1 1004-1108 ●
225 NUT; MUD GUARD
M8 FLANGE SOU 		0-91180-108-0 12 1 1109-1211 ● ●
225 NUT; MUD GUARD
M8 FLANGE SOU 		0-91180-108-0 04 1 1212- ● ●
253 GUARD; MUD 8-98057-779-1 01 1 1004-1108 ●
253 GUARD; MUD 8-98057-779-1 01 1 1109- ● ●
253 GUARD; MUD 8-98057-778-1 01 1 1004-1108 ●
253 GUARD; MUD 8-98057-778-1 01 1 1109- ● ●
265 RUBBER; FLAP,REAR 1-79930-978-0 01 1 1004-1108 ●
265 RUBBER; FLAP,REAR 1-79930-978-0 01 1 1109- ● ●
265 RUBBER; FLAP,REAR 8-98106-956-0 01 1 1004-1108 ●
265 RUBBER; FLAP,REAR 8-98106-956-0 01 1 1109- ● ●
680 GUARD; MUD,UPPER 8-98060-251-0 01 1 1004-1108 ●
680 GUARD; MUD,UPPER 8-98060-251-0 01 1 1109- ● ●

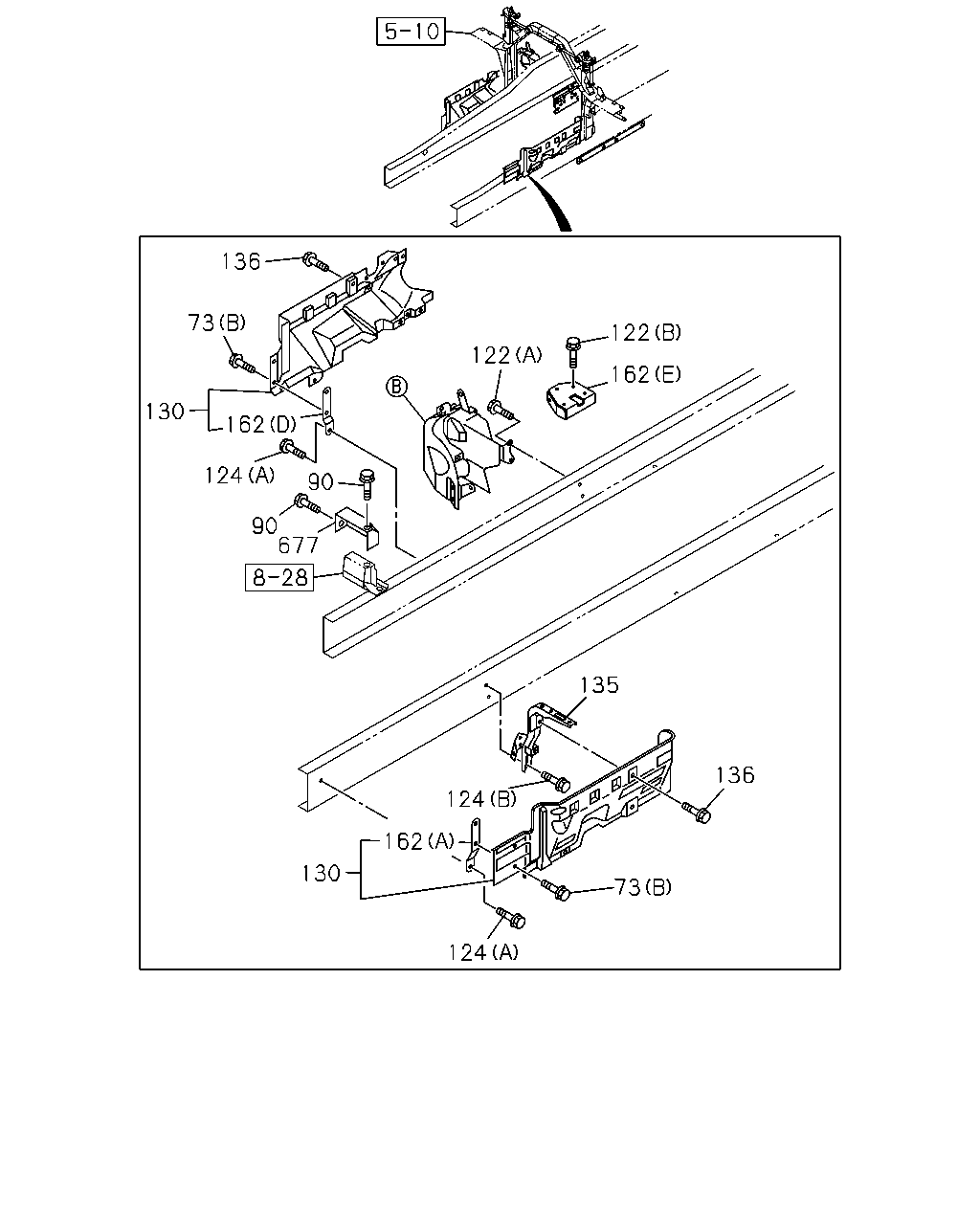

çizim 129360
136 73 122 122 162 130 162 124 90 90 677 135 136 124 162 130 73 124
BalonParca AdiParca NoAdetTipApplied Date A B
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 1004-1108 ●
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 1109- ● ●
73 BOLT; MUD COVER BRKT
(B) M8X30 W/LK&PL WASHER 		1-09030-095-0 04 1 1004-1108 ●
73 BOLT; MUD COVER BRKT
(B) M8X30 W/LK&PL WASHER 		1-09030-095-0 04 1 1109- ● ●
90 BOLT; COVER
M8X20 FLANGE 		0-28650-820-0 02 1 1004-1108 ●
90 BOLT; COVER
M8X20 FLANGE 		0-28650-820-0 02 1 1109- ● ●
122 BOLT
(A) M8X30 FLANGE 		0-28650-830-0 03 1 1004-1108 ●
122 BOLT
(A) M8X30 FLANGE 		0-28650-830-0 03 1 1109- ● ●
122 BOLT
(B) M10X40 FLANGE 		0-28051-040-0 02 1 1004-1108 ●
122 BOLT
(B) M10X40 FLANGE 		0-28051-040-0 02 1 1109- ● ●
124 BOLT; BRKT
(A) M8X25 FLANGE SOU 		0-28650-825-0 02 1 1004-1108 ●
124 BOLT; BRKT
(A) M8X25 FLANGE SOU 		0-28650-825-0 02 1 1109- ● ●
124 BOLT; BRKT
(B) M12X25 FLANGE 		0-28051-225-0 02 1 1004-1108 ●
124 BOLT; BRKT
(B) M12X25 FLANGE 		0-28051-225-0 02 1 1109- ● ●
130 PANEL; SHUTTER NOISE 8-98088-647-0 01 1 1004-1108 ●
130 PANEL; SHUTTER NOISE 8-98088-647-0 01 1 1109- ● ●
130 PANEL; SHUTTER NOISE 8-98088-648-3 01 1 1004-1108 ●
130 PANEL; SHUTTER NOISE 8-98088-648-3 01 1 1109- ● ●
135 BRACKET; SIDE PANEL 8-98055-600-1 01 1 1004-1108 ●
135 BRACKET; SIDE PANEL 8-98055-600-1 01 1 1109- ● ●
136 BOLT
M8X30 W/LK&PL WASHER 		1-09030-095-0 12 1 1004-1108 ●
136 BOLT
M8X30 W/LK&PL WASHER 		1-09030-095-0 12 1 1109- ● ●
162 BRACKET
(A) 		8-98055-601-0 01 1 1004-1108 ●
162 BRACKET
(A) 		8-98055-601-0 01 1 1109- ● ●
162 BRACKET
(B) 		8-98055-608-0 01 1 1004-1108 ●
162 BRACKET
(B) 		8-98055-608-0 01 1 1109- ● ●
162 BRACKET
(C) 		8-98055-609-2 01 1 1004-1108 ●
162 BRACKET
(C) 		8-98055-609-2 01 1 1109- ● ●
162 BRACKET
(E) 		8-98059-845-1 01 1 1004-1108 ●
162 BRACKET
(E) 		8-98059-845-1 01 1 1109- ● ●
162 BRACKET
(D) 		8-98092-305-0 01 1 1004-1108 ●
162 BRACKET
(D) 		8-98092-305-0 01 1 1109- ● ●
677 COVER; MAG VLV 8-98014-736-0 01 1 1004-1108 ●
677 COVER; MAG VLV 8-98014-736-0 01 1 1109- ● ●

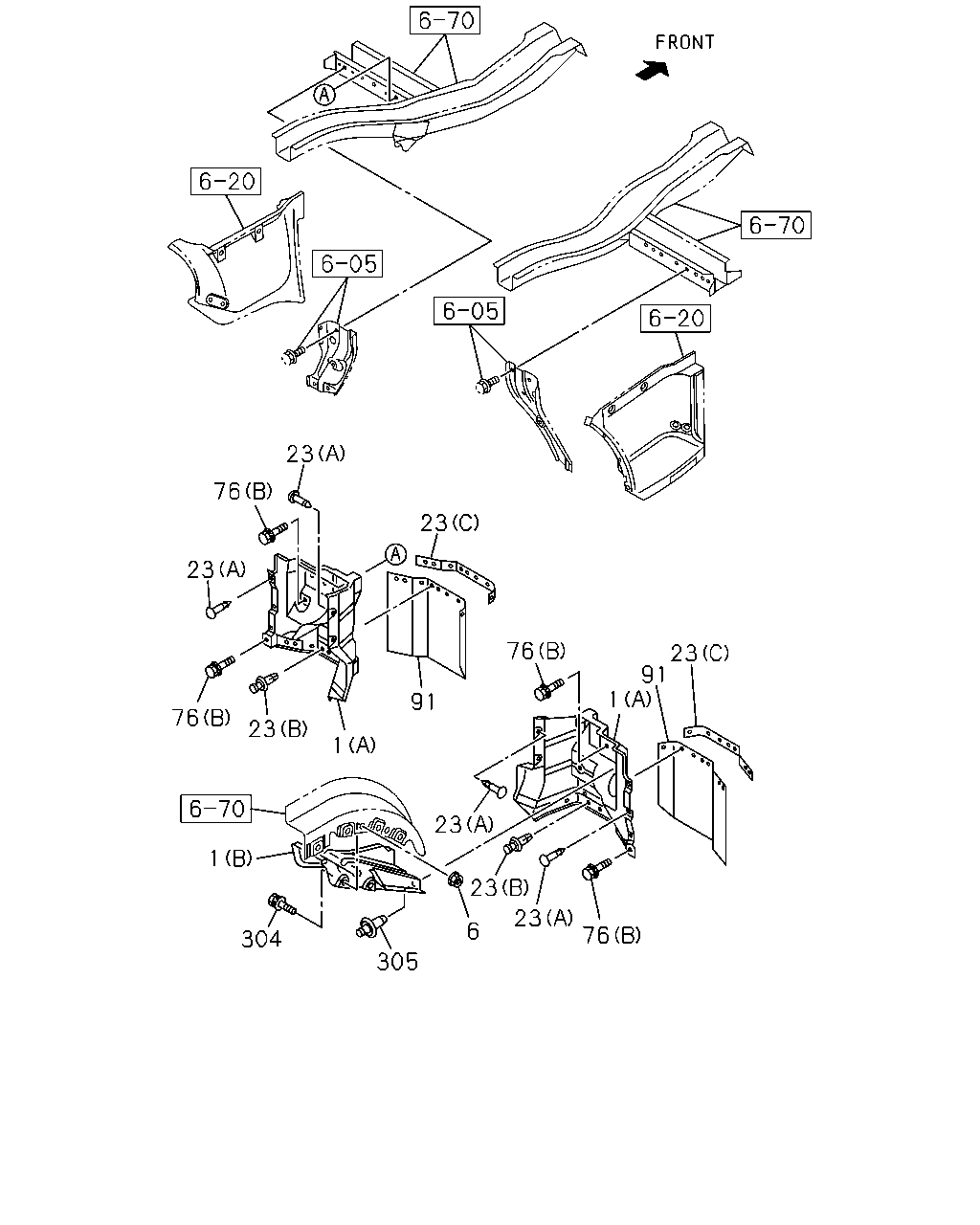

çizim 129361
23 76 23 23 76 23 91 1 91 76 23 1 23 1 23 23 76 6 304 305
BalonParca AdiParca NoAdetTipApplied Date A B
1 GUARD; MUD,FRT
PTO CONTROL(SV6) (B) 		8-98076-271-0 01 1 1102-1108 ●
1 GUARD; MUD,FRT
DUMP CONTROL LEVER<RC4> (B) 		8-98076-271-0 01 1 1109- ●
1 GUARD; MUD,FRT
PTO CONTROL(SV6) EXC. DUMP CONTROL LEVER<RC4> (B) 		8-98076-271-0 01 1 1109- ●
1 GUARD; MUD,FRT
(A) 		8-97617-152-0 01 1 1004-1108 ●
1 GUARD; MUD,FRT
(A) 		8-97617-152-0 01 1 1109- ● ●
1 GUARD; MUD,FRT
(A) 		8-97617-151-0 01 1 1004-1108 ●
1 GUARD; MUD,FRT
(A) 		8-97617-151-0 01 1 1109- ● ●
6 NUT; SPLASH GUARD
PTO CONTROL(SV6) M6 FLANGE 		8-94197-199-0 02 1 1102-1108 ●
6 NUT; SPLASH GUARD
DUMP CONTROL LEVER<RC4> M6 FLANGE 		8-94197-199-0 02 1 1109- ●
6 NUT; SPLASH GUARD
PTO CONTROL(SV6) EXC. DUMP CONTROL LEVER<RC4> M6 FLANGE 		8-94197-199-0 02 1 1109- ●
23 FASTENER; MUD COVER
(B) 		1-09470-001-0 10 1 1004-1108 ●
23 FASTENER; MUD COVER
(B) 		1-09470-001-0 10 1 1109- ● ●
23 FASTENER; MUD COVER
(C) 		8-98060-235-0 02 1 1004-1108 ●
23 FASTENER; MUD COVER
(C) 		8-98060-235-0 02 1 1109- ● ●
23 FASTENER; MUD COVER
(A) D8X13.5 SOU 		1-09987-248-1 08 1 1004-1108 ●
23 FASTENER; MUD COVER
(A) D8X13.5 SOU 		1-09987-248-1 08 1 1109- ● ●
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 1212- ● ●
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 12 1 1004-1108 ●
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 12 1 1109-1211 ● ●
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 04 1 1212- ● ●
76 BOLT; MUD GUARD
(B) M8X24.5 W/LK&PL WASHER SOU 		8-98059-720-0 06 1 1004-1005 ●
76 BOLT; MUD GUARD
(B) M8X25 W/LK&PL WASHER 		8-94331-747-1 06 1 1006-1108 ●
76 BOLT; MUD GUARD
(B) M8X25 W/LK&PL WASHER 		8-94331-747-1 06 1 1109- ● ●
91 COVER; MUD,FRT
TIRE 315/80R22.5-156/150L RIB EEC(5J5) 		8-98193-185-0 02 1 1109- ● ●
91 COVER; MUD,FRT 8-97617-155-0 02 1 1004-1104 ●
91 COVER; MUD,FRT 8-97617-155-0 02 1 1105-1108 ●
91 COVER; MUD,FRT
TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 12R22.5-16 RIB(75N) 		8-97617-155-0 02 1 1109- ● ●
304 BOLT; SPLASH GUARD
PTO CONTROL(SV6) M6X20 W/LK&PL WASHER 		1-09980-495-0 02 1 1102-1108 ●
304 BOLT; SPLASH GUARD
DUMP CONTROL LEVER<RC4> M6X20 W/LK&PL WASHER 		1-09980-495-0 02 1 1109- ●
304 BOLT; SPLASH GUARD
PTO CONTROL(SV6) EXC. DUMP CONTROL LEVER<RC4> M6X20 W/LK&PL WASHER 		1-09980-495-0 02 1 1109- ●
305 FASTENER; SPLASH GUARD
PTO CONTROL(SV6) D8X13.5 SOU 		1-09987-248-1 02 1 1102-1108 ●
305 FASTENER; SPLASH GUARD
DUMP CONTROL LEVER<RC4> D8X13.5 SOU 		1-09987-248-1 02 1 1109- ●
305 FASTENER; SPLASH GUARD
PTO CONTROL(SV6) EXC. DUMP CONTROL LEVER<RC4> D8X13.5 SOU 		1-09987-248-1 02 1 1109- ●
çizim 129508
122 167 160 163 162 162 163 122
BalonParca AdiParca NoAdetTipApplied Date A B
122 BOLT
(A) M8X30 FLANGE 		0-28650-830-0 03 1 1004-1108 ●
122 BOLT
(A) M8X30 FLANGE 		0-28650-830-0 03 1 1109- ● ●
122 BOLT
(B) M10X40 FLANGE 		0-28051-040-0 02 1 1004-1108 ●
122 BOLT
(B) M10X40 FLANGE 		0-28051-040-0 02 1 1109- ● ●
160 COVER ASM; EXH 8-98090-111-1 01 1 1004-1108 ●
160 COVER ASM; EXH 8-98090-111-1 01 1 1109- ● ●
162 BRACKET
(A) 		8-98055-601-0 01 1 1004-1108 ●
162 BRACKET
(A) 		8-98055-601-0 01 1 1109- ● ●
162 BRACKET
(B) 		8-98055-608-0 01 1 1004-1108 ●
162 BRACKET
(B) 		8-98055-608-0 01 1 1109- ● ●
162 BRACKET
(C) 		8-98055-609-2 01 1 1004-1108 ●
162 BRACKET
(C) 		8-98055-609-2 01 1 1109- ● ●
162 BRACKET
(E) 		8-98059-845-1 01 1 1004-1108 ●
162 BRACKET
(E) 		8-98059-845-1 01 1 1109- ● ●
162 BRACKET
(D) 		8-98092-305-0 01 1 1004-1108 ●
162 BRACKET
(D) 		8-98092-305-0 01 1 1109- ● ●
163 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 1004-1108 ●
163 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 1109- ● ●
167 BOLT; EXH COVER
M8X20 FLANGE 		0-28650-820-0 01 1 1004-1108 ●
167 BOLT; EXH COVER
M8X20 FLANGE 		0-28650-820-0 01 1 1109- ● ●

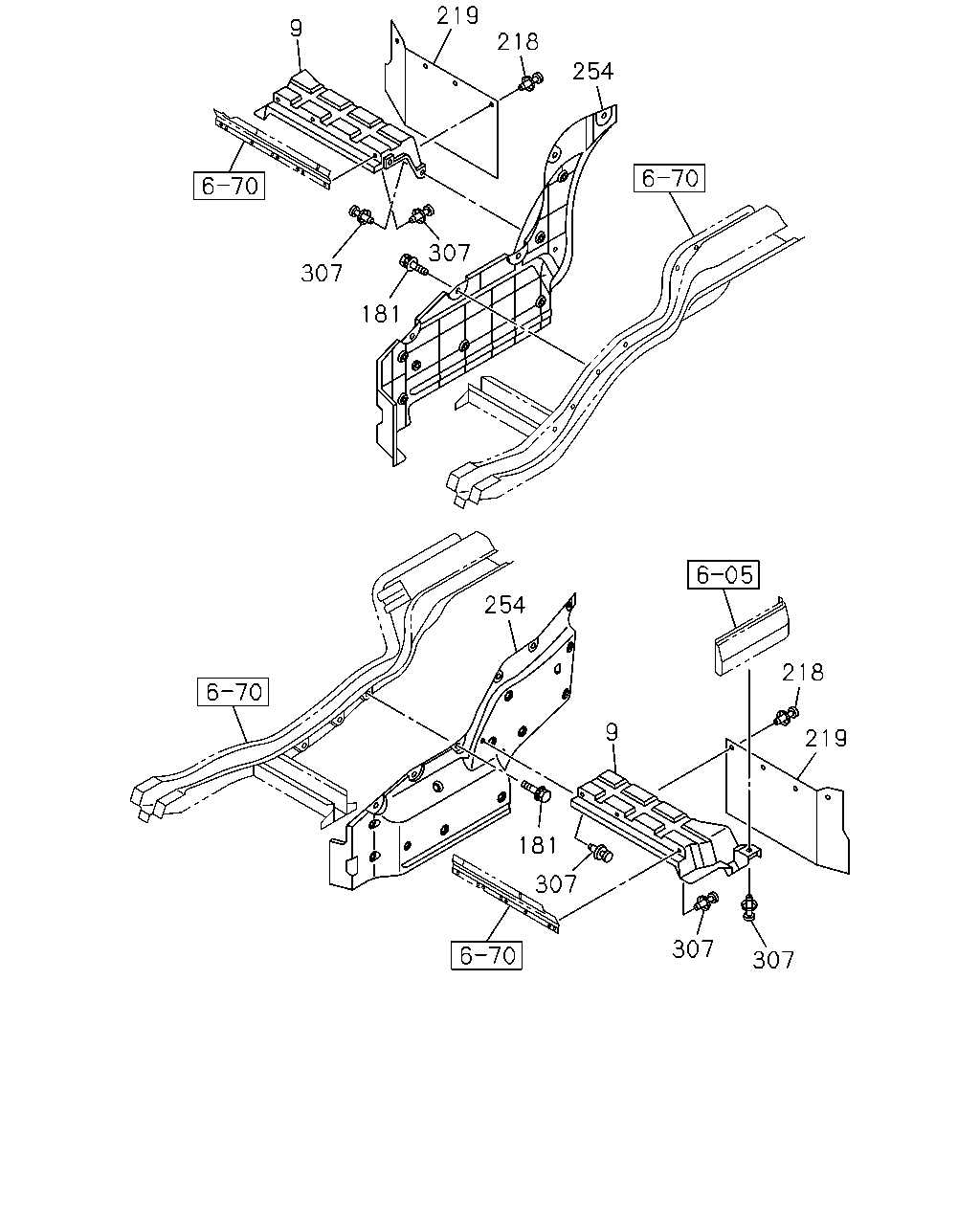

çizim 129513
219 9 218 254 307 307 181 254 218 9 219 181 307 307 307
BalonParca AdiParca NoAdetTipApplied Date A B
9 GUARD; SPLASH,WHEEL HOUSE 8-97617-133-1 01 1 1004-1108 ●
9 GUARD; SPLASH,WHEEL HOUSE 8-97617-133-1 01 1 1109- ● ●
9 GUARD; SPLASH,WHEEL HOUSE 8-97617-132-1 01 1 1004-1108 ●
9 GUARD; SPLASH,WHEEL HOUSE 8-97617-132-1 01 1 1109- ● ●
181 BOLT; COVER,SIDE
M8X24.5 W/LK&PL WASHER SOU 		8-98059-720-0 11 1 1004-1108 ●
181 BOLT; COVER,SIDE
M8X24.5 W/LK&PL WASHER SOU 		8-98059-720-0 11 1 1109- ● ●
218 FASTENER; RUBBER
D8X13.5 SOU 		1-09987-248-1 08 1 1004-1108 ●
218 FASTENER; RUBBER
D8X13.5 SOU 		1-09987-248-1 08 1 1109- ● ●
219 FLAP; MUD GUARD 8-97617-139-0 02 1 1004-1108 ●
219 FLAP; MUD GUARD 8-97617-139-0 02 1 1109- ● ●
254 COVER; MUD,VALANCE 8-97617-144-0 01 1 1004-1108 ●
254 COVER; MUD,VALANCE 8-97617-144-0 01 1 1109- ● ●
254 COVER; MUD,VALANCE 8-97617-143-1 01 1 1004-1108 ●
254 COVER; MUD,VALANCE 8-97617-143-1 01 1 1109- ● ●
307 RETAINER
D8X13.5 SOU 		1-09987-248-1 12 1 1004-1108 ●
307 RETAINER
D8X13.5 SOU 		1-09987-248-1 12 1 1109- ● ●

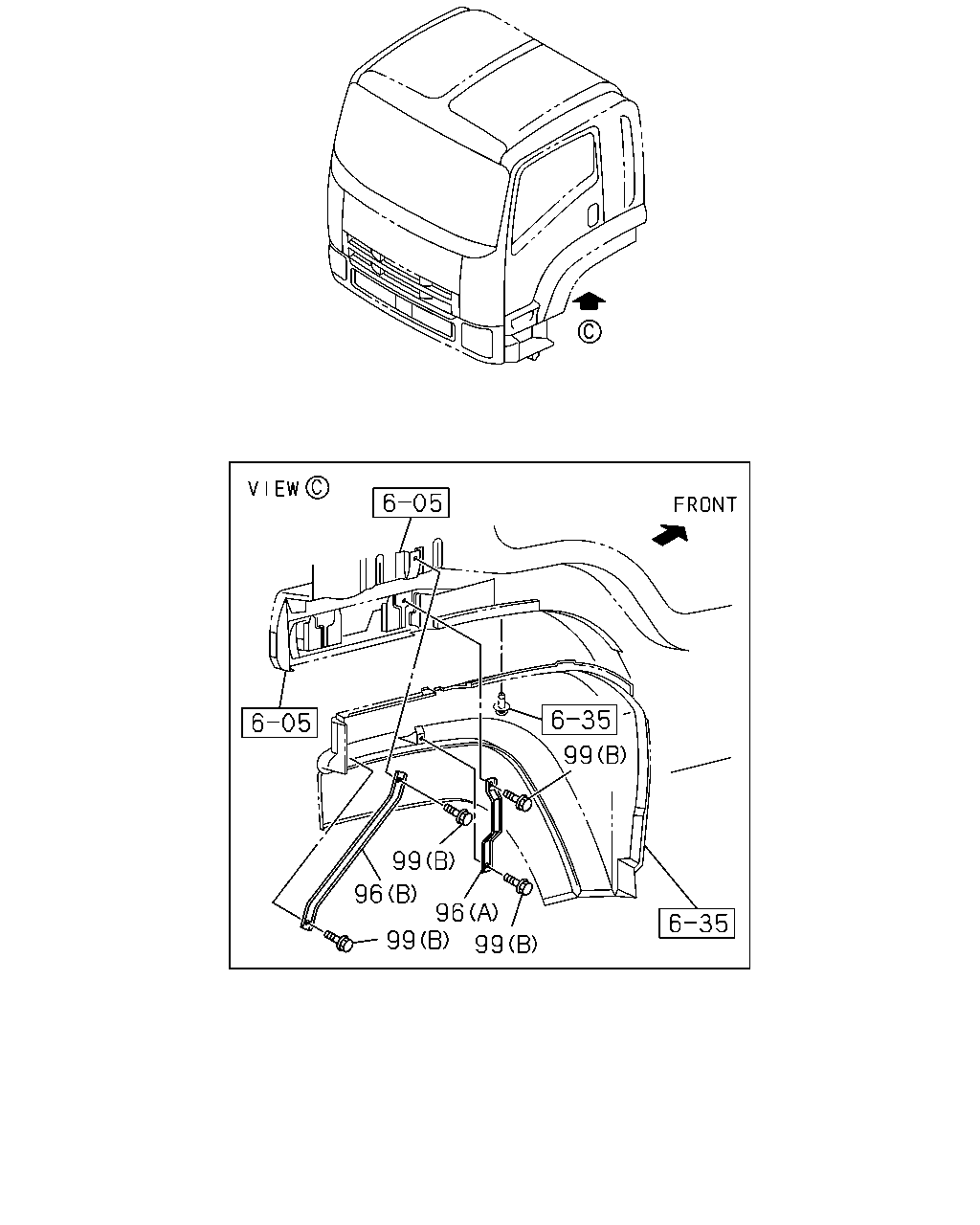

çizim 129517
99 99 96 96 99 99
BalonParca AdiParca NoAdetTipApplied Date A B
96 STAY; MUD GUARD
(A) 		8-98057-075-0 02 1 1004-1108 ●
96 STAY; MUD GUARD
(A) 		8-98057-075-0 02 1 1109- ● ●
96 STAY; MUD GUARD
(B) 		8-98082-316-0 02 1 1004-1108 ●
96 STAY; MUD GUARD
(B) 		8-98082-316-0 02 1 1109- ● ●
99 BOLT; STAY TO MUD GUARD
(B) M6X16 FLANGE SOU 		0-28650-616-0 08 1 1004-1108 ●
99 BOLT; STAY TO MUD GUARD
(B) M6X16 FLANGE SOU 		0-28650-616-0 08 1 1109- ● ●
99 BOLT; STAY TO MUD GUARD
(A) M8X25 FLANGE SOU 		0-28050-825-0 01 1 1004-1108 ●
99 BOLT; STAY TO MUD GUARD
(A) M8X25 FLANGE SOU 		0-28050-825-0 01 1 1109- ● ●
