1-01 — ACCELERATOR PEDAL AND CONTROL (#2184) — 279 parça

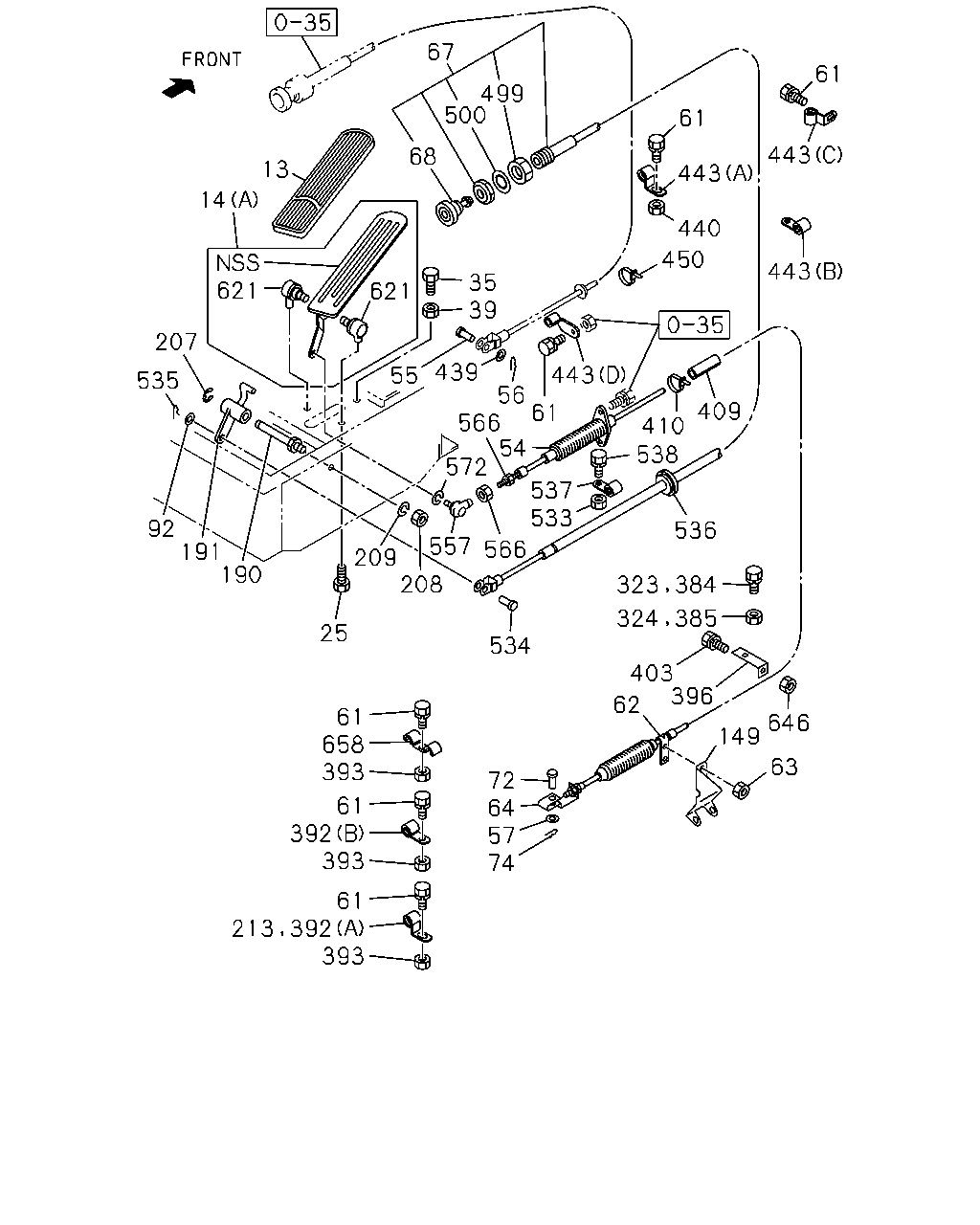

çizim 29381
67 61 499 500 61 443 68 13 443 14 440 450 621 443 35 39 621 207 55 439 443 535 56 61 566 54 409 410 538 572 537 533 92 191 190 536 557 566 209 208 323 324 25 534 403 396 62 61 658 393 646 149 63 72 64 57 74 61 392 393 61 393 384 385 213 392
BalonParca AdiParca NoAdetTipApplied Date A B
13 COVER; ACCEL PEDAL 9-23242-003-0 01 1 9101- ● ●
14 PAD; PEDAL,ACCEL
RIGHT HAND DRIVE(MTR5FB) BUS USER THAILAND BMTA<D5B> (B) 		1-23240-052-1 01 1 9101-9212 ● ●
14 PAD; PEDAL,ACCEL
RIGHT HAND DRIVE(MTR5FB) BUS USER THAILAND BMTA<D5B> (C) 		1-23240-054-1 01 1 9101-0203 ● ●
14 PAD; PEDAL,ACCEL
RIGHT HAND DRIVE(MTR5FB) THAILAND EQUIPMENT(PM9) (C) 		1-23240-054-1 01 1 9101-0203 ● ●
14 PAD; PEDAL,ACCEL
RIGHT HAND DRIVE(MTR5FB) BUS USER THAILAND BMTA<D5B> (B) 		1-23240-052-1 01 1 9301-0203 ● ●
14 PAD; PEDAL,ACCEL
RIGHT HAND DRIVE(MTR5FB) THAILAND EQUIPMENT(PM9) (B) 		1-23240-052-1 01 1 9301-0203 ● ●
14 PAD; PEDAL,ACCEL
RIGHT HAND DRIVE(MTR5FB) EXC. BUS USER THAILAND BMTA<D5B>,THAILAND EQUIPMENT(PM9) (A) 		1-23240-045-0 01 1 9101-0203 ● ●
14 PAD; PEDAL,ACCEL
LEFT HAND DRIVE(MTR6FB) (A) 		1-23240-045-0 01 1 9101-0203 ● ●
14 PAD; PEDAL,ACCEL
(A) 		1-23240-045-0 01 1 0204- ● ●
25 BOLT; SHAFT SIDE
M6X14 W/LK WASHER 		0-50040-614-0 02 1 9101- ● ●
25 BOLT; SHAFT SIDE
RIGHT HAND DRIVE(MTR5FB) BUS USER THAILAND BMTA<D5B> M8X18 W/LK WASHER 		0-50040-818-0 02 1 9101-9407 ● ●
25 BOLT; SHAFT SIDE
RIGHT HAND DRIVE(MTR5FB) THAILAND EQUIPMENT(PM9) M8X18 W/LK WASHER 		0-50040-818-0 02 1 9101-9407 ● ●
25 BOLT; SHAFT SIDE
RIGHT HAND DRIVE(MTR5FB) BUS USER THAILAND BMTA<D5B> M8X14 FLANGE 		0-28080-814-0 02 1 9408-0203 ● ●
25 BOLT; SHAFT SIDE
RIGHT HAND DRIVE(MTR5FB) THAILAND EQUIPMENT(PM9) M8X14 FLANGE 		0-28080-814-0 02 1 9408-0203 ● ●
35 STOPPER; ACCEL PEDAL 9-02051-000-0 01 1 9101-9603 ● ●
35 STOPPER; ACCEL PEDAL 0-20801-000-0 01 1 9604- ● ●
39 NUT; ACCEL PEDAL STOPPER
M10 		9-09111-410-0 01 1 9101- ● ●
54 CABLE; ENG CONT
RIGHT HAND DRIVE(MTR5FB) BUS USER THAILAND BMTA<D5B> L=1046 		1-23210-859-1 01 1 9101-0203 ● ●
54 CABLE; ENG CONT
RIGHT HAND DRIVE(MTR5FB) THAILAND EQUIPMENT(PM9) L=1046 		1-23210-859-1 01 1 9101-0203 ● ●
54 CABLE; ENG CONT
RIGHT HAND DRIVE(MTR5FB) EXC. BUS USER THAILAND BMTA<D5B>,THAILAND EQUIPMENT(PM9) L=2220 		1-23210-809-0 01 1 9101-0203 ● ●
54 CABLE; ENG CONT
RIGHT HAND DRIVE(MTR5FB) L=2220 		1-23210-809-0 01 1 0204- ● ●
54 CABLE; ENG CONT
LEFT HAND DRIVE(MTR6FB) L=2020 		1-23210-723-0 01 1 9101-0203 ● ●
54 CABLE; ENG CONT
LEFT HAND DRIVE(MTR6FB) L=2020 		1-23210-723-0 01 1 0204- ● ●
55 PIN; JAW JOINT 1-09744-096-1 01 1 9101- ● ●
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-015-0 01 1 9101- ● ●
57 WASHER; ENG CONT CABLE
ID=8.4 		9-09160-508-0 01 1 9101- ● ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
M8X20 W/LK WASHER 		9-01900-820-0 01 1 9101-9204 ● ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
RIGHT HAND DRIVE(MTR5FB) EXC. BUS USER THAILAND BMTA<D5B>,THAILAND EQUIPMENT(PM9) M8X20 W/LK WASHER 		9-01900-820-0 01 1 9101-9204 ● ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
M8X20 W/LK WASHER 		0-50040-820-0 01 1 9205-0203 ● ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
RIGHT HAND DRIVE(MTR5FB) EXC. BUS USER THAILAND BMTA<D5B>,THAILAND EQUIPMENT(PM9) M8X20 W/LK WASHER 		0-50040-820-0 01 1 9205-0203 ● ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
M8X20 W/LK WASHER 		0-50040-820-0 01 1 0204- ● ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
RIGHT HAND DRIVE(MTR5FB) M8X20 W/LK WASHER 		0-50040-820-0 01 1 0204- ● ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
RIGHT HAND DRIVE(MTR5FB) BUS USER THAILAND BMTA<D5B> M6X20 W/LK WASHER 		9-01900-620-0 02 1 9101-9101 ● ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
RIGHT HAND DRIVE(MTR5FB) THAILAND EQUIPMENT(PM9) M6X20 W/LK WASHER 		9-01900-620-0 02 1 9101-9101 ● ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
M6X20 W/LK WASHER 		9-01900-620-0 02 1 9102-9204 ● ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
M6X20 W/LK WASHER 		0-50040-620-0 02 1 9205- ● ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
LEFT HAND DRIVE(MTR6FB) M8X20 W/LK WASHER 		9-01900-820-0 02 1 9101-9204 ● ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
LEFT HAND DRIVE(MTR6FB) M8X20 W/LK WASHER 		0-50040-820-0 02 1 9205- ● ●
62 CLIP; ENG CONT CABLE
L=30 		1-09700-326-0 01 1 9101-9202 ● ●
62 CLIP; ENG CONT CABLE
RIGHT HAND DRIVE(MTR5FB) EXC. BUS USER THAILAND BMTA<D5B>,THAILAND EQUIPMENT(PM9) L=30 		1-09700-326-0 01 1 9203-0203 ● ●
62 CLIP; ENG CONT CABLE
LEFT HAND DRIVE(MTR6FB) L=30 		1-09700-326-0 01 1 9203-0203 ● ●
62 CLIP; ENG CONT CABLE
L=30 		1-09700-326-0 01 1 0204- ● ●
63 NUT; LOCK,BRKT
M8 		9-09111-408-0 02 1 9101-0203 ● ●
63 NUT; LOCK,BRKT
M8 		9-09111-408-0 02 1 0204- ● ●
64 BRACKET; ENG CONT CABLE 1-09768-018-2 01 1 9101-0203 ● ●
64 BRACKET; ENG CONT CABLE 1-09768-018-2 01 1 0204- ● ●
67 CABLE ASM; IDLE CONT
RIGHT HAND DRIVE(MTR5FB) BUS USER THAILAND BMTA<D5B> L=870 		1-23210-707-0 01 1 9101-9910 ● ●
67 CABLE ASM; IDLE CONT
RIGHT HAND DRIVE(MTR5FB) THAILAND EQUIPMENT(PM9) L=870 		1-23210-707-0 01 1 9101-9910 ● ●
67 CABLE ASM; IDLE CONT
RIGHT HAND DRIVE(MTR5FB) BUS USER THAILAND BMTA<D5B> L=870 		1-23230-375-0 01 1 9911-0203 ● ●
67 CABLE ASM; IDLE CONT
RIGHT HAND DRIVE(MTR5FB) THAILAND EQUIPMENT(PM9) L=870 		1-23230-375-0 01 1 9911-0203 ● ●
67 CABLE ASM; IDLE CONT
RIGHT HAND DRIVE(MTR5FB) EXC. BUS USER THAILAND BMTA<D5B>,THAILAND EQUIPMENT(PM9) L=890 		1-23210-765-0 01 1 9101-9910 ● ●
67 CABLE ASM; IDLE CONT
LEFT HAND DRIVE(MTR6FB) L=890 		1-23210-765-0 01 1 9101-9910 ● ●
67 CABLE ASM; IDLE CONT
RIGHT HAND DRIVE(MTR5FB) EXC. BUS USER THAILAND BMTA<D5B>,THAILAND EQUIPMENT(PM9) L=890 		1-23230-377-0 01 1 9911-0203 ● ●
67 CABLE ASM; IDLE CONT
LEFT HAND DRIVE(MTR6FB) L=890 		1-23230-377-0 01 1 9911-0203 ● ●
67 CABLE ASM; IDLE CONT
L=890 		1-23230-377-0 01 1 0204- ● ●
68 KNOB; IDLE CONT 1-23211-005-0 01 1 9101- ● ●
72 PIN; JAW JOINT,CABLE END
OD=8 L=17 		9-08220-817-0 01 1 9101- ● ●
74 PIN; SNAP,CABLE END
L=27.7 		1-09747-005-0 01 1 9101- ● ●
92 WASHER; PL,IDLE CONT CABLE
ID=6.4 		9-09160-506-0 01 1 9101- ● ●
149 BRACKET; ENG CONT 1-23335-316-0 01 1 9101-9204 ●
149 BRACKET; ENG CONT
RIGHT HAND DRIVE(MTR5FB) EXC. THAILAND EQUIPMENT(PM9) 		1-23335-316-0 01 1 9101-9204 ●
149 BRACKET; ENG CONT
LEFT HAND DRIVE(MTR6FB) 		1-23335-316-0 01 1 9101-9204 ●
149 BRACKET; ENG CONT 1-23335-316-0 01 1 9205-9207 ●
149 BRACKET; ENG CONT
RIGHT HAND DRIVE(MTR5FB) EXC. BUS USER THAILAND BMTA<D5B>,THAILAND EQUIPMENT(PM9) 		1-23335-316-0 01 1 9205-9207 ●
149 BRACKET; ENG CONT
LEFT HAND DRIVE(MTR6FB) 		1-23335-316-0 01 1 9205-9207 ●
149 BRACKET; ENG CONT 1-23335-316-0 01 1 9209-9410 ●
149 BRACKET; ENG CONT
RIGHT HAND DRIVE(MTR5FB) EXC. BUS USER THAILAND BMTA<D5B>,THAILAND EQUIPMENT(PM9) 		1-23335-316-0 01 1 9209-9410 ●
149 BRACKET; ENG CONT
LEFT HAND DRIVE(MTR6FB) 		1-23335-316-0 01 1 9209-9410 ●
149 BRACKET; ENG CONT 1-23335-316-0 01 1 9411-9608 ● ●
149 BRACKET; ENG CONT 1-23335-316-0 01 1 9609-0203 ●
149 BRACKET; ENG CONT
RIGHT HAND DRIVE(MTR5FB) EXC. BUS USER THAILAND BMTA<D5B>,THAILAND EQUIPMENT(PM9) 		1-23335-316-0 01 1 9609-0203 ●
149 BRACKET; ENG CONT
LEFT HAND DRIVE(MTR6FB) 		1-23335-316-0 01 1 9609-0203 ●
149 BRACKET; ENG CONT 1-23335-316-0 01 1 0204- ● ●
149 BRACKET; ENG CONT
RIGHT HAND DRIVE(MTR5FB) BUS USER THAILAND BMTA<D5B> 		1-23335-343-0 01 1 9101-9204 ● ●
149 BRACKET; ENG CONT
RIGHT HAND DRIVE(MTR5FB) THAILAND EQUIPMENT(PM9) 		1-23335-343-0 01 1 9205-0203 ●
149 BRACKET; ENG CONT
RIGHT HAND DRIVE(MTR5FB) BUS USER THAILAND BMTA<D5B> 		1-23335-343-0 01 1 9205-0203 ●
190 SHAFT; IDLING CONT 1-23331-060-0 01 1 9101- ● ●
191 LEVER; IDLING CONT 1-23311-176-2 01 1 9101- ● ●
207 RING; SNAP,SHAFT 9-09185-409-0 01 1 9101- ● ●
208 NUT; SHAFT
M10 		9-09110-410-0 01 1 9101-9307 ● ●
208 NUT; SHAFT
M10 		9-09110-510-0 01 1 9308- ● ●
209 WASHER; LK,SHAFT 9-09150-510-0 01 1 9101- ● ●
213 CLIP; IDLING CONT 1-09700-604-0 01 1 9101- ● ●
323 BOLT; CLIP
M8X20 W/LK WASHER 		0-50040-820-0 01 1 9101- ● ●
323 BOLT; CLIP
M6X14 W/LK WASHER 		9-01900-614-0 01 1 9101-9204 ● ●
323 BOLT; CLIP
M6X14 W/LK WASHER 		0-50040-614-0 01 1 9205- ● ●
323 BOLT; CLIP
M6X16 FLANGE 		0-28080-616-0 01 1 9507- ● ●
323 BOLT; CLIP
RIGHT HAND DRIVE(MTR5FB) M8X14 W/LK WASHER 		9-01900-814-0 01 1 9101-9204 ● ●
323 BOLT; CLIP
RIGHT HAND DRIVE(MTR5FB) M8X14 W/LK WASHER 		0-50040-814-0 01 1 9205- ● ●
323 BOLT; CLIP
LEFT HAND DRIVE(MTR6FB) M8X20 W/LK WASHER 		9-01900-820-0 02 1 9101-9204 ● ●
323 BOLT; CLIP
LEFT HAND DRIVE(MTR6FB) M8X20 W/LK WASHER 		0-50040-820-0 02 1 9205- ● ●
324 NUT; CLIP FIX
M8 		9-09110-408-0 01 1 9101- ● ●
384 BOLT; CLIP,CONT CABLE
RIGHT HAND DRIVE(MTR5FB) M8X20 W/LK WASHER 		9-01900-820-0 02 1 9102-9112 ● ●
384 BOLT; CLIP,CONT CABLE
RIGHT HAND DRIVE(MTR5FB) EXC. BUS USER THAILAND BMTA<D5B>,THAILAND EQUIPMENT(PM9) M8X20 W/LK WASHER 		9-01900-820-0 02 1 9201-9204 ● ●
384 BOLT; CLIP,CONT CABLE
RIGHT HAND DRIVE(MTR5FB) EXC. BUS USER THAILAND BMTA<D5B>,THAILAND EQUIPMENT(PM9) M8X20 W/LK WASHER 		0-50040-820-0 02 1 9205-0203 ● ●
384 BOLT; CLIP,CONT CABLE
RIGHT HAND DRIVE(MTR5FB) M8X20 W/LK WASHER 		0-50040-820-0 02 1 0204- ● ●
384 BOLT; CLIP,CONT CABLE
RIGHT HAND DRIVE(MTR5FB) BUS USER THAILAND BMTA<D5B> M8X20 W/LK WASHER 		0-50040-820-0 01 1 9201-0203 ● ●
384 BOLT; CLIP,CONT CABLE
RIGHT HAND DRIVE(MTR5FB) THAILAND EQUIPMENT(PM9) M8X20 W/LK WASHER 		0-50040-820-0 01 1 9201-0203 ● ●
385 NUT; CLIP
RIGHT HAND DRIVE(MTR5FB) EXC. BUS USER THAILAND BMTA<D5B>,THAILAND EQUIPMENT(PM9) 		9-09110-408-0 01 1 9101-9101 ● ●
392 CLIP; ACCEL CONT CABLE
RIGHT HAND DRIVE(MTR5FB) BUS USER THAILAND BMTA<D5B> (C) 		1-23219-081-0 01 1 9101-0203 ● ●
392 CLIP; ACCEL CONT CABLE
RIGHT HAND DRIVE(MTR5FB) THAILAND EQUIPMENT(PM9) (C) 		1-23219-081-0 01 1 9101-0203 ● ●
392 CLIP; ACCEL CONT CABLE
RIGHT HAND DRIVE(MTR5FB) EXC. BUS USER THAILAND BMTA<D5B>,THAILAND EQUIPMENT(PM9) (A) ID=8 H=20 L=20 		1-09700-604-0 01 1 9101-0203 ● ●
392 CLIP; ACCEL CONT CABLE
LEFT HAND DRIVE(MTR6FB) (A) ID=8 H=20 L=20 		1-09700-604-0 01 1 9101-0203 ● ●
392 CLIP; ACCEL CONT CABLE
(A) ID=8 H=20 L=20 		1-09700-604-0 01 1 0204- ● ●
392 CLIP; ACCEL CONT CABLE
LEFT HAND DRIVE(MTR6FB) (B) ID=9 L=28 		9-09524-855-0 01 1 9101- ● ●
393 NUT; CLIP TO FRAME
RIGHT HAND DRIVE(MTR5FB) EXC. BUS USER THAILAND BMTA<D5B>,THAILAND EQUIPMENT(PM9) 		9-09110-408-0 01 1 9101-0203 ● ●
393 NUT; CLIP TO FRAME
RIGHT HAND DRIVE(MTR5FB) M8 		9-09110-408-0 01 1 0204- ● ●
393 NUT; CLIP TO FRAME
LEFT HAND DRIVE(MTR6FB) 		9-09110-408-0 02 1 9101- ● ●
396 BRACKET; CLIP
RIGHT HAND DRIVE(MTR5FB) EXC. BUS USER THAILAND BMTA<D5B>,THAILAND EQUIPMENT(PM9) 		1-47475-588-0 01 1 9101-0203 ● ●
396 BRACKET; CLIP
RIGHT HAND DRIVE(MTR5FB) L=76 		1-47475-588-0 01 1 0204- ● ●
403 BOLT; BRKT,ACCEL PEDAL
RIGHT HAND DRIVE(MTR5FB) BUS USER THAILAND BMTA<D5B> M8X25 W/LK WASHER 		0-50040-825-0 04 1 9101-0203 ● ●
403 BOLT; BRKT,ACCEL PEDAL
RIGHT HAND DRIVE(MTR5FB) THAILAND EQUIPMENT(PM9) M8X25 W/LK WASHER 		0-50040-825-0 04 1 9101-0203 ● ●
403 BOLT; BRKT,ACCEL PEDAL
RIGHT HAND DRIVE(MTR5FB) EXC. BUS USER THAILAND BMTA<D5B>,THAILAND EQUIPMENT(PM9) M8X20 W/LK WASHER 		9-01900-820-0 01 1 9101-9204 ● ●
403 BOLT; BRKT,ACCEL PEDAL
RIGHT HAND DRIVE(MTR5FB) EXC. BUS USER THAILAND BMTA<D5B>,THAILAND EQUIPMENT(PM9) M8X20 W/LK WASHER 		0-50040-820-0 01 1 9205-0203 ● ●
403 BOLT; BRKT,ACCEL PEDAL
RIGHT HAND DRIVE(MTR5FB) M8X20 W/LK WASHER 		0-50040-820-0 01 1 0204- ● ●
409 SLEEVE
RIGHT HAND DRIVE(MTR5FB) EXC. BUS USER THAILAND BMTA<D5B>,THAILAND EQUIPMENT(PM9) 		9-09956-682-0 01 1 9101-0203 ● ●
409 SLEEVE
RIGHT HAND DRIVE(MTR5FB) ID=10 OD=14 L=30 		9-09956-682-0 01 1 0204- ● ●
410 CLIP; BAND
RIGHT HAND DRIVE(MTR5FB) EXC. BUS USER THAILAND BMTA<D5B>,THAILAND EQUIPMENT(PM9) 		5-09707-036-1 01 1 9101-0203 ● ●
410 CLIP; BAND
RIGHT HAND DRIVE(MTR5FB) L=100 		5-09707-036-1 01 1 0204- ● ●
439 WASHER; PL,PIN,JAW JOINT 9-09160-505-0 01 1 9101- ● ●
440 NUT; CLIP,ENG STOP CABLE 9-09110-408-0 01 1 9101- ● ●
443 CLIP; CABLE
(A) ID=6 H=20 L=20 		1-09700-603-0 01 1 9101- ● ●
443 CLIP; CABLE
(D) ID=9 		1-09700-839-1 01 1 9101- ● ●
443 CLIP; CABLE
(C) ID=7 H=20 L=20 		9-09527-006-0 01 1 9101- ● ●
443 CLIP; CABLE
RIGHT HAND DRIVE(MTR5FB) (B) ID=9 L=40 		9-09524-875-0 01 1 9101- ● ●
443 CLIP; CABLE
LEFT HAND DRIVE(MTR6FB) (D) ????=7 ????=55 		1-09700-774-0 01 1 9101- ● ●
443 CLIP; CABLE
LEFT HAND DRIVE(MTR6FB) (C) D=9 T=45 		5-09700-021-0 01 1 9101- ● ●
443 CLIP; CABLE
LEFT HAND DRIVE(MTR6FB) (B) ID=7 L=28 		9-09524-652-0 01 1 9101- ● ●
450 CLIP; BAND
LEFT HAND DRIVE(MTR6FB) 		1-09707-142-1 01 1 9101- ● ●
499 NUT; IDLE CONT CABLE 9-09840-072-0 01 1 9101- ● ●
500 WASHER; IDLE CONT CABLE 9-09855-057-0 01 1 9101- ● ●
533 NUT; CLIP,IDLE CONT CABLE
M6 		9-09110-406-0 01 1 9101- ● ●
533 NUT; CLIP,IDLE CONT CABLE
M8 		9-09110-408-0 01 1 9101- ● ●
534 PIN; JAW JOINT,IDLING CONT CABLE 9-08233-510-0 01 1 9101- ● ●
535 PIN; SNAP,IDLING CONT CABLE
L=17.9 		1-09747-002-0 01 1 9101- ● ●
536 GROMMET; IDLING CONT 9-09956-240-0 01 1 9101-9311 ● ●
536 GROMMET; IDLING CONT 1-09332-122-0 01 1 9312- ● ●
537 CLIP; IDLING CONT CABLE 9-09522-842-0 01 1 9101- ● ●
538 BOLT; CLIP,IDLING CONT
M6X16 W/LK WASHER 		0-50040-616-0 01 1 9101- ● ●
538 BOLT; CLIP,IDLING CONT
M8X20 W/LK WASHER 		9-01900-820-0 01 1 9101-9204 ● ●
538 BOLT; CLIP,IDLING CONT
M8X20 W/LK WASHER 		0-50040-820-0 01 1 9205- ● ●
557 ROD ASM; LINK,ENG CONT
BALL JOINT 		1-09760-002-0 01 1 9101- ● ●
566 NUT; LK,JOINT 9-99110-405-0 02 1 9101- ● ●
566 NUT; LK,JOINT
RIGHT HAND DRIVE(MTR5FB) BUS USER THAILAND BMTA<D5B> 		9-99110-405-0 01 1 9101-0203 ● ●
566 NUT; LK,JOINT
RIGHT HAND DRIVE(MTR5FB) THAILAND EQUIPMENT(PM9) 		9-99110-405-0 01 1 9101-0203 ● ●
572 WASHER; LK,BALL JOINT 9-09150-505-0 01 1 9101- ● ●
621 JOINT; BALL,LINK ROD
RIGHT HAND DRIVE(MTR5FB) EXC. BUS USER THAILAND BMTA<D5B>,THAILAND EQUIPMENT(PM9) 		1-09760-004-0 02 1 9101-0203 ● ●
621 JOINT; BALL,LINK ROD
LEFT HAND DRIVE(MTR6FB) 		1-09760-004-0 02 1 9101-0203 ● ●
621 JOINT; BALL,LINK ROD 1-09760-004-0 02 1 0204- ● ●
646 NUT; BRKT,LEVER
RIGHT HAND DRIVE(MTR5FB) BUS USER THAILAND BMTA<D5B> 		9-09110-408-0 04 1 9101-0203 ● ●
646 NUT; BRKT,LEVER
RIGHT HAND DRIVE(MTR5FB) THAILAND EQUIPMENT(PM9) 		9-09110-408-0 04 1 9101-0203 ● ●
646 NUT; BRKT,LEVER
RIGHT HAND DRIVE(MTR5FB) EXC. BUS USER THAILAND BMTA<D5B>,THAILAND EQUIPMENT(PM9) 		9-09110-408-0 01 1 9101-0203 ● ●
646 NUT; BRKT,LEVER
RIGHT HAND DRIVE(MTR5FB) M8 		9-09110-408-0 01 1 0204- ● ●
658 CLIP; ENG CONT CABLE
RIGHT HAND DRIVE(MTR5FB) EXC. BUS USER THAILAND BMTA<D5B>,THAILAND EQUIPMENT(PM9) ID=7 & 9 L=17.5 & 17.5 		1-09700-746-0 02 1 9101-9101 ● ●
658 CLIP; ENG CONT CABLE
RIGHT HAND DRIVE(MTR5FB) ID=7 & 9 L=17.5 & 17.5 		1-09700-746-0 02 1 9102-9112 ● ●
658 CLIP; ENG CONT CABLE
RIGHT HAND DRIVE(MTR5FB) BUS USER THAILAND BMTA<D5B> ID=7 & 9 L=17.5 & 17.5 		1-09700-746-0 01 1 9201-0203 ● ●
658 CLIP; ENG CONT CABLE
RIGHT HAND DRIVE(MTR5FB) THAILAND EQUIPMENT(PM9) ID=7 & 9 L=17.5 & 17.5 		1-09700-746-0 01 1 9201-0203 ● ●
658 CLIP; ENG CONT CABLE
RIGHT HAND DRIVE(MTR5FB) EXC. BUS USER THAILAND BMTA<D5B>,THAILAND EQUIPMENT(PM9) ID=7 & 9 L=17.5 & 17.5 		1-09700-746-0 02 1 9201-0203 ● ●
658 CLIP; ENG CONT CABLE
RIGHT HAND DRIVE(MTR5FB) ID=7 & 9 L=17.5 & 17.5 		1-09700-746-0 02 1 0204- ● ●

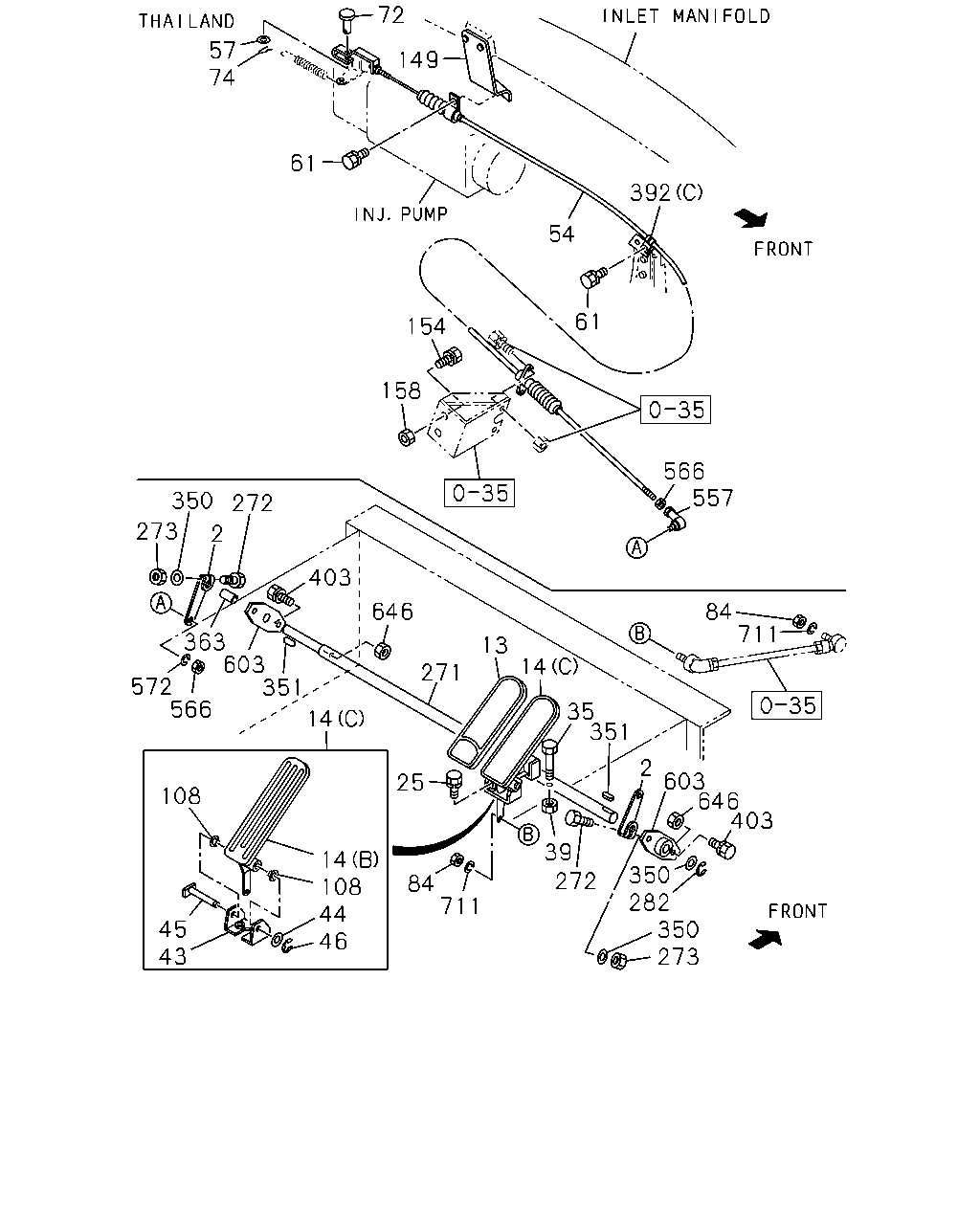

çizim 29764
72 57 74 149 61 392 54 154 61 158 566 557 350 272 273 2 403 646 84 711 363 603 351 13 14 271 572 566 35 351 14 2 603 646 403 25 108 39 14 108 44 46 350 282 350 273 272 84 711 45 43
BalonParca AdiParca NoAdetTipApplied Date A B
2 LEVER; ENG CONT
RIGHT HAND DRIVE(MTR5FB) BUS USER THAILAND BMTA<D5B> 		1-23311-296-1 02 1 9101-0203 ● ●
2 LEVER; ENG CONT
RIGHT HAND DRIVE(MTR5FB) THAILAND EQUIPMENT(PM9) 		1-23311-296-1 02 1 9101-0203 ● ●
13 COVER; ACCEL PEDAL 9-23242-003-0 01 1 9101- ● ●
14 PAD; PEDAL,ACCEL
RIGHT HAND DRIVE(MTR5FB) BUS USER THAILAND BMTA<D5B> (B) 		1-23240-052-1 01 1 9101-9212 ● ●
14 PAD; PEDAL,ACCEL
RIGHT HAND DRIVE(MTR5FB) BUS USER THAILAND BMTA<D5B> (C) 		1-23240-054-1 01 1 9101-0203 ● ●
14 PAD; PEDAL,ACCEL
RIGHT HAND DRIVE(MTR5FB) THAILAND EQUIPMENT(PM9) (C) 		1-23240-054-1 01 1 9101-0203 ● ●
14 PAD; PEDAL,ACCEL
RIGHT HAND DRIVE(MTR5FB) BUS USER THAILAND BMTA<D5B> (B) 		1-23240-052-1 01 1 9301-0203 ● ●
14 PAD; PEDAL,ACCEL
RIGHT HAND DRIVE(MTR5FB) THAILAND EQUIPMENT(PM9) (B) 		1-23240-052-1 01 1 9301-0203 ● ●
14 PAD; PEDAL,ACCEL
RIGHT HAND DRIVE(MTR5FB) EXC. BUS USER THAILAND BMTA<D5B>,THAILAND EQUIPMENT(PM9) (A) 		1-23240-045-0 01 1 9101-0203 ● ●
14 PAD; PEDAL,ACCEL
LEFT HAND DRIVE(MTR6FB) (A) 		1-23240-045-0 01 1 9101-0203 ● ●
14 PAD; PEDAL,ACCEL
(A) 		1-23240-045-0 01 1 0204- ● ●
25 BOLT; SHAFT SIDE
M6X14 W/LK WASHER 		0-50040-614-0 02 1 9101- ● ●
25 BOLT; SHAFT SIDE
RIGHT HAND DRIVE(MTR5FB) BUS USER THAILAND BMTA<D5B> M8X18 W/LK WASHER 		0-50040-818-0 02 1 9101-9407 ● ●
25 BOLT; SHAFT SIDE
RIGHT HAND DRIVE(MTR5FB) THAILAND EQUIPMENT(PM9) M8X18 W/LK WASHER 		0-50040-818-0 02 1 9101-9407 ● ●
25 BOLT; SHAFT SIDE
RIGHT HAND DRIVE(MTR5FB) BUS USER THAILAND BMTA<D5B> M8X14 FLANGE 		0-28080-814-0 02 1 9408-0203 ● ●
25 BOLT; SHAFT SIDE
RIGHT HAND DRIVE(MTR5FB) THAILAND EQUIPMENT(PM9) M8X14 FLANGE 		0-28080-814-0 02 1 9408-0203 ● ●
35 STOPPER; ACCEL PEDAL 9-02051-000-0 01 1 9101-9603 ● ●
35 STOPPER; ACCEL PEDAL 0-20801-000-0 01 1 9604- ● ●
39 NUT; ACCEL PEDAL STOPPER
M10 		9-09111-410-0 01 1 9101- ● ●
43 BRACKET; ACCEL CONT PEDAL
RIGHT HAND DRIVE(MTR5FB) BUS USER THAILAND BMTA<D5B> 		1-23243-010-1 01 1 9301-0203 ● ●
43 BRACKET; ACCEL CONT PEDAL
RIGHT HAND DRIVE(MTR5FB) THAILAND EQUIPMENT(PM9) 		1-23243-010-1 01 1 9301-0203 ● ●
43 BRACKET; ACCEL CONT PEDAL
RIGHT HAND DRIVE(MTR5FB) BUS USER THAILAND BMTA<D5B> 		1-23243-010-1 01 1 9101-9212 ● ●
44 WASHER; ACCEL CONT PEDAL
RIGHT HAND DRIVE(MTR5FB) BUS USER THAILAND BMTA<D5B> ID=8.4 OD=18 		9-09160-608-0 01 1 9301-0203 ● ●
44 WASHER; ACCEL CONT PEDAL
RIGHT HAND DRIVE(MTR5FB) THAILAND EQUIPMENT(PM9) ID=8.4 OD=18 		9-09160-608-0 01 1 9301-0203 ● ●
44 WASHER; ACCEL CONT PEDAL
RIGHT HAND DRIVE(MTR5FB) BUS USER THAILAND BMTA<D5B> ID=8.4 OD=18 		9-09160-608-0 01 1 9101-9212 ● ●
45 PIN; ACCEL CONT PEDAL
RIGHT HAND DRIVE(MTR5FB) BUS USER THAILAND BMTA<D5B> 		1-23124-002-1 01 1 9301-0203 ● ●
45 PIN; ACCEL CONT PEDAL
RIGHT HAND DRIVE(MTR5FB) THAILAND EQUIPMENT(PM9) 		1-23124-002-1 01 1 9301-0203 ● ●
45 PIN; ACCEL CONT PEDAL
RIGHT HAND DRIVE(MTR5FB) BUS USER THAILAND BMTA<D5B> 		1-23124-002-1 01 1 9101-9212 ● ●
46 RING; SNAP,ACCEL CONT PEDAL
RIGHT HAND DRIVE(MTR5FB) BUS USER THAILAND BMTA<D5B> ID=8 		9-09185-408-0 01 1 9301-0203 ● ●
46 RING; SNAP,ACCEL CONT PEDAL
RIGHT HAND DRIVE(MTR5FB) THAILAND EQUIPMENT(PM9) ID=8 		9-09185-408-0 01 1 9301-0203 ● ●
46 RING; SNAP,ACCEL CONT PEDAL
RIGHT HAND DRIVE(MTR5FB) BUS USER THAILAND BMTA<D5B> ID=8 		9-09185-408-0 01 1 9101-9212 ● ●
54 CABLE; ENG CONT
RIGHT HAND DRIVE(MTR5FB) BUS USER THAILAND BMTA<D5B> L=1046 		1-23210-859-1 01 1 9101-0203 ● ●
54 CABLE; ENG CONT
RIGHT HAND DRIVE(MTR5FB) THAILAND EQUIPMENT(PM9) L=1046 		1-23210-859-1 01 1 9101-0203 ● ●
54 CABLE; ENG CONT
RIGHT HAND DRIVE(MTR5FB) EXC. BUS USER THAILAND BMTA<D5B>,THAILAND EQUIPMENT(PM9) L=2220 		1-23210-809-0 01 1 9101-0203 ● ●
54 CABLE; ENG CONT
RIGHT HAND DRIVE(MTR5FB) L=2220 		1-23210-809-0 01 1 0204- ● ●
54 CABLE; ENG CONT
LEFT HAND DRIVE(MTR6FB) L=2020 		1-23210-723-0 01 1 9101-0203 ● ●
54 CABLE; ENG CONT
LEFT HAND DRIVE(MTR6FB) L=2020 		1-23210-723-0 01 1 0204- ● ●
57 WASHER; ENG CONT CABLE
ID=8.4 		9-09160-508-0 01 1 9101- ● ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
M8X20 W/LK WASHER 		9-01900-820-0 01 1 9101-9204 ● ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
RIGHT HAND DRIVE(MTR5FB) EXC. BUS USER THAILAND BMTA<D5B>,THAILAND EQUIPMENT(PM9) M8X20 W/LK WASHER 		9-01900-820-0 01 1 9101-9204 ● ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
M8X20 W/LK WASHER 		0-50040-820-0 01 1 9205-0203 ● ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
RIGHT HAND DRIVE(MTR5FB) EXC. BUS USER THAILAND BMTA<D5B>,THAILAND EQUIPMENT(PM9) M8X20 W/LK WASHER 		0-50040-820-0 01 1 9205-0203 ● ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
M8X20 W/LK WASHER 		0-50040-820-0 01 1 0204- ● ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
RIGHT HAND DRIVE(MTR5FB) M8X20 W/LK WASHER 		0-50040-820-0 01 1 0204- ● ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
RIGHT HAND DRIVE(MTR5FB) BUS USER THAILAND BMTA<D5B> M6X20 W/LK WASHER 		9-01900-620-0 02 1 9101-9101 ● ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
RIGHT HAND DRIVE(MTR5FB) THAILAND EQUIPMENT(PM9) M6X20 W/LK WASHER 		9-01900-620-0 02 1 9101-9101 ● ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
M6X20 W/LK WASHER 		9-01900-620-0 02 1 9102-9204 ● ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
M6X20 W/LK WASHER 		0-50040-620-0 02 1 9205- ● ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
LEFT HAND DRIVE(MTR6FB) M8X20 W/LK WASHER 		9-01900-820-0 02 1 9101-9204 ● ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
LEFT HAND DRIVE(MTR6FB) M8X20 W/LK WASHER 		0-50040-820-0 02 1 9205- ● ●
72 PIN; JAW JOINT,CABLE END
OD=8 L=17 		9-08220-817-0 01 1 9101- ● ●
74 PIN; SNAP,CABLE END
L=27.7 		1-09747-005-0 01 1 9101- ● ●
84 NUT; ENG CONT LEVER
RIGHT HAND DRIVE(MTR5FB) BUS USER THAILAND BMTA<D5B> M6 		9-09110-406-0 02 1 9101-0203 ● ●
84 NUT; ENG CONT LEVER
RIGHT HAND DRIVE(MTR5FB) THAILAND EQUIPMENT(PM9) M6 		9-09110-406-0 02 1 9101-0203 ● ●
108 BUSHING; ENG CONT
RIGHT HAND DRIVE(MTR5FB) BUS USER THAILAND BMTA<D5B> 		1-09330-062-0 02 1 9301-0203 ● ●
108 BUSHING; ENG CONT
RIGHT HAND DRIVE(MTR5FB) THAILAND EQUIPMENT(PM9) 		1-09330-062-0 02 1 9301-0203 ● ●
108 BUSHING; ENG CONT
RIGHT HAND DRIVE(MTR5FB) BUS USER THAILAND BMTA<D5B> 		1-09330-062-0 02 1 9101-9212 ● ●
149 BRACKET; ENG CONT 1-23335-316-0 01 1 9101-9204 ●
149 BRACKET; ENG CONT
RIGHT HAND DRIVE(MTR5FB) EXC. THAILAND EQUIPMENT(PM9) 		1-23335-316-0 01 1 9101-9204 ●
149 BRACKET; ENG CONT
LEFT HAND DRIVE(MTR6FB) 		1-23335-316-0 01 1 9101-9204 ●
149 BRACKET; ENG CONT 1-23335-316-0 01 1 9205-9207 ●
149 BRACKET; ENG CONT
RIGHT HAND DRIVE(MTR5FB) EXC. BUS USER THAILAND BMTA<D5B>,THAILAND EQUIPMENT(PM9) 		1-23335-316-0 01 1 9205-9207 ●
149 BRACKET; ENG CONT
LEFT HAND DRIVE(MTR6FB) 		1-23335-316-0 01 1 9205-9207 ●
149 BRACKET; ENG CONT 1-23335-316-0 01 1 9209-9410 ●
149 BRACKET; ENG CONT
RIGHT HAND DRIVE(MTR5FB) EXC. BUS USER THAILAND BMTA<D5B>,THAILAND EQUIPMENT(PM9) 		1-23335-316-0 01 1 9209-9410 ●
149 BRACKET; ENG CONT
LEFT HAND DRIVE(MTR6FB) 		1-23335-316-0 01 1 9209-9410 ●
149 BRACKET; ENG CONT 1-23335-316-0 01 1 9411-9608 ● ●
149 BRACKET; ENG CONT 1-23335-316-0 01 1 9609-0203 ●
149 BRACKET; ENG CONT
RIGHT HAND DRIVE(MTR5FB) EXC. BUS USER THAILAND BMTA<D5B>,THAILAND EQUIPMENT(PM9) 		1-23335-316-0 01 1 9609-0203 ●
149 BRACKET; ENG CONT
LEFT HAND DRIVE(MTR6FB) 		1-23335-316-0 01 1 9609-0203 ●
149 BRACKET; ENG CONT 1-23335-316-0 01 1 0204- ● ●
149 BRACKET; ENG CONT
RIGHT HAND DRIVE(MTR5FB) BUS USER THAILAND BMTA<D5B> 		1-23335-343-0 01 1 9101-9204 ● ●
149 BRACKET; ENG CONT
RIGHT HAND DRIVE(MTR5FB) THAILAND EQUIPMENT(PM9) 		1-23335-343-0 01 1 9205-0203 ●
149 BRACKET; ENG CONT
RIGHT HAND DRIVE(MTR5FB) BUS USER THAILAND BMTA<D5B> 		1-23335-343-0 01 1 9205-0203 ●
154 BOLT; CABLE BRKT
RIGHT HAND DRIVE(MTR5FB) BUS USER THAILAND BMTA<D5B> 		0-50041-025-0 02 1 9101-0203 ● ●
154 BOLT; CABLE BRKT
RIGHT HAND DRIVE(MTR5FB) THAILAND EQUIPMENT(PM9) 		0-50041-025-0 02 1 9101-0203 ● ●
158 NUT; BRKT
RIGHT HAND DRIVE(MTR5FB) BUS USER THAILAND BMTA<D5B> M10 		9-09110-410-0 02 1 9101-9307 ● ●
158 NUT; BRKT
RIGHT HAND DRIVE(MTR5FB) THAILAND EQUIPMENT(PM9) M10 		9-09110-410-0 02 1 9101-9307 ● ●
158 NUT; BRKT
RIGHT HAND DRIVE(MTR5FB) BUS USER THAILAND BMTA<D5B> M10 		9-09110-510-0 02 1 9308-0203 ● ●
158 NUT; BRKT
RIGHT HAND DRIVE(MTR5FB) THAILAND EQUIPMENT(PM9) M10 		9-09110-510-0 02 1 9308-0203 ● ●
271 SHAFT; ENG CONT
RIGHT HAND DRIVE(MTR5FB) BUS USER THAILAND BMTA<D5B> 		1-23331-113-1 01 1 9101-0203 ● ●
271 SHAFT; ENG CONT
RIGHT HAND DRIVE(MTR5FB) THAILAND EQUIPMENT(PM9) 		1-23331-113-1 01 1 9101-0203 ● ●
272 BOLT; LEVER
RIGHT HAND DRIVE(MTR5FB) BUS USER THAILAND BMTA<D5B> 		0-50140-635-0 02 1 9101-0203 ● ●
272 BOLT; LEVER
RIGHT HAND DRIVE(MTR5FB) THAILAND EQUIPMENT(PM9) 		0-50140-635-0 02 1 9101-0203 ● ●
273 NUT; LEVER
RIGHT HAND DRIVE(MTR5FB) BUS USER THAILAND BMTA<D5B> 		9-09110-406-0 02 1 9101-0203 ● ●
273 NUT; LEVER
RIGHT HAND DRIVE(MTR5FB) THAILAND EQUIPMENT(PM9) 		9-09110-406-0 02 1 9101-0203 ● ●
282 RING; SNAP,CONT SHAFT
RIGHT HAND DRIVE(MTR5FB) BUS USER THAILAND BMTA<D5B> 		9-09185-409-0 01 1 9101-0203 ● ●
282 RING; SNAP,CONT SHAFT
RIGHT HAND DRIVE(MTR5FB) THAILAND EQUIPMENT(PM9) 		9-09185-409-0 01 1 9101-0203 ● ●
350 WASHER; PL,LEVER
RIGHT HAND DRIVE(MTR5FB) BUS USER THAILAND BMTA<D5B> ID=6.4 		9-09160-506-0 02 1 9101-0203 ● ●
350 WASHER; PL,LEVER
RIGHT HAND DRIVE(MTR5FB) THAILAND EQUIPMENT(PM9) ID=6.4 		9-09160-506-0 02 1 9101-0203 ● ●
350 WASHER; PL,LEVER
RIGHT HAND DRIVE(MTR5FB) BUS USER THAILAND BMTA<D5B> ID=12.5 		9-09160-512-0 01 1 9101-0203 ● ●
350 WASHER; PL,LEVER
RIGHT HAND DRIVE(MTR5FB) THAILAND EQUIPMENT(PM9) ID=12.5 		9-09160-512-0 01 1 9101-0203 ● ●
351 KEY; SHAFT,ENG CONT
RIGHT HAND DRIVE(MTR5FB) BUS USER THAILAND BMTA<D5B> 		9-08030-410-0 02 1 9101-0203 ● ●
351 KEY; SHAFT,ENG CONT
RIGHT HAND DRIVE(MTR5FB) THAILAND EQUIPMENT(PM9) 		9-08030-410-0 02 1 9101-0203 ● ●
363 SPACER; BRKT,ENG CONT SHAFT
RIGHT HAND DRIVE(MTR5FB) BUS USER THAILAND BMTA<D5B> 		1-09330-058-0 01 1 9101-0203 ● ●
363 SPACER; BRKT,ENG CONT SHAFT
RIGHT HAND DRIVE(MTR5FB) THAILAND EQUIPMENT(PM9) 		1-09330-058-0 01 1 9101-0203 ● ●
392 CLIP; ACCEL CONT CABLE
RIGHT HAND DRIVE(MTR5FB) BUS USER THAILAND BMTA<D5B> (C) 		1-23219-081-0 01 1 9101-0203 ● ●
392 CLIP; ACCEL CONT CABLE
RIGHT HAND DRIVE(MTR5FB) THAILAND EQUIPMENT(PM9) (C) 		1-23219-081-0 01 1 9101-0203 ● ●
392 CLIP; ACCEL CONT CABLE
RIGHT HAND DRIVE(MTR5FB) EXC. BUS USER THAILAND BMTA<D5B>,THAILAND EQUIPMENT(PM9) (A) ID=8 H=20 L=20 		1-09700-604-0 01 1 9101-0203 ● ●
392 CLIP; ACCEL CONT CABLE
LEFT HAND DRIVE(MTR6FB) (A) ID=8 H=20 L=20 		1-09700-604-0 01 1 9101-0203 ● ●
392 CLIP; ACCEL CONT CABLE
(A) ID=8 H=20 L=20 		1-09700-604-0 01 1 0204- ● ●
392 CLIP; ACCEL CONT CABLE
LEFT HAND DRIVE(MTR6FB) (B) ID=9 L=28 		9-09524-855-0 01 1 9101- ● ●
403 BOLT; BRKT,ACCEL PEDAL
RIGHT HAND DRIVE(MTR5FB) BUS USER THAILAND BMTA<D5B> M8X25 W/LK WASHER 		0-50040-825-0 04 1 9101-0203 ● ●
403 BOLT; BRKT,ACCEL PEDAL
RIGHT HAND DRIVE(MTR5FB) THAILAND EQUIPMENT(PM9) M8X25 W/LK WASHER 		0-50040-825-0 04 1 9101-0203 ● ●
403 BOLT; BRKT,ACCEL PEDAL
RIGHT HAND DRIVE(MTR5FB) EXC. BUS USER THAILAND BMTA<D5B>,THAILAND EQUIPMENT(PM9) M8X20 W/LK WASHER 		9-01900-820-0 01 1 9101-9204 ● ●
403 BOLT; BRKT,ACCEL PEDAL
RIGHT HAND DRIVE(MTR5FB) EXC. BUS USER THAILAND BMTA<D5B>,THAILAND EQUIPMENT(PM9) M8X20 W/LK WASHER 		0-50040-820-0 01 1 9205-0203 ● ●
403 BOLT; BRKT,ACCEL PEDAL
RIGHT HAND DRIVE(MTR5FB) M8X20 W/LK WASHER 		0-50040-820-0 01 1 0204- ● ●
557 ROD ASM; LINK,ENG CONT
BALL JOINT 		1-09760-002-0 01 1 9101- ● ●
566 NUT; LK,JOINT 9-99110-405-0 02 1 9101- ● ●
566 NUT; LK,JOINT
RIGHT HAND DRIVE(MTR5FB) BUS USER THAILAND BMTA<D5B> 		9-99110-405-0 01 1 9101-0203 ● ●
566 NUT; LK,JOINT
RIGHT HAND DRIVE(MTR5FB) THAILAND EQUIPMENT(PM9) 		9-99110-405-0 01 1 9101-0203 ● ●
572 WASHER; LK,BALL JOINT 9-09150-505-0 01 1 9101- ● ●
603 BRACKET; ENG CONT SHAFT
RIGHT HAND DRIVE(MTR5FB) BUS USER THAILAND BMTA<D5B> 		1-23335-250-0 02 1 9101-0203 ● ●
603 BRACKET; ENG CONT SHAFT
RIGHT HAND DRIVE(MTR5FB) THAILAND EQUIPMENT(PM9) 		1-23335-250-0 02 1 9101-0203 ● ●
646 NUT; BRKT,LEVER
RIGHT HAND DRIVE(MTR5FB) BUS USER THAILAND BMTA<D5B> 		9-09110-408-0 04 1 9101-0203 ● ●
646 NUT; BRKT,LEVER
RIGHT HAND DRIVE(MTR5FB) THAILAND EQUIPMENT(PM9) 		9-09110-408-0 04 1 9101-0203 ● ●
646 NUT; BRKT,LEVER
RIGHT HAND DRIVE(MTR5FB) EXC. BUS USER THAILAND BMTA<D5B>,THAILAND EQUIPMENT(PM9) 		9-09110-408-0 01 1 9101-0203 ● ●
646 NUT; BRKT,LEVER
RIGHT HAND DRIVE(MTR5FB) M8 		9-09110-408-0 01 1 0204- ● ●
711 WASHER; LK
RIGHT HAND DRIVE(MTR5FB) BUS USER THAILAND BMTA<D5B> ID=6.1 		9-09150-506-0 02 1 9101-0203 ● ●
711 WASHER; LK
RIGHT HAND DRIVE(MTR5FB) THAILAND EQUIPMENT(PM9) ID=6.1 		9-09150-506-0 02 1 9101-0203 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
