6-03 — RADIATOR GRILLE (#21832) — 42 parça

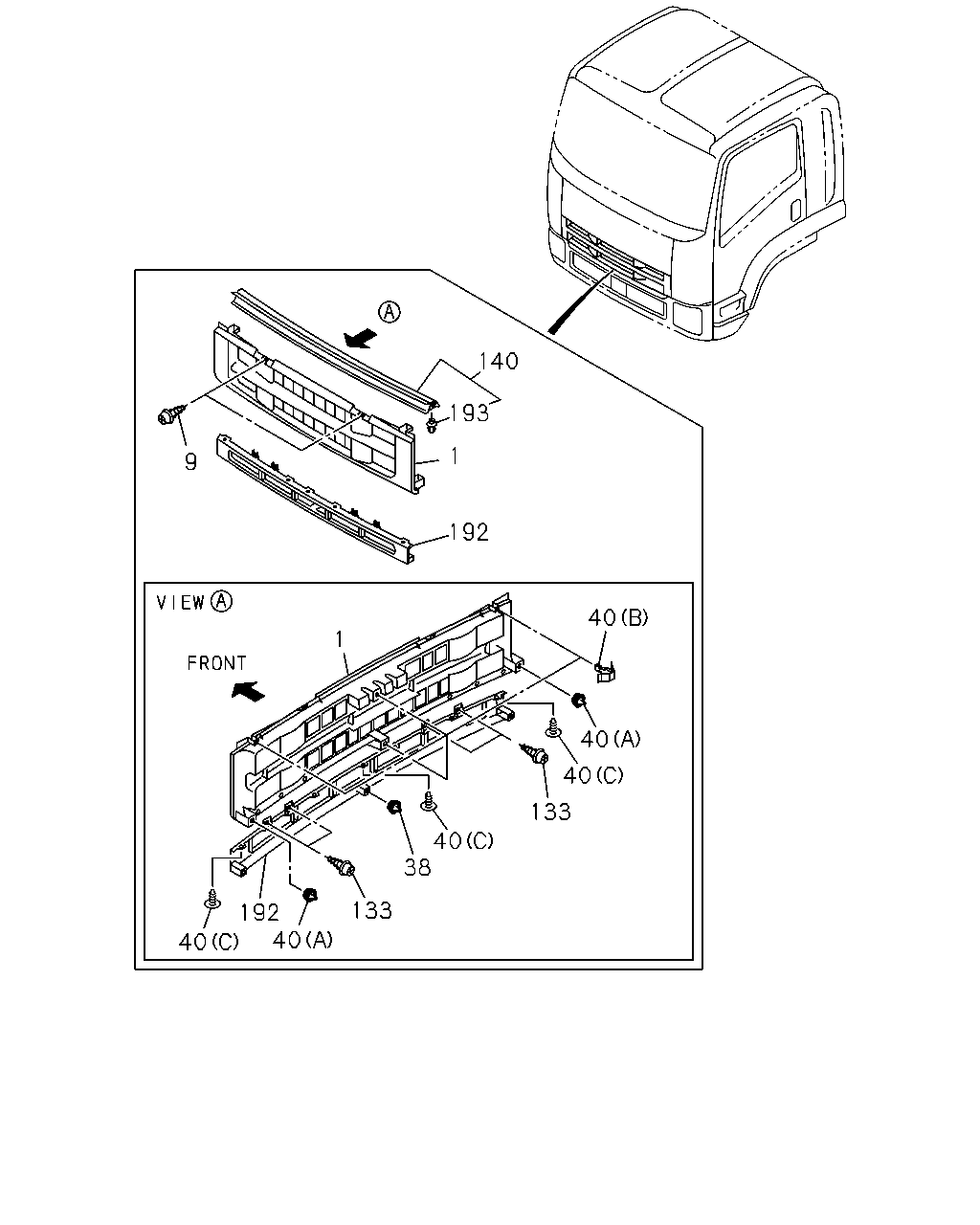

çizim 129515
140 193 1 9 192 40 1 40 40 133 40 38 133 192 40 40
BalonParca AdiParca NoAdetTipApplied Date A B
1 GRILLE; RAD
BODY COLOR ARC WHITE(729) WHITE 		8-97416-184-0 01 1 1004-1108 ●
1 GRILLE; RAD
BODY COLOR ARC WHITE(729) WHITE 		8-97416-184-0 01 1 1109- ● ●
1 GRILLE; RAD
BODY COLOR CARDINAL RED(736) RED 		8-97418-347-0 01 1 1004-1108 ●
1 GRILLE; RAD
BODY COLOR CARDINAL RED(736) RED 		8-97418-347-0 01 1 1109- ● ●
1 GRILLE; RAD
BODY COLOR FIRE RED(915) RED 		8-97418-352-0 01 1 1004-1108 ●
1 GRILLE; RAD
BODY COLOR FIRE RED(915) RED 		8-97418-352-0 01 1 1109- ● ●
1 GRILLE; RAD
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97418-350-0 01 1 1004-1108 ●
1 GRILLE; RAD
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97418-350-0 01 1 1109- ● ●
1 GRILLE; RAD
BODY COLOR MARINE BLUE(890) BLUE 		8-97418-349-0 01 1 1004-1108 ●
1 GRILLE; RAD
BODY COLOR MARINE BLUE(890) BLUE 		8-97418-349-0 01 1 1109- ● ●
1 GRILLE; RAD
BODY COLOR OMAHA ORANGE(906) 		8-97418-351-0 01 1 1004-1011 ●
1 GRILLE; RAD
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97418-348-0 01 1 1004-1108 ●
1 GRILLE; RAD
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97418-348-0 01 1 1109- ● ●
9 SCREW; RAD GRILLE
M5X16 TAPPING W/PL WASHER 		0-74160-516-0 02 1 1004-1108 ●
9 SCREW; RAD GRILLE
M5X16 TAPPING W/PL WASHER 		0-74160-516-0 02 1 1109- ● ●
38 CLIP; GRILLE
H=15.3 		8-97804-778-0 01 1 1004-1108 ●
38 CLIP; GRILLE
H=15.3 		8-97804-778-0 01 1 1109- ● ●
40 CLIP; RAD GRILLE
(C) D8X13.5 SOU 		1-09987-248-1 07 1 1004-1108 ●
40 CLIP; RAD GRILLE
(C) D8X13.5 SOU 		1-09987-248-1 07 1 1109- ● ●
40 CLIP; RAD GRILLE
(A) 		8-97581-651-2 04 1 1004-1108 ●
40 CLIP; RAD GRILLE
(A) 		8-97581-651-2 04 1 1109- ● ●
40 CLIP; RAD GRILLE
(B) 		8-98025-698-0 04 1 1004-1108 ●
40 CLIP; RAD GRILLE
(B) 		8-98025-698-0 04 1 1109- ● ●
133 SCREW; COVER
T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 04 1 1004-1108 ●
133 SCREW; COVER
T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 04 1 1109- ● ●
140 SEAL; RAD GRILLE 8-98060-340-0 01 1 1004-1108 ●
140 SEAL; RAD GRILLE 8-98060-340-0 01 1 1109- ● ●
192 EXTENSION; RAD GRILLE
BODY COLOR ARC WHITE(729) WHITE 		8-97413-103-0 01 1 1004-1108 ●
192 EXTENSION; RAD GRILLE
BODY COLOR ARC WHITE(729) WHITE 		8-97413-103-0 01 1 1109- ● ●
192 EXTENSION; RAD GRILLE
BODY COLOR CARDINAL RED(736) RED 		8-97418-373-0 01 1 1004-1108 ●
192 EXTENSION; RAD GRILLE
BODY COLOR CARDINAL RED(736) RED 		8-97418-373-0 01 1 1109- ● ●
192 EXTENSION; RAD GRILLE
BODY COLOR FIRE RED(915) RED 		8-97418-378-0 01 1 1004-1108 ●
192 EXTENSION; RAD GRILLE
BODY COLOR FIRE RED(915) RED 		8-97418-378-0 01 1 1109- ● ●
192 EXTENSION; RAD GRILLE
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97418-376-0 01 1 1004-1108 ●
192 EXTENSION; RAD GRILLE
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97418-376-0 01 1 1109- ● ●
192 EXTENSION; RAD GRILLE
BODY COLOR MARINE BLUE(890) BLUE 		8-97418-375-0 01 1 1004-1108 ●
192 EXTENSION; RAD GRILLE
BODY COLOR MARINE BLUE(890) BLUE 		8-97418-375-0 01 1 1109- ● ●
192 EXTENSION; RAD GRILLE
BODY COLOR OMAHA ORANGE(906) 		8-97418-377-0 01 1 1004-1011 ●
192 EXTENSION; RAD GRILLE
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97418-374-0 01 1 1004-1108 ●
192 EXTENSION; RAD GRILLE
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97418-374-0 01 1 1109- ● ●
193 CLIP; SEAL
NATURAL 		8-98027-457-0 13 1 1004-1108 ●
193 CLIP; SEAL
NATURAL 		8-98027-457-0 13 1 1109- ● ●
