0-87 — COUPLING; INJECTION PUMP (#2183) — 22 parça

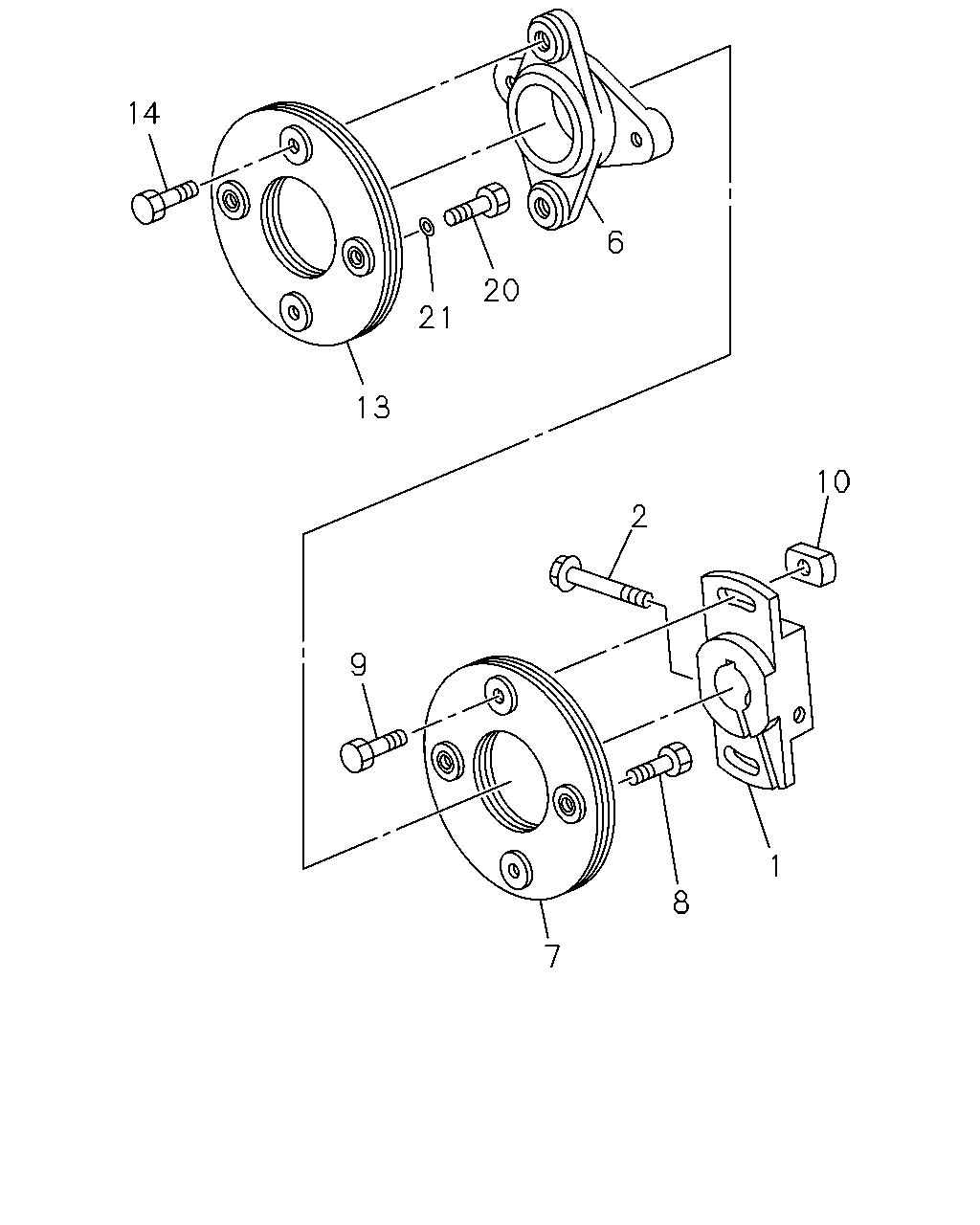

çizim 28296
14 6 20 21 13 10 2 9 1 8 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 COUPLING; INJ PUMP DRIVE 1-15781-010-0 01 1 9101- ● ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-132-0 01 1 9101- ● ●
6 COUPLING; CROSS,INJ PUMP DRIVE
RLD ECE GOVERNOR(E7P) 		1-15789-104-0 01 1 9101-0203 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EXC. RLD ECE GOVERNOR(E7P) 		1-15789-068-0 01 1 9101-0203 ● ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-068-0 01 1 0204- ● ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-065-0 01 1 9101- ● ●
8 BOLT; PLATE TO CROSS COUPLING
RLD ECE GOVERNOR(E7P) 		1-15789-120-0 02 1 9101-0203 ●
8 BOLT; PLATE TO CROSS COUPLING
EXC. RLD ECE GOVERNOR(E7P) 		1-15789-126-0 02 1 9101-0203 ● ●
8 BOLT; PLATE TO CROSS COUPLING 1-15789-126-0 02 1 0204- ● ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-122-0 02 1 9101- ● ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-066-0 02 1 9101- ● ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
RLD ECE GOVERNOR(E7P) 		1-15789-065-0 01 1 9101-0203 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EXC. RLD ECE GOVERNOR(E7P) 		9-81385-024-0 01 1 9101-0203 ● ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 9-81385-024-0 01 1 0204- ● ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
RLD ECE GOVERNOR(E7P) 		1-15789-120-0 02 1 9101-0203 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EXC. RLD ECE GOVERNOR(E7P) 		1-15789-126-0 02 1 9101-0203 ● ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-126-0 02 1 0204- ● ●
20 BOLT; COUPLING TO INJ PUMP
RLD ECE GOVERNOR(E7P) 		1-15789-119-0 02 1 9101-0203 ●
20 BOLT; COUPLING TO INJ PUMP
EXC. RLD ECE GOVERNOR(E7P) 		1-15789-127-0 02 1 9101-0203 ● ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-127-0 02 1 0204- ● ●
21 WASHER; LK,COUPLING TO INJ PUMP
EXC. RLD ECE GOVERNOR(E7P) 		1-15789-007-0 02 1 9101-0203 ● ●
21 WASHER; LK,COUPLING TO INJ PUMP 1-15789-007-0 02 1 0204- ● ●
