Isuzu WW
▶
TRUCKS
▶
FXZ
▶
11197 - FXZ SOUTH AFRICA
▶
5 - Frame, Cab Mounting
▶
5-20 - BATTERY CARRIER
▶

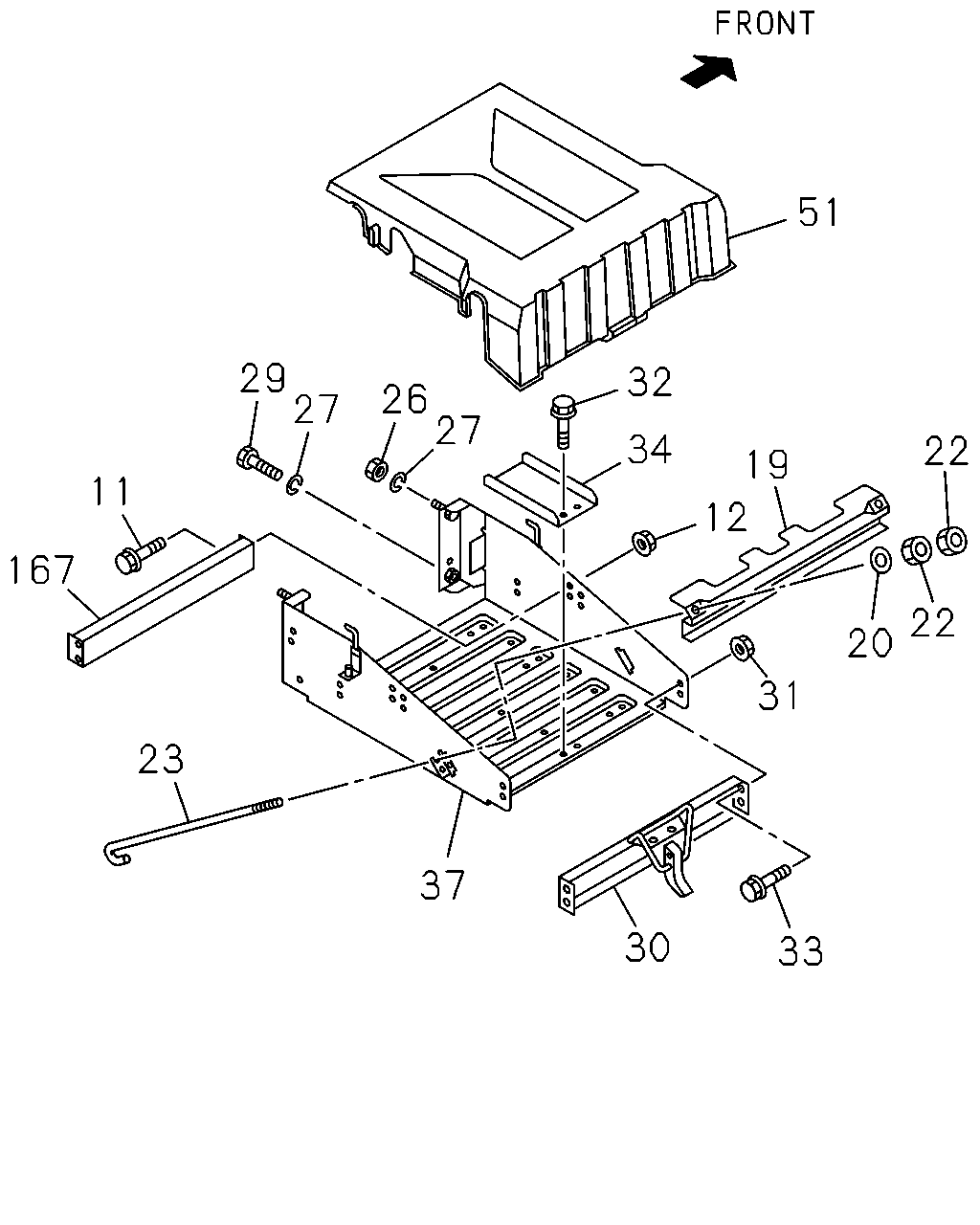

5-20 — BATTERY CARRIER
(#21829) — 35 parça
Tümü
A - FGZ5MX
B - GGZ5MX
51
29
27
32
26
27
34
22
19
11
12
167
22
20
31
23
37
30
33
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
11
BOLT; BRKT FIX
M8X20 FLANGE
0-28050-820-0
04
1
1004-1108
●
11
BOLT; BRKT FIX
M8X20 FLANGE
0-28050-820-0
04
1
1109-
●
●
12
NUT; BRKT FIX
M8 FLANGE SOU
0-91180-108-0
04
1
1004-1108
●
12
NUT; BRKT FIX
M8 FLANGE SOU
0-91180-108-0
04
1
1109-
●
●
19
STAY; BATTERY
8-98056-961-0
01
1
1004-1108
●
19
STAY; BATTERY
8-98056-961-0
01
1
1109-
●
●
20
WASHER; PL,STAY
ID=8.4 OD=22
0-91614-708-0
02
1
1004-1108
●
20
WASHER; PL,STAY
ID=8.4 OD=22
0-91614-708-0
02
1
1109-
●
●
22
NUT; STAY
M8 SOU
0-91110-508-0
04
1
1004-1108
●
22
NUT; STAY
M8 SOU
0-91110-508-0
04
1
1109-
●
●
23
BOLT; STAY
L=250 SOU
1-53616-108-0
02
1
1004-1108
●
23
BOLT; STAY
L=250 SOU
1-53616-108-0
02
1
1109-
●
●
26
NUT; BRKT
M14
1-09440-072-0
02
1
1004-1108
●
26
NUT; BRKT
M14
1-09440-072-0
02
1
1109-
●
●
27
WASHER; LK,BRKT
ID=14.2 SOU
0-91510-514-0
04
1
1004-1108
●
27
WASHER; LK,BRKT
ID=14.2 SOU
0-91510-514-0
04
1
1109-
●
●
29
BOLT; BRKT TO FRAME
M14X45
1-09000-764-0
02
1
1004-1108
●
29
BOLT; BRKT TO FRAME
M14X45
1-09000-764-0
02
1
1109-
●
●
30
PLATE; BATTERY
1-53619-085-0
01
1
1004-1108
●
30
PLATE; BATTERY
1-53619-085-0
01
1
1109-
●
●
31
NUT; PLATE
M8 FLANGE SOU
0-91180-108-0
04
1
1004-1108
●
31
NUT; PLATE
M8 FLANGE SOU
0-91180-108-0
04
1
1109-
●
●
32
BOLT; PLATE TO SPACER
M8X16 FLANGE SOU
0-28050-816-0
02
1
1004-1108
●
32
BOLT; PLATE TO SPACER
M8X16 FLANGE SOU
0-28050-816-0
02
1
1109-
●
●
33
BOLT; PLATE TO BRKT
M8X25 FLANGE SOU
0-28650-825-0
04
1
1004-1007
●
33
BOLT; PLATE TO BRKT
M8X20 FLANGE
0-28650-820-0
04
1
1008-1108
●
33
BOLT; PLATE TO BRKT
M8X20 FLANGE
0-28650-820-0
04
1
1109-
●
●
34
SPACER; BATTERY BRKT
8-98057-728-0
01
1
1004-1108
●
34
SPACER; BATTERY BRKT
8-98057-728-0
01
1
1109-
●
●
37
BRACKET; BATTERY
8-98088-440-3
01
1
1004-1108
●
37
BRACKET; BATTERY
8-98088-440-3
01
1
1109-
●
●
51
COVER; BATTERY
1-53612-068-0
01
1
1004-1108
●
51
COVER; BATTERY
1-53612-068-0
01
1
1109-
●
●
167
BRACKET; STOPPER
8-98091-941-0
01
1
1004-1108
●
167
BRACKET; STOPPER
8-98091-941-0
01
1
1109-
●
●
