◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11197 - FXZ SOUTH AFRICA ▶ 5 - Frame, Cab Mounting ▶ 5-16 - OIL PUMP; CAB TILT ▶
5-16 — OIL PUMP; CAB TILT (#21827) — 205 parça

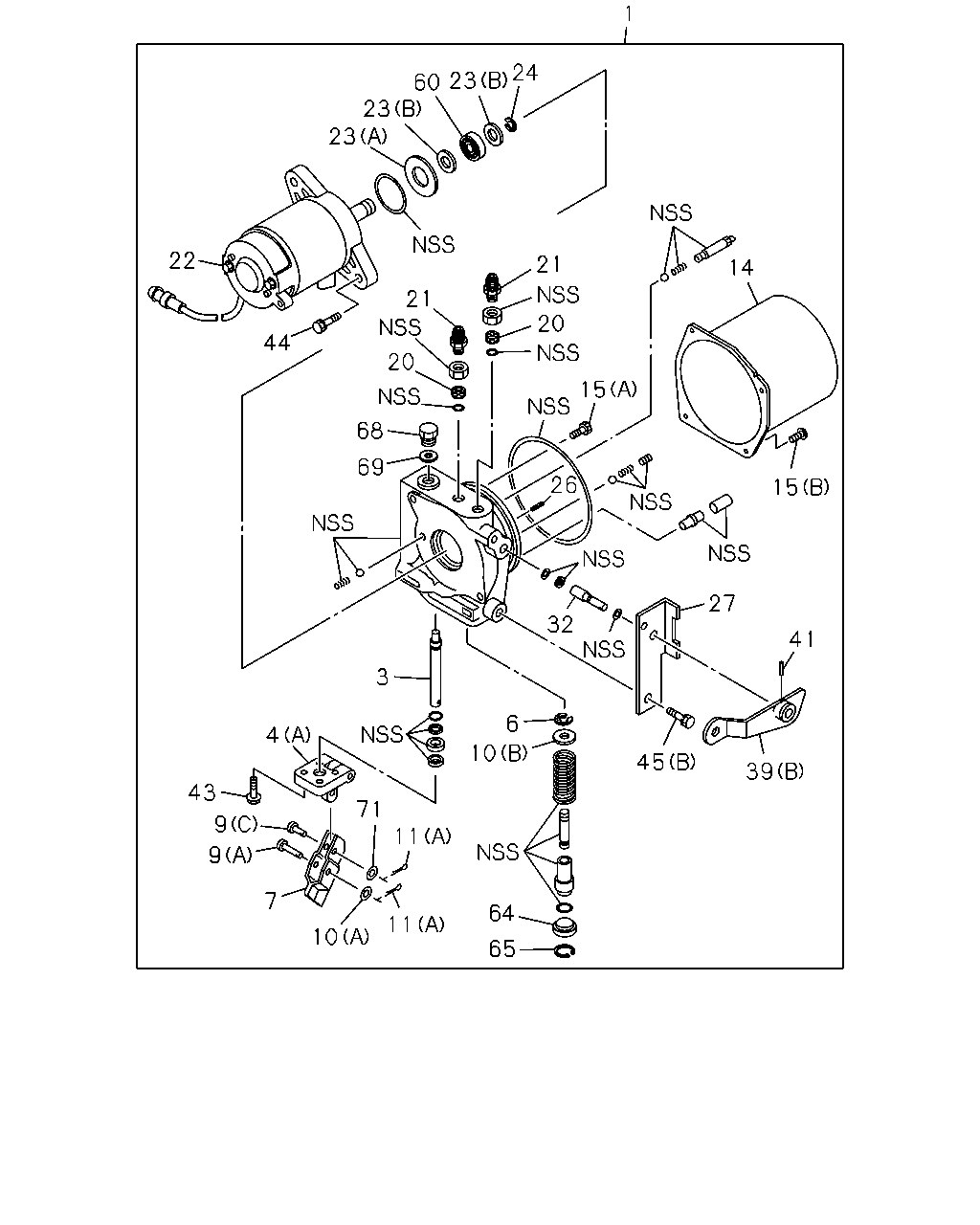

çizim 129350
1 24 23 60 23 23 22 44 21 21 20 20 68 15 69 26 15 27 41 32 45 39 6 10 3 4 43 9 9 7 71 11 11 10 64 65 14
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP; OIL,CAB TILT 1-53457-064-1 01 1 1004-1108 ●
1 PUMP; OIL,CAB TILT 1-53457-064-1 01 1 1109-1408 ● ●
1 PUMP; OIL,CAB TILT 8-98279-120-0 01 1 1409- ● ●
3 PISTON; MANUAL 1-53457-204-0 01 1 1004-1108 ●
3 PISTON; MANUAL 1-53457-204-0 01 1 1109- ● ●
4 BRACKET; OIL PUMP
(B) 		8-98281-606-0 01 1 1409- ● ●
4 BRACKET; OIL PUMP
(A) 		1-53457-205-0 01 1 1004-1108 ●
4 BRACKET; OIL PUMP
(A) 		1-53457-205-0 01 1 1109- ● ●
6 RING; SNAP 1-53458-411-0 01 1 1004-1108 ●
6 RING; SNAP 1-53458-411-0 01 1 1109- ● ●
7 SOCKET; OIL PUMP 1-53457-207-0 01 1 1004-1108 ●
7 SOCKET; OIL PUMP 1-53457-207-0 01 1 1109- ● ●
9 PIN; OIL PUMP
(B) L=27.7 SOU 		1-09987-141-0 02 1 1004-1108 ●
9 PIN; OIL PUMP
(B) L=27.7 SOU 		1-09987-141-0 02 1 1109- ● ●
9 PIN; OIL PUMP
(C) 		1-53458-057-0 01 1 1004-1108 ●
9 PIN; OIL PUMP
(C) 		1-53458-057-0 01 1 1109- ● ●
9 PIN; OIL PUMP
(A) 		1-53458-060-0 01 1 1004-1108 ●
9 PIN; OIL PUMP
(A) 		1-53458-060-0 01 1 1109- ● ●
10 WASHER; OIL PUMP
(C) ID=8.4 OD=22 SOU 		0-91610-708-0 02 1 1004-1108 ●
10 WASHER; OIL PUMP
(C) ID=8.4 OD=22 SOU 		0-91610-708-0 02 1 1109- ● ●
10 WASHER; OIL PUMP
(A) 		1-53458-013-0 01 1 1004-1108 ●
10 WASHER; OIL PUMP
(A) 		1-53458-013-0 01 1 1109- ● ●
10 WASHER; OIL PUMP
(B) 		1-53458-561-0 01 1 1004-1108 ●
10 WASHER; OIL PUMP
(B) 		1-53458-561-0 01 1 1109- ● ●
11 PIN; SPLIT,OIL PUMP
(B) OD=8 L=17 		0-82253-817-0 02 1 1004-1108 ●
11 PIN; SPLIT,OIL PUMP
(B) OD=8 L=17 		0-82253-817-0 02 1 1109- ● ●
11 PIN; SPLIT,OIL PUMP
(A) 		1-53457-209-0 02 1 1004-1108 ●
11 PIN; SPLIT,OIL PUMP
(A) 		1-53457-209-0 02 1 1109- ● ●
14 RESERVOIR; OIL PUMP 1-53458-432-0 01 1 1004-1108 ●
14 RESERVOIR; OIL PUMP 1-53458-432-0 01 1 1109- ● ●
15 BOLT; RESERVOIR
(B) M5X8 		1-53458-005-0 04 1 1004-1108 ●
15 BOLT; RESERVOIR
(B) M5X8 		1-53458-005-0 04 1 1109- ● ●
15 BOLT; RESERVOIR
(A) M5X8 		1-53458-433-0 02 1 1004-1108 ●
15 BOLT; RESERVOIR
(A) M5X8 		1-53458-433-0 02 1 1109- ● ●
20 FILTER; OIL PUMP 1-53457-081-0 02 1 1004-1108 ●
20 FILTER; OIL PUMP 1-53457-081-0 02 1 1109- ● ●
21 CONNECTOR; OIL PUMP
M12 		1-53458-941-0 02 1 1004-1108 ●
21 CONNECTOR; OIL PUMP
M12 		1-53458-941-0 02 1 1109- ● ●
22 MOTOR; OIL PUMP 1-53457-080-0 01 1 1004-1108 ●
22 MOTOR; OIL PUMP 1-53457-080-0 01 1 1109- ● ●
23 WASHER; MOTOR
(A) 		1-53458-018-0 01 1 1004-1108 ●
23 WASHER; MOTOR
(A) 		1-53458-018-0 01 1 1109- ● ●
23 WASHER; MOTOR
(B) 		1-53458-045-0 02 1 1004-1108 ●
23 WASHER; MOTOR
(B) 		1-53458-045-0 02 1 1109-1408 ● ●
23 WASHER; MOTOR
(B) 		8-97613-686-0 02 1 1409- ● ●
24 RING; SNAP,MOTOR 1-53458-044-0 01 1 1004-1108 ●
24 RING; SNAP,MOTOR 1-53458-044-0 01 1 1109- ● ●
26 PIN; SPR,OIL PUMP 1-53458-038-0 01 1 1004-1108 ●
26 PIN; SPR,OIL PUMP 1-53458-038-0 01 1 1109- ● ●
27 COVER; OIL PUMP 1-53458-568-0 01 1 1004-1108 ●
27 COVER; OIL PUMP 1-53458-568-0 01 1 1109- ● ●
32 VALVE; OIL PUMP 1-53458-569-0 01 1 1004-1108 ●
32 VALVE; OIL PUMP 1-53458-569-0 01 1 1109- ● ●
39 LEVER; OIL PUMP
(B) 		1-53458-567-0 01 1 1004-1108 ●
39 LEVER; OIL PUMP
(B) 		1-53458-567-0 01 1 1109- ● ●
39 LEVER; OIL PUMP
(A) 		8-98055-528-1 01 1 1004-1108 ●
39 LEVER; OIL PUMP
(A) 		8-98055-528-1 01 1 1109- ● ●
41 PIN; SPR,LEVER 1-53458-019-0 01 1 1004-1108 ●
41 PIN; SPR,LEVER 1-53458-019-0 01 1 1109- ● ●
43 BOLT; LEVER
M5X16 		1-53457-206-0 03 1 1004-1108 ●
43 BOLT; LEVER
M5X16 		1-53457-206-0 03 1 1109- ● ●
44 BOLT; MOTOR
M6X20 		1-53458-007-0 02 1 1004-1108 ●
44 BOLT; MOTOR
M6X20 		1-53458-007-0 02 1 1109- ● ●
45 BOLT; COVER
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1004-1108 ●
45 BOLT; COVER
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1109- ● ●
45 BOLT; COVER
(B) M6X8 		1-53458-004-0 02 1 1004-1108 ●
45 BOLT; COVER
(B) M6X8 		1-53458-004-0 02 1 1109- ● ●
60 BEARING; OIL PUMP 1-53458-423-0 01 1 1004-1108 ●
60 BEARING; OIL PUMP 1-53458-423-0 01 1 1109- ● ●
64 SLEEVE; OIL PUMP 1-53458-572-0 01 1 1004-1108 ●
64 SLEEVE; OIL PUMP 1-53458-572-0 01 1 1109-1408 ● ●
64 SLEEVE; OIL PUMP 8-98249-572-0 01 1 1409- ● ●
65 RING; SNAP,SLEEVE 1-53458-570-0 01 1 1004-1108 ●
65 RING; SNAP,SLEEVE 1-53458-570-0 01 1 1109- ● ●
68 PLUG; FILLER 1-53458-428-0 01 1 1004-1108 ●
68 PLUG; FILLER 1-53458-428-0 01 1 1109- ● ●
69 GASKET; FILLER PLUG 1-53458-427-0 01 1 1004-1108 ●
69 GASKET; FILLER PLUG 1-53458-427-0 01 1 1109- ● ●
71 NUT; PUSH 1-53457-208-0 01 1 1004-1108 ●
71 NUT; PUSH 1-53457-208-0 01 1 1109- ● ●

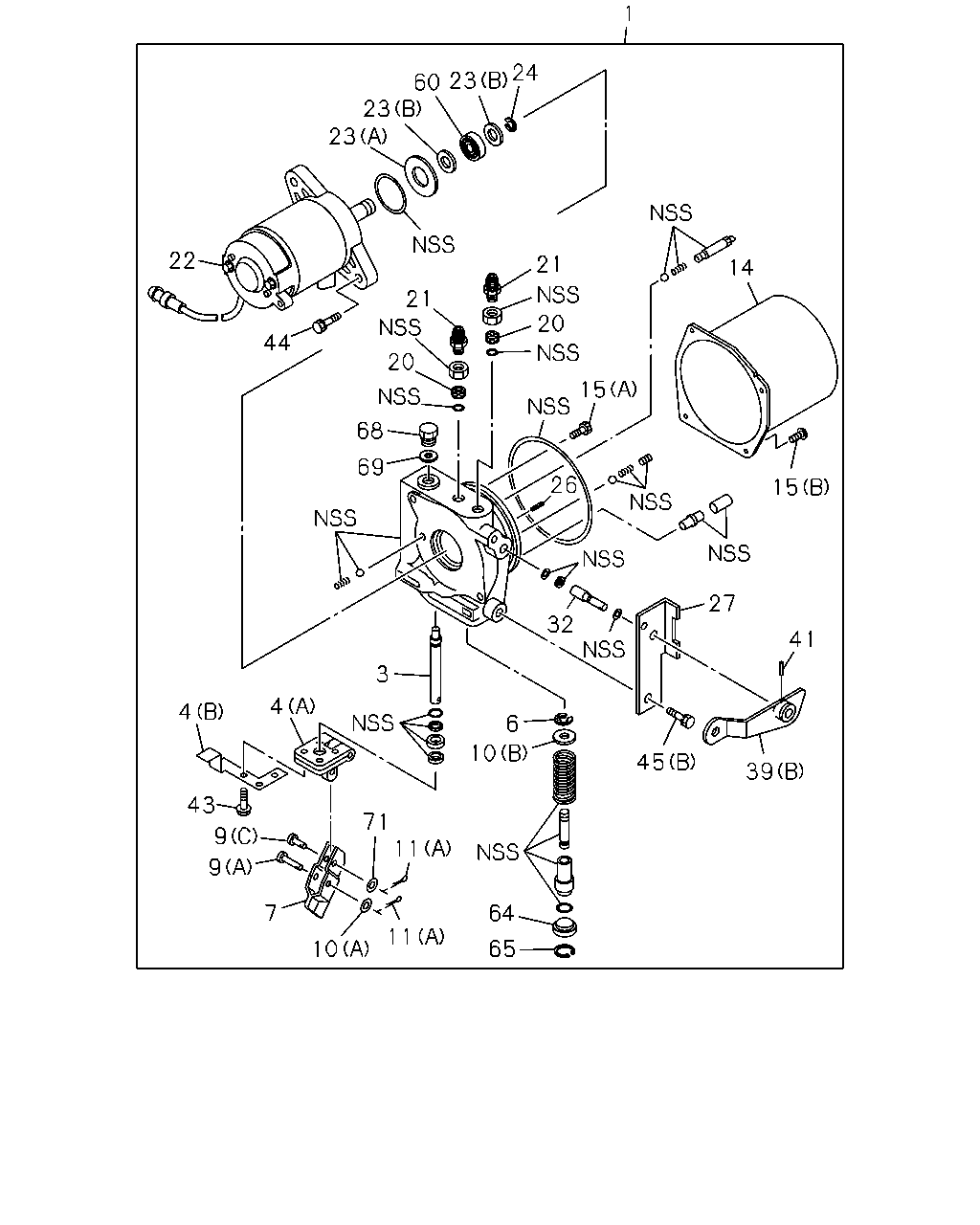

çizim 129362
1 24 23 60 23 23 22 44 21 21 14 15 15 26 20 20 68 69 32 27 41 39 45 6 10 3 4 4 43 9 9 7 71 11 11 10 64 65
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP; OIL,CAB TILT 1-53457-064-1 01 1 1004-1108 ●
1 PUMP; OIL,CAB TILT 1-53457-064-1 01 1 1109-1408 ● ●
1 PUMP; OIL,CAB TILT 8-98279-120-0 01 1 1409- ● ●
3 PISTON; MANUAL 1-53457-204-0 01 1 1004-1108 ●
3 PISTON; MANUAL 1-53457-204-0 01 1 1109- ● ●
4 BRACKET; OIL PUMP
(B) 		8-98281-606-0 01 1 1409- ● ●
4 BRACKET; OIL PUMP
(A) 		1-53457-205-0 01 1 1004-1108 ●
4 BRACKET; OIL PUMP
(A) 		1-53457-205-0 01 1 1109- ● ●
6 RING; SNAP 1-53458-411-0 01 1 1004-1108 ●
6 RING; SNAP 1-53458-411-0 01 1 1109- ● ●
7 SOCKET; OIL PUMP 1-53457-207-0 01 1 1004-1108 ●
7 SOCKET; OIL PUMP 1-53457-207-0 01 1 1109- ● ●
9 PIN; OIL PUMP
(B) L=27.7 SOU 		1-09987-141-0 02 1 1004-1108 ●
9 PIN; OIL PUMP
(B) L=27.7 SOU 		1-09987-141-0 02 1 1109- ● ●
9 PIN; OIL PUMP
(C) 		1-53458-057-0 01 1 1004-1108 ●
9 PIN; OIL PUMP
(C) 		1-53458-057-0 01 1 1109- ● ●
9 PIN; OIL PUMP
(A) 		1-53458-060-0 01 1 1004-1108 ●
9 PIN; OIL PUMP
(A) 		1-53458-060-0 01 1 1109- ● ●
10 WASHER; OIL PUMP
(C) ID=8.4 OD=22 SOU 		0-91610-708-0 02 1 1004-1108 ●
10 WASHER; OIL PUMP
(C) ID=8.4 OD=22 SOU 		0-91610-708-0 02 1 1109- ● ●
10 WASHER; OIL PUMP
(A) 		1-53458-013-0 01 1 1004-1108 ●
10 WASHER; OIL PUMP
(A) 		1-53458-013-0 01 1 1109- ● ●
10 WASHER; OIL PUMP
(B) 		1-53458-561-0 01 1 1004-1108 ●
10 WASHER; OIL PUMP
(B) 		1-53458-561-0 01 1 1109- ● ●
11 PIN; SPLIT,OIL PUMP
(B) OD=8 L=17 		0-82253-817-0 02 1 1004-1108 ●
11 PIN; SPLIT,OIL PUMP
(B) OD=8 L=17 		0-82253-817-0 02 1 1109- ● ●
11 PIN; SPLIT,OIL PUMP
(A) 		1-53457-209-0 02 1 1004-1108 ●
11 PIN; SPLIT,OIL PUMP
(A) 		1-53457-209-0 02 1 1109- ● ●
14 RESERVOIR; OIL PUMP 1-53458-432-0 01 1 1004-1108 ●
14 RESERVOIR; OIL PUMP 1-53458-432-0 01 1 1109- ● ●
15 BOLT; RESERVOIR
(B) M5X8 		1-53458-005-0 04 1 1004-1108 ●
15 BOLT; RESERVOIR
(B) M5X8 		1-53458-005-0 04 1 1109- ● ●
15 BOLT; RESERVOIR
(A) M5X8 		1-53458-433-0 02 1 1004-1108 ●
15 BOLT; RESERVOIR
(A) M5X8 		1-53458-433-0 02 1 1109- ● ●
20 FILTER; OIL PUMP 1-53457-081-0 02 1 1004-1108 ●
20 FILTER; OIL PUMP 1-53457-081-0 02 1 1109- ● ●
21 CONNECTOR; OIL PUMP
M12 		1-53458-941-0 02 1 1004-1108 ●
21 CONNECTOR; OIL PUMP
M12 		1-53458-941-0 02 1 1109- ● ●
22 MOTOR; OIL PUMP 1-53457-080-0 01 1 1004-1108 ●
22 MOTOR; OIL PUMP 1-53457-080-0 01 1 1109- ● ●
23 WASHER; MOTOR
(A) 		1-53458-018-0 01 1 1004-1108 ●
23 WASHER; MOTOR
(A) 		1-53458-018-0 01 1 1109- ● ●
23 WASHER; MOTOR
(B) 		1-53458-045-0 02 1 1004-1108 ●
23 WASHER; MOTOR
(B) 		1-53458-045-0 02 1 1109-1408 ● ●
23 WASHER; MOTOR
(B) 		8-97613-686-0 02 1 1409- ● ●
24 RING; SNAP,MOTOR 1-53458-044-0 01 1 1004-1108 ●
24 RING; SNAP,MOTOR 1-53458-044-0 01 1 1109- ● ●
26 PIN; SPR,OIL PUMP 1-53458-038-0 01 1 1004-1108 ●
26 PIN; SPR,OIL PUMP 1-53458-038-0 01 1 1109- ● ●
27 COVER; OIL PUMP 1-53458-568-0 01 1 1004-1108 ●
27 COVER; OIL PUMP 1-53458-568-0 01 1 1109- ● ●
32 VALVE; OIL PUMP 1-53458-569-0 01 1 1004-1108 ●
32 VALVE; OIL PUMP 1-53458-569-0 01 1 1109- ● ●
39 LEVER; OIL PUMP
(B) 		1-53458-567-0 01 1 1004-1108 ●
39 LEVER; OIL PUMP
(B) 		1-53458-567-0 01 1 1109- ● ●
39 LEVER; OIL PUMP
(A) 		8-98055-528-1 01 1 1004-1108 ●
39 LEVER; OIL PUMP
(A) 		8-98055-528-1 01 1 1109- ● ●
41 PIN; SPR,LEVER 1-53458-019-0 01 1 1004-1108 ●
41 PIN; SPR,LEVER 1-53458-019-0 01 1 1109- ● ●
43 BOLT; LEVER
M5X16 		1-53457-206-0 03 1 1004-1108 ●
43 BOLT; LEVER
M5X16 		1-53457-206-0 03 1 1109- ● ●
44 BOLT; MOTOR
M6X20 		1-53458-007-0 02 1 1004-1108 ●
44 BOLT; MOTOR
M6X20 		1-53458-007-0 02 1 1109- ● ●
45 BOLT; COVER
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1004-1108 ●
45 BOLT; COVER
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1109- ● ●
45 BOLT; COVER
(B) M6X8 		1-53458-004-0 02 1 1004-1108 ●
45 BOLT; COVER
(B) M6X8 		1-53458-004-0 02 1 1109- ● ●
60 BEARING; OIL PUMP 1-53458-423-0 01 1 1004-1108 ●
60 BEARING; OIL PUMP 1-53458-423-0 01 1 1109- ● ●
64 SLEEVE; OIL PUMP 1-53458-572-0 01 1 1004-1108 ●
64 SLEEVE; OIL PUMP 1-53458-572-0 01 1 1109-1408 ● ●
64 SLEEVE; OIL PUMP 8-98249-572-0 01 1 1409- ● ●
65 RING; SNAP,SLEEVE 1-53458-570-0 01 1 1004-1108 ●
65 RING; SNAP,SLEEVE 1-53458-570-0 01 1 1109- ● ●
68 PLUG; FILLER 1-53458-428-0 01 1 1004-1108 ●
68 PLUG; FILLER 1-53458-428-0 01 1 1109- ● ●
69 GASKET; FILLER PLUG 1-53458-427-0 01 1 1004-1108 ●
69 GASKET; FILLER PLUG 1-53458-427-0 01 1 1109- ● ●
71 NUT; PUSH 1-53457-208-0 01 1 1004-1108 ●
71 NUT; PUSH 1-53457-208-0 01 1 1109- ● ●

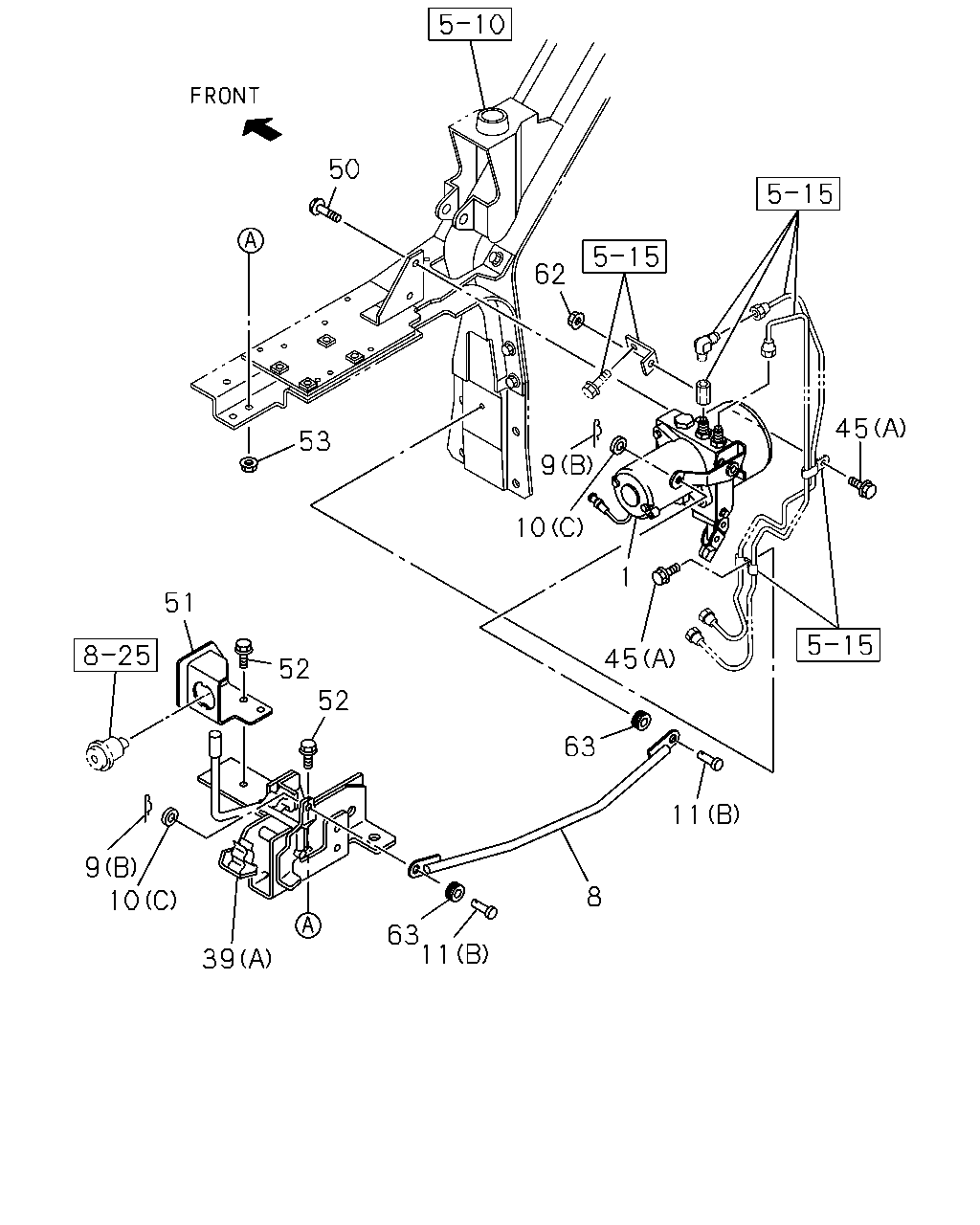

çizim 129529
50 62 45 53 9 10 1 51 45 52 52 63 11 9 10 8 63 11 39
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP; OIL,CAB TILT 1-53457-064-1 01 1 1004-1108 ●
1 PUMP; OIL,CAB TILT 1-53457-064-1 01 1 1109-1408 ● ●
1 PUMP; OIL,CAB TILT 8-98279-120-0 01 1 1409- ● ●
8 LINK; OIL PUMP 1-53457-155-0 01 1 1004-1108 ●
8 LINK; OIL PUMP 1-53457-155-0 01 1 1109- ● ●
9 PIN; OIL PUMP
(B) L=27.7 SOU 		1-09987-141-0 02 1 1004-1108 ●
9 PIN; OIL PUMP
(B) L=27.7 SOU 		1-09987-141-0 02 1 1109- ● ●
9 PIN; OIL PUMP
(C) 		1-53458-057-0 01 1 1004-1108 ●
9 PIN; OIL PUMP
(C) 		1-53458-057-0 01 1 1109- ● ●
9 PIN; OIL PUMP
(A) 		1-53458-060-0 01 1 1004-1108 ●
9 PIN; OIL PUMP
(A) 		1-53458-060-0 01 1 1109- ● ●
10 WASHER; OIL PUMP
(C) ID=8.4 OD=22 SOU 		0-91610-708-0 02 1 1004-1108 ●
10 WASHER; OIL PUMP
(C) ID=8.4 OD=22 SOU 		0-91610-708-0 02 1 1109- ● ●
10 WASHER; OIL PUMP
(A) 		1-53458-013-0 01 1 1004-1108 ●
10 WASHER; OIL PUMP
(A) 		1-53458-013-0 01 1 1109- ● ●
10 WASHER; OIL PUMP
(B) 		1-53458-561-0 01 1 1004-1108 ●
10 WASHER; OIL PUMP
(B) 		1-53458-561-0 01 1 1109- ● ●
11 PIN; SPLIT,OIL PUMP
(B) OD=8 L=17 		0-82253-817-0 02 1 1004-1108 ●
11 PIN; SPLIT,OIL PUMP
(B) OD=8 L=17 		0-82253-817-0 02 1 1109- ● ●
11 PIN; SPLIT,OIL PUMP
(A) 		1-53457-209-0 02 1 1004-1108 ●
11 PIN; SPLIT,OIL PUMP
(A) 		1-53457-209-0 02 1 1109- ● ●
39 LEVER; OIL PUMP
(B) 		1-53458-567-0 01 1 1004-1108 ●
39 LEVER; OIL PUMP
(B) 		1-53458-567-0 01 1 1109- ● ●
39 LEVER; OIL PUMP
(A) 		8-98055-528-1 01 1 1004-1108 ●
39 LEVER; OIL PUMP
(A) 		8-98055-528-1 01 1 1109- ● ●
45 BOLT; COVER
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1004-1108 ●
45 BOLT; COVER
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1109- ● ●
45 BOLT; COVER
(B) M6X8 		1-53458-004-0 02 1 1004-1108 ●
45 BOLT; COVER
(B) M6X8 		1-53458-004-0 02 1 1109- ● ●
50 BOLT; OIL PUMP
M10X16 FLANGE 		0-28051-016-0 02 1 1004-1108 ●
50 BOLT; OIL PUMP
M10X16 FLANGE 		0-28051-016-0 02 1 1109- ● ●
51 BRACKET; OIL PUMP 8-98108-629-0 01 1 1004-1108 ●
51 BRACKET; OIL PUMP 8-98108-629-0 01 1 1109- ● ●
52 BOLT; BRKT
M8X20 FLANGE 		0-28050-820-0 04 1 1004-1108 ●
52 BOLT; BRKT
M8X20 FLANGE 		0-28050-820-0 04 1 1109- ● ●
53 NUT; BRKT
M8 FLANGE SOU 		0-91180-108-0 03 1 1004-1108 ●
53 NUT; BRKT
M8 FLANGE SOU 		0-91180-108-0 03 1 1109- ● ●
62 NUT; COVER
M8 FLANGE SOU 		0-91180-108-0 01 1 1004-1108 ●
62 NUT; COVER
M8 FLANGE SOU 		0-91180-108-0 01 1 1109- ● ●
63 GROMMET
ID=10 OD=23 T=8 		1-09983-010-0 02 1 1004-1108 ●
63 GROMMET
ID=10 OD=23 T=8 		1-09983-010-0 02 1 1109- ● ●

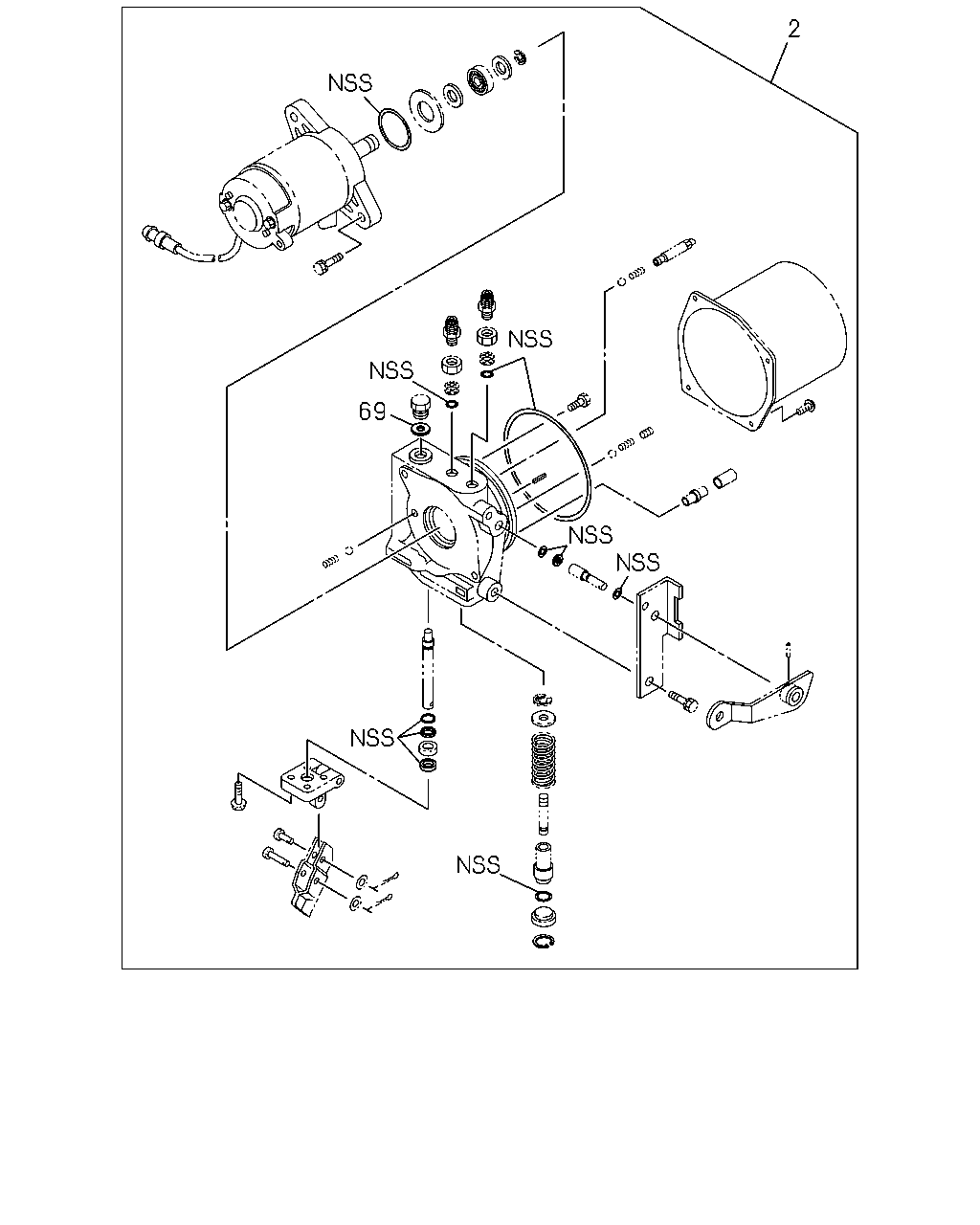

çizim 455551
2 69
BalonParca AdiParca NoAdetTipApplied Date A B
2 REPAIR KIT; OIL PUMP 1-85579-069-0 01 1 1004-1108 ●
2 REPAIR KIT; OIL PUMP 1-85579-069-0 01 1 1109- ● ●
69 GASKET; FILLER PLUG 1-53458-427-0 01 1 1004-1108 ●
69 GASKET; FILLER PLUG 1-53458-427-0 01 1 1109- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
