5-15 — CAB MOUNTING; CAB SIDE (#21826) — 121 parça

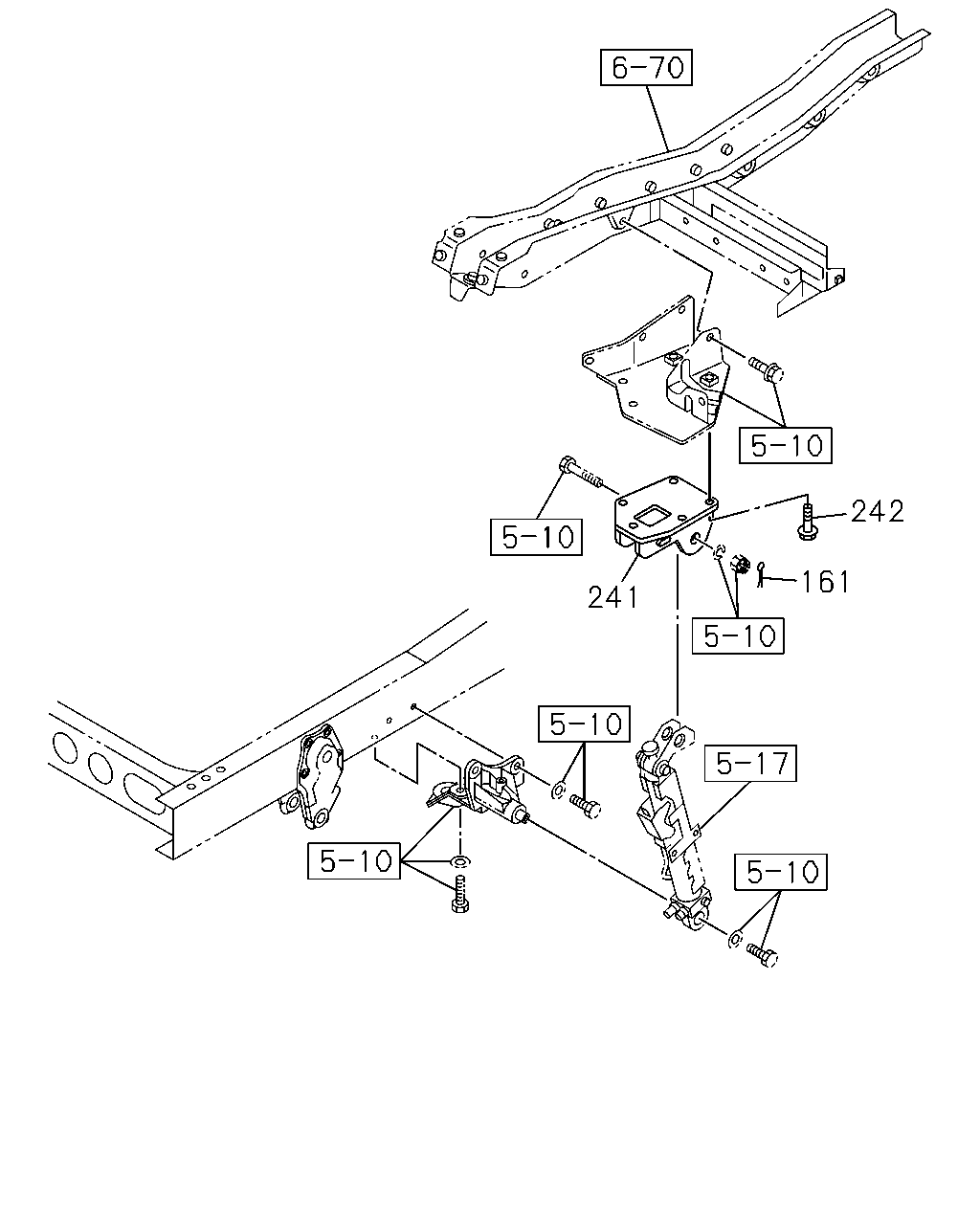

çizim 129319
242 161 241
BalonParca AdiParca NoAdetTipApplied Date A B
161 PIN; SPLIT
OD=2.8 L=25 SOU 		0-81123-025-0 01 1 1004-1108 ●
161 PIN; SPLIT
OD=2.8 L=25 SOU 		0-81123-025-0 01 1 1109- ● ●
241 BRACKET; POWER CYL UPR,CAB TILT 8-98054-834-0 01 1 1004-1108 ●
241 BRACKET; POWER CYL UPR,CAB TILT 8-98054-834-0 01 1 1109- ● ●
242 BOLT; POWER CYL BRKT,CAB TILT
M10X25 FLANGE 		0-28051-025-0 05 1 1004-1108 ●
242 BOLT; POWER CYL BRKT,CAB TILT
M10X25 FLANGE 		0-28051-025-0 05 1 1109- ● ●

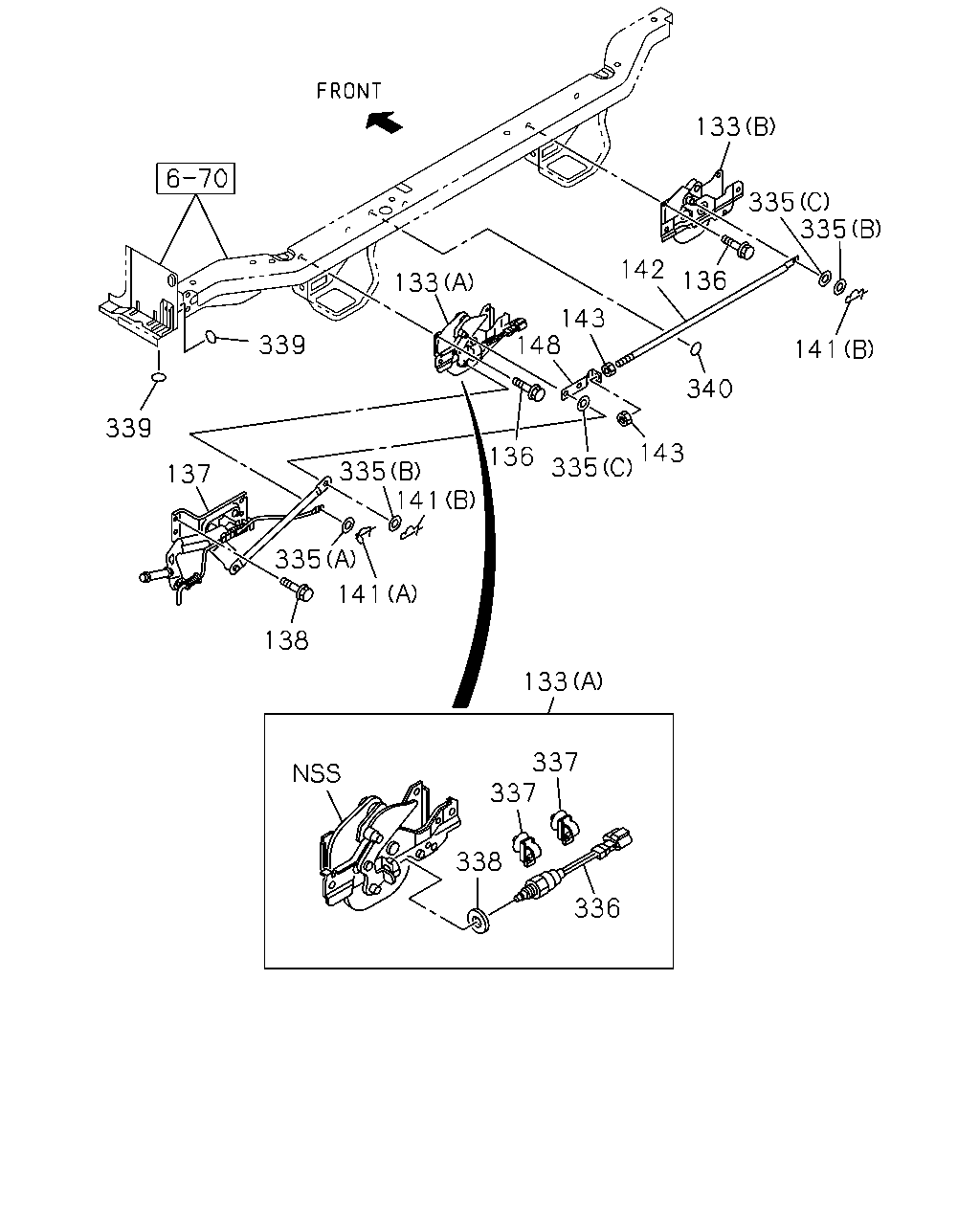

çizim 129339
133 335 335 142 136 133 143 148 339 141 340 339 143 335 136 335 141 137 335 141 138 133 337 337 338 336
BalonParca AdiParca NoAdetTipApplied Date A B
133 LOCK ASM; CAB
(A) 		8-98094-285-2 01 1 1004-1108 ●
133 LOCK ASM; CAB
(A) 		8-98094-285-2 01 1 1109- ● ●
133 LOCK ASM; CAB
(B) 		8-98061-489-1 01 1 1004-1108 ●
133 LOCK ASM; CAB
(B) 		8-98061-489-1 01 1 1109- ● ●
136 BOLT; CAB LK
M8X20 FLANGE 		0-28650-820-0 08 1 1004-1108 ●
136 BOLT; CAB LK
M8X20 FLANGE 		0-28650-820-0 08 1 1109- ● ●
137 CONTROL UNIT; CAB LOCK 8-98053-683-2 01 1 1004-1108 ●
137 CONTROL UNIT; CAB LOCK 8-98053-683-2 01 1 1109- ● ●
138 BOLT; CAB LOCK CONT UNIT
M8X20 FLANGE 		0-28650-820-0 04 1 1004-1108 ●
138 BOLT; CAB LOCK CONT UNIT
M8X20 FLANGE 		0-28650-820-0 04 1 1109- ● ●
141 PIN; SNAP,CAB LOCK ROD
(A) L=25.3 		8-98039-045-1 01 1 1004-1108 ●
141 PIN; SNAP,CAB LOCK ROD
(A) L=25.3 		8-98039-045-1 01 1 1109- ● ●
141 PIN; SNAP,CAB LOCK ROD
(B) L=32.6 		8-98062-280-0 02 1 1004-1108 ●
141 PIN; SNAP,CAB LOCK ROD
(B) L=32.6 		8-98062-280-0 02 1 1109- ● ●
142 ROD; HOOK TO HOOK 8-97587-990-0 01 1 1004-1108 ●
142 ROD; HOOK TO HOOK 8-97587-990-0 01 1 1109- ● ●
143 NUT; JAW JOINT,HOOK TO HOOK
M10 SOU 		0-91110-510-0 02 1 1004-1108 ●
143 NUT; JAW JOINT,HOOK TO HOOK
M10 SOU 		0-91110-510-0 02 1 1109- ● ●
148 JOINT; JAW,HOOK TO HOOK 8-97410-736-0 01 1 1004-1108 ●
148 JOINT; JAW,HOOK TO HOOK 8-97410-736-0 01 1 1109- ● ●
335 WASHER; CAB LOCK ROD
(A) ID=8.4 OD=16 SOU 		0-91610-508-0 01 1 1004-1108 ●
335 WASHER; CAB LOCK ROD
(A) ID=8.4 OD=16 SOU 		0-91610-508-0 01 1 1109- ● ●
335 WASHER; CAB LOCK ROD
(B) ID=12.5 OD=26 		0-91610-612-0 02 1 1004-1108 ●
335 WASHER; CAB LOCK ROD
(B) ID=12.5 OD=26 		0-91610-612-0 02 1 1109- ● ●
335 WASHER; CAB LOCK ROD
(C) ID=13 OD=22 		8-98060-839-0 02 1 1004-1108 ●
335 WASHER; CAB LOCK ROD
(C) ID=13 OD=22 		8-98060-839-0 02 1 1109- ● ●
336 SWITCH; CAB LOCK 8-98091-155-1 01 1 1004-1108 ●
336 SWITCH; CAB LOCK 8-98091-155-1 01 1 1109- ● ●
337 CLIP; CAB LOCK
L=155 SOU 		8-97173-307-0 02 1 1004-1008 ●
338 WASHER; CAB LOCK
ID=17 OD=30 		0-91610-516-0 01 1 1004-1108 ●
338 WASHER; CAB LOCK
ID=17 OD=30 		0-91610-516-0 01 1 1109- ● ●
339 SEAL; TILT HANDLE
OD=25 BLACK SOU 		1-76798-019-0 04 1 1004-1108 ●
339 SEAL; TILT HANDLE
OD=25 BLACK SOU 		1-76798-019-0 04 1 1109- ● ●
340 SEAL; HOLE
OD=25 BLACK SOU 		1-76798-019-0 02 1 1004-1108 ●
340 SEAL; HOLE
OD=25 BLACK SOU 		1-76798-019-0 02 1 1109- ● ●

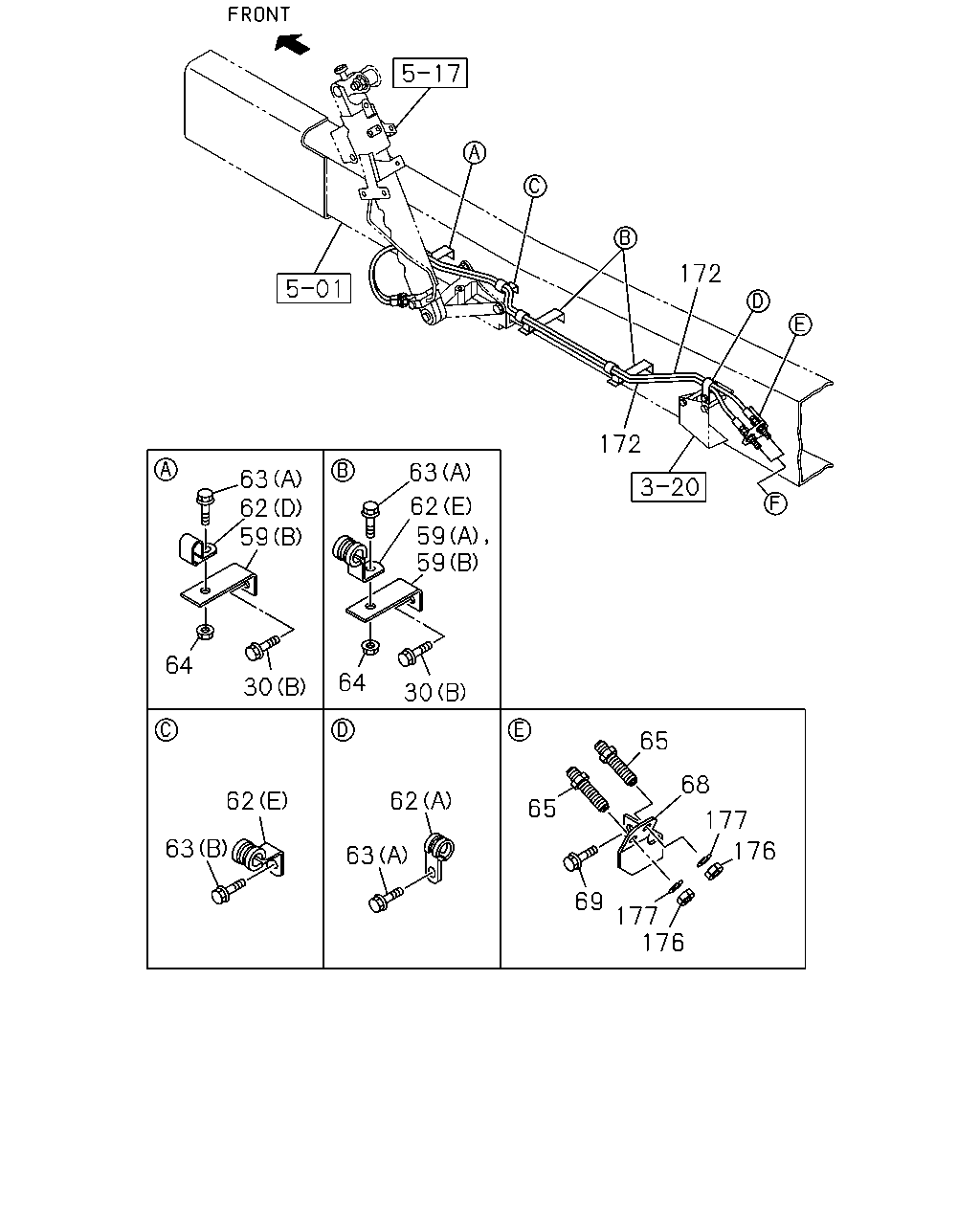

çizim 129371
172 172 63 63 62 59 62 59 59 64 64 30 30 65 68 62 62 65 177 63 176 63 69 177 176
BalonParca AdiParca NoAdetTipApplied Date A B
30 BOLT; BRKT FIX
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1004-1108 ●
30 BOLT; BRKT FIX
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1109- ● ●
30 BOLT; BRKT FIX
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1004-1108 ●
30 BOLT; BRKT FIX
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1109- ● ●
59 BRACKET; CLIP
(B) L=75 		1-47478-323-0 01 1 1004-1108 ●
59 BRACKET; CLIP
ANTILOCK BRAKE SYSTEM(BFA) (B) L=75 		1-47478-323-0 01 1 1004-1108 ●
59 BRACKET; CLIP
(B) L=75 		1-47478-323-0 01 1 1109- ● ●
59 BRACKET; CLIP
ANTILOCK BRAKE SYSTEM(BFA) (B) L=75 		1-47478-323-0 01 1 1109- ● ●
59 BRACKET; CLIP
ANTILOCK BRAKE SYSTEM(BFA) (A) L=115 B=25 		1-47476-758-0 02 1 1004-1108 ●
59 BRACKET; CLIP
ANTILOCK BRAKE SYSTEM(BFA) (A) L=115 B=25 		1-47476-758-0 02 1 1109- ● ●
59 BRACKET; CLIP
EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) L=115 B=25 		1-47476-758-0 01 1 1004- ●
59 BRACKET; CLIP
EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) L=75 		1-47478-323-0 02 1 1004- ●
62 CLIP; OIL PIPE
(B) ID=7X2 L=20 		0-95324-635-0 01 1 1004-1108 ●
62 CLIP; OIL PIPE
(B) ID=7X2 L=20 		0-95324-635-0 01 1 1109- ● ●
62 CLIP; OIL PIPE
(C) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 1004-1108 ●
62 CLIP; OIL PIPE
(C) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 1109- ● ●
62 CLIP; OIL PIPE
(E) ID=21 L=30 H=40 		1-09700-991-1 03 1 1004-1108 ●
62 CLIP; OIL PIPE
(E) ID=21 L=30 H=40 		1-09700-991-1 03 1 1109- ● ●
62 CLIP; OIL PIPE
(D) ID=9 & 9 L=20 		1-09701-321-0 01 1 1004-1108 ●
62 CLIP; OIL PIPE
(D) ID=9 & 9 L=20 		1-09701-321-0 01 1 1109- ● ●
62 CLIP; OIL PIPE
ANTILOCK BRAKE SYSTEM(BFA) (A) ID=24 L=27 		1-09700-809-0 01 1 1004-1108 ●
62 CLIP; OIL PIPE
ANTILOCK BRAKE SYSTEM(BFA) (A) ID=24 L=27 		1-09700-809-0 01 1 1109- ● ●
63 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 03 1 1004-1108 ●
63 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 03 1 1109- ● ●
63 BOLT; CLIP
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1004-1108 ●
63 BOLT; CLIP
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1109- ● ●
63 BOLT; CLIP
ANTILOCK BRAKE SYSTEM(BFA) (A) M8X20 FLANGE 		0-28650-820-0 01 1 1004-1108 ●
63 BOLT; CLIP
ANTILOCK BRAKE SYSTEM(BFA) (A) M8X20 FLANGE 		0-28650-820-0 01 1 1109- ● ●
64 NUT; CLIP
M8 FLANGE SOU 		0-91180-108-0 03 1 1004-1108 ●
64 NUT; CLIP
M8 FLANGE SOU 		0-91180-108-0 03 1 1109- ● ●
65 UNION; OIL PIPE
M12 L=66.5 		0-92113-306-0 02 1 1004-1108 ●
65 UNION; OIL PIPE
M12 L=66.5 		0-92113-306-0 02 1 1109- ● ●
68 BRACKET; UNION
VIN MODEL YEAR 2011<VZB> 		8-98192-283-0 01 1 1109- ●
68 BRACKET; UNION 8-98192-283-0 01 1 1109- ●
68 BRACKET; UNION 8-98109-453-0 01 1 1004-1108 ●
68 BRACKET; UNION
EXC. VIN MODEL YEAR 2011<VZB> 		8-98109-453-0 01 1 1109- ●
69 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1004-1108 ●
69 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1109- ● ●
172 HOSE; FLEX,OIL TILT 8-98086-335-0 02 1 1004-1108 ●
172 HOSE; FLEX,OIL TILT 8-98086-335-0 02 1 1109-1201 ● ●
172 HOSE; FLEX,OIL TILT 8-98086-335-0 01 1 1202- ● ●
172 HOSE; FLEX,OIL TILT 8-98086-335-0 01 1 1202- ● ●
176 NUT; UNION
M12 		9-09840-280-0 02 1 1004-1108 ●
176 NUT; UNION
M12 		9-09840-280-0 02 1 1109- ● ●
177 WASHER; LK,UNION
ID=12.2 SOU 		0-91510-512-0 02 1 1004-1108 ●
177 WASHER; LK,UNION
ID=12.2 SOU 		0-91510-512-0 02 1 1109- ● ●

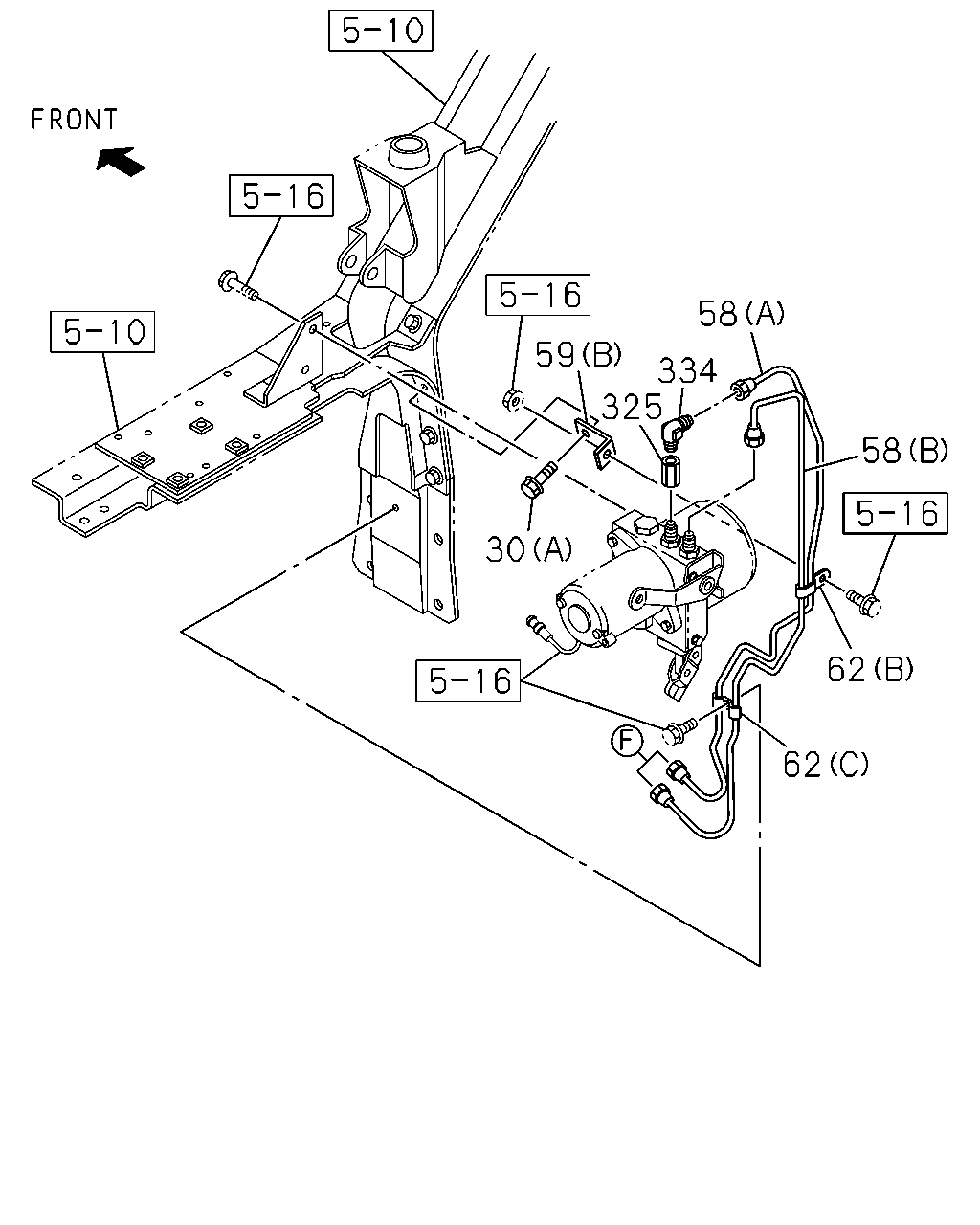

çizim 129528
58 59 334 325 58 30 62 62
BalonParca AdiParca NoAdetTipApplied Date A B
30 BOLT; BRKT FIX
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1004-1108 ●
30 BOLT; BRKT FIX
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1109- ● ●
30 BOLT; BRKT FIX
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1004-1108 ●
30 BOLT; BRKT FIX
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1109- ● ●
58 PIPE; OIL,POWER UNIT
EXC. VIN MODEL YEAR 2011<VZB> (A) L=865 SERVICED BY L=900 		1-47428-729-0 01 1 1109- ●
58 PIPE; OIL,POWER UNIT
EXC. VIN MODEL YEAR 2011<VZB> (B) L=983 SERVICED BY L=1000 		1-47428-730-0 01 1 1109- ●
58 PIPE; OIL,POWER UNIT
(A) L=865 SERVICED BY L=900 		1-47428-729-0 01 1 1004-1108 ●
58 PIPE; OIL,POWER UNIT
VIN MODEL YEAR 2011<VZB> (A) L=860 SERVICED BY L=900 		1-47428-729-0 01 1 1109- ●
58 PIPE; OIL,POWER UNIT
(A) L=860 SERVICED BY L=900 		1-47428-729-0 01 1 1109- ●
58 PIPE; OIL,POWER UNIT
(B) L=983 SERVICED BY L=1000 		1-47428-730-0 01 1 1004-1108 ●
58 PIPE; OIL,POWER UNIT
VIN MODEL YEAR 2011<VZB> (B) L=977 SERVICED BY L=1000 		1-47428-730-0 01 1 1109- ●
58 PIPE; OIL,POWER UNIT
(B) L=977 SERVICED BY L=1000 		1-47428-730-0 01 1 1109- ●
59 BRACKET; CLIP
(B) L=75 		1-47478-323-0 01 1 1004-1108 ●
59 BRACKET; CLIP
ANTILOCK BRAKE SYSTEM(BFA) (B) L=75 		1-47478-323-0 01 1 1004-1108 ●
59 BRACKET; CLIP
(B) L=75 		1-47478-323-0 01 1 1109- ● ●
59 BRACKET; CLIP
ANTILOCK BRAKE SYSTEM(BFA) (B) L=75 		1-47478-323-0 01 1 1109- ● ●
59 BRACKET; CLIP
ANTILOCK BRAKE SYSTEM(BFA) (A) L=115 B=25 		1-47476-758-0 02 1 1004-1108 ●
59 BRACKET; CLIP
ANTILOCK BRAKE SYSTEM(BFA) (A) L=115 B=25 		1-47476-758-0 02 1 1109- ● ●
59 BRACKET; CLIP
EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) L=115 B=25 		1-47476-758-0 01 1 1004- ●
59 BRACKET; CLIP
EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) L=75 		1-47478-323-0 02 1 1004- ●
62 CLIP; OIL PIPE
(B) ID=7X2 L=20 		0-95324-635-0 01 1 1004-1108 ●
62 CLIP; OIL PIPE
(B) ID=7X2 L=20 		0-95324-635-0 01 1 1109- ● ●
62 CLIP; OIL PIPE
(C) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 1004-1108 ●
62 CLIP; OIL PIPE
(C) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 1109- ● ●
62 CLIP; OIL PIPE
(E) ID=21 L=30 H=40 		1-09700-991-1 03 1 1004-1108 ●
62 CLIP; OIL PIPE
(E) ID=21 L=30 H=40 		1-09700-991-1 03 1 1109- ● ●
62 CLIP; OIL PIPE
(D) ID=9 & 9 L=20 		1-09701-321-0 01 1 1004-1108 ●
62 CLIP; OIL PIPE
(D) ID=9 & 9 L=20 		1-09701-321-0 01 1 1109- ● ●
62 CLIP; OIL PIPE
ANTILOCK BRAKE SYSTEM(BFA) (A) ID=24 L=27 		1-09700-809-0 01 1 1004-1108 ●
62 CLIP; OIL PIPE
ANTILOCK BRAKE SYSTEM(BFA) (A) ID=24 L=27 		1-09700-809-0 01 1 1109- ● ●
325 ADAPTER; PUMP
M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 1004-1108 ●
325 ADAPTER; PUMP
M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 1109- ● ●
334 CONNECTOR; PUMP
M12 & PT1/4 ELBOW SOU 		1-09650-430-0 01 1 1004-1108 ●
334 CONNECTOR; PUMP
M12 & PT1/4 ELBOW SOU 		1-09650-430-0 01 1 1109- ● ●
