◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11197 - FXZ SOUTH AFRICA ▶ 5 - Frame, Cab Mounting ▶ 5-10 - CAB MOUNTING; FRAME SIDE ▶
5-10 — CAB MOUNTING; FRAME SIDE (#21825) — 163 parça
çizim 129370
65 202 202 203 204 205 204 203 112 27 51 48 535 191 191 536 51 535 535 51 535 535 191 535 48 535 535 191 27 51 536
BalonParca AdiParca NoAdetTipApplied Date A B
27 BOLT; BUSHING
M18X120 		1-09000-442-1 02 1 1004-1108 ●
27 BOLT; BUSHING
M18X120 		1-09000-442-1 02 1 1109- ● ●
48 WASHER; PL
ID=19 OD=30 		1-09503-279-0 02 1 1004-1108 ●
48 WASHER; PL
ID=19 OD=30 		1-09503-279-0 02 1 1109- ● ●
51 BUSHING; RUBBER 1-53458-714-0 04 1 1004-1108 ●
51 BUSHING; RUBBER 1-53458-714-0 04 1 1109- ● ●
65 ABSORBER; SHOCK,CAB FRT SUSPENSION 1-51630-604-1 02 1 1004-1108 ●
65 ABSORBER; SHOCK,CAB FRT SUSPENSION 1-51630-604-1 02 1 1109- ● ●
112 ARM ASM; LINK,CAB FRT SUSP 8-98100-381-1 01 1 1004-1108 ●
112 ARM ASM; LINK,CAB FRT SUSP 8-98100-381-1 01 1 1109- ● ●
191 BOLT; BRKT FIX
M12X35 FLANGE 		0-28051-235-0 08 1 1004-1108 ●
191 BOLT; BRKT FIX
M12X35 FLANGE 		0-28051-235-0 08 1 1109- ● ●
202 NUT; S/ABS
(A) M10 FLANGE SOU 		0-91150-110-0 02 1 1004-1007 ●
202 NUT; S/ABS
(A) M10 FLANGE SOU 		0-91180-110-0 02 1 1008-1108 ●
202 NUT; S/ABS
(A) M10 FLANGE SOU 		0-91180-110-0 02 1 1109- ● ●
202 NUT; S/ABS
(B) M12 FLANGE SOU 		0-91180-212-0 04 1 1004-1108 ●
202 NUT; S/ABS
(B) M12 FLANGE SOU 		0-91180-212-0 04 1 1109- ● ●
202 NUT; S/ABS
(C) M10 		9-09111-410-0 02 1 1004-1108 ●
202 NUT; S/ABS
(C) M10 		9-09111-410-0 02 1 1109- ● ●
203 WASHER; RUBBER,SHOCK
(A) ID=10.8 OD=38 T=6 		1-51631-005-0 02 1 1004-1108 ●
203 WASHER; RUBBER,SHOCK
(A) ID=10.8 OD=38 T=6 		1-51631-005-0 02 1 1109- ● ●
203 WASHER; RUBBER,SHOCK
(B) ID=10 OD=38 T=5 		1-51631-104-0 02 1 1004-1108 ●
203 WASHER; RUBBER,SHOCK
(B) ID=10 OD=38 T=5 		1-51631-104-0 02 1 1109- ● ●
204 RUBBER; CUSHION,SHOCK 1-51631-004-0 04 1 1004-1108 ●
204 RUBBER; CUSHION,SHOCK 1-51631-004-0 04 1 1109- ● ●
205 WASHER; RUBBER,SHOCK 1-51631-079-0 02 1 1004-1108 ●
205 WASHER; RUBBER,SHOCK 1-51631-079-0 02 1 1109- ● ●
535 BRACKET; LINK ARM
(A) 		8-98094-831-0 02 1 1004-1108 ●
535 BRACKET; LINK ARM
(A) 		8-98094-831-0 02 1 1109- ● ●
535 BRACKET; LINK ARM
(B) 		8-98094-832-0 02 1 1004-1108 ●
535 BRACKET; LINK ARM
(B) 		8-98094-832-0 02 1 1109- ● ●
535 BRACKET; LINK ARM
(C) 		8-98099-704-0 04 1 1004-1108 ●
535 BRACKET; LINK ARM
(C) 		8-98099-704-0 04 1 1109- ● ●
536 WASHER; SIDE
ID=34.5 		1-53458-281-1 02 1 1004-1108 ●
536 WASHER; SIDE
ID=34.5 		1-53458-281-1 02 1 1109- ● ●

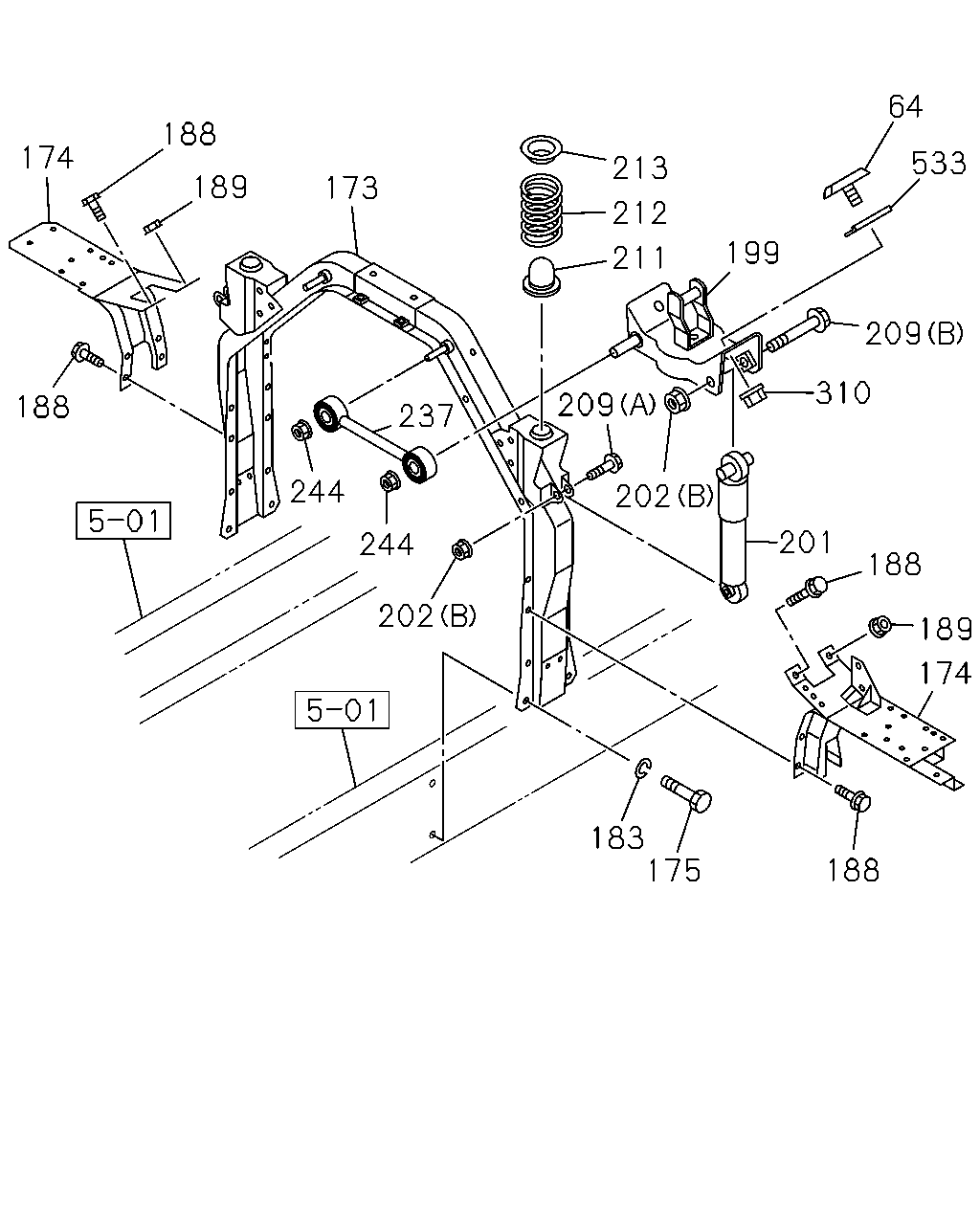

çizim 129372
64 188 174 533 213 189 173 212 199 211 209 310 209 188 237 244 202 201 244 188 202 189 174 183 175 188
BalonParca AdiParca NoAdetTipApplied Date A B
64 RUBBER; CUSHION 8-97113-340-0 04 1 1004-1108 ●
64 RUBBER; CUSHION 8-97113-340-0 04 1 1109- ● ●
173 MEMBER; CAB MTG RR 8-98054-836-3 01 1 1004-1108 ●
173 MEMBER; CAB MTG RR 8-98054-836-3 01 1 1109- ● ●
174 OUTRIGGER 8-98054-839-2 01 1 1004-1108 ●
174 OUTRIGGER 8-98054-839-2 01 1 1109- ● ●
174 OUTRIGGER 8-98054-838-1 01 1 1004-1108 ●
174 OUTRIGGER 8-98054-838-1 01 1 1109- ● ●
175 BOLT; MEMBER TO FRAME
M14X40 SOU 		0-20951-440-0 08 1 1004-1108 ●
175 BOLT; MEMBER TO FRAME
M14X40 SOU 		0-20951-440-0 08 1 1109- ● ●
183 WASHER; PL,MEMBER
ID=15 SOU 		8-98010-627-1 08 1 1004-1108 ●
183 WASHER; PL,MEMBER
ID=15 SOU 		8-98010-627-1 08 1 1109- ● ●
188 BOLT; OUTRIGGER
M12X30 FLANGE 		0-28661-230-0 10 1 1004-1108 ●
188 BOLT; OUTRIGGER
M12X30 FLANGE 		0-28661-230-0 10 1 1109- ● ●
189 NUT; OUTRIGGER
M12 FLANGE SOU 		0-91180-212-0 02 1 1004-1108 ●
189 NUT; OUTRIGGER
M12 FLANGE SOU 		0-91180-212-0 02 1 1109- ● ●
199 BRACKET; CAB RR MTG 8-98025-489-4 01 1 1004-1108 ●
199 BRACKET; CAB RR MTG 8-98025-489-4 01 1 1109-1403 ● ●
199 BRACKET; CAB RR MTG 8-98270-495-0 01 1 1404- ● ●
199 BRACKET; CAB RR MTG 8-98025-488-4 01 1 1004-1108 ●
199 BRACKET; CAB RR MTG 8-98025-488-4 01 1 1109- ● ●
201 ABSORBER ASM; SHOCK,RR MTG 8-98022-450-0 02 1 1004-1108 ●
201 ABSORBER ASM; SHOCK,RR MTG 8-98022-450-0 02 1 1109-1401 ● ●
201 ABSORBER ASM; SHOCK,RR MTG 8-98269-510-0 02 1 1402- ● ●
202 NUT; S/ABS
(A) M10 FLANGE SOU 		0-91150-110-0 02 1 1004-1007 ●
202 NUT; S/ABS
(A) M10 FLANGE SOU 		0-91180-110-0 02 1 1008-1108 ●
202 NUT; S/ABS
(A) M10 FLANGE SOU 		0-91180-110-0 02 1 1109- ● ●
202 NUT; S/ABS
(B) M12 FLANGE SOU 		0-91180-212-0 04 1 1004-1108 ●
202 NUT; S/ABS
(B) M12 FLANGE SOU 		0-91180-212-0 04 1 1109- ● ●
202 NUT; S/ABS
(C) M10 		9-09111-410-0 02 1 1004-1108 ●
202 NUT; S/ABS
(C) M10 		9-09111-410-0 02 1 1109- ● ●
209 BOLT; S/ABS
(A) M12X60 FLANGE 		0-28051-260-0 02 1 1004-1108 ●
209 BOLT; S/ABS
(A) M12X60 FLANGE 		0-28051-260-0 02 1 1109- ● ●
209 BOLT; S/ABS
(B) M12X100 FLANGE 		0-28061-200-0 02 1 1004-1108 ●
209 BOLT; S/ABS
(B) M12X100 FLANGE 		0-28061-200-0 02 1 1109- ● ●
211 RUBBER; CUSHION,S/ABS 1-53366-144-0 02 1 1004-1108 ●
211 RUBBER; CUSHION,S/ABS 1-53366-144-0 02 1 1109- ● ●
212 SPRING; COIL 1-09580-398-1 02 1 1004-1108 ●
212 SPRING; COIL 1-09580-398-1 02 1 1109- ● ●
213 SEAT; SPR,S/ABS 1-53366-062-2 02 1 1004-1108 ●
213 SEAT; SPR,S/ABS 1-53366-062-2 02 1 1109- ● ●
237 ROD ASM; LATERAL 1-53459-585-2 02 1 1004-1108 ●
237 ROD ASM; LATERAL 1-53459-585-2 02 1 1109- ● ●
244 NUT; LATERAL ROD
M16 FLANGE 		0-91180-216-0 04 1 1004-1108 ●
244 NUT; LATERAL ROD
M16 FLANGE 		0-91180-216-0 04 1 1109- ● ●
310 NUT; CUSHION
M8 FLANGE SOU 		0-91180-108-0 04 1 1004-1108 ●
310 NUT; CUSHION
M8 FLANGE SOU 		0-91180-108-0 04 1 1109- ● ●
533 SPACER; MTG RUBBER 8-98100-388-0 04 1 1004-1108 ●
533 SPACER; MTG RUBBER 8-98100-388-0 04 1 1109- ● ●

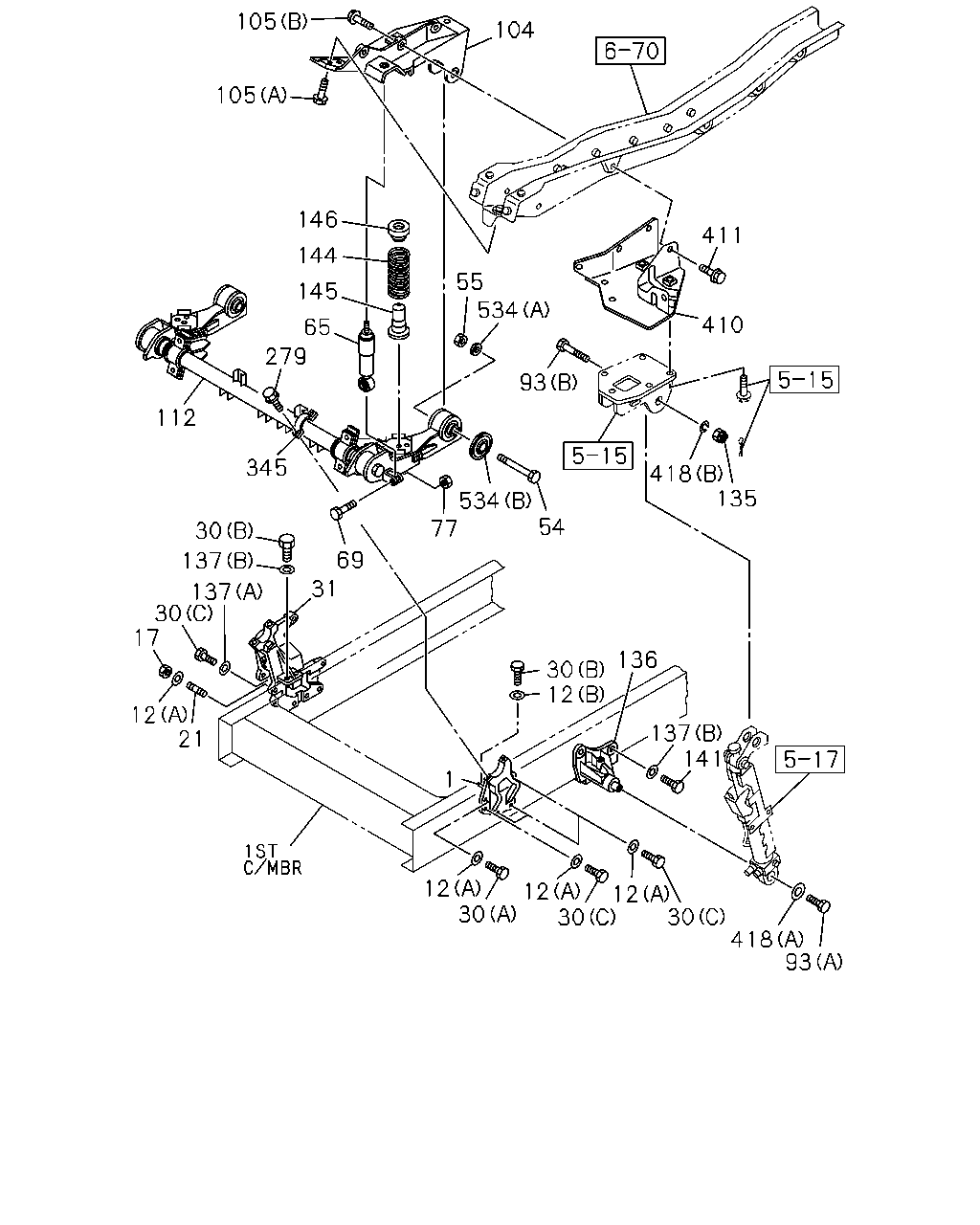

çizim 129412
105 104 105 146 411 144 55 534 145 410 65 279 93 112 345 135 534 77 54 30 69 137 31 137 30 17 136 30 12 12 21 137 141 1 12 30 12 12 30 30 418 93 418
BalonParca AdiParca NoAdetTipApplied Date A B
1 BRACKET; CAB MTG 8-98054-826-0 01 1 1004-1108 ●
1 BRACKET; CAB MTG 8-98054-826-0 01 1 1109- ● ●
12 WASHER; LK,BRKT
(A) ID=16.2 		1-09503-316-0 06 1 1004-1108 ●
12 WASHER; LK,BRKT
(A) ID=16.2 		1-09503-316-0 06 1 1109- ● ●
12 WASHER; LK,BRKT
(B) ID=15 SOU 		8-98010-627-1 02 1 1004-1108 ●
12 WASHER; LK,BRKT
(B) ID=15 SOU 		8-98010-627-1 02 1 1109- ● ●
17 NUT; BRKT,CAB TILT
M16 SOU 		0-91110-516-0 01 1 1004-1108 ●
17 NUT; BRKT,CAB TILT
M16 SOU 		0-91110-516-0 01 1 1109- ● ●
21 STUD; BRKT,CAB TILT
M16X50 L=74 		1-09300-117-0 01 1 1004-1108 ●
21 STUD; BRKT,CAB TILT
M16X50 L=74 		1-09300-117-0 01 1 1109- ● ●
30 BOLT; CAB FRT FOOT
(B) M14X60 		0-20951-460-0 04 1 1004-1108 ●
30 BOLT; CAB FRT FOOT
(B) M14X60 		0-20951-460-0 04 1 1109- ● ●
30 BOLT; CAB FRT FOOT
(C) M16X50 		0-20951-650-0 09 1 1004-1108 ●
30 BOLT; CAB FRT FOOT
(C) M16X50 		0-20951-650-0 09 1 1109- ● ●
30 BOLT; CAB FRT FOOT
(A) M16X60 		0-20951-660-0 01 1 1004-1108 ●
30 BOLT; CAB FRT FOOT
(A) M16X60 		0-20951-660-0 01 1 1109- ● ●
31 BRACKET; CAB 1-44226-181-0 01 1 1004-1108 ●
31 BRACKET; CAB 1-44226-181-0 01 1 1109- ● ●
54 BOLT; RUBBER
M18X90 		0-10856-890-0 02 1 1004-1108 ●
54 BOLT; RUBBER
M18X90 		0-10856-890-0 02 1 1109- ● ●
55 NUT; RUBBER
M18 		0-91110-518-0 02 1 1004-1108 ●
55 NUT; RUBBER
M18 		0-91110-518-0 02 1 1109- ● ●
65 ABSORBER; SHOCK,CAB FRT SUSPENSION 1-51630-604-1 02 1 1004-1108 ●
65 ABSORBER; SHOCK,CAB FRT SUSPENSION 1-51630-604-1 02 1 1109- ● ●
69 BOLT; S/ABS,CAB FRT SUSPENSION
M12X60 		0-20801-260-0 02 1 1004-1108 ●
69 BOLT; S/ABS,CAB FRT SUSPENSION
M12X60 		0-20801-260-0 02 1 1109- ● ●
77 NUT
M12 FLANGE SOU 		0-91180-212-0 02 1 1004-1108 ●
77 NUT
M12 FLANGE SOU 		0-91180-212-0 02 1 1109- ● ●
93 BOLT; PIN
(A) M10X30 		1-09000-283-0 01 1 1004-1108 ●
93 BOLT; PIN
(A) M10X30 		1-09000-283-0 01 1 1109- ● ●
93 BOLT; PIN
(B) M14X70 		1-53458-633-0 01 1 1004-1108 ●
93 BOLT; PIN
(B) M14X70 		1-53458-633-0 01 1 1109- ● ●
104 BRACKET; CAB FRAME,CAB FRT MTG 8-98054-822-2 01 1 1004-1108 ●
104 BRACKET; CAB FRAME,CAB FRT MTG 8-98054-822-2 01 1 1109- ● ●
104 BRACKET; CAB FRAME,CAB FRT MTG 8-98054-821-2 01 1 1004-1108 ●
104 BRACKET; CAB FRAME,CAB FRT MTG 8-98054-821-2 01 1 1109- ● ●
105 BOLT; BRKT TO CAB FRAME
(A) M12X35 FLANGE SOU 		0-28651-235-0 06 1 1004-1108 ●
105 BOLT; BRKT TO CAB FRAME
(A) M12X35 FLANGE SOU 		0-28651-235-0 06 1 1109- ● ●
105 BOLT; BRKT TO CAB FRAME
(B) M10X30 FLANGE SOU 		0-28661-030-0 08 1 1004-1108 ●
105 BOLT; BRKT TO CAB FRAME
(B) M10X30 FLANGE SOU 		0-28661-030-0 08 1 1109- ● ●
112 ARM ASM; LINK,CAB FRT SUSP 8-98100-381-1 01 1 1004-1108 ●
112 ARM ASM; LINK,CAB FRT SUSP 8-98100-381-1 01 1 1109- ● ●
135 NUT; PIN
M14 SLOTTED 		0-91116-514-0 01 1 1004-1108 ●
135 NUT; PIN
M14 SLOTTED 		0-91116-514-0 01 1 1109- ● ●
136 BRACKET; OIL CYL 8-98054-835-0 01 1 1004-1108 ●
136 BRACKET; OIL CYL 8-98054-835-0 01 1 1109- ● ●
137 WASHER; PL,BRKT
(A) ID=16.2 		1-09503-316-0 05 1 1004-1108 ●
137 WASHER; PL,BRKT
(A) ID=16.2 		1-09503-316-0 05 1 1109- ● ●
137 WASHER; PL,BRKT
(B) ID=15 SOU 		8-98010-627-1 02 1 1004-1108 ●
137 WASHER; PL,BRKT
(B) ID=15 SOU 		8-98010-627-1 02 1 1109- ● ●
137 WASHER; PL,BRKT
(B) ID=15 SOU 		8-98010-627-1 04 1 1004-1108 ●
137 WASHER; PL,BRKT
(B) ID=15 SOU 		8-98010-627-1 04 1 1109- ● ●
141 BOLT; BRKT
M14X50 SOU 		0-20951-450-0 04 1 1004-1108 ●
141 BOLT; BRKT
M14X50 SOU 		0-20951-450-0 04 1 1109- ● ●
144 SPRING; COIL,CAB FRT SUSPENSION 1-09580-537-0 02 1 1004-1108 ●
144 SPRING; COIL,CAB FRT SUSPENSION 1-09580-537-0 02 1 1109- ● ●
145 RUBBER; CUSHION,CAB FRT SUSPENSION 1-53366-139-0 02 1 1004-1108 ●
145 RUBBER; CUSHION,CAB FRT SUSPENSION 1-53366-139-0 02 1 1109- ● ●
146 SEAT; SPRING,CAB FRT SUSPENSION 1-53366-138-0 02 1 1004-1108 ●
146 SEAT; SPRING,CAB FRT SUSPENSION 1-53366-138-0 02 1 1109- ● ●
279 BOLT
M12X40 FLANGE 		0-28061-240-0 04 1 1004-1108 ●
279 BOLT
M12X40 FLANGE 		0-28061-240-0 04 1 1109-1510 ● ●
279 BOLT
M12X40 FLANGE 		8-98270-173-0 04 1 1511- ● ●
345 CAP; CAB 1-53458-336-3 02 1 1004-1108 ●
345 CAP; CAB 1-53458-336-3 02 1 1109- ● ●
410 REINFORCEMENT; CAB TILT 8-98054-960-3 01 1 1004-1108 ●
410 REINFORCEMENT; CAB TILT 8-98054-960-3 01 1 1109- ● ●
411 BOLT; REINFORCEMENT
M8X20 FLANGE 		0-28650-820-0 03 1 1004-1108 ●
411 BOLT; REINFORCEMENT
M8X20 FLANGE 		0-28650-820-0 03 1 1109- ● ●
411 BOLT; REINFORCEMENT
M10X30 FLANGE SOU 		0-28661-030-0 02 1 1004-1108 ●
411 BOLT; REINFORCEMENT
M10X30 FLANGE SOU 		0-28661-030-0 02 1 1109- ● ●
418 WASHER; PL,PIN
(B) ID=14.2 SOU 		0-91510-814-0 01 1 1004-1108 ●
418 WASHER; PL,PIN
(B) ID=14.2 SOU 		0-91510-814-0 01 1 1109- ● ●
418 WASHER; PL,PIN
(A) ID=10.5 OD=32 		0-91614-810-0 01 1 1004-1108 ●
418 WASHER; PL,PIN
(A) ID=10.5 OD=32 		0-91614-810-0 01 1 1109- ● ●
534 WASHER; RUBBER
(A) ID=19 OD=30 		1-09503-279-0 02 1 1004-1108 ●
534 WASHER; RUBBER
(A) ID=19 OD=30 		1-09503-279-0 02 1 1109- ● ●
534 WASHER; RUBBER
(B) ID=34.5 		1-53458-281-1 02 1 1004-1108 ●
534 WASHER; RUBBER
(B) ID=34.5 		1-53458-281-1 02 1 1109- ● ●
