◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11197 - FXZ SOUTH AFRICA ▶ 5 - Frame, Cab Mounting ▶ 5-01 - FRAME AND OTHER PARTS ▶
5-01 — FRAME AND OTHER PARTS (#21824) — 200 parça

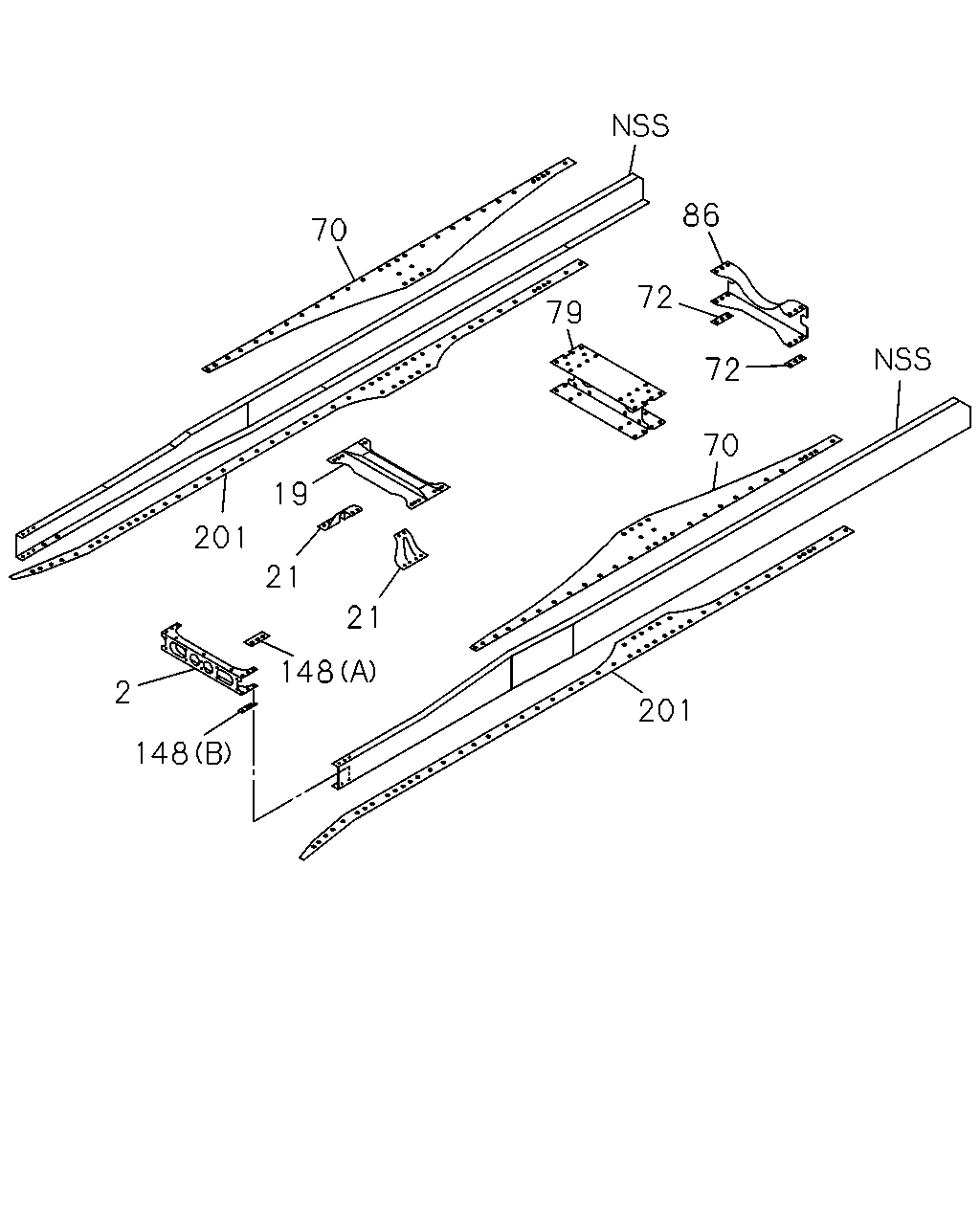

çizim 129337
86 70 79 72 72 70 19 201 21 21 148 2 201 148
BalonParca AdiParca NoAdetTipApplied Date A B C
2 MEMBER; CROSS,1ST 8-97623-017-3 01 1 1004-1108 ●
2 MEMBER; CROSS,1ST 8-97623-017-3 01 1 1109- ● ● ●
19 MEMBER; CROSS,2ND 1-53174-265-0 01 1 1109-1202 ●
19 MEMBER; CROSS,2ND
SOU 		8-98098-303-0 01 1 1203- ●
19 MEMBER; CROSS,2ND 1-53174-221-0 01 1 1004-1108 ●
19 MEMBER; CROSS,2ND 1-53174-221-0 01 1 1109- ● ●
21 GUSSET; 2ND CROSS 1-53164-226-0 01 1 1109-1202 ●
21 GUSSET; 2ND CROSS
SOU 		8-98202-398-0 01 1 1203- ●
21 GUSSET; 2ND CROSS 1-53164-227-0 01 1 1109-1202 ●
21 GUSSET; 2ND CROSS
SOU 		8-98202-399-0 01 1 1203- ●
21 GUSSET; 2ND CROSS 1-53164-225-0 02 1 1004-1108 ●
21 GUSSET; 2ND CROSS 1-53164-225-0 02 1 1109- ● ●
70 GUSSET; TRUNNION,UPR 8-98178-758-0 02 1 1109- ●
70 GUSSET; TRUNNION,UPR 8-97618-852-0 02 1 1109- ●
70 GUSSET; TRUNNION,UPR 1-53161-478-0 02 1 1004- ●
72 SPACER; TRUNNION 1-53168-100-0 02 1 1109- ●
79 MEMBER; CROSS,TRUNNION ASM 1-53181-729-6 01 1 1109- ●
79 MEMBER; CROSS,TRUNNION ASM 8-97626-665-0 01 1 1004-1108 ●
79 MEMBER; CROSS,TRUNNION ASM 8-97626-665-1 01 1 1109- ● ●
86 MEMBER; CROSS,RR SUSP RR 8-97623-323-0 01 1 1109- ●
86 MEMBER; CROSS,RR SUSP RR 8-97626-664-0 01 1 1004-1108 ●
86 MEMBER; CROSS,RR SUSP RR 8-97626-664-0 01 1 1109- ● ●
148 SPACER; C/MBR
(A) 		1-53168-400-1 02 1 1109- ● ● ●
148 SPACER; C/MBR
(A) 		1-53168-400-1 02 1 1004-1108 ●
148 SPACER; C/MBR
(B) 		1-53168-403-1 02 1 1004-1108 ●
148 SPACER; C/MBR
(B) 		1-53168-403-1 02 1 1109- ● ● ●
201 GUSSET; C/MBR 8-98178-757-0 02 1 1109- ●
201 GUSSET; C/MBR
VIN MODEL YEAR 2011<VZB> 		8-98152-462-0 02 1 1109- ●
201 GUSSET; C/MBR 8-98152-427-0 02 1 1109- ●
201 GUSSET; C/MBR 8-97624-306-1 02 1 1004-1108 ●
201 GUSSET; C/MBR
EXC. VIN MODEL YEAR 2011<VZB> 		8-97624-306-1 02 1 1109- ●

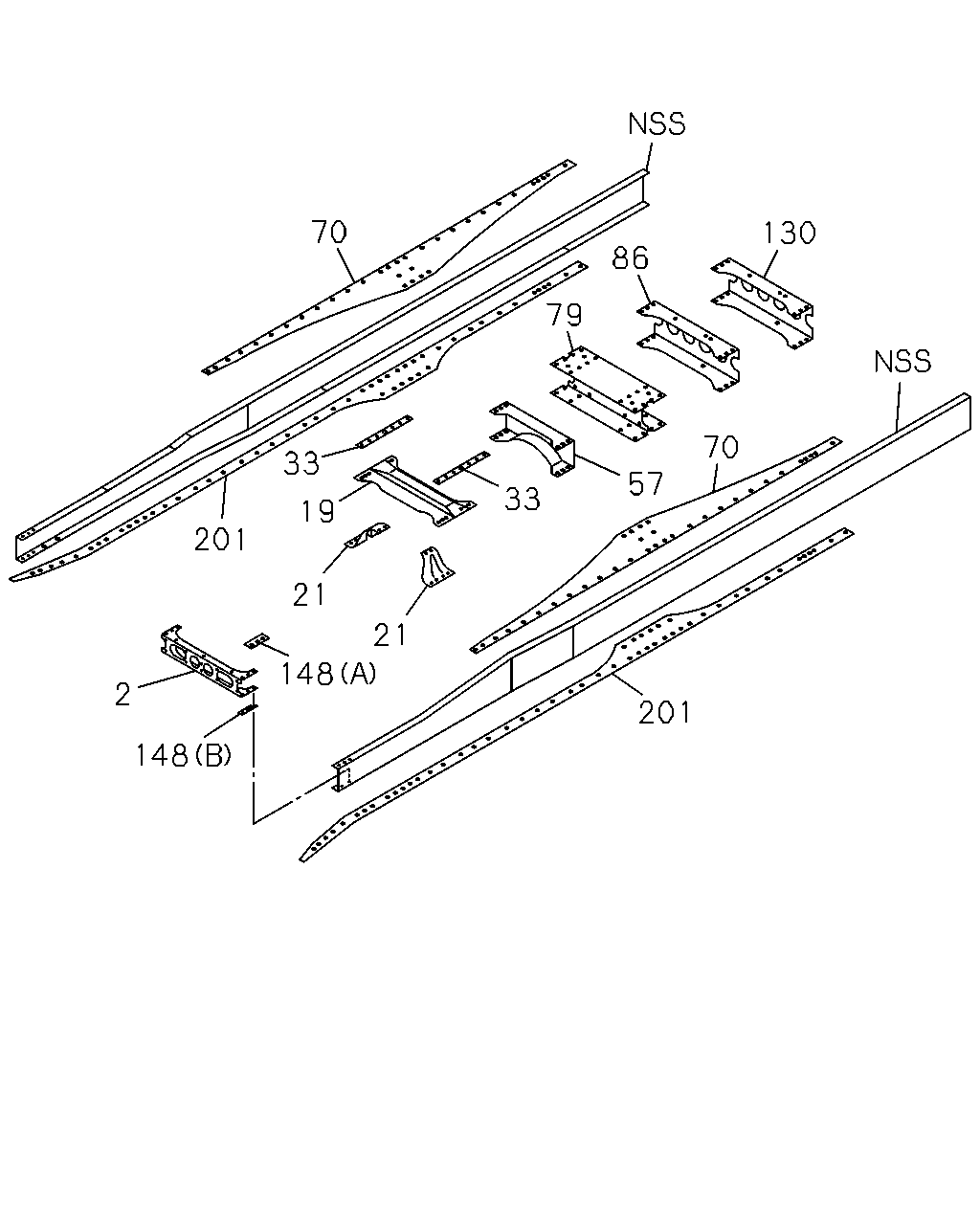

çizim 129345
70 130 86 79 33 70 57 33 19 201 21 21 148 2 201 148
BalonParca AdiParca NoAdetTipApplied Date A B C
2 MEMBER; CROSS,1ST 8-97623-017-3 01 1 1004-1108 ●
2 MEMBER; CROSS,1ST 8-97623-017-3 01 1 1109- ● ● ●
19 MEMBER; CROSS,2ND 1-53174-265-0 01 1 1109-1202 ●
19 MEMBER; CROSS,2ND
SOU 		8-98098-303-0 01 1 1203- ●
19 MEMBER; CROSS,2ND 1-53174-221-0 01 1 1004-1108 ●
19 MEMBER; CROSS,2ND 1-53174-221-0 01 1 1109- ● ●
21 GUSSET; 2ND CROSS 1-53164-226-0 01 1 1109-1202 ●
21 GUSSET; 2ND CROSS
SOU 		8-98202-398-0 01 1 1203- ●
21 GUSSET; 2ND CROSS 1-53164-227-0 01 1 1109-1202 ●
21 GUSSET; 2ND CROSS
SOU 		8-98202-399-0 01 1 1203- ●
21 GUSSET; 2ND CROSS 1-53164-225-0 02 1 1004-1108 ●
21 GUSSET; 2ND CROSS 1-53164-225-0 02 1 1109- ● ●
33 SPACER; 2ND C/MBR,UPR 1-53168-443-0 02 1 1004-1108 ●
33 SPACER; 2ND C/MBR,UPR 1-53168-443-0 02 1 1109- ● ●
57 MEMBER; CROSS,RR SUSP FRT 1-53181-994-1 01 1 1004-1108 ●
57 MEMBER; CROSS,RR SUSP FRT 1-53181-994-1 01 1 1109- ● ●
70 GUSSET; TRUNNION,UPR 8-98178-758-0 02 1 1109- ●
70 GUSSET; TRUNNION,UPR 8-97618-852-0 02 1 1109- ●
70 GUSSET; TRUNNION,UPR 1-53161-478-0 02 1 1004- ●
79 MEMBER; CROSS,TRUNNION ASM 1-53181-729-6 01 1 1109- ●
79 MEMBER; CROSS,TRUNNION ASM 8-97626-665-0 01 1 1004-1108 ●
79 MEMBER; CROSS,TRUNNION ASM 8-97626-665-1 01 1 1109- ● ●
86 MEMBER; CROSS,RR SUSP RR 8-97623-323-0 01 1 1109- ●
86 MEMBER; CROSS,RR SUSP RR 8-97626-664-0 01 1 1004-1108 ●
86 MEMBER; CROSS,RR SUSP RR 8-97626-664-0 01 1 1109- ● ●
130 MEMBER; CROSS,END 8-98103-325-1 01 1 1109- ●
130 MEMBER; CROSS,END 1-53181-537-2 01 1 1004- ●
148 SPACER; C/MBR
(A) 		1-53168-400-1 02 1 1109- ● ● ●
148 SPACER; C/MBR
(A) 		1-53168-400-1 02 1 1004-1108 ●
148 SPACER; C/MBR
(B) 		1-53168-403-1 02 1 1004-1108 ●
148 SPACER; C/MBR
(B) 		1-53168-403-1 02 1 1109- ● ● ●
201 GUSSET; C/MBR 8-98178-757-0 02 1 1109- ●
201 GUSSET; C/MBR
VIN MODEL YEAR 2011<VZB> 		8-98152-462-0 02 1 1109- ●
201 GUSSET; C/MBR 8-98152-427-0 02 1 1109- ●
201 GUSSET; C/MBR 8-97624-306-1 02 1 1004-1108 ●
201 GUSSET; C/MBR
EXC. VIN MODEL YEAR 2011<VZB> 		8-97624-306-1 02 1 1109- ●

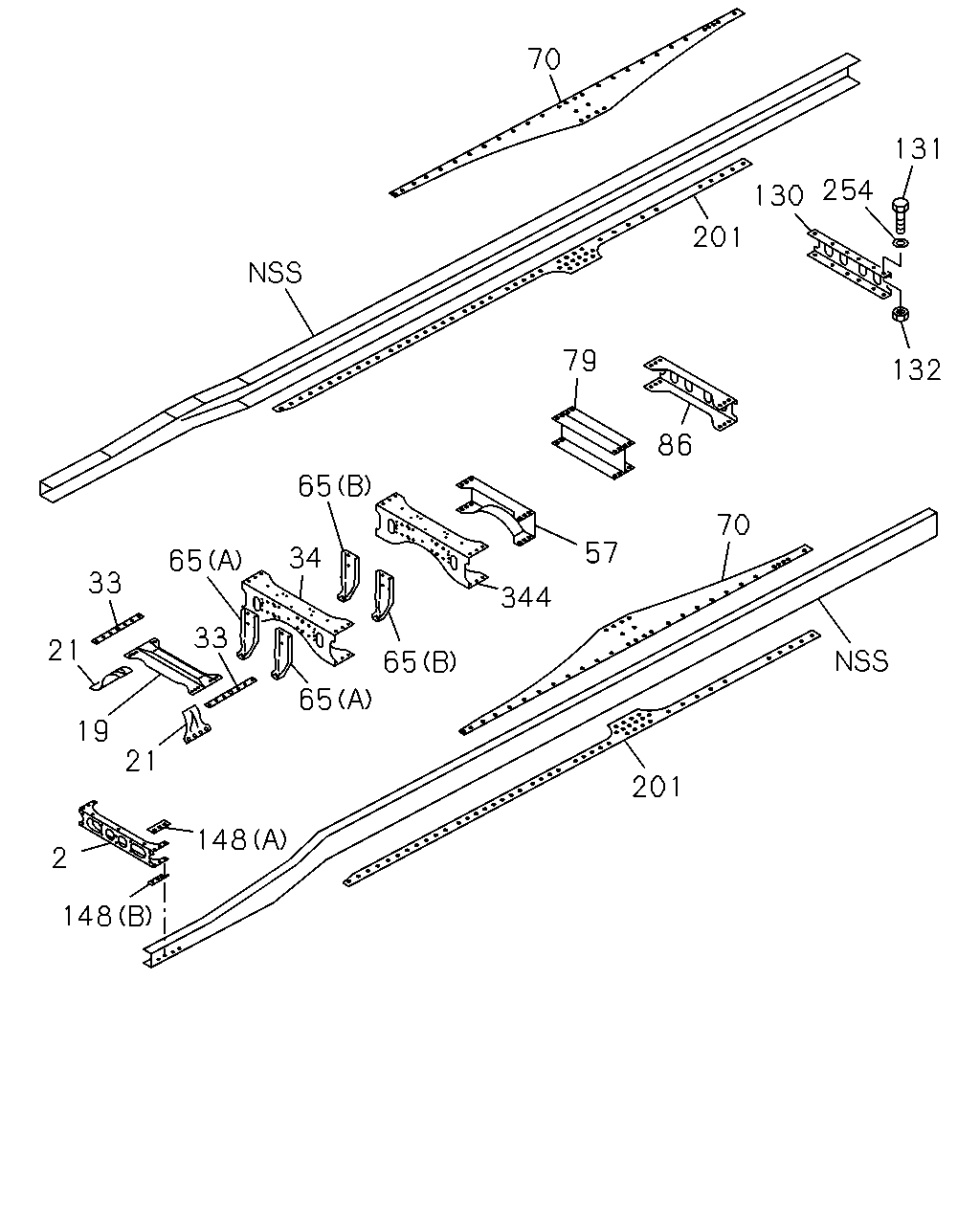

çizim 129356
70 131 254 130 201 79 132 86 65 70 57 34 65 33 344 33 21 65 65 19 21 201 148 148 2
BalonParca AdiParca NoAdetTipApplied Date A B C
2 MEMBER; CROSS,1ST 8-97623-017-3 01 1 1004-1108 ●
2 MEMBER; CROSS,1ST 8-97623-017-3 01 1 1109- ● ● ●
19 MEMBER; CROSS,2ND 1-53174-265-0 01 1 1109-1202 ●
19 MEMBER; CROSS,2ND
SOU 		8-98098-303-0 01 1 1203- ●
19 MEMBER; CROSS,2ND 1-53174-221-0 01 1 1004-1108 ●
19 MEMBER; CROSS,2ND 1-53174-221-0 01 1 1109- ● ●
21 GUSSET; 2ND CROSS 1-53164-226-0 01 1 1109-1202 ●
21 GUSSET; 2ND CROSS
SOU 		8-98202-398-0 01 1 1203- ●
21 GUSSET; 2ND CROSS 1-53164-227-0 01 1 1109-1202 ●
21 GUSSET; 2ND CROSS
SOU 		8-98202-399-0 01 1 1203- ●
21 GUSSET; 2ND CROSS 1-53164-225-0 02 1 1004-1108 ●
21 GUSSET; 2ND CROSS 1-53164-225-0 02 1 1109- ● ●
33 SPACER; 2ND C/MBR,UPR 1-53168-443-0 02 1 1004-1108 ●
33 SPACER; 2ND C/MBR,UPR 1-53168-443-0 02 1 1109- ● ●
34 MEMBER; CROSS,3RD 1-53181-640-3 01 1 1004- ●
57 MEMBER; CROSS,RR SUSP FRT 1-53181-994-1 01 1 1004-1108 ●
57 MEMBER; CROSS,RR SUSP FRT 1-53181-994-1 01 1 1109- ● ●
65 BRACKET; CENTER BRG
(B) 		8-97614-126-0 02 1 1004- ●
65 BRACKET; CENTER BRG
(A) 		8-97614-130-0 02 1 1004- ●
70 GUSSET; TRUNNION,UPR 8-98178-758-0 02 1 1109- ●
70 GUSSET; TRUNNION,UPR 8-97618-852-0 02 1 1109- ●
70 GUSSET; TRUNNION,UPR 1-53161-478-0 02 1 1004- ●
79 MEMBER; CROSS,TRUNNION ASM 1-53181-729-6 01 1 1109- ●
79 MEMBER; CROSS,TRUNNION ASM 8-97626-665-0 01 1 1004-1108 ●
79 MEMBER; CROSS,TRUNNION ASM 8-97626-665-1 01 1 1109- ● ●
86 MEMBER; CROSS,RR SUSP RR 8-97623-323-0 01 1 1109- ●
86 MEMBER; CROSS,RR SUSP RR 8-97626-664-0 01 1 1004-1108 ●
86 MEMBER; CROSS,RR SUSP RR 8-97626-664-0 01 1 1109- ● ●
130 MEMBER; CROSS,END 8-98103-325-1 01 1 1109- ●
130 MEMBER; CROSS,END 1-53181-537-2 01 1 1004- ●
131 BOLT; END C/MBR
M14X40 SOU 		0-20951-440-0 04 1 1004- ●
132 NUT; END C/MBR
M14 SOU 		0-91110-514-0 04 1 1004- ●
148 SPACER; C/MBR
(A) 		1-53168-400-1 02 1 1109- ● ● ●
148 SPACER; C/MBR
(A) 		1-53168-400-1 02 1 1004-1108 ●
148 SPACER; C/MBR
(B) 		1-53168-403-1 02 1 1004-1108 ●
148 SPACER; C/MBR
(B) 		1-53168-403-1 02 1 1109- ● ● ●
201 GUSSET; C/MBR 8-98178-757-0 02 1 1109- ●
201 GUSSET; C/MBR
VIN MODEL YEAR 2011<VZB> 		8-98152-462-0 02 1 1109- ●
201 GUSSET; C/MBR 8-98152-427-0 02 1 1109- ●
201 GUSSET; C/MBR 8-97624-306-1 02 1 1004-1108 ●
201 GUSSET; C/MBR
EXC. VIN MODEL YEAR 2011<VZB> 		8-97624-306-1 02 1 1109- ●
254 WASHER; PL,C/MBR
ID=15 SOU 		8-98010-627-1 04 1 1004- ●
344 MEMBER; CROSS,4TH 1-53181-640-3 01 1 1004- ●
çizim 129494
82 84 82 84 84 79 84
BalonParca AdiParca NoAdetTipApplied Date A B C
79 MEMBER; CROSS,TRUNNION ASM 1-53181-729-6 01 1 1109- ●
79 MEMBER; CROSS,TRUNNION ASM 8-97626-665-0 01 1 1004-1108 ●
79 MEMBER; CROSS,TRUNNION ASM 8-97626-665-1 01 1 1109- ● ●
82 NUT; BRKT
M14 SOU 		0-91110-514-0 12 1 1109- ●
82 NUT; BRKT
M14 SOU 		0-91110-514-0 04 1 1004-1108 ●
82 NUT; BRKT
M14 SOU 		0-91110-514-0 04 1 1109- ● ● ●
84 WASHER; PL,BRKT
(A) ID=15 OD=26 		0-91614-514-0 16 1 1109- ●
84 WASHER; PL,BRKT
(B) ID=15 SOU 		8-98010-627-1 08 1 1004-1108 ●
84 WASHER; PL,BRKT
(B) ID=15 SOU 		8-98010-627-1 08 1 1109- ● ● ●

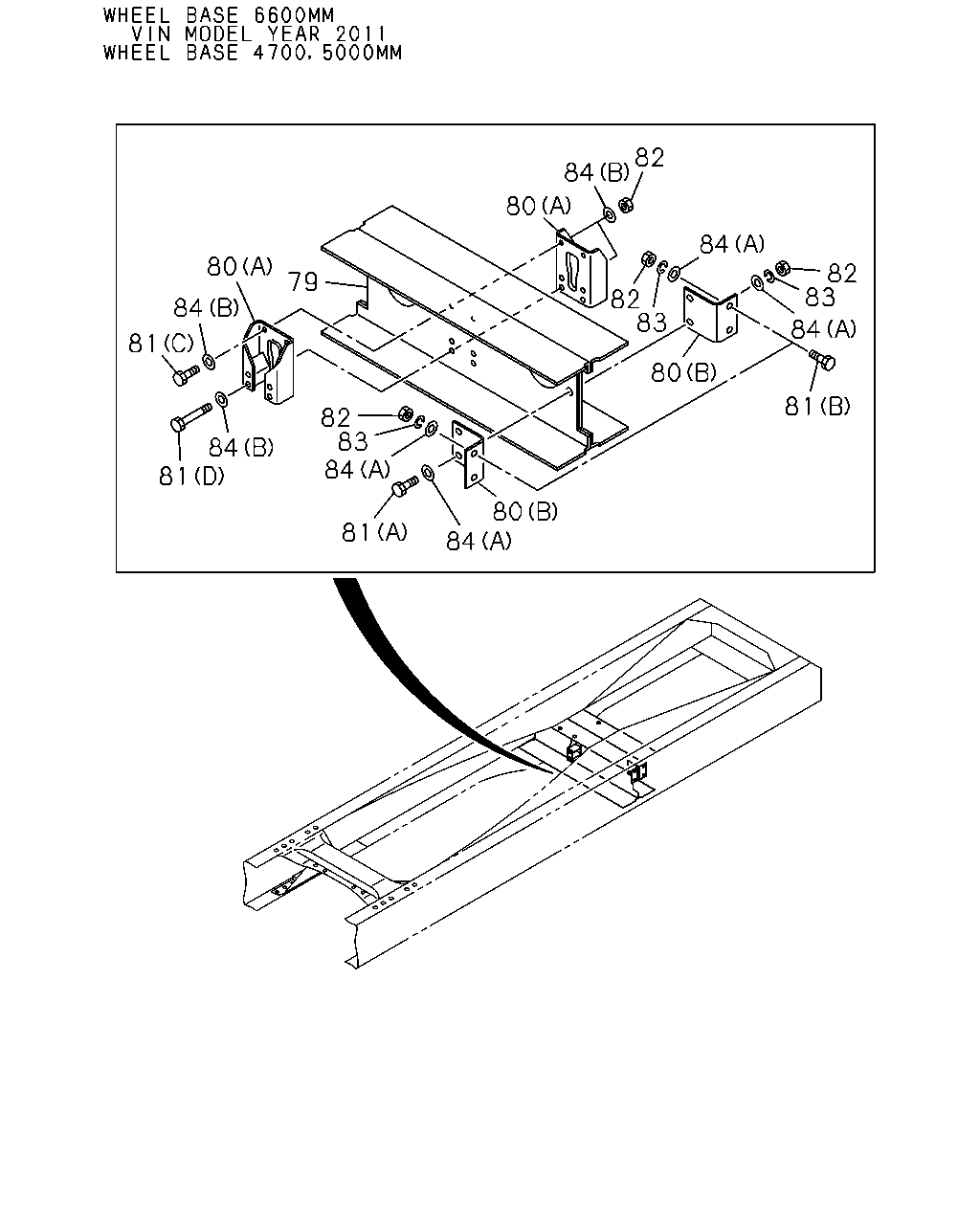

çizim 129499
82 84 80 84 80 82 83 79 82 83 84 84 81 80 81 82 83 84 84 81 80 84 81
BalonParca AdiParca NoAdetTipApplied Date A B C
79 MEMBER; CROSS,TRUNNION ASM 1-53181-729-6 01 1 1109- ●
79 MEMBER; CROSS,TRUNNION ASM 8-97626-665-0 01 1 1004-1108 ●
79 MEMBER; CROSS,TRUNNION ASM 8-97626-665-1 01 1 1109- ● ●
80 BRACKET; C/MBR
VIN MODEL YEAR 2011<VZB> (A) 		1-53363-031-2 02 1 1109- ●
80 BRACKET; C/MBR
(A) 		1-53363-031-2 02 1 1109- ● ●
80 BRACKET; C/MBR
(B) 		1-53167-610-0 04 1 1109- ●
81 BOLT; BRKT
VIN MODEL YEAR 2011<VZB> (C) M14X50 SOU 		0-20951-450-0 02 1 1109- ●
81 BOLT; BRKT
(C) M14X50 SOU 		0-20951-450-0 02 1 1109- ● ●
81 BOLT; BRKT
VIN MODEL YEAR 2011<VZB> (D) M14X205 		1-09000-147-0 02 1 1109- ●
81 BOLT; BRKT
(D) M14X205 		1-09000-147-0 02 1 1109- ● ●
81 BOLT; BRKT
(B) M14X40 SOU 		0-20951-440-0 08 1 1109- ●
81 BOLT; BRKT
(A) M14X55 		9-91066-455-0 04 1 1109- ●
82 NUT; BRKT
M14 SOU 		0-91110-514-0 12 1 1109- ●
82 NUT; BRKT
M14 SOU 		0-91110-514-0 04 1 1004-1108 ●
82 NUT; BRKT
M14 SOU 		0-91110-514-0 04 1 1109- ● ● ●
83 WASHER; LK,BRKT
ID=14.2 SOU 		0-91510-614-0 12 1 1109- ●
84 WASHER; PL,BRKT
(A) ID=15 OD=26 		0-91614-514-0 16 1 1109- ●
84 WASHER; PL,BRKT
(B) ID=15 SOU 		8-98010-627-1 08 1 1004-1108 ●
84 WASHER; PL,BRKT
(B) ID=15 SOU 		8-98010-627-1 08 1 1109- ● ● ●

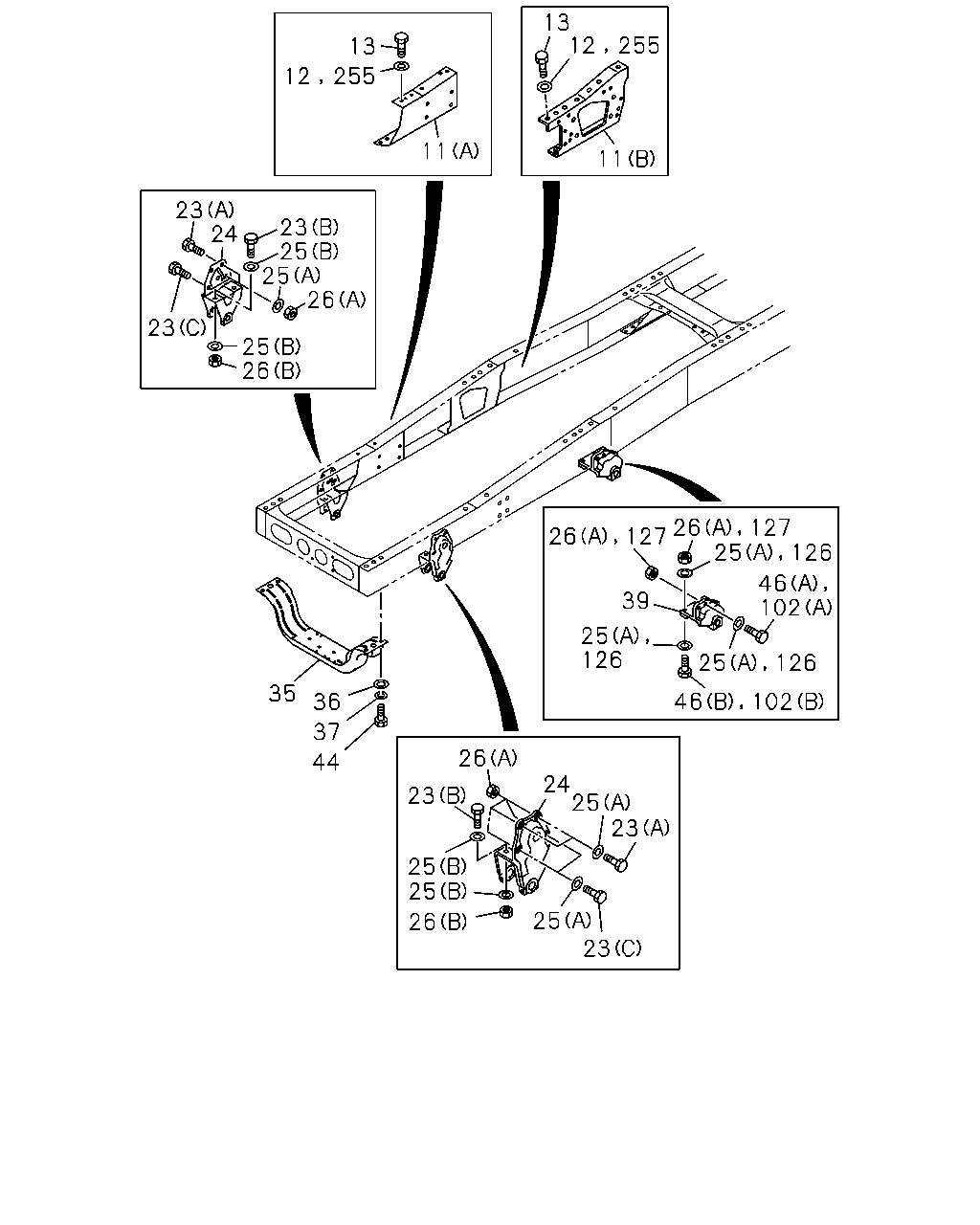

çizim 129500
13 13 11 11 23 24 23 25 25 26 23 25 26 26 127 127 25 126 26 46 102 39 25 126 25 126 35 46 102 36 37 26 44 24 25 23 23 25 25 25 23 26 12 255 12 255
BalonParca AdiParca NoAdetTipApplied Date A B C
11 BRACKET; ENG MTG
(B) 		8-98055-432-1 01 1 1109- ●
11 BRACKET; ENG MTG
(B) 		8-98055-433-0 01 1 1109- ●
11 BRACKET; ENG MTG
(A) 		8-98059-446-1 01 1 1004-1108 ●
11 BRACKET; ENG MTG
(A) 		8-98059-446-1 01 1 1109- ● ● ●
11 BRACKET; ENG MTG
(B) 		8-98084-525-0 01 1 1004-1108 ●
11 BRACKET; ENG MTG
(B) 		8-98084-525-0 01 1 1109- ● ●
11 BRACKET; ENG MTG
(A) 		8-98059-445-1 01 1 1004-1108 ●
11 BRACKET; ENG MTG
(A) 		8-98059-445-1 01 1 1109- ● ● ●
11 BRACKET; ENG MTG
(B) 		8-98084-524-0 01 1 1004-1108 ●
11 BRACKET; ENG MTG
(B) 		8-98084-524-0 01 1 1109- ● ●
12 WASHER; PL,BRKT,ENG MTG
ID=15 SOU 		8-98010-627-1 14 1 1004-1108 ●
12 WASHER; PL,BRKT,ENG MTG
EXC. VIN MODEL YEAR 2011<VZB> ID=15 SOU 		8-98010-627-1 14 1 1109- ●
13 BOLT; BRKT,ENG MTG
M14X35 SOU 		0-20951-435-0 04 1 1004-1108 ●
13 BOLT; BRKT,ENG MTG
M14X35 SOU 		0-20951-435-0 04 1 1109- ● ● ●
13 BOLT; BRKT,ENG MTG
M14X40 SOU 		0-20951-440-0 10 1 1004-1108 ●
13 BOLT; BRKT,ENG MTG
M14X40 SOU 		0-20951-440-0 10 1 1109- ● ● ●
23 BOLT; BRKT,SPR
(A) M14X40 SOU 		0-20951-440-0 04 1 1004-1108 ●
23 BOLT; BRKT,SPR
(A) M14X40 SOU 		0-20951-440-0 04 1 1109- ● ● ●
23 BOLT; BRKT,SPR
(B) M16X50 		0-20951-650-0 04 1 1004-1108 ●
23 BOLT; BRKT,SPR
(B) M16X50 		0-20951-650-0 04 1 1109- ● ● ●
23 BOLT; BRKT,SPR
(C) M14X43 		8-98097-159-0 04 1 1004-1108 ●
23 BOLT; BRKT,SPR
(C) M14X43 		8-98097-159-0 04 1 1109- ● ● ●
24 BRACKET; FRT SPR,FRT 8-98052-580-0 02 1 1004-1108 ●
24 BRACKET; FRT SPR,FRT 8-98052-580-0 02 1 1109- ● ● ●
25 WASHER; PL,BRKT
VIN MODEL YEAR 2011<VZB> (A) ID=15 SOU 		8-98010-627-1 20 1 1109- ●
25 WASHER; PL,BRKT
(A) ID=15 SOU 		8-98010-627-1 20 1 1109- ● ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-316-0 08 1 1004-1108 ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-316-0 08 1 1109- ● ● ●
25 WASHER; PL,BRKT
(A) ID=15 SOU 		8-98010-627-1 08 1 1004-1108 ●
25 WASHER; PL,BRKT
EXC. VIN MODEL YEAR 2011<VZB> (A) ID=15 SOU 		8-98010-627-1 08 1 1109- ●
26 NUT; BRKT,SPR
VIN MODEL YEAR 2011<VZB> (A) M14 SOU 		0-91110-514-0 16 1 1109- ●
26 NUT; BRKT,SPR
(A) M14 SOU 		0-91110-514-0 16 1 1109- ● ●
26 NUT; BRKT,SPR
(A) M14 SOU 		0-91110-514-0 08 1 1004-1108 ●
26 NUT; BRKT,SPR
EXC. VIN MODEL YEAR 2011<VZB> (A) M14 SOU 		0-91110-514-0 08 1 1109- ●
26 NUT; BRKT,SPR
(B) M16 SOU 		0-91110-516-0 04 1 1004-1108 ●
26 NUT; BRKT,SPR
(B) M16 SOU 		0-91110-516-0 04 1 1109- ● ● ●
35 MEMBER; UNDER 1-53174-263-2 01 1 1004-1108 ●
35 MEMBER; UNDER 1-53174-263-2 01 1 1109- ● ● ●
36 WASHER; PL,UNDER MBR
ID=17 SOU 		9-09164-516-0 04 1 1004-1108 ●
36 WASHER; PL,UNDER MBR
ID=17 SOU 		9-09164-516-0 04 1 1109- ● ● ●
37 WASHER; LK,UNDER MBR
ID=16.2 SOU 		0-91510-816-0 04 1 1004-1108 ●
37 WASHER; LK,UNDER MBR
ID=16.2 SOU 		0-91510-816-0 04 1 1109- ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-153-0 01 1 1004-1108 ●
39 BRACKET; FRT SPR,RR 1-53352-153-0 01 1 1109- ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-152-0 01 1 1004-1108 ●
39 BRACKET; FRT SPR,RR 1-53352-152-0 01 1 1109- ● ● ●
44 BOLT; UNDER MBR
M16X60 		0-20951-660-0 04 1 1004-1108 ●
44 BOLT; UNDER MBR
M16X60 		0-20951-660-0 04 1 1109- ● ● ●
46 BOLT; BRKT FIX
VIN MODEL YEAR 2011<VZB> (A) M14X40 SOU 		0-20951-440-0 04 1 1109- ●
46 BOLT; BRKT FIX
(A) M14X40 SOU 		0-20951-440-0 04 1 1109- ● ●
46 BOLT; BRKT FIX
VIN MODEL YEAR 2011<VZB> (B) M14X40 SOU 		8-98097-157-0 04 1 1109- ●
46 BOLT; BRKT FIX
(B) M14X40 SOU 		8-98097-157-0 04 1 1109- ● ●
102 BOLT; BRKT,RR SPR
(A) M14X40 SOU 		0-20951-440-0 04 1 1004-1108 ●
102 BOLT; BRKT,RR SPR
EXC. VIN MODEL YEAR 2011<VZB> (A) M14X40 SOU 		0-20951-440-0 04 1 1109- ●
102 BOLT; BRKT,RR SPR
(B) M14X40 SOU 		8-98097-157-0 04 1 1004-1108 ●
102 BOLT; BRKT,RR SPR
EXC. VIN MODEL YEAR 2011<VZB> (B) M14X40 SOU 		8-98097-157-0 04 1 1109- ●
126 WASHER; PL,BRKT
ID=15 SOU 		8-98010-627-1 12 1 1004-1108 ●
126 WASHER; PL,BRKT
EXC. VIN MODEL YEAR 2011<VZB> ID=15 SOU 		8-98010-627-1 12 1 1109- ●
127 NUT; BRKT
M14 SOU 		0-91110-514-0 08 1 1004-1108 ●
127 NUT; BRKT
EXC. VIN MODEL YEAR 2011<VZB> M14 SOU 		0-91110-514-0 08 1 1109- ●
255 WASHER; PL,BRKT
VIN MODEL YEAR 2011<VZB> ID=15 SOU 		8-98010-627-1 18 1 1109- ●
255 WASHER; PL,BRKT
ID=15 SOU 		8-98010-627-1 18 1 1109- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
