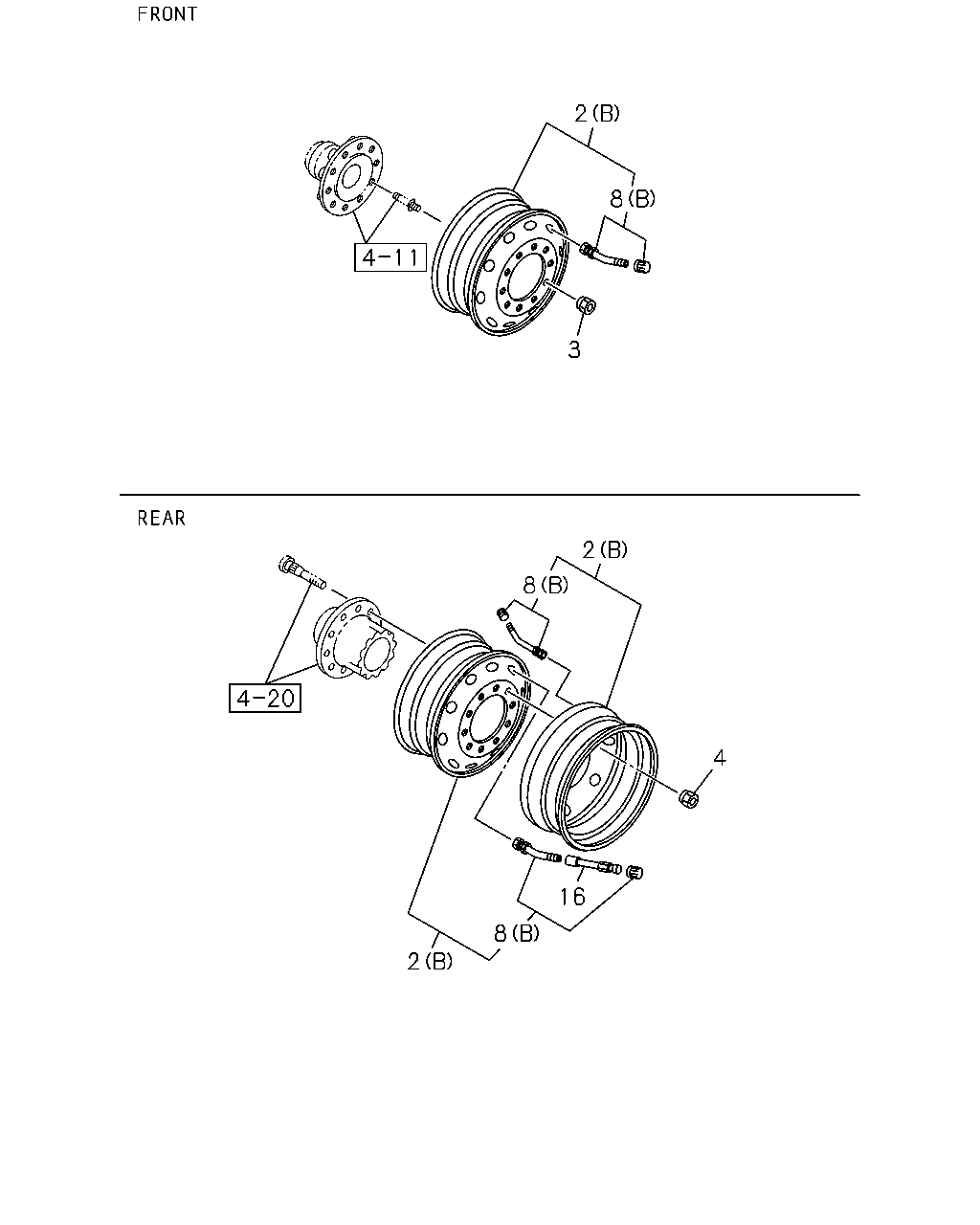

4-80 — ROAD WHEEL (#21823) — 90 parça

2 8 32 3 32 8 2 8 16 32 4 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	WHEEL; DISC WHEEL 10STUD 9.00X22.5 175-14 TC(FJB) (B) FRONT SOU	1-42350-764-0	02	1	1109-	●	●
2	WHEEL; DISC WHEEL 10STUD 9.00X22.5 175-14 TC(FJB) (B) REAR SOU	1-42350-764-0	08	1	1109-	●	●
2	WHEEL; DISC WHEEL 10STUD 9.00X22.5 175-14 TC(FJB) DISC WHEEL SPARE<N79> EXC. SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE SOU	1-42350-764-0	01	1	1109-	●
2	WHEEL; DISC WHEEL 10STUD 9.00X22.5 175-14 TC(FJB) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (B) SPARE SOU	1-42350-764-0	01	1	1109-	●
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE SOU	1-42350-730-0	01	1	1004-1205	●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (A) SPARE SOU	1-42350-730-0	01	1	1004-1205	●
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE SOU	8-98217-247-0	01	1	1206-1407	●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (A) SPARE SOU	8-98217-247-0	01	1	1206-1407	●
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE SOU	8-98281-497-0	01	1	1408-	●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (A) SPARE SOU	8-98281-497-0	01	1	1408-	●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT SOU	1-42350-730-0	02	1	1004-1108	●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT SOU	1-42350-730-0	02	1	1109-1205	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT SOU	8-98217-247-0	02	1	1206-1407	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT SOU	8-98281-497-0	02	1	1408-	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) REAR SOU	1-42350-730-0	08	1	1004-1108	●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) REAR SOU	1-42350-730-0	08	1	1109-1205	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) REAR SOU	8-98217-247-0	08	1	1206-1407	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) REAR SOU	8-98281-497-0	08	1	1408-	●	●
3	NUT; WHEEL,FRT AXLE M22X1.5	1-42333-055-0	20	1	1004-1108	●
3	NUT; WHEEL,FRT AXLE M22X1.5	1-42333-055-0	20	1	1109-	●	●
4	NUT; WHEEL,RR AXLE M22X1.5	1-42333-055-0	40	1	1004-1108	●
4	NUT; WHEEL,RR AXLE M22X1.5	1-42333-055-0	40	1	1109-	●	●
8	VALVE; TIRE WHEEL 10STUD 9.00X22.5 175-14 TC(FJB) (B) FRONT SOU	1-42370-041-1	02	1	1109-	●	●
8	VALVE; TIRE WHEEL 10STUD 9.00X22.5 175-14 TC(FJB) (B) REAR SOU	1-42370-041-1	08	1	1109-	●	●
8	VALVE; TIRE WHEEL 10STUD 9.00X22.5 175-14 TC(FJB) DISC WHEEL SPARE<N79> EXC. SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE SOU	1-42370-041-1	01	1	1109-	●
8	VALVE; TIRE WHEEL 10STUD 9.00X22.5 175-14 TC(FJB) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (B) SPARE SOU	1-42370-041-1	01	1	1109-	●
8	VALVE; TIRE DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE SOU	1-42370-020-3	01	1	1004-1205	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (A) SPARE SOU	1-42370-020-3	01	1	1004-1205	●
8	VALVE; TIRE DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE SOU	1-42370-048-0	01	1	1206-1407	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (A) SPARE SOU	1-42370-048-0	01	1	1206-1407	●
8	VALVE; TIRE DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE SOU	1-42370-019-3	01	1	1408-	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (A) SPARE SOU	1-42370-019-3	01	1	1408-	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT SOU	1-42370-020-3	02	1	1004-1108	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT SOU	1-42370-020-3	02	1	1109-1205	●	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT SOU	1-42370-048-0	02	1	1206-1407	●	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT SOU	1-42370-019-3	02	1	1408-	●	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) REAR SOU	1-42370-020-3	08	1	1004-1108	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) REAR SOU	1-42370-020-3	08	1	1109-1205	●	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) REAR SOU	1-42370-048-0	08	1	1206-1407	●	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) REAR SOU	1-42370-019-3	08	1	1408-	●	●
16	HOLDER; TIRE VALVE,DISC WHEEL DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) L=170 SOU	8-98167-052-0	04	1	1004-1108	●
16	HOLDER; TIRE VALVE,DISC WHEEL WHEEL 10STUD 9.00X22.5 175-14 TC(FJB),DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) L=170 SOU	8-98167-052-0	04	1	1109-	●	●
32	CAP; VALVE DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE SOU	1-42374-001-0	01	1	1004-	●
32	CAP; VALVE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> SPARE SOU	1-42374-001-0	01	1	1004-	●
32	CAP; VALVE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) FRONT SOU	1-42374-001-0	02	1	1004-1108	●
32	CAP; VALVE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) FRONT SOU	1-42374-001-0	02	1	1109-	●	●
32	CAP; VALVE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) REAR SOU	1-42374-001-0	08	1	1004-1108	●
32	CAP; VALVE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) REAR SOU	1-42374-001-0	08	1	1109-	●	●

2 8 3 2 8 4 16 8 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	WHEEL; DISC WHEEL 10STUD 9.00X22.5 175-14 TC(FJB) (B) FRONT SOU	1-42350-764-0	02	1	1109-	●	●
2	WHEEL; DISC WHEEL 10STUD 9.00X22.5 175-14 TC(FJB) (B) REAR SOU	1-42350-764-0	08	1	1109-	●	●
2	WHEEL; DISC WHEEL 10STUD 9.00X22.5 175-14 TC(FJB) DISC WHEEL SPARE<N79> EXC. SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE SOU	1-42350-764-0	01	1	1109-	●
2	WHEEL; DISC WHEEL 10STUD 9.00X22.5 175-14 TC(FJB) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (B) SPARE SOU	1-42350-764-0	01	1	1109-	●
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE SOU	1-42350-730-0	01	1	1004-1205	●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (A) SPARE SOU	1-42350-730-0	01	1	1004-1205	●
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE SOU	8-98217-247-0	01	1	1206-1407	●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (A) SPARE SOU	8-98217-247-0	01	1	1206-1407	●
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE SOU	8-98281-497-0	01	1	1408-	●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (A) SPARE SOU	8-98281-497-0	01	1	1408-	●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT SOU	1-42350-730-0	02	1	1004-1108	●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT SOU	1-42350-730-0	02	1	1109-1205	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT SOU	8-98217-247-0	02	1	1206-1407	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT SOU	8-98281-497-0	02	1	1408-	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) REAR SOU	1-42350-730-0	08	1	1004-1108	●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) REAR SOU	1-42350-730-0	08	1	1109-1205	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) REAR SOU	8-98217-247-0	08	1	1206-1407	●	●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) REAR SOU	8-98281-497-0	08	1	1408-	●	●
3	NUT; WHEEL,FRT AXLE M22X1.5	1-42333-055-0	20	1	1004-1108	●
3	NUT; WHEEL,FRT AXLE M22X1.5	1-42333-055-0	20	1	1109-	●	●
4	NUT; WHEEL,RR AXLE M22X1.5	1-42333-055-0	40	1	1004-1108	●
4	NUT; WHEEL,RR AXLE M22X1.5	1-42333-055-0	40	1	1109-	●	●
8	VALVE; TIRE WHEEL 10STUD 9.00X22.5 175-14 TC(FJB) (B) FRONT SOU	1-42370-041-1	02	1	1109-	●	●
8	VALVE; TIRE WHEEL 10STUD 9.00X22.5 175-14 TC(FJB) (B) REAR SOU	1-42370-041-1	08	1	1109-	●	●
8	VALVE; TIRE WHEEL 10STUD 9.00X22.5 175-14 TC(FJB) DISC WHEEL SPARE<N79> EXC. SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE SOU	1-42370-041-1	01	1	1109-	●
8	VALVE; TIRE WHEEL 10STUD 9.00X22.5 175-14 TC(FJB) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (B) SPARE SOU	1-42370-041-1	01	1	1109-	●
8	VALVE; TIRE DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE SOU	1-42370-020-3	01	1	1004-1205	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (A) SPARE SOU	1-42370-020-3	01	1	1004-1205	●
8	VALVE; TIRE DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE SOU	1-42370-048-0	01	1	1206-1407	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (A) SPARE SOU	1-42370-048-0	01	1	1206-1407	●
8	VALVE; TIRE DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE SOU	1-42370-019-3	01	1	1408-	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (A) SPARE SOU	1-42370-019-3	01	1	1408-	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT SOU	1-42370-020-3	02	1	1004-1108	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT SOU	1-42370-020-3	02	1	1109-1205	●	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT SOU	1-42370-048-0	02	1	1206-1407	●	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT SOU	1-42370-019-3	02	1	1408-	●	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) REAR SOU	1-42370-020-3	08	1	1004-1108	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) REAR SOU	1-42370-020-3	08	1	1109-1205	●	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) REAR SOU	1-42370-048-0	08	1	1206-1407	●	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) REAR SOU	1-42370-019-3	08	1	1408-	●	●
16	HOLDER; TIRE VALVE,DISC WHEEL DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) L=170 SOU	8-98167-052-0	04	1	1004-1108	●
16	HOLDER; TIRE VALVE,DISC WHEEL WHEEL 10STUD 9.00X22.5 175-14 TC(FJB),DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) L=170 SOU	8-98167-052-0	04	1	1109-	●	●
