4-65 — REAR LEAF SPRING (#21822) — 19 parça

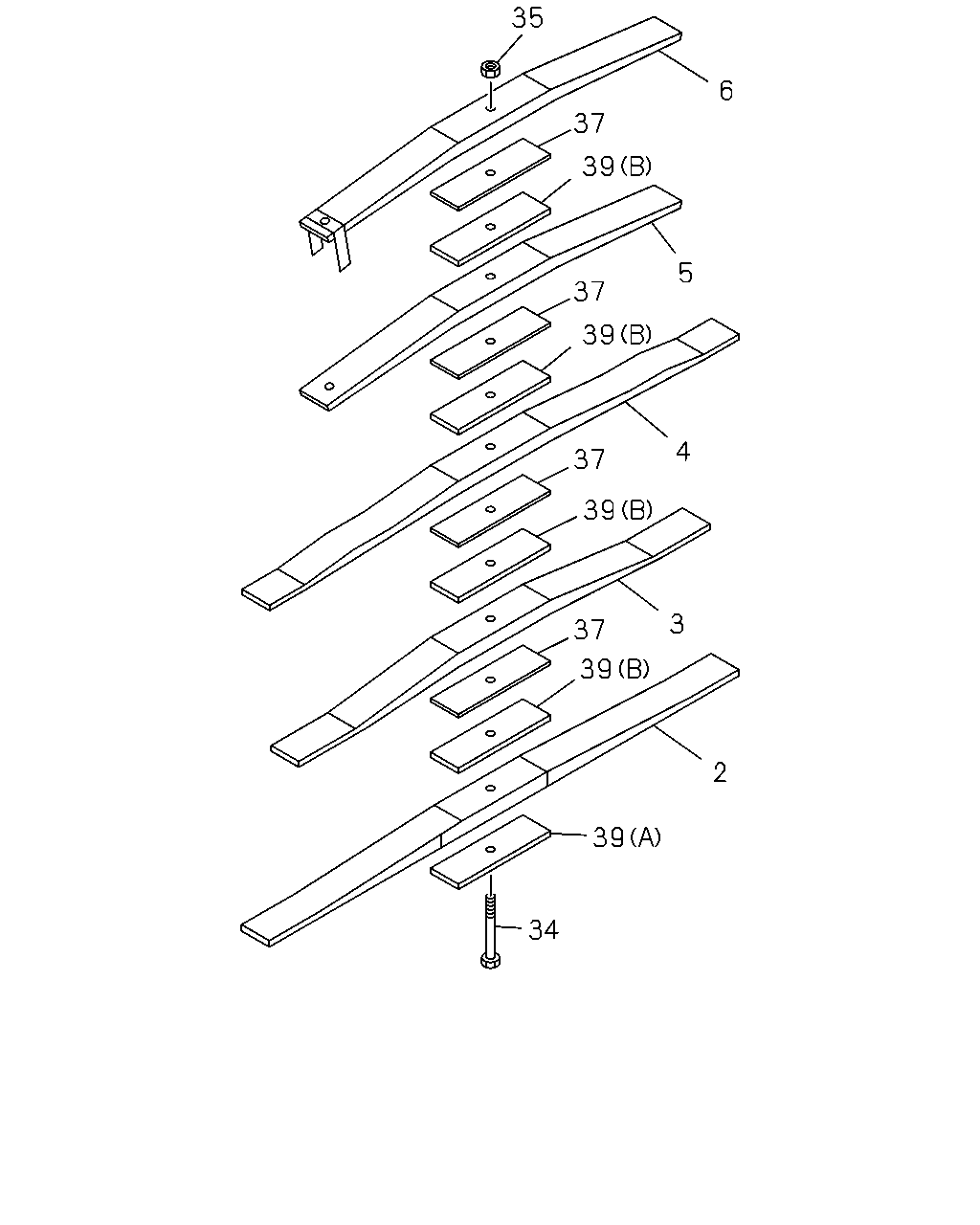

çizim 129340
35 6 37 39 5 37 39 4 37 39 3 37 39 2 39 34
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING; LEAF,NO 1,RR MAIN
ASM PART: A = 8-98102-211-1 		8-98105-245-0 01 1 -1109
2 SPRING; LEAF,NO 1,RR MAIN
ASM PART: B = 8-98138-268-0 		8-98156-988-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
ASM PART: A = 8-98102-211-1 		8-98199-314-0 01 1 1110-
3 SPRING; LEAF,NO 2,RR MAIN
ASM PART: A = 8-98102-211-1 		8-98105-246-0 01 1 -1109
3 SPRING; LEAF,NO 2,RR MAIN
ASM PART: B = 8-98138-268-0 		8-98156-989-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
ASM PART: A = 8-98102-211-1 		8-98199-315-0 01 1 1110-
4 SPRING; LEAF,NO 3,RR MAIN
ASM PART: A = 8-98102-211-1 		8-98105-247-0 01 1 -1109
4 SPRING; LEAF,NO 3,RR MAIN
ASM PART: B = 8-98138-268-0 		8-98156-990-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
ASM PART: A = 8-98102-211-1 		8-98199-316-0 01 1 1110-
5 SPRING; LEAF,NO 4,RR MAIN
ASM PART: A = 8-98102-211-1 		8-98105-248-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
ASM PART: B = 8-98138-268-0 		8-98156-991-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
ASM PART: A = 8-98102-211-1 		8-98105-249-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
ASM PART: B = 8-98138-268-0 		8-98156-992-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=210 ASM PART: A = 8-98102-211-1 		1-51356-364-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=215 ASM PART: B = 8-98138-268-0 		1-51356-369-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M16 ASM PART: A = 8-98102-211-1, B = 8-98138-268-0 		1-09400-061-0 01 1 -
37 SPACER; CENTER,LEAF SPR,RR
T=1.2 ASM PART: A = 8-98102-211-1, B = 8-98138-268-0 		1-51359-037-0 04 1 -
39 SEAT; LEAF SPR,RR MAIN
(B), T=6 ASM PART: A = 8-98102-211-1, B = 8-98138-268-0 		1-51377-399-0 04 1 -
39 SEAT; LEAF SPR,RR MAIN
(A), T=3.2 ASM PART: A = 8-98102-211-1, B = 8-98138-268-0 		8-97615-292-0 01 1 -
