Sayfa 4-60 - Isuzu EPC

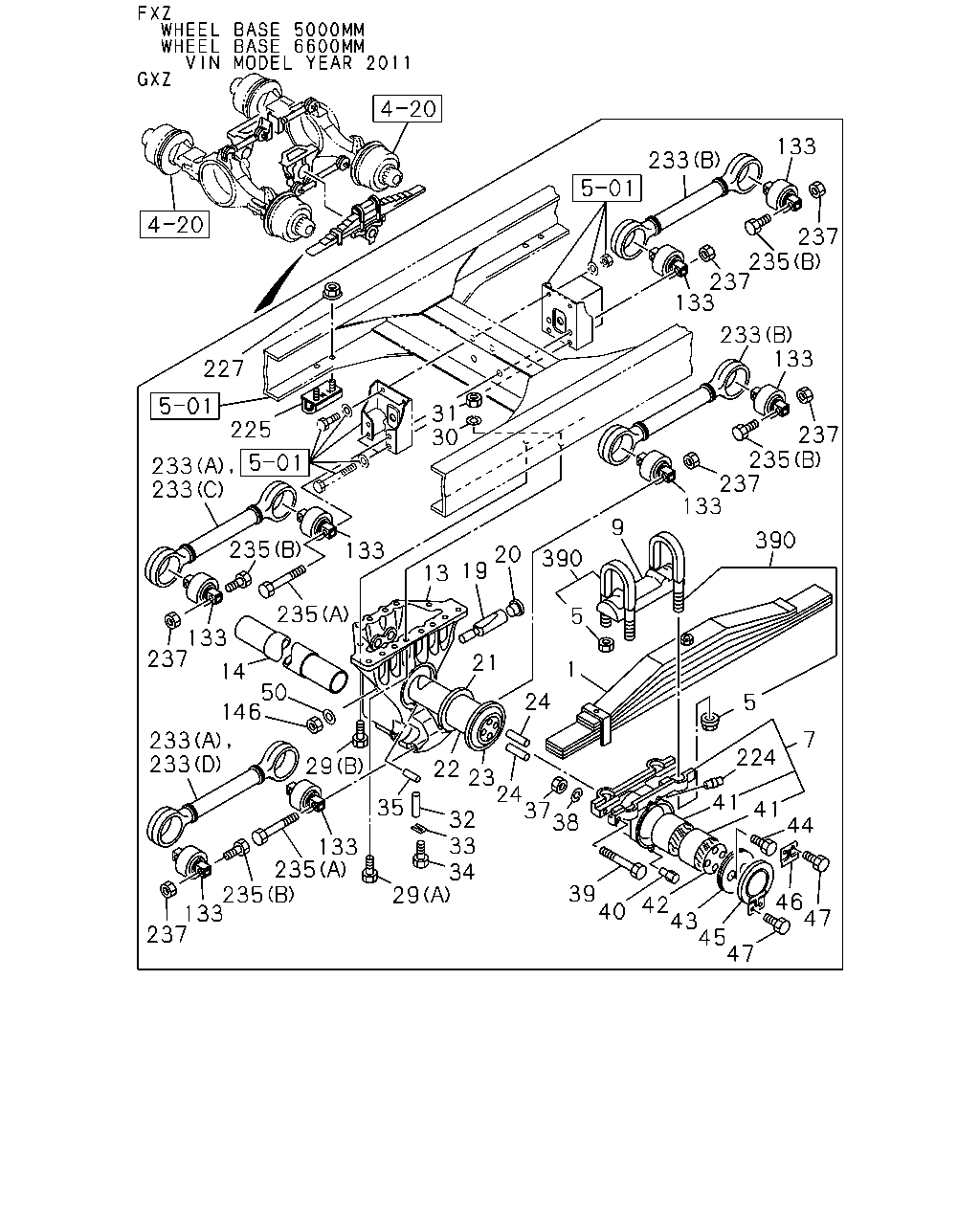

4-60 — REAR SUSPENSION (#21821) — 224 parça

133 233 237 235 237 133 241 227 233 133 225 243 31 30 237 235 237 133 233 241 243 9 390 235 133 20 19 390 13 235 5 133 237 21 1 14 50 146 24 5 7 224 233 29 22 23 24 37 38 41 35 41 32 33 34 44 133 235 235 133 237 39 40 29 46 47 42 43 45 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. TAPER LEAF SUSP RR<SAT> VIN MODEL YEAR 2011<VZB>	8-98138-268-0	02	1	1109-	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. TAPER LEAF SUSP RR<SAT>	8-98138-268-0	02	1	1109-		●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. TAPER LEAF SUSP RR<SAT>	8-98102-211-1	02	1	1004-1108	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. TAPER LEAF SUSP RR<SAT> EXC. VIN MODEL YEAR 2011<VZB>	8-98102-211-1	02	1	1109-	●
5	NUT; U-BOLT,RR SPR M27 FLANGE	1-09440-058-0	08	1	1004-1108	●
5	NUT; U-BOLT,RR SPR M27 FLANGE	1-09440-058-0	08	1	1109-	●	●
7	SEAT; SPR,LWR	8-97614-049-2	02	1	1004-1108	●
7	SEAT; SPR,LWR	8-97614-049-2	02	1	1109-	●	●
9	PAD; U BOLT,RR SPR	1-51372-019-1	02	1	1004-1010	●
9	PAD; U BOLT,RR SPR	8-98177-265-0	02	1	1011-1108	●
9	PAD; U BOLT,RR SPR	8-98177-265-0	02	1	1109-	●	●
13	BRACKET; TRUNNION SHAFT	1-53361-079-0	02	1	1004-1108	●
13	BRACKET; TRUNNION SHAFT	1-53361-079-0	02	1	1109-	●	●
14	PIPE; TRUNNION BRKT	1-51389-032-1	01	1	1004-1108	●
14	PIPE; TRUNNION BRKT	1-51389-032-1	01	1	1109-	●	●
19	BOLT; KEY,SHAFT	1-51389-066-0	02	1	1004-1108	●
19	BOLT; KEY,SHAFT	1-51389-066-0	02	1	1109-	●	●
20	GROMMET; KEY BOLT	1-09333-057-0	02	1	1004-1108	●
20	GROMMET; KEY BOLT	1-09333-057-0	02	1	1109-	●	●
21	WASHER; THRUST,TRUNNION SHAFT	1-51389-058-0	02	1	1004-1108	●
21	WASHER; THRUST,TRUNNION SHAFT	1-51389-058-0	02	1	1109-	●	●
22	SHAFT; TRUNNION,RR SUSP	1-51381-022-3	02	1	1004-1108	●
22	SHAFT; TRUNNION,RR SUSP	1-51381-022-3	02	1	1109-	●	●
23	SEAL; OIL,TRUNNION SHAFT	1-51389-005-0	02	1	1004-1108	●
23	SEAL; OIL,TRUNNION SHAFT	1-51389-005-0	02	1	1109-	●	●
24	PIN; SIDE PLATE TO SHAFT	1-09740-009-0	04	1	1004-1108	●
24	PIN; SIDE PLATE TO SHAFT	1-09740-009-0	04	1	1109-	●	●
29	BOLT; BRKT TO FRAME (A) M18X75	8-98012-872-0	24	1	1004-1108	●
29	BOLT; BRKT TO FRAME (A) M18X75	8-98012-872-0	24	1	1109-	●	●
29	BOLT; BRKT TO FRAME (B) M18X55	9-92061-855-0	04	1	1004-1108	●
29	BOLT; BRKT TO FRAME (B) M18X55	9-92061-855-0	04	1	1109-	●	●
30	WASHER; PL,TRUNNION BRKT ID=19	1-09503-162-0	28	1	1004-1108	●
30	WASHER; PL,TRUNNION BRKT ID=19	1-09503-162-0	28	1	1109-	●	●
31	NUT; TRUNNION BRKT M18	0-91110-518-0	28	1	1004-1108	●
31	NUT; TRUNNION BRKT M18	0-91110-518-0	28	1	1109-	●	●
32	PIN; STRAIGHT	1-09740-027-0	04	1	1004-1108	●
32	PIN; STRAIGHT	1-09740-027-0	04	1	1109-	●	●
33	PLATE; LK KNOCK PIN	1-53369-032-1	02	1	1004-1108	●
33	PLATE; LK KNOCK PIN	1-53369-032-1	02	1	1109-	●	●
34	BOLT; LOCK PLATE M10X16 FLANGE	0-28051-016-0	02	1	1004-1108	●
34	BOLT; LOCK PLATE M10X16 FLANGE	0-28051-016-0	02	1	1109-	●	●
35	PIN; TRUNNION SHAFT	1-09749-030-1	04	1	1004-1108	●
35	PIN; TRUNNION SHAFT	1-09749-030-1	04	1	1109-	●	●
37	NUT; SPR SETTING M22	0-91110-522-0	04	1	1004-1108	●
37	NUT; SPR SETTING M22	0-91110-522-0	04	1	1109-	●	●
38	WASHER; LK,SPR SETTING ID=22.5	0-91510-622-0	04	1	1004-1108	●
38	WASHER; LK,SPR SETTING ID=22.5	0-91510-622-0	04	1	1109-	●	●
39	BOLT; SPR SETTING M22X155	9-09801-290-1	04	1	1004-1108	●
39	BOLT; SPR SETTING M22X155	9-09801-290-1	04	1	1109-	●	●
40	VALVE; GREASE ESCAPE	9-51389-010-0	02	1	1004-1108	●
40	VALVE; GREASE ESCAPE	9-51389-010-0	02	1	1109-	●	●
41	BUSHING; TRUNNION SHAFT	8-98081-832-0	04	1	1004-1108	●
41	BUSHING; TRUNNION SHAFT	8-98081-832-0	04	1	1109-	●	●
42	SHIM; SIDE PLATE TO SHAFT	1-51389-033-1	12	1	1004-1108	●
42	SHIM; SIDE PLATE TO SHAFT	1-51389-033-1	12	1	1109-	●	●
43	PLATE; SIDE,TRUNNION SHAFT	1-51382-010-4	02	1	1004-1108	●
43	PLATE; SIDE,TRUNNION SHAFT	1-51382-010-4	02	1	1109-	●	●
44	BOLT; SIDE PLATE TO SHAFT M18X48.5 FLANGE	1-09044-038-2	04	1	1004-1108	●
44	BOLT; SIDE PLATE TO SHAFT M18X48.5 FLANGE	1-09044-038-2	04	1	1109-	●	●
45	COVER; SPR SEAT	1-51387-013-2	02	1	1004-1108	●
45	COVER; SPR SEAT	1-51387-013-2	02	1	1109-	●	●
46	BRACKET; COVER	1-51387-015-2	02	1	1004-1108	●
46	BRACKET; COVER	1-51387-015-2	02	1	1109-	●	●
47	BOLT; COVER TO SEAT M8X12 FLANGE	0-28050-812-0	08	1	1004-1108	●
47	BOLT; COVER TO SEAT M8X12 FLANGE	0-28050-812-0	08	1	1109-	●	●
50	WASHER; PL,TRUNNION SHAFT ID=25	8-98012-871-0	02	1	1004-1108	●
50	WASHER; PL,TRUNNION SHAFT ID=25	8-98012-871-0	02	1	1109-	●	●
133	BUSHING; RUBBER,TORQUE ROD EXC. VIN MODEL YEAR 2011<VZB> OD=105	1-51519-113-1	12	1	1109-	●
133	BUSHING; RUBBER,TORQUE ROD EXC. VIN MODEL YEAR 2011<VZB> BEST VALUE PARTS	1-87411-074-2	12	1	1109-	●
133	BUSHING; RUBBER,TORQUE ROD OD=105	1-51519-113-1	12	1	1004-1108	●
133	BUSHING; RUBBER,TORQUE ROD VIN MODEL YEAR 2011<VZB> OD=105	1-51519-113-1	06	1	1109-	●
133	BUSHING; RUBBER,TORQUE ROD VIN MODEL YEAR 2011<VZB> OD=105	1-51519-113-1	06	1	1109-	●
133	BUSHING; RUBBER,TORQUE ROD OD=105	1-51519-113-1	06	1	1109-		●
133	BUSHING; RUBBER,TORQUE ROD OD=105	1-51519-113-1	06	1	1109-		●
133	BUSHING; RUBBER,TORQUE ROD BEST VALUE PARTS	1-87411-074-2	12	1	1004-1108	●
133	BUSHING; RUBBER,TORQUE ROD VIN MODEL YEAR 2011<VZB> BEST VALUE PARTS	1-87411-074-2	06	1	1109-	●
133	BUSHING; RUBBER,TORQUE ROD VIN MODEL YEAR 2011<VZB> BEST VALUE PARTS	1-87411-074-2	06	1	1109-	●
133	BUSHING; RUBBER,TORQUE ROD BEST VALUE PARTS	1-87411-074-2	06	1	1109-		●
133	BUSHING; RUBBER,TORQUE ROD BEST VALUE PARTS	1-87411-074-2	06	1	1109-		●
146	NUT; KEY BOLT M24	0-91110-524-0	02	1	1004-1108	●
146	NUT; KEY BOLT M24	0-91110-524-0	02	1	1109-	●	●
224	NIPPLE; GREASE,SPR SEAT PT1/8 STRAIGHT SOU	0-90301-410-0	02	1	1004-1108	●
224	NIPPLE; GREASE,SPR SEAT PT1/8 STRAIGHT SOU	0-90301-410-0	02	1	1109-	●	●
225	RUBBER; CUSHION,RR SPR VIN MODEL YEAR 2011<VZB> FORWARD RH,REARWARD LH	1-53366-073-2	02	1	1109-	●
225	RUBBER; CUSHION,RR SPR FORWARD RH,REARWARD LH	1-53366-073-2	02	1	1109-		●
225	RUBBER; CUSHION,RR SPR FORWARD RH,REARWARD LH	1-53366-045-1	02	1	1004-1108	●
225	RUBBER; CUSHION,RR SPR EXC. VIN MODEL YEAR 2011<VZB> FORWARD RH,REARWARD LH	1-53366-045-1	02	1	1109-	●
225	RUBBER; CUSHION,RR SPR FORWARD LH,REARWARD RH	1-53366-046-1	02	1	1004-1108	●
225	RUBBER; CUSHION,RR SPR FORWARD LH,REARWARD RH	1-53366-046-1	02	1	1109-	●	●
227	NUT; CUSHION RUBBER M12 FLANGE SOU	0-91180-212-0	08	1	1004-1108	●
227	NUT; CUSHION RUBBER M12 FLANGE SOU	0-91180-212-0	08	1	1109-	●	●
233	ROD ASM; TORQUE,RR SUSP VIN MODEL YEAR 2011<VZB> (B) L=580	1-51511-661-0	03	1	1109-	●
233	ROD ASM; TORQUE,RR SUSP (B) L=580	1-51511-661-0	03	1	1109-		●
233	ROD ASM; TORQUE,RR SUSP WHEEL BASE 5000MM(50W) VIN MODEL YEAR 2011<VZB> (A) L=555	1-51511-660-0	03	1	1109-	●
233	ROD ASM; TORQUE,RR SUSP (A) L=555	1-51511-660-0	03	1	1109-		●
233	ROD ASM; TORQUE,RR SUSP WHEEL BASE 6600MM(66W) VIN MODEL YEAR 2011<VZB> (D) L=545	1-51511-658-0	02	1	1109-	●
233	ROD ASM; TORQUE,RR SUSP WHEEL BASE 6600MM(66W) VIN MODEL YEAR 2011<VZB> (C) L=565	1-51511-685-0	01	1	1109-	●
233	ROD ASM; TORQUE,RR SUSP (A) L=525	1-51511-656-0	03	1	1004-1108	●
233	ROD ASM; TORQUE,RR SUSP EXC. VIN MODEL YEAR 2011<VZB> (A) L=525	1-51511-656-0	03	1	1109-	●
233	ROD ASM; TORQUE,RR SUSP (B) L=550	1-51511-659-0	03	1	1004-1108	●
233	ROD ASM; TORQUE,RR SUSP EXC. VIN MODEL YEAR 2011<VZB> (B) L=550	1-51511-659-0	03	1	1109-	●
235	BOLT; TORQUE ROD (A) M18X265	8-98012-875-0	06	1	1004-1108	●
235	BOLT; TORQUE ROD (A) M18X265	8-98012-875-0	06	1	1109-	●	●
235	BOLT; TORQUE ROD (B) M18X102	8-98012-877-0	12	1	1004-1108	●
235	BOLT; TORQUE ROD (B) M18X102	8-98012-877-0	12	1	1109-	●	●
237	NUT; TORQUE ROD M18	1-09464-011-0	18	1	1004-1108	●
237	NUT; TORQUE ROD M18	1-09464-011-0	18	1	1109-	●	●
241	BRACKET; TORQUE ROD	1-53363-031-2	02	1	1004-1108	●
241	BRACKET; TORQUE ROD WHEEL BASE 6600MM(66W) EXC. VIN MODEL YEAR 2011<VZB>	1-53363-031-2	02	1	1109-	●
243	BOLT; BRKT,TORQUE ROD (A) M14X50 SOU	0-20951-450-0	02	1	1004-1108	●
243	BOLT; BRKT,TORQUE ROD WHEEL BASE 6600MM(66W) EXC. VIN MODEL YEAR 2011<VZB> (A) M14X50 SOU	0-20951-450-0	02	1	1109-	●
243	BOLT; BRKT,TORQUE ROD (B) M14X205	1-09000-147-0	02	1	1004-1108	●
243	BOLT; BRKT,TORQUE ROD WHEEL BASE 6600MM(66W) EXC. VIN MODEL YEAR 2011<VZB> (B) M14X205	1-09000-147-0	02	1	1109-	●
390	U-BOLT SET; RR SPRING TAPER LEAF SUSP RR<SAT> L=350	1-87870-392-1	04	1	1004-1108	●
390	U-BOLT SET; RR SPRING TAPER LEAF SUSP RR<SAT> L=350	1-87870-392-1	04	1	1109-	●	●

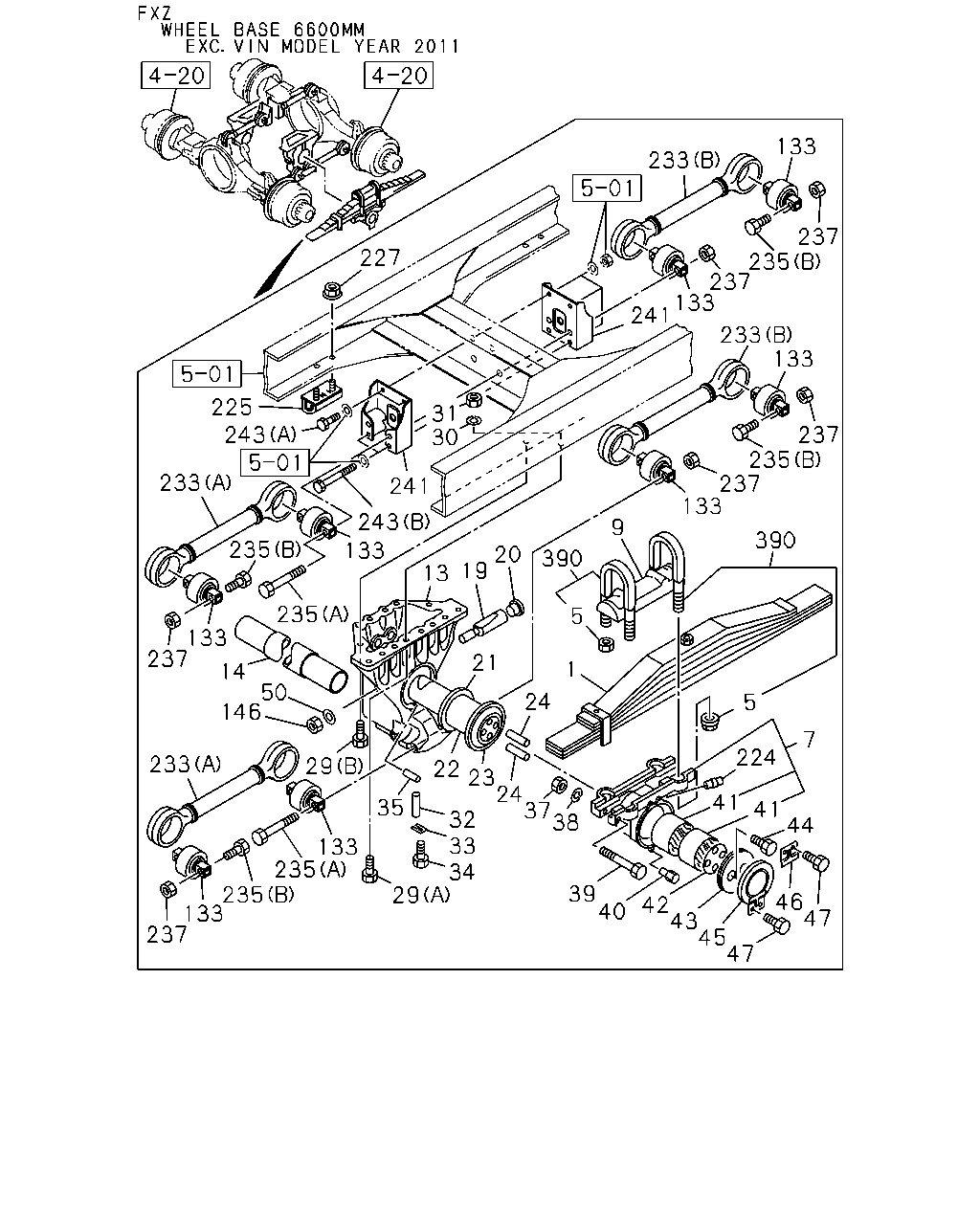

133 233 237 235 237 133 233 133 227 31 30 225 237 235 237 133 233 233 9 390 235 133 20 19 390 13 235 5 133 237 21 1 14 50 146 24 5 7 233 233 224 29 22 23 24 37 38 41 35 41 32 33 34 44 133 235 235 133 237 39 40 29 46 47 42 43 45 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. TAPER LEAF SUSP RR<SAT> VIN MODEL YEAR 2011<VZB>	8-98138-268-0	02	1	1109-	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. TAPER LEAF SUSP RR<SAT>	8-98138-268-0	02	1	1109-		●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. TAPER LEAF SUSP RR<SAT>	8-98102-211-1	02	1	1004-1108	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. TAPER LEAF SUSP RR<SAT> EXC. VIN MODEL YEAR 2011<VZB>	8-98102-211-1	02	1	1109-	●
5	NUT; U-BOLT,RR SPR M27 FLANGE	1-09440-058-0	08	1	1004-1108	●
5	NUT; U-BOLT,RR SPR M27 FLANGE	1-09440-058-0	08	1	1109-	●	●
7	SEAT; SPR,LWR	8-97614-049-2	02	1	1004-1108	●
7	SEAT; SPR,LWR	8-97614-049-2	02	1	1109-	●	●
9	PAD; U BOLT,RR SPR	1-51372-019-1	02	1	1004-1010	●
9	PAD; U BOLT,RR SPR	8-98177-265-0	02	1	1011-1108	●
9	PAD; U BOLT,RR SPR	8-98177-265-0	02	1	1109-	●	●
13	BRACKET; TRUNNION SHAFT	1-53361-079-0	02	1	1004-1108	●
13	BRACKET; TRUNNION SHAFT	1-53361-079-0	02	1	1109-	●	●
14	PIPE; TRUNNION BRKT	1-51389-032-1	01	1	1004-1108	●
14	PIPE; TRUNNION BRKT	1-51389-032-1	01	1	1109-	●	●
19	BOLT; KEY,SHAFT	1-51389-066-0	02	1	1004-1108	●
19	BOLT; KEY,SHAFT	1-51389-066-0	02	1	1109-	●	●
20	GROMMET; KEY BOLT	1-09333-057-0	02	1	1004-1108	●
20	GROMMET; KEY BOLT	1-09333-057-0	02	1	1109-	●	●
21	WASHER; THRUST,TRUNNION SHAFT	1-51389-058-0	02	1	1004-1108	●
21	WASHER; THRUST,TRUNNION SHAFT	1-51389-058-0	02	1	1109-	●	●
22	SHAFT; TRUNNION,RR SUSP	1-51381-022-3	02	1	1004-1108	●
22	SHAFT; TRUNNION,RR SUSP	1-51381-022-3	02	1	1109-	●	●
23	SEAL; OIL,TRUNNION SHAFT	1-51389-005-0	02	1	1004-1108	●
23	SEAL; OIL,TRUNNION SHAFT	1-51389-005-0	02	1	1109-	●	●
24	PIN; SIDE PLATE TO SHAFT	1-09740-009-0	04	1	1004-1108	●
24	PIN; SIDE PLATE TO SHAFT	1-09740-009-0	04	1	1109-	●	●
29	BOLT; BRKT TO FRAME (A) M18X75	8-98012-872-0	24	1	1004-1108	●
29	BOLT; BRKT TO FRAME (A) M18X75	8-98012-872-0	24	1	1109-	●	●
29	BOLT; BRKT TO FRAME (B) M18X55	9-92061-855-0	04	1	1004-1108	●
29	BOLT; BRKT TO FRAME (B) M18X55	9-92061-855-0	04	1	1109-	●	●
30	WASHER; PL,TRUNNION BRKT ID=19	1-09503-162-0	28	1	1004-1108	●
30	WASHER; PL,TRUNNION BRKT ID=19	1-09503-162-0	28	1	1109-	●	●
31	NUT; TRUNNION BRKT M18	0-91110-518-0	28	1	1004-1108	●
31	NUT; TRUNNION BRKT M18	0-91110-518-0	28	1	1109-	●	●
32	PIN; STRAIGHT	1-09740-027-0	04	1	1004-1108	●
32	PIN; STRAIGHT	1-09740-027-0	04	1	1109-	●	●
33	PLATE; LK KNOCK PIN	1-53369-032-1	02	1	1004-1108	●
33	PLATE; LK KNOCK PIN	1-53369-032-1	02	1	1109-	●	●
34	BOLT; LOCK PLATE M10X16 FLANGE	0-28051-016-0	02	1	1004-1108	●
34	BOLT; LOCK PLATE M10X16 FLANGE	0-28051-016-0	02	1	1109-	●	●
35	PIN; TRUNNION SHAFT	1-09749-030-1	04	1	1004-1108	●
35	PIN; TRUNNION SHAFT	1-09749-030-1	04	1	1109-	●	●
37	NUT; SPR SETTING M22	0-91110-522-0	04	1	1004-1108	●
37	NUT; SPR SETTING M22	0-91110-522-0	04	1	1109-	●	●
38	WASHER; LK,SPR SETTING ID=22.5	0-91510-622-0	04	1	1004-1108	●
38	WASHER; LK,SPR SETTING ID=22.5	0-91510-622-0	04	1	1109-	●	●
39	BOLT; SPR SETTING M22X155	9-09801-290-1	04	1	1004-1108	●
39	BOLT; SPR SETTING M22X155	9-09801-290-1	04	1	1109-	●	●
40	VALVE; GREASE ESCAPE	9-51389-010-0	02	1	1004-1108	●
40	VALVE; GREASE ESCAPE	9-51389-010-0	02	1	1109-	●	●
41	BUSHING; TRUNNION SHAFT	8-98081-832-0	04	1	1004-1108	●
41	BUSHING; TRUNNION SHAFT	8-98081-832-0	04	1	1109-	●	●
42	SHIM; SIDE PLATE TO SHAFT	1-51389-033-1	12	1	1004-1108	●
42	SHIM; SIDE PLATE TO SHAFT	1-51389-033-1	12	1	1109-	●	●
43	PLATE; SIDE,TRUNNION SHAFT	1-51382-010-4	02	1	1004-1108	●
43	PLATE; SIDE,TRUNNION SHAFT	1-51382-010-4	02	1	1109-	●	●
44	BOLT; SIDE PLATE TO SHAFT M18X48.5 FLANGE	1-09044-038-2	04	1	1004-1108	●
44	BOLT; SIDE PLATE TO SHAFT M18X48.5 FLANGE	1-09044-038-2	04	1	1109-	●	●
45	COVER; SPR SEAT	1-51387-013-2	02	1	1004-1108	●
45	COVER; SPR SEAT	1-51387-013-2	02	1	1109-	●	●
46	BRACKET; COVER	1-51387-015-2	02	1	1004-1108	●
46	BRACKET; COVER	1-51387-015-2	02	1	1109-	●	●
47	BOLT; COVER TO SEAT M8X12 FLANGE	0-28050-812-0	08	1	1004-1108	●
47	BOLT; COVER TO SEAT M8X12 FLANGE	0-28050-812-0	08	1	1109-	●	●
50	WASHER; PL,TRUNNION SHAFT ID=25	8-98012-871-0	02	1	1004-1108	●
50	WASHER; PL,TRUNNION SHAFT ID=25	8-98012-871-0	02	1	1109-	●	●
133	BUSHING; RUBBER,TORQUE ROD EXC. VIN MODEL YEAR 2011<VZB> OD=105	1-51519-113-1	12	1	1109-	●
133	BUSHING; RUBBER,TORQUE ROD EXC. VIN MODEL YEAR 2011<VZB> BEST VALUE PARTS	1-87411-074-2	12	1	1109-	●
133	BUSHING; RUBBER,TORQUE ROD OD=105	1-51519-113-1	12	1	1004-1108	●
133	BUSHING; RUBBER,TORQUE ROD VIN MODEL YEAR 2011<VZB> OD=105	1-51519-113-1	06	1	1109-	●
133	BUSHING; RUBBER,TORQUE ROD VIN MODEL YEAR 2011<VZB> OD=105	1-51519-113-1	06	1	1109-	●
133	BUSHING; RUBBER,TORQUE ROD OD=105	1-51519-113-1	06	1	1109-		●
133	BUSHING; RUBBER,TORQUE ROD OD=105	1-51519-113-1	06	1	1109-		●
133	BUSHING; RUBBER,TORQUE ROD BEST VALUE PARTS	1-87411-074-2	12	1	1004-1108	●
133	BUSHING; RUBBER,TORQUE ROD VIN MODEL YEAR 2011<VZB> BEST VALUE PARTS	1-87411-074-2	06	1	1109-	●
133	BUSHING; RUBBER,TORQUE ROD VIN MODEL YEAR 2011<VZB> BEST VALUE PARTS	1-87411-074-2	06	1	1109-	●
133	BUSHING; RUBBER,TORQUE ROD BEST VALUE PARTS	1-87411-074-2	06	1	1109-		●
133	BUSHING; RUBBER,TORQUE ROD BEST VALUE PARTS	1-87411-074-2	06	1	1109-		●
146	NUT; KEY BOLT M24	0-91110-524-0	02	1	1004-1108	●
146	NUT; KEY BOLT M24	0-91110-524-0	02	1	1109-	●	●
224	NIPPLE; GREASE,SPR SEAT PT1/8 STRAIGHT SOU	0-90301-410-0	02	1	1004-1108	●
224	NIPPLE; GREASE,SPR SEAT PT1/8 STRAIGHT SOU	0-90301-410-0	02	1	1109-	●	●
225	RUBBER; CUSHION,RR SPR VIN MODEL YEAR 2011<VZB> FORWARD RH,REARWARD LH	1-53366-073-2	02	1	1109-	●
225	RUBBER; CUSHION,RR SPR FORWARD RH,REARWARD LH	1-53366-073-2	02	1	1109-		●
225	RUBBER; CUSHION,RR SPR FORWARD RH,REARWARD LH	1-53366-045-1	02	1	1004-1108	●
225	RUBBER; CUSHION,RR SPR EXC. VIN MODEL YEAR 2011<VZB> FORWARD RH,REARWARD LH	1-53366-045-1	02	1	1109-	●
225	RUBBER; CUSHION,RR SPR FORWARD LH,REARWARD RH	1-53366-046-1	02	1	1004-1108	●
225	RUBBER; CUSHION,RR SPR FORWARD LH,REARWARD RH	1-53366-046-1	02	1	1109-	●	●
227	NUT; CUSHION RUBBER M12 FLANGE SOU	0-91180-212-0	08	1	1004-1108	●
227	NUT; CUSHION RUBBER M12 FLANGE SOU	0-91180-212-0	08	1	1109-	●	●
233	ROD ASM; TORQUE,RR SUSP VIN MODEL YEAR 2011<VZB> (B) L=580	1-51511-661-0	03	1	1109-	●
233	ROD ASM; TORQUE,RR SUSP (B) L=580	1-51511-661-0	03	1	1109-		●
233	ROD ASM; TORQUE,RR SUSP WHEEL BASE 5000MM(50W) VIN MODEL YEAR 2011<VZB> (A) L=555	1-51511-660-0	03	1	1109-	●
233	ROD ASM; TORQUE,RR SUSP (A) L=555	1-51511-660-0	03	1	1109-		●
233	ROD ASM; TORQUE,RR SUSP WHEEL BASE 6600MM(66W) VIN MODEL YEAR 2011<VZB> (D) L=545	1-51511-658-0	02	1	1109-	●
233	ROD ASM; TORQUE,RR SUSP WHEEL BASE 6600MM(66W) VIN MODEL YEAR 2011<VZB> (C) L=565	1-51511-685-0	01	1	1109-	●
233	ROD ASM; TORQUE,RR SUSP (A) L=525	1-51511-656-0	03	1	1004-1108	●
233	ROD ASM; TORQUE,RR SUSP EXC. VIN MODEL YEAR 2011<VZB> (A) L=525	1-51511-656-0	03	1	1109-	●
233	ROD ASM; TORQUE,RR SUSP (B) L=550	1-51511-659-0	03	1	1004-1108	●
233	ROD ASM; TORQUE,RR SUSP EXC. VIN MODEL YEAR 2011<VZB> (B) L=550	1-51511-659-0	03	1	1109-	●
235	BOLT; TORQUE ROD (A) M18X265	8-98012-875-0	06	1	1004-1108	●
235	BOLT; TORQUE ROD (A) M18X265	8-98012-875-0	06	1	1109-	●	●
235	BOLT; TORQUE ROD (B) M18X102	8-98012-877-0	12	1	1004-1108	●
235	BOLT; TORQUE ROD (B) M18X102	8-98012-877-0	12	1	1109-	●	●
237	NUT; TORQUE ROD M18	1-09464-011-0	18	1	1004-1108	●
237	NUT; TORQUE ROD M18	1-09464-011-0	18	1	1109-	●	●
390	U-BOLT SET; RR SPRING TAPER LEAF SUSP RR<SAT> L=350	1-87870-392-1	04	1	1004-1108	●
390	U-BOLT SET; RR SPRING TAPER LEAF SUSP RR<SAT> L=350	1-87870-392-1	04	1	1109-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
