Sayfa 0-85 - Isuzu EPC

0-85 — AUTO TIMER; INJECTION PUMP (#2182) — 120 parça

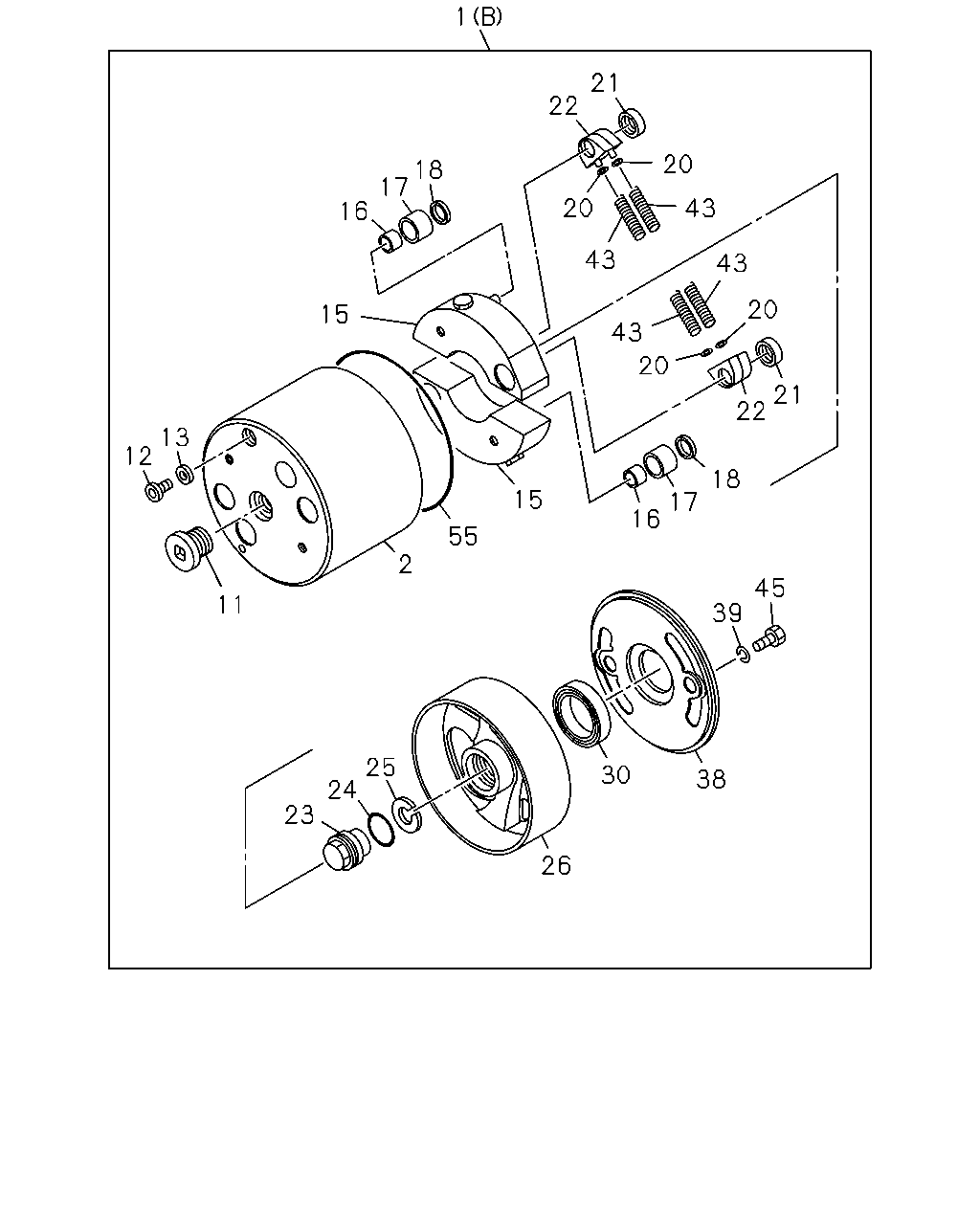

1 21 22 20 18 17 20 43 16 43 43 20 15 43 20 21 22 13 12 18 15 17 16 55 2 45 11 39 25 24 30 38 23 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TIMER ASM; INJ PUMP (B) ASM PART: G = 1-15601-764-4, I = 1-15602-824-0	1-15740-158-0	01	1	-
1	TIMER ASM; INJ PUMP (A) ASM PART: A = 1-15601-527-4, B = 1-15601-528-4, C = 1-15601-529-4, H = 1-15602-221-4	1-15740-198-0	01	1	-
1	TIMER ASM; INJ PUMP (A) ASM PART: D = 1-15601-602-6, E = 1-15601-616-5, F = 1-15601-620-6, J = 1-15602-889-0	1-15740-222-0	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: G = 1-15601-764-4, I = 1-15602-824-0	5-15741-002-0	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: A = 1-15601-527-4, B = 1-15601-528-4, C = 1-15601-529-4, D = 1-15601-602-6, E = 1-15601-616-5, F = 1-15601-620-6, H = 1-15602-221-4, J = 1-15602-889-0	5-15741-022-0	01	1	-
11	CAP; TIMER HSG,INJ PUMP ASM PART: G = 1-15601-764-4, I = 1-15602-824-0	1-15749-115-0	01	1	-
12	PLUG; TIMER HSG,INJ PUMP ASM PART: G = 1-15601-764-4, I = 1-15602-824-0	1-15749-031-0	01	1	-
13	GASKET; HSG PLUG,INJ PUMP ASM PART: G = 1-15601-764-4, I = 1-15602-824-0	1-15749-030-0	01	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: G = 1-15601-764-4, I = 1-15602-824-0	1-15743-017-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: A = 1-15601-527-4, B = 1-15601-528-4, C = 1-15601-529-4, H = 1-15602-221-4	5-15743-009-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: D = 1-15601-602-6, E = 1-15601-616-5, F = 1-15601-620-6, J = 1-15602-889-0	9-81341-515-0	02	1	-
16	BUSHING; ROLLER,TIMER FLYWEIGHT,INJ PU ASM PART: G = 1-15601-764-4, I = 1-15602-824-0	5-15749-042-0	02	1	-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP OD=18.00 ASM PART: G = 1-15601-764-4, I = 1-15602-824-0	5-15749-043-0	01	1	-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP OD=17.90 ASM PART: G = 1-15601-764-4, I = 1-15602-824-0	5-15749-044-0	01	1	-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP OD=18.10 ASM PART: G = 1-15601-764-4, I = 1-15602-824-0	5-15749-045-0	01	1	-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP OD=18.20 ASM PART: G = 1-15601-764-4, I = 1-15602-824-0	5-15749-046-0	01	1	-
18	WASHER; ROLLER,TIMER FLYWEIGHT,INJ PUM ASM PART: G = 1-15601-764-4, I = 1-15602-824-0	5-15749-047-0	02	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.15 ASM PART: A = 1-15601-527-4, B = 1-15601-528-4, C = 1-15601-529-4, D = 1-15601-602-6, E = 1-15601-616-5, F = 1-15601-620-6, H = 1-15602-221-4, J = 1-15602-889-0	1-15749-061-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.30 ASM PART: G = 1-15601-764-4, I = 1-15602-824-0	1-15749-097-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.40 ASM PART: G = 1-15601-764-4, I = 1-15602-824-0	1-15749-098-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.50 ASM PART: G = 1-15601-764-4, I = 1-15602-824-0	1-15749-099-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.60 ASM PART: G = 1-15601-764-4, I = 1-15602-824-0	1-15749-100-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.70 ASM PART: G = 1-15601-764-4, I = 1-15602-824-0	1-15749-101-1	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.80 ASM PART: G = 1-15601-764-4, I = 1-15602-824-0	1-15749-102-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.90 ASM PART: G = 1-15601-764-4, I = 1-15602-824-0	1-15749-103-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.50 ASM PART: G = 1-15601-764-4, I = 1-15602-824-0	1-15749-290-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=2.00 ASM PART: G = 1-15601-764-4, I = 1-15602-824-0	1-15749-291-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.10 ASM PART: G = 1-15601-764-4, I = 1-15602-824-0	9-81325-379-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.20 ASM PART: G = 1-15601-764-4, I = 1-15602-824-0	9-81325-380-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.25 ASM PART: G = 1-15601-764-4, I = 1-15602-824-0	9-81325-381-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.00 ASM PART: G = 1-15601-764-4, I = 1-15602-824-0	9-81325-382-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.50 ASM PART: A = 1-15601-527-4, B = 1-15601-528-4, C = 1-15601-529-4, D = 1-15601-602-6, E = 1-15601-616-5, F = 1-15601-620-6, H = 1-15602-221-4, J = 1-15602-889-0	9-81345-033-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.00 ASM PART: A = 1-15601-527-4, B = 1-15601-528-4, C = 1-15601-529-4, D = 1-15601-602-6, E = 1-15601-616-5, F = 1-15601-620-6, H = 1-15602-221-4, J = 1-15602-889-0	9-81345-034-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.10 ASM PART: A = 1-15601-527-4, B = 1-15601-528-4, C = 1-15601-529-4, D = 1-15601-602-6, E = 1-15601-616-5, F = 1-15601-620-6, H = 1-15602-221-4, J = 1-15602-889-0	9-81345-035-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.20 ASM PART: A = 1-15601-527-4, B = 1-15601-528-4, C = 1-15601-529-4, D = 1-15601-602-6, E = 1-15601-616-5, F = 1-15601-620-6, H = 1-15602-221-4, J = 1-15602-889-0	9-81345-036-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.50 ASM PART: A = 1-15601-527-4, B = 1-15601-528-4, C = 1-15601-529-4, D = 1-15601-602-6, E = 1-15601-616-5, F = 1-15601-620-6, J = 1-15602-889-0	9-81345-037-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.50 ASM PART: H = 1-15602-221-4	9-81345-037-0	01	1	-
21	RETAINER; SPRING SEAT,TIMER,INJ PUMP ASM PART: G = 1-15601-764-4, I = 1-15602-824-0	5-15749-048-0	02	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP ASM PART: G = 1-15601-764-4, I = 1-15602-824-0	5-15749-040-0	04	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: G = 1-15601-764-4, I = 1-15602-824-0	5-15749-051-1	01	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: A = 1-15601-527-4, B = 1-15601-528-4, C = 1-15601-529-4, H = 1-15602-221-4	9-81345-069-0	01	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: D = 1-15601-602-6, E = 1-15601-616-5, F = 1-15601-620-6, J = 1-15602-889-0	9-88410-470-0	01	1	-
24	GASKET; FLANGE,TIMER,INJ PUMP ASM PART: G = 1-15601-764-4, I = 1-15602-824-0	1-15749-036-0	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: A = 1-15601-527-4, B = 1-15601-528-4, C = 1-15601-529-4, H = 1-15602-221-4	1-15749-007-0	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: G = 1-15601-764-4, I = 1-15602-824-0	1-15749-034-0	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: D = 1-15601-602-6, E = 1-15601-616-5, F = 1-15601-620-6, J = 1-15602-889-0	9-88410-264-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: D = 1-15601-602-6, E = 1-15601-616-5, F = 1-15601-620-6, J = 1-15602-889-0	1-15742-062-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: G = 1-15601-764-4, I = 1-15602-824-0	5-15742-009-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: H = 1-15602-221-4	5-15742-011-0	02	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: A = 1-15601-527-4, B = 1-15601-528-4, C = 1-15601-529-4	5-15742-011-0	01	1	-
30	SEAL; OIL,TIMER COVER,INJ PUMP ASM PART: B = 1-15601-528-4	1-15749-002-0	01	1	-
30	SEAL; OIL,TIMER COVER,INJ PUMP ASM PART: A = 1-15601-527-4, C = 1-15601-529-4, D = 1-15601-602-6, E = 1-15601-616-5, F = 1-15601-620-6, H = 1-15602-221-4, J = 1-15602-889-0	1-15749-003-0	01	1	-
30	SEAL; OIL,TIMER COVER,INJ PUMP ASM PART: G = 1-15601-764-4, I = 1-15602-824-0	1-15749-073-0	01	1	-
38	COVER; TIMER,INJ PUMP ASM PART: G = 1-15601-764-4, I = 1-15602-824-0	1-15749-072-0	01	1	-
39	GASKET; TIMER COVER BOLT,INJ PUMP ASM PART: G = 1-15601-764-4, I = 1-15602-824-0	1-15749-028-0	02	1	-
39	GASKET; TIMER COVER BOLT,INJ PUMP ASM PART: A = 1-15601-527-4, B = 1-15601-528-4, C = 1-15601-529-4, D = 1-15601-602-6, E = 1-15601-616-5, F = 1-15601-620-6, H = 1-15602-221-4	8-97084-347-0	02	1	-
39	GASKET; TIMER COVER BOLT,INJ PUMP ASM PART: J = 1-15602-889-0	9-09571-308-0	02	1	-
43	SPRING; PISTON,TIMER,INJ PUMP ASM PART: D = 1-15601-602-6, E = 1-15601-616-5, F = 1-15601-620-6, J = 1-15602-889-0	1-15749-008-0	02	1	-
43	SPRING; PISTON,TIMER,INJ PUMP ASM PART: G = 1-15601-764-4, I = 1-15602-824-0	1-15749-271-0	04	1	-
43	SPRING; PISTON,TIMER,INJ PUMP ASM PART: A = 1-15601-527-4, B = 1-15601-528-4, C = 1-15601-529-4, H = 1-15602-221-4	1-15749-284-0	02	1	-
45	BOLT; TIMER COVER,INJ PUMP ASM PART: G = 1-15601-764-4, I = 1-15602-824-0	1-15749-029-0	02	1	-
45	BOLT; TIMER COVER,INJ PUMP ASM PART: A = 1-15601-527-4, B = 1-15601-528-4, C = 1-15601-529-4, D = 1-15601-602-6, E = 1-15601-616-5, F = 1-15601-620-6, H = 1-15602-221-4, J = 1-15602-889-0	9-81345-067-0	02	1	-
55	GASKET; TIMER HSG,INJ PUMP ASM PART: I = 1-15602-824-0	1-15749-449-1	01	1	-
55	GASKET; TIMER HSG,INJ PUMP ASM PART: G = 1-15601-764-4	5-15749-049-1	01	1	-
55	GASKET; TIMER HSG,INJ PUMP ASM PART: A = 1-15601-527-4, B = 1-15601-528-4, C = 1-15601-529-4, D = 1-15601-602-6, E = 1-15601-616-5, F = 1-15601-620-6, H = 1-15602-221-4, J = 1-15602-889-0	9-81345-138-0	01	1	-

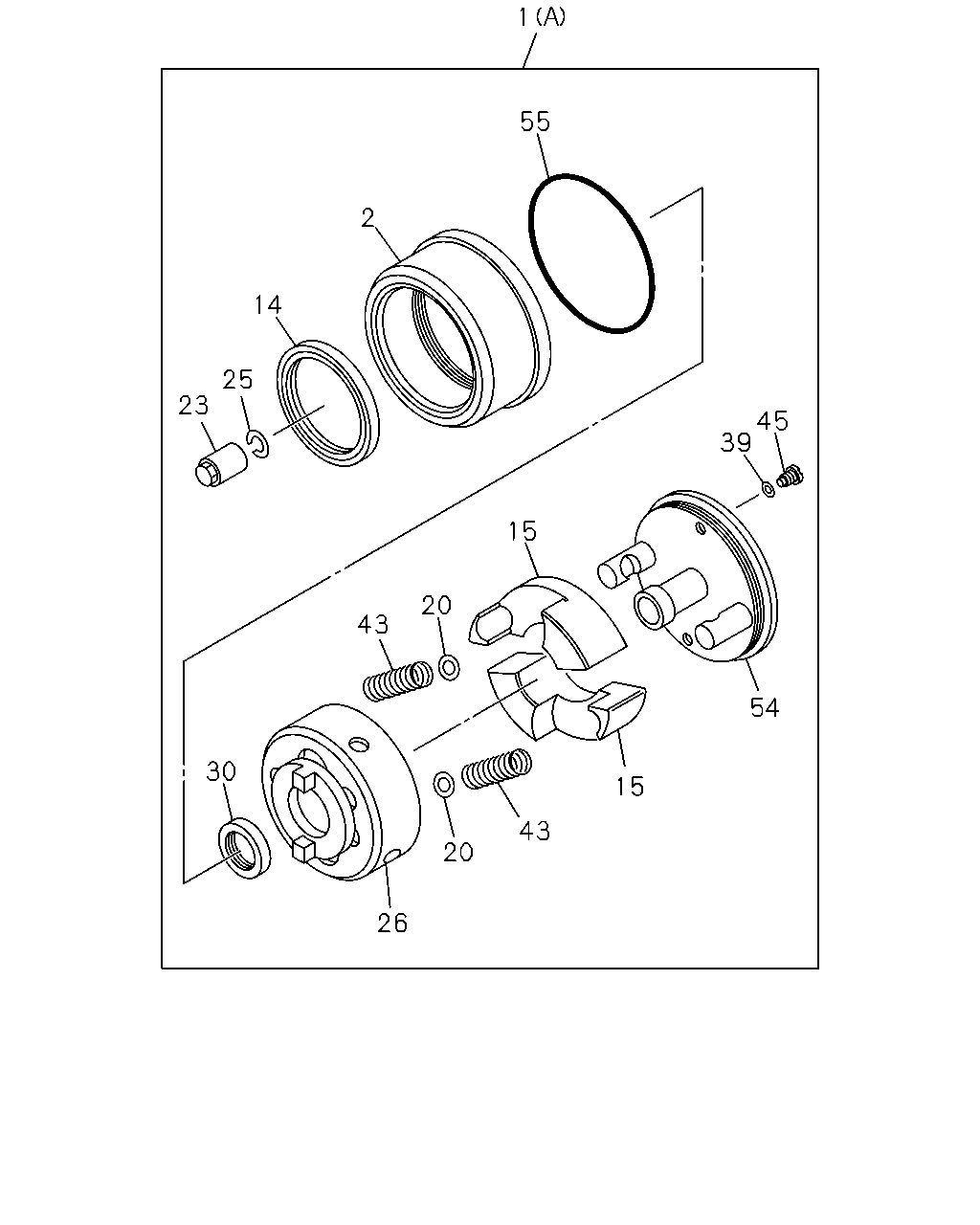

1 55 2 14 25 23 45 39 15 20 43 54 30 15 43 20 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TIMER ASM; INJ PUMP (B) ASM PART: G = 1-15601-764-4, I = 1-15602-824-0	1-15740-158-0	01	1	-
1	TIMER ASM; INJ PUMP (A) ASM PART: A = 1-15601-527-4, B = 1-15601-528-4, C = 1-15601-529-4, H = 1-15602-221-4	1-15740-198-0	01	1	-
1	TIMER ASM; INJ PUMP (A) ASM PART: D = 1-15601-602-6, E = 1-15601-616-5, F = 1-15601-620-6, J = 1-15602-889-0	1-15740-222-0	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: G = 1-15601-764-4, I = 1-15602-824-0	5-15741-002-0	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: A = 1-15601-527-4, B = 1-15601-528-4, C = 1-15601-529-4, D = 1-15601-602-6, E = 1-15601-616-5, F = 1-15601-620-6, H = 1-15602-221-4, J = 1-15602-889-0	5-15741-022-0	01	1	-
14	SEAL; OIL,AUTO TIMER ASM PART: A = 1-15601-527-4, B = 1-15601-528-4, C = 1-15601-529-4, D = 1-15601-602-6, E = 1-15601-616-5, F = 1-15601-620-6, H = 1-15602-221-4, J = 1-15602-889-0	1-15749-002-0	01	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: G = 1-15601-764-4, I = 1-15602-824-0	1-15743-017-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: A = 1-15601-527-4, B = 1-15601-528-4, C = 1-15601-529-4, H = 1-15602-221-4	5-15743-009-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: D = 1-15601-602-6, E = 1-15601-616-5, F = 1-15601-620-6, J = 1-15602-889-0	9-81341-515-0	02	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.15 ASM PART: A = 1-15601-527-4, B = 1-15601-528-4, C = 1-15601-529-4, D = 1-15601-602-6, E = 1-15601-616-5, F = 1-15601-620-6, H = 1-15602-221-4, J = 1-15602-889-0	1-15749-061-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.30 ASM PART: G = 1-15601-764-4, I = 1-15602-824-0	1-15749-097-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.40 ASM PART: G = 1-15601-764-4, I = 1-15602-824-0	1-15749-098-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.50 ASM PART: G = 1-15601-764-4, I = 1-15602-824-0	1-15749-099-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.60 ASM PART: G = 1-15601-764-4, I = 1-15602-824-0	1-15749-100-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.70 ASM PART: G = 1-15601-764-4, I = 1-15602-824-0	1-15749-101-1	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.80 ASM PART: G = 1-15601-764-4, I = 1-15602-824-0	1-15749-102-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.90 ASM PART: G = 1-15601-764-4, I = 1-15602-824-0	1-15749-103-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.50 ASM PART: G = 1-15601-764-4, I = 1-15602-824-0	1-15749-290-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=2.00 ASM PART: G = 1-15601-764-4, I = 1-15602-824-0	1-15749-291-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.10 ASM PART: G = 1-15601-764-4, I = 1-15602-824-0	9-81325-379-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.20 ASM PART: G = 1-15601-764-4, I = 1-15602-824-0	9-81325-380-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.25 ASM PART: G = 1-15601-764-4, I = 1-15602-824-0	9-81325-381-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.00 ASM PART: G = 1-15601-764-4, I = 1-15602-824-0	9-81325-382-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.50 ASM PART: A = 1-15601-527-4, B = 1-15601-528-4, C = 1-15601-529-4, D = 1-15601-602-6, E = 1-15601-616-5, F = 1-15601-620-6, H = 1-15602-221-4, J = 1-15602-889-0	9-81345-033-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.00 ASM PART: A = 1-15601-527-4, B = 1-15601-528-4, C = 1-15601-529-4, D = 1-15601-602-6, E = 1-15601-616-5, F = 1-15601-620-6, H = 1-15602-221-4, J = 1-15602-889-0	9-81345-034-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.10 ASM PART: A = 1-15601-527-4, B = 1-15601-528-4, C = 1-15601-529-4, D = 1-15601-602-6, E = 1-15601-616-5, F = 1-15601-620-6, H = 1-15602-221-4, J = 1-15602-889-0	9-81345-035-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.20 ASM PART: A = 1-15601-527-4, B = 1-15601-528-4, C = 1-15601-529-4, D = 1-15601-602-6, E = 1-15601-616-5, F = 1-15601-620-6, H = 1-15602-221-4, J = 1-15602-889-0	9-81345-036-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.50 ASM PART: A = 1-15601-527-4, B = 1-15601-528-4, C = 1-15601-529-4, D = 1-15601-602-6, E = 1-15601-616-5, F = 1-15601-620-6, J = 1-15602-889-0	9-81345-037-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.50 ASM PART: H = 1-15602-221-4	9-81345-037-0	01	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: G = 1-15601-764-4, I = 1-15602-824-0	5-15749-051-1	01	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: A = 1-15601-527-4, B = 1-15601-528-4, C = 1-15601-529-4, H = 1-15602-221-4	9-81345-069-0	01	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: D = 1-15601-602-6, E = 1-15601-616-5, F = 1-15601-620-6, J = 1-15602-889-0	9-88410-470-0	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: A = 1-15601-527-4, B = 1-15601-528-4, C = 1-15601-529-4, H = 1-15602-221-4	1-15749-007-0	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: G = 1-15601-764-4, I = 1-15602-824-0	1-15749-034-0	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: D = 1-15601-602-6, E = 1-15601-616-5, F = 1-15601-620-6, J = 1-15602-889-0	9-88410-264-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: D = 1-15601-602-6, E = 1-15601-616-5, F = 1-15601-620-6, J = 1-15602-889-0	1-15742-062-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: G = 1-15601-764-4, I = 1-15602-824-0	5-15742-009-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: H = 1-15602-221-4	5-15742-011-0	02	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: A = 1-15601-527-4, B = 1-15601-528-4, C = 1-15601-529-4	5-15742-011-0	01	1	-
30	SEAL; OIL,TIMER COVER,INJ PUMP ASM PART: B = 1-15601-528-4	1-15749-002-0	01	1	-
30	SEAL; OIL,TIMER COVER,INJ PUMP ASM PART: A = 1-15601-527-4, C = 1-15601-529-4, D = 1-15601-602-6, E = 1-15601-616-5, F = 1-15601-620-6, H = 1-15602-221-4, J = 1-15602-889-0	1-15749-003-0	01	1	-
30	SEAL; OIL,TIMER COVER,INJ PUMP ASM PART: G = 1-15601-764-4, I = 1-15602-824-0	1-15749-073-0	01	1	-
39	GASKET; TIMER COVER BOLT,INJ PUMP ASM PART: G = 1-15601-764-4, I = 1-15602-824-0	1-15749-028-0	02	1	-
39	GASKET; TIMER COVER BOLT,INJ PUMP ASM PART: A = 1-15601-527-4, B = 1-15601-528-4, C = 1-15601-529-4, D = 1-15601-602-6, E = 1-15601-616-5, F = 1-15601-620-6, H = 1-15602-221-4	8-97084-347-0	02	1	-
39	GASKET; TIMER COVER BOLT,INJ PUMP ASM PART: J = 1-15602-889-0	9-09571-308-0	02	1	-
43	SPRING; PISTON,TIMER,INJ PUMP ASM PART: D = 1-15601-602-6, E = 1-15601-616-5, F = 1-15601-620-6, J = 1-15602-889-0	1-15749-008-0	02	1	-
43	SPRING; PISTON,TIMER,INJ PUMP ASM PART: G = 1-15601-764-4, I = 1-15602-824-0	1-15749-271-0	04	1	-
43	SPRING; PISTON,TIMER,INJ PUMP ASM PART: A = 1-15601-527-4, B = 1-15601-528-4, C = 1-15601-529-4, H = 1-15602-221-4	1-15749-284-0	02	1	-
45	BOLT; TIMER COVER,INJ PUMP ASM PART: G = 1-15601-764-4, I = 1-15602-824-0	1-15749-029-0	02	1	-
45	BOLT; TIMER COVER,INJ PUMP ASM PART: A = 1-15601-527-4, B = 1-15601-528-4, C = 1-15601-529-4, D = 1-15601-602-6, E = 1-15601-616-5, F = 1-15601-620-6, H = 1-15602-221-4, J = 1-15602-889-0	9-81345-067-0	02	1	-
54	HOLDER; FLYWEIGHT,TIMER,INJ PUMP ASM PART: D = 1-15601-602-6, E = 1-15601-616-5, F = 1-15601-620-6, J = 1-15602-889-0	1-15741-022-0	01	1	-
54	HOLDER; FLYWEIGHT,TIMER,INJ PUMP ASM PART: A = 1-15601-527-4, B = 1-15601-528-4, C = 1-15601-529-4, H = 1-15602-221-4	5-15749-054-0	01	1	-
55	GASKET; TIMER HSG,INJ PUMP ASM PART: I = 1-15602-824-0	1-15749-449-1	01	1	-
55	GASKET; TIMER HSG,INJ PUMP ASM PART: G = 1-15601-764-4	5-15749-049-1	01	1	-
55	GASKET; TIMER HSG,INJ PUMP ASM PART: A = 1-15601-527-4, B = 1-15601-528-4, C = 1-15601-529-4, D = 1-15601-602-6, E = 1-15601-616-5, F = 1-15601-620-6, H = 1-15602-221-4, J = 1-15602-889-0	9-81345-138-0	01	1	-
