◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11197 - FXZ SOUTH AFRICA ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#21819) — 73 parça

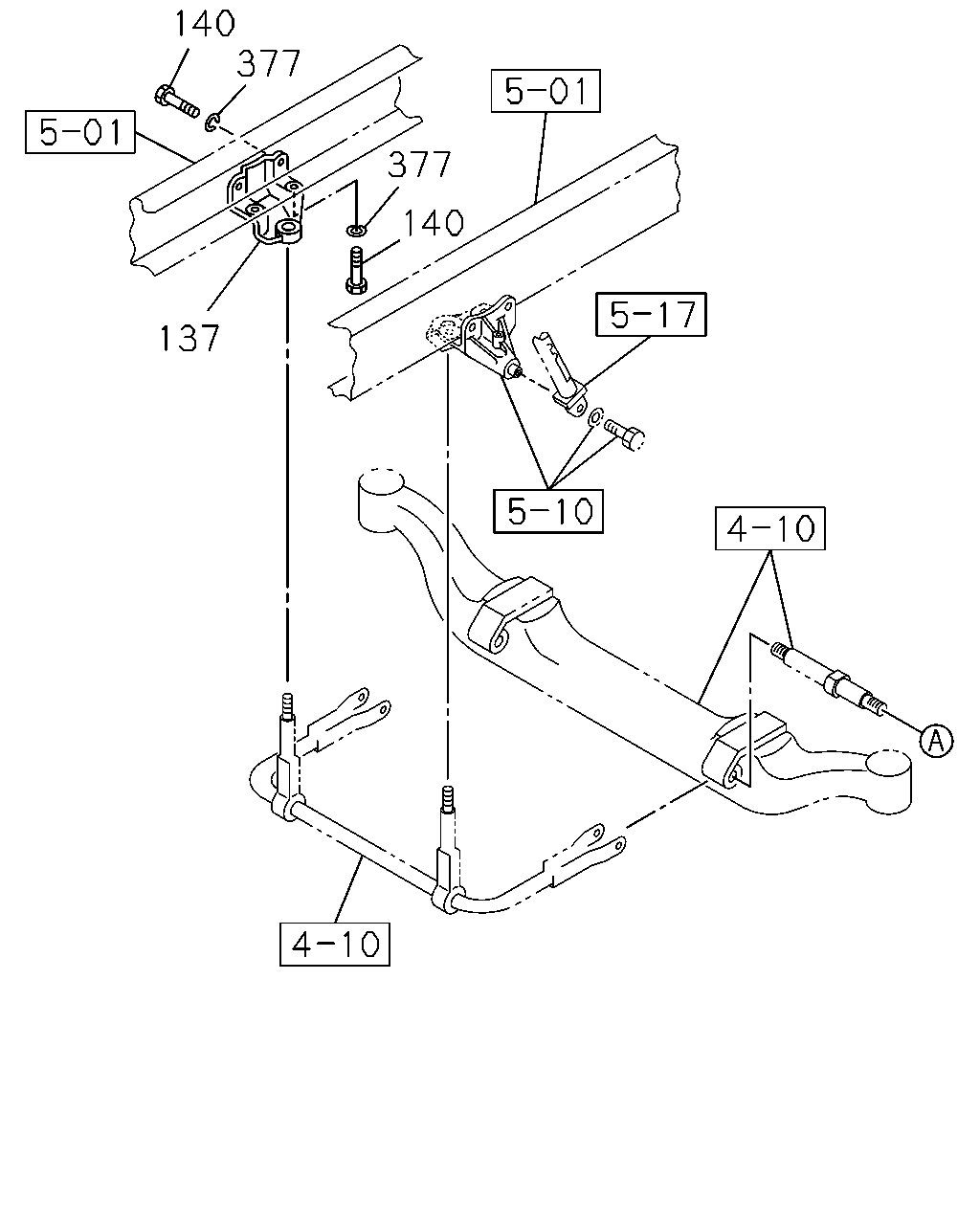

çizim 129308
140 377 377 140 137
BalonParca AdiParca NoAdetTipApplied Date A B
137 BRACKET; STAB BAR TO FRAME 1-51781-111-0 01 1 1004-1108 ●
137 BRACKET; STAB BAR TO FRAME 1-51781-111-0 01 1 1109- ● ●
140 BOLT; BRKT
M14X50 SOU 		0-20951-450-0 04 1 1004-1108 ●
140 BOLT; BRKT
M14X50 SOU 		0-20951-450-0 04 1 1109- ● ●
377 WASHER; LK,BRKT
ID=15 SOU 		8-98010-627-1 04 1 1004-1108 ●
377 WASHER; LK,BRKT
WHEEL BASE 6600MM(66W) EXC. VIN MODEL YEAR 2011<VZB> ID=15 SOU 		8-98010-627-1 04 1 1109- ●

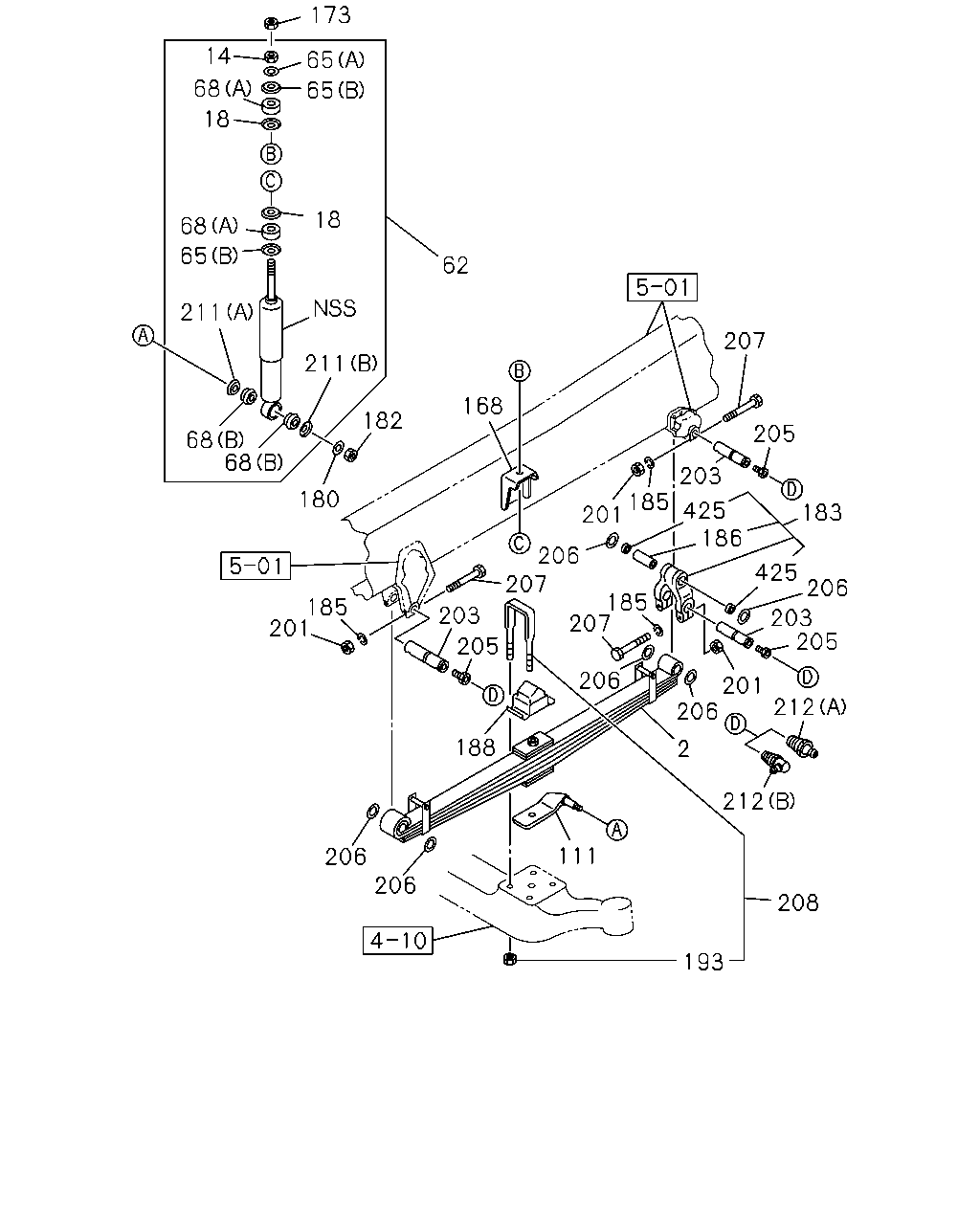

çizim 129334
173 14 65 68 65 18 18 68 65 62 211 207 211 168 182 205 68 68 203 183 180 185 425 186 201 206 207 425 206 185 207 185 201 203 203 205 205 206 201 206 212 188 2 212 111 206 206 208 193
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> 3-LEAF 		8-98107-911-0 02 1 1109- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> 4-LEAF 		8-98098-671-0 02 1 1004- ●
14 NUT; S/ABS,UPR
FRT TAPER LEAF SUSPENSION<SAR> M14 		9-99111-414-0 02 1 1004-1108 ●
14 NUT; S/ABS,UPR
FRT TAPER LEAF SUSPENSION<SAR> M14 		9-99111-414-0 02 1 1109- ● ●
18 WASHER; CENTERING,S/ABS
FRT TAPER LEAF SUSPENSION<SAR> ID=24 		1-51631-067-0 04 1 1004-1108 ●
18 WASHER; CENTERING,S/ABS
FRT TAPER LEAF SUSPENSION<SAR> ID=24 		1-51631-067-0 04 1 1109- ● ●
62 ABSORBER ASM; SHOCK,FRT
FRT TAPER LEAF SUSPENSION<SAR> 		1-51630-433-1 02 1 1109- ●
62 ABSORBER ASM; SHOCK,FRT
FRT TAPER LEAF SUSPENSION<SAR> 		1-51630-830-0 02 1 1004- ●
65 WASHER; S/ABS
FRT TAPER LEAF SUSPENSION<SAR> (A) ID=16.5 		1-09503-266-0 02 1 1004-1108 ●
65 WASHER; S/ABS
FRT TAPER LEAF SUSPENSION<SAR> (A) ID=16.5 		1-09503-266-0 02 1 1109- ● ●
65 WASHER; S/ABS
FRT TAPER LEAF SUSPENSION<SAR> (B) ID=16.5 		1-51631-068-0 04 1 1004-1108 ●
65 WASHER; S/ABS
FRT TAPER LEAF SUSPENSION<SAR> (B) ID=16.5 		1-51631-068-0 04 1 1109- ● ●
68 BUSHING; S/ABS
FRT TAPER LEAF SUSPENSION<SAR> (A) ID=16 T=25 		1-51631-069-0 04 1 1004-1108 ●
68 BUSHING; S/ABS
FRT TAPER LEAF SUSPENSION<SAR> (A) ID=16 T=25 		1-51631-069-0 04 1 1109- ● ●
68 BUSHING; S/ABS
FRT TAPER LEAF SUSPENSION<SAR> (B) 		9-51631-026-0 04 1 1004-1108 ●
68 BUSHING; S/ABS
FRT TAPER LEAF SUSPENSION<SAR> (B) 		9-51631-026-0 04 1 1109- ● ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		1-51681-826-1 01 1 1004-1004 ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		8-98121-195-0 01 1 1005-1108 ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		8-98121-195-0 01 1 1109- ● ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		1-51681-825-1 01 1 1004-1004 ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		8-98121-193-0 01 1 1005-1108 ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		8-98121-193-0 01 1 1109- ● ●
168 BRACKET; S/ABS,FRT SUSP
SOU 		1-51681-616-0 02 1 1004-1108 ●
168 BRACKET; S/ABS,FRT SUSP
SOU 		1-51681-616-0 02 1 1109- ● ●
173 NUT; S/ABS
M14 SOU 		0-91111-514-0 02 1 1004-1108 ●
173 NUT; S/ABS
M14 SOU 		0-91111-514-0 02 1 1109- ● ●
180 WASHER; PL,PIN
ID=21 		0-91610-520-0 02 1 1004-1108 ●
180 WASHER; PL,PIN
ID=21 		0-91610-520-0 02 1 1109- ● ●
182 NUT; S/ABS LWR
M20 		0-91110-520-0 02 1 1004-1108 ●
182 NUT; S/ABS LWR
M20 		0-91110-520-0 02 1 1109- ● ●
183 SHACKLE; FRT SUSP 1-51162-071-0 02 1 1004-1005 ●
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 1006-1108 ●
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 1109- ● ●
185 WASHER; LK,PIN
ID=12.2 SOU 		0-91510-612-0 12 1 1004-1108 ●
185 WASHER; LK,PIN
ID=12.2 SOU 		0-91510-612-0 12 1 1109- ● ●
186 BUSHING; SHACKLE
OD=42 		1-51351-044-0 02 1 1004-1005 ●
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 1006-1108 ●
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 1109- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 8-98075-087-0 02 1 1109- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-096-2 02 1 1004- ●
193 NUT; U BOLT
M22 		0-91112-822-0 08 1 1004-1108 ●
193 NUT; U BOLT
M22 		0-91112-822-0 08 1 1109-1206 ● ●
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1207- ● ●
201 NUT; PIN LK
M12 SOU 		0-91110-512-0 12 1 1004-1108 ●
201 NUT; PIN LK
M12 SOU 		0-91110-512-0 12 1 1109- ● ●
203 PIN; SPR TO SHACKLE 1-51161-031-0 06 1 1004-1108 ●
203 PIN; SPR TO SHACKLE 1-51161-031-0 06 1 1109- ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 1004-1108 ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 1109- ● ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 1004-1108 ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 1109- ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 12 1 1004-1108 ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 12 1 1109- ● ●
208 U-BOLT SET; FRT SPRING
L=230 		1-87870-269-2 04 1 1004-1108 ●
208 U-BOLT SET; FRT SPRING
L=230 		1-87870-269-2 04 1 1109-1206 ●
208 U-BOLT SET; FRT SPRING
FRT TAPER LEAF SUSPENSION<SAR> L=230 		1-87870-269-2 04 1 1109-1206 ●
208 U-BOLT SET; FRT SPRING
L=230 		1-87870-493-0 04 1 1207- ●
208 U-BOLT SET; FRT SPRING
FRT TAPER LEAF SUSPENSION<SAR> L=230 		1-87870-493-0 04 1 1207- ●
211 WASHER; BRKT,SHOCK
FRT TAPER LEAF SUSPENSION<SAR> (A) ID=27 		9-51631-027-0 02 1 1004-1108 ●
211 WASHER; BRKT,SHOCK
FRT TAPER LEAF SUSPENSION<SAR> (A) ID=27 		9-51631-027-0 02 1 1109- ● ●
211 WASHER; BRKT,SHOCK
FRT TAPER LEAF SUSPENSION<SAR> (B) ID=21 		9-51631-028-0 02 1 1004-1108 ●
211 WASHER; BRKT,SHOCK
FRT TAPER LEAF SUSPENSION<SAR> (B) ID=21 		9-51631-028-0 02 1 1109- ● ●
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT SOU 		0-90301-410-0 02 1 1004-1108 ●
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT SOU 		0-90301-410-0 02 1 1109- ● ●
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		0-90301-610-0 04 1 1004-1108 ●
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		0-90301-610-0 04 1 1109- ● ●
425 SEAL; DUST 1-51177-321-0 04 1 1004-1005 ●
