◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11197 - FXZ SOUTH AFRICA ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-33 - STEERING LINKAGE ▶
4-33 — STEERING LINKAGE (#21814) — 18 parça

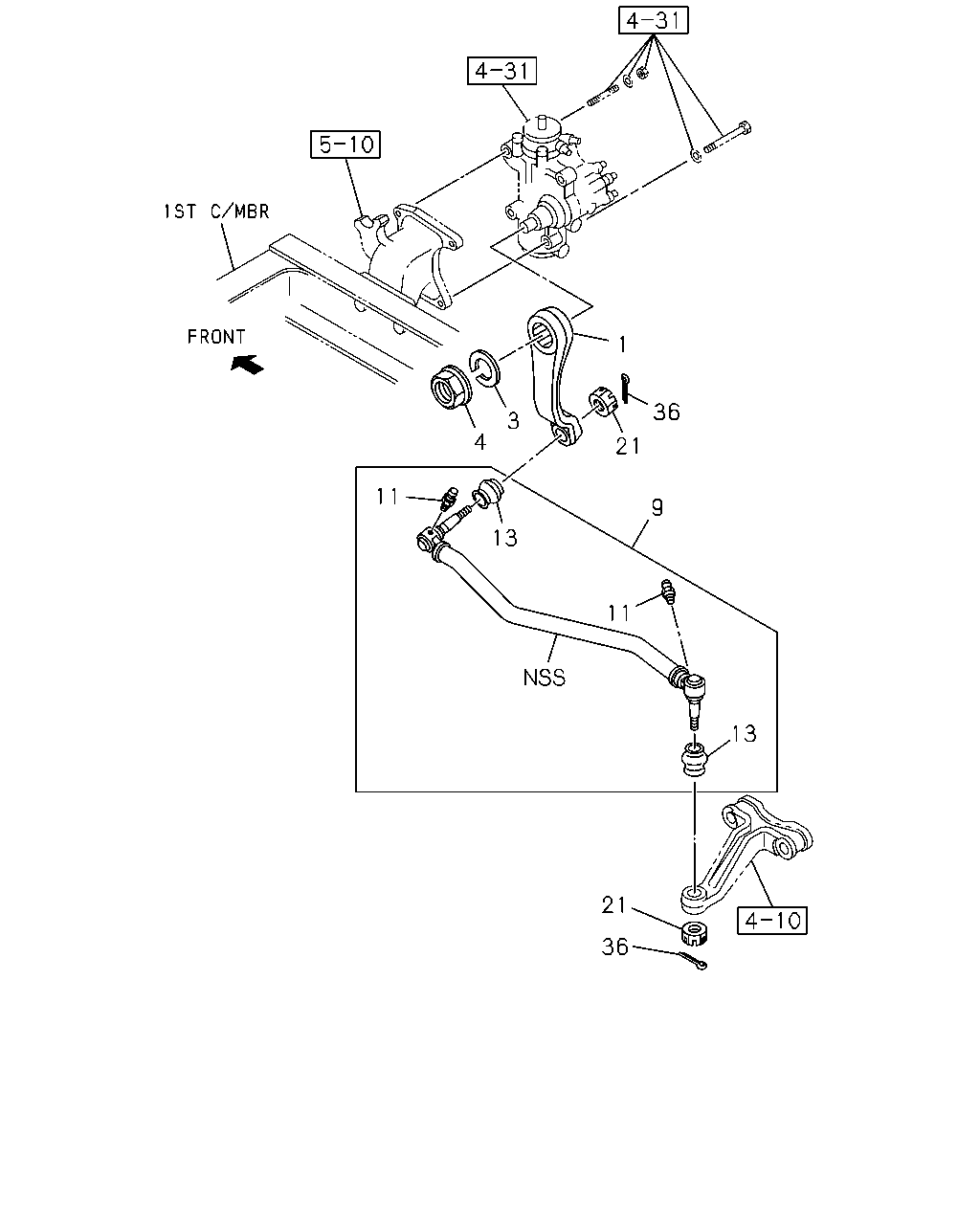

çizim 129297
1 36 3 4 21 11 9 13 11 13 21 36
BalonParca AdiParca NoAdetTipApplied Date A B
1 ARM; PITMAN,STRG 1-44341-515-1 01 1 1004-1108 ●
1 ARM; PITMAN,STRG 1-44341-515-1 01 1 1109- ● ●
3 WASHER; LK,PITMAN ARM
ID=36.5 		1-09500-056-0 01 1 1004-1108 ●
3 WASHER; LK,PITMAN ARM
ID=36.5 		1-09500-056-0 01 1 1109- ● ●
4 NUT; PITMAN ARM
M36 FLANGE 		1-09440-098-0 01 1 1004-1108 ●
4 NUT; PITMAN ARM
M36 FLANGE 		1-09440-098-0 01 1 1109- ● ●
9 LINK; DRAG
VIN MODEL YEAR 2011<VZB> 		8-98193-140-0 01 1 1109- ●
9 LINK; DRAG 8-98193-140-0 01 1 1109- ●
9 LINK; DRAG 1-44380-320-1 01 1 1004-1108 ●
9 LINK; DRAG
EXC. VIN MODEL YEAR 2011<VZB> 		1-44380-320-1 01 1 1109- ●
11 NIPPLE; GREASE,DRAG LINK 1-43159-132-0 02 1 1004-1108 ●
11 NIPPLE; GREASE,DRAG LINK 1-43159-132-0 02 1 1109- ● ●
13 BOOT; DRAG LINK 1-43159-134-0 02 1 1004-1108 ●
13 BOOT; DRAG LINK 1-43159-134-0 02 1 1109- ● ●
21 NUT; LK,JOINT BALL
M24 SLOTTED 		1-09442-028-0 02 1 1004-1108 ●
21 NUT; LK,JOINT BALL
M24 SLOTTED 		1-09442-028-0 02 1 1109- ● ●
36 PIN; SPLIT,DRAG LINK
OD=4.6 L=35 		0-81125-035-0 02 1 1004-1108 ●
36 PIN; SPLIT,DRAG LINK
OD=4.6 L=35 		0-81125-035-0 02 1 1109- ● ●
