2-05 — CLUTCH PIPING (#21803) — 37 parça

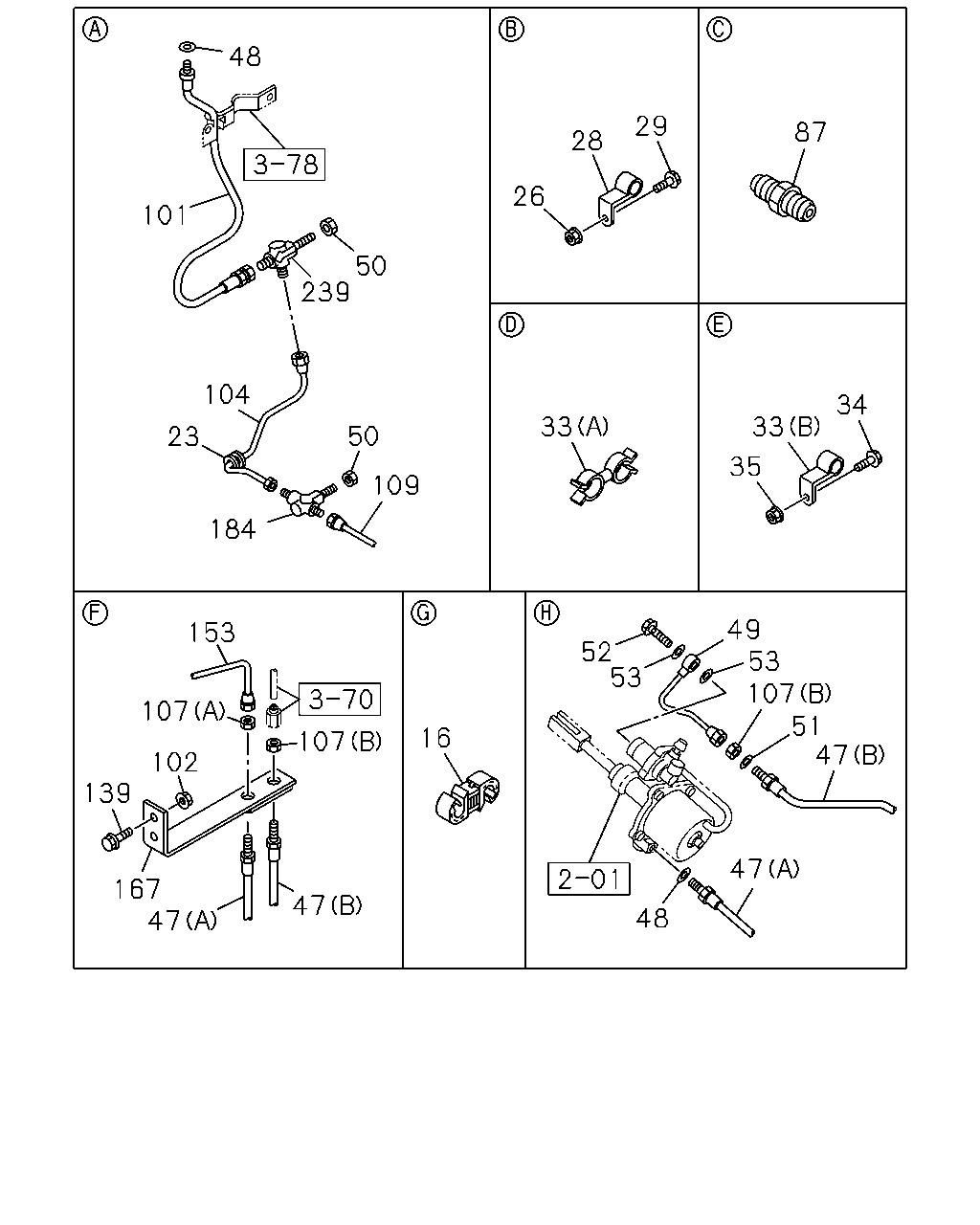

çizim 134859
48 29 87 28 26 101 50 239 104 34 33 33 50 23 35 109 184 49 53 107 51 47 153 52 53 107 16 107 102 139 47 167 47 47 48
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; FLEX HOSE
ID=10 & 12 		1-09709-278-1 01 1 1103-
23 GROMMET; CLU PIPE
ID=28 OD=35 T=17 		9-09956-256-2 01 1 1103-
26 NUT; CLIP,OIL PIPE
M8 FLANGE THA 		0-91180-108-0 03 1 1103-
28 CLIP; OIL PIPE
ID=8 H=20 L=20 		1-09700-604-0 03 1 1103-
29 BOLT; CLIP,OIL PIPE
M8X25 FLANGE THA 		0-28650-825-0 02 1 1103-
29 BOLT; CLIP,OIL PIPE
M8X30 FLANGE THA 		0-28650-830-0 01 1 1103-
33 CLIP; OIL PIPE
(B) ID=8 H=20 L=20 		1-09700-604-0 04 1 1103-
33 CLIP; OIL PIPE
(A) ID=8.3 & 10 		8-94176-792-0 01 1 1103-
34 BOLT; PIPE CLIP
M8X30 FLANGE THA 		0-28650-830-0 04 1 1103-
35 NUT; PIPE CLIP
M8 FLANGE THA 		0-91180-108-0 04 1 1103-
47 HOSE; FLEX,CLU CONT
(B) L=560 		1-09363-689-0 01 1 1103-
47 HOSE; FLEX,CLU CONT
(A) L=520 		1-09364-583-0 01 1 1103-
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 THA 		9-09571-410-0 01 1 1103-
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 THA 		9-09571-410-0 01 1 1103-
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
L=232 		1-49124-795-0 01 1 1103-
50 NUT; UNION
M12 		0-91111-512-0 01 1 1103-
50 NUT; UNION
M12 		0-91111-512-0 01 1 1103-
51 WASHER; LK
ID=12.2 		0-91510-512-0 01 1 1103-
52 BOLT; EYE,AIR PIPE
M14X27 FLANGE THA 		1-09675-086-0 01 1 1103-
53 GASKET; JOINT BOLT
ID=14.2 OD=19.2 		1-09630-085-0 02 1 1103-1312
53 GASKET; JOINT BOLT
ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401-
87 UNION; OIL PIPE
M14 STRAIGHT 		0-92113-008-0 01 1 1103-
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=440 		8-98072-346-0 01 1 1103-
102 NUT; FLEX HOSE,CLU CONT
M8 FLANGE THA 		0-91180-108-0 02 1 1103-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=542 SERVICED BY L=550 THA 		1-47428-753-0 01 1 1103-
107 NUT; UNION,OIL PIPE
(A) M14 		0-91111-514-0 01 1 1103-
107 NUT; UNION,OIL PIPE
(B) M12 		9-09840-280-0 02 1 1103-
109 PIPE; AIR,UNION TO UNION
L=1407 SERVICED BY L=1550 THA 		1-47428-766-0 01 1 1103-
139 BOLT; BRKT
M8X30 FLANGE THA 		0-28650-830-0 02 1 1103-
153 PIPE ASM; CLU,UNION TO FLEX
L=2227 THA 		8-98130-573-0 01 1 1103-
167 BRACKET; UNION 8-98077-571-0 01 1 1103-
184 UNION; FLEX HOSE
M14 2WAY 		1-09654-176-2 01 1 1103-
239 UNION; CLU HOSE 8-98107-850-0 01 1 1103-

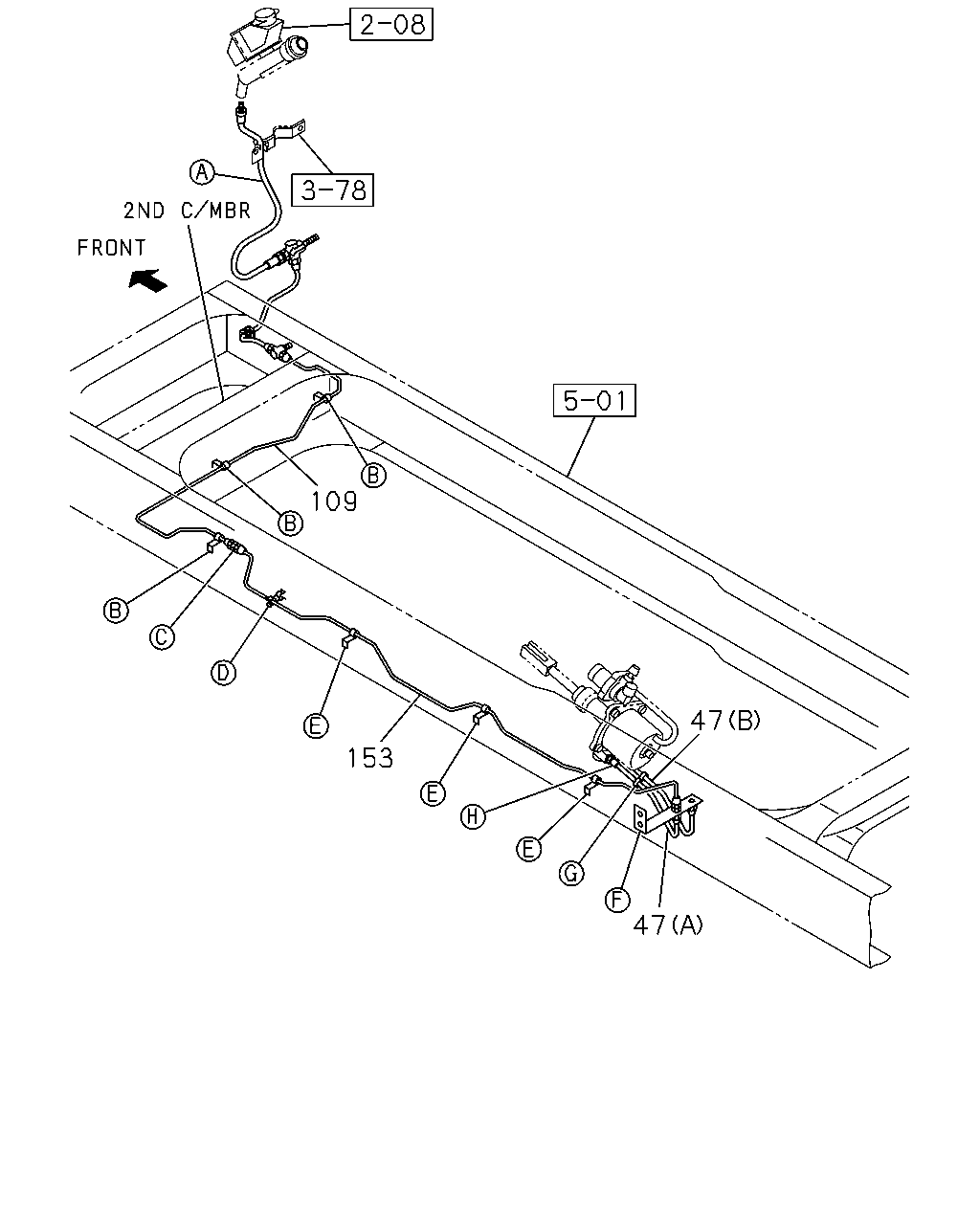

çizim 134860
109 47 153 47
BalonParca AdiParca NoAdetTipApplied Date
47 HOSE; FLEX,CLU CONT
(B) L=560 		1-09363-689-0 01 1 1103-
47 HOSE; FLEX,CLU CONT
(A) L=520 		1-09364-583-0 01 1 1103-
109 PIPE; AIR,UNION TO UNION
L=1407 SERVICED BY L=1550 THA 		1-47428-766-0 01 1 1103-
153 PIPE ASM; CLU,UNION TO FLEX
L=2227 THA 		8-98130-573-0 01 1 1103-
